USER MANUAL 15361 Kienzle

Document icon with horizontal lines and a square border, likely representing text or document content.

INFOS+DOWNLOADS:

Simple shield icon with a checkmark inside, no text or symbols present

GARANTIE · WARRANTY · GARANTÍA · GARANZIA

www.bresser.de/warranty_terms

Paper | Supporting responsible forestry

FSC® C144615

Technical diagram of a circular device with numbered components and labeled parts, likely for assembly or labeling.

SNOOZE 19

5. TEILEÜBERSICHT

1. About this manual 12
2. General safety instructions 12
3. Scope of delivery 13
4. Features 13
5. Parts overview 15
6. Buttons 15
7. Initial operation 16
8. DCF Radio signal 16
9. Manual time setting 16
10. Alarm Setting 17
11. Turn OFF the alarm sound 18
12. Snooze function 18
13. Maximum/minimum temperature 18
14. Low battery reminder 18
15. Cleaning instructions 18
16. EC Declaration of Conformity 19
17. Disposal 19
18. Warranty 19

1. ABOUT THIS MANUAL

This instruction manual is to be considered part of the device. Before using the device, please read the safety instructions and the user manual carefully.

Keep this user manual for future reference. If the device is sold or passed on, the instruction manual must be provided to the new owner/user of the product. The device is intended for indoor use only!

2. GENERAL SAFETY INSTRUCTIONS

• RISK OF CHOKING! Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard.
• RISK OF ELECTRIC SHOCK! This device contains electronic components that operate via a power source (batteries). Children should only use the device under adult supervision. Only use the device as described in the manual; otherwise, you run the risk of an electric shock.
• RISK OF CHEMICAL BURN! Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately with a plenty of water and seek medical attention.
• RISK OF FIRE/EXPLOSION! Use only the recommended batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire or an explosion.

NOTE! Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.

EN

• Do not immerse the unit in water.
• Do not subject the unit to excessive force, shock, dust, extreme temperature or high humidity, which may result in malfunction, shorter electronic life span, damaged batteries and distorted parts.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries at full capacity. Do not use batteries from different brands or with different capacities. Remove the batteries from the unit if it has not been used for a long time.
• The manufacturer is not liable for damage related to improperly installed batteries!

3. SCOPE OF DELIVERY

Clock, 2x AA Batteries

4. FEATURES

• DCF Radio controlled clock function
  • Perpetual calendar up to year 2099
  • Day of week in 7 languages
• Timing in optional 12/24 hour format.
• Dual alarms that can be set on weekdays / weekends and daily
• Snooze time setting (1\~30 Minute or OFF)
• Low battery indicator
  • Maximum / minimum value record of temperature
• Temperature measurement ranges: -9.9°C (14.2°F) \~ 50°C (122°F)
  • Temperature alternatively in °C or °F
  • Power: 2 x AA batteries (LR6/1.5V)

26/SEP 12:34 SATURDAY 27.8°C ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ MAX MIN

Technical diagram of a circular device with numbered components and labeled parts, likely for assembly or labeling.

SNOOZE 19

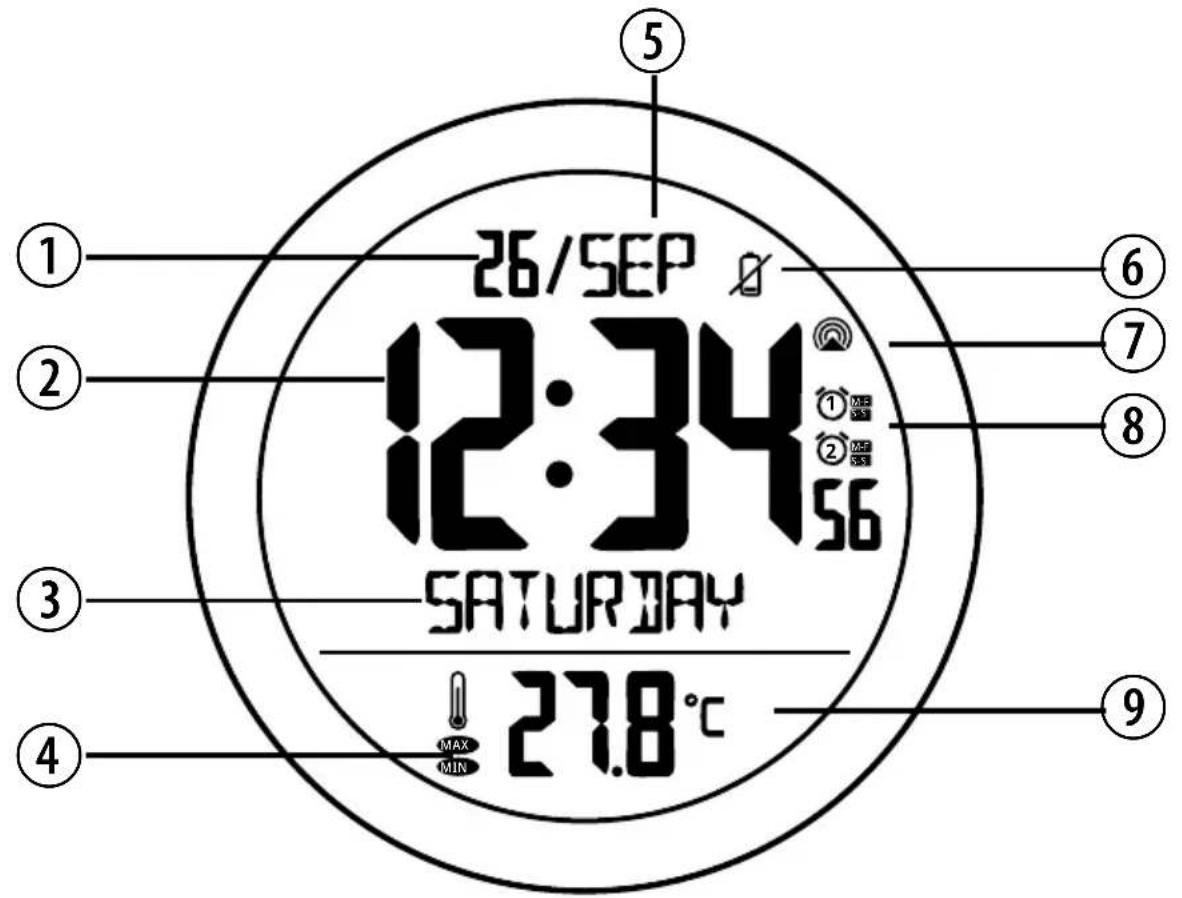

5. PARTS OVERVIEW

1. Date
2. Time
3. Weekday
4. Max./Min. temperature record
5. Month
6. Low battery indicator
7. Radio controlled icon
8. Alarm ON symbol (Alarm 1, 2 or 1+2) (M-F and/or S-S)
9. Temperature
10. Hanging hole
11. Settings button
12. Alarm ON button
13. • button
14. • button
15. Max./Min. button
16. Alarm button
17. Battery compartment cover
18. Stand
19. Snooze touch button

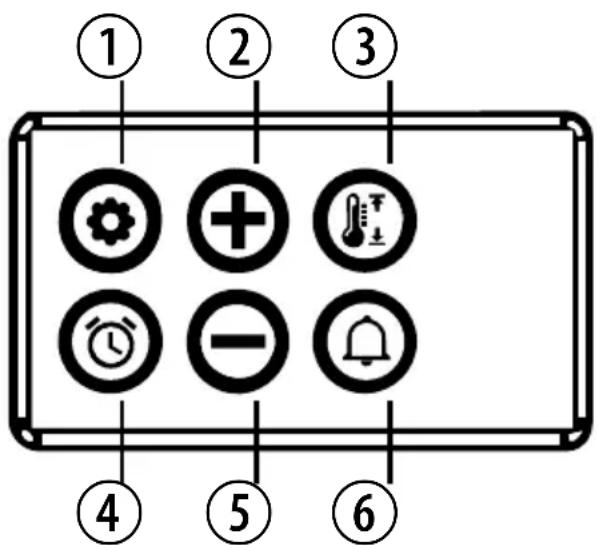

6. BUTTONS

① ② ③ ④ ⑤ ⑥

1. Press and hold for 2 seconds to enter regular settings modes such as time and date.
2. Adjust the number upwards in the setting mode.
3. Check the maximum and minimum temperature values for the day. Press and hold for 2 seconds to clear the maximum and minimum memory values.
4. Check the alarm time, press and hold for 2 seconds when the alarm time is displayed to enter the setting mode of the alarm.
5. Adjust the number downwards in the setting mode. Press and hold 2 seconds to manually enter the radio control mode.
6. Turn the alarm function on or off.

1. Open the battery compartment cover.
2. Insert 2 x AA batteries, paying attention to the polarity [ + ] and [ - ].
3. When you insert the batteries, all the symbols on the LCD display light up briefly for 3 seconds and you will hear a beep. At the same time, the device is switched to working mode.

8. DCF RADIO SIGNAL

1. The product will automatically search the DCF signal after the product is powered on and working normally, the symbol ▲ flashing indicates entering radio control reception mode, when a valid signal is identified, the symbol ▲ will not flash, and the symbol 📋 will flash.
2. In standard mode, press and hold the button — for 3 seconds to entering radio control reception mode manually.
3. At 1:00 /2:00 / 3:00 (A.M.), the product automatically carries out the synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the system will automatically attempt another synchronization at the next full one hour. This procedure is repeated automatically up to total 5 times.
4. During radio control reception, to stop searching radio wave signal, press the button — once.

: Received successfully

: The previous reception was successful, but the last reception failed

: Radio control function is set to OFF

Note: We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors.

Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.

During the radio wave receive mode, only the "-" button function, other button operation have no function, If you want to carry out other functions of operation, please press "-" button to exit the receiving mode.

9. MANUAL TIME SETTING

• Press and hold the ⚙ button for 2 seconds, the Radio Control ON/OFF display starts to flash, and press the “+” or “−” buttons to set the Radio Control function is ON or OFF.
• Press the button to confirm the item has been set and go to the next one, the sequence of setting items is as follows:
• RCC ON/OFF → DST ON/OFF → Time Zone (+/- 12 h) → 12/24Hr → HOUR → MINUTE → Language → YEAR → MONTH → DATE → Temperature Unit
• When adjusting the value, press and hold the “+” or “−” button to adjust quickly.
• Press 🎨 button to confirm the last item to end the setting procedures, then it will return to the normal mode.
• When choosing the 12Hr format, if "AM" is displayed before the hours, it means that the hour is

ante meridiem, if "PM" is displayed before the hours, it means that the hour is post meridiem.

- The 7 languages that show week and month abbreviations are listed below:

EN

LanguageWeek

DEUTSCH

ENGLISH

FRANCAIS

ITALIANO

ESPANOL

NEDERLANDS

DANSK

DEUTSCH

ENGLISH

FRANCAIS

ITALIANO

ESPANOL

NEDERLANDS

JANSK

MONDAY

MONTAG

MONDAY

LUNDI

LUNEDI

LUNES

MARJAG

MANJAG

TUESDAY

IENSTAG

TUESDAY

MARDI

MARTEDI

MARTES

IINSJAG

TIRSJAG

WEDNESDAY

MITTWOCH

WEJNESDAY

MERCREDI

MERCOLEDI

MIERCOLES

WOENSJAG

ONSJAG

THURSDAY

JONNERSTAG

THURSDAY

JEUDI

GIOVEIDI

JUEVES

JONDERJAG

TOPSJAG

FRIDAY

FREITAG

FRIDAY

VENIREDI

VENERDI

VIERNES

VRJDJAG

FREDJAG

SATURDAY

SAMSTAG

SATURDAY

SAMEDI

SABATO

SABADO

ZATERJAG

LORDJAG

SUNDAY

SONNTAG

SUNDAY

TIMANCHE

DOMENICA

DOMINGO

ZONJAG

SONJAG

MonthLanguage

1

2

3

4

5

6

7

8

9

10

11

12

DEUTSCH

JAN

FEJ

MAR

APR

MAI

JUN

JUL

AUG

SEP

OKT

NOV

DEZ

ENGLISH

JAN

FEJ

MAR

APR

MAY

JUN

JUL

AUG

SEP

OCT

NOV

DEC

FRANCAIS

JAN

FEV

MAR

AVR

MAI

JU

JUL

AOU

SEP

OCT

NOV

DEC

ITALIANO

GEN

FEJ

MAR

APR

MAG

GIU

LUG

AGO

SET

OTT

NOV

DIC

ESPANOL

ENE

FEJ

MAR

ADR

MAY

JUN

JUL

AGO

SEP

OCT

NOV

DIC

NEDERLANDS

JAN

FEJ

MAR

APR

MEI

JUN

JUL

AUG

SEP

OKT

NOV

DEC

DANSK

JAN

FEJ

MAR

APR

MAU

JUN

JUL

AUG

SEP

OKT

NOV

DEC

Note: If there is no valid operation within 20 seconds, it will automatically return to normal time mode from the set mode.

10. ALARM SETTING

• Press the 🔒 button, you can set Alarm1 and Alarm2 ON or OFF. When symbol ① appears, it means that ALARM1 is ON, when symbol ② appears, it means that ALARM2 is ON, when symbol ① or ② disappears, it means that corresponding ALARM is OFF.
• Press the ⏻ button once, the LCD displays Alarm1 time (5 seconds), press the ⏻ button again when Alarm1 time is displayed, then the LCD displays Alarm2 time (5 seconds), press the ⏻ button again when Alarm2 time is displayed to return to current time display.
• When Alarm1 time is displayed, press and hold the ⏻ button for 2 seconds until Hour of Alarm1 time starts to flash, press the “+” or “−” button to set the required Hour.
• Press the ⏻ button to confirm the item has been set and go to the next one, the sequence of setting items is as follows:
  • Hour of Alarm1 > Minute of Alarm1 > repeat period of Alarm1 > Snooze time of Alarm1
• When setting the repeat period, comply with the following rules:

• Mon Monday to Friday
• S-S 5SAT-5UN
• M-F MON-SUN S-S

• The snooze time can be set to 1-30 minutes or OFF, if "OFF" is selected, it means that the snooze function is turned off.
• The Alarm2 time can be set according to the same method above.

Note: If there is no valid operation within 20 seconds, it will automatically return to normal time mode from the alarm time set mode.

When adjusting the value, press and hold the “+” or “−” button to adjust continuously and quickly.

When the alarm time reaches, the Alarm will sound for 2 minutes if you do not deactivate it by pressing any button.

11. TURN OFF THE ALARM SOUND

• When it's ringing, press any button except the SNOOZE button to stop the Alarm sound.
• When it's ringing, touch and hold the SNOOZE button for 2 seconds to stop the Alarm sound.

12. SNOOZE FUNCTION

- When it's ringing, touch the SNOOZE button once the alarm sounds to get to snooze mode (Alarm clock icon flashes), when the set snooze time is over, it will ring again.

13. MAXIMUM/MINIMUM TEMPERATURE

• When the temperature is shown on the LCD display, the device starts recording the numerical maximum and minimum temperature.
• Press the “button once, to display the maximum temperature value, press the “” button again, to show the minimum temperature value.
• Press and hold the "button, to reset the values and start a new recording.
• The memory value of the day will be automatically cleared at 0:00 every night.

NOTE: If the temperature reading is below the possible range, LL.L will be displayed. If the temperature reading is above the possible range, HH.H will be displayed.

14. LOW BATTERY REMINDER

- When the battery symbol flashes, it means that the battery is almost depleted. Please replace the battery with a new one as soon as possible. (No battery symbol is displayed when the batteries are full).

15. CLEANING INSTRUCTIONS

Disconnect the device from the power source before cleaning (remove batteries)!

Clean the device externally with a dry cloth only. Do not use cleaning fluid to avoid damaging the electronics. Protect the device from dust and moisture. The batteries should be removed from the unit if it has not been used for a long time.

16. EC DECLARATION OF CONFORMITY

EN

Bresser GmbH hereby declares that the radio equipment type with item number: 15360 / 15361 / 15362 complies with Directive 2014/53/EU. The full text of the EC Declaration of Conformity is available at the following internet address:

Dispose of packaging materials sorted by type. Please note the current legal regulations regarding the disposal of the device. Information on proper disposal can be obtained from municipal waste disposal services or the environmental agency.

Do not dispose of electronic devices with household waste!

According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, used electronic devices must be collected separately and recycled in an environmentally friendly manner. Empty old batteries must be disposed of by consumers at battery collection points. Further information on the disposal of devices or batteries produced after 6 January 2006 can be obtained from municipal waste disposal services or the environmental agency.

In accordance with the regulations concerning batteries and rechargeable batteries, disposing of them in the normal household waste is explicitly forbidden. Please make sure to lose of your used batteries as required by law — at a local collection point or in the retail ket. Disposal in domestic waste violates the Battery Directive.

Batteries that contain toxins are marked with a sign and a chemical symbol. “Cd” = cadmium, “Hg” = mercury, “Pb” = lead. Fully discharge the battery before disposal.

18. WARRANTY

The regular warranty period is 2 years and begins on the day of purchase. To benefit from an extended voluntary warranty period as stated on the gift box, registration on our website is required. You can view the full warranty terms as well as information on warranty extension and services at www.bresser.de/warranty_terms.

TABLE DES MATIÈRES

Technical diagram of a circular device with numbered components and labeled parts, likely for assembly or labeling.

SNOOZE 19

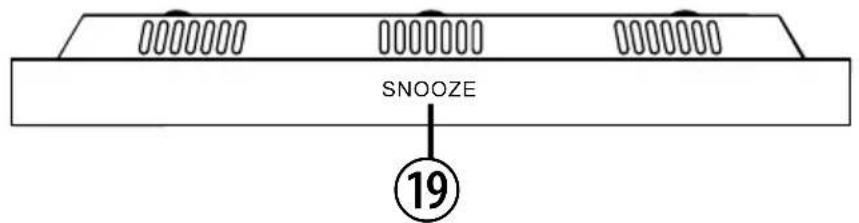

5. VUE D'ENSEMBLE DES PIÈCES

FR

Technical diagram of a circular device with numbered components and labeled parts, likely for assembly or labeling.

SNOOZE 19

5. OVERZICHT VAN ONDERDELEN

NL

Technical diagram of a circular device with numbered components and labeled parts, likely for assembly or labeling.

SNOOZE 19

5. PANORAMICA DEI COMPONENTI

IT

Technical diagram of a circular device with numbered components, likely an electronic or mechanical assembly.

SNOOZE 19

Errors and technical changes reserved.
