USER MANUAL 14981 Kienzle

Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.

Icon representing a document or text page with horizontal lines and a bracket, commonly used to indicate text content.

INFOS+DOWNLOADS:

Simple shield icon with a checkmark inside, no text or symbols present

GARANTIE · WARRANTY · GARANTÍA · GARANZIA

www.bresser.de/warranty_terms

Paper | Supporting responsible forestry

FSC® C144615

1. About this manual 11
2. General safety instructions 11
3. Scope of delivery 12
4. Features 12
5. Parts Overview 14
6. Setting up power supply 15
7. Time setting 15
8. Alarm setting 15
9. Week Display 16
10. Technical data 16
11. Cleaning and Maintenance 16
12. Disposal 17
13. EC Declaration of Conformity 17
14. Warranty & Service 17

1. ABOUT THIS MANUAL

This instruction manual is to be considered part of the device.

Before using the device, please read

the safety instructions and the user manual carefully.

Keep this user manual for future reference. If the device is sold or passed on, the instruction manual must be provided to the new owner/user of the product.

2. GENERAL SAFETY INSTRUCTIONS

• RISK OF CHOKING! Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard.

• RISK OF ELECTRIC SHOCK! This device contains electronic components that operate via a power source (batteries). Children should only use the device under adult supervision. Only use the device as described in the manual; otherwise, you run the risk of an electric shock.

• RISK OF CHEMICAL BURN! Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately with a plenty of water and seek medical attention.

• RISK OF FIRE/EXPLOSION! Use only the recommended batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire or an explosion.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries at full capacity. Do not use batteries from different brands or with different capacities. Remove the batteries from the unit if it has not been used for a long time.
• The manufacturer is not liable for damage related to improperly installed batteries!
• Do not use rechargeable batteries (accumulators).
• Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.
• Check this device, cables and connections for damage before use.
• Do not immerse the unit in water.
• Do not subject the unit to excessive force, shock, dust, extreme temperature or high humidity, which may result in malfunction, shorter electronic life span, damaged batteries and distorted parts.
• Place your device so that it can be disconnected from the power supply at any time. The power outlet should always be near your appliance and should be easily accessible, as the plug of the power cord serves as a disconnect device from the mains supply.
• To disconnect the unit from the mains, always pull the mains plug and never pull the cable!

3. SCOPE OF DELIVERY

Main unit, Sensor, Power adaptor, 2x AA/LR6 batteries

4. FEATURES

1. Radio controlled with DCF
2. Time, Calendar, Alarm with snooze
3. 12/24hr, °C/°F,
4. Indoor temperature and humidity
5. 7 languages Week display

2:34 29.6°C 68% 23 8/5 M DST DAY DON CALENDAR 7

⑩1010 ⑩ ⑪ ⑫ ⑩ ⑬ ⑪ ⑭ ⑪ ⑮ ⑪ ⑯ ⑪ ⑰ ⑪ ⑱ ⑪ ⑲ ⑪ ⑳ ⑪ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉞ ㉗ ㉘ ㉘ ㉑ ㉙ ㉚ ㉚ ㉛ ㉛ ㉜ ㉜ ㉝ ㉞ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

⑬ ⑭ ⑮ ⑯ ㉒Z

5. PARTS OVERVIEW

1. Time

Displays the current time in hours and minutes, and optionally in 12-hour or 24-hour format.

2. Alarm

A daily alarm function that can be set to sound at your preferred time—ideal for wake-up reminders or daily schedules.

3. Snooze

When the alarm sounds, press the snooze button to pause the alarm for a few minutes. The alarm will ring again after the snooze interval.

4. Indoor Temperature and Humidity

Shows real-time indoor temperature (in °C/°F) and humidity (%RH), helping you monitor comfort levels inside your home.

5. DST (Daylight Saving Time)

Automatically adjusts the clock forward or backward by one hour when DST is active, depending on your region.

6. 7 Languages Week Display

The weekday can be shown in 7 languages.

7. Calendar

Provides a full date display including day, month—clearly visible at a glance.

8. RCC Symbol (Radio Controlled Clock)

Indicates the reception status of the DCF77 radio signal. When the symbol is visible, the time is synchronized automatically for accuracy.

9. Second

Displays the passing seconds as part of the time display for precise timekeeping.

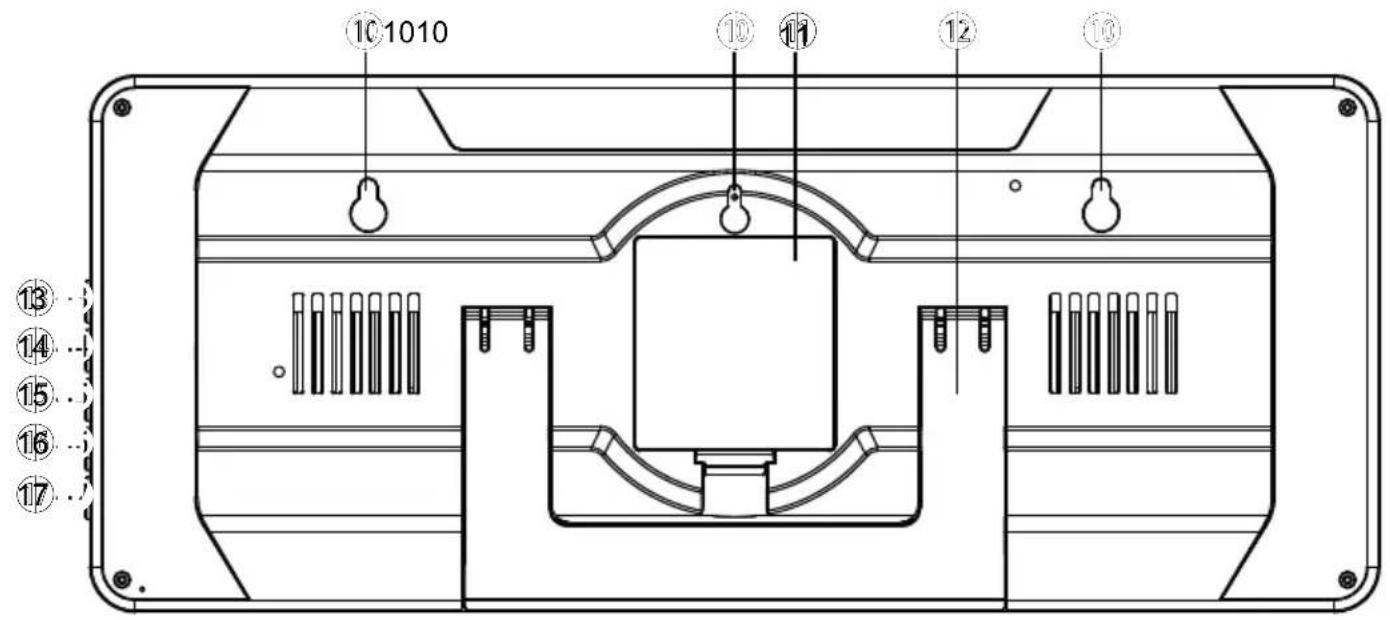

10. Hanging Hole

A built-in hole on the back allows you to mount the clock securely on a wall.

11. Battery Cover

Located at the back of the clock, it protects the battery compartment. Remove to insert or change batteries.

12. Stand

A foldable stand that supports tabletop placement, allowing the clock to stand upright on desks or shelves.

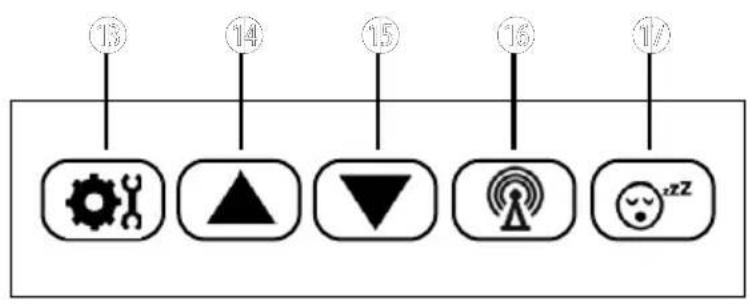

1. Settings button

2. ▲ no button (After pressed the settings button, press this button to turn on/ff the alarm.)

3. Down button (Click to switch in between °C and °F)

4. DCF button

5. Snooze button

6. SETTING UP POWER SUPPLY

Base device

1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment. Ensure that the battery polarity (+/-) is correct.
3. Replace the battery compartment cover.
4. Wait until the indoor temperature is displayed on the main unit.

7. TIME SETTING

After inserted the batteries, the unit automatically searches for the radio signal. It takes approximately 3-8 minutes for this process to complete. The ▲ symbol will start to blink. If the radio signal is received correctly, the date and time are set automatically and the reception symbol is displayed.

If no radio signal is received, proceed as follows:

1. Press the button to activate reception of the radio signal. Reception is now initialized again. (If the indoor signal is poor, it is recommended to try again in the garden or near the window where the signal is better.)

2. If still no radio signal is received, here is how to set up the time manually.

Manual time setting

1. Press and hold button for approx. 3 seconds to enter to the time setting mode.
2. Digits to be set are flashing.
3. Press ▲ button to change the value.
4. Press button to confirm and continue to the next setting.
5. Settings order: 12/24HR > Time Zone > Hour > Minute > MM/DD or DD/MM > Year> Month> Date >7 Languages Week Display > Exit
6. Finally press the button to save the settings and exit the setting mode.

In normal mode, press ▼ button to select the temperature unit in ☐ or ☐..

8. ALARM SETTING

In normal mode, press 🎨 button to check the alarm time.

When check the alarm time, Press ▲ button to turn on or turn off the alarm.

When check the alarm mode, press and hold the button for approx. 3 seconds to enter the alarm setting mode. Digits to be set are flashing.

Press ▲ or ▼ button to change the value.

Press 📄 button to confirm and continue to the next setting. Settings order: Alarm Hour>Alarm Minute> Snooze time > Exit.

Finally press the ⏻ button to save the settings and exit the Alarm setting mode.

1. When the alarm sounds (will sound for 2 minutes), press the button to activate the snooze function. The alarm sounds again after 5 minutes (default snooze time is 5 minutes).

2. When the alarm sounds, press any other key to stop the alarm until the set alarm time is reached again.

9. WEEK DISPLAY

GER	FRE	SPA	ITA	JUT	JAN	ENG
MON	LUN	LUN	LUN	MAR	MAN	MON
DIE	MAR	MAR	MAR	JIN	TIR	TUE
MIT	MER	MIE	MER	WOE	ONS	WED
DON	JEU	JUE	GIO	DON	TOR	THU
FRE	VEN	VIE	VEN	VRI	FRE	FRI
SAM	SAM	SAB	SAB	ZAT	LOR	SAT
SON	DIM	DOM	DOM	ZON	SON	SUN

10. TECHNICAL DATA

Main unit

• DCF
• Batteries: 4xAA Battery
• Temperature measuring unit: ^ C / ^ F
• Temperature display range: 0^ - 50^
  • Humidity display range: RH 20% - 95%
• 0^ C +50^ C: ± 1^ C
• Humidity:

- ± 5% from 35% to 75% and ± 10% from 20% to 35% & 75% to 95% .

•

11. CLEANING AND MAINTENANCE

Before cleaning the device, disconnect it from the power supply (remove batteries)!

Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid.

Protect the device from dust and moisture. The batteries should be removed from the unit if it has not been used for a long time.

12. DISPOSAL

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage!

As per Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must collected separately and recycled in an environmentally friendly manner.

13. EC DECLARATION OF CONFORMITY

CE Hereby, Bresser GmbH declares that the equipment type with article number 14981 is in compliance with Directive: 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.bresser.de/download/14981/CE/14981_CE.pdf

14. WARRANTY & SERVICE

The regular warranty period is 2 years and begins on the day of purchase. To benefit from an extended voluntary warranty period as stated on the gift box, registration on our website is required.

You can consult the full warranty terms as well as information on extending the warranty period and details of our services at www.bresser.de/warranty_terms.

TABLE DES MATIÈRES

Errors and technical changes reserved.

Manual_14981_Digital-Wall-Clock_de-en-fr-nl-it-es_KIENZLE_v052025a
