USER MANUAL PAR 12 B1 PARKSIDE

Black industrial power tool with 'PARKSIDE' branding and cross symbol (no readable text beyond label)

12 V AKKU-RATSCHE/12V CORDLESS RATCHET/12 V CLÉ À CLIQUET SANS FIL PAR 12 B1

DE AT CH

12 V AKKU-RATSCHE

Bedienungsanleitung

Translation of the original instructions

FR BE

12 V CLÉ À CLIQUET SANS FIL

Mode d'emploi

GB/IE User manual Page 24

Pure electrical circuit lines without any symbols

The battery pack may only be charged using chargers of the X 12V TEAM series. The battery pack has the following charging times depending on the charger:

List of pictograms used ...... Page 25

Introduction Page 26

Intended use.... Page 26

Scope of delivery Page 26

Parts list ...... Page 26

Technical data. Page 26

General safety notes ...... Page 28

Battery charger safety warnings.... Page 32

Assembly.... Page 33

Unpacking the product and basic cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 33

Inserting/removing the battery ...... Page 33

Charging the battery.... Page 33

Operation.... Page 34

Selecting the direction of rotation. Page 34

Attaching the adapter to the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 34

Attaching a socket to the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 34

Switching the product on/off Page 34

Troubleshooting Page 35

Cleaning and maintenance Page 36

Storage.... Page 36

Disposal Page 36

Warranty.... Page 37

Warranty claim procedure. Page 37

Service Page 38

EU declaration of conformity.... Page 39

List of pictograms used
	Read the instruction manual.		Use the product in dry indoor spaces only.
	WARNING! – Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)		Alternating current/voltage
			Direct current/voltage
	CAUTION! – Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)		Fuse
			Protection class II (double insulation)
	NOTICE! – Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)		Switch the product off and remove the battery pack before replacing attachments, cleaning and when not in use.
	Wear a safety helmet!		Protect the battery pack against heat and continuous intense sunlight.
	Wear a dust mask!		Protect the battery pack against water and moisture.
	Wear eye protection!		Protect the battery pack from fire.
	Wear ear protection! Wear safety g
[1800]	Safety information Instructions for use		Wear protective, slip-resistant footwear!
CE	CE mark indicates conformity with relevant EU directives applicable for this product.

12V CORDLESS RATCHET

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended for tightening and loosening screw connections. Use this product only as described and for the areas of applications specified.
■ Any other usage of or modification to the product is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse.
■ This product is not intended for commercial use.

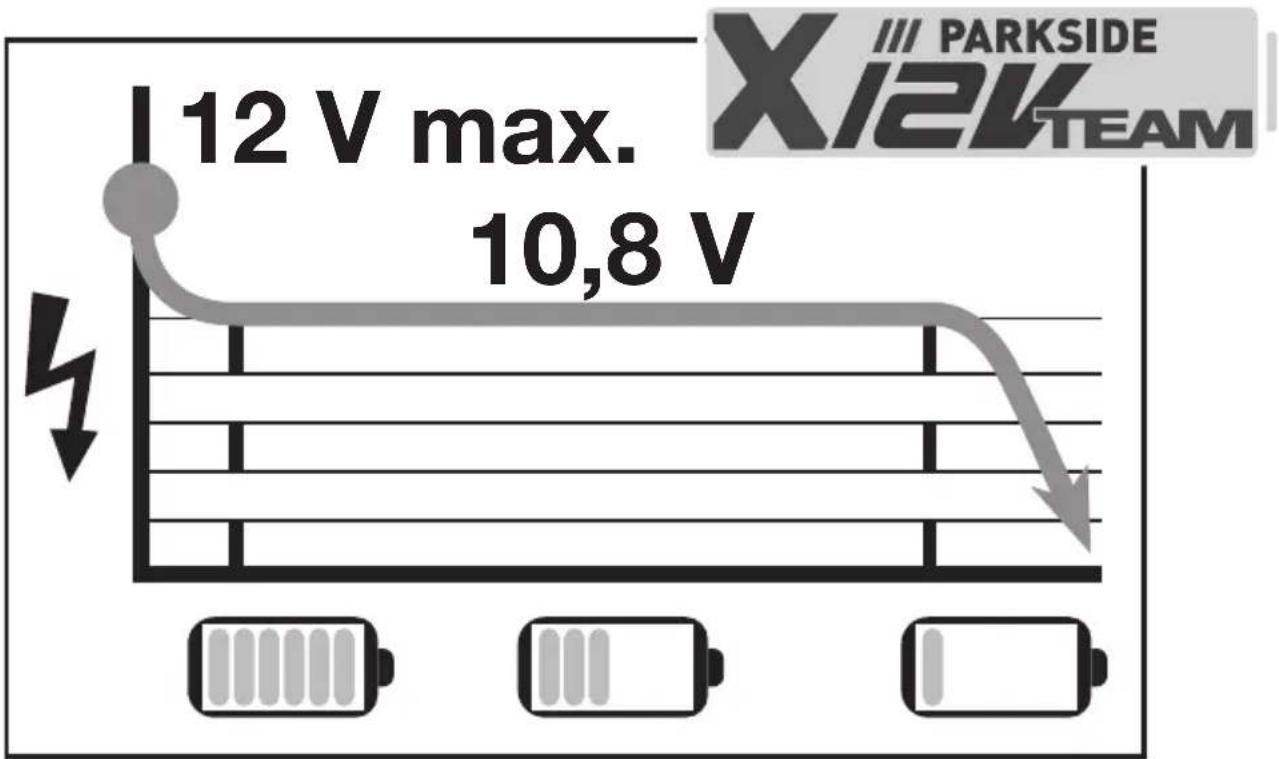

The product is part of the series Parkside X 12 V TEAM. The product can be operated using batteries from the series Parkside X 12 V TEAM. The batteries may only be charged using chargers from the series Parkside X 12 V TEAM.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 12V Cordless Ratchet
1 Adapter 1/2" to 3/8"
1 Carrying case
1 User manual

Parts list

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

1 Rotation direction switch
2 Battery charge level display
3 Handle
4 Release button
5 Battery *
6 ON/OFF switch
7 Safety lock-out
8 LED work light
9 Tool holder
10Charger *
11 Charging control LED – Green
12 Charging control LED - Red
13Adapter

* Battery and charger are not included in the scope of delivery.

- Technical data

12V Cordless Ratchet PAR 12 B1
Model number: HG1	0173
Idling speed n0: 0–250 min	-1
Max. torque: 54 N m
Square drive: 3/8”
Rated voltage: 12 V	---
Battery pack * PAPK 12 A4
Model number: HG10468
Type: Lithium-Ion
Rated voltage: 12 V	—— max.
Capacity: 2.0 Ah
Energy value: 24 Wh

Rapid battery charger * PLGK 12 A3
Model number: HG1	1358HG11358-BS
Input:
Rated voltage: 220–240 V~
Rated frequency: 50–60 Hz
Rated power: 50 W
Fuse (internal): 2 A/	T2A
Output:
Rated voltage: 12 V	---
Charging current: 2.4 A
Charging time: ca. 60 min
Protection class:	II/☐(double insulation)

* Battery and charger are not included in the scope of delivery.

Recommended ambient temperature:
Overall maximum temperature: +45 °C
While charging: +4 °C to +40 °C
During operation: +4 °C to +40 °C
During storage:	+20 °C to +26 °C

Noise emission value

The measured values have been determined in accordance with

EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level:	L_pA = 80.5 dB(A)
Uncertainty:	K_pA = 3 dB
Sound power level:	L_WA = 91.5 dB(A)
Uncertainty:	K_WA = 3 dB

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 62841:

Screwing:	a_h < 2.5 m/s ^2
Uncertainty:	K = 1.5 m/s ^2

WARNING!

Wear ear protection!

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed.

WARNING!

Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General safety notes

General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded..
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless

action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working

conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

1) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3) When a battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
5) Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

6) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above +130 °C may cause explosion.
7) Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

WARNING!

Do not dispose of batteries in household waste, fire or water. Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 50 °C).

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2) Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

Additional safety instructions for cordless ratchets

- Hold the appliance using the insulated handles if you carry out any work during which the screw could contact hidden power cables. Contact with a live wire may electrify exposed metal parts of the tool and could give the operator an electric shock.

• Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.
• Hold the power tool firmly. High reaction moments can occur for brief periods while tightening and loosening screws.
• Switch the power off immediately if the tool blocks while in use. Be prepared for high reaction moments as these can cause kickback.
• Disconnect the battery pack before carrying out any work on the appliance. This prevents the power tool from starting up unintentionally.

CAUTION!

Risk of hitting power cables!
Ensure that you are not likely to hit power, gas or water supply lines when you are working with the power tool.

Original accessories/attachments

■ Use only the additional equipment and accessories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.

Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.

■ Ensure that the product is in good condition and well maintained.
■ Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
- Plan your work schedule to spread any high vibration tool use across a longer period of time.

Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

■ Even if properly operating and handling the product, some residual risks will remain. Due to its construction and build, the product may present the following hazards:
- Cuts
– Hearing loss if working without hearing protection.
- Damage caused to your health resulting from hand/arm vibrations if the power tool is used over a longer period of time or if it is not properly used and maintained.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

● Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not charge non-rechargeable batteries.

Disregarding this instruction is hazardous.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

■ The appliance is suitable for indoor use only.

⚠️ATTENTION! This charger is only designed for charging the battery pack types:

Parkside 12 V battery pack

PAPK 12 A3 2 Ah 3 cells

PAPK 12 A4 2 Ah 3 cells

PAPK 12 B4 4 Ah 6 cells

You can order compatible replacement battery packs and chargers for this product either directly in the LIDL online shop of your country, or at www.Optimex-Shop.com. Have the IAN number (IAN 471995_2407) ready for your order. Orders can only be placed and processed online. If you are not sure where to purchase compatible battery packs and chargers, contact our customer service hotline.

Suitable battery packs and chargers

Battery pack:

Parkside X 12 V Team

Charger: Parkside X 12 V Team

Assembly

● Unpacking the product and basic cleaning

WARNING!

The product and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".

Accessories

■ To operate this product safely and correctly, always wear suitable personal protective equipment.
This includes:
-Safety goggles
-Hearing protection
-Protective gloves
-Protective footwear

- Inserting/removing the battery

□ Removing the battery: Press the release buttons 4 and remove the battery 5.
☐ Inserting the battery: Snap the battery into the handle 3.

● Charging the battery

NOTE

Allow a hot battery ^5 to cool down before charging.
Switch the charger ^10 off for at least 15 minutes between successive charging processes.
▶ Always disconnect the plug before removing or inserting the battery from the charger.

1. Remove the battery from the product if required.

2. Insert the battery in the charging compartment of the charger. The red charging control LED 12 lights up.

3. Connect the charger to a mains outlet.
4. Once the battery is fully recharged, the green charging control LED 11 lights up. Unplug the charger from the mains outlet.
5. Remove the battery from the charger.

Charging time

Battery pack Charging time (h)
PAPK 12 A3,2.0 Ah, 3 cells	1
PAPK 12 A4,2.0 Ah, 3 cells	1
PAPK 12 B4,4.0 Ah, 6 cells	2

Operation

⚠ WARNING! Risk of injury!

Wear safety gloves!

Wear ear protection!

Wear eye protection!

Wear protective, slip-resistant footwear!

- Selecting the direction of rotation

⚠ WARNING! Risk of injury!

Only use or adjust the rotation direction switch 1 when the product is at a standstill.

NOTE

Some types of screws, nuts and bolts have a left-hand thread. In this case, use the directions below in reverse.

☐ Turn the rotation direction switch to the left or right to tighten or loosen the screw:

Rotation direction switch	Direction of rotation
Left ☐ Clockwise	Screw in/tighten screws/nuts
Right ☐	CounterclockwiseLoosen screws/nuts

- Attaching the adapter to the product

☐ Push the adapter 13 onto the tool holder 9 if required.
- Attaching a socket to the product
Place a suitable socket on the tool holder 9 or on the adapter 13. Keep the product pointed straight at the screw/nut.
- Switching the product on/off

⚠ WARNING! Risk of injury!

Hold the product firmly, especially when the screw/nut reaches the sitting position.
Keep fingers and hands away from the adapter 13 or the screw/nut during the tightening or unscrewing process.

CAUTION! Risk of injury!

The screw/nut may heat up during the tightening or unscrewing process. Allow the screw/nut to cool down.
Always check the actually attained tightening torque with a torque spanner.

NOTE

Pressing the ON/OFF switch 6 lightly yields a low speed/torque. Increasing the pressure increases the speed/tightening torque.
The LED work light 8 lights up when the ON/OFF switch is pressed lightly or fully. This provides illumination of the work area in poor lighting conditions.

Switching on

1. Press and hold down the safety lock-out 7.
2. Press and hold the ON/OFF switch 6.
3. Once the product is running, release the safety lock-out.

Switching off

☐ Release the ON/OFF switch 6. The product switches off.

Troubleshooting

Problem Possible cause Action
The product does not start.	The battery 5 is empty.	Charge the battery 5 (see „Charging the battery“).
	The battery 5 is not properly inserted.	Insert the battery 5 correctly (see „Inserting/removing the battery“).
	The ON/OFF switch 6 is defective.	Have the product repaired by the Service Centre.
	The motor is defective.
The product works with intermittent operation.	Internal loose contact. Have the product repaired by the Service Centre.
	The ON/OFF switch 6 is defective.

● Cleaning and maintenance

⚠ WARNING! Risk of injury!

Always switch the product off, remove the battery 5 and let the product cool down before performing inspection, maintenance or cleaning works.

CAUTION!

Any maintenance and repair other than described in this manual: Contact an authorised service centre or a similarly qualified person to check or repair the product. Only use original parts.

NOTE

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

⚠ WARNING! Risk of electric shock!

Do not spray the product with water and do not immerse it in water. Never allow liquids to get into the product.

NOTE

Do not use cleaning agents or solvents. You may otherwise irreparably damage the product.
The product must always be kept clean, dry and free from oil or grease.
The product is maintenance-free.

□ Clean the product with a dry cloth.

Storage

☐ Store the product in a dry and dust-protected place out of reach of children.
☐ The storage temperature for the rechargeable battery 5 and the product is between 0 °C and +45 °C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.
☐ If the battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50 % and 80 %.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

FR +

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled. Return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

For this product, rechargeable battery is also covered by its warranty period.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 471995_2407) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 471995_2407 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

● EU declaration of conformity

EU DECLARATION OF CONFORMITY (No 471995_2407)

IAN:	471995_2407
Product identification:	"Parkside" Cordless Ratchet 12V
Model Number:	HG10173

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1: 2015/A11: 2022

EN 62841-2-2: 2014

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm 15.10.2024

Place

Date

ppa. Gussel ppa. Budnein ppa. Stefan Haensel tpa. Jens Buchheim

Authorised Signatory Authorised Signatory

EN

CE
