Self-repair hints - Refrigerator

i Concerning this document....73

1.1 Important information....73

1.1.1 Purpose....73

1.2 Explanation of symbols 73

1.2.1 Danger levels....73

1.2.2 Hazard symbols 73

1.2.3 Structure of the warnings.... 74

1.2.4 General symbols.... 74

Safety....75

2.1 General Safety instructions 75

2.1.1 All domestic appliances 75

Tools and aids....76

Repair 77

4.6 Replacing fruit and vegetable container 83

4.6.1 Removing fruit and vegetable container.... 83

4.6.2 Installing fruit and vegetable container 83

4.7 Replacing LED side light 84

4.7.1 Removing LED side light 84

4.7.2 Installing LED side light 85

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Suction cup[00342224]	∅ 50 mm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Auxiliary tool[00342180]	For disassembly of plastic parts,"magic tool"

Repair

Warning Heavy, bulky appliances! Back and muscle injuries • Appliance door removal op trained specialists. • To move the appliance, two • Use only suitable tools and

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door is removed. See Installation Instruction.
√ Door is open.

4.2.1 Removing flat hinge

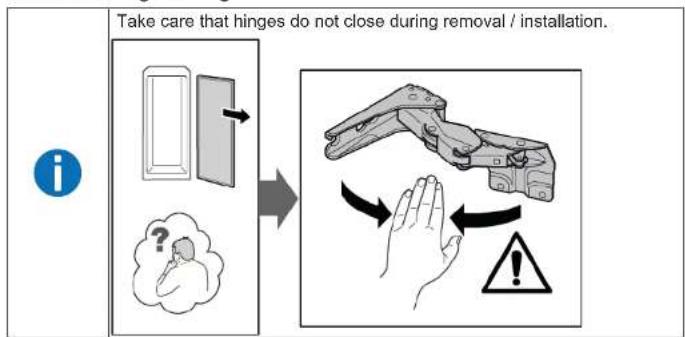

Take care that hinges do not close during removal / installation.

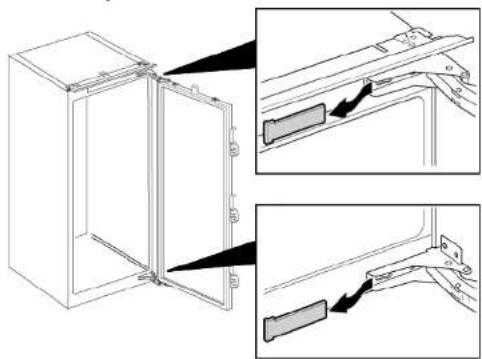

1. Remove two hinge covers.


Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Repair

1. 1. Loosen four screws (1).

2. Slide out and remove door (2).

≈ 5 mm ① ② ②

1. 1. Remove four screws (1).

2. Remove hinges (2).

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Hinges are removed.

4.2.2 Installing flat hinge

▶ Install in reverse order.

Repair

4.3 Replacing sliding hinge

Suggested tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Heavy, bulky appliances!

Back and muscle injuries

• Appliance door removal operation should only be carried out by trained specialists.
  ▶ To move the appliance, two people are required.
  ▶ Use only suitable tools and equipment.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door and appliance door are separated. See Installation Instruction.

4.3.1 Removing sliding hinge

1. Unscrew two screws (1).
2. Remove upper hinge (2).
3. Remove door (3).
4. Unscrew two screws (4).
5. Remove lower hinge (5).

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Hinges are removed.

4.3.2 Installing sliding hinge

▶ Install in reverse order.

Repair

4.4 Replacing shelf

Prerequisite:

Door is open.

4.4.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.4.2 Installing shelf

▶ Install in reverse order.

Repair

4.5 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.6 Replacing fruit and vegetable container

Prerequisite:

√ Door is open.

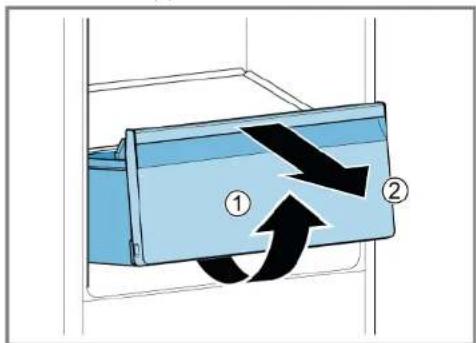

4.6.1 Removing fruit and vegetable container

1. Pull out the fruit and vegetable container as far as it will go.
2. 1. Lift the fruit and vegetable container at the front (1).

3. Remove container (2).

Diagram showing airflow or movement of a device with labeled arrows and numbered components

Fruit and vegetable container is removed.

4.6.2 Installing fruit and vegetable container

▶ Install in reverse order.

Repair

4.7 Replacing LED side light

Suggested tools:

Suction cup ∅50 mm [00342224]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair - Electric parts should be repaired by a qualified electricians. - After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Danger

Risk of electric shock due to live parts! Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Caution

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Shelves are removed.

4.7.1 Removing LED side light

1. Stick two suction cup on LED side light cover.

2. Pull suction cups forward in one rotary movement.

Illustration of a door with two doors opening, showing hand positioning and motion (no text or symbols)

→ LED light cover is removed.

Repair

1. Remove LED module.

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

LED side light is removed.

4.7.2 Installing LED side light

Due to lamp cover hooks are easy to break during removal process spare part LED side light is the set that includes LED module and light cover.

▶ Install in reverse order.

Remonditeave - Külmik

i Selle dokumendiga seoses 87

1.1 Tähtis teave 87

1.1.1 Eesmärk 87

1.2 Sümbolite selgitus 87

1.2.1 Ohutasemed....87

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Remont

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing a blue container with black arrows indicating flow or movement, labeled with numbers ① and ②.

Illustration of a person inserting into a door panel with arrows indicating movement (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Korjaus

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing a blue container with black arrows indicating flow or movement, labeled with numbers ① and ②.

Imukuppi ∅50 mm [00342224]

Illustration of a person inserting into a device with arrows indicating insertion (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating movement or assembly.

Outillage suggérèse:

Embout Torx TX20 6,3 mm (1/4") [00340865]

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Réparation

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Outillage suggérèse:

Embout Torx TX20 6,3 mm (1/4") [00340865]

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing airflow or movement of a blue container with arrows indicating direction and numbered labels ① and ②

Outillage suggérèse:

Ventouse ∅50 mm [00342224]

Illustration of a door with two doors opening, showing a person inserting a device into a blue panel (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a refrigerator door with two views showing internal components (no text or symbols)

Instandsetzen

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing airflow direction of a device with labeled arrows and numbered components

Illustration of a door with two doors opening, showing hand positioning and motion (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Επισκευή

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Diagram showing airflow direction of a device with labeled arrows and numbered components

To doxelo phoútwv kai laxavików éxei aφαιρεθεί.

Illustration of a door lock system with two doors opening and a close-up of the door (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or connection.

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Javítás

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing airflow or movement of a blue container with arrows indicating direction and numbered labels ① and ②

Illustration of a person inserting into a device with arrows indicating insertion (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Riparazione

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing airflow or fluid flow between two containers labeled ① and ②, with arrows indicating direction of movement.

Illustration of a double door with two doors opening, showing mechanical parts and a close-up of the door (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Remonts

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Viras ir nonemtas.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing a blue container with black arrows indicating flow or movement, labeled with numbers ① and ②.

Auglu un dârzenu tvertne ir iznemta.

4.6.2 Auglu un dârzenu tvertnes uzstâdîsana

Illustration of a door with two doors opening, showing a cartoon character interacting with the door (no text or symbols present)

LED gaismekla pärsegs ir nonemts.

Remonts

1. Nonemiet LED moduli.

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or connection.

Technical line drawing of a door opening with inset close-ups showing internal components (no text or symbols)

Remontas

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Vyriai nuimti.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Vyriai nuimti.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing a blue container with black arrows indicating flow or movement, labeled with numbers ① and ②.

Illustration of a person inserting into a device with arrows indicating insertion (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparasjon

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing a blue container with black arrows indicating flow or movement, labeled with numbers ① and ②.

Illustration of a door with two doors opening, showing mechanical parts and a close-up of the door (no text or symbols)

LED-lampedekslet er demontert.

Reparasjon

1. Demonter LED-modulen.

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

LED-sidelampen er demontert.

4.7.2 Montering av LED-sidelampe

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Naprawy

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.4.2 Montaż półki

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing a blue container with black arrows indicating flow or movement, labeled with numbers ① and ②.

Illustration of a door with two doors opening, showing hand positioning and motion (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or connection.

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing airflow or movement of a device with labeled arrows and numbered components

Illustration of a door with two doors opening, showing hand positioning and motion (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Cap torx TX20 6.3 mm (1/4") [00340865]

Technical line drawing of a door opening with inset close-ups showing internal components (no text or symbols)

Repararea

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Balamalele sunt demontate.

4.2.2 Montarea balamalei plate

Cap torx TX20 6.3 mm (1/4") [00340865]

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Balamalele sunt demontate.

4.3.2 Montarea balamalei glisante

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing airflow direction of a device with labeled arrows and numbered components

Illustration of two cartoon figures hanging from a door, with no visible text or symbols

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Oprava

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Závesy sú odobraté.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating movement or force.

Závesy sú odobraté.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

Diagram showing airflow or movement of a blue container with arrows indicating direction and numbered labels ① and ②

Illustration of a door lock system with two doors opening and one down, showing mechanical parts (no text or symbols)

Kryt LED svetla je odobratý.

Oprava

1. Odoberte LED modul.

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Popravilo

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Poškodbe hrbta in mišic

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.4.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

4.5 Zamenjava vratnega predala

Zahteva:

Vrata so odprta.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing a blue container with black arrows indicating flow or movement, labeled with numbers ① and ②.

Illustration of a door with two doors opening, showing hand positioning and interior lighting (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparación

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating movement or force.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing airflow or movement of a blue container with arrows indicating direction and numbered labels ① and ②

Illustration of a door with two doors opening, showing hand positioning and motion (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or connection.

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparation

Diagram showing a mechanical assembly with numbered components, likely illustrating a valve or switch mechanism.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

4.5.2 Montera dörrhylla

Diagram showing a blue container with black arrows indicating flow or movement, labeled with numbers ① and ②.

Sugkopp ∅50 mm [00342224]

Illustration of a person inserting into a door panel with arrows indicating movement (no text or symbols)

LED-lamphöljet har tagits bort.

Reparation

1. Ta bort LED-modulen.

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or connection.

LED-sidolampan har tagits bort.

4.7.2 Montera LED-sidolampa

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Onarim

Diagram showing a mechanical assembly with numbered components, likely illustrating a disassembly or mounting process.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram showing airflow or movement of a device with labeled arrows and numbered components

Illustration of a door lock system with two doors opening and a close-up of the door (no text or symbols)

Diagram showing a device panel with a highlighted strip and directional arrow indicating assembly or alignment.
