USER MANUAL iQ100 KI18LNSF0 SIEMENS

Register your product on My Siemens and discover exclusive services and offers.

siemens-home.bsh-group.com/welcome

The future moving in.

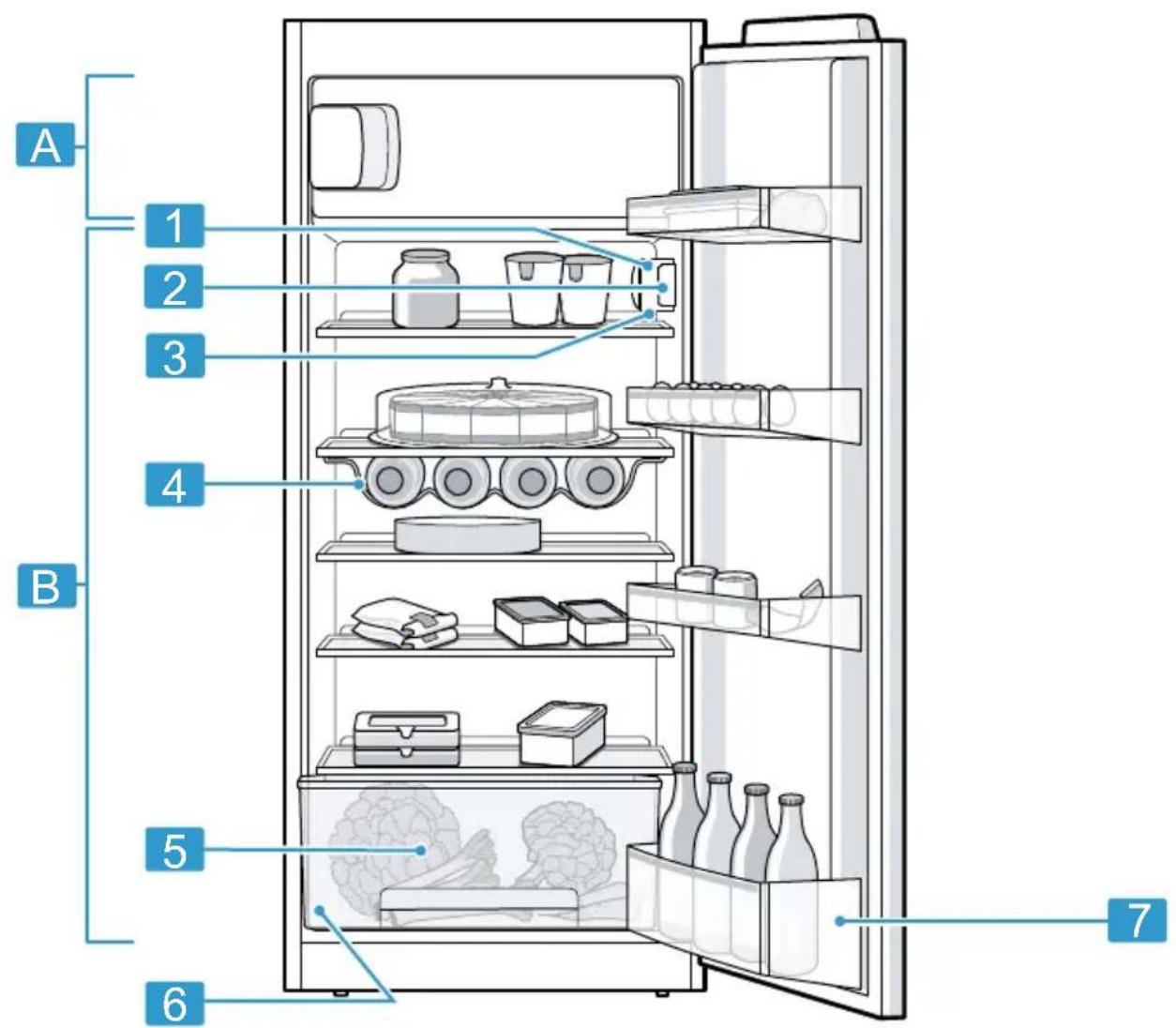

A 1 2 3 4 B 5 6 7

1

Diagram showing airflow or precipitation in a container with raindrops falling (no text or symbols)

3

Illustration of a hand holding a blue plastic sheet with a black arrow indicating downward motion (no text or symbols)

4

Illustration of a bottle partially covered by blue wavy lines, no text or symbols present

5

Diagram of a blue V-shaped structure with directional arrows indicating movement or force (no text or symbols)

6

Diagram showing airflow or ventilation process with labeled components 1 and 2, indicating directional flow direction.

7

Two-step diagram showing a blue and white device being adjusted, with arrows indicating motion direction (no text or symbols)

8

Illustration of a handheld device with blue handle and white body, no visible text or symbols

9

de

Inhaltsverzeichnis

Sicherheit 6

Restriction on user group...... 31

Safe transport.... 32

Safe installation 32

Safe use 33

Damaged appliance.... 35

Preventing material damage ..... 37

Environmental protection and saving energy.... 37

Disposing of packaging 37

Saving energy.... 37

Installation and connection...... 38

Scope of delivery.... 38

Installing and connecting the appliance.... 38

Criteria for the installation location.... 39

Preparing the appliance for the first time.... 39

Connecting the appliance to the electricity supply.... 39

Familiarising yourself with your appliance.... 40

Appliance 40

Controls 40

Features...... 40

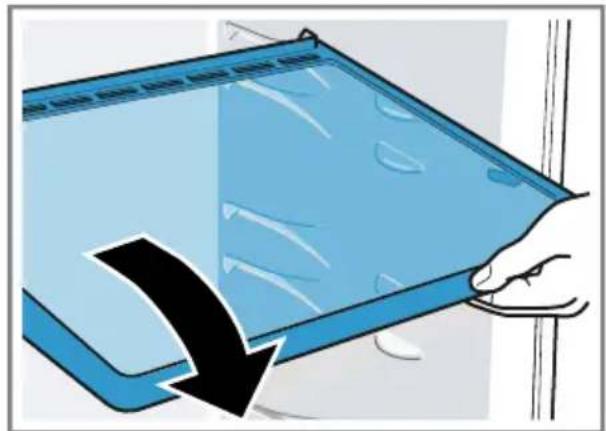

Shelf.... 40

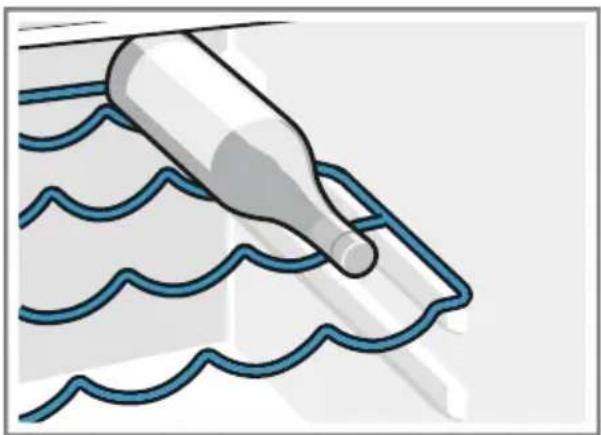

Bottle shelf.... 40

Fruit and vegetable container ..... 40

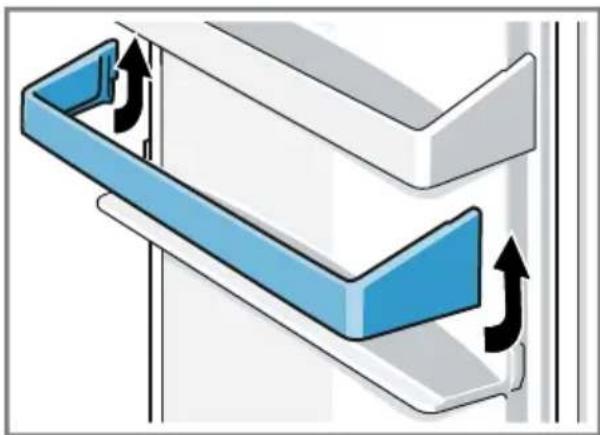

Door racks.... 41

Accessories.... 41

Basic operation 41

Switching on the appliance...... 41

Operating tips.... 41

Switching off the appliance ..... 41

Setting the temperature.... 42

Additional functions 42

Super freezing 42

Refrigerator compartment...... 42

Tips for storing food in the refrigerator compartment 42

Chill zones in the refrigerator compartment 43

"OK" sticker 43

Freezer compartment...... 43

Freezer compartment door 43

Freezing capacity 44

Tips for buying frozen food 44

Tips for storing food in the freezer compartment 44

Tips for freezing fresh food 44

Shelf life of frozen food at -18 °C.... 45

Defrosting methods for frozen food 45

Defrosting...... 45

Defrosting in the refrigerator compartment 45

Defrosting in the freezer compartment 46

Cleaning and servicing...... 46

Preparing the appliance for cleaning.... 46

Cleaning the appliance 47

Cleaning the condensation channel and drainage hole .... 47

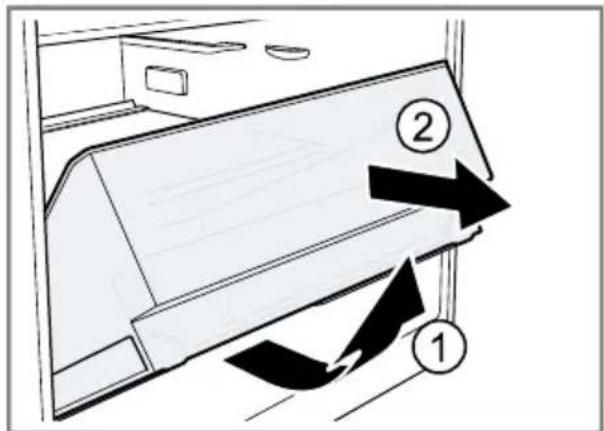

Removing the fittings.... 47

Troubleshooting...... 48

Malfunctions 48

Information on display panel...... 49

Temperature problem...... 49

Noise 49

Odours.... 50

en

Storage and disposal...... 51

Switching off the appliance .... 51

Disposing of old appliance .... 51

Customer Service.... 51

Product number (E-Nr.) and production number (FD) 52

Technical data.... 52

Safety

Please read the safety information to ensure that you use the appliance safely.

General information

You can find general information about this instruction manual here.

• Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently.
  ■ This manual is intended for the user of the appliance.
  ■ Follow the safety instructions and warnings.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transit.

Intended use

Read the information on intended use to ensure that you use the appliance correctly and safely.

This appliance is only intended to be fully fitted in a kitchen.

Only use this appliance:

■ As specified in this instruction manual.
■ For chilling and freezing food and making ice.
■ In private households and in enclosed spaces in a domestic environment.
■ Up to an altitude of max. 2000 m above sea level.

Restriction on user group

Avoid risks to children and vulnerable persons.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Children must not play with the appliance.

en Safety

Cleaning and user maintenance must not be performed by children unless they are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer.

Safe transport

Follow these safety instructions when transporting the appliance.

⚠ WARNING – Risk of injury!

The high weight of the appliance may result in injury when lifted.

▶ Do not lift the appliance on your own.

Safe installation

Follow these safety instructions when installing the appliance.

⚠ WARNING – Risk of electric shock!

■ Improper installation is dangerous.

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

- The protective conductor system of the domestic electrical installation must be properly installed.

▶ Never equip the appliance with an external switching device, e.g. a timer or remote control.

- When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.

- When installing the appliance, check that the power cable is not trapped or damaged.

■ If the insulation of the power cord is damaged, this is dangerous.

▶ Never let the power cord come into contact with heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.

⚠ WARNING – Risk of fire!

■ It is dangerous to use an extended power cord and non-approved adapters.

• Do not use extension cables or multiple socket strips.
  ▶ If the power cord is too short, contact Customer Service.
  ▶ Only use adapters approved by the manufacturer.

■ Portable multiple socket strips or portable power supply units may overheat and cause a fire.

- Do not place portable multiple socket strips or power supply units on the back of the appliance.

Safe use

Follow these safety instructions when using the appliance.

⚠ WARNING – Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of suffocation!

■ Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

■ Children may breathe in or swallow small parts, causing them to suffocate.

- Keep small parts away from children.

en Safety

▶ Do not let children play with small parts.

⚠ WARNING – Risk of explosion!

■ Mechanical devices or other devices may damage the refrigeration circuit; flammable refrigerant may escape and explode.

▶ To accelerate the defrosting process, do not use any other mechanical devices or devices other than those recommended by the manufacturer.

■ Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.

- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

⚠ WARNING – Risk of fire!

■ Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.

▶ Do not operate electrical devices within the appliance.

■ The vapours from flammable liquids may catch fire (explosion).

- Store high-percentage alcohol tightly closed and standing up.

⚠ WARNING – Risk of injury!

■ Containers that contain carbonated drinks may burst.

- Do not store containers that contain carbonated drinks in the freezer compartment.

■ Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

- Do not damage the tubes of the refrigerant circuit or the insulation.

⚠ WARNING – Risk of cold burns!

Contact with frozen food and cold surfaces may cause burns by refrigeration.

▶ Never put frozen food straight from the freezer compartment into your mouth.

- Avoid prolonged contact of skin with frozen food, ice and the tubes in the freezer compartment.

⚠️ CAUTION – Risk of harm to health!

To prevent food from being contaminated, you must observe the following instructions.

▶ If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compartments of the appliance.
▶ Regularly clean the surfaces that may come into contact with food and accessible drain systems.
- Store raw meat and fish in suitable containers in the refrigerator so that they do not touch or drip on other food.
▶ If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould.

Damaged appliance

Follow the safety instructions if your appliance is damaged.

⚠ WARNING – Risk of electric shock!

■ If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Call Customer Service. → Page 51
▶ Repairs to the appliance should only be carried out by trained specialist staff.

■ Improper repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

WARNING – Risk of fire!

If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

• Keep naked flames and ignition sources away from the appliance.
  ▶ Ventilate the room.
  ▶ Switch off the appliance. → Page 41
  ▶ Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
  ▶ Call after-sales service. → Page 51

Preventing material damage

Follow these instructions to prevent material damage to your appliance, accessories or other objects in your kitchen.

ATTENTION!

■ Contamination with oil or fat may cause plastic parts and door seals to become porous.
- Keep plastic parts and door seals free of oil and grease.
■ Using the base, runners or appliance doors as a seat surface or climbing surface may damage the appliance.
- Do not stand or support yourself on the base, runners or doors.

Environmental protection and saving energy

Help protect the environment by using your appliance in a way that conserves resources and by disposing of reusable materials properly.

Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

• Sort the individual components by type and dispose of them separately.
  Information about current disposal methods are available from your specialist dealer or local authority.

Saving energy

If you follow these instructions, your appliance will use less power.

Selecting the installation location

Follow these instructions when in- stalling your appliance.

• Keep the appliance out of direct sunlight.
  ■ Install the appliance as far away as possible from heating elements, cookers and other heat sources:
• Maintain a 30 mm clearance to electric or gas cookers.
• Maintain a 30 cm clearance to oil or solid-fuel cookers.

+ The appliance needs to cool less frequently at low ambient temperatures.

■ Do not cover or block ventilation openings.
■ Ventilate the room daily.
+ The air on the back wall of the appliance can escape more easily and the appliance does not warm up so intensely.
The appliance must cool less frequently.

Saving energy during use

Follow these instructions when using your appliance.

Note: The arrangement of the fittings does not affect the energy consumption of the appliance.

■ Do not cover or block ventilation openings.
+ The air on the back wall of the appliance can escape more easily and the appliance does not warm up so intensely.
■ Open the appliance door only briefly.
■ Transport purchased food in a cool bag and place in the appliance quickly.
- Allow warm food and drinks to cool down before placing them in the appliance.
■ Thaw frozen food in the refrigerator compartment to utilise the low temperature of the food.
+ The air in the appliance does not warm up so intensely. The appliance must cool less frequently.
■ Always leave some space between the food and to the back panel.
■ Pack the food airtight.
+ The air can circulate and the air humidity remains constant.
■ Defrost the freezer compartment regularly.
+ A frost-free freezer compartment is power-saving and cools the frozen food optimally.
■ Only open the freezer compartment door briefly and then carefully close it.
+ A closed freezer compartment door protects the freezer compartment against severe icing.

Installation and connection

Scope of delivery

After unpacking all parts, check for any transport damage and check the completeness of the delivery. If you have any complaints, contact your dealer or our after-sales service → Page 51.

The delivery consists of the following:

■ Built-in appliance
■ Equipment and accessories ^1
■ Installation material
■ Installation instructions
■ Operating instructions
■ Customer service booklet
■ Warranty enclosure ^2
■ Energy label
■ Product data sheet
■ Information on the energy consumption and noises

Installing and connecting the appliance

Requirement: The scope of delivery of the appliance is checked.

→ Page 38

1. Observe the criteria for the appliance's installation location.
   → Page 39
2. Install the appliance according to the enclosed installation instructions.
3. Prepare the appliance for first use.
   Page 39
4. Electrically connect the appliance.
   → Page 39

Criteria for the installation location

Follow these instructions when in- stalling your appliance.

WARNING

Risk of explosion!

If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

▶ Only install the appliance in a space with a volume of at least 1 m^3 per 8 g refrigerant. The volume of refrigerant is indicated on the rating plate. → Fig. 1/6

The weight of the appliance ex works may be up to 45 kg depending on the model.

The subfloor must be of sufficient stability to bear the weight of the appliance.

Permitted room temperature

The permitted room temperature depends on the appliance's climate class.

The climate class can be found on the rating plate. → Fig. 1/6

Climate class Permitted room temperature

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5^ C.

Niche dimensions

Observe the niche dimensions if you install your appliance in the furniture recess. If this is not the case, problems may occur when installing the appliance.

Niche depth

Install the appliance in the recommended niche depth of 560 mm. If the niche depth is smaller, the energy consumption increases slightly. The niche depth must be a minimum 550 mm.

Niche width

An inside niche width of at least 560 mm is required for the appliance.

Preparing the appliance for the first time

1. Remove the informative material.
2. Remove the protective foil and transit bolts, e.g. remove the adhesive strips and carton.
3. Clean the appliance for the first time. → Page 47

Connecting the appliance to the electricity supply

1. Insert the mains plug of the appliance's power cable in a socket nearby.

The connection data of the appliance can be found on the rating plate. → Fig. 1/6

1. Check the mains plug is inserted properly.

√ The appliance is now ready for use.

Familiarising yourself with your appliance

Familiarise yourself with the parts of your appliance.

Appliance

You can find an overview of the parts of your appliance here.

→ Fig. 1

A	Freezer compartment
B	Refrigerator compartment
1	Controls
2	Light switch
3	Main switch
4	Bottle shelf → Page 40
5	Fruit and vegetable container → Page 40
6	Rating plate
7	Door storage compartment for large bottles

Note: Deviations between your appliance and the diagrams may differ with regard to their features and size.

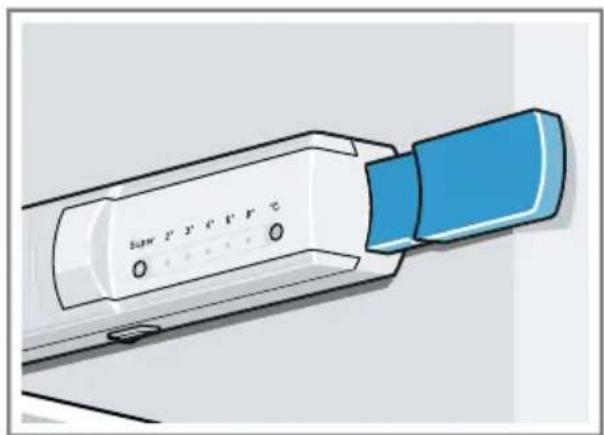

Controls

The controls are used to configure all functions of your appliance and to obtain information about the operating status.

→ Fig. 2

1	The main switch turns the appliance on or off.
2	Super switches Super freezing on or off.
3	Displays the set temperature for the refrigerator compartment in °C.

4 °C sets the temperature of the refrigerator compartment.

Features

Here you can see an overview of the features of your appliance and their use.

The features of your appliance depend on the model.

Shelf

To vary the shelves as required, remove the shelf and re-insert it elsewhere.

→ "Removing the shelf", Page 47

Bottle shelf

Store bottles securely on the bottle shelf.

To vary the bottle shelf as required, remove the bottle shelf and re-insert it elsewhere.

→ "Removing the bottle shelf", Page 47

Fruit and vegetable container

Store fresh fruit and vegetables in the fruit and vegetable container.

Condensation may form in the fruit and vegetable container depending on the food and quantity stored.

Remove the condensation with a dry cloth.

To ensure that the quality and aroma are retained, store fruit and vegetables that are sensitive to cold outside of the appliance at temperatures of approx. 8 °C to 12 °C.

Fruit that is sensitive to cold

■ Pineapples

■ Bananas

■ Mangoes

■ Papayas

	Citrus fruits
Vegetables that are sensitive to cold	AuberginesGherkinsCourgettesPeppersTomatoesPotatoes

Door racks

To adjust the door racks as required, remove the door rack and re-insert elsewhere.

→ "Removing door racks", Page 47

Accessories

Only use original accessories. These have been made especially for your appliance. Here you can find an overview of your appliance's accessories and how to use them.

The accessories for your appliance depend on the model.

Egg tray

Store eggs safely on the egg tray.

Ice cube tray

Use the ice cube tray to make ice cubes.

Making ice cubes

1. Fill the ice cube tray with water up to 34 and place in the freezer compartment.
   If the ice cube tray is stuck to the freezer compartment, loosen with a blunt implement only (e.g. spoon handle).

2. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

Basic operation

You can find out everything you need to know about operating your appli-ance here.

Switching on the appliance

1. Switch on the appliance at the main switch. → Fig. 1 / 3

√ The appliance begins to cool.
√ The temperature display flashes until the appliance has reached the set temperature.

1. Set the required temperature.

→ Page 42

Operating tips

■ Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put in any food in the appliance until the temperature is reached.
■ If you open the refrigerator compartment door frequently, put large quantities of food in the appliance or if the room temperature is high, the temperature of the refrigerator compartment rises.
■ Avoid contact between the food and the rear panel. Otherwise the air circulation will be impaired. Food or packaging may freeze to the rear panel.

Switching off the appliance

▶ Switch off the appliance at the main switch. → Fig. 1 / 3

√ The appliance stops cooling.

- Switch off the appliance at the main switch. → Fig. 1 / 3 - The appliance stops cooling.

Setting the temperature

After you have switched on the appliance, you can set the temperature.

Setting the refrigerator compartment temperature

• Press ^ repeatedly until the temperature display shows the required temperature.
  The recommended temperature in the refrigerator compartment is 4 °C.
  → ""OK" sticker", Page 43

Setting the freezer compartment temperature

• In order to set the freezer compartment temperature, change the refrigerator compartment temperature → Page 42.
  The refrigerator compartment temperature influences freezer compartment temperature. Refrigerator compartment temperatures that are set to warm generate warmer freezer compartment temperatures.

Additional functions

Find out which additional functions which can be used for your appli-ance.

Super freezing

Super freezing cools the freezer compartment as cold as possible. This freezes food quickly right through to the centre.

Switch off Super freezing four to six hours before placing food weighing 2 kg or more into the freezer compartment.

In order to utilise the freezer capacity, use Super freezing.

→ "Prerequisites for freezing capacity", Page 44

Note: When Super freezing is switched on, increased noise may occur.

Switching on Super freezing

▶ Press Super
√ Supights up.

Note: After approx. 60 hours, the appliance switches to normal operation.

Switching off Super freezing

▶ Press Super

Refrigerator compartment

You can keep meat, sausage, fish, dairy products, eggs, ready meals and pastries in the refrigerator compartment.

You can set the temperature in the refrigerator compartment from 2 °C to 8 °C.

The recommended temperature in the refrigerator compartment is 4 °C. → ""OK" sticker", Page 43

The refrigerator compartment can also be used to store highly perishable foods in the short to medium term. The lower the selected temperature, the longer the food remains fresh.

Tips for storing food in the refrigerator compartment

Follow the tips if you store food in your refrigerator compartment.

■ To ensure that the freshness and quality of the food is retained for longer, only store fresh and unspoiled food.

In the case of ready-made products and bottled goods, do not exceed the best-before date or use-by date specified by the manufacturer.
■ To retain aroma, colour and freshness or to prevent taste transfer and discolouration of the plastic parts, store food well wrapped or covered.
■ Leave warm food and beverages to cool down before placing them in the refrigerator compartment.

Chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones.

Coldest zone

The coldest zone is between the arrow stamped on the side and the shelf underneath.

Tip: Store perishable food (e.g. fish, sausage, meat) in the coldest zone.

Warmest zone

The warmest zone is at the very top of the door.

Tip: Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread.

"OK" sticker

The "OK" sticker lets you check whether the refrigerator compartment reaches the safe temperature ranges of +4 °C or colder recommended for food.

The "OK" sticker is not included with all models.

If the sticker does not indicate "OK", gradually reduce the temperature.

→ "Setting the refrigerator compartment temperature", Page 42

Once the appliance is switched on, it may take up to 12 hours until the set temperature is reached.

Correct setting

Freezer compartment

You can store frozen food, freeze food and make ice cubes in the freezer compartment.

The temperature in the freezer compartment depends on the temperature in the refrigerator compartment. Long-term storage of food should be at -18 ^ or lower.

The freezer compartment can be used to store perishable food long-term. The low temperatures slow down or stop the spoilage.

The time between putting fresh food in the freezer compartment and it freezing solid depends on various factors:

■ Set temperature
■ Food (size and type)
■ Quantity and type of storage
■ Quantity and type of food already stored

Freezer compartment door

To ensure that the frozen food that is stored does not thaw and the freezer compartment is not covered in too much ice, always close the freezer compartment door.

Note: When you close the freezer compartment door, you can hear it engaging.

Freezing capacity

The maximum freezing capacity indicates the quantity of food that can be frozen right through to the centre within a specific period of time. Information on the maximum freezing capacity can be found on the rating plate. → Fig. 1/6

Prerequisites for freezing capacity

1. Approx. 24 hours before placing fresh food in the appliance, switch on Super freezing.

→ "Switching on Super freezing", Page 42

1. Place the food in the freezer compartment, starting from the right.

Tips for buying frozen food

Follow the tips when you are buying frozen food.

• Check the packaging is not damaged.
  ■ Check the best-before date.
• The temperature in the supermarket freezer must be -18^ or lower.
  ■ Do not interrupt the deep-freeze chain. If possible, transport frozen food in a cool bag and quickly place it in the freezer compartment.

Tips for storing food in the freezer compartment

Follow the tips if you are storing food in the freezer compartment.

■ Spread out the food over a wide area in the freezer compartment.
■ Do not bring food which is to be frozen into contact with frozen food.
If necessary, redistribute frozen food in the freezer compartment.

Tips for freezing fresh food

Follow the tips when you freeze fresh food.

■ Freeze fresh and undamaged food only.
■ Cooked, roasted or baked food is more suitable for consumption than food that can be eaten raw.
■ In order to retain the nutritional value, flavour and colour, you should prepare certain food for freezing.
- Vegetables: Wash, chop up, blanch.
- Fruit: Wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution.

Additional information on how to do this can be found in the relevant literature.

Food suitable for freezing

■ Baked goods
■ Fish and seafood
■ Meat
■ Poultry and game
■ Vegetables, fruit and herbs
■ Eggs without shells
■ Dairy products, e.g. cheese, butter and quark
■ Ready meals and leftovers, e.g. soups, stews, cooked meat and fish, potato dishes, bakes and desserts

Food that is unsuitable for freezing

■ Types of vegetables that are usually eaten raw, e.g. lettuce or radishes
■ Unpeeled or hard-boiled eggs
■ Grapes
■ Whole apples, pears and peaches
■ Yoghurt, soured milk, sour cream, crème fraîche and mayonnaise

Packing frozen food

If you select suitable packaging material the correct type of packaging, you can determine the product quality and prevent freezer burn.

1. Place the food in the packaging.

Suitable packaging:

• Plastic film made of polyethylene
• Tubular film made of polyethylene
• Freezer bags made from polyethylene
• Freezer containers
  Unsuitable packaging:
• Wrapping paper
• Greaseproof paper
• Cellophane
• Aluminium foil

• Rubbish bags and used shopping bags

• Squeeze out the air.

• Pack food airtight to prevent it from losing flavour and drying out.

Suitable seals:

- Rubber bands

- Plastic clips

– Cold-resistant adhesive tape

1. Label the packaging with the contents and the date of freezing.

Shelf life of frozen food at -18 °C

Observe the storage times when you freeze food.

Food Storage time
Fish, sausages, ready meals and baked goods	Up to 6 months
Poultry, meat Up to 8 months
Vegetables, fruit Up to 12 months

Defrosting methods for frozen food

To retain the best-possible product quality, the defrosting method must be adjusted to the food and application.

CAUTION

Risk of harm to health!

During the thawing process, bacteria may develop and spoil the frozen food.

• Do not refreeze food after it has been defrosted or started to defrost.
  ▶ Refreeze food only after cooking.
• The frozen items should no longer be stored for the maximum storage period.

Defrosting method	Food
Refrigerator compartment	Animal-based food such as fish, meat, cheese, quark
Room temperature Bread
Microwave Food for immediate consumption or immediate preparation
Oven or cooker Food for immediate consumption or immediate preparation

Defrosting

Observe the information when you want to defrost your appliance.

Defrosting in the refrigerator compartment

When the appliance is operating, condensation droplets or frost form on the rear panel of the refrigerator

compartment due to functional reasons. The back panel in the refrigerator compartment defrosts automatically.

Condensation or frost run through the condensation channel into the drainage hole to the evaporation pan and do not have to be wiped away.

To ensure that the condensation can drain and odours do not form, observe the following information:

→ "Cleaning the condensation channel and drainage hole", Page 47.

Defrosting in the freezer com- partment

As the frozen food must not start thawing, the freezer compartment does not defrost automatically. A layer of hoarfrost in the freezer compartment impairs refrigeration of the frozen food and increases power consumption.

Defrosting the freezer compartment

Regularly defrost the freezer compartment.

1. Switch on Super freezing approx. four hours before defrosting.
   → "Switching on Super freezing", Page 42
   This means that the food reaches very low temperatures and it can be stored for longer at room temperature.
2. Remove the frozen food and temporarily place it in a cool location. Place ice packs (if available) on the frozen food.
3. Switch off the appliance.
   → Page 41
4. Disconnect the appliance from the power supply.

Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

1. To accelerate the defrosting process, place a pan of hot water on a trivet in the freezer compartment.

2. Wipe up the condensation water with a soft cloth or sponge.

3. Rub the freezer compartment dry with a soft, dry cloth.

4. Electrically connect the appliance.

5. Switch on the appliance.

→ Page 41

1. Put the frozen food in the appliance. → Page 44

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by customer service can give rise to costs.

Preparing the appliance for cleaning

Find out how to prepare your appli- ance for cleaning.

1. Switch off the appliance.
   Page 41
2. Disconnect the appliance from the power supply.
   Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
3. Take out all of the food and store it in a cool location.
   Place ice packs (if available) onto the food.
4. If there is a layer of hoarfrost, allow this to defrost.
5. Remove all fittings from the appliance. → Page 47

Cleaning the appliance

Clean the appliance as specified to ensure that it is not damaged by incorrect cleaning or unsuitable cleaning products.

WARNING

Risk of electric shock!

■ An ingress of moisture can cause an electric shock.
- Do not use steam- or high-pressure cleaners to clean the appliance.
■ Liquid in the lighting can be dangerous.
- The rinsing water must not run into the light.

ATTENTION!

■ Unsuitable cleaning products may damage the surfaces of the appliance.
- Do not use hard scouring pads or cleaning sponges.
- Do not use harsh or abrasive detergents.
- Do not use cleaning products with a high alcohol content.
If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolour. ▶ Never clean shelves or containers in the dishwasher.

1. Prepare the appliance for cleaning. → Page 46
2. Clean the appliance, the fittings and the door seals clean with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.
3. Dry thoroughly with a soft, dry cloth.
4. Insert the fittings.
5. Electrically connect the appliance.

6. Switch on the appliance.

7. Putting the food into the appliance.

Cleaning the condensation channel and drainage hole

Regularly clean the condensation channel and drainage hole to ensure that the condensation can drain.

• Carefully clean the condensation channel and the drainage hole, e.g. using a moistened cotton bud.
  → Fig. 3

Removing the fittings

If you want to clean the fittings thoroughly, remove these from your appliance.

Removing the shelf

▶ Lift the shelf, pull it out, lower it and swing it out to the side.
→ Fig. 4

Removing the bottle shelf

▶ Pull out and remove the bottle shelf.
→ Fig. 5

Removing door racks

• Lift the door rack upwards and remove it.
  → Fig. 6

Removing the fruit and vegetable container

1. Pull the container out all the way.
2. Lift the container at the front ① and remove it ②
   → Fig. 7

Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Malfunctions

Fault Cause troubleshooting
The appliance is not working.	The mains plug has not been inserted properly.	► Connect the mains plug.
No displays light up.	Fuse has been tripped.	► Check the fuses.
	The power has failed. 1. Check whether the power is on.2. Place ice packs (if available) on the frozen food.

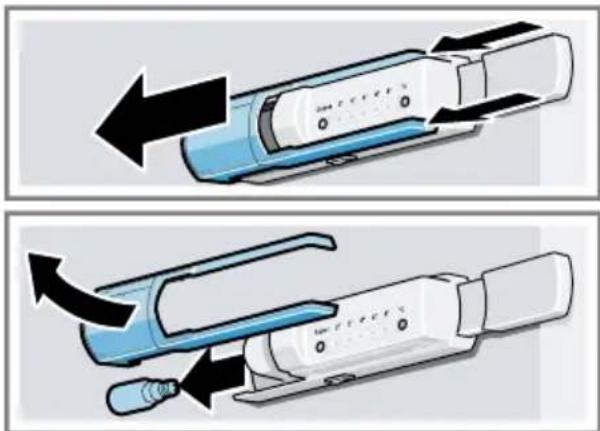

The LED lighting does not work.	The illuminant is defective. 1. Switch off the appliance.→ Page 412. Disconnect the appliance from the mains.Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.3. Slide the cover grille forwards and remove it.4. Replace the illuminant.Replacement illuminant: 220-240 V AC, E14 bulb holder, see the defective illuminant'ss wattage.→ Fig. 8
	The light switch is jammed.	► Check whether the light switch can be moved.→ Fig. 9
The refrigeration unit is switching on more frequently and for longer.	The appliance door was opened frequently.	▸ Do not open appliance door unnecessarily.
	The ventilation openings are covered up.	▸ Remove any obstructions from in front of the ventilation openings.
The base of the refrigerator compartment is wet.	The condensation channel or drainage hole are blocked.	▸ Clean the condensation channel and the drainage hole. → Page 47

Information on display panel

Fault Cause troubleshooting
The temperature display flashes.	The appliance door was opened frequently.	▸ Do not open appliance door unnecessarily.
	Larger quantities of fresh food have been put in.	▸ Switch on Super freezing before placing a larger amount of food in the appliance.→ "Switching on Super freezing", Page 42
	The ventilation openings are covered up.	▸ Remove any obstructions from in front of the ventilation openings.

Temperature problem

Fault Cause troubleshooting
The temperature differs greatly from the setting.	Different causes are possible.	1. Switch off the appliance.→ Page 412. Switch the appliance back on after five minutes. → Page 41- If the temperature is too warm, check the temperature again after a couple of hours.- If the temperature is too cold, check the temperature again on the following day.

Noise

Fault Cause troubleshooting
Appliance has a humming sound.	Not a fault. A motor is running, e.g. refrigerating unit, fan.	No action required.
The appliance bubbles, buzzes or gargles.	Not a fault. Refrigerant flows through the pipes.	No action required.
The appliance clicks. Not a fault. Motor, switches or solenoid valves are switching on or off.		No action required.
The appliance makes noises.	The appliance is not level.	► Align the appliance using a spirit level. If required, place something underneath it.
	Fittings wobble or stick.	► Check the removable fittings and, if required, replace these.
	Bottles or containers are touching.	► Move the bottles or containers away from each other.
	Super freezing is switched on.	No action required.

Odours

Fault Cause troubleshooting
The appliance has an unpleasant smell.	Different causes are possible.	1. Prepare the appliance for cleaning. → Page 462. Clean the appliance. → Page 473. Clean all food packaging.4. To prevent odours from forming, store strong smelling food in air-tight containers.5. After 24 hours, check whether odours are still forming.

Storage and disposal

You can find out here how to prepare your appliance for storage. You will also find out how to dispose of old appliances.

Switching off the appliance

1. Switch off the appliance.
   → Page 41
2. Disconnect the appliance from the power supply.
   Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
3. Defrost the appliance. → Page 45
4. Clean the appliance. → Page 47
5. Leave the appliance door open.

Disposing of old appliance

Valuable raw materials can be re-used by recycling.

WARNING

Risk of harm to health!

Children can lock themselves in the appliance, thereby putting their lives at risk.

Leave shelves and containers inside the appliance to prevent children from climbing in.
- Keep children away from the redundant appliance.

WARNING

Risk of fire!

If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

• Do not damage the tubes of the refrigerant circuit or the insulation.
• Dispose of the appliance in an environmentally friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. You can solve many problems yourself by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact our after-sales service. We will always find an appropriate solution and try to avoid unnecessary visits being made by a Customer Service technician.

With any warranty claims, we will make sure that your appliance is repaired by trained after-sales technicians using genuine spare parts, including after the manufacturer's warranty has expired.

For safety reasons repairs to the appliance should only be carried out by trained specialist staff. The warranty claim becomes void if repairs or interventions have been carried out by persons not authorised by us for that purpose or if our appliances have been fitted with spare, supplementary or accessory parts that were not genuine parts and then resulted in a defect.

Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at

least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum duration of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of warranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself under local legislation.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate.

→ Fig. 1 / 6

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.

→ Fig. 1 / 6

More information about your model can be found online at https://energylabel.bsh-group.com ^1 . This web address is linked to the official EU EPREL product database. At the time of printing its web address had not yet been published. Please then follow the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively you can also find the model identifier in the first line of the EU energy label.

Table des matières

Sécurité...... 55

Compartiment congélation...... 70

Porte du compartiment congélation.... 71

activer Super-congélation

désactiver Super-congélation

▶ Appuyer sur Super

fr Compartiment congélation

Compartiment congélation

⚠ WAARSCHUWING – Risico van brand!

⚠ WAARSCHUWING – Verstikkingsgevaar!

⚠ WAARSCHUWING – Explosiegevaar!

⚠ WAARSCHUWING – Risico van brand!

⚠ WAARSCHUWING – Verbrandingsgevaar door kou!

⚠ WAARSCHUWING – Risico van brand!

⚠ WAARSCHUWING Explosiegevaar!

WAARSCHUWING co van brand!

www.siemens-home.bsh-group.com
