USER MANUAL NA541 PHILIPS

Exterior view of a Philips air fryer with visible branding and side panel (no text-heavy elements)

Icon of a person using a computer (no text or symbols)

English 3

Čeština 37

Dansk 72

Deutsch 107

Eesti 145

Español 180

Français 217

Hrvatski 255

Italiano 291

Latviešu 328

Lietuviškai 363

Magyar 398

Nederlands 435

Norsk 472

Polski 506

Português 544

Română 581

Shqip 618

Slovenščina 654

Slovensky 689

Srpski 725

Suomi 761

Svenska 795

Türkçe 830

Ελληνικά 865

Български 904

Македонски 944

Русский 983

Українська 1021

Қазақша 1059

הכלה 1097

Contents

Important safety instruction 3

Danger 3

Warning 4

Caution 5

Electromagnetic fields (EMF) 6

Automatic shut-off 6

Recycling 7

Warranty and support 7

EcoDesign information 7

Introduction 7

General description 8

Product overview 8

Control panel overview 9

Before first use 13

Preparations before use 13

Using the appliance 13

Airfry mode 14

Steamfry mode 16

Steam mode 19

Cooking with preset programs 22

Cleaning 25

Routine cleaning 25

Steam cleaning 26

Descaling 29

Storage 33

Troubleshooting 33

Important safety instruction

Read this important information carefully before you use the appliance and save it for future reference.

Danger

1

• Do not place the appliance on or near a hot gas stove or all kinds of electric stove and electric cooking plates, or in a heated oven (fig. 1).
• Never immerse the appliance in water nor rinse it under the tap.
• Do not let any water or other liquid enter the appliance to prevent electric shock.
• Always put the ingredients to be fried in the basket, to prevent them from coming into contact with the heating elements.
• Do not cover the air inlet and the air outlet openings while the appliance is operating.

Warning

2

• Do not fill the pan with oil as this may cause a fire hazard.
• Do not use the appliance, if the plug, the mains cord or the appliance itself is damaged.
• Never touch the inside of the appliance while it is operating.
• Never put any amount of food that exceeds the maximum level indicated in the basket.
• Always make sure heater is clean and no food is stuck in heater.

• Be careful when cleaning the upper area of the cooking chamber: Hot heating element, edge of metal parts.

• If the supply cord is damaged, it must be replaced by Philips, its service agent or similarly qualified persons in order to avoid a hazard.

• Only connect the appliance to an earthed wall socket, protected by an earth leakage circuit breaker.
• Always make sure that the plug is inserted into the wall socket properly.
• This appliance is not intended to be operated by means of an external timer or a separate remote control system.
• The accessible surfaces may become hot during use (fig. 2).
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• Do not place the appliance against a wall or against other appliances. Leave at least 15 cm free space at the back, on both sides and above the appliance. Do not place anything on top of the appliance.
• During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also, be careful of hot steam and air when you remove the pan from the appliance.
• Never use light ingredients or baking paper in the appliance.
• Storage of potatoes: The temperature shall be appropriate to the potato variety stored and it shall be above 6 °C to minimize the risk of acrylamide exposure in the prepared foodstuff.
• Since this Airfryer has a big chamber, its electric power is large. Do not operate other powerful appliances on the same circuit at the same time (e.g., kettles, electric grills, and the like). Else, it can happen that the circuit breaker in your house installation responds and the power at this socket fails.
• When using the Airfryer, be careful care when opening, closing, or shaking the large, heavy drawer. Always handle it securely to prevent it from slipping or falling, which could cause injury."
• This appliance is designed to be used at ambient temperatures between 5°C and 40°C.
• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

Caution

• Keep the mains cord away from hot surfaces.
• Do not use the appliance for any other purpose than described in this manual to avoid potential injury and use only original Philips accessories.
• Do not let the appliance operate unattended.
• The pan, basket, and accessories placed inside the cooking chamber becomes hot during and after use of the appliance, always handle carefully.
• Thoroughly clean the parts that come into contact with food before you use the appliance for the first time. Refer to the instructions in the manual.
• Do not place the pan and basket on the UI panel, as they may fall and cause injury.
• When steaming food, be careful when pulling out the pan to prevent burns from the escaping steam.

• Do not position the appliance's steam outlet towards the socket.

• This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.

• Always disconnect the appliance from the supply if it is left unattended and before you assemble, disassemble, store or cleaning.
• Place the appliance on a horizontal, even and stable surface.
• If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Philips refuses any liability for damage caused.
• Always return the appliance to a service center authorized by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee becomes invalid.
• Always unplug the appliance after use.
• Let the appliance cool down for approximately 30 minutes before you handle or clean it.
• Make sure the ingredients prepared in this appliance come out golden yellow instead of dark or brown.
• Remove burnt remnants. Do not fry fresh potatoes at a temperature above 180^ C (to minimize the production of acrylamide).
• Always make sure that the food is fully cooked in the Airfryer.
• Always make sure that you have the control over your Airfryer.
• When cooking fatty food, the Airfryer could emit smoke.
• Do not press the basket release button during shaking and moving the pan.
• When the descaling icon lights up, please proceed with the descaling process.
• Be careful when pouring out the cooked food and be careful not to let the accessories fall out.

• Make sure the device is positioned with its back at least 15 cm away from the wall and its front 2 cm from the countertop edge. Also, make sure the air outlet is not facing any power socket.

• Do not place the Airfryer next to another cooking appliance, close to the kitchen wall, or beneath a kitchen cupboard, as hot steam may condense and run down the surfaces.

• In normal use, good ventilation must be ensured around the product.
• If steam accumulates inside or around the surface of the steam outlet, wipe with a soft dry cloth.
• If there are condensation water on socket, it is recommended to adjust the position of the appliance or use a socket dust cover to avoid condensation accumulated in sockets.
• This appliance is provided with a short power supply cord to reduce the risk of entanglement or tripping which can occur with a longer power-supply cord.

• Extension cords may be used if care is exercised in the use. If an extension cord is used:

• The marked electrical rating of the cord must be as great as the rating of the appliance.

• The cord should be arranged so that it will not drape over the edge of the counter or table top where it could be pulled by children or tripped over unintentionally.

• The extension cord should be a grounded type 3-wire cord.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

• To avoid damaging the appliance, do not use alkaline cleaning agents. Instead, clean with a soft cloth and a mild detergent.
• To avoid damaging the appliance, do not use hard water. Instead, use purified water for steam, steamfry, and descaling.
• Do not direct the cold air from fans or air conditioners towards the air outlet of the Airfryer.
• Please use Philips descaler only. Under no circumstances should you use a descaler based on sulfuric acid, hydrochloric acid, sulfamic or acetic acid (vinegar) as this may damage the water circuit in your machine and not dissolve the limescale properly. Not using the Philips descaler will void your warranty. Failure to descale the appliance will also void your warranty.
• Heating element surface is subject to residual heat after use.

Electromagnetic fields (EMF)

This appliance complies with the applicable standards and regulations regarding exposure to electromagnetic fields.

Automatic shut-off

- This appliance is equipped with an automatic shut-off function. If you do not press a button within 20 minutes, the appliance switches off automatically. To switch off the appliance manually, press the power On/off button.

Recycling

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

• This symbol means that electrical products shall not be disposed of with normal household waste.
• Follow your country's rules for the separate collection of electrical products.

Warranty and support

Versuni offers a two-year warranty after purchase on this product. This warranty is not valid if a defect is due to incorrect use or poor maintenance. Our warranty does not affect your rights under law as a consumer. For more information or for invoking the warranty, please visit our website www.home.id/warranty.

EcoDesign information

EcoDesign information for Model identifier(s): NA540, NA541, NA543, NA547

Description Symbol Value Unit
Off-mode power consumption P	off	0.3 W
Standby mode power consumption P	sb	/	W
Period before automatic switches into standby mode T	sb	20 Min
Measurement standard for service value EN 50564:2011
Contact details for obtaining more information DAP B.V.
	Tussendiepen 4a,9206AD Drachten, The Netherlands
The appliance complies with the ecodesign requirements of COMMISSION REGULATION (EU) 2023/826.

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that we offer, register your product at

www.home.id.

General description

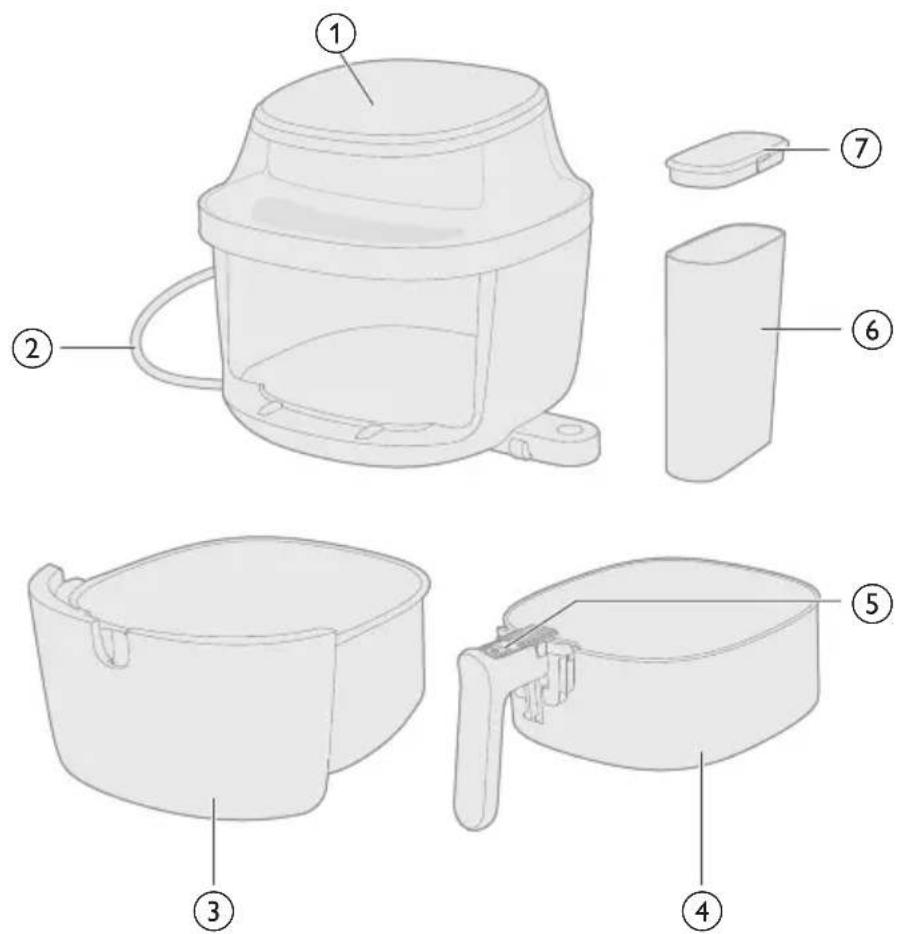

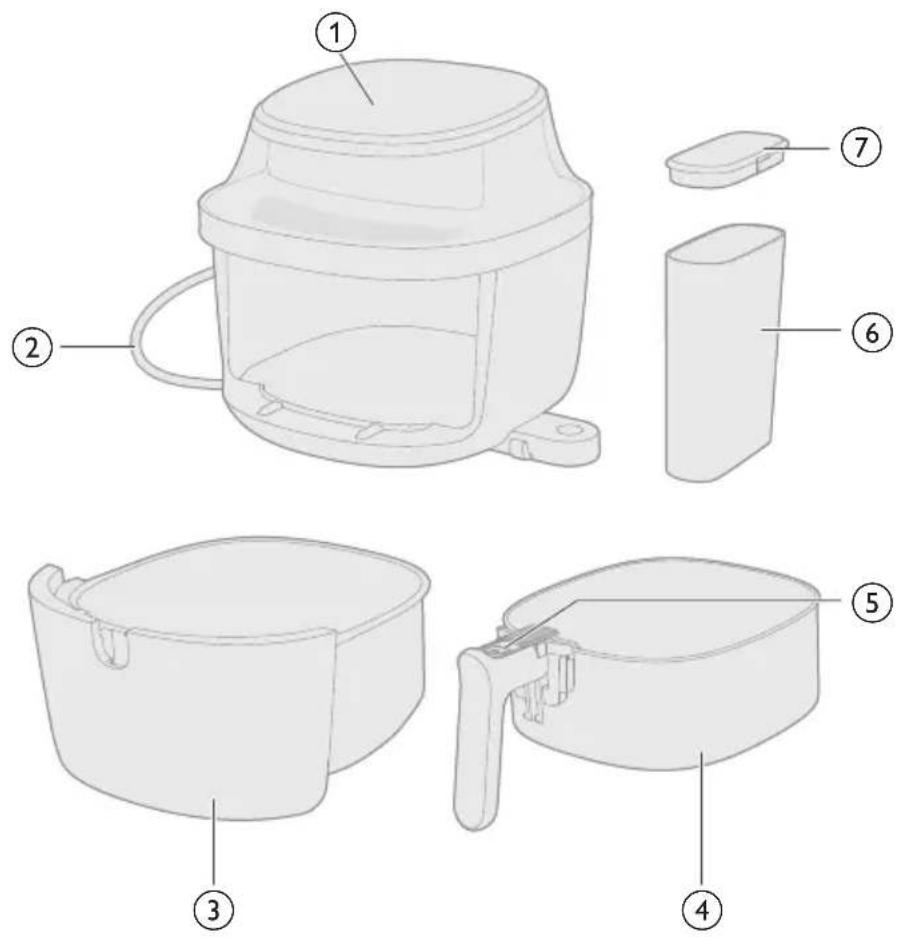

Product overview

1 Control panel

2 Power cord

3 Pan

4 Basket

5 Basket release button

6 Water tank

7 Water tank lid

Basket release button

Slide the cap to access the basket release button.

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

Press the basket release button and lift the basket to remove it from the pan.

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

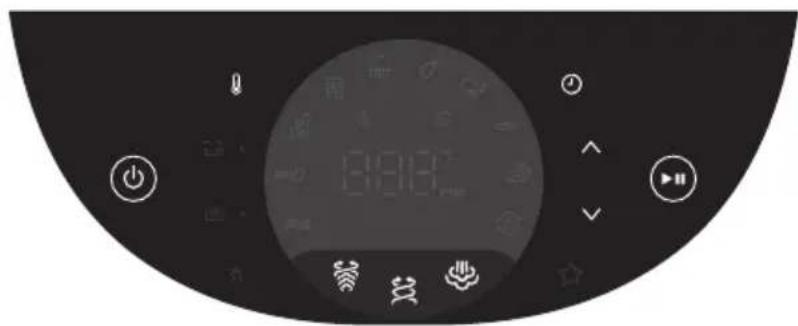

Control panel overview

Power and basic operations

8:13

On/off button

Tap to power the Airfryer on or off.

Start/pause button

Tap to begin or pause the cooking process.

Airfry button

Tap to start airfrying with hot air circulation for crispy results.

Steamfry button

Tap to start steam and airfrying for moist interiors and crispy exteriors.

Steam button

Tap to cook food using steam for gentle and even heating.

Increase/decrease buttons

Tap to increase or decrease the cooking temperature and time.

Temperature button

Tap to enter temperature adjusting mode.

Time button

Tap to enter time adjusting mode.

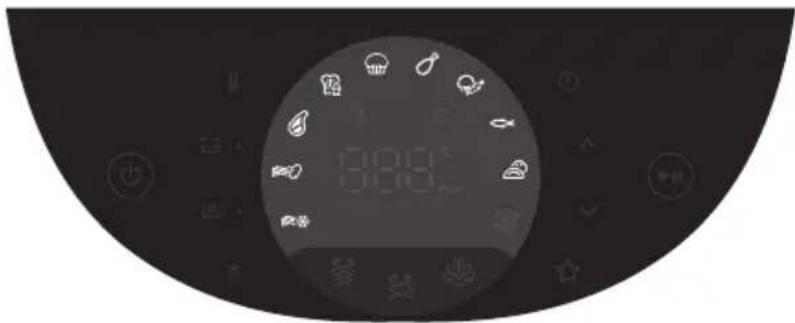

Preset programs

8:00 12:00

Frozen fries

Use this preset to cook frozen fries, wedges, or hash browns to a crispy golden finish.

Fresh potatoes

Use this preset for crispy fries or wedges made from fresh-cut potatoes.

Meat chops

Use this preset to grill steak to your preferred doneness with a seared exterior.

Breakfast

Use this preset for a quick, balanced breakfast with golden toast and soft-cooked eggs.

Muffin

Use this preset to bake fluffy, evenly cooked muffins.

Chicken drumsticks

Use this preset to cook chicken drumsticks thoroughly with a crispy skin.

Mixed vegetables

Use this preset to roast or crisp vegetables evenly with minimal oil.

Fish

Use this preset to gently cook fish fillets or seafood while keeping them moist and flaky.

Dumplings

Use this preset to cook dumplings evenly with a crisp exterior and tender filling.

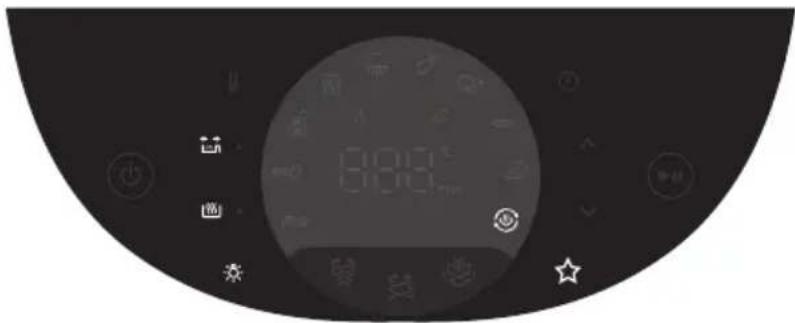

Additional functions

8:00

Keep warm

You can activate Keep-warm mode at any time—before or during cooking—by tapping the Keep warm button. When the Keep warm function is activated, the appliance will automatically switch to keep-warm mode once cooking is complete.

Shake reminder

This model features a shake reminder. For optimal results, shake or turn the food promptly when the reminder alarm sounds.

Press the Shake Reminder button to turn alerts on or off. When enabled, you'll hear a beep and see the button flash—reminding you to shake or turn your food during cooking for more even results.

Light

Turn the light in the cooking chamber on or off.

Steam cleaning

Effectively dissolves greasy residue and provides a deep clean for both the basket and pan.

Favorite

Your Airfryer includes a save favorite feature for quick access to your preferred settings.

• Set your desired cooking temperature and time.
• Press and hold the Favorite button until you hear a beep—this confirms the setting is saved.
• To update your favorite, simply repeat the steps above with the new settings.

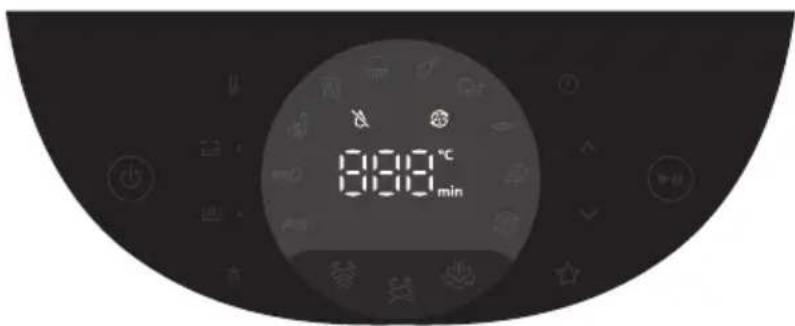

Display

8:00 min

Time/temperature display

The screen cycles between displaying the cooking time and temperature.

No water indication

Lights up when there is not enough water in the water tank.

Descaling indication

Lights up when the steam enabled functions have been used for 20 hours.

Before first use

Important: During the first time use, the airfryer may produce some smoke and odor. This is normal and should dissipate in a few minutes.

Caution: This is an Airfryer that works on hot air. Do not fill the pan with oil, frying fat, or any other liquid.

Caution: Do not touch hot surfaces. Handle the hot pan with oven-safe gloves.

Caution: This appliance is for household use only.

Note: Preheating of the appliance is not necessary.

1 Remove all packing material.
2 Remove any stickers or labels (if applicable) from the appliance.
3 Thoroughly clean the appliance before first use.

Preparations before use

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

1 Place the appliance on a stable, level and heat-resistant surface. Make sure there is enough space on the table for the extended rail after the pan is pulled out.
2 Leave at least 15 cm free space at the back of the appliance.

Note: During use, hot steam is released through the air outlets. Keep your hands and face safely away from the steam and outlets. Place the appliance at least 15 cm away from the wall, and do not position the air outlets directly in front of the socket.

Note: Do not put anything on top or on the sides of the appliance. This could disrupt the airflow and affect the frying result.

Note: Do not place the Airfryer next to another cooking appliance, close to the kitchen wall, or beneath a kitchen cupboard, as hot steam may condense and run down the surfaces.

Using the appliance

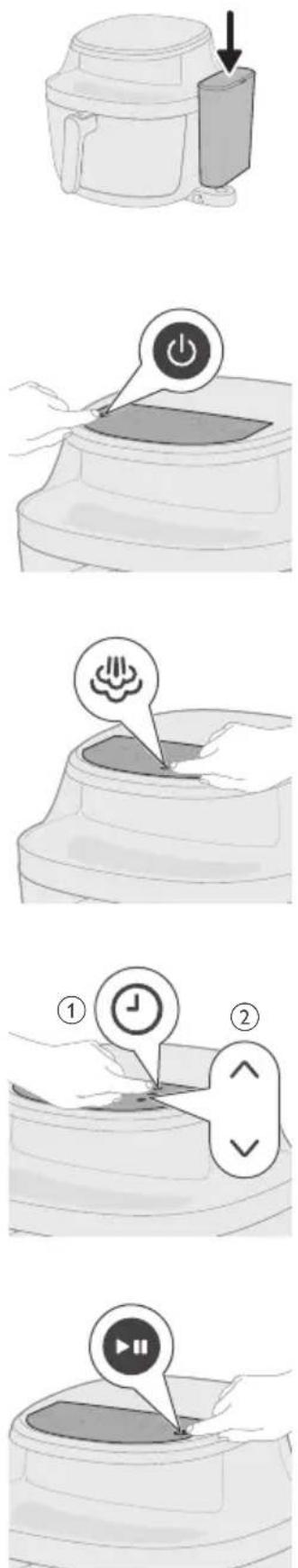

This appliance with steam function offers three versatile cooking modes designed to suit a wide range of cooking needs.

- Airfry Mode delivers crispy results with minimal oil, perfect for snacks and fried favorites.

Airfry mode

Illustration of a hand holding a small object over a container with an arrow indicating downward motion (no text or symbols)

• Steamfry Mode combines hot air and steam to lock in moisture while achieving a golden finish—ideal for delicate foods like homemade bread and fish.
• Steam Mode uses pure steam to gently cook ingredients, preserving nutrients and texture, making it perfect for vegetables and seafood.

1 Place the basket in the pan.

Diagram showing a mechanical device with arrows indicating motion or force (no text or symbols present)

2 Add ingredients to the basket and place the pan back into the appliance.

Note: The Airfryer is suitable for preparing a wide variety of ingredients. For best results, refer to the "Food table" for recommended quantities and cooking times.

Note: Avoid exceeding the suggested amounts or filling the basket beyond the "MAX" line, as this may impact cooking performance.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

3 Tap the On/off button to switch on the appliance.

Illustration of a hand pouring liquid into a container with a circular arrow symbol (no text or labels)

4 Tap the Airfry button to enter Airfry mode.

① ②

5 Tap the Temperature button and then use the Increase or Decrease button to select the desired cooking temperature.

① ②

6 Tap the Time button and then use the Increase or Decrease button to select the desired cooking time.

Note: In addition to manually selecting the cooking temperature and time, you can also choose from a variety of preset programs designed for convenience and optimal results.

7 Tap the Start/pause button to start cooking.

Note: Some ingredients require shaking or turning halfway through the cooking time (see "Food table"). To do this:

• Gently pull out the pan.
• Shake or turn the ingredients over a heat-resistant surface.
• Place the pan back to continue cooking.

Note: To pause the cooking process, press the Start/pause button. Press the same button again to resume.

Note: The appliance will automatically pause when the pan is removed. Cooking will automatically resume once the pan is placed back into the appliance.

8 Once cooking is complete, a timer bell will sound. Carefully pull out the pan.

Caution: After the cooking process, the basket, pan, the interior housing and the ingredients will be hot. Always place the basket and pan on a heat resistant surface (e.g. trivet or silicone mat) when you remove them from the appliance. Depending on the type of food, hot steam may escape from the pan.

9 Remove the cooked food from the basket.

Note: Excess oil or rendered fat from the ingredients will collect at the bottom of the pan.

Note: Depending on the type of food being cooked, you may wish to pour off the excess oil or fat between batches or before shaking the contents. To do this safely, place the pan on a heat-resistant surface and wear oven-safe gloves. Carefully pour out the oil or fat.

Food table for Airfry mode

The table below provides recommended base settings for preparing various food types.

Note

• The settings listed are intended as guidelines. Due to variations in ingredient origin, size, shape, and brand, optimal results cannot be guaranteed for all ingredients.
• When cooking larger quantities (e.g., fries, prawns, drumsticks, frozen snacks), shake, turn, or stir the ingredients 2–3 times during the cooking process to ensure consistent texture and doneness.

Food items Food amount Tempera-
ture
Time Note

Frozen spring rolls 800 g 200 °C 15 min Shake, turn, or stir 1-2 times in between
Hamburger (around 150 g/5 oz)	6 patties 200 °C 16-25	min	Shake, turn, or stir 1-2 times in between
Meat loaf 1400 g 150 °C 65-70		min
Meat chops without bone (around 190 g/7 oz)	4 chops 200 °C 16-25	min	Shake, turn, or stir 1-2 times in between
Chicken breast (around 160 g/6 oz)	5 pieces 180 °C 20-28	min	Shake, turn, or stir 1-2 times in between
Whole chicken (1200 g/42 oz)	1 piece 180 °C 50-60	min	Shake, turn, or stir 1 time in between

Steamfry mode

1 Place the basket in the pan.

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

2 Add ingredients to the basket and place the pan back into the appliance.

Note: The Airfryer is suitable for preparing a wide variety of ingredients. For best results, refer to the 'Food Table' for recommended quantities and cooking times.

Note: Avoid exceeding the suggested amounts or filling the basket beyond the "MAX" line, as this may impact cooking performance.

Purified water MAX

3 Fill the water tank with purified water up to the MAX water level.

Illustration of a portable kitchen appliance with a curved arrow indicating rotation (no text or symbols)

4 Pull out the water tank base from the bottom side of the appliance.

Diagram of a microwave oven with a side outlet and an arrow indicating direction (no text or symbols)

5 Secure the lid on the water tank and place the water tank onto the base.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

6 Tap the On/off button to switch on the appliance.

Illustration of a hand inserting a device into a container with wireless signal icons (no text or symbols)

7 Tap the Steamfry button to enter Steamfry mode.

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

8 Tap the Temperature button and then use the Increase or Decrease button to select the desired cooking temperature.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with numbers ① and ②.

9 Tap the Time button and then use the Increase or Decrease button to select the desired cooking time.

Note: In addition to manually selecting the cooking temperature and time, you can also choose from a variety of preset programs designed for convenience and optimal results.

Illustration of a hand pressing a button on a device (no text or symbols visible)

10 Tap the Start/pause button to start cooking.

Note: Some ingredients require shaking or turning halfway through the cooking time (see "Food table"). To do this:

• Gently pull out the pan.
• Shake or turn the contents over a heat-resistant surface.
• Place the pan back to continue cooking.

Note: To pause the cooking process, press the Start/pause button. Press the same button again to resume.

Note: The appliance will automatically pause when the basket is removed. Cooking will automatically resume once the basket is placed back into the appliance.

Illustration of a kitchen appliance with a bell icon and checkmark, showing a bowl with food and a downward arrow (no text or symbols)

11 Once cooking is complete, a timer bell will sound. Carefully pull out the pan.

Caution: After the cooking process, the basket, pan, the interior housing and the ingredients will be hot. Always place the basket on a heat resistant surface (e.g. trivet or silicone mat) when you remove the basket. Depending on the type of food, hot steam may escape from the basket.

Illustration of a hand pouring food into a bowl with meat slices nearby (no text or symbols)

12 Remove the cooked food from the basket.

Note: Excess oil or rendered fat from the ingredients will collect at the bottom of the pan.

Note: Depending on the type of food being cooked, you may wish to pour off the excess oil or fat between batches or before shaking the contents. To do this safely, place the pan on a heat-resistant surface and wear oven-safe gloves. Carefully pour out the oil or fat.

Food table for Steamfry mode

The table below provides recommended base settings for preparing various food types.

Note

• The settings listed are intended as guidelines. Due to variations in ingredient origin, size, shape, and brand, optimal results cannot be guaranteed for all ingredients.
• When cooking larger quantities (e.g., fries, prawns, drumsticks, frozen snacks), shake, turn, or stir the ingredients 2–3 times during the cooking process to ensure consistent texture and doneness.

Food items Food amount Tempera-
Time Note
ture

Fresh potato cubes 1200 g/42 oz 180 °C 35 min Shake, turn, or stir 1-2 times in between
Chicken breast (around 160 g/6 oz)	5 pieces 160 °C 29 min Shake, turn, or stir 1-2 times in between
Fish fillet (around 125 g/4 oz)	6 pieces 160 °C 22 min Shake, turn, or stir 1-2 times in between
Homemade bread 500 g 180 °C 30 min Spread the dough into an even, flat layer to prevent it from rising and touching the heating element during cooking, which could burn the bread.
Whole chicken 1200 g/42 oz 180 °C 50 min Shake, turn, or stir once in between

Steam mode

1 Place the basket in the pan.

Illustration of a hand holding a container with a downward arrow indicating compression (no text or symbols)

Diagram showing a mechanical component with arrows indicating force or movement (no text or symbols present)

2 Add ingredients to the basket and place the pan back into the appliance.

Note: The Airfryer is suitable for preparing a wide variety of ingredients. For best results, refer to the "Food Table" for recommended quantities and cooking times.

Note: Avoid exceeding the suggested amounts or filling the basket beyond the 'MAX' line, as this may impact cooking performance.

Purified water MAX

3 Fill the water tank with purified water up to the MAX water level.

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

4 Pull out the water tank base from the bottom side of the appliance.

Diagram of a microwave oven with a side arm and a downward arrow indicating compression (no text or symbols)

5 Secure the lid on the water tank and place the water tank onto the base.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

6 Tap the On/off button to switch on the appliance.

Illustration of a hand pressing down on a curved surface with a small circular icon above (no text or symbols)

7 Tap the Steam button to enter Steam mode.

Diagram showing a hand pressing a button on a surface with two directional arrows labeled ① and ②, indicating movement or navigation.

8 Tap the Time button and then use the Increase or Decrease button to select the desired cooking time.

Note: Temperature adjustment is disabled for Steaming.

Note: In addition to manually selecting the cooking temperature and time, you can also choose from a variety of preset programs designed for convenience and optimal results.

Illustration of a hand pressing a button on a device (no text or symbols visible)

9 Tap the Start/pause button to start cooking.

Note: Some ingredients require shaking or turning halfway through the cooking time (see "Food table"). To do this:

• Gently pull out the pan.
• Shake or turn the ingredients over a heat-resistant surface.
• Place the pan back to continue cooking.

Note: To pause the cooking process, press the Start/pause button. Press the same button again to resume.

Note: The appliance will automatically pause when the basket is removed. Cooking will automatically resume once the basket is placed back into the appliance.

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling (no text or symbols)

10 Once cooking is complete, a timer bell will sound. Carefully pull out the pan.

Caution: After the cooking process, the basket, pan, the interior housing and the ingredients will be hot. Always place the basket and pan on a heat resistant surface (e.g. trivet or silicone mat) when you remove them from the appliance. Depending on the type of food, hot steam may escape from the basket.

Illustration of a hand pouring liquid into a pot with food on a plate (no text or symbols)

11 Remove the cooked food from the basket.

Note: Excess oil or rendered fat from the ingredients will collect at the bottom of the pan.

Note: Depending on the type of food being cooked, you may wish to pour off the excess oil or fat between batches or before shaking the contents. To do this safely, place the pan on a heat-resistant surface and wear oven-safe gloves. Carefully pour out the oil or fat.

Food table for Steam mode

The table below provides recommended base settings for preparing various food types.

Note

• The settings listed are intended as guidelines. Due to variations in ingredient origin, size, shape, and brand, optimal results cannot be guaranteed for all ingredients.
• When cooking larger quantities (e.g., fries, prawns, drumsticks, frozen snacks), shake, turn, or stir the ingredients 2–3 times during the cooking process to ensure consistent texture and doneness.

Food items Food amount Temperature		Time Note
Fresh potato cubes 800 g / 28 oz 100 °C 28-35		min
Whole potato (around 250-300 g/9-11 oz)	4 pieces 100 °C 50-60	min
Pork ribs 300 g/11 oz 100 °C 25-35		min
Rice 320 g/11 oz 100 °C 35-40		min	Using cooking pot, like baking pot, silicon tray etc.Add 320 ml of water to the pot, maintaining a rice-water ratio of 1:1.2.
Yam/Sweet Potato (around 100 g/3.5 oz)	8 pieces 100 °C 50-75	min

Cooking with preset programs

This appliance comes with a variety of preset cooking programs designed to simplify meal preparation. Each preset is optimized for a specific type of food, automatically setting the ideal temperature and cooking time to deliver delicious results with minimal effort.

1 Add ingredients to the basket and place the pan back into the appliance.

Note: Avoid exceeding the suggested amounts or filling the basket beyond the "MAX" line, as this may impact cooking performance.

Diagram showing a mechanical assembly with arrows indicating motion (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

2 Tap the On/off button to switch on the appliance.

Illustration of a hand pressing down on a container with icons above (no text or symbols)

3 Tap the Airfry, Steam, or Steamfry button to enter one of the cooking modes.

Note: Make sure to have the filled water tank in place when you are using the Steam or Steamfry cooking modes.

Illustration of a hand pressing down on a container with a snowflake icon (no text or symbols)

4 Choose one of the preset programs according to the food you are cooking.

Illustration of a hand pressing a button on a device (no text or symbols visible)

5 Tap the Start/pause button to start cooking.

Note: Some ingredients require shaking or turning halfway through the cooking time (see 'Food table'). To do this:

• Gently pull out the basket.
• Shake or turn the contents over a heat-resistant surface.
• Reinsert the basket to continue cooking.

Note: To pause the cooking process, press the Start/pause button. Press the same button again to resume.

Note: The appliance will automatically pause when the basket is removed. Cooking will automatically resume once the basket is placed back into the appliance.

Illustration of a kitchen appliance with a bell icon and a downward arrow, no text or symbols present.

6 Once cooking is complete, a timer bell will sound. Carefully pull out the pan.

Caution: After the cooking process, the basket, pan, the interior housing and the ingredients will be hot. Always place the basket and pan on a heat resistant surface (e.g. trivet or silicone mat) when you remove them from the appliance. Depending on the type of food, hot steam may escape from the pan.

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

7 Remove the cooked food from the basket.

Note: Excess oil or rendered fat from the ingredients will collect at the bottom of the pan.

Note: Depending on the type of food being cooked, you may wish to pour off the excess oil or fat between batches or before shaking the contents. To do this safely, place the pan on a heat-resistant surface and wear oven-safe gloves. Carefully pour out the oil or fat.

Preset table for Airfry
Preset Recommended amount Time Temperature Shake
Reminder

	Frozen fries 1000 g 27 min 180 °C 2 times
	Homemade fries	1000 g 29 min 180 °C 2 times
	Meat chop 4 pieces (190g/piece) 17 min 200 °C 1 time
	Egg and breakfast	3 toasts, 4 eggs 12 min	160 °C / Add toast 6 min into cooking
	Muffin 9 cups (around 30g per cup) 16 min 160 °C /
	Chicken drumsticks	10 pieces (125g/piece) 28 min 180 °C 2 times
	Mixed vegetables	1000 g (Airfry mode) 600 g (Steamfry and Steam modes)	12 min 180 °C 2 times
	Whole fish 2 fish (300-400g per fish) 13 min 200 °C 1 time

Preset table for Steamfry
Time Temperature Shake
Reminder

Preset Weight

Chicken drumsticks

10 pieces (125 g/piece) 35 min 180 °C 2 times

19 min 160 °C 2 times

Whole fish 2 fish (300-400 g per fish) 18 min 200 °C 1 time

Dumplings 370 g 16 min 160 °C /

Preset table for Steam

Preset Weight Time Temperature

Chicken drumsticks

10 pieces (125 g/piece) 33 min 100 °C

Broccoli 600 g 13 min 100 °C

Whole fish 2 fish (300-400 g per fish) 19 min 100 °C

Dumplings 370 g 13 min 100 °C

Cleaning

Routine cleaning

°C °C

Warning: Let the pan, basket, and inside of the appliance cool down completely before you start cleaning.

Warning: the basket has a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials as this may damage the non-stick coating.

Clean the appliance after every use. Remove oil and fat from the bottom of the pan after every use.

Simple line drawing of a plug inserted into a socket with a downward arrow indicating insertion (no text or symbols)

1 Press the power On/Off button to switch off the appliance, remove the plug from the wall outlet and let the appliance cool down.
2 Dispose of rendered fat or oil from the bottom of the pan.

Simple line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

3 Clean the basket, pan, and water tank under the tap, if necessary with warm water, dishwashing liquid and a non-abrasive sponge (see "cleaning table").

Tip: If food residues stuck to the basket or pan, you can soak them in hot water and dishwashing liquid for 10–15 minutes. Soaking loosens the food residues and makes it easier to remove. Make sure you use a dishwashing liquid that can dissolve oil and grease. If there are grease stains on the basket or pan and you have not been able to remove them with hot water and dishwashing liquid, use a liquid degreaser.

Line drawing of a hand holding a lid over a container (no text or symbols)

Tip: If necessary, food residues stuck to the heating element can be removed with a soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush, as this might damage the coating on the heating element.

4 To prevent scratches, gently wipe the outside and inside of the appliance with an unwrinkled, clean, and soft cloth. Begin with a slightly moistened cloth and follow up with a dry one, if necessary.

Diagram of a spiral-patterned device inside a container, with no visible text or symbols

5 Clean the heating element with a cleaning brush to remove any food residues.

Line drawing of a hand cleaning a small appliance (no text or symbols)

6 Clean the inside of the appliance with a slightly moistened soft cloth and follow up with a dry one, if necessary.

Steam cleaning

The steam cleaning function effectively dissolves greasy residue and provides a deep clean for both the basket and pan.

The program runs for 20 minutes, consisting of:

• 15 minutes of steam cleaning to dissolve buildup.
• 5 minutes of drying to ensure the pan is ready for use.

Note: When starting the steam cleaning program, the appliance may release more vapor from the back than during regular steam mode. This is normal and may result in increased condensation on nearby walls.

Before starting, please ensure the following:

• Air outlet is not directly facing any power socket.
• Do not place other kitchen appliances next to the appliance.
• Keep at least 15 cm of space between the appliance and the wall to minimize condensation buildup.

1 Fill the water tank with purified water up to the MAX water level.

Purified water MAX

2 Pull out the water tank base from the bottom side of the appliance.

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present.

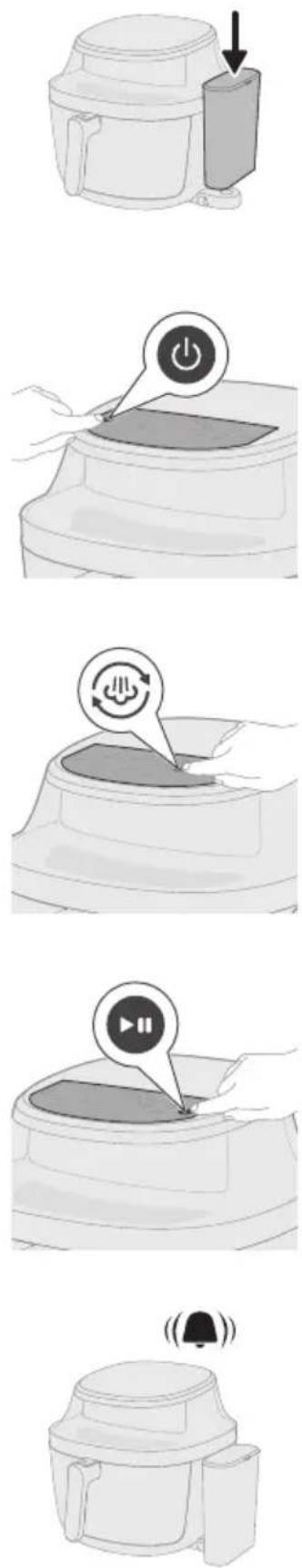

3 Secure the lid on the water tank and place the water tank onto the base.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

4 Tap the On/off button to switch on the appliance.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand placing a circular button into a container with a circular icon above (no text or symbols)

5 Tap the Steam Clean button.

Illustration of a hand pressing a button on a device (no text or symbols visible)

6 Press the Start/pause button to start the steam cleaning process.

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

7 After 15 minutes, the appliance will beep continuously and the steam clean icon will start flashing.

Line drawing of a kitchen sink with a hand holding a pan and a handle, no text or symbols present

8 Pull out and clean the pan and basket.

Caution: Always wear heat-resistant gloves to handle the hot pan.

Note: If grease remains in the pan and basket, clean them with soapy water or detergent using a sponge, then rinse again.

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

9 Place the basket and pan back into the appliance.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

10 Tap the Start/pause button to start the drying process.

Simple line drawing of a coffee maker with a bell icon and checkmark (no text or symbols)

11 After 5 minutes, a beep sound indicates that drying is complete.

Tip: Before first use or if not used for a long time, we suggest using the "Steam cleaning" function to thoroughly clean the water circle and cooking chamber.

Descaling

CA6700 60 ml

Every 20 hours of using steam mode, a descaling reminder will automatically appear and blink on the display—this means it is time to run the descaling program. The descaling program cleans limescale buildup from the airfryer's water system, helping to extend its lifespan.

1 Pour 60 ml of Philips Descaler CA6700 (sold separately) to the water tank.

Purified water MAX

2 Fill the water tank with purified water up to the MAX level.

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

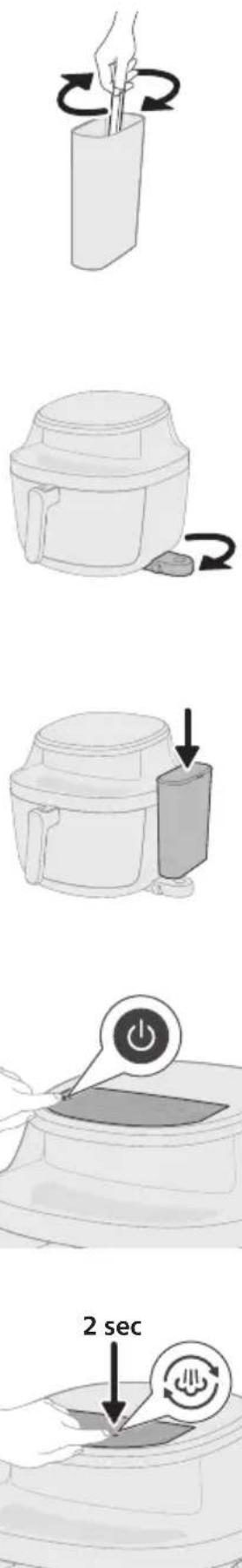

3 Mix the water and descaler evenly in the water tank.

Simple line drawing of a white cylindrical container with a handle and a small attached object (no text or symbols)

4 Pull out the water tank base from the bottom side of the appliance.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

5 Secure the lid on the water tank and place the water tank onto the base.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

6 Tap the On/off button to switch on the appliance

2 sec

7 Tap and hold the Steam clean button for 2 seconds.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

8 Tap the Start/pause button to start descaling.

Line drawing of a coffee maker with a bell icon above it (no text or symbols)

9 After 25 minutes of descaling, the appliance will beep and remind you to pull out the pan.

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text labels

10 Pull out the pan and pour off any remaining water in the pan.

Caution: Always wear heat-resistant gloves to handle the hot pan.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

11 Pour off any remaining water in the water tank.

Purified water MAX

12 Refill the water tank with purified water.

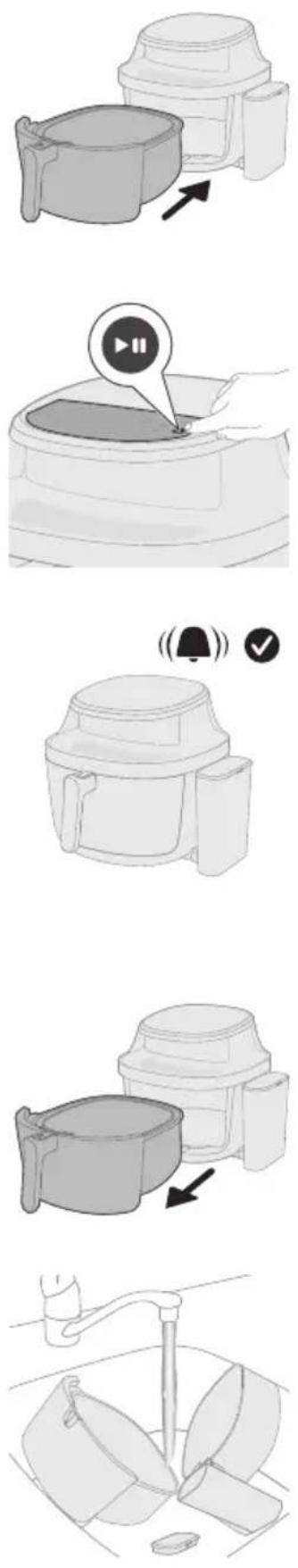

13 Place the basket and pan back to the appliance.

14 Press the Start/pause button to continue descaling.

15 The descaling process ends when you hear the appliance beep again.

16 Pull out the basket and pan.

17 Rinse the basket, pan, and water tank under the tap.

Important: Under no circumstances should you use a descaling liquid based on sulfuric acid, hydrochloric acid, sulfamic or acetic acid (vinegar) as this may damage the water system in your appliance and not dissolve the limescale properly.

Note: If you often use hard water in your area, you may need to descale the device more frequently.

Storage

1 Unplug the appliance and let it cool down.
2 Make sure all parts are clean and dry before storing.

Note

• When carrying the Airfryer, hold it horizontally and support the pan at the front to prevent any accidental tilting and potential damage to the parts.
• Always make sure that the removable parts of the Airfryer are fixed before you carry and/or store it.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.home.id/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The outside of the appliance becomes hot during use.	The heat inside radiates to the outside walls.	This is normal. All areas that you need to touch during use stay cool enough to touch.
		The pan, the basket, and the inside of the appliance always become hot when the appliance is switched on to ensure the food is properly cooked. These parts are always too hot to touch.
		If you leave the appliance switched on for a longer time, some areas get too hot to touch. These areas are marked on the appliance with the following icon:
		As long as you are aware of the hot areas and avoid touching them, the appliance is safe to use.
My home-made fries do not turn out as I expected.	You did not use the right potato type.	To get the best results, use fresh floury potatoes. If you need to store the potatoes, do not store them in a cold environment like in a fridge. Choose potatoes whose package states that they are suitable for frying.

Problem Possible cause Solution

	The amount of ingredients in the basket is too big.	Follow the instructions in this user manual to prepare home-made fries.
	Certain types of ingredients need to be shaken halfway through the cooking time.	Follow the instructions in this user manual to prepare home-made fries.
The Airfryer does not switch on. The appliance is not plugged in. Check if the plug is inserted in the wall outlet properly.
	Several appliances are connected to one outlet.	The Airfryer has a high wattage. Try a different outlet and check the fuses.
	You did not tap the On/off button.	Tap the On/off button to switch on the appliance.
I see some peeling off spots inside my Airfryer.	Some small spots can appear inside the pan of the Airfryer due to the incidental touching or scratching of the coating (e.g. during cleaning with harsh cleaning tools and/or while inserting the basket).	You can prevent damage by lowering the basket into the pan properly. If you insert the basket at an angle, its side may knock against the wall of the pan, causing small pieces of coating to chip off. If this occurs, please be informed that this is not harmful as all materials used are food-safe.
White smoke comes out of the appliance.	You are cooking fatty ingredients.	Carefully pour off any excess oil or fat from the pan and then continue cooking.
	The pan still contains greasy residues from previous use.	White smoke is caused by greasy residues heating up in the pan. Always clean the pan and the basket thoroughly after every use.
	Breading or coating did not adhere properly to the food.	Tiny pieces of airborne breading can cause white smoke. Firmly press breading or coating to food to ensure it sticks.
	Marinade, liquid or meat juices are splattering in the rendered fat or grease.	Pat food dry before placing it in the basket.
The screen on the Airfryer shows "E1".	Your Airfryer might be stored in a place where it is too cold.	If your device was stored at a low ambient temperature, let it warm up to room temperature for at least 15 minutes before you plug it in again.If your display still shows "E1", call the service hot line or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The screen on the Airfryer shows "E4-E12".	The device might have a malfunction.	Try to unplug and plug in the device again.If this does not help please call the service hot line or contact the Consumer Care Center in your country.
The screen on the Airfryer shows "E15".	The internal water tube is blocked.	Perform the descaling process.If this does not help please call the service hot line or contact the Consumer Care Center in your country.
I hear some strange noise coming from the inside of the appliance.	This appliance is equipped with a fan to circulate heat and a water pump to enable the steaming function.During operation, you may hear sounds from these components.	This is normal and expected.If the noise becomes noticeably louder or changes in character, please contact the Consumer Care Center for further assistance.
There is water in the cooking chamber after use.	After cooking, you may notice water remaining in the cooking chamber.This is due to the steam generated during operation, which condenses on the food and the inner walls of the chamber.	A small amount of condensation is normal.Simply wipe it away using a soft, damp, non-abrasive cloth.
is flashing. No water in water tank. Add purified water to the water tank.
	Water tank is not placed properly. Press the water tank to secure it in place.
	The internal water tube is blocked. Perform the descaling process.If this does not help please call the service hot line or contact the Consumer Care Center in your country.
is flashing. This is the descaling reminder. Perform the descaling process. See chapter "Descaling".

Problem Possible cause Solution

There is condensation on the wall during steaming, steam cleaning, or descaling.	It is normal. The appliance may release increased vapor from the air outlet. This vapor can be pushed toward nearby surfaces by the internal fan, leading to visible condensation on walls.	To ensure safe and optimal use:- Place the appliance at least 15 cm away from the wall to reduce condensation buildup.- Ensure the air outlet is not directly facing any power socket to avoid electrical hazards.- Do not place other kitchen appliances close to the unit during operation.- Use a mop or soft cloth to dry any condensation that forms on surrounding surfaces.
There is water leakage from the Airfryer.	Internal Leakage (e.g., water tube or internal components).	Contact the Consumer Care Center in your country for further assistance.
	Cracks or Damage from External Force.If the appliance has been dropped or deformed, it may cause structural damage leading to leaks.
	The water tank may not be properly installed or could be damaged.	Remove the water tank and reinstall it securely.Check for any visible cracks or damage.If damage is found, contact the Consumer Care Center for further assistance.
The Airfryer is not producing enough steam.	Insufficient water in the water tank.	Check the water tank to ensure there is enough water.
	The water tank is not properly inserted.	Press the water tank to secure it in place.
	The water inlet is dirty or clogged.	Clean and rinse thoroughly to remove any blockages.
	There is steam generator clogging or pipeline leakage.	If the appliance has been used for an extended period, the steam generator may require maintenance.Run the descaling program to clean the steam system.If the issue persists after descaling, please contact the Consumer Care Center in your country for further assistance.

Obsah

Symbol of a waste bin with no text or numbers, crossed by two crossed lines and a solid black rectangle below (no text or symbols present)

Illustration of a hand using a tool to press or install a device on a container, with an inset showing a close-up of the component (no text or symbols present)

Illustration of a hand holding a small object with a magnified inset showing a smartphone and a document (no text or symbols present)

8:00 12:00

Mražené hranolky

6:00'c LED

Uchov. teplé

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand holding a small object over a container, with a downward arrow indicating action (no text or symbols)

Diagram showing a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a circular arrow icon into a container (no text or symbols)

Diagram showing a thermometer placed on a surface with two directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food processor with a bell icon and a downward arrow indicating compression (no text or symbols)

Illustration of a hand pouring liquid into a container with a circular inset showing a patterned dish (no text or symbols)

Illustration of a hand pressing down on a cylindrical container with a downward arrow indicating compression (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable oven with a handle and lid, no text or symbols present.

Diagram of a microwave oven with a side outlet and an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a Wi-Fi icon into a container (no text or symbols)

Diagram showing a thermometer placed on a surface with directional arrows indicating temperature and movement directions.

Diagram showing a hand pressing a button on a surface with two labeled buttons (① and ②) and directional arrows indicating movement.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with warning symbols (bell, checkmark) and a downward arrow indicating cooling effect (no text or labels)

Illustration of a hand pouring food into a pot with a plate of raw meat nearby (no text or symbols)

Illustration of a hand pressing down on a cylindrical container with a downward arrow indicating compression (no text or symbols)

Diagram showing a mechanical component with arrows indicating force or movement (no text or symbols present)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a microwave oven with a side arm and a downward arrow indicating compression (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a small flower icon (no text or symbols)

Diagram showing a hand pressing a button on a laptop with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Diagram showing a container with a spring-like structure being lifted by an arrow, next to a container with arrows indicating motion (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with swirling patterns above (no text or symbols)

Illustration of a hand pressing down on a container with a snowflake icon (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Simple line drawing of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen sink with a fork and pan, no text or symbols present

Line drawing of a hand holding a lid over a container (no text or symbols)

Illustration of a hand using a tool to remove a spiral-patterned object from a container (no text or symbols)

Hand cleaning a small kitchen appliance with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand placing a circular button into a container with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with two panes and a handle (no text or symbols)

Illustration of two plastic containers with a directional arrow indicating movement (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Line drawing of a coffee maker with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text labels.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

Symbol of a waste bin with no text or numbers present

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone above it (no text or symbols present)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

Oversigt over kontrolpanel

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a circular arrow icon into a container with a spiral symbol (no text or labels)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

7 Tryk på Start/pause-knappen for at starte tilberedningen.

Illustration of a food processor with a bell icon and a downward arrow indicating compression (no text or symbols)

Illustration of a hand pouring liquid into a container with a circular inset showing a patterned dish (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot with arrows indicating direction (no text or symbols)

Purified water MAX

Illustration of a portable kitchen appliance with a curved arrow indicating rotation (no text or symbols)

Diagram of a microwave oven with a side outlet and an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a Wi-Fi icon into a container (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including a thermometer icon and checkmark indicators.

Diagram showing a hand pressing a button on a surface with numbered annotations indicating steps ① and ②.

Illustration of a hand pressing a button labeled '播放' (播放), no text or symbols present

10 Tryk på Start/pause-knappen for at starte tilberedningen.

Illustration of a kitchen appliance with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring food into a bowl with two plates nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable water dispenser with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

1 Sæt kurven i beholderen.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a small object into a container with a speech bubble containing a cloud icon (no text or symbols present)

Diagram showing a hand pressing a button on a device with numbered callouts and directional arrows indicating action or navigation.

Illustration of a hand pressing a button labeled '播放' with a play button icon (no text or symbols on the button itself)

9 Tryk på Start/pause-knappen for at starte tilberedningen.

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling or ventilation (no text or symbols)

Illustration of a hand using a griddle to add food into a pot (no text or symbols)

Diagram showing a mechanical device with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a speech bubble containing '30' and icons above (no text or symbols)

Illustration showing a hand pressing a container with a speech bubble containing Chinese characters and a virus symbol.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a cooking pot with a bell and checkmark, showing a drop in water (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a circular inset showing a mesh (no text or symbols)

Diagram showing a temperature sensor above a device with 'c' labels, indicating thermal measurement or sensor response.

Illustration showing a pipe plug inserted into a socket and a fan-shaped container with blades, both without any text or symbols.

Line drawing of a hand cleaning a cylindrical container (no text or symbols)

Illustration of a hand holding a tool inside a container with a spiral pattern circled (no text or symbols)

Simple line drawing of a hand cleaning a small container (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and button (no text or symbols)

Line drawing of a kitchen sink with a faucet and bucket (no text or symbols)

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

10 Tryk på Start/pause-knappen for at starte tørringen.

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a microwave oven with a button and scroll (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

8 Tryk på Start/pause-knappen for at starte afkalkningen.

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Diagram illustrating a hygiene procedure with a hand pouring liquid into a container, warning symbol indicating illness, and a water level indicator.

Illustration of a hand pouring liquid into a sink with a faucet (no text or symbols)

11 Tøm tanken for resterende vand.

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and checkmark (no text or symbols)

Illustration of two mechanical components with a downward arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with a faucet and plastic bag (no text or symbols)

17 Skyl kurven, beholderen og vandtanken under rindende vand.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing a smartphone and battery (no text or symbols)

Illustration of a hand using a caliper to adjust a small object, with an inset showing the same object being inserted (no text or symbols present)

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing a button into a container with a downward arrow (no text or symbols)

Illustration of a cooking pot with a spring being lifted by an arrow, next to a container (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular arrow symbol (no text or labels)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a surface with numbered annotations and directional arrows indicating movement or change.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a jar with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a component (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a small object into a container with a speech bubble containing Wi-Fi icons (no text or symbols present)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered positions ① and ②.

Diagram showing a hand pressing a button on a document with numbered annotations and directional arrows indicating action or navigation.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and directional arrow (no text or symbols)

Illustration of a hand pouring meat into a pot with a plate of raw meat nearby (no text or symbols)

Illustration of a hand pressing a button into a container with an arrow indicating downward motion (no text or symbols)

Illustration of a small animal in a pot with arrows indicating movement or force (no text or symbols)

Purified water MAX

Simple line drawing of a cylindrical container with a handle and a curved arrow indicating rotation (no text or symbols)

Diagram of a kitchen appliance with a downward arrow indicating a component (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button labeled with icons and directional arrows, likely illustrating a process or action.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a microwave oven with a bell icon and checkmark indicating notification or approval (no text or symbols on the main diagram)

Illustration of a hand pouring liquid into a bowl and plate (no text or symbols)

Diagram showing a mechanical component with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a circular label and three icons above (no text or symbols)

Illustration of a container with a speech bubble containing a snowflake (no text or symbols on the diagram itself)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell and checkmark, showing a bowl with spikes and a lid (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Pure diagram of a plug with a cable, no text or symbols present

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Line drawing of a hand cleaning a glass container (no text or symbols)

Illustration of a hand holding a tool inside a cylindrical device with a spiral pattern circled (no text or symbols)

Hand cleaning a small container with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a portable container with a handle and a small object beside it (no text or symbols)

Diagram of a microwave oven with a side-mounted cooling unit (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with two panes and a handle (no text or symbols)

Illustration of two containers with a lid and an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text indicating hazard.

Illustration of a hand pouring liquid into a basin with a faucet in the background (no text or symbols)

Purified water MAX

Illustration of two plastic containers with a directional arrow indicating movement (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Illustration of two plastic containers with a downward arrow indicating a change (no text or symbols)

Line drawing of a kitchen sink with a hand holding a tool, showing no text or symbols

Ökodisaini teave 149

Tutvustus 149

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a small object with a magnified inset showing a smartphone and dollar bill (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical device with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved object with a circular arrow icon (no text or symbols)

Diagram showing a thermometer and directional arrows on a device component, labeled with parts ① and ②.

Diagram showing a hand pressing a button on a laptop with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, showing a cooking step (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand holding a container with a downward arrow indicating action (no text or symbols)

Illustration of a kitchen mixer with a bag and a container, showing directional arrows (no text or symbols)

Purified water MAX

Simple line drawing of a cylindrical container with a handle and a small outlet, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand inserting a device into a container with a speech bubble containing wireless signal icons (no text or symbols on the device itself)

Diagram showing a thermometer and directional arrows on a device, labeled with parts ① and ②.

Diagram showing a hand pressing a document with a clock icon and directional arrows, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark, showing a bowl with spikes and a downward arrow (no text or symbols)

Illustration of a hand pouring sauce into a bowl with meat slices nearby (no text or symbols)

Illustration of a hand pressing down on a cylindrical object with a downward arrow indicating motion (no text or symbols)

Diagram showing a plant growing in a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a microwave oven with a side-mounted lid and arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand holding a clipboard with a clock icon and directional arrows, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with icons above (no text or symbols)

Illustration of a container with a speech bubble containing snowflake symbols (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, showing a cooking step (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Simple line drawing of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Simple line drawing of a kitchen sink with a faucet and a bowl (no text or symbols)

Line drawing of a hand holding a lid over a container (no text or symbols)

Illustration of a hand using a tool to interact with a spiral-patterned device (no text or symbols present)

Hand cleaning a small container with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a circular button into a container with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with buckets and a handle (no text or symbols)

Illustration of two 3D-printed containers with a directional arrow indicating movement (no text or symbols)

9 Libistage korv ja pann seadmesse tagasi.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a microwave oven with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a coffee maker with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text labels.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

• This symbol means that electrical products shall not be disposed of with normal household waste.
• Siga la normativa de su país con respecto a la recogida de productos eléctricos.

Illustration of a hand holding a container with a tool, showing a magnified view of a device inside (no text or symbols)

Illustration of a hand using a tool to press or install a device, with an inset showing a magnified view of the device (no text or symbols present)

8:00 12:00

Patatas fritas congeladas

6:00'c LED

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a circular arrow icon into a container with a spiral symbol (no text or labels)

Diagram showing a thermometer and directional arrows on a device, labeled with parts ① and ②.

Diagram showing a hand pressing a button on a surface with labeled positions and directional arrows

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Line drawing of a portable air purifier with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating a force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a device with a speech bubble containing wireless signal icons (no text or symbols)

Diagram showing a temperature sensor on a device with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows indicating action or navigation.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring sauce into a pan with meat slices nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable water dispenser with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a small object into a container with a speech bubble containing a flower icon (no text or symbols present)

Diagram showing a hand pressing a button on a surface with numbered annotations indicating step 1 and step 2.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a microwave oven with a bell icon and warning symbol (no text or labels)

Illustration of a hand using a tool to stir meat into a pot, with a plate of food nearby (no text or symbols)

Diagram showing a mechanical device with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with icons above (no text or symbols)

Diagram showing a hand pressing a container with a speech bubble containing Chinese characters and a virus symbol.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a cooking pot with a bell and checkmark, showing a drop in the pot (no text or symbols)

Illustration of a hand pouring liquid into a container with a circular inset showing a mesh (no text or symbols)

Simple line drawing of a plug inserted into a socket with a black arrow indicating direction (no text or symbols)

Simple line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Purified water MAX

Illustration of a portable air purifier with a handle and spout (no text or symbols)

Illustration of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a faucet and two panes (no text or symbols)

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a mechanical device with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a kitchen appliance with a curved arrow indicating rotation (no text or symbols)

Diagram of a microwave oven with a side-mounted lid and arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a coffee maker with a bell icon and checkmark (no text or symbols)

Illustration of two mechanical components with a downward arrow indicating motion (no text or symbols)

Line drawing of a kitchen sink with a hand holding a tool above it (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand holding a small object with a magnified inset showing a device (no text or symbols present)

Illustration of a hand using a tool to press or install a device, with an inset showing a magnified view of the device (no text or symbols present)

8:00 12:00

Frites surgelées

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot with a fork and a lid, showing directional arrows (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a circular arrow and spiral symbol pointing to the interior (no text or symbols present)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable kitchen appliance with a handle and side button (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a small object into a container with a speech bubble containing Wi-Fi icons (no text or symbols on the object itself)

Diagram showing a temperature sensor on a device with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows indicating action or navigation.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark indicating alert (no text or symbols)

Illustration of a hand pouring meat into a bowl with a plate of raw meat nearby (no text or symbols)

Illustration of a hand pressing a button on a cylindrical object with an arrow indicating downward motion (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a white cylindrical device with a curved arrow indicating rotation (no text or symbols)

Illustration of a microwave oven with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a circular icon containing swirling lines (no text or symbols)

Illustration of a hand pressing a container with a speech bubble containing a snowflake (no text or symbols on the diagram itself)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating warning (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Simple line drawing of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen sink with a faucet and multiple panes (no text or symbols)

Purified water MAX

Line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon containing a battery symbol (no text or labels)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with buckets and a handle (no text or symbols)

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a mechanical device with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a kitchen appliance with a curved arrow indicating rotation (no text or symbols)

Diagram of a microwave oven with a side-mounted lid and arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a coffee maker with a bell icon and checkmark (no text or symbols)

Illustration of two mechanical components with a downward arrow indicating motion (no text or symbols)

Line drawing of a kitchen sink with a hand holding a tool above it (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

• Ovaj simbol naznačuje da se električni proizvodi ne smiju odlagati su običajenim otpadom iz kućanstva.
• Poštujte propise svoje države o zasebnom prikupljanju električnih proizvoda.

Jamstvo i podrška

Illustration of a hand holding a container with a tool, showing a magnified view of a small object inside (no text or symbols present)

Pritisnite gumb za otpuštanje košare i podignite košaru iz posude.

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of a component (no text or symbols present)

Zamrznuti krumpirići

Ovu prethodnu postavku upotrijebite za pripremu hrskavih zlatnih zamrznutih krumpirića, kriški ili zapečenog krumpira.

Svježi krumpir

Ovu prethodno postavljenu postavku upotrijebite za pripremu hrskavih krumpirića ili kriški krumpira od svježeg krumpira.

Mesni kotleti

Technical line drawing of a mechanical component with a 15cm dimension annotation (no other text or symbols)

1 Aparat postavite na stabilnu, ravnu površinu otpornu na toplinu. Provjerite ima li na stolu dovoljno prostora za produženu vodilicu kada se posuda izvadi.
2 Ostavite barem 15 cm slobodnog prostora sa stražnje strane aparata.

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

2 Dodajte sastojke u košaru i vratite posudu natrag u aparat.

Napomena: Airfryer je prikladan za pripremu raznih sastojaka. Za najbolje rezultate pogledajte „Tablicu hrane” s preporučenim količinama i vremenom kuhanja.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a circular arrow symbol pointing to the top part of its side (no text or symbols present)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

5 Dodirnite gumb za temperaturu i zatim s pomoću gumba za povećanje ili smanjenje odaberite željenu temperaturu kuhanja.

Diagram showing a hand pressing a button on a laptop with directional arrows and a clock icon, labeled with numbers ① and ②.

6 Dodirnite gumb za vrijeme i zatim s pomoću gumba za povećanje ili smanjenje odaberite željeno vrijeme kuhanja.

Napomena: Osim mogućnosti ručnog odabira temperature i vremena kuhanja, možete birati i između raznih prethodno postavljenih programa osmišljenih za praktičnu pripremu i optimalne rezultate.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, showing a cooking step (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

9 Kuhanu hranu izvadite iz košare.

Napomena: Višak ulja ili masnoće iz sastojaka skuplja se na dnu posude.

Napomena: Ovisno o vrsti hrane koja se kuha, možete izliti višak ulja ili masti između kuhanja ili prije protresanja sastojaka. Kako biste to učinili na siguran način, posudu stavite na površinu otpornu na toplinu i nosite kuhinjske rukavice. Pažljivo izlijte ulje ili mast.

Tablica hrane za način rada prženja vrućim zrakom

U tablici u nastavku navode se preporučene osnovne postavke za pripremu raznih vrsta jela.

Napomena

Illustration of a hand holding a container with a downward arrow indicating action (no text or symbols)

Illustration of a kitchen mixer with a bowl and a lid, showing directional arrows (no text or symbols)

2 Dodajte sastojke u košaru i vratite posudu natrag u aparat.

Napomena: Airfryer je prikladan za pripremu raznih sastojaka. Za najbolje rezultate pogledajte „Tablicu hrane” s preporučenim količinama i vremenom kuhanja.

Purified water MAX

3 Napunite spremnik za vodu pročišćenom vodom do oznake MAX.

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present

4 Izvucite podnožje spremnika za vodu s donje strane aparata.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

5 Pričvrstite poklopac na spremniku za vodu i postavite ga na podnožje.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a speech bubble containing wireless signal icon (no text or symbols)

7 Dodirnite gumb za prženje parom kako biste aktivirali način rada prženja parom.

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

8 Dodirnite gumb za temperaturu i zatim s pomoću gumba za povećanje ili smanjenje odaberite željenu temperaturu kuhanja.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

9 Dodirnite gumb za vrijeme i zatim s pomoću gumba za povećanje ili smanjenje odaberite željeno vrijeme kuhanja.

Napomena: Osim mogućnosti ručnog odabira temperature i vremena kuhanja, možete birati i između raznih prethodno postavljenih programa osmišljenih za praktičnu pripremu i optimalne rezultate.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark, showing no text or symbols

Illustration of a hand pouring food into a bowl with meat slices nearby (no text or symbols)

12 Kuhanu hranu izvadite iz košare.

Napomena: Višak ulja ili masnoće iz sastojaka skuplja se na dnu posude.

Napomena: Ovisno o vrsti hrane koja se kuha, možete izliti višak ulja ili masti između kuhanja ili prije protresanja sastojaka. Kako biste to učinili na siguran način, posudu stavite na površinu otpornu na toplinu i nosite kuhinjske rukavice. Pažljivo izlijte ulje ili mast.

Tablica hrane za način rada prženja parom

U tablici u nastavku navode se preporučene osnovne postavke za pripremu raznih vrsta jela.

Napomena

Illustration of a hand holding a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

2 Dodajte sastojke u košaru i vratite posudu natrag u aparat.

Napomena: Airfryer je prikladan za pripremu raznih sastojaka. Za najbolje rezultate pogledajte „Tablicu hrane” s preporučenim količinama i vremenom kuhanja.

Purified water MAX

3 Napunite spremnik za vodu pročišćenom vodom do oznake MAX.

Simple line drawing of a cylindrical container with a handle and a small leaf, no text or symbols present.

4 Izvucite podnožje spremnika za vodu s donje strane aparata.

Diagram of a microwave oven with a side-mounted lid and arrow indicating direction (no text or symbols)

5 Pričvrstite poklopac na spremniku za vodu i postavite ga na podnožje.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a small object inside, no text or symbols present

7 Dodirnite gumb za paru kako biste aktivirali način rada kuhanja na pari.

Diagram showing a hand holding a clipboard with a clock icon and directional arrows, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

8 Dodirnite gumb za vrijeme i zatim s pomoću gumba za povećanje ili smanjenje odaberite željeno vrijeme kuhanja.

Napomena: Prilagodba temperature onemogućena je u načinu rada s parom.

Napomena: Osim mogućnosti ručnog odabira temperature i vremena kuhanja, možete birati i između raznih prethodno postavljenih programa osmišljenih za praktičnu pripremu i optimalne rezultate.

Diagram showing a mechanical device with arrows indicating force or movement (no text or symbols present)

Ovaj aparat ima nekoliko prethodno postavljenih programa kuhanja kako bi vam pojednostavili pripremu jela. Svaka prethodna postavka optimizirana je za odredenu vrstu hrane i automatski postavlja idealnu temperaturu i vrijeme kuhanja kako biste postigli ukusne rezultate uz malo truda.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with a speech bubble containing a spiral symbol (no text or labels)

3 Dodirnite gumb za prženje vrućim zrakom, kuhanje na pari ili prženje parom kako biste aktivirali jedan od načina kuhanja.

Napomena: Provjerite je li spremnik za vodu napunjen i postavljen na ispravno mjesto prilikom upotrebe način rada kuhanje na pari ili prženje parom.

Illustration of a container with a speech bubble containing a snowflake symbol (no text or labels present)

4 Odaberite jedan od prethodno postavljenih programa sukladno vrsti hrane koju pripremate.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

7 Kuhanu hranu izvadite iz košare.

Napomena: Višak ulja ili masnoće iz sastojaka skuplja se na dnu posude.

Napomena: Ovisno o vrsti hrane koja se kuha, možete izliti višak ulja ili masti između kuhanja ili prije protresanja sastojaka. Kako biste to učinili na siguran način, posudu stavite na površinu otpornu na toplinu i nosite kuhinjske rukavice. Pažljivo izlijte ulje ili mast.

Tablica prethodno postavljenih postavki za prženje vrućim zrakom

	Prethodna postavka	Preporučena količina Vrijeme Temperatura Podsjetnik		na protresanje
	Zamrznuti krumpirići	1000 g 27 min 180 °C 2 puta
	Domaći krumpirići	1000 g 29 min 180 °C 2 puta
	Mesni kotlet 4 komada (190 g / komad) 17 min 200 °C 1 put
	Jaja i doručak 3 tosta, 4 jaja 12 min		160 °C /Dodajte tost nakon 6 minuta od početka kuhanja
	Muffin 9 kalupa (oko 30 g po kalupu) 16 min 160 °C /
	Pileći bataci 10 komada (125 g / komad) 28 min 180 °C 2 puta
	Miješano povrće	1000 g (način rada prženja vrućim zrakom)600 g (načini rada prženja parom i kuhanja na pari)	12 min 180 °C 2 puta
	Cijela riba 2 ribe (300 – 400 g po ribi) 13 min 200 °C 1 put
	Prethodna postavka	Tablica prethodno postavljenih postavki za prženje parom Težina Vrijeme Temperatura Podsjetnik		na protresanje
	Pileći bataci 10 komada (125 g / komad) 35 min 180 °C 2 puta
	Cvjetača	600 g	19 min 160 °C 2 puta
	Cijela riba 2 ribe (300 – 400 g po ribi) 18 min 200 °C 1 put
	Valjušci	370 g	16 min 160 °C /

Prethodna postavka	Tablica prethodno postavljenih postavki za prženje paromTežina Vrijeme Temperatura Podsjetnik	naprotresanje
	Tablica prethodno postavljenih postavki za kuhanje na pari
	Prethodna postavka	Težina Vrijeme Temperatura
	Pileći bataci 10 komada (125 g / komad) 33 min 100 °C
	Brokula 600 g 13 min 100 °C
	Cijela riba 2 ribe (300 – 400 g po ribi) 19 min 100 °C
	Valjušci 370 g 13 min 100 °C

Čišćenje

Redovito čišćenje

℃ ℃

Simple line drawing of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Upozorenje: Prije čišćenja ostavite posudu, košaru i unutrašnjost aparata da se potpuno ohlade.

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

3 Operite košaru, posudu i spremnik za vodu pod mlazom vode, po potrebi upotrebljavajući toplu vodu, sredstvo za pranje posuđa i neabrazivnu spužvicu (pogledajte „Tablica za čišćenje“).

Line drawing of a hand holding a lid over a container (no text or symbols)

Savjet: Prema potrebi, ostatke hrane koji su se zalijepili za grijaći element možete ukloniti mekom ili srednje tvrdom četkom. Nemojte upotrebljavati žičanu ili tvrdu četku jer njome biste mogli oštetiti premaz grijaćeg elementa.

Illustration of a hand using a tool to interact with a spiral-patterned device (no text or symbols present)

5 Grijaće elemente očistite četkom za čišćenje kako biste uklonili ostatke hrane.

Hand cleaning a small appliance with a cloth (no text or symbols visible)

6 Unutrašnjost aparata očistite blago navlaženom mekanom krpom i nakon toga upotrijebite suhu ako bude potrebno.

Čišćenje parom

Purified water MAX

Napomena: Prilikom pokretanja programa čišćenja parom, aparat može ispuštati više pare sa stražnje strane nego tijekom upotrebe standardnog načina rada kuhanja na paru. To je normalno i može uzrokovati povećanu razinu kondenzacije na obližnjim zidovima.

Simple line drawing of a portable device with a handle and button, no text or symbols present

2 Izvucite podnožje spremnika za vodu s donje strane aparata.

Illustration of a mechanical device with a downward arrow indicating a component (no text or symbols present)

3 Pričvrstite poklopac na spremniku za vodu i postavite ga na podnožje.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

5 Dodirnite gumb za čišćenje parom.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a pan and handle (no text or symbols)

8 Izvadite i očistite posudu i košaru.

Oprez: Uvijek nosite rukavice otporne na toplinu prilikom rukovanja vrućom posudom.

Napomena: Ako je na posudi i košari ostalo masnoće, očistite ih vodom sa sapunicom ili deterdžentom i spužvom, a zatim ponovno isperite.

Illustration of two containers with a directional arrow indicating movement (no text or symbols)

9 Vratite košaru i posudu natrag u aparat.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

11 Nakon 5 minuta oglasit će se zvučni signal što znači da je postupak sušenja završen.

Purified water MAX

2 Napunite spremnik za vodu pročišćenom vodom do oznake MAX.

3 Ulijte ravnomjernu količinu vode i sredstva za uklanjanje kamenca u spremnik za vodu.

4 Izvucite podnožje spremnika za vodu s donje strane aparata.

5 Pričvrstite poklopac na spremniku za vodu i postavite ga na podnožje.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

8 Dodirnite gumb za pokretanje/pauziranje kako biste pokrenuli postupak uklanjanja kamenca.

Line drawing of a coffee maker with a bell icon above it (no text or symbols)

9 Nakon 25 minuta uklanjanja kamenca, aparat će se oglasiti zvučnim signalom i podsjetiti vas da izvučete posudu.

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text indicating hazard.

10 Izvucite posudu i izlijte preostalu vodu iz nje.

Oprez: Uvijek nosite rukavice otporne na toplinu prilikom rukovanja vrućom posudom.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

12 Ponovo napunite spremnik za vodu pročišćenom vodom.

13 Vratite košaru i posudu natrag u aparat.

14 Pritisnite gumb za pokretanje/pauziranje kako biste ponovno aktivirali postupak uklanjanja kamenca.

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or numbers present)

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing a button into a container with a downward arrow (no text or symbols)

Illustration of a cooking pot with a ladder and a container, showing directional arrows (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a circular arrow icon pointing to a small object inside (no text or symbols)

Diagram showing a temperature sensor on a surface with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a surface with numbered annotations indicating step 1 and step 2.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring liquid into a basin with a circular inset showing a mesh (no text or symbols)

Illustration of a hand pressing a button on a cylindrical object with a downward arrow indicating motion (no text or symbols)

306 Italiano

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable oven with a handle and lid, no text or symbols present.

Diagram of a microwave oven with a side drawer and an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a Wi-Fi icon into a container (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with parts ① and ②.

Diagram showing a hand pressing a button on a surface with two labeled buttons (① and ②) and directional arrows indicating movement or change.

Illustration of a hand pressing a button labeled '播放' (播放), no text or symbols present

Illustration of a kitchen appliance with a bell icon and checkmark, showing a bowl with spikes and a downward arrow (no text or symbols)

Illustration of a hand pouring food into a bowl with a plate of sliced meat nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand placing a small object into a container with a flower icon (no text or symbols)

Diagram showing a hand pressing a button on a device with numbered callouts and directional arrows indicating action or navigation.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a microwave oven with a bell icon and a downward arrow indicating cooling (no text or symbols)

Illustration of a hand using a gridded tool to press food into a bowl, with a plate of food nearby (no text or symbols)

Illustration of a cooking pot with a wooden stick and arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a speech bubble containing a '30' symbol (no text or labels present)

Illustration showing a hand pressing a container with a speech bubble containing Chinese characters and a virus symbol.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a container with a plate nearby (no text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

Line drawing of a kitchen sink with buckets and a fork (no text or symbols)

Illustration of a hand holding a lid over a container with a small base (no text or symbols)

Illustration of a hand holding a tool inside a container with a spiral pattern circled (no text or symbols)

Hand cleaning a small mechanical component with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a portable device with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a cylindrical container with a downward arrow indicating a drop or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating motion (no text or symbols)

Illustration of a portable air fryer with a handle and button, no text or symbols present

Simple line drawing of a microwave oven with a downward arrow indicating cooling effect (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a toilet with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text.

Illustration of a hand pouring liquid into a sink with a faucet in the background (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Symbol of a waste bin with no text or numbers, crossed by two crossed lines and a solid rectangle below (no text or symbols present)

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

8:00 12:00

Technical line drawing of a mechanical component with a 15cm dimension annotation (no other text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a circular arrow symbol pointing to the top part of the lid (no text or symbols present)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a laptop with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

9 Izņemiet pagatavoto ēdienu no groza.

Illustration of a hand pressing down on a cylindrical container with a downward arrow indicating compression (no text or symbols)

Illustration of a kitchen mixer with a bowl and lid, showing food being poured into it (no text or symbols)

Purified water MAX

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a speech bubble containing wireless signal icon (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark, showing no text or symbols

Illustration of a hand pouring food into a bowl with meat slices nearby (no text or symbols)

12 Izņemiet pagatavoto ēdienu no groza.

Illustration of a hand pressing down on a cylindrical object with a downward arrow indicating motion (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a container with a handle and a small leaf, no text or symbols present.

Simple line drawing of a microwave oven with a side-mounted lid and arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a small icon above (no text or symbols)

Diagram showing a hand holding a clipboard with a clock icon and directional arrows, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a speech bubble containing a 'S' symbol (no text or labels present)

Illustration of a container with a speech bubble containing a snowflake (no text or symbols on the container itself)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food item with a bell and checkmark, no text or symbols present

Illustration of a hand pouring liquid into a basin with a plate nearby (no text or symbols)

7 Izņemiet pagatavoto ēdienu no groza.

Simple line drawing of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Line drawing of a hand holding a lid over a container (no text or symbols)

Illustration of a hand using a tool to interact with a spiral-patterned device (no text or symbols present)

Illustration of a hand cleaning a small appliance with a cloth (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a pan and handle (no text or symbols)

8 Iznemiet un notīriet pannu un grozu.

Illustration of two containers with a directional arrow indicating movement (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Diagram showing a hand pouring liquid into a container with a warning symbol and steam rising, indicating water safety or hazard.

10 Iznemiet pannu un izlejiet no pannas visu üdeni.

Illustration of a hand pouring liquid into a basin with a faucet in the background (no text or symbols)

Purified water MAX

Illustration of a mechanical component with a cylindrical base and a flanged housing, showing an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a toilet with a bell icon and checkmark (no text or symbols)

Illustration of two plastic containers with a downward arrow indicating a change (no text or symbols)

16 Iznemiet grozu un pannu.

Line drawing of a kitchen sink with a hand holding a tool above it (no text or symbols)

17 Noskalojiet grozu, pannu un ūdens tvertni tekošā ūdenī.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

Illustration of a hand holding a small object with a magnified inset showing a smartphone and battery (no text or symbols)

Valdymo skydelio apžvalga

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a circular arrow symbol pointing to the top part of the lid (no text or symbols present)

Diagram showing a thermometer and directional arrows on a device component, labeled with parts ① and ②.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food item with a bell and checkmark, no text or symbols present

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

3 Pripilkite vandens bakelj išgryninto vandens iki MAX vandens lygio.

Illustration of a small electric cooker with a curved arrow indicating rotation (no text or symbols)

Diagram of a microwave oven with a side outlet and an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a device into a container with wireless signal icons (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including a thermometer icon and checkmark indicators.

Diagram showing a hand pressing a button on a surface with numbered annotations indicating steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring food into a pot with a plate of raw meat nearby (no text or symbols)

Illustration of a hand pressing down on a cylindrical container with a downward arrow indicating compression (no text or symbols)

Diagram showing a mechanical component with arrows indicating force or movement (no text or symbols present)

Purified water MAX

3 Pripilkite vandens bakelj išgryninto vandens iki MAX vandens lygio.

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a microwave oven with a side arm and arrow indicating compression (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button on a laptop with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating a drop or reduction (no text or symbols present)

Illustration of a hand pouring sauce into a bowl with food on a plate (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating motion or force (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with three swirling icons above (no text or symbols)

Illustration of a hand pressing down on a container with a snowflake icon (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Simple line drawing of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Line drawing of a hand holding a lid over a container (no text or symbols)

Illustration of a hand using a tool to interact with a spiral-patterned device (no text or symbols present)

Hand cleaning a small appliance with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a circular button into a container with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with two panes and a handle (no text or symbols)

Illustration of two containers with a directional arrow indicating movement (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

2 Pripilkite vandens bakelj išgryninto vandens iki MAX lygio.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Diagram showing a hand pouring liquid into a container with a warning symbol and steam rising, indicating water pollution or hazard.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand using a tool to clean or inspect a small object, with an inset showing a magnified view of the object (no text or symbols present)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

8:00 12:00

6:00'c LED

Melegen tartás

Illustration of a hand pressing a button into a container with a downward arrow (no text or symbols)

Illustration of a cooking pot with a ladder and a container, showing directional arrows (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a circular arrow icon on a curved surface (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand holding a clipboard with a clock icon and directional arrows, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Line drawing of a portable air purifier with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating a force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a small object into a container with a speech bubble containing Wi-Fi icons (no text or symbols present)

Diagram showing a temperature sensor on a surface with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a kitchen mixer with a bell icon and checkmark indicating alert (no text or symbols)

Illustration of a hand pouring meat into a bowl with food items nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a kitchen appliance with a handle and side button (no text or symbols)

Diagram of a kitchen appliance with a downward arrow indicating a component (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button with clock icon and directional arrows, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a microwave oven with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating motion or force (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with icons above (no text or symbols)

Illustration of a hand holding a container with a speech bubble containing a snowflake symbol (no text or labels present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell and checkmark indicating sound or notification (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Purified water MAX

Simple line drawing of a portable water dispenser with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a hand holding a pan and a handle (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a microwave oven with a side panel and arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a toilet with a bell icon above it (no text or symbols)

Diagram illustrating a water safety hazard with a warning sign and pipe discharge, showing water flow and pollution.

Illustration of a hand pouring liquid into a sink with a faucet in the background (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Illustration of two mechanical components with a downward arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with buckets and a faucet (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand using a tool to clean or inspect a container with a magnified inset showing a device (no text or symbols present)

Illustration of a hand using a caliper to adjust a mechanical component, with an inset showing a close-up of a small object (no text or symbols present)

8:00 12:00

Diepvriesfrites

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical component being lifted by a spring, with arrows indicating force direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a curved surface with a spiral icon (no text or symbols)

4 Druk op de Airfry-knop om de Airfry-modus te activeren.

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food item with a bell icon and checkmark, next to a bowl with spikes (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking process showing a bowl with food being added to a container, with arrows indicating direction (no text or symbols)

Purified water MAX

Line drawing of a portable air purifier with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a device with a speech bubble containing wireless signal icons (no text or symbols present)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and directional arrow (no text or symbols)

Illustration of a hand pouring liquid into a bowl with meat pieces on a plate nearby (no text or symbols)

Illustration of a hand pressing a button on a cylindrical object with a downward arrow indicating motion (no text or symbols)

Illustration of a plant growing in a pot with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable device with a scroll wheel and arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a component (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button labeled with clock icon and directional arrows, likely illustrating a process or navigation step.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark (no text or symbols)

Illustration of a hand using a tool to add food into a bowl, with a plate nearby (no text or symbols)

Diagram showing a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with icons above (no text or symbols)

Illustration of a container with a speech bubble containing a snowflake icon (no text or symbols on the container itself)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling (no text or symbols)

Illustration of a hand pouring liquid into a container with a circular inset showing a patterned dish (no text or symbols)

Pure diagram of a plug with a cable, no text or symbols present

Line drawing of a kitchen sink with a fork and pan, no text or symbols present

Line drawing of a hand holding a lid over a glass container (no text or symbols)

Illustration of a hand holding a tool inside a container with a spiral pattern circled (no text or symbols)

Hand cleaning a small kitchen appliance with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a mechanical device with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a pan and handle (no text or symbols)

8 Trek de pan en de mand eruit en maak ze schoon.

Illustration of two containers with a directional arrow indicating movement (no text or symbols)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a white cylindrical container with a handle and a small outlet, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a coffee maker with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text labels.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

Symbol of a waste bin with no text or numbers, crossed by two crossed lines and a solid rectangle below (no text or symbols present)

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

Oversikt over betjeningspanelet

8:00 12:00

Frosne pommes frites

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

1 Plasser apparatet på en stabil, jevn og varmebestandig overflate. Sørg for at det er nok plass på bordet til den forlengede skinnen etter at pannen er trukket ut.
2 Hold et mellomrom på minst 15 cm på baksiden av apparatet.

Illustration of a hand holding a small object over a container with an arrow indicating downward motion (no text or symbols)

1 Sett kurven i pannen.

Diagram showing a mechanical device with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pouring liquid into a container with a circular arrow symbol (no text or labels)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Advarsel: Etter stekeprosessen er kurven, pannen, innsiden og ingrediensene varme. Plasser alltid kurven og pannen på en varmebestandig overflate (f.eks. et gryteunderlag eller en silikonmatte) når du tar dem ut. Det kan komme damp fra pannen, avhengig av typen mat.

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Matvaretabell for Airfry-modus

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a food preparation setup with a bowl and container, showing arrows indicating process flow (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a small appliance with a downward arrow pointing to its side panel (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a Wi-Fi icon into a container (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including a thermometer icon and checkmark indicators.

Diagram showing a hand pressing a button on a surface with numbered annotations indicating step 1 and step 2.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and warning symbol (no text or labels)

11 Når matlagingen er ferdig, vil du høre en tidsbjelle. Dra forsiktig pannen ut.

Advarsel: Etter stekeprosessen er kurven, pannen, innsiden og ingrediensene varme. Plasser alltid kurven på en varmebestandig overflate (f.eks. et gryteunderlag eller en silikonmatte) når du tar den ut. Det kan komme damp fra kurven, avhengig av typen mat.

Illustration of a hand pouring food into a bowl with a plate of sliced ingredients nearby (no text or symbols)

Illustration of a hand holding a container with a downward arrow indicating compression (no text or symbols)

1 Sett kurven i pannen.

Diagram showing a plant or vegetable being placed on a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present.

Diagram of a microwave oven with a side arm and a downward arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button on a laptop with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark (no text or symbols)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with three swirling icons above (no text or symbols)

Illustration of a hand pressing down on a container with a snowflake icon (no text or symbols)

4 Velg et av de forhåndsinnstilte programmene i henhold til maten du lager.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling (no text or symbols)

6 Når matlagingen er ferdig, vil du høre en tidsbjelle. Dra forsiktig pannen ut.

Advarsel: Etter stekeprosessen er kurven, pannen, innsiden og ingrediensene varme. Plasser alltid kurven og pannen på en varmebestandig overflate (f.eks. et gryteunderlag eller en silikonmatte) når du tar dem ut. Det kan komme damp fra pannen, avhengig av typen mat.

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Tabell for forhåndsinnstillinger for Airfry

	Forhåndsin-nstilling	Anbefalt mengde Tid Temperatur Påminnelse om risting
	Frosne pommes frites	1000 g 27 min 180 °C 2 ganger
	Hjemmelaget pommes frites	1000 g 29 min 180 °C 2 ganger
	Koteletter 4 stykker (190 g per stykke) 17 min 200 °C 1 gang
	Egg og frokost 3 skiver ristet brød, 4 egg 12 min	Legg til brødskivene når det har gått 6 min	160 °C /
	Muffins 9 kopper (rundt 30 g per kopp) 16 min 160 °C /
	Kyllingklubber 10 stykker (125 g per stykke) 28 min 180 °C 2 ganger
	Blandede grønnsaker	1000 g (Airfry-modus) 600 g (Steamfry- og dampmodus)	12 min 180 °C 2 ganger
	Hel fisk 2 fisk (300–400 g per fisk)	13 min 200 °C 1 gang

Tabell for forhåndsinnstillinger for Steamfry

	Forhåndsin- nstilling	Vekt	Tid Temperatur Påminnelse om risting
	Kyllingklubber 10 stykker (125 g per stykke) 35 min 180 °C 2 ganger
	Blomkål	600 g	19 min 160 °C 2 ganger

Hel fisk 2 fisk (300–400 g per fisk) 18 min 200 °C 1 gang

Dumplings 370 g 16 min 160 °C /

Tabell for forhåndsinnstillinger for damp

Simple line drawing of a plug inserted into a socket (no text or symbols)

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Line drawing of a hand cleaning a small container with lid (no text or symbols)

Tips: Eventuelle matrester som sitter fast på varmeelementet, kan fjernes med en oppvaskbørste med myk eller middels stiv bust. Ikke bruk en stålbørste eller en oppvaskbørste med stive buster, da dette kan skade belegget på varmeelementet.

Diagram of a device with a spiral pattern and internal components, no text or symbols present

Hand cleaning a small appliance with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a circular button into a container with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with buckets and a handle (no text or symbols)

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Simple line drawing of a coffee maker with a bell icon and checkmark (no text or symbols)

Purified water MAX

2 yll vannbeholder med renset vann opp til MAX-merket.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text indicating hazard or hazard.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

Illustration of a mechanical component with a cylindrical base and a flanged top, showing an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a mechanical device with a bell icon and checkmark (no text or symbols)

15 Avkalkingsprosessen avsluttes när du hører apparatet pipe igjen.

Illustration of two mechanical components with a downward arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with a hand holding a tool above it (no text or symbols)

17 Skyll kurven, pannen og vannbeholderen under springen.

Illustration of a hand using a tool to press or install a device on a container, with an inset showing a close-up of the component (no text or symbols present)

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

888°C min

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing a button into a container with a downward arrow indicating action (no text or symbols)

Illustration of a cooking pot with a ladder and a container, showing directional arrows (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a circular arrow icon on a curved surface (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food item with a bell and checkmark, no text or symbols present

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking process showing a bowl with food being added to a container, with arrows indicating direction (no text or symbols)

Purified water MAX

Line drawing of a portable air purifier with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a small object into a container with a speech bubble containing Wi-Fi icons (no text or symbols present)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered positions ① and ②.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a kitchen mixer with a bell icon and checkmark indicating alert (no text or symbols)

Illustration of a hand pouring food into a bowl with meat, and a plate of raw meat nearby (no text or symbols)

Illustration of a hand pressing a button on a cylindrical object with a downward arrow indicating motion (no text or symbols)

Illustration of a small plant growing in a pot with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a cylindrical container with a handle and a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button labeled with icons and directional arrows, likely illustrating a process or action.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell and checkmark indicating signal, no text or symbols present

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Diagram showing a mechanical component being lifted by a spring, with arrows indicating force direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with icons above (no text or symbols)

Illustration of a hand pressing a container with a speech bubble containing a snowflake (no text or symbols on the container itself)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating warning (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Diagram showing temperature measurement with thermometer symbols and a container, likely illustrating thermal behavior or sensor setup.

Illustration showing a plug inserted into a socket and a fan with blades, both without any text or symbols.

Line drawing of a hand cleaning a cylindrical container (no text or symbols)

Illustration of a hand holding a brush inside a container with a spiral pattern circled (no text or symbols)

Line drawing of a hand cleaning a small container with a cloth (no text or symbols)

Purified water MAX

Simple line drawing of a kitchen appliance with a button and handle (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device with a play button (no text or symbols)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a faucet and two panes (no text or symbols)

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Diagram illustrating a water safety hazard with a hand pouring liquid into a container, showing a warning symbol and text.

Illustration of a hand pouring liquid into a sink with a faucet (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and checkmark (no text or symbols)

Illustration of two mechanical components with a downward arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with a faucet and plastic bag (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

www.home.id/warranty.

Illustration of a hand holding a container with a tool, showing a magnified view of a device inside (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

8:00 12:00

Batatas congeladas

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved object with a circular arrow symbol (no text or labels)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, showing a cooking step (no text or symbols)

Illustration of a hand pouring liquid into a container with a circular inset showing a patterned dish (no text or symbols)

Illustration of a hand pressing a button on a cylindrical object with a downward arrow indicating motion (no text or symbols)

Illustration of a container with liquid being poured into a container, showing arrows indicating flow direction (no text or symbols)

Purified water MAX

Simple line drawing of a white cylindrical container with a handle and a small attached object (no text or symbols)

Diagram of a microwave oven with a side-mounted lid and arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a device into a container with a Wi-Fi icon (no text or symbols)

7 Toque no botão de fritar a vapor para entrar no modo de fritar a vapor.

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring food into a bowl with a plate of sliced meat nearby (no text or symbols)

Illustration of a hand pressing a button into a container with a downward arrow (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable kitchen appliance with a handle and button (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand placing a small object into a container with a flower icon (no text or symbols)

Diagram showing a hand pressing a button on a device with numbered callouts and directional arrows indicating action or navigation.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a microwave oven with a bell icon and a downward arrow indicating cooling (no text or symbols)

Illustration of a hand using a tool to stir meat into a pot, with a plate of food nearby (no text or symbols)

Diagram showing a mechanical device with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a speech bubble and three icons above (no text or symbols)

Diagram showing a hand pressing a container with a speech bubble containing Chinese characters and a virus symbol.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a cooking pot with a bell and checkmark, showing a drop in water (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a circular inset showing a mesh (no text or symbols)

Diagram showing a temperature sensor above a container with a thermometer icon, indicating thermal measurement.

Simple line drawing of a hand cleaning a small container (no text or symbols)

Purified water MAX

Simple line drawing of a portable oven with a handle and lid, no text or symbols present.

Line drawing of a kitchen sink with a faucet and bucket (no text or symbols)

8 Remova e limpe o recipiente e o cesto.

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a microwave oven with a button and scroll (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text indicating 'No more water' or 'No less water'.

Illustration of a hand pouring liquid into a sink with a faucet in the background (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and checkmark (no text or symbols)

Illustration of two mechanical components with a downward arrow indicating rotation (no text or symbols)

Simple line drawing of a kitchen sink with a faucet and plastic bag (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand holding a container with a magnified inset showing a smartphone and a pointing arrow (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, with arrows indicating motion direction (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down a curved object with a circular arrow symbol (no text or labels)

Diagram showing a thermometer placed on a surface with two directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, showing a drop in the pot (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a container with liquid being poured into a container, showing directional arrows (no text or symbols)

Purified water MAX

Simple line drawing of a white electric oven with a gray vent and a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a Wi-Fi icon into a container (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including a thermometer icon and checkmark indicators.

Diagram showing a hand pressing a button on a surface with numbered annotations indicating step 1 and step 2.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring food into a bowl with a plate of sliced meat nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable device with a handle and a small button, no text or symbols present.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a small object into a container with a speech bubble containing a cloud icon (no text or symbols present)

Diagram showing a hand pressing a button on a laptop with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button labeled '播放' with a play button icon (no text or symbols on the button itself)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling or ventilation (no text or symbols)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Diagram showing a mechanical device with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a speech bubble containing a '30' symbol (no text or labels present)

Illustration showing a hand pressing a container with a speech bubble containing Chinese characters and a virus symbol.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, showing a drop in water (no text or symbols)

Illustration of a hand pouring liquid into a container with a plate nearby (no text or symbols)

Simple line drawing of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen sink with a hand holding a water tap, showing compartments and a small object (no text or symbols)

Line drawing of a hand cleaning a cylindrical container (no text or symbols)

Illustration of a hand holding a tool inside a container with a spiral pattern circled (no text or symbols)

Line drawing of a hand cleaning a small container with a cloth (no text or symbols)

Purified water MAX

Illustration of a portable oven with a button and a circular arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with a fork and pan, no text or symbols present

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a microwave oven with a button and arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Diagram illustrating a water safety hazard with a hand pouring liquid into a container, showing a warning symbol and text.

Illustration of a hand pouring liquid into a sink with a faucet (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and checkmark (no text or symbols)

Illustration of two mechanical components with a downward arrow indicating rotation (no text or symbols)

Simple line drawing of a kitchen sink with a hand holding a tool above it (no text or symbols)

Symbol of a waste bin with no text or numbers present

Illustration of a hand holding a container with a tool, showing a magnified view of a device inside (no text or symbols)

Illustration of a hand using a tool to press or install a device, with an inset showing a magnified view of the device (no text or symbols present)

8:00 12:00

Patate të ngrira

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a circular arrow symbol pointing to the top portion of the lid (no text or symbols present)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food item with a bell and checkmark, no text or symbols present

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable oven with a handle and lid, no text or symbols present.

Diagram of a microwave oven with a side outlet and an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a device into a container with a Wi-Fi icon (no text or symbols)

Diagram illustrating temperature measurement steps with labeled icons and directional arrows

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling or ventilation (no text or symbols)

Illustration of a hand pouring food into a bowl with two plates nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable water dispenser with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a small object into a container with a speech bubble containing a cloud icon (no text or symbols present)

Diagram showing a hand pressing a button on a device with numbered callouts and directional arrows indicating action or navigation.

Illustration of a hand pressing a button labeled '播放' with a play button icon (no text or symbols on the button itself)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling or ventilation (no text or symbols)

Illustration of a hand using a tool to stir meat into a pot, with a plate of food nearby (no text or symbols)

Diagram showing a mechanical device with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a speech bubble and three sensor icons above (no text or symbols)

Illustration showing a hand pressing a container with a speech bubble containing Chinese characters and a virus symbol.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a cooking pot with a bell and checkmark, showing a drop in the water (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Diagram showing a temperature sensor above a device with two circular indicators labeled 'c' pointing to the sensor.

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

5 Shtypni butonin Steam Clean.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with buckets and a handle (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a cylindrical container with a side outlet and a curved arrow indicating rotation (no text or symbols)

Diagram of a microwave oven with a side-mounted lid and arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a toilet with a bell icon above it (no text or symbols)

Diagram illustrating a hygiene procedure with a hand pouring liquid into a sink, showing a warning symbol and text.

Illustration of a hand pouring liquid into a sink with a faucet (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Diagram of two mechanical components with a downward arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Symbol of a waste bin with no text or labels, including a crossed-out box and a solid rectangle below (no readable text or symbols)

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

Pritisnite gumb za sprostitev košare in dvignite košaro, da jo vzamete iz posode.

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a cooking step with arrows indicating direction (no text or symbols)

2 V košaro dodajte sestavine in posodo namestite nazaj v aparat.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

3 Za vklop aparata tapnite gumb Vklop/izklop.

Illustration of a hand pouring liquid into a container with a circular arrow symbol (no text or labels)

Diagram showing a temperature sensor on a surface with labeled parts and directional arrows indicating movement or change.

5 Tapnite gumb Temperatura in nato z gumbom Zvišanje ali Znižanje izberite želeno temperaturo priprave.

Diagram showing a hand pressing a button on a laptop with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

7 Tapnite gumb Zagon/premor, da začnete pripravo jedi.

Opomba: nekatere sestavine je treba pretresti ali obrniti na polovici časa priprave (glejte "Preglednico s hrano"). To storite tako:

• Previdno izvlecite posodo.
• Sestavine pretresajte ali obračajte nad površino, ki je odporna na vročino.
• Posodo namestite nazaj v aparat, da nadaljujete s pripravo jedi.

Opomba: će želite začasno ustaviti pripravo jedi, pritisnite gumb Zagon/premor. Za nadaljevanje priprave znova pritisnite isti gumb.

Illustration of a kitchen appliance with a bell and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring liquid into a basin with a plate nearby (no text or symbols)

9 Iz košare odstranite pripravljeno jed.

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot with arrows indicating direction (no text or symbols)

2 V košaro dodajte sestavine in posodo namestite nazaj v aparat.

Purified water MAX

Simple line drawing of a portable oven with a handle and lid, no text or symbols present.

4 Izvlecite podstavek za posodo za vodo na spodnji strani aparata.

Diagram of a microwave oven with a side outlet and an arrow indicating direction (no text or symbols)

5 Na posodo za vodo pritrdite pokrov in jo postavite na podstavek.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

6 Za vklop aparata tapnite gumb Vklop/izklop.

Illustration of a hand inserting a Wi-Fi icon into a container (no text or symbols)

7 Za preklop v način pare in cvrtja tapnite gumb Para in cvrtje.

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

8 Tapnite gumb Temperatura in nato z gumbom Zvišanje ali Znižanje izberite želeno temperaturo priprave.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

10 Tapnite gumb Zagon/premor, da začnete pripravo jedi.

Opomba: nekatere sestavine je treba pretresti ali obrniti na polovici časa priprave (glejte "Preglednico s hrano"). To storite tako:

• Previdno izvlecite posodo.
• Vsebino pretresajte ali obračajte nad površino, ki je odporna na vročino.
• Posodo namestite nazaj v aparat, da nadaljujete s pripravo jedi.

Opomba: će želite začasno ustaviti pripravo jedi, pritisnite gumb Zagon/premor. Za nadaljevanje priprave znova pritisnite isti gumb.

Illustration of a kitchen appliance with a bell icon and checkmark, showing a bowl with food and a directional arrow (no text or symbols)

Illustration of a hand pouring food into a bowl with two plates nearby (no text or symbols)

12 Iz košare odstranite pripravljeno jed.

Illustration of a hand pressing down on a cylindrical container with a downward arrow indicating compression (no text or symbols)

Diagram showing a mechanical component with arrows indicating force or movement (no text or symbols present)

2 V košaro dodajte sestavine in posodo namestite nazaj v aparat.

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

4 Izvlecite podstavek za posodo za vodo na spodnji strani aparata.

Diagram of a microwave oven with a side arm and arrow indicating compression (no text or symbols)

5 Na posodo za vodo pritrdite pokrov in jo postavite na podstavek.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

6 Za vklop aparata tapnite gumb Vklop/izklop.

Illustration of a small container with a flag icon and a leaf symbol, no text or symbols present

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring liquid into a pot and plate (no text or symbols)

7 Za preklop v način pare tapnite gumb Para.

Diagram showing a mechanical component with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

2 Za vklop aparata tapnite gumb Vklop/izklop.

Illustration of a hand pressing down on a container with three icons above (no text or symbols)

3 Tapnite gumb Cvrtje z vročim zrakom, Para ali Para in cvrtje za preklop v želeni način priprave jedi.

Illustration of a hand pressing down on a container with a snowflake icon (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

5 Tapnite gumb Zagon/premor, da začnete pripravo jedi.

Opomba: nekatere sestavine je treba pretresti ali obrniti na polovici časa priprave (glejte "Preglednico s hrano"). To storite tako:

• Previdno izvlecite košaro.
• Vsebino pretresajte ali obračajte nad površino, ki je odporna na vročino.
• Košaro vstavite nazaj, da nadaljujete pripravo jedi.

Opomba: će želite začasno ustaviti pripravo jedi, pritisnite gumb Zagon/premor. Za nadaljevanje priprave znova pritisnite isti gumb.

Illustration of a cooking pot with a bell and checkmark indicating warning (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

7 Iz košare odstranite pripravljeno jed.

Purified water MAX

2 Izvlecite podstavek za posodo za vodo na spodnji strani aparata.

Simple line drawing of a white air fryer with a handle and button, no text or symbols present.

3 Na posodo za vodo pritrdite pokrov in jo postavite na podstavek.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

4 Za vklop aparata tapnite gumb Vklop/izklop.

Illustration of a hand pressing a button on a device (no text or symbols visible)

5 Tapnite gumb Čiščenje s paro.

Illustration of a hand pressing a button on a device (no text or symbols visible)

6 Postopek čiščenja s paro zaženite s pritiskom gumba Zagon/premor.

Line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a hand holding a pan and a handle (no text or symbols)

8 Izvlecite posodo in košaro ter ju očistite.

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a cylindrical container with a side outlet and a curved arrow indicating rotation (no text or symbols)

4 Izvlecite podstavek za posodo za vodo na spodnji strani aparata.

Diagram of a microwave oven with a side-mounted lid and arrow indicating direction (no text or symbols)

5 Na posodo za vodo pritrdite pokrov in jo postavite na podstavek.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

6 Za vklop aparata tapnite gumb Vklop/izklop.

2 sec

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a toilet with a bell icon above it (no text or symbols)

Diagram showing a hand pouring liquid into a container with a warning sign and steam rising, indicating water pollution or discharge.

10 Izvlecite posodo in preostalo vodo v njej zlijte stran.

Illustration of a hand pouring liquid into a sink with a faucet (no text or symbols)

11 Iz posode za vodo izlijte preostalo vodo.

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

13 Košaro in posodo potisnite nazaj v aparat.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Diagram of two mechanical components with a downward arrow indicating rotation (no text or symbols)

16 Izvlecite košaro in posodo.

Line drawing of a kitchen sink with a faucet and buckets (no text or symbols)

17 Košaro, posodo in posodo za vodo splaknite pod tekočo vodo.

Symbol of a waste bin with no text or numbers present

Illustration of a hand holding a container with a tool, showing a magnified view of a device inside (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of a small component (no text or symbols present)

8:00 12:00

Mrazené hranolčeky

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

2 Potraviny pridajte do košíka a nádobu umiestnite spät do spotrebiča.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a circular arrow icon into a container with a spiral symbol (no text or labels)

Diagram showing a temperature sensor on a surface with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a laptop with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a cooking step (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a circular plate nearby (no text or symbols)

9 Z košíka vyberte uvarené jedlo.

Illustration of a hand holding a container with a lid and arrow indicating downward motion (no text or symbols)

Illustration of a kitchen pot and a container with arrows indicating direction (no text or symbols)

2 Potraviny pridajte do košíka a nádobu umiestnite spät do spotrebiča.

Purified water MAX

Simple line drawing of a container with a handle and a small object on the side (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

5 Zaistite veko na nádobe na vodu a nádobu na vodu umiestnite na základňu.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a small object into a container with a Wi-Fi symbol (no text or labels)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark, showing no text or symbols

Illustration of a hand pouring food into a bowl with meat slices nearby (no text or symbols)

12 Z košíka vyberte uvarené jedlo.

Illustration of a hand holding a device with a downward arrow indicating action (no text or symbols)

Diagram showing a mechanical component with arrows indicating force or movement (no text or symbols present)

2 Potraviny pridajte do košíka a nádobu umiestnite spät do spotrebiča.

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a microwave oven with a side arm and a downward arrow indicating compression (no text or symbols)

5 Zaistite veko na nádobe na vodu a nádobu na vodu umiestnite na základňu.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a small icon above (no text or symbols)

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a coffee maker with a bell icon and checkmark, showing its side profile (no text or symbols)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with three icons above (no text or symbols)

Illustration of a hand pressing down on a container with a speech bubble containing snow symbols (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food processor with a bell icon and a warning symbol (no text or labels)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

7 Z košíka vyberte uvarené jedlo.

Pure diagram of a plug with a cable, no text or symbols present

Line drawing of a kitchen sink with a fork and handle, no text or symbols present

Line drawing of a hand holding a lid over a container (no text or symbols)

Illustration of a hand holding a tool inside a cylindrical device with a spiral pattern circled (no text or symbols)

Hand cleaning a small cylindrical object with a cloth (no text or symbols visible)

6 Vnútro spotrebiča očistite mierne navlhčenou mäkkou handričkou a v prípade potreby použite aj suchú handričku.

Čistenie parou

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

3 Zaistite veko na nádobe na vodu a nádobu na vodu umiestnite na základňu.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

5 Ťuknite na tlačidlo Čistenie parou.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a pan and handle (no text or symbols)

Illustration of two containers with a directional arrow indicating movement (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

10 Stlačením tlačidla Zapnutie/pozastavenie spustíte proces sušenia.

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Line drawing of a coffee maker with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text labels.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

Symbol of a trash bin crossed with a diagonal line and a horizontal bar, representing waste sorting or disposal (no text present)

• Ovaj simbol ukazuje na to da električni proizvodi ne smeju da se odlaju sa običnim kućnim otpadom.
• Pratite propise svoje zemlje za zasebno prikupljanje otpadnih električnih proizvoda.

Garancija i podrška

Versuni za ovaj proizvod pruža dve godine garancije nakon kupovine. Ova garancija ne važi ako je kvar nastao nepravilnom upotrebom ili lošim održavanjem. Naša garancija ne utiče na vaša zakonska prava u skladu sa Zakonom o potrošačima. Za više informacija ili pokretanje garancije, posetite našu veb-stranicu www.home.id/warranty.

EcoDesign informacije

EcoDesign informacije za identifikacione oznake modela: NA540, NA541, NA543, NA547

Opis Simbol Vrednost Jedinica

Potrošnja energije u isključenom stanju P	off	0,3 W
Potrošnja energije u režimu pripravnosti P	sb	/	W
Period pre automatskog prebacivanja u režim pripravnosti	T_sb	20 Min
Standard merenja za servisnu vrednost EN 50564:2011
Podaci za kontakt za pronalaženje dodatnih informacija	DAP B.V.Tussendiepen 4a,9206AD Drachten, The Netherlands
Aparat je usaglašen sa zahtevima ekološki prihvatljivog dizajna iz PROPISA KOMISIJE (EU) 2023/826.

Uvod

Čestitamo na kupovini i dobro došli u Philips!

Da biste na najbolji način iskoristili podršku koju nudimo, registrujte proizvod na www.home.id.

Opšti opis

Pregled proizvoda

1 Kontrolna tabla
2 Kabl za napajanje
3 Posuda
4 Korpa
5 Dugme za oslobađanje korpe
6 Rezervoar za vodu
7 Poklopac posude za vodu

Dugme za oslobadanje korpe

Pomerite poklopac da biste pristupili dugmetu za oslobadanje korpe.

Illustration of a hand holding a container with a tool, showing a magnified view of a small object inside (no text or symbols present)

Pritisnite dugme za oslobadanje korpe i podignite korpu da biste je izvadili iz posude.

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of a component (no text or symbols present)

Pregled kontrolne table

8:00 12:00

Zamrznuti pomfrit

Koristite ovaj program za pripremu smrznutog pomfrita, krompirića ili kroketa do hrskave zlatne boje.

Svež krompir

Koristite ovu unapred podešenu postavku za hrskavi pomfrit ili kriške od sveže isečenog krompira.

Mesni odresci

Koristite ovaj program za grilovanje šnicle do željenog stepena pečenosti sa zapečenom spoljašnjošću.

Doručak

Koristite ovu unapred podešenu postavku za brz, uravnotežen doručak sa zlatnim tostom i meko kuvanim jajima.

Mafin

Koristite ovu unapred podešenu postavku za pečenje mekanih, ravnomerno pečenih mafina.

Pileći bataci

Koristite ovaj program za temeljno pečenje pilećih bataka sa hrskavom kožicom.

Mešano povrće

Koristite ovaj program za ravnomerno pečenje ili prženje povrća do hrskavosti, sa minimalno ulja.

Riba

6:00'c LED

Održavanje temperature

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

1 Postavite aparat na stabilnu, ravnu površinu otpornu na toplotu. Postarajte se da ima dovoljno prostora na stolu za produženu šinu nakon što se posuda izvuče.
2 Ostavite najmanje 15 cm slobodnog prostora sa zadnje strane aparata.

Napomena: Tokom upotrebe, vruća para se oslobađa kroz otvore za vazduh. Držite ruke i lice na bezbednoj udaljenosti od pare i otvora. Postavite aparat najmanje 15 cm od zida i ne postavljajte otvore za vazduh direktno ispred utičnice.

Illustration of a hand holding a small object over a container with an arrow indicating downward motion (no text or symbols)

Diagram showing a cooking step with arrows indicating direction (no text or symbols)

2 Dodajte sastojke u korpu i gurnite posudu nazad u aparat.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a circular arrow icon into a container (no text or symbols)

4 Dodirnite dugme Prženje na vazduhu da biste ušli u režim prženja na vazduhu.

Diagram showing a thermometer and directional arrows on a device component, labeled with parts ① and ②.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

7 Dodirnite dugme za pokretanje/pauziranje da biste započeli kuvanje.

Illustration of a cooking pot with a bell and checkmark, showing a drop in the pot (no text or symbols)

Oprez: Nakon procesa kuvanja, korpa, posuda, unutrašnje kućište i sastojci će biti vrući. Uvek postavite korpu i posudu na površinu otpornu na toplotu (npr. podmetač ili silikonsku prostirku) kada ih vadite iz aparata. U zavisnosti od vrste hrane, vruća para može izlaziti iz posude.

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand holding a lid with a downward arrow indicating compression (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

2 Dodajte sastojke u korpu i gurnite posudu nazad u aparat.

Purified water MAX

3 Napunite rezervoar za vodu prečišćenom vodom do MAX nivoa vode.

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

4 Izvucite postolje rezervoara za vodu sa donje strane aparata.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

5 Pričvrstite poklopac na rezervoar za vodu i postavite rezervoar za vodu na postolje.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a Wi-Fi icon into a container (no text or symbols)

7 Dodirnite dugme Prženje na pari da biste ušli u režim prženja na pari.

Diagram showing a device with labeled parts and directional arrows, including a thermometer icon and checkmark indicators.

Diagram showing a hand pressing a button on a surface with numbered annotations indicating steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

10 Dodirnite dugme za pokretanje/pauziranje da biste započeli kuvanje.

Illustration of a kitchen appliance with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring food into a bowl with a plate of sliced meat nearby (no text or symbols)

Illustration of a hand pressing down on a cylindrical container with a downward arrow indicating compression (no text or symbols)

Diagram showing a mechanical component with arrows indicating force or movement (no text or symbols present)

2 Dodajte sastojke u korpu i gurnite posudu nazad u aparat.

Napomena: Airfryer je pogodan za pripremu najrazličitijih sastojaka. Za najbolje rezultate, pogledajte „Tabelu hrane” za preporučene količine i vremena kuvanja.

Napomena: Izbegavajte prekoračenje preporučenih količina ili punjenje korpe preko linije „MAX“, pošto to može da utiče na učinak kuvanja.

Purified water MAX

3 Napunite rezervoar za vodu prečišćenom vodom do MAX nivoa vode.

Simple line drawing of a portable air purifier with a handle and side button (no text or symbols)

4 Izvucite postolje rezervoara za vodu sa donje strane aparata.

Diagram of a microwave oven with a side-mounted cooling unit and a downward arrow indicating cooling effect (no text or symbols)

5 Pričvrstite poklopac na rezervoar za vodu i postavite rezervoar za vodu na postolje.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button on a laptop with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark (no text or symbols)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Illustration of a cooking pot with a lid and a side bowl, showing arrows indicating process flow (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with three icons above (no text or symbols)

Illustration of a hand pressing down on a container with a snowflake icon (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

5 Dodirnite dugme za pokretanje/pauziranje da biste započeli kuvanje.

Illustration of a food processor with a bell icon and a warning symbol (no text or labels)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Diagram showing a temperature sensor above a device with two circular indicators labeled '℃' (temperature sensor) pointing to it.

Upozorenje: Pustite da se posuda, korpa i unutrašnjost aparata potpuno ohlade pre nego što počnete sa čišćenjem.

Upozorenje: Korpa ima premaz protiv lepljenja. Nemojte da koristite metalni kuhinjski pribor niti abrazivne materijale za čišćenje zato što mogu da oštete premaz protiv lepljenja.

Aparat očistite nakon svakog korišćenja. Uklonite ulje i mast sa dna posude nakon svake upotrebe.

Simple line drawing of a plug inserted into a socket (no text or symbols)

1 Pritisnite dugme za uključivanje/isključivanje da biste isključili aparat, isključite utikač iz zidne utičnice i sačekajte da se aparat ohladi.
2 Uklonite masnoću ili ulje sa dna posude.

Line drawing of a kitchen sink with a fork and pan, no text or symbols present

3 Očistite korpu, posudu i rezervoar za vodu pod česmom, ako je potrebno toplom vodom, tečnošću za pranje sudova i neabrazivnim sunderom (pogledajte „tabelu za čišćenje").

Koristan savet: Ako se ostaci hrane zalepe za korpu ili posudu, možete ih potopiti u vruću vodu i tečnost za pranje sudova 10–15 minuta. Potapanje oslobada ostatke hrane i olakšava njihovo uklanjanje. Proverite da li koristite deterdžent za sudove koji može da rastvori ulje i masnoću. Ako na korpi ili posudi postoje masne mrlje, a niste uspeli da ih uklonite vrućom vodom i tečnošću za pranje sudova, koristite tečni odmašćivač.

Line drawing of a hand holding a lid over a transparent container (no text or symbols)

Koristan savet: Po potrebi, ostatke hrane koji su zalepljeni za grejni element možete da uklonite pomoću četke sa mekanim ili srednje tvrdim vlaknima. Nemojte da koristite četku sa metalnim vlaknima niti četku sa tvrdim vlaknima pošto one mogu da oštete premaz na grejnom elementu.

4 Nežno obrišite spoljašnjost i unutrašnjost aparata glatkom, čistom i mekom krpom da ne biste oštetili njegovu površinu. Očistite ga malo pokvašenom krpom, a zatim obrišite suvom krpom ako je potrebno.

Illustration of a hand holding a tool inside a cylindrical device with a spiral pattern circled (no text or symbols)

Hand cleaning a small kitchen appliance with a cloth (no text or symbols visible)

6 Očistite unutrašnjost aparata blago navlaženom mekom krpom i nakon toga osušite suvom, ako je potrebno.

Čišćenje parom

Funkcija čišćenja parom efikasno rastvara masne ostatke i pruža dubinsko čišćenje i za korpu i za posudu.

Program traje 20 minuta, i sastoji se od:

• 15 minuta čišćenja parom da bi se rastvorile naslage.
• 5 minuta sušenja da bi se osiguralo da je posuda spremna za upotrebu.

Purified water MAX

Napomena: Prilikom pokretanja programa za čišćenje parom, aparat može ispuštati više pare sa zadnje strane nego tokom redovnog režima pare. To je normalno i može dovesti do povećane kondenzacije na obližnjim zidovima.

Pre početka, proverite sledeće:

• Izlaz za vazduh nije direktno okrenut ni prema jednoj utičnici.
• Ne postavljajte druge kuhinjske aparate pored aparata.
• Ostavite najmanje 15 cm prostora između aparata i zida da biste smanjili nakupljanje kondenzacije.

1 Napunite rezervoar za vodu prečišćenom vodom do MAX nivoa vode.

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

2 Izvucite postolje rezervoara za vodu sa donje strane aparata.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

3 Pričvrstite poklopac na rezervoar za vodu i postavite rezervoar za vodu na postolje.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

5 Dodirnite dugme Čišćenje parom.

Illustration of a hand pressing a button on a device (no text or symbols visible)

6 Pritisnite dugme za pokretanje/pauzu da biste pokrenuli proces čišćenja parom.

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with two panes and a handle (no text or symbols)

8 Izvucite i očistite posudu i korpu.

Oprez: Uvek nosite rukavice otporne na toplotu da biste rukovali vrućom posudom.

Napomena: Ako ostane masnoće u posudi i korpi, očistite ostatke vodom sa sapunom ili deterdžentom pomoću sundera, pa ponovo isperite.

Illustration of two containers with a directional arrow indicating movement (no text or symbols)

9 Stavite korpu i posudu nazad u aparat.

Illustration of a hand pressing a button on a device (no text or symbols visible)

10 Dodirnite dugme za pokretanje/pauzu da biste pokrenuli proces sušenja.

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

11 Nakon 5 minuta, zvučni signal označava da je sušenje završeno.

Koristan savet: Pre prve upotrebe ili ako se nije koristio duže vreme, predlažemo da koristite funkciju čišćenja parom da biste temeljno očistili krug za vodu i komoru za kuvanje.

Uklanjanje kamenca

CA6700 60 ml

Svakih 20 sati korišćenja režima pare, podsetnik za uklanjanje kamenca će se automatski pojaviti i treperiti na ekranu – to znači da je vreme da pokrenete program za uklanjanje kamenca. Program za uklanjanje kamenca čisti naslage kamenca iz vodenog sistema uredaja Airfryer, pomažući da se produži njegov radni vek.

1 Sipajte 60 ml sredstva Philips Descaler CA6700 (prodaje se zasebno) u rezervoar za vodu.

Purified water MAX

2 Napunite rezervoar za vodu prečišćenom vodom do nivoa MAX.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

8 Dodirnite dugme za pokretanje/pauzu da biste pokrenuli uklanjanje kamenca.

Line drawing of a coffee maker with a bell icon above it (no text or symbols)

9 Nakon 25 minuta uklanjanja kamenca, aparat će se oglasiti zvučnim signalom i podsetiti vas da izvučete posudu.

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text labels

10 Izvucite posudu i prospite preostalu vodu iz posude.

Oprez: Uvek nosite rukavice otporne na toplotu da biste rukovali vrućom posudom.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

12 Dopunite rezervoar za vodu prečišćenom vodom.

Illustration of a mechanical component with a cylindrical base and a flanged top, showing an arrow indicating direction (no text or symbols)

13 Stavite korpu i posudu nazad u aparat.

Illustration of a hand pressing a button on a device (no text or symbols visible)

14 Pritisnite dugme za pokretanje/pauzu da biste nastavili sa uklanjanjem kamenca.

Illustration of a toilet with a bell icon and checkmark (no text or symbols)

Illustration of two plastic containers with a downward arrow indicating a change (no text or symbols)

16 Izvucite korpu i posudu.

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

17 Isperite korpu, posudu i rezervoar za vodu pod česmom.

Symbol of a waste bin with no text or labels, including a crossed-out box and a solid rectangle below (no readable text or symbols)

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

Illustration of a hand using a tool to press or install a device on a container, with an inset showing a close-up of the component (no text or symbols present)

Ohjauspaneelit

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved object with a circular arrow symbol (no text or labels)

Diagram showing a thermometer placed on a surface with two directional arrows indicating temperature and direction of change.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, showing a cooking step (no text or symbols)

Illustration of a hand pouring liquid into a container with a circular inset showing a patterned dish (no text or symbols)

9 Poista kypsennetty ruoka korista.

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a container with food being poured into a lid, showing arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a small appliance with a downward arrow pointing to its side panel (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a device into a container with wireless signal icons (no text or symbols)

Diagram showing a hand pressing down on a device with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a coffee maker with a bell icon and checkmark, showing its base and side view (no text or symbols)

Illustration of a hand pouring food into a bowl with meat slices nearby (no text or symbols)

12 Poista kypsennetty ruoka korista.

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical component with arrows indicating force or movement (no text or symbols present)

Purified water MAX

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present.

Diagram of a microwave oven with a side arm and arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a small object inside, no text or symbols present

7 Siirry höyrytystilaan painamalla höyrytyspainiketta.

Diagram showing a hand pressing a button on a laptop with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating a drop or reduction (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

11 Poista kypsennetty ruoka korista.

Diagram showing a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with three icons above (no text or symbols)

Diagram showing a hand pressing a container with a speech bubble containing Chinese characters and a virus icon.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food item with a bell icon and a checkmark, no text or symbols present

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

7 Poista kypsennetty ruoka korista.

Pure diagram of a plug with a cable, no text or symbols present

Line drawing of a kitchen sink with a fork and pan, no text or symbols present

Line drawing of a hand holding a lid over a container (no text or symbols)

Illustration of a hand using a tool to interact with a spiral-patterned device (no text or symbols present)

Hand cleaning a small appliance with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a portable device with a handle and button, no text or symbols present.

Illustration of a mechanical device with a downward arrow indicating a component (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a circular button into a container with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with buckets and a faucet (no text or symbols)

Illustration of two containers with a directional arrow indicating movement (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a microwave oven with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a white cylindrical container with a handle and a small outlet, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Diagram showing a hand pouring liquid into a container with a warning symbol and steam rising, indicating water safety or hazard.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

Illustration of a mechanical component with a cylindrical base and a flanged top, showing an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a toilet with a bell icon and checkmark (no text or symbols)

Two 3D-rendered mechanical components with a downward arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Symbol of a robot without any text or numbers, featuring a prohibition sign inside a circle (no readable text)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand holding a small object over a container with an arrow indicating downward motion (no text or symbols)

Diagram showing a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a circular arrow icon into a container (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, no text or symbols present

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

9 Ta ut den tillagade maten ur korgen.

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Illustration of a small white electric cooker with a curved arrow indicating rotation (no text or symbols)

Diagram of a microwave oven with a side outlet and an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a device into a container with wireless signal icons (no text or symbols)

Diagram showing a device with a thermometer icon and directional arrows, labeled with numbered annotations.

Diagram showing a hand pressing a button on a surface with numbered annotations indicating step 1 and step 2.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and warning symbol (no text or labels)

Illustration of a hand pouring food into a bowl with a plate of sliced meat nearby (no text or symbols)

12 Ta ut den tillagade maten ur korgen.

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a plant growing from a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable water dispenser with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

1 Placera korgen i pannan.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a small object into a container with a speech bubble containing a cloud icon (no text or symbols present)

Diagram showing a hand pressing a button on a device with numbered callouts indicating '①' and '②'.

Illustration of a hand pressing a button labeled '播放' with a play button icon (no text or symbols on the button itself)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling or ventilation (no text or symbols)

Illustration of a hand using a tool to stir meat into a pot, with a plate of food nearby (no text or symbols)

11 Ta ut den tillagade maten ur korgen.

Diagram showing a mechanical device with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a speech bubble containing '30' and icons above (no text or symbols)

Illustration showing a hand pressing a container with a speech bubble containing Chinese characters and a virus symbol.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with a circular inset showing a mesh (no text or symbols)

7 Ta ut den tillagade maten ur korgen.

Diagram showing a temperature sensor above a container with a thermometer icon, indicating thermal measurement or sensor response.

Illustration showing a plug inserted into a socket and a bowl with liquid being poured into it (no text or symbols)

Line drawing of a hand cleaning a cylindrical container (no text or symbols)

Illustration of a hand holding a tool inside a container with a spiral pattern circled (no text or symbols)

Simple line drawing of a hand cleaning a small container (no text or symbols)

Purified water MAX

Illustration of a portable kitchen appliance with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a faucet and two panes (no text or symbols)

Illustration of two containers with a directional arrow indicating movement (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a microwave oven with a button and arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Diagram showing a hand pouring liquid into a container with a warning symbol and heating elements, likely indicating a hazard or safety hazard.

Illustration of a hand pouring liquid into a basin with a faucet in the background (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and checkmark (no text or symbols)

Illustration of two mechanical components with a downward arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with a faucet and plastic bag (no text or symbols)

Symbol of a waste bin with no text or labels, including a crossed-out box and a solid rectangle below (no readable text or symbols)

Illustration of a hand using a tool to press or install a device on a container, with an inset showing a close-up of the component (no text or symbols present)

Illustration of a hand holding a small object with a magnified inset showing a smartphone and a document (no text or symbols present)

Technical line drawing of a mechanical component with a 15cm dimension标注 (no other text or symbols)

Illustration of a hand pressing down on a cylindrical object with a downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical component with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down a curved object with a circular arrow symbol (no text or labels)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a laptop with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark, showing a cooking step (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand holding a container with a lid and a downward arrow indicating action (no text or symbols)

Illustration of a kitchen pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a microwave oven with a handle and lid, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved surface with a speech bubble containing wireless signal icon (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with parts ① and ②.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen mixer with a bell icon and checkmark, showing no text or symbols

Illustration of a hand pouring sauce into a bowl with meat slices nearby (no text or symbols)

Illustration of a hand pressing a button into a container with a downward arrow (no text or symbols)

Diagram showing a plant growing in a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a container with a handle and a small leaf, no text or symbols present.

Illustration of a microwave oven with a downward arrow pointing to its lid (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a small object into a container with a speech bubble containing a cloud icon (no text or symbols present)

Diagram showing a hand holding a clipboard with a clock icon and directional arrows, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow indicating cooling or ventilation (no text or symbols)

Illustration of a hand pouring liquid into a bowl with food on a plate (no text or symbols)

Diagram showing a mechanical device with arrows indicating force or movement (no text or symbols present)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with icons above (no text or symbols)

Illustration of a container with a speech bubble containing a snowflake icon (no text or symbols on the container itself)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a food item with a bell and checkmark, showing a bowl and container (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Simple line drawing of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Line drawing of a hand holding a lid over a container (no text or symbols)

Illustration of a hand using a tool to interact with a spiral-patterned device (no text or symbols present)

Hand cleaning a small appliance with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a circular button into a container with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with buckets and a handle (no text or symbols)

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Line drawing of a coffee maker with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text indicating hazard.

Illustration of a hand pouring liquid into a basin with a faucet (no text or symbols)

Purified water MAX

Illustration of a mechanical component with a circular base and a cylindrical housing, showing an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a toilet with a bell icon and checkmark (no text or symbols)

Illustration of two plastic containers with a downward arrow indicating a change (no text or symbols)

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

Illustration of a hand holding a container with a tool, showing a magnified view of a device inside (no text or symbols)

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing a button into a container with a downward arrow (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating force or motion (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing a button into a container with a circular icon containing a spiral (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with parts ① and ②.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and a downward arrow, no text or symbols present.

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating downward motion (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable air fryer with a handle and button, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating a component (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a small object into a container with a speech bubble containing Wi-Fi icons (no text or symbols present)

Diagram showing a temperature sensor on a surface with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a kitchen mixer with a bell and checkmark indicating alert (no text or symbols)

Illustration of a hand pouring meat into a pot with a plate of raw meat nearby (no text or symbols)

Illustration of a hand pressing a button into a container with a downward arrow (no text or symbols)

Illustration of a small animal in a container with arrows indicating movement or force (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Simple line drawing of a microwave oven with a side outlet (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button labeled with icons and directional arrows, likely illustrating a process or action.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and warning symbol (no text or labels)

Illustration of a hand using a gridded tool to stir meat into a pot, with a plate of food nearby (no text or symbols)

Diagram showing a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with icons above (no text or symbols)

Illustration of a container with a speech bubble containing a snowflake icon (no text or symbols on the diagram itself)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Diagram of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen sink with a faucet and kitchen utensils (no text or symbols)

Line drawing of a hand holding a lid over a container (no text or symbols)

Illustration of a hand using a tool to brush through a cylindrical object, with no visible text or symbols.

Hand cleaning a small kitchen appliance with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Line drawing of a kitchen sink with a faucet and two panes (no text or symbols)

Illustration of two containers with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet or sink with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Diagram showing a hand pouring liquid into a container with a warning symbol and a pressure gauge, indicating water level change.

Illustration of a hand pouring liquid into a sink with a faucet (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a microwave oven with a bell icon and checkmark (no text or symbols)

Two 3D-printed mechanical components with a black arrow indicating direction (no text or symbols)

Simple line drawing of a kitchen sink with a faucet and a bowl (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand using a tool to clean or store items, with a magnified inset showing a close-up of the item (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of a component (no text or symbols present)

8:00 12:00

888°C min

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing a button on a cylindrical object with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a container with a circular arrow icon pointing to the interior (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered parts ① and ②.

Diagram showing a hand pressing a button on a laptop with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable air fryer with a handle and button, no text or symbols present.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand inserting a small object into a container with a circular icon above (no text or symbols)

Diagram showing a thermometer and directional arrows on a device, labeled with numbered annotations.

Diagram showing a hand pressing a button on a surface with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a kitchen appliance with a bell icon and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring meat into a bowl with a plate of raw meat nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a plant growing in a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable air purifier with a handle and spout (no text or symbols)

Simple line drawing of a microwave oven with a downward arrow indicating a drop (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand placing a small object into a container with a circular icon above (no text or symbols)

Diagram showing a hand pressing a button on a device with labeled buttons and directional arrows indicating movement or navigation.

Illustration of a hand pressing a button on a circular object with a play button (no text or symbols)

Illustration of a microwave oven with a bell icon and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring liquid into a bowl and plate, with no visible text or symbols

Illustration of a cooking pot with a ladder and a container, showing directional arrows (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a container with a speech bubble and three circular icons above (no text or symbols)

Illustration of a container with a speech bubble containing a snowflake icon (no text or symbols on the diagram itself)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating confirmation (no text or symbols)

Illustration of a hand pouring liquid into a bowl with chopsticks, and a plate of noodles nearby (no text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

Line drawing of a kitchen sink with a faucet and buckets (no text or symbols)

Illustration of a hand holding a lid above a cylindrical container (no text or symbols)

Illustration of a hand using a tool to clean a spiral-patterned object inside a container (no text or symbols)

Hand cleaning a small container with a cloth (no text or symbols visible)

Purified water MAX

Simple line drawing of a portable air purifier with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a device with a circular icon labeled 'Power Switch' (no text or symbols beyond the icon)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating motion (no text or symbols)

Simple line drawing of a microwave oven with a button and arrow indicating rotation (no text or symbols)

Simple line drawing of a cylindrical device with a downward arrow pointing to its side (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a toilet with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text labels.

Illustration of a hand pouring liquid into a sink with a faucet in the background (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing a device being inserted (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

Technical line drawing of a mechanical component with dimension annotation (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical device with arrows indicating motion or force, next to a container (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing down on a curved object with a circular arrow symbol (no text or labels)

Diagram showing a thermometer placed on a surface with two directional arrows indicating temperature and direction of change.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with steps ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a portable air fryer with a button and scroll (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a medical device with a speech bubble and signal icon (no text or symbols)

Diagram showing a temperature sensor on a device with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a document with two labeled buttons (① and ②) and directional arrows.

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a kitchen mixer with a bell and checkmark (no text or symbols)

Illustration of a hand pouring meat into a pot with a plate of raw meat nearby (no text or symbols)

Illustration of a hand pressing down on a cylindrical object with a downward arrow indicating motion (no text or symbols)

Illustration of a plant growing in a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a cylindrical container with a handle and a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a white cylindrical device with a side panel and arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a container with a small object inside, no text or symbols present

Diagram showing a hand pressing a button with directional arrows and a clock icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a circular device with a play button (no text or symbols)

Illustration of a microwave oven with a bell icon and warning symbol (no text or labels)

Illustration of a hand using a tool to stir meat into a bowl, with a plate of food nearby (no text or symbols)

Illustration of a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a container with a speech bubble containing a swirling symbol (no text or labels)

Illustration of a hand pressing down on a container with a speech bubble containing a snow symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a basin with a plate nearby (no text or symbols)

Line drawing of a hand cleaning a small container with a cloth (no text or symbols)

Purified water MAX

Simple line drawing of a portable kitchen appliance with a handle and button (no text or symbols)

Simple line drawing of a mechanical device with a downward arrow pointing to it (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a curved surface with a circular icon above (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon above it (no text or symbols)

Line drawing of a kitchen sink with a faucet and two panes (no text or symbols)

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a toilet with a bell icon and checkmark (no text or symbols)

Purified water MAX

Illustration of a hand holding a stick inside a cylindrical container with rotational arrows indicating rotation (no text or symbols)

Simple line drawing of a microwave oven with a button and arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a toilet with a bell icon above it (no text or symbols)

Safety warning illustration showing a hand pouring liquid into a container with a warning symbol and text indicating 'No. 1' (No. 1)

Illustration of a hand pouring liquid into a sink with a faucet in the background (no text or symbols)

Purified water MAX

Illustration of two mechanical components with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing a button on a circular object with a play button icon (no text or symbols)

Illustration of a microwave oven with a bell icon and checkmark (no text or symbols)

Two 3D-printed mechanical components with a black arrow indicating direction (no text or symbols)

Simple line drawing of a kitchen sink with a faucet and plastic bag (no text or symbols)

Symbol of a robot without any text or numbers, featuring a prohibition sign inside a circle (no readable text)

Symbol of a waste bin with no text or numbers present

Illustration of a hand holding a container with a tool, showing a magnified view of a smartphone inside (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with an inset showing a close-up of the component (no text or symbols present)

8:00 12:00

888°C min

Technical line drawing of a mechanical component with a 15cm dimension标注 (no text or symbols beyond the measurement)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Diagram showing a cooking step with arrows indicating direction (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand pressing down on a curved object with a spiral symbol (no text or labels)

Diagram showing a temperature sensor on a device with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a surface with directional arrows and a timer icon, labeled with numbers ① and ②.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a cooking pot with a bell and checkmark indicating a warning or alert (no text or symbols present)

Illustration of a hand pouring liquid into a bowl with a plate nearby (no text or symbols)

Illustration of a hand pressing down on a cylindrical container with a downward arrow indicating action (no text or symbols)

Illustration of a cooking pot and a container with arrows indicating direction (no text or symbols)

Purified water MAX

Simple line drawing of a container with a handle and a small object beside it (no text or symbols)

Simple line drawing of a microwave oven with a downward arrow indicating cooling effect (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand placing a small object into a container with a circular icon above it (no text or symbols)

Diagram showing a hand pressing down on a device with labeled parts and directional arrows indicating movement or change.

Diagram showing a hand pressing a button on a device with labeled buttons and directional arrows indicating movement or navigation.
