USER MANUAL Conga Rockstar RX90 AI AquaPet Flex CECOTEC

Aspirador vertical BLDC / Upright vacuum cleaner

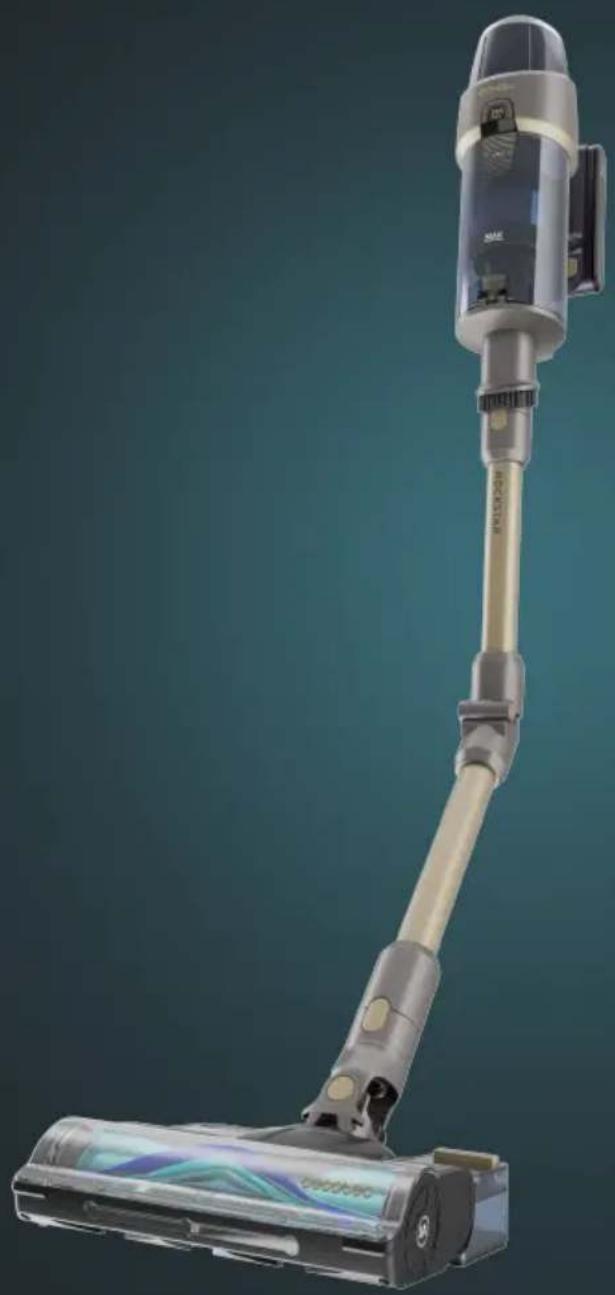

Exterior view of a modern vacuum cleaner with attached propeller and control panel (no visible text or symbols)

cecòtec

Safety instructions 9

1. Parts and components 63

2. Before use 64

3. Assembly 64

4. Operation 65

5. Cleaning and maintenance 67

6. Troubleshooting 69

7. Technical specifications 70

8. Disposal of old electrical

and electronic appliances 70

1. Technical support and warranty 71

2. Copyright 71

3. Simplified EU Declaration of Conformity 71

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• This product is designed only for household use. It is not suitable for commercial or industrial use.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if it has been dropped or if there are any visible signs of damage.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Never use caustic or abrasive lubricants or cleaning agents to clean the appliance.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• Do not place the appliance close to heat sources, flammable substances, or wet surfaces where it could fall, nor allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use on concrete, tarmac or other rough surfaces.
• Remove anything thicker than a straw from inside the device, as it may block the vacuuming tube.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.

• Keep the air outlet unblocked to avoid losing suction power.

• Check the suction tube from time to time to make sure it is not blocked.

• Take special care when using the appliance near stairs.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Turn off and unplug the appliance from the mains supply when it is not going to be used for a long period of time, before cleaning or repairing, before attaching components, and before removing the battery.
• WARNING: this tube has electrical connections:
• Do not use it to vacuum water;
• Do not immerse it in water to clean it;
• The tube must be checked regularly and should not be used if damaged.
• WARNING: your device has rotating parts which may cause a risk of entrapment. Exercise extreme caution.
• Pull from the plug, not the cable, to disconnect it from the outlet.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

Battery instructions

• This device includes a lithium-ion battery.
• Do not burn or expose the battery to high temperatures, as it may explode.
• Leaks from the battery or cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Avoid contact between the battery and small metallic objects such as paper clips, coins, keys, nails, or screws.
• Never modify the charger in any way.
• The battery must be removed for safe disposal.
• Keep batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.
• WARNING: to recharge the battery, only use the power supply included with the appliance, with reference YLJX2I-E350100.
• Non-rechargeable batteries must not be recharged.
• The battery supply terminals must not be short-circuited.
• If the device is stored for a long period of time, you should remove the battery.
• The battery must be inserted in the correct position.

INSTRUCTIONS DE SÉCURITÉ

Parts and components: Fig. 1

1. Handle
2. On/off trigger
3. Removable battery
4. Battery release button
5. Dust tank release button
6. Flexible tube
7. Flexible tube activation button
8. Vacuum base
9. LED display
10. Main body
11. Dust tank
12. Accessory for furniture and corners
13. Flexible tube release button
14. Vacuum base release button
15. Charger
16. Wall bracket with charging function
17. Water tank
18. Accessory for pets with two heads
19. Extensible hose
20. Multifunctional anti-tangle brush
21. Motorised accessory for upholstery
22. Long accessory for furniture
23. Accessory for corners

Display: Fig. 2

1. Vacuum mode indicator light (Eco, Medium, Turbo and Auto)
2. Indicator light ring
3. Battery percentage indicator light
4. Vacuum base fault indicator light
5. Filter cleaning reminder
6. Vacuum mode change icon
7. Battery indicator light
8. Floor type indicator light: carpets
9. Power percentage indicator light
10. Floor type indicator light: hard floor
11. Floor type change icon

ENGLISH

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This upright vacuum cleaner includes a package designed to protect it during transport. Take the upright vacuum cleaner out of the box and remove all packaging materials. Keep the original box and other elements in a safe place, as this will help you prevent damage to the upright vacuum cleaner when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Upright vacuum cleaner
• Removable battery
• Flexible tube
• Built-in accessory for furniture and corners
• Charger
• Wall bracket with charging function
• Water tank
• Accessory for pets with two heads
• Extensible hose
• Multifunctional anti-tangle brush
• Motorised accessory for upholstery
• Long accessory for furniture
• Accessory for corners
• Instruction manual

Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. ASSEMBLY

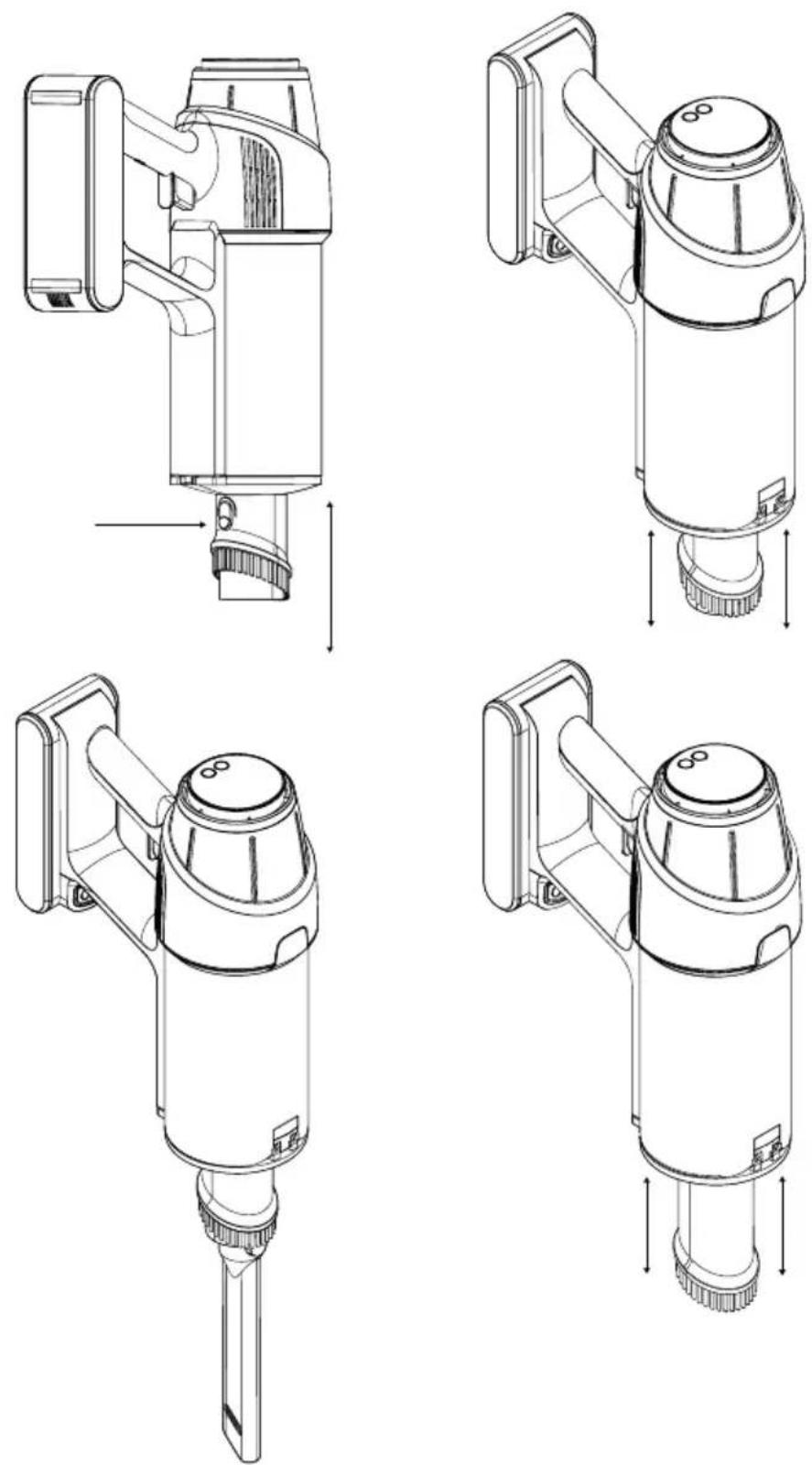

Tube installation Fig. 3

• Insert the tube into the main body until you hear a click.
• To remove the tube, press the tube release button and pull it out.

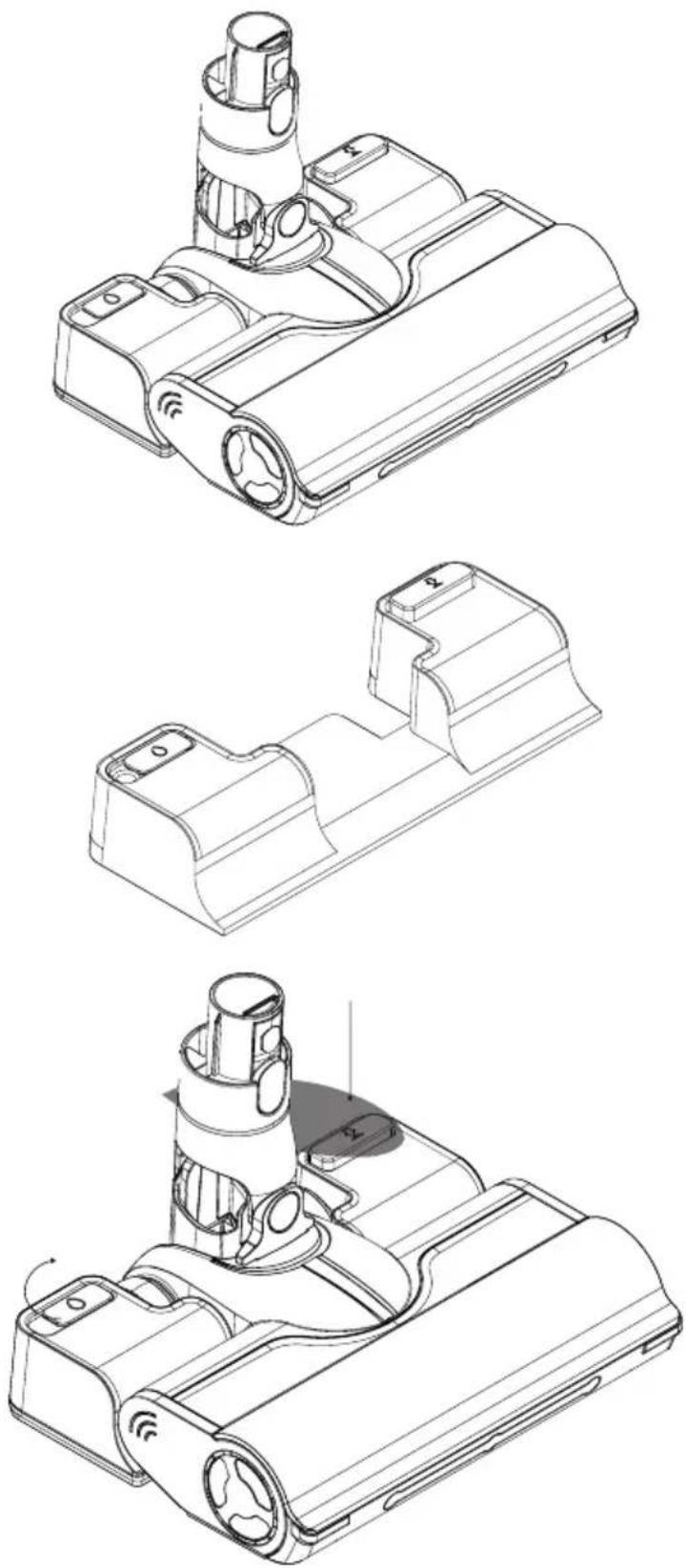

Vacuum base installation. Fig. 4

• Insert the tube into the vacuum base until you hear a click.
• To disassemble the vacuum base, press the vacuum base release button.

Battery installation. Fig. 5

• Install the battery into the bottom of the main body until it clicks into place.
• To remove the battery, press the battery release button.

Charge. Fig. 6.

Plug the charger into the charging port and then plug the other side of the adapter into the power socket.

Note:

• Charge the battery before using the appliance for the first time.
• It is recommended to charge the battery fully within the first 3 uses.
• Do not charge the battery for long periods of time, as this may damage it.

During charging

The battery percentage will increase until it reaches 100%, marking the full charge.

During use

When the battery charge is less than 20%, the Turbo mode will not be available for the protection and improvement of the lifespan of the appliance.

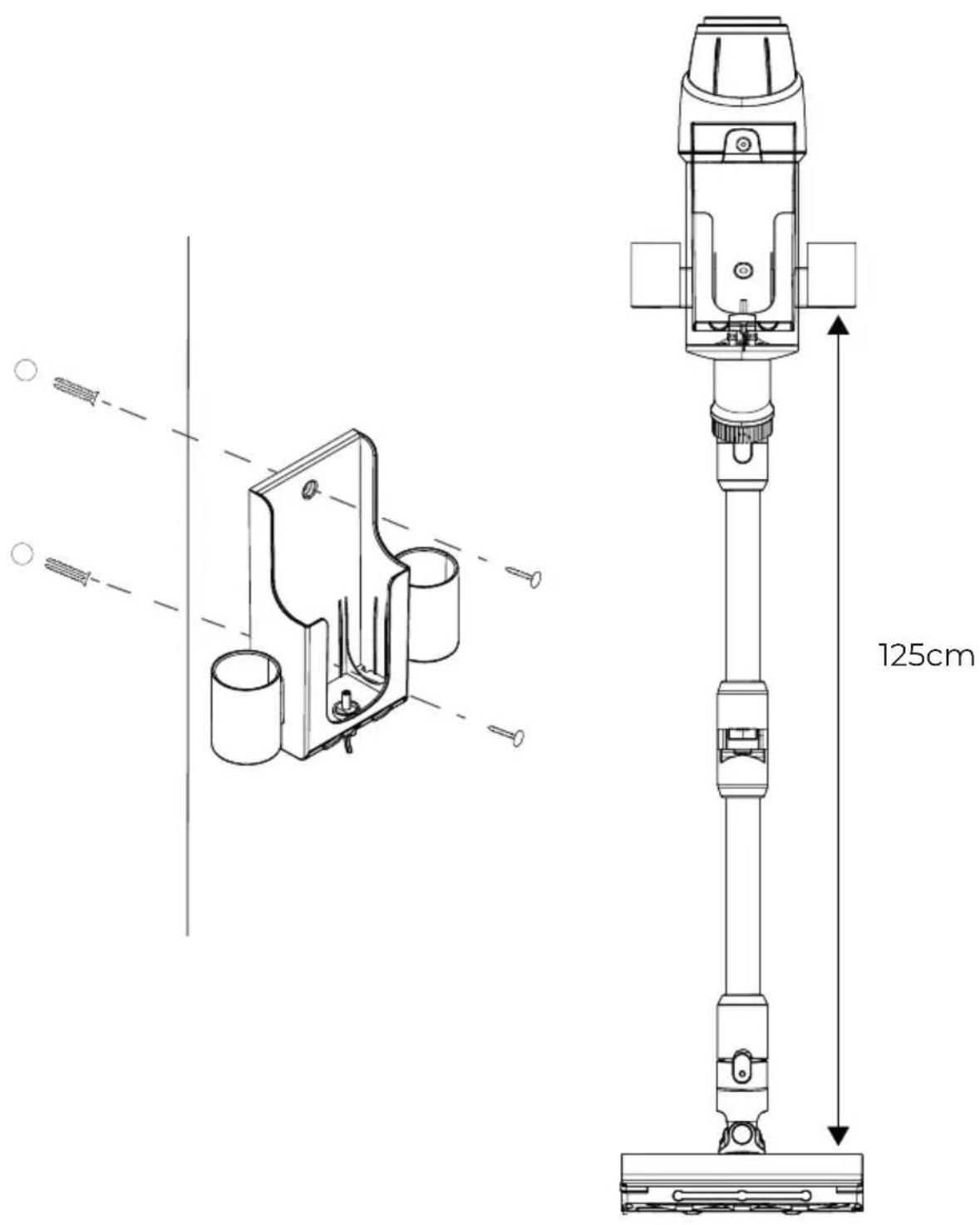

Wall bracket. Fig. 7

• Place the wall bracket against the wall and mark the drilling points for later fixing of the bracket. Please note the wall bracket installation height. It is recommended that the vacuum base rests on the floor so that the wall bracket does not support the full weight of the appliance.
• Drill the holes and fix the wall bracket with the expansion screws, then place the vacuum cleaner.

4. OPERATION

You can use this vacuum cleaner in two different ways: Fig. 8

• As a handheld vacuum cleaner, with the built-in accessory for furniture and corners installed in the tube, or by attaching the rest of the accessories directly to the main body.
• As an upright vacuum cleaner, using the suction tube with the accessories assembled, or with the vacuum base attached to it.

ENGLISH

Using the vacuum cleaner

1. Select the accessory according to the cleaning task you want to perform.
2. Press the on/off trigger to switch on the appliance. Press it again to stop operation.
3. Press the suction mode switch button to adjust between the 4 suction levels, including an automatic mode. This mode automatically adjusts the suction power based on movement patterns, the amount of dirt collected, and the type of surface being cleaned, such as edges or corners. During detection, a light signal is activated on the screen with the AI (Artificial Intelligence) icon.
4. Press the floor type change icon to set the brush speed depending on whether it is a carpet or a hard floor.
5. When using the Water tank, you must select Eco mode only. Using any other mode may damage the product.
6. Please note that if the battery percentage is below 20%, the Turbo mode will not be available for use.

Accessories

Vacuum base. Fig. 9

The vacuum base is suitable for both carpets and hard floors.

Accessory for corners. Fig. 1 (23)

Use this accessory to clean corners, recesses, edges and other hard-to-reach places.

Built-in accessory for furniture and corners. Fig. 1 (12)

Use this accessory, that is built-in to the main body, to clean upholstered surfaces, keyboards, lamps, curtains, blinds, vents, etc. To switch between the wide side and narrow side, press the button on the accessory and slide the brush up or down.

Long accessory for furniture. Fig. 1 (22)

Use this accessory to reach the most inaccessible places.

Extensible hose. Fig. 1 (19)

Use this hose to connect accessories to the main body for greater control and precision. It is especially recommended for use with the accessory for pets.

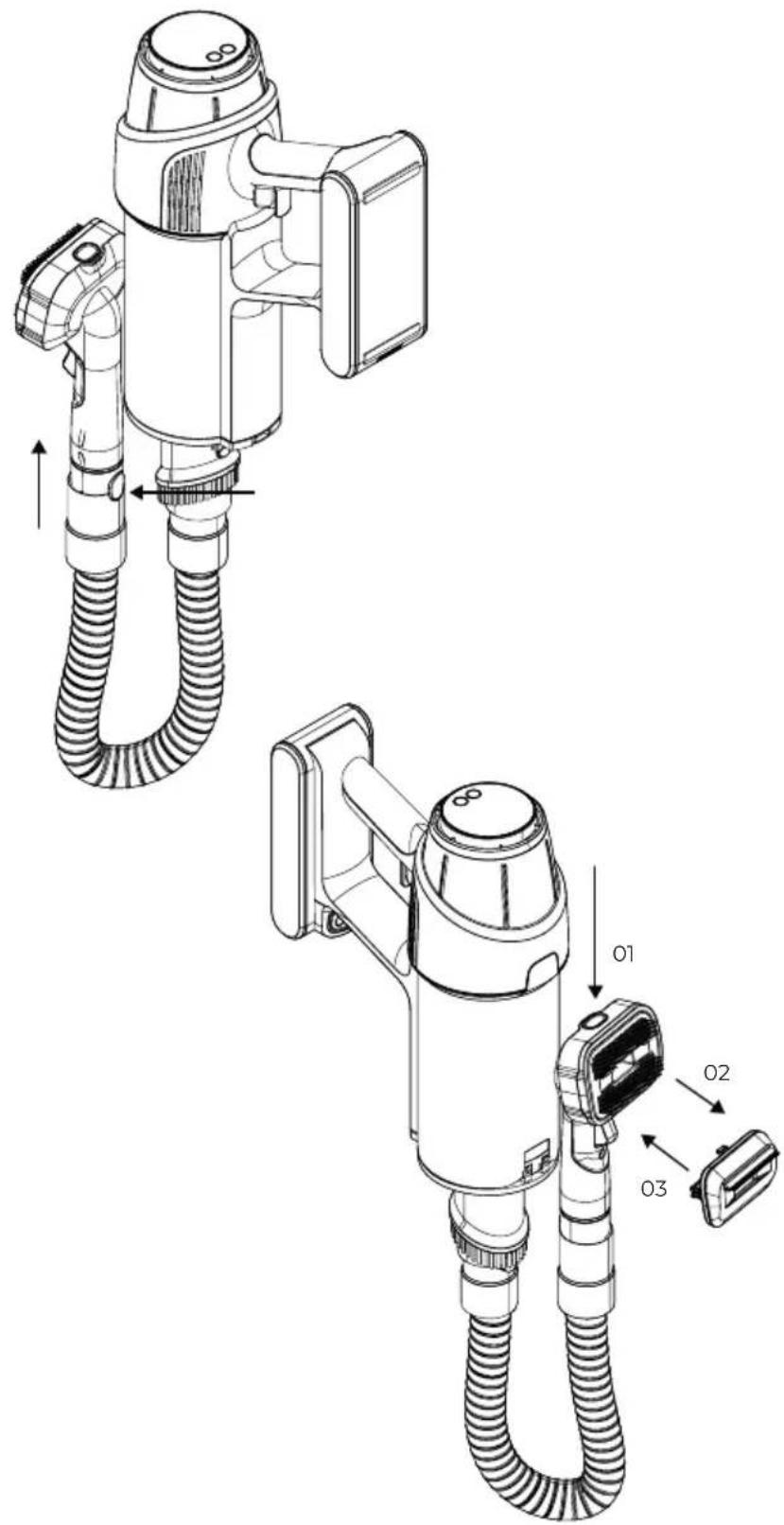

Accessory for pets. Fig. 10

This accessory allows you to effortlessly brush and cut tangles (depending on the head you use) from your pet's coat. For convenience, it is recommended to use this accessory together with the extensible hose.

1. To attach the accessory for pets to the main body, align and fit both parts until the accessory clicks into place.

ENGLISH

1. To remove the accessory, press the accessory for pets' release button with one hand while holding the main body firmly with the other.
2. Press the head release button to remove the head so that the desired head can be fitted. To attach the head, insert the lower tabs and then press the upper part until it clicks into place.
3. Press the trigger on the accessory to release the hair and instantly vacuum it.

Motorised accessory for upholstery. Fig. 1 (21)

This accessory is recommended for cleaning furniture, sofas, fabrics and other upholstery.

Water tank accessory. Fig. 11

Accessory with which you can mop and scrub by simply attaching it to the vacuum cleaner.

• For the accessory to dispense water you must press the scrub activation button, and check that it is in the dispense position. When you have finished scrubbing, remember to press it again to deactivate this function.
• Do not use cleaning agents. Use clean water at room temperature.
• Do not use the vacuum cleaner to vacuum water.
• When the vacuum cleaner is not going to be used for a long period of time, remove the water tank accessory and empty the remaining water. Do not expose to direct sunlight for long periods of time or store in humid environments.
• When using this appliance for the first time, make sure the water tank plug is not open.

Warning: only use Eco mode when using the water tank.

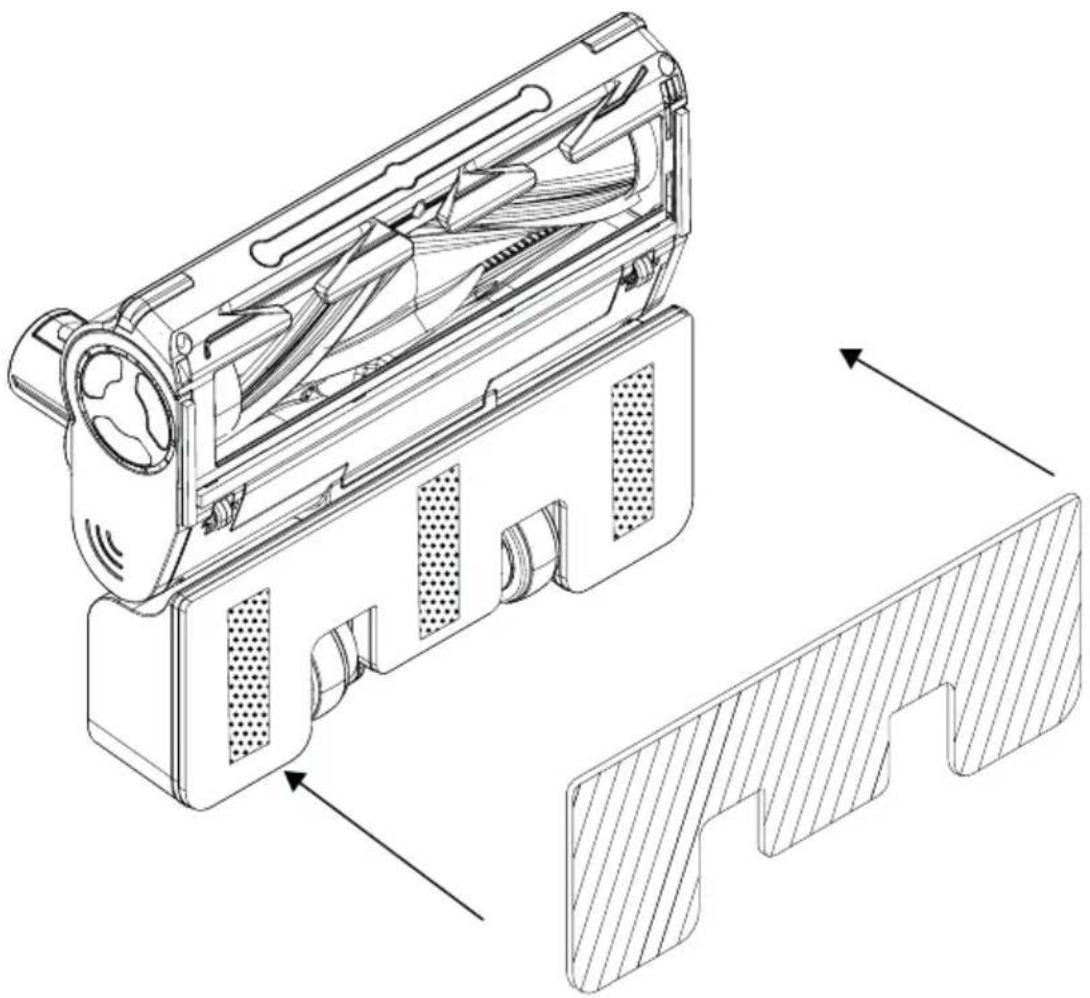

Mop installation. Fig. 12

• Place the mop cloth on the ground with the Velcro facing upwards.
• Align the mop cloth with the Velcro strips on the water tank and attach it without covering the wheels.

Replacing the mop

• Remove the water tank from the vacuum cleaner.
• Use your foot to hold the accessory against the ground and pull the vacuum cleaner upwards until both parts are separated.
• Replace the mop and refill the water tank.
• Reinstall the water tank accessory, insert the tank in the lower part of the vacuum base and press until it is fixed.

5. CLEANING AND MAINTENANCE

- Always turn off and unplug the vacuum cleaner before cleaning or maintenance.

ENGLISH

• To maintain the vacuum cleaner efficiently, periodically check that the flexible tube does not become clogged.
• Use a soft, slightly dampened cloth to clean the surface of the appliance.
• Never immerse the appliance in water or other liquids. Do not allow liquids to enter the appliance.
• Do not use abrasive cleaners or scouring pads to clean the device.
• Do not leave the vacuum cleaner in a place with direct sunlight.
• Do not leave the vacuum cleaner in a wet place after cleaning it.
• After the brush has been used for a long time, bristles might start to tangle with hair and other dirt. Clean the brush to ensure cleaning efficiency.

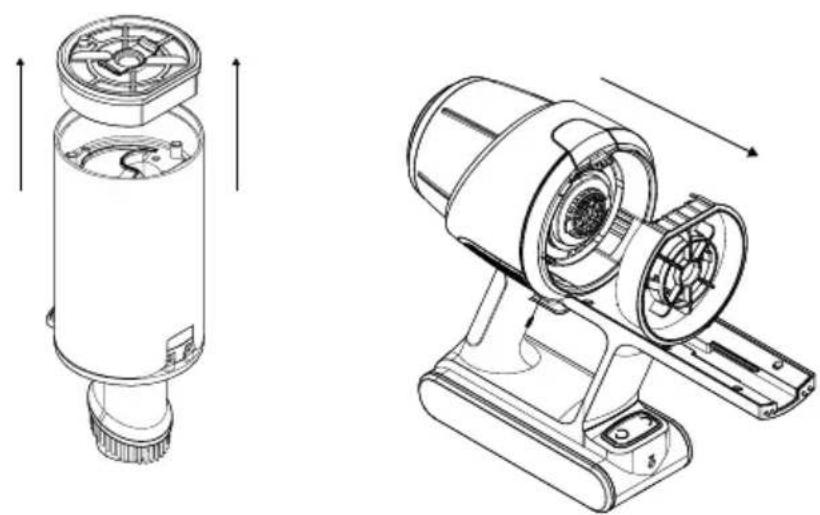

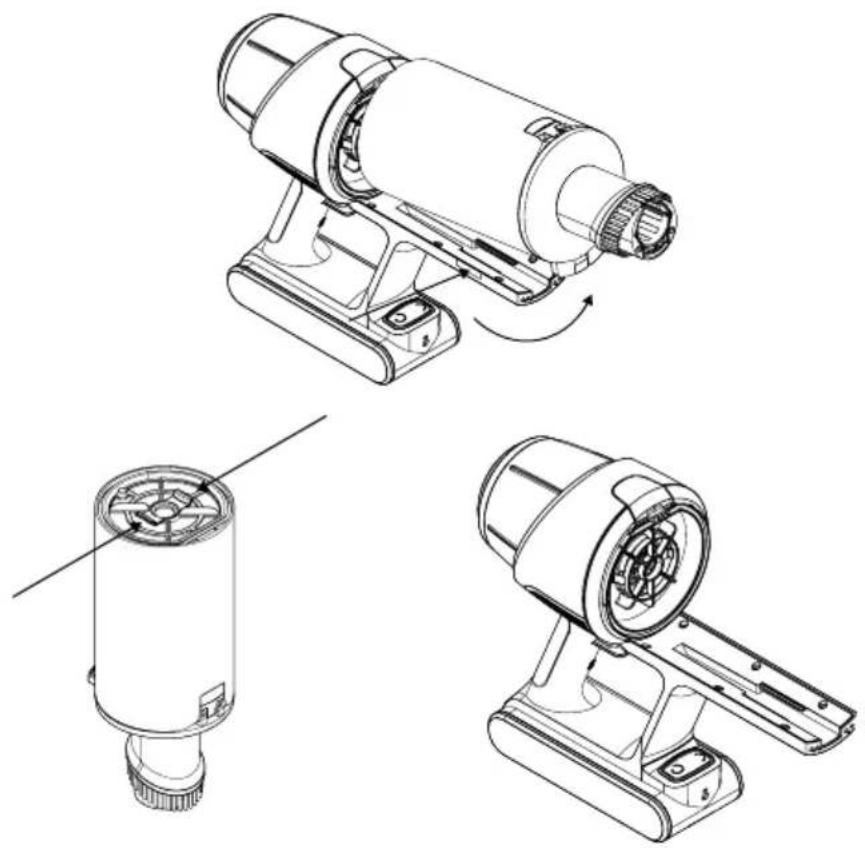

Cleaning the dust tank and the filters. Fig. 13

1. Press the dust tank release button on the main body and lift the tank.
2. Press the dust tank release button to open the tank cover and empty it.
3. Hold the dust tank and remove the filter for cleaning. Lift the filter bracket with the wire mesh and wipe it with a damp cloth to finish cleaning.
4. Wipe all parts with a slightly damp cloth.
5. After you have serviced the vacuum cleaner remember to reset the filter cleaning reminder by pressing and holding the vacuum mode change icon for 3 seconds.

Cleaning the motor filter. Fig. 14

1. Pull off the removable cover that covers the suction motor.
2. Remove the filter and clean it.
3. It is recommended to clean the filter at least every six months.

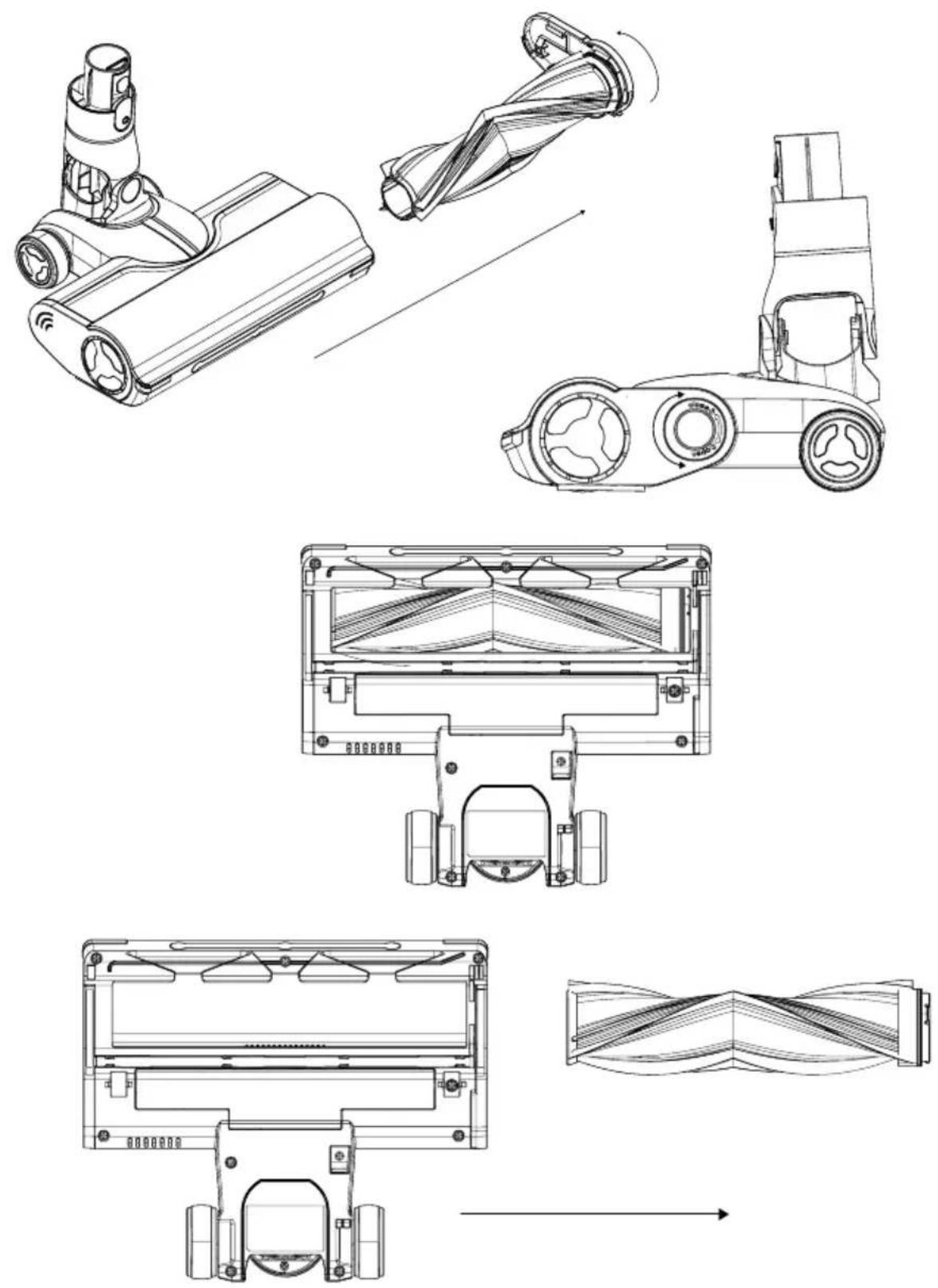

Cleaning the vacuum base and the brush. Fig. 9

1. Press the release tab on the hard floor brush and remove the brush as shown in figure 9.
2. Remove hairs and debris around the brush with your fingers.
3. Wipe the brush with a damp cloth.
4. Make sure that the brush is completely dry before putting the vacuum cleaner back into operation.
5. Replace the brush.

WARNING:

The motorised brush includes electrical connections, do not immerse in water for cleaning. Make sure the brush is completely dry before replacing it.

Water tank accessory cleaning

• To clean the water tank, fill it with clean water, shake it, and empty it.
• The mop is washable; therefore, it is suggested to wash it after every use.
• Replace the mop after 20-30 uses, depending on the use.

6. TROUBLESHOOTING

Error codes

Error code Error description How can this be solved?
E1: Charger The charger does not provide sufficient charge to the battery.		Make sure that the charger is the correct one provided by Cecotec.
E2: Vacuum base motor protection	Vacuum base fault. Clean the vacuum base and make sure that it is not clogged with hair or dirt that could block the roller.
E3: Clogged air duct	The motor has no airflow.	Check that the filters are not clogged as well as the flexible tube or the vacuum base.
E4: Vacuum motor protection	Vacuum motor fault. Check that the filters are not clogged as well as the flexible tube or the vacuum base.
E5: Protection against overheating	The vacuum cleaner has overheated due to exertion or exposure to the sun or high temperatures.	Wait for the appliance to cool down to operating temperature.

If you notice a problem with the appliance or if it is not working properly, you can carry out a few simple checks before contacting the official Cecotec Technical Support Service.

Problem Solution
The upright vacuum cleaner does not switch on	Before using the appliance, check that it is fully charged.
	Check whether the filter is correctly positioned or installed.
No vacuuming / not enough vacuuming	Empty the dust tank, check that the filter inside is clean and correctly positioned. Also, check the filter located at the motor outlet and its correct positioning.
	Check the flexible tube, vacuum base and extensible hose for clogging and clean if necessary.

ENGLISH

The appliance does not charge	To charge the battery, only use the supplied charger.
	The battery may have overheated due to exposure to sunlight or long use, recharge the appliance when it has cooled down completely.
	Make sure the battery is installed correctly.

For any further doubt or question regarding this appliance, or if the problem persists, contact the official Cecotec Technical Support Service.

7. TECHNICAL SPECIFICATIONS

Product reference: EU01_115422

Product: Conga Rockstar RX90 AI AquaPet Flex

Voltage: 100-240 V \~

Frequency: 50 / 60 Hz

Nominal engine power: 800 W

Brush rated power: 50 W

Lithium-ion battery: 29.6 V, 4000 mAh, 118.40 Wh

Rated power of charger: 35 V, 1A, 35.0 W

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this product complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This product has been designed, manufactured and tested in compliance with the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

6. PROBLEEMOPLOSSING

Foutcodes

Instalace trubice. Obr. 3

Line drawing of a handheld electric shaver with cable and power outlet (no text or symbols)

Fig./Img./Abb./Afb./Rys. 6

125cm

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Technical diagram of a vacuum cleaner with labeled parts O1, O2, and O3 showing internal components and airflow direction.

Fig./Img./Abb./Afb./Rys. 10

Technical line drawings of a three-step battery pack assembly (no text or symbols)

Fig./Img./Abb./Afb./Rys. 11

Technical line drawing of a mechanical device with internal components and external housing (no text or symbols)

Fig./Img./Abb./Afb./Rys. 12

Technical line drawings of three different mechanical devices with no visible text or symbols

Fig./Img./Abb./Afb./Rys. 13

Technical line drawings of two mechanical components: a cylindrical device with internal blades and a multi-stage optical instrument (no text or symbols present)

Fig./Img./Abb./Afb./Rys. 14

www.cecotec.es
