DesignMax Luna DML88P

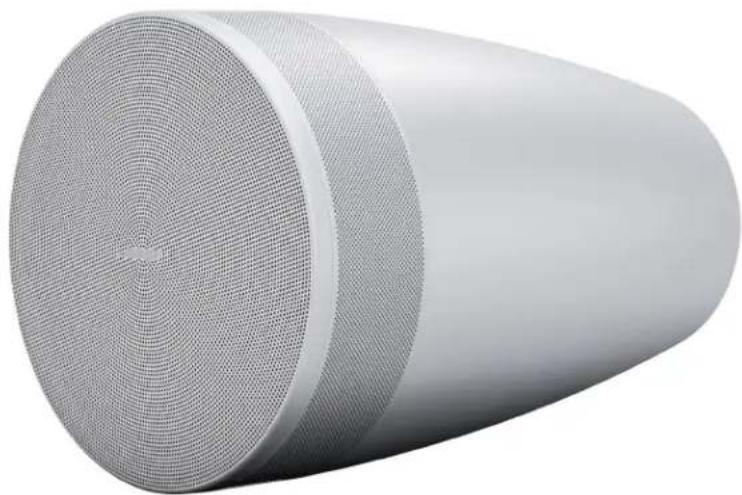

Pendant Loudspeaker

Installation Guide....2

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit BoseProfessional.com.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

Regulatory Information

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at the product-specific page: BoseProfessional.com

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Date of Manufacture: The eighth and ninth digit in the serial number indicates the year of manufacture; "24" is 2024.

EU Importer: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | UK Importer; Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Japan Importer; Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | China Importer; Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Mexico Importer; POST INTL MEXICO, S. DE R.L. DE C.V. Av. De las Americas 1536-Piso 5 Int a oficina 8, Country Club, 44610 Guadalajara | UAE Importer; Transom Post Audio Visual Recording Equipment and Accessories Trading LLC, 504, Al Fatan Plaza, Al Garhoud PO Box 118355, Dubai, UAE

Bose is a trademark of Bose Corporation.

DesignMax is a trademark of Transom Post OpCo LLC.

Bose Professional, 117 South St. Hopkinton, MA 01748 USA

©2025 Transom Post OpCo LLC. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit BoseProfessional.com/Warranty.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs O O O O	O O
Metal Parts O O	O O O O
Plastic Parts O	O O O O	O
Speakers	O O O O O O
Cables	O O O O O O

This table is prepared in accordance with the provisions of SJ/T 11364. O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: DesignMax Luna DML88P, Type designation: 892117
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs	○	○	○	○	○	○
Metal Parts	○	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	○	○	○	○	○	○
Cables	○	○	○	○	○	○

Note 1: “-” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

WARNINGS/CAUTIONS

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

• This product is intended for indoor use only.
- All Bose Professional products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
- Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.

- Do not mount the product in locations where it may be exposed to water or condensation.

- Do not expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.

- Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.

- Use only the hardware and accessories included or specified by Bose Professional for use with DesignMax Luna DML88P loudspeakers. For information on compatible accessories, see the product's technical data sheet at BoseProfessional.com.

- Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.

- Do not make unauthorized alterations to this product.

- Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose Professional, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.

- Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Cable-specific Warnings:

• The cable is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not use for lifting, such as a crane or pulley, or for hanging installations that include movement or dynamic behavior. Intended for hanging static loudspeakers only.
• Do not walk or stand on the cable installation.
• Do not paint the cable fastener or any other part of the cable assembly.
• If using a cable system not supplied by Bose Professional, the working load limit must be equal to or greater than the supplied cable system. See Technical Specifications for Safe Working Load.
• Do not apply oil or any other lubricant to the cable fastener or any other part of the cable assembly.
• Never join two cables together. Only use one cable assembly per loudspeaker hang point.
• Only use the pendant suspension cable with Bose Professional pendant loudspeakers.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 8 Ω, 100 W

Current or Power: (70V): 12W, 25W, 50W, 100W; (100V): 25W, 50W, 100W

Package Contents

Simple line drawing of a trapezoidal shape with a horizontal base (no text or symbols)

×7

×1
(Optional)

×7

×1

×4

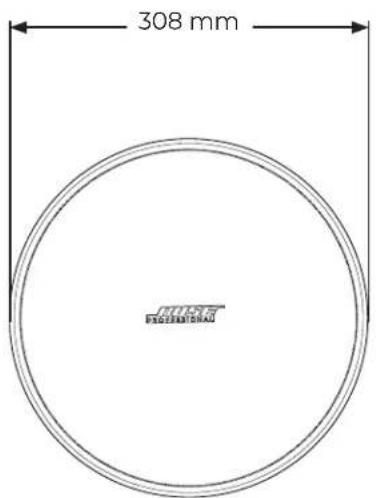

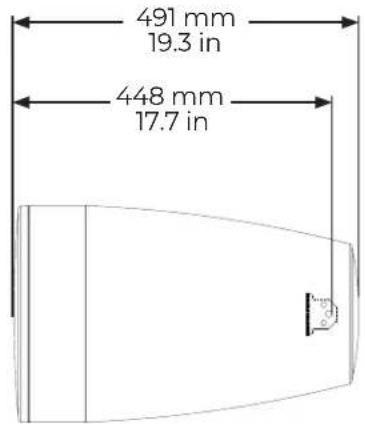

Product Dimensions

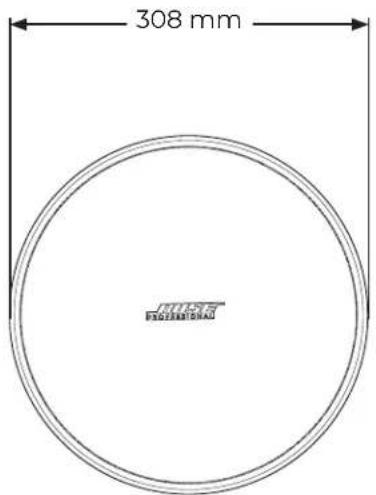

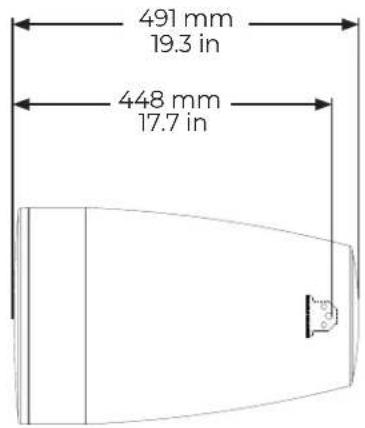

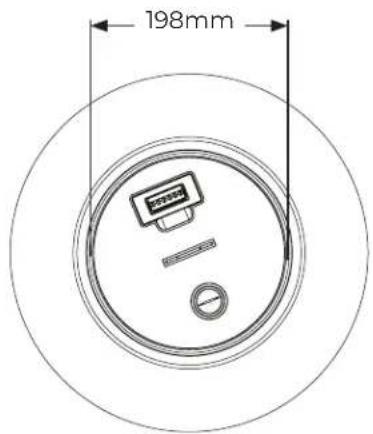

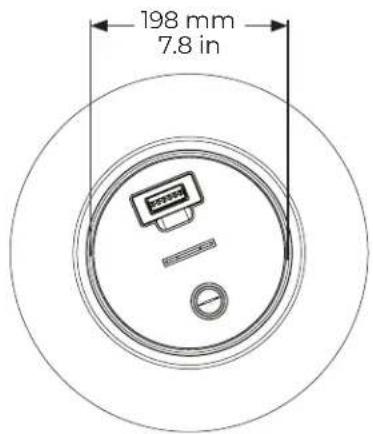

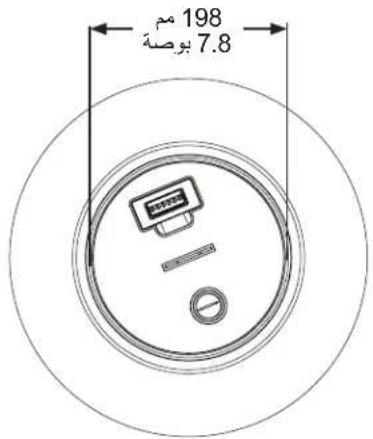

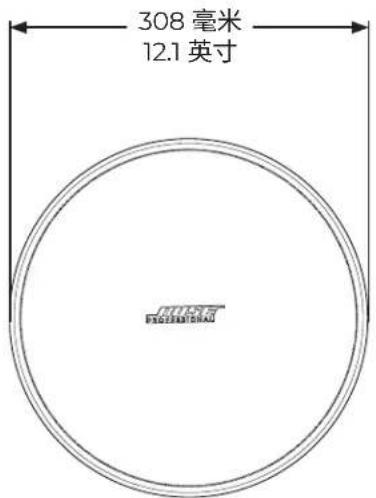

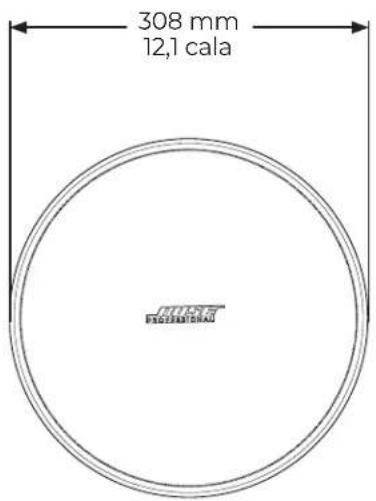

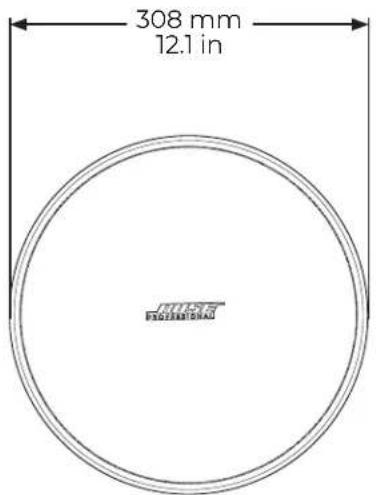

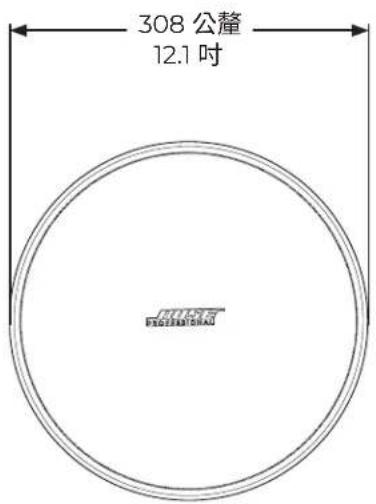

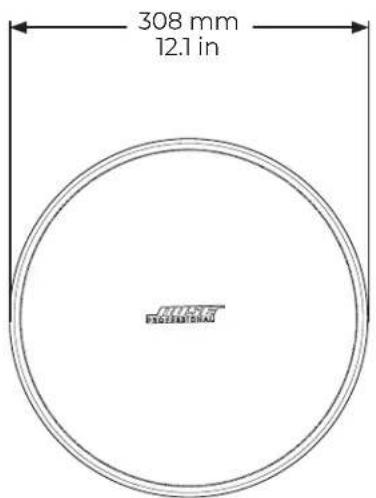

308 mm 12.1 in BUST FUTTERING

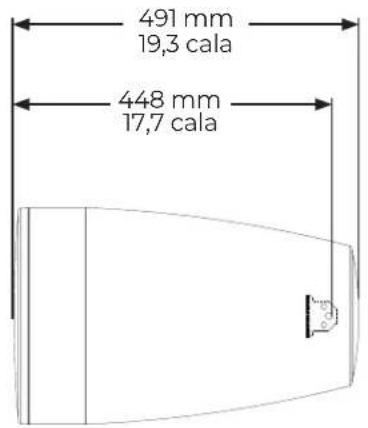

491 mm 19.3 in 448 mm 17.7 in

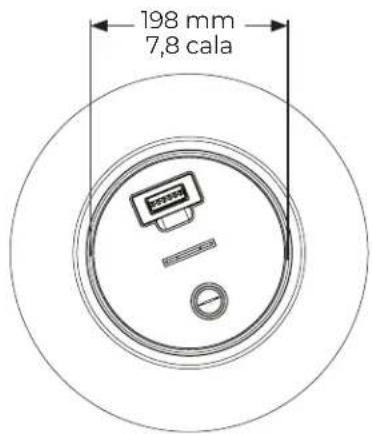

198 mm 7.8 in

Technical Specifications

For additional specifications, see the DesignMax Luna DML88P technical data sheet at BoseProfessional.com.

Physical

Max Load (Safe Working Load)1 40 kg (88.0 lb)

Net Weight, Loudspeaker 22 lbs (10kg)

Shipping Weight 28.3 lbs (12.8 kg)

Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)

1. Always use the cable within its stated Safe Working Load. The included suspension cable has a Safe Working Load of 88 lbs.

Important Installation Information

Before installing the loudspeaker, review Important Safety Instructions on page 2.

Safety and Regulatory Compliance

The DesignMax Luna DML88P loudspeaker has passed testing and complies with the following specifications and uses:

• Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use
- General-Purpose Use - UL Category UEAY, File Number S36835
- Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

Installation Options and Accessories

1. Pendant Threaded Rod Adapter
2. Pendant Conduit Adapter

Note: In installations using either adapter, do not attach the optional loudspeaker lid.

1.

The image is too blurry to recognize any text content.

Wiring the Loudspeaker

Wire Gauge

The DesignMax Luna DML88P loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

Connection Diagrams

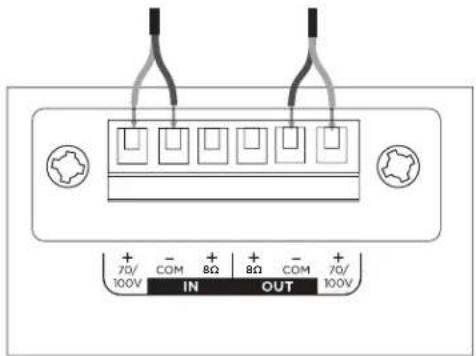

Expose six millimeters ( 14 inch) of bare wire to attach to the terminals.

+ 70/- 100V IN OUT + 8Ω 8Ω + 70/- 100V

70/100V 8Ω

+ 70/- 100V IN + 8Ω OUT + 8Ω COM - 70/ 100V

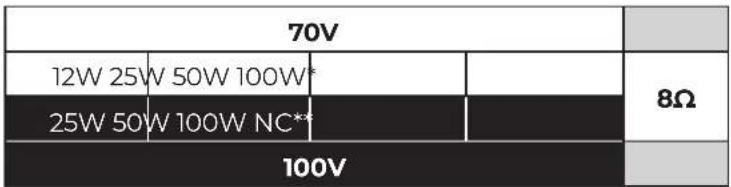

Loudspeaker Settings

NC 100 89 25 50 25 50 12 100 25 100

70V 12W 25W 50W 100W* 25W 50W 100W NC** 100V 8Ω

** NC: No Connection (do not use)* Factory c

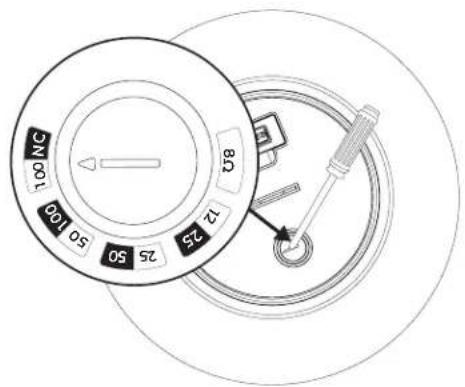

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

Bose Professional recommends using a safety wire or a safety cable as a secondary securing mechanism (not included). See the diagram to the right for safety attachment points.

The included suspension cable can be used as a safety cable in installations using the Threaded Rod Adapter accessory.

Note: A safety cable may not be used in installations using the Pendant Conduit Adapter.

Follow the manufacturer's instructions for any secondary securing mechanism implementation.

Simple line drawing of a circular object with internal components, no text or symbols present

Mounting the Loudspeaker

Before beginning installation, adjust your loudspeaker tap setting.

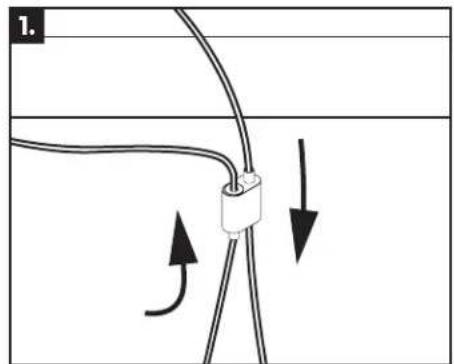

1. Insert the included suspension cable through the cable gripper and wrap the cable around a support structure; secure the cable using the cable gripper. Arrows on the cable gripper indicate the cable direction.

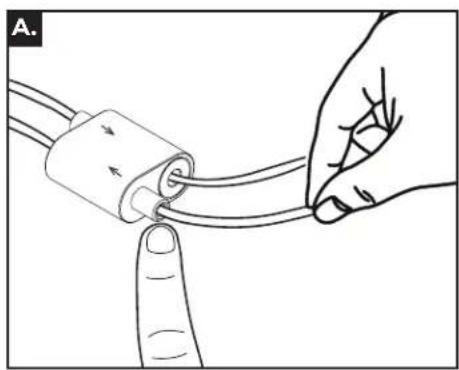

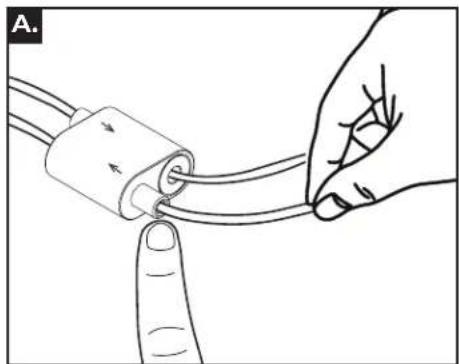

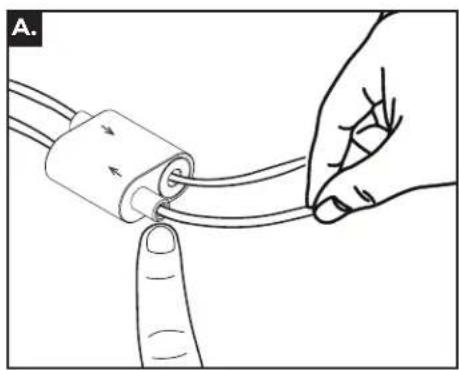

   A. To loosen the cable, press the attachment point into the gripper while pulling on the cable.

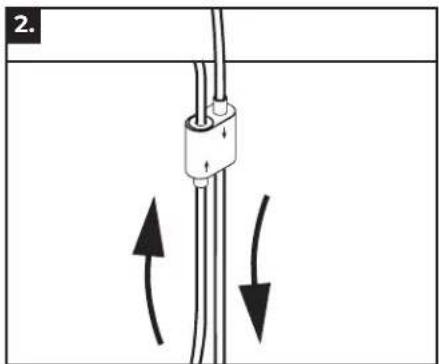

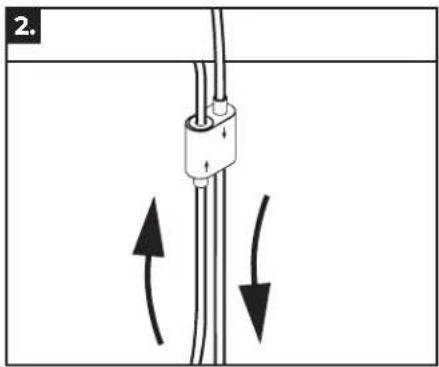

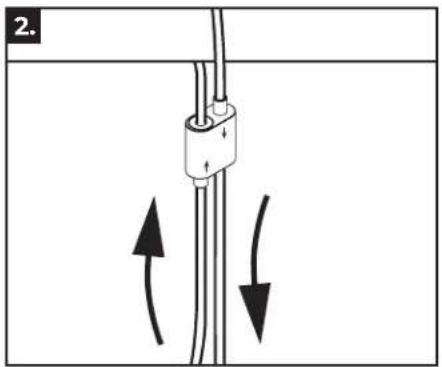

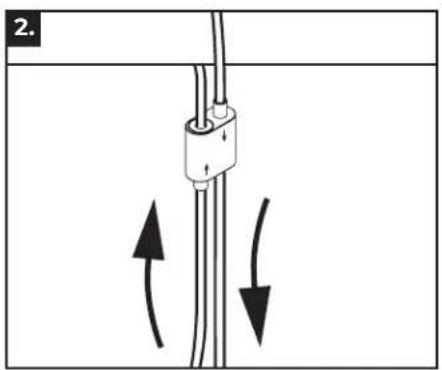

2. Pull the loose end of the suspension cable to adjust the cable to the desired length for your installation.
3. Secure the cable clip to your desired attachment point. For installations using two suspension cables, use both side attachment points.

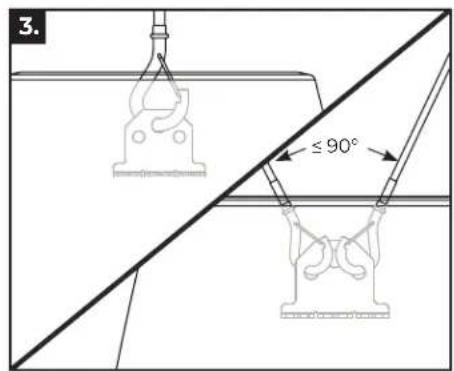

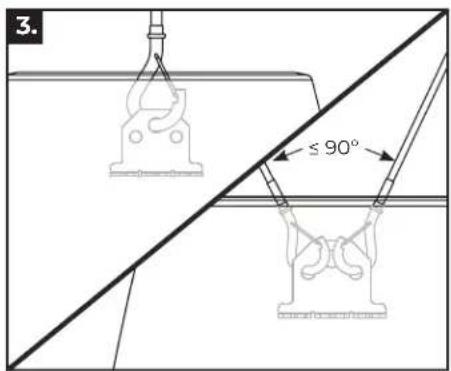

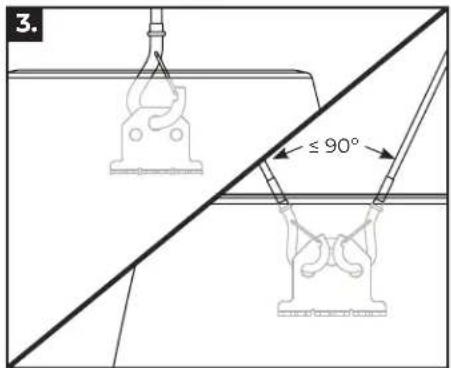

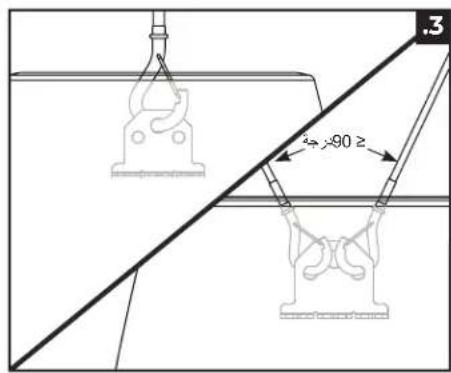

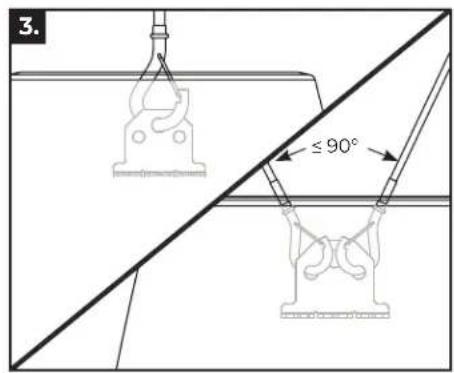

CAUTION: The angle between suspension cables must not exceed 90 degrees.

Once you have reached the desired loudspeaker height, cut away any excess cable. Trim any frayed filaments with wire cutters.

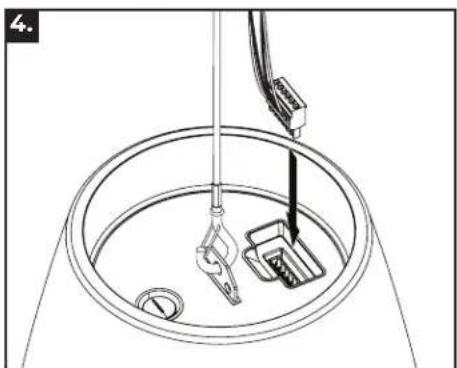

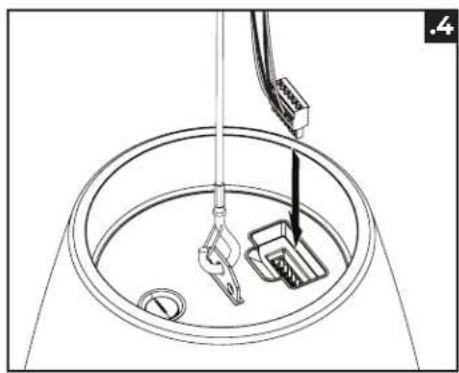

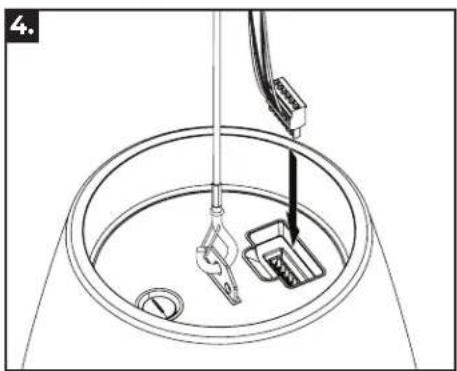

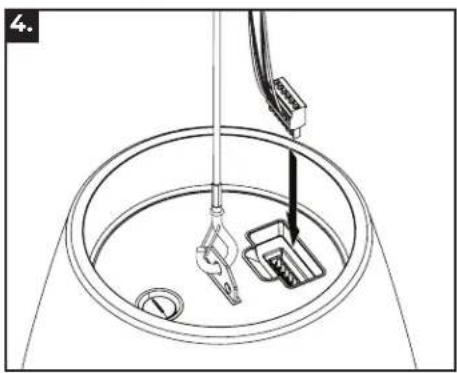

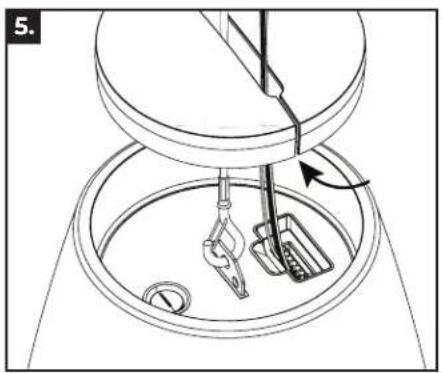

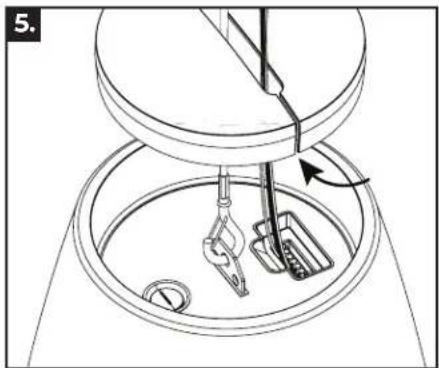

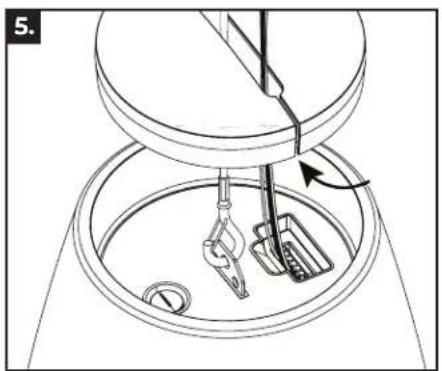

1. Remove the connector, wire the connector, and reinsert the connector into the loudspeaker. For wiring information, see Wiring the Loudspeaker.

Note: If you intend to use a service loop, it can be stored in the loudspeaker recess at the top of the enclosure.

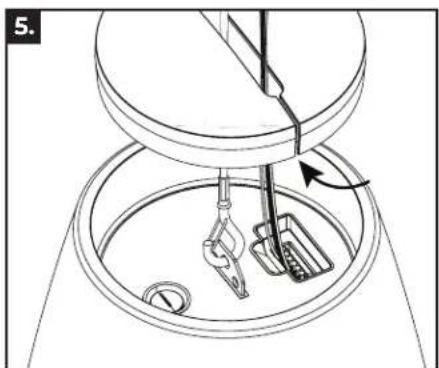

1. Use the included cable ties to secure the wiring to the suspension cable and place the lid on the loudspeaker, lacing the cables through the lid's narrow opening. Push the lid down to secure in it place.

1.

Illustration of a hand connecting wires to a terminal block (no text or symbols)

Diagram of a cable or wire connector with directional arrows indicating rotation, no text or symbols present

3. ≤ 90°
