4-JAW SELF-CENTERING WOOD CHUCK

MODEL:KP2-3/4, KP96, KP965

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repressor estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL:KP2-3/4, KP96, KP965

Product image of KP2-3/4 mechanical components including a blue tool holder, cylindrical housing, screw, and threaded base (no text or symbols on parts)

Product photo of KP96 mechanical components including a blue tool, metallic housing, screw, and threaded shaft (no text or symbols)

Collection of industrial components including gears, flanges, and tools (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Geometry accuracy (mm)

Diagram of test	Test item	Chuck Diameter
		70	96
	a.Radial run-outb.axial run-out	a:0.005b:0.005
	Radialrun-out of chuck	≤0.15	≤0.15
	Axialrun-out ofchuck	≤0.15	≤0.15
	Radialrun-out of testbar	α≤0.4L=50	α≤0.4L=50 (75)

DESCRIPTION

This Chuck is 4-Jaw Self-Centering chuck utilizing the precision, simplicity and reliability of the engineering chuck.

This Chuck is self-centering; grips internally and externally; will hold round and square work; has a hollow center so through boring can be done from either end; and can be run clockwise or anticlockwise.

Manufactured from, this gives the chucks a higher durability ensuring a longer life and high quality finish which is less.

PACKING LIST

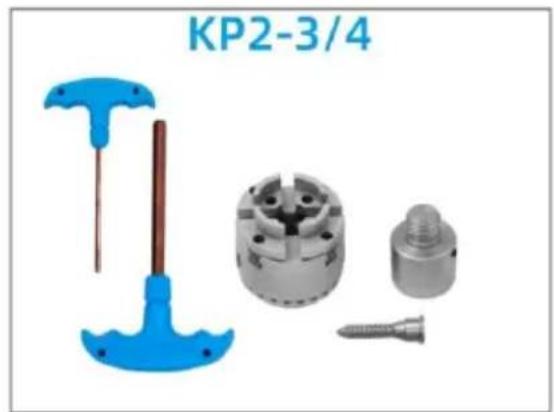

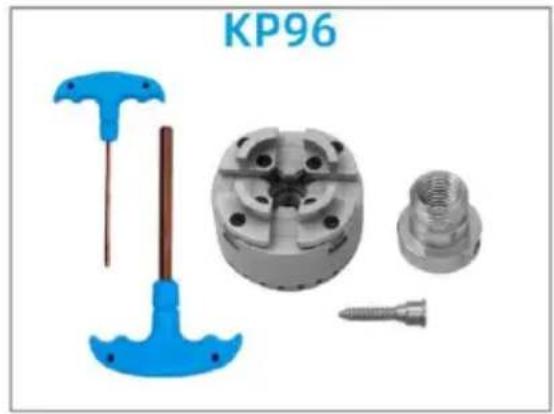

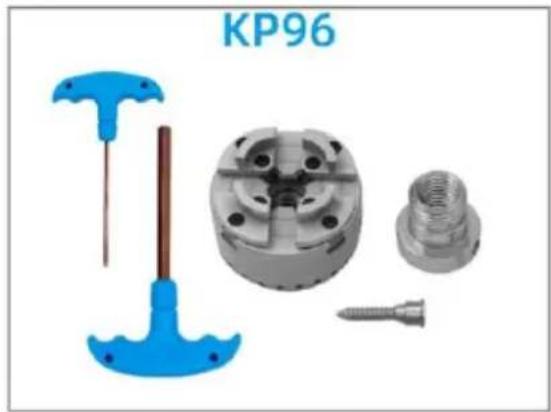

(KP2-3/4, KP96)

1.4-Jaw Self-Centering Chuck......1pcs
2. Accessory

Wooden Screw 1pcs

T-bar Allen Key 1pcs

Key chuck....1pcs

Adapter ......1pcs

1. Instruction

Product image of KP2-3/4 mechanical parts including a blue handle, metallic housing, and screw (no text or symbols)

Product photo of KP96 mechanical parts including a blue tool, cylindrical housing, and screw (no text or symbols visible)

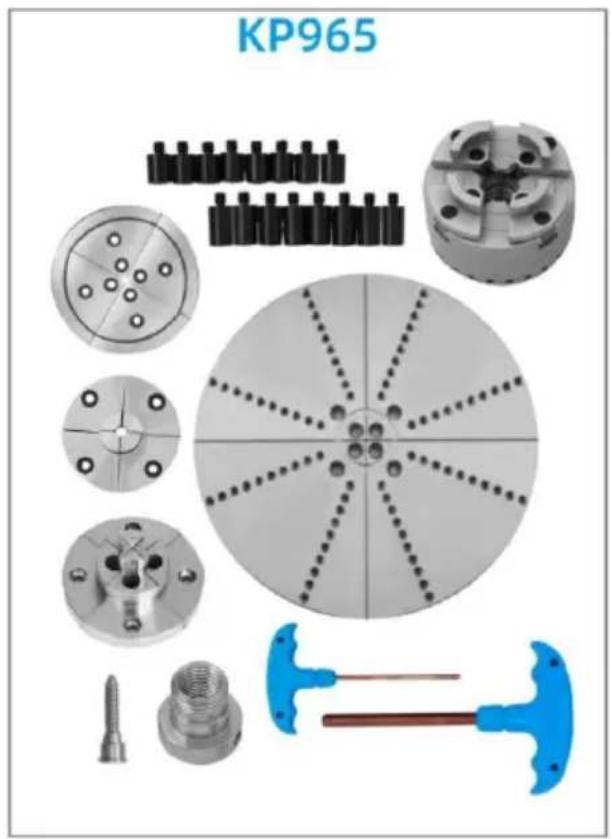

(KP965)

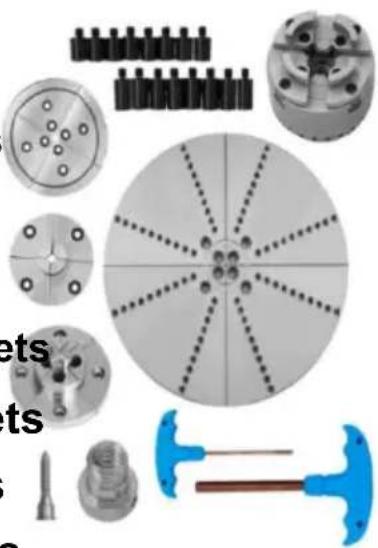

1.4-Jaw Self-Centering Chuck ....1pcs

1. Accessory

Wooden Screw....1pcs

T-bar Allen Key 1pcs

Key chuck 1pcs

Adapter ... 1pcs

Big Round Jaw (4 pieces) 1sets

Pin Jaw (4 pieces) 1sets

Step Jaw (4 pieces)....1sets

Flat Jaw (4 pieces) ....1sets

Stud....16pcs

KP965

Collection of mechanical parts including gears, shafts, and tools (no text or symbols visible)

3. Instruction

SAFETY PRECAUTIONS

1. Read and understand instruction manual before operating wood lathe.

2.. Always wear eye protection.

1. Do not wear gloves, neckties, jewelry or loose clothing.

2. Do not operate without guards in place.

3. Rough out workpiece before installing face plate.

4. Do not mount a split workpiece or one containing a knot.

5. Tighten all locks before operating.

6. Rotate workpiece by hand before applying power.

7. Use slowest speed when starting a new workpiece and do not exceed

permitted speed.

1. Disconnect machine from power source before making repairs or adjustments.
2. Do not operate while under influence of drugs, alcohol or medication.
3. Remove the tool rest before sanding or polishing.

It is beyond the scope of this manual to describe all of the turning techniques that are possible with the 4-Jaw Chuck. It is recommended that beginner turners attend a reputable course of instruction refer to one of the many available books on turning techniques.

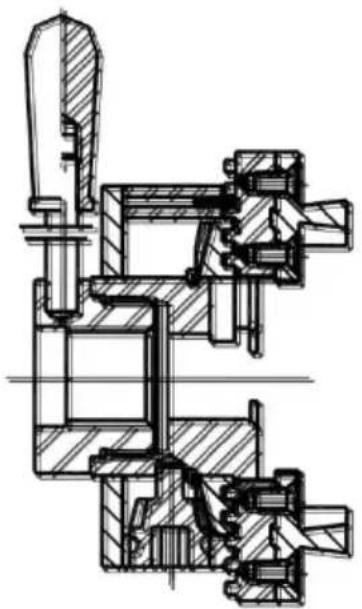

MOUNTING ON THE LATHE

The 4-Jaw Chuck fits a wide range of lathe spindle sizes. This is done by changing the threaded Adapter. Your dealer will adviseon t Adapter required for your lathe. Check that th Adapter is firmly screwed into the Chuck bod and then screw the assembled chuck onto th lathe spindle.Adapter must be firmly seated against the lathe spindle shoulder.

Technical mechanical cross-section diagram showing internal components and assembly (no text or labels)

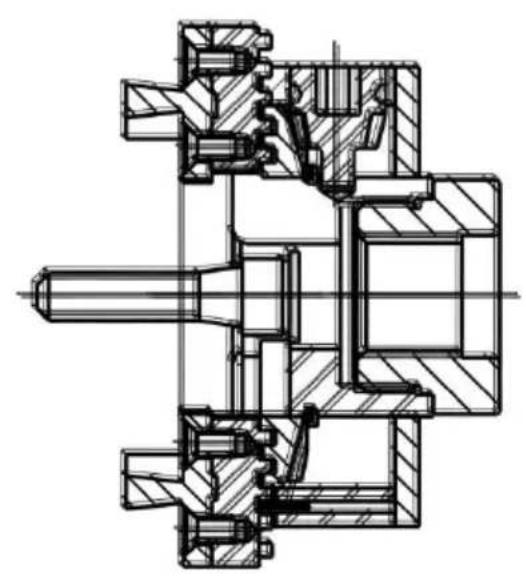

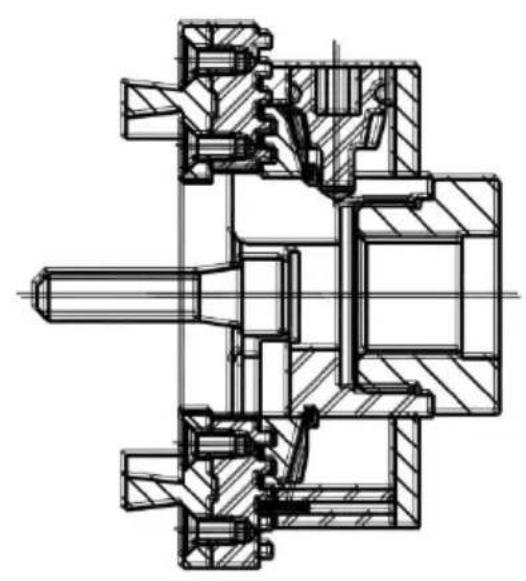

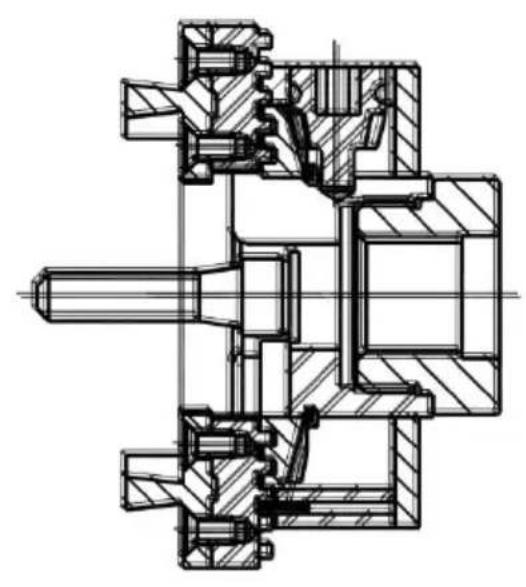

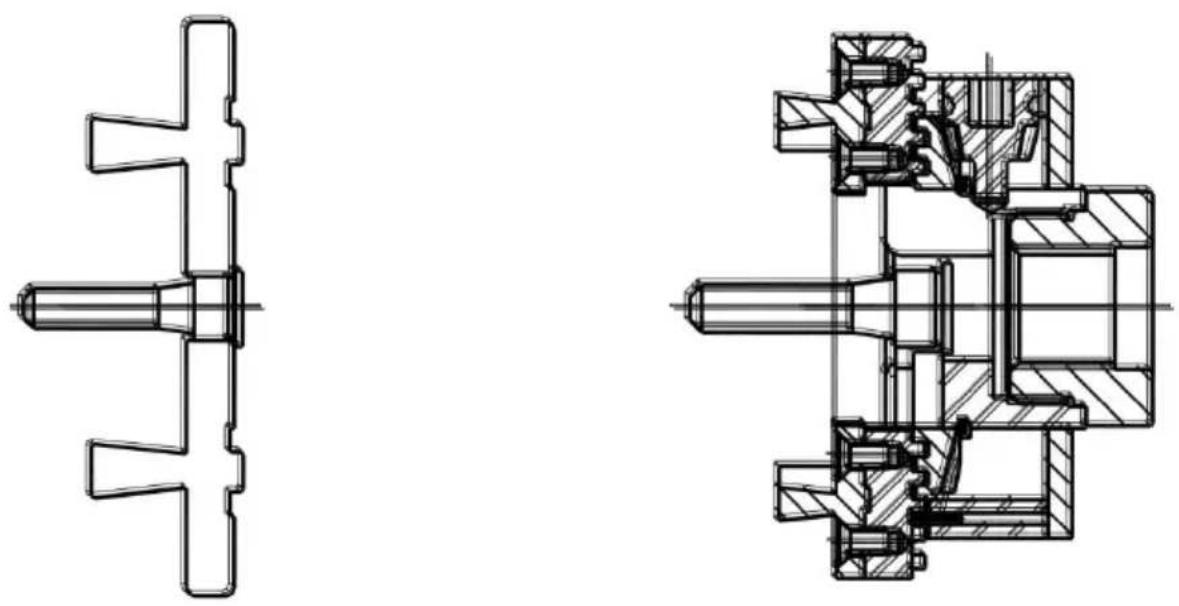

THE SCREW POINT

The Screw Chuck is used to mount small, cross-grained pieces.

4-Jaw Self-Centering Chuck

25MM JAWS

These jaws are used for expansion into small recesses and for firm hold of fine spindle work, such as earrings, chess pieces, etc.. To turn very s articles, the jaws can be unscrewed and the backing jaws only can be used.

DOVETAIL JAWS

Dovetail jaws are designed for mounting bowls by expanding into a recess or clamping onto a spigot. The size indicated is the outside measurement of the jaw face when fully closed. Dovetail jaws provide approximately 25mm of expansion beyond their specified size.

KEY CHUCK

The 4-Jaw Chucks provide one-hand tightening along with tremendous griping power provided by the 6 to 1 ratio of the scroll. The totally enclose back assures consistent, smooth action by preventing dust and debris from getting into scroll of the Chuck.

Key chuck cannot be beaten when it comes to holding power.

Its compact size makes it ideal for use on 300mm capacity lathes or smaller.

Basic Chuck includes: Chuck body, dovetail jaw set; T-Bar Allen Key;screw point; Key chuck; appropriate Adapter to fit your lathe and owner's manual

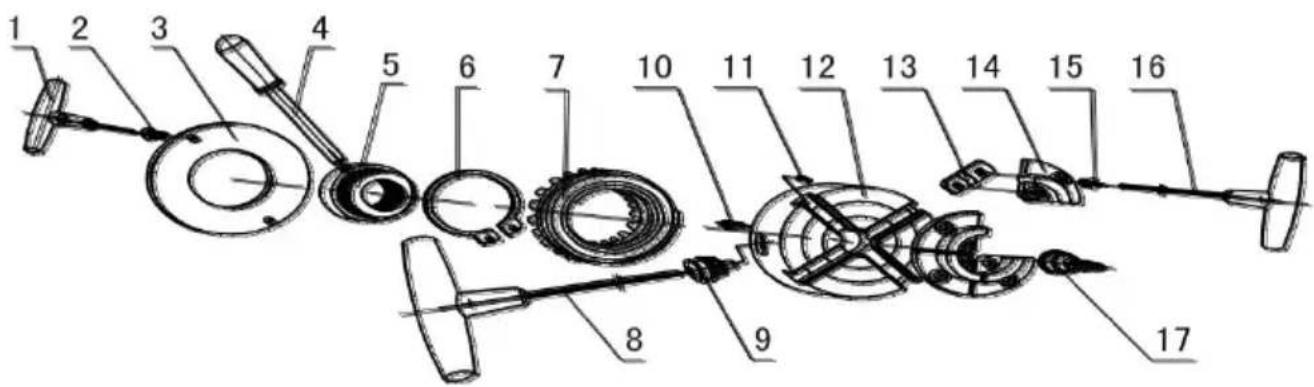

Technical diagram of a mechanical assembly with numbered components for identification

1. T-bar Allen key 2.Screw 3.Lid 4.Screwdriver

2. Adapter 6. Circlip 7. Scroll ring 8. Key chuck

9.Pinion 10.Pin 11.Baking pin 12.Chuck body

1. Backing jaw

14.jaws

1. Countersunk screw

2. T-bar Allen key

3. Wood screw

CLAMP-MODE

With this application the workpiece is held by the jaws. To achieve a good hold, press the bowl end hard against the jaws. Fasten the workpiece to the screw or onto a face plate. When pre-turning bowls from green timber is possible to do this between centers or with a pivot chuck. Turn a 5 to 10mm deep dovetail recess first.

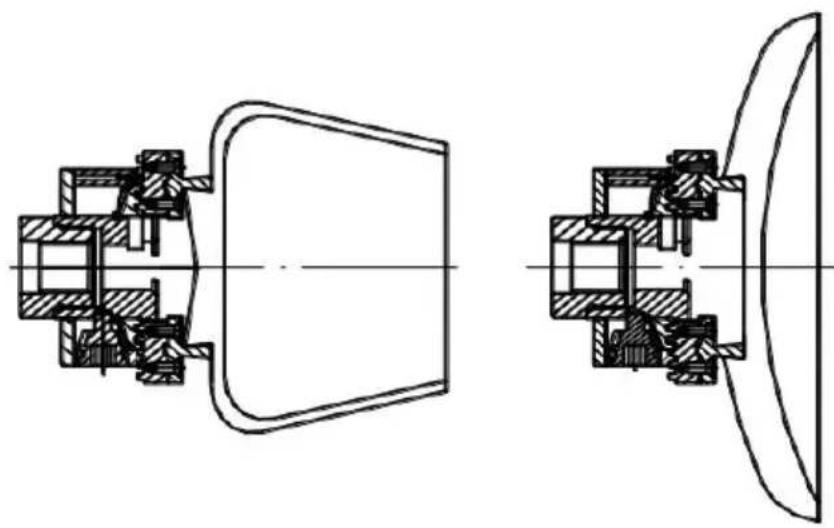

EXPANSION MODE

For this application arecess is turned into thework piece. The depth ofthe recess depends on the actual size of the workpiece as well as the type oftimber used. The minimum depth should be 5mm to 10mm.

Technical mechanical cross-section diagrams showing internal components and assembly (no text or labels)

MAINTENANCE

The chuck is engineered to close tolerances and may initially be stiff to operate. With use movement will be easier. To maintain easy jaw action, regularly spray oil into the scroll and work Key chuck through full range movement. Inspect chuck regularly for build-up of dust in the scroll and jaws. Clean as required.

BEGINNER'S HINTS

Prepare the wokpiece the following way:

200-250mm dia.40-50mm thick; RPM80-100

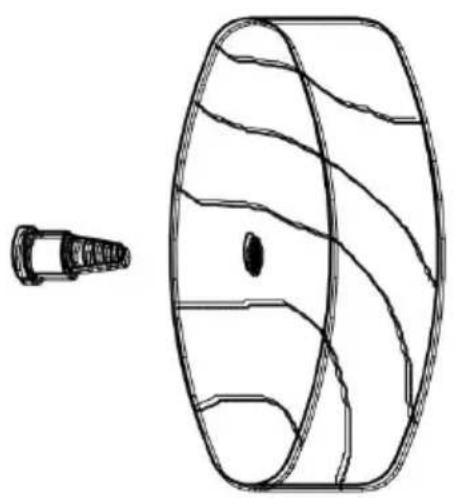

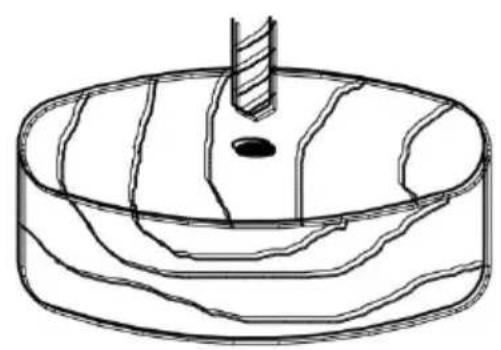

1. Drill a 25mm deep and 7-8mm dia. hole in the center of workpiece (av drilling the end grain, less grip).

2. Make sure the work piece is as round as possible.

3. Choose appropriate speed before you start the lathe.

4. Screw the work piece hard against the jaws.
5. Heavy or unbalanced work pieces should not be fastened directly to the screw chuck. Use the faceplate rings instead.

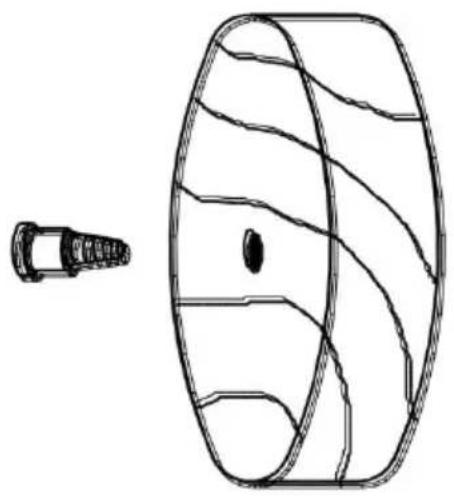

Line drawing of a cylindrical container with internal layered structure and a central rod inserted into it (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical housing and a small protruding component (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
