KP965 - Drill chuck Vevor - Free user manual and instructions

Product Type	4-jaw self-centering chuck
Model	KP965
Brand	Vevor
Chuck Diameter	96 mm
Geometric Accuracy (radial runout)	≤ 0.005 mm
Geometric Accuracy (axial runout)	≤ 0.005 mm
Radial Runout of Chuck	≤ 0.15 mm
Axial Runout of Chuck	≤ 0.15 mm
Radial Runout of Test Bar	α ≤ 0.4 at L=50 (75) mm
Material	Treated steel for durability
Usage	Wood lathe, internal and external gripping
Clamping modes	External clamping, internal expansion
Included jaw types	25 mm jaws, dovetail, stepped, flat, spindle jaws
Included accessories	T-handle Allen key, key chuck, threaded adapter, wood screws, studs
Adapter	Threaded for different lathe spindles (depending on model)
Maintenance	Regularly spray oil into the scroll, clean debris
Safety	Safety glasses mandatory, no gloves, disconnect before adjustments
Spare parts and repairability	Jaws and adapters available separately
General information	Manufactured by Shanghai Muxin Muye Youxian Gongsi, imported by Vevor

Frequently Asked Questions - KP965 Vevor

How to install the KP965 chuck on my lathe?

Choose the threaded adapter that matches your lathe spindle. Screw the adapter firmly into the chuck body, then mount the assembly onto the spindle, tightening against the shoulder. Consult the manual for torque settings.

What is the maximum allowed speed for this chuck?

The maximum speed is not explicitly stated in the manual. It is recommended not to exceed the speed allowed for your lathe and always start at the lowest speed with a new workpiece.

How to maintain the chuck to keep it smooth?

Regularly spray oil into the scroll (spiral) while operating the chuck key through its full range. Clean the jaws and scroll of wood debris. Regular maintenance ensures a long lifespan.

What types of jaws are supplied with the KP965 model?

The pack includes: 25 mm jaws, dovetail jaws, stepped jaws, flat jaws, and spindle jaws. This allows holding different workpiece shapes (round, square, etc.).

Can I use the chuck to drill long workpieces?

Yes, the chuck has a hollow center that allows drilling through. Make sure the workpiece is well centered and the speed is appropriate.

How to change the chuck jaws?

Unscrew the jaw fixing screws with the supplied Allen key. Remove the jaws and insert new ones, respecting the position marks. Tighten the screws securely.

Can the chuck be used in expansion mode (internal clamping)?

Yes, the chuck allows expansion clamping inside hollow workpieces. Use the appropriate jaws (e.g., dovetail) by creating a recess 5 to 10 mm deep.

What are the essential safety instructions?

Always wear safety glasses. Do not wear gloves, ties, or jewelry. Disconnect the machine before any adjustments. Ensure the workpiece is round and defect-free. Remove the tool rest before sanding.

How to choose the right adapter for my lathe?

The adapter must match the thread of your lathe spindle. Consult your dealer or the lathe manufacturer for the size. The chuck comes with a standard adapter, but others are available as options.

What to do if the chuck seems hard to tighten?

Clean the scroll and jaws of all dust. Apply a light lubricant (oil) and operate the chuck several times. With use, the movement will become easier.

USER MANUAL KP965 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

4-JAW SELF-CENTERING WOOD CHUCK

MODEL:KP2-3/4, KP96, KP965

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when you are placing an order with us if you actually save half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL:KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Geometry accuracy (mm)

Diagram of test	Test item	Chuck Diameter
		70	96
	a.Radial run-outb.axial run-out	a:0.005b:0.005
	Radialrun-out of chuck	≤0.15	≤0.15
	Axialrun-out ofchuck	≤0.15	≤0.15
	Radialrun-out of testbar	α≤0.4L=50	α≤0.4L=50 (75)

DESCRIPTION

This Chuck is a 4-Jaw Self-Centering chuck, utilizing the precision, simplicity, and reliability of the engineering chuck.

This Chuck is self-centering; grips internally and externally; will hold round and square work; has a hollow center so through boring can be done from either end; and can be run clockwise or anticlockwise.

Manufactured from high-quality materials, this gives the chucks higher durability, ensuring a longer life and a high-quality finish.

PACKING LIST

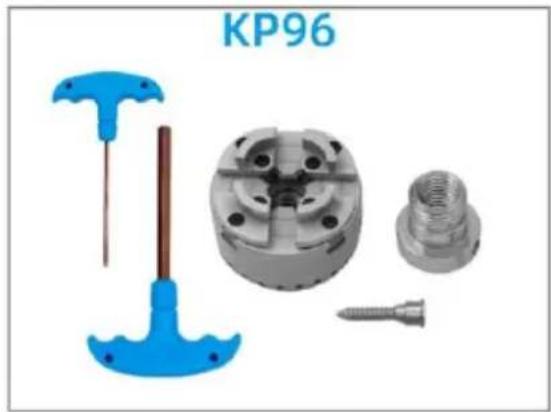

(KP2-3/4, KP96)

1. 4-Jaw Self-Centering Chuck......1pcs 2. Accessory

Wooden Screw 1pcs

T-bar Allen Key 1pcs

Key chuck....1pcs

Adapter ......1pcs

1. Instruction

(KP965)

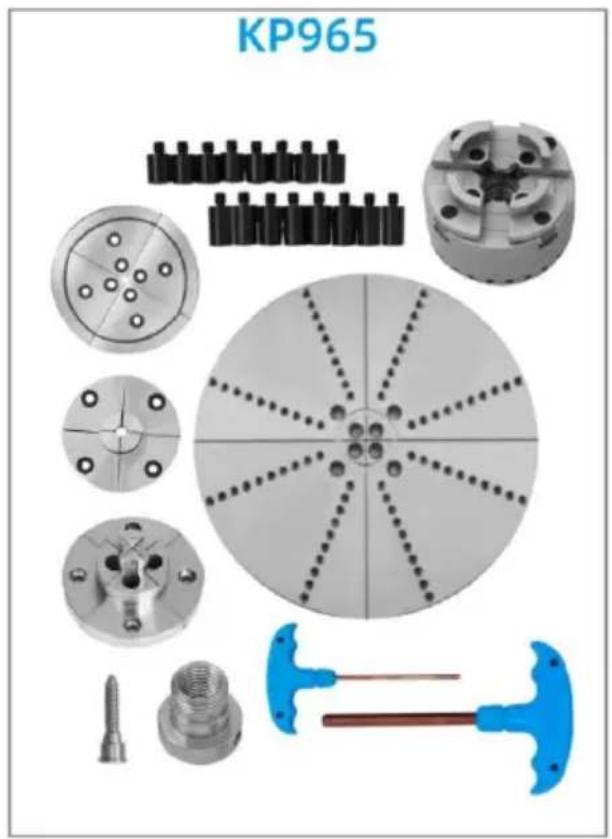

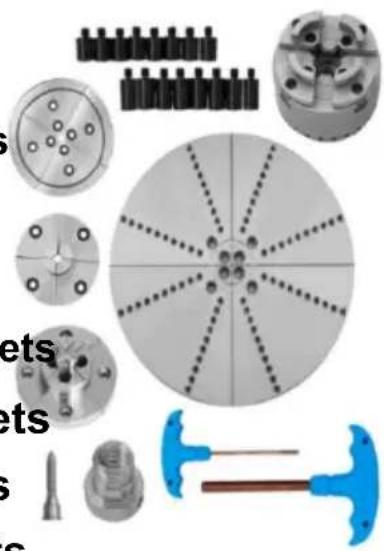

1. 4-Jaw Self-Centering Chuck ....1pcs

1. Accessory

Wooden Screw....1pcs

T-bar Allen Key 1pcs

Key chuck 1pcs

Adapter ... 1pcs

Big Round Jaw (4 pieces) 1set

Pin Jaw (4 pieces) 1set

Step Jaw (4 pieces) 1set

Flat Jaw (4 pieces) 1set

Stud 16pcs

KP965

3. Instruction

SAFETY PRECAUTIONS

1. Read and understand the instruction manual before operating the wood lathe.

Always wear eye protection.

1. Do not wear gloves, neckties, jewelry, or loose clothing.
2. Do not operate without guards in place.
3. Rough out workpiece before installing face plate.
4. Do not mount a split workpiece or one containing a knot.
5. Tighten all locks before operating.
6. Rotate workpiece by hand before applying power.
7. Use slowest speed when starting a new workpiece and do not exceed

permitted speed.

1. Disconnect machine from power source before making repairs or adjustments.
2. Do not operate while under influence of drugs, alcohol or medication.
3. Remove the tool rest before sanding or polishing.

It is beyond the scope of this manual to describe all of the turning techniques that are possible with the 4-Jaw Chuck. It is recommended that beginner turners attend a reputable course of instruction or refer to one of the many available books on turning techniques.

MOUNTING ON THE LATHE

The 4-Jaw Chuck fits a wide range of lathe spindle sizes. This is done by changing the threaded Adapter. Your dealer will advise on the Adapter required for your lathe. Check that the Adapter is firmly screwed into the Chuck body and then screw the assembled chuck onto the lathe spindle. The Adapter must be firmly seated against the lathe spindle shoulder.

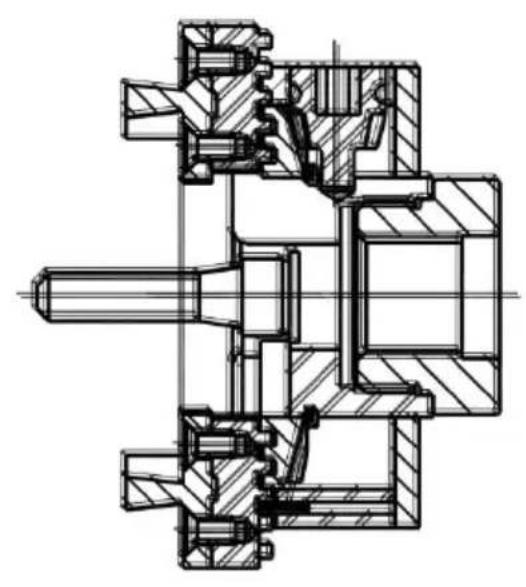

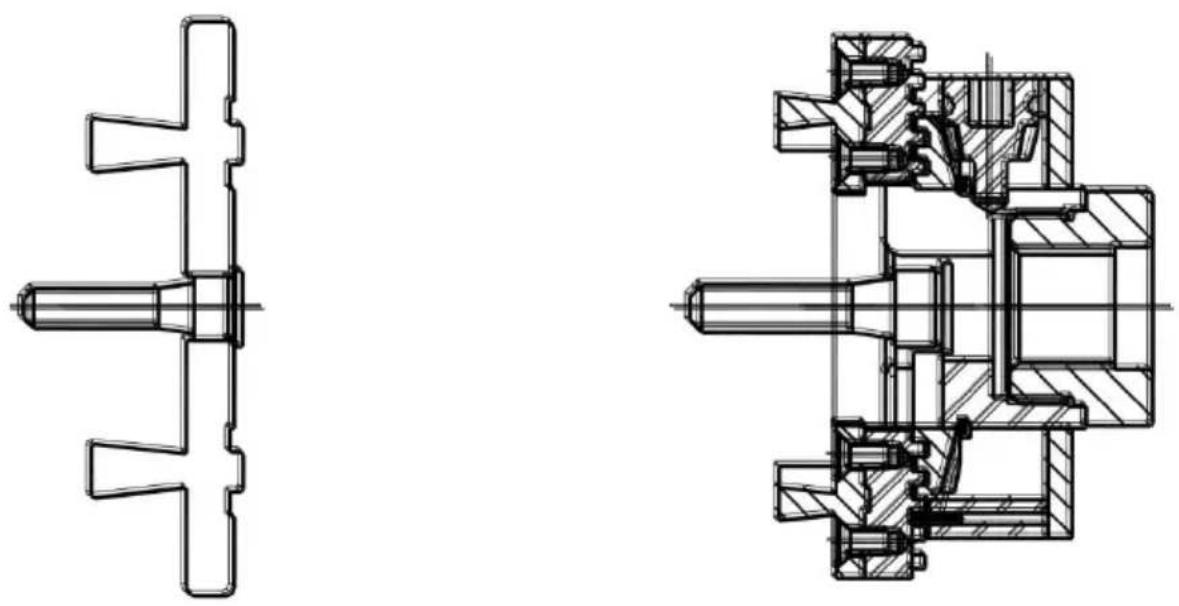

THE SCREW CHUCK

The Screw Chuck is used to mount small, cross-grained pieces.

4-Jaw Self-Centering Chuck

25MM JAWS

These jaws are used for expansion into small recesses and for firm hold of fine spindle work, such as earrings, chess pieces, etc. To turn very small articles, the jaws can be unscrewed and the backing jaws only can be used.

DOVETAIL JAWS

Dovetail jaws are designed for mounting bowls by expanding into a recess or clamping onto a spigot. The size indicated is the outside measurement of the jaw face when fully closed. Dovetail jaws provide approximately 25mm of expansion beyond their specified size.

KEY CHUCK

The 4-Jaw Chucks provide one-hand tightening along with tremendous gripping power provided by the 6 to 1 ratio of the scroll. The totally enclosed back assures consistent, smooth action by preventing dust and debris from getting into the scroll of the Chuck.

Key chuck cannot be beaten when it comes to holding power.

Its compact size makes it ideal for use on 300mm capacity lathes or smaller.

Basic Chuck includes: Chuck body, dovetail jaw set; T-Bar Allen Key; screw point; Key chuck; appropriate Adapter to fit your lathe and owner's manual

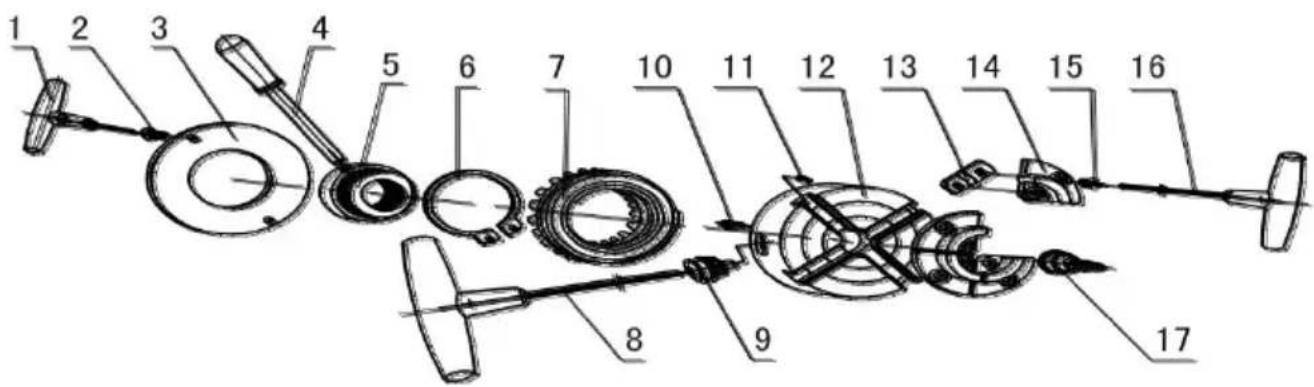

1. T-bar Allen key 2. Screw 3. Lid 4. Screwdriver
2. Adapter 6. Circlip 7. Scroll ring 8. Key chuck

9. Pinion 10. Pin 11. Baking pin 12. Chuck body

1. Backing jaw

14. Jaws

1. Countersunk screw
2. T-bar Allen key
3. Wood screw

CLAMP-MODE

With this application, the workpiece is held by the jaws. To achieve a good hold, press the bowl end hard against the jaws. Fasten the workpiece to the screw or onto a faceplate. When pre-turning bowls from green timber, it is possible to do this between centers or with a pivot chuck. Turn a 5 to 10mm deep dovetail recess first.

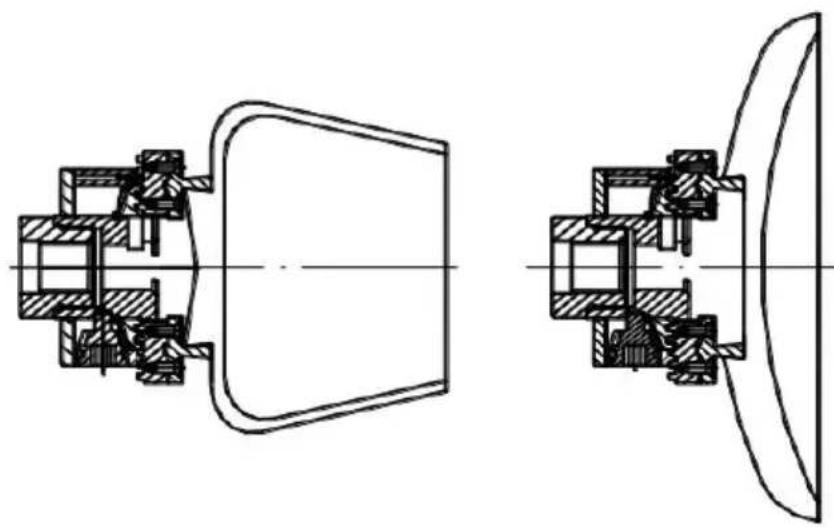

EXPANSION MODE

For this application, a recess is turned into the workpiece. The depth of the recess depends on the actual size of the workpiece as well as the type of timber used. The minimum depth should be 5mm to 10mm.

MAINTENANCE

The chuck is engineered to close tolerances and may initially be stiff to operate. With use, movement will be easier. To maintain easy jaw action, regularly spray oil into the scroll and work the key chuck through full range of movement. Inspect the chuck regularly for build-up of dust in the scroll and jaws. Clean as required.

BEGINNER'S HINTS

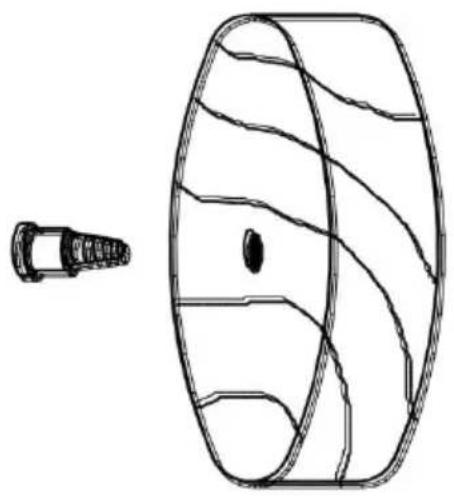

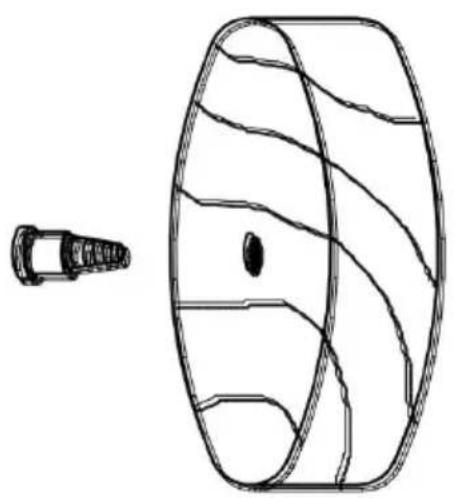

Prepare the workpiece the following way:

200-250mm dia. 40-50mm thick; RPM 80-100

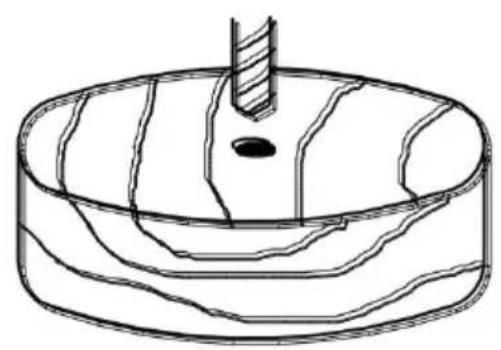

1. Drill a 25mm deep and 7-8mm dia. hole in the center of the workpiece (avoid drilling the end grain, less grip).
2. Make sure the workpiece is as round as possible.
3. Choose appropriate speed before you start the lathe.
4. Screw the workpiece hard against the jaws.
5. Heavy or unbalanced work pieces should not be fastened directly to the screw chuck. Use the faceplate rings instead.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to Australia: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

3. Instruction

(KP965)

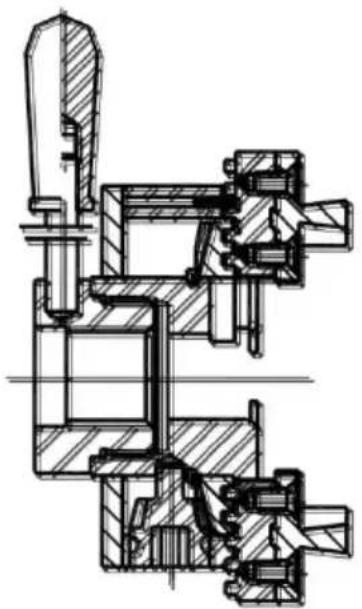

MOUNTING ON THE LATHE

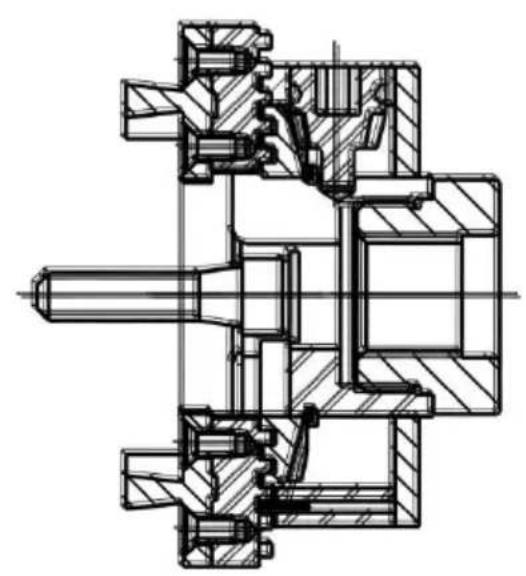

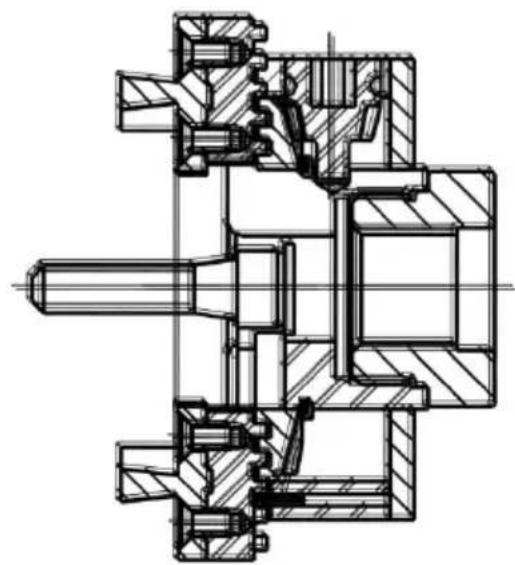

THE SCREW POINT

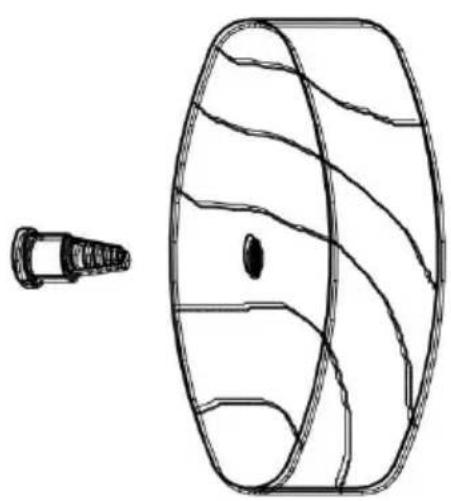

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion House London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: KP2-3/4, KP96, KP965

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL: KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY PRECAUTIONS

MOUNTING ON THE LATHE

THE SCREW POINT

MAINTENANCE

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Imported into AU by: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into the USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

©

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL: KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

(KP965)

3. Instructions

SAFETY PRECAUTIONS

MOUNTING ON THE LATHE

THE SCREW POINT

4-jaw self-centering chuck

25MM JAWS

MAINTENANCE

Imported in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported in USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: KP2-3/4, KP96, KP965

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL: KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

(KP965)

3. Instruction

SAFETY PRECAUTIONS

MOUNTING ON THE LATHE

THE SCREW POINT

MAINTENANCE

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported into Australia: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported into the USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: KP2-3/4, KP96, KP965

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools from us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL: KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY PRECAUTIONS

MOUNTING ON THE LATHE

lathe spindles.

THE SCREW POINT

MAINTENANCE

Imported into AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-warranty Certificate www.vevor.com/support

4 - SELF-CENTERING WOOD CHUCK

MODEL: KP2-3/4, KP96, KP965

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL: KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Geometric accuracy (mm)

(KP965)

3. Instructions

SAFETY PRECAUTIONS

MOUNTING ON THE LATHE

THE SCREW POINT

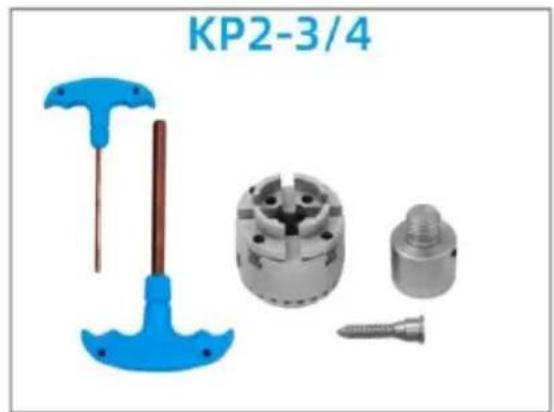

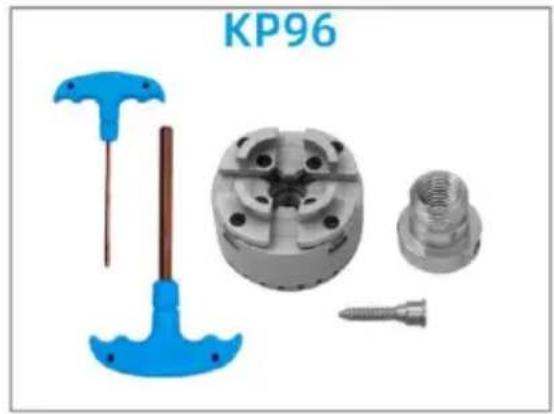

1. T-bar hex wrench 2. Screw 3. Cover 4. Screwdriver
2. Adapter 6. Retaining ring 7. Scroll ring 8. Key holder
3. Pinion 10. Pin 11. Chuck key
4. Chuck body
5. Rear jaw 14. Jaws 15. Countersunk screw

16. T-bar hex wrench 17. Wood screw

CLAMP-MODE

MAINTENANCE

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: KP2-3/4, KP96, KP965

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL: KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Geometric accuracy (mm)

(KP965)

MOUNTING ON THE LATHE

THE SCREW POINT

MAINTENANCE

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
