Brand	Vevor
Model	KP96
Product Type	4-Jaw Self-Centering Chuck for Wood Lathe
Chuck Diameter	96 mm
Geometric Accuracy (Radial and Axial Runout)	0.005 mm
Radial Runout of Chuck	≤ 0.15 mm
Axial Runout of Chuck	≤ 0.15 mm
Radial Runout of Test Bar	α ≤ 0.4 (L=50 mm)
Body Material	Treated Steel (High Durability)
Clamping Mode	Internal and External Clamping (Expansion and Compression)
Workpiece Types	Round and Square Pieces, Bowls, Tenons
Jaws Sets Included	25mm Jaws, Dovetail Jaws, Step Jaws, Flat Jaws, Large Round Jaws, Spindle Jaws
Included Accessories	Threaded Adapter, Key Chuck, T-Hex Key, Wood Screws, Dowels
Clamping System	Spiral with 6:1 Ratio, Key Chuck for High Grip Power
Spindle Compatibility	Adaptable to Different Lathe Spindle Sizes via Threaded Adapter
Recommended Use	Slow speed at start, do not exceed the chuck's maximum speed
Maintenance	Oil the spiral regularly, clean accumulated dust
Safety	Wear safety goggles, do not wear loose gloves, disconnect the machine before adjustments
Country of Origin	China (Shanghai)
Weight (estimated)	Approximately 1.5 kg

Frequently Asked Questions - KP96 Vevor

How to mount the KP96 chuck on my lathe?

Choose the appropriate threaded adapter for your lathe spindle (sold separately if needed). Screw the adapter firmly into the chuck body, then screw the assembly onto the lathe spindle until it is tight against the shoulder. Use the T-hex key to tighten the set screws if present.

What types of jaws are provided with the chuck?

The chuck comes with several jaw sets: 25mm jaws (for small workpieces), dovetail jaws (for bowls), step jaws, flat jaws, large round jaws, and spindle jaws. Consult the packing list for the exact model.

How to change the chuck jaws?

First, unplug the lathe from the power source. Use the T-hex key to unscrew the countersunk screws that hold the jaws. Remove the current jaws and install the new ones, ensuring they are properly aligned. Re-tighten the screws moderately.

What is the maximum recommended speed for this chuck?

The manual does not specify an exact maximum speed. It is advised not to exceed the maximum speed indicated on the chuck or lathe. For safety, always start at the slowest speed (80-100 rpm for 200-250 mm workpieces) and increase gradually.

How to maintain the chuck for long life?

Regularly spray light oil into the spiral of the chuck and operate the key chuck through its full range for even distribution. Clean the jaws and spiral from dust and debris after each use. Visually inspect the condition of the jaws and threads.

Can I use this chuck for internal clamping (expansion)?

Yes, the chuck allows internal clamping by expansion. To do this, create a recess in the workpiece (minimum depth 5-10 mm) and use the appropriate jaws (e.g., dovetail jaws). Insert the jaws into the recess and tighten with the key.

What to do if the jaws do not slide easily?

The jaws may be initially stiff. Use the chuck regularly to loosen them. If the problem persists, carefully clean the spiral and jaws, then lubricate with oil. Check that no debris is blocking the mechanism.

How to mount a cracked or knotty piece of wood?

It is not recommended to mount a cracked or knotty piece, as this can lead to dangerous breakage. Always choose a sound piece without structural defects.

Can the chuck be used for drilling through holes?

Yes, the chuck has a hollow center that allows drilling from end to end. Ensure the workpiece is securely held and the drill bit is suitable. Use a slow speed and drill progressively.

Where to find spare parts like jaws or adapter?

Contact Vevor support at www.vevor.com/support or your retailer. Spare parts (jaws, adapters, screws, keys) can be ordered separately. Check compatibility with your KP96 model.

USER MANUAL KP96 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

4-JAW SELF-CENTERING WOOD CHUCK

MODEL:KP2-3/4, KP96, KP965

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when you are placing an order with us if you actually save half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

4-JAW SELF-CENTERING

WOOD CHUCK

MODEL:KP2-3/4, KP96, KP965

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Geometry accuracy (mm)

Diagram of test	Test item	Chuck Diameter
		70	96
	a.Radial run-outb.axial run-out	a:0.005b:0.005
	Radialrun-out of chuck	≤0.15	≤0.15
	Axialrun-out ofchuck	≤0.15	≤0.15
	Radialrun-out of testbar	α≤0.4L=50	α≤0.4L=50 (75)

DESCRIPTION

This Chuck is a 4-Jaw Self-Centering chuck, utilizing the precision, simplicity, and reliability of the engineering chuck.

This Chuck is self-centering; grips internally and externally; will hold round and square work; has a hollow center so through boring can be done from either end; and can be run clockwise or anticlockwise.

Manufactured from high-quality materials, this gives the chucks higher durability, ensuring a longer life and a high-quality finish.

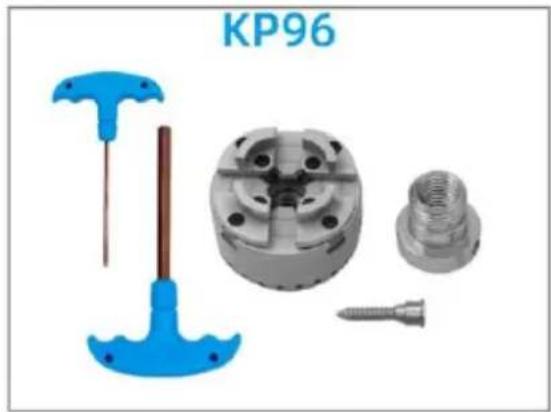

PACKING LIST

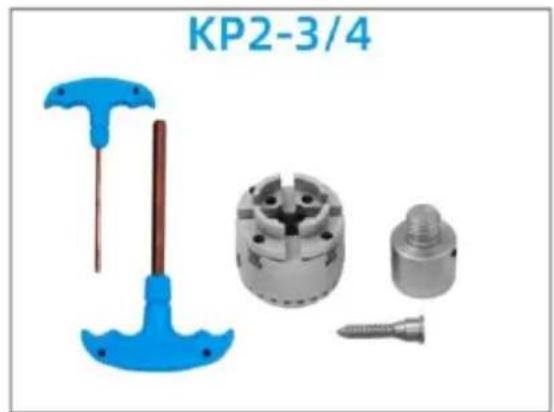

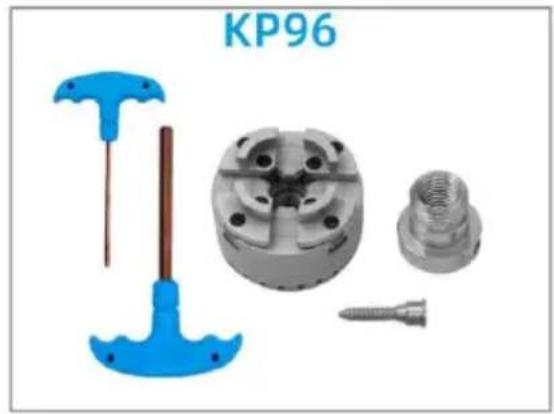

(KP2-3/4, KP96)

1. 4-Jaw Self-Centering Chuck......1pcs 2. Accessory

Wooden Screw 1pcs

T-bar Allen Key 1pcs

Key chuck....1pcs

Adapter ......1pcs

1. Instruction

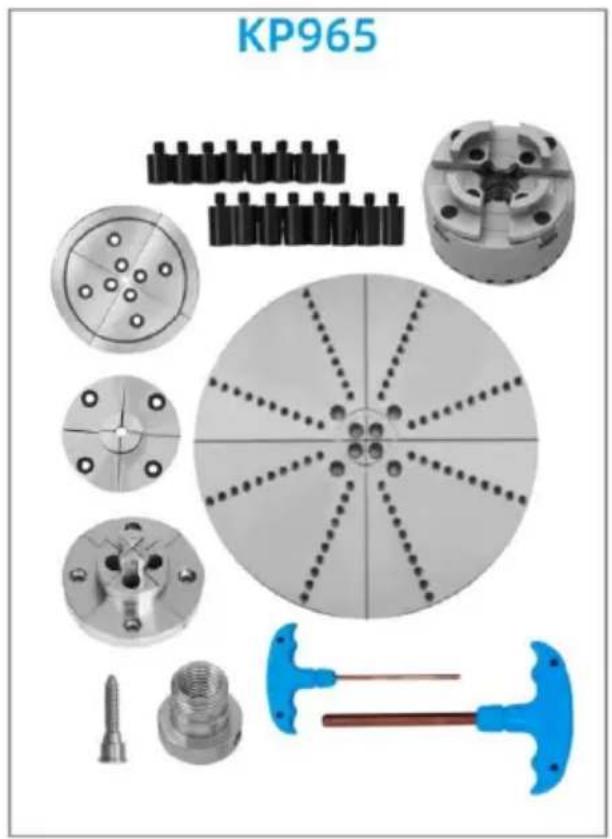

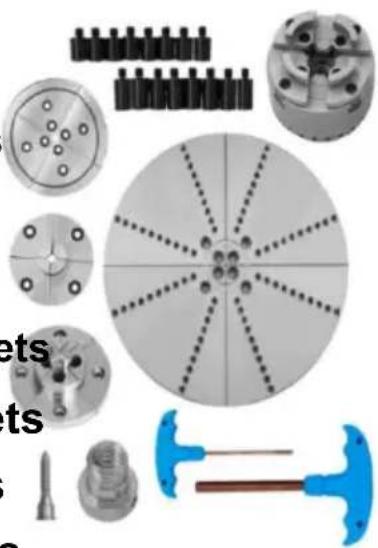

(KP965)

1. 4-Jaw Self-Centering Chuck ....1pcs

1. Accessory

Wooden Screw....1pcs

T-bar Allen Key 1pcs

Key chuck 1pcs

Adapter ... 1pcs

Big Round Jaw (4 pieces) 1set

Pin Jaw (4 pieces) 1set

Step Jaw (4 pieces) 1set

Flat Jaw (4 pieces) 1set

Stud 16pcs

KP965

3. Instruction

SAFETY PRECAUTIONS

1. Read and understand the instruction manual before operating the wood lathe.

Always wear eye protection.

1. Do not wear gloves, neckties, jewelry, or loose clothing.
2. Do not operate without guards in place.
3. Rough out workpiece before installing face plate.
4. Do not mount a split workpiece or one containing a knot.
5. Tighten all locks before operating.
6. Rotate workpiece by hand before applying power.
7. Use slowest speed when starting a new workpiece and do not exceed

permitted speed.

1. Disconnect machine from power source before making repairs or adjustments.
2. Do not operate while under influence of drugs, alcohol or medication.
3. Remove the tool rest before sanding or polishing.

It is beyond the scope of this manual to describe all of the turning techniques that are possible with the 4-Jaw Chuck. It is recommended that beginner turners attend a reputable course of instruction or refer to one of the many available books on turning techniques.

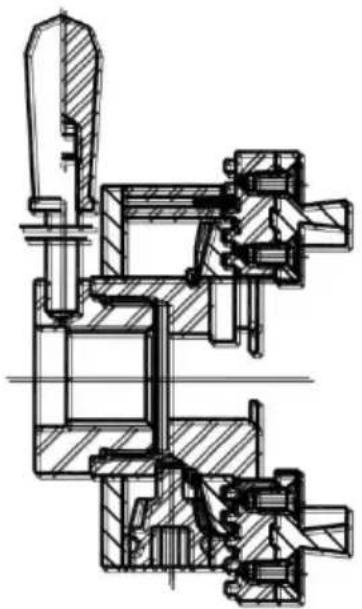

MOUNTING ON THE LATHE

The 4-Jaw Chuck fits a wide range of lathe spindle sizes. This is done by changing the threaded Adapter. Your dealer will advise on the Adapter required for your lathe. Check that the Adapter is firmly screwed into the Chuck body and then screw the assembled chuck onto the lathe spindle. The Adapter must be firmly seated against the lathe spindle shoulder.

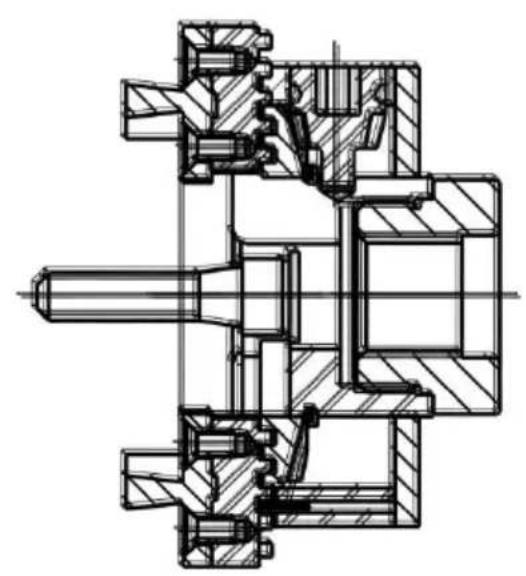

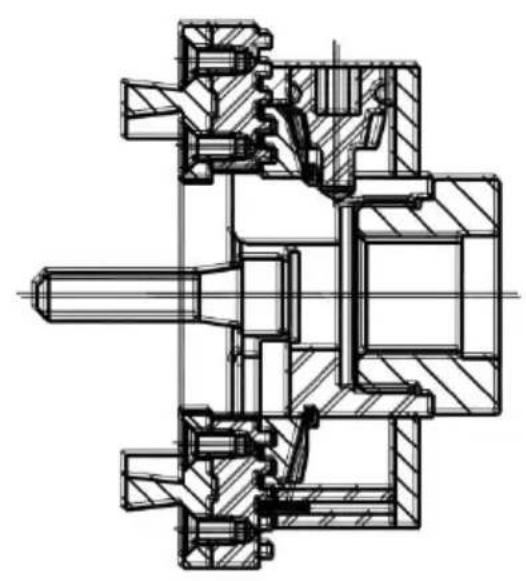

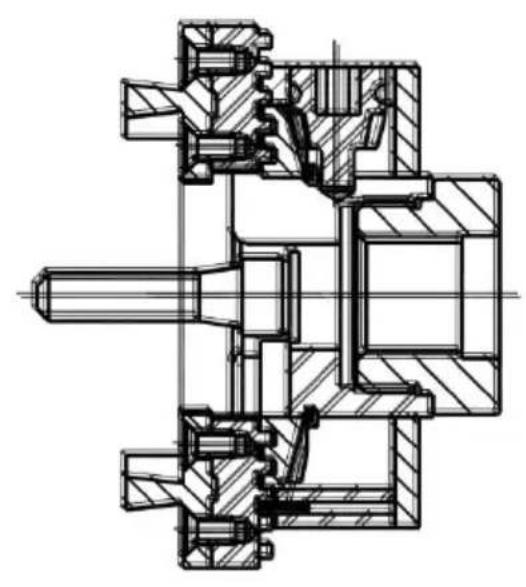

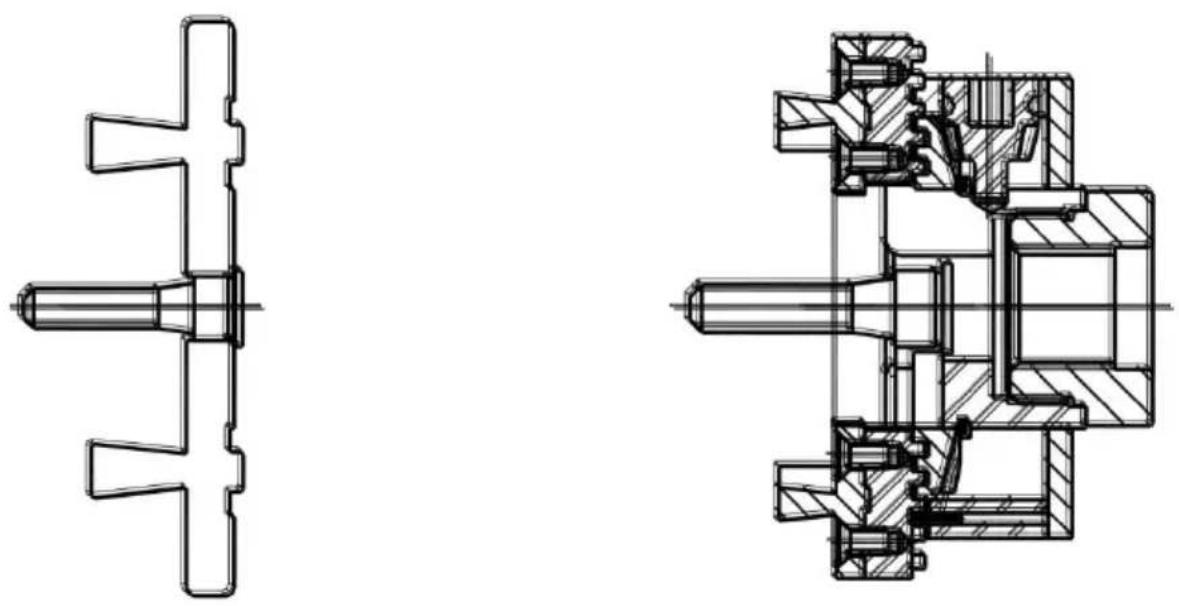

THE SCREW CHUCK

The Screw Chuck is used to mount small, cross-grained pieces.

4-Jaw Self-Centering Chuck

25MM JAWS

These jaws are used for expansion into small recesses and for firm hold of fine spindle work, such as earrings, chess pieces, etc. To turn very small articles, the jaws can be unscrewed and the backing jaws only can be used.

DOVETAIL JAWS

Dovetail jaws are designed for mounting bowls by expanding into a recess or clamping onto a spigot. The size indicated is the outside measurement of the jaw face when fully closed. Dovetail jaws provide approximately 25mm of expansion beyond their specified size.

KEY CHUCK

The 4-Jaw Chucks provide one-hand tightening along with tremendous gripping power provided by the 6 to 1 ratio of the scroll. The totally enclosed back assures consistent, smooth action by preventing dust and debris from getting into the scroll of the Chuck.

Key chuck cannot be beaten when it comes to holding power.

Its compact size makes it ideal for use on 300mm capacity lathes or smaller.

Basic Chuck includes: Chuck body, dovetail jaw set; T-Bar Allen Key; screw point; Key chuck; appropriate Adapter to fit your lathe and owner's manual

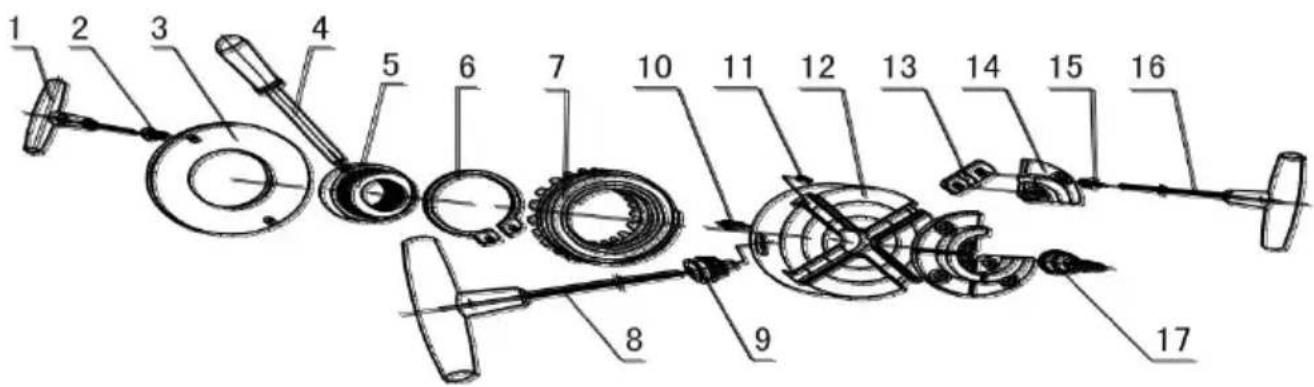

1. T-bar Allen key 2. Screw 3. Lid 4. Screwdriver
2. Adapter 6. Circlip 7. Scroll ring 8. Key chuck

9. Pinion 10. Pin 11. Baking pin 12. Chuck body

1. Backing jaw

14. Jaws

1. Countersunk screw
2. T-bar Allen key
3. Wood screw

CLAMP-MODE

With this application the workpiece is held by the jaws. To achieve a good hold, press the bowl end hard against the jaws. Fasten the workpiece to the screw or onto a face plate. When pre-turning bowls from green timber is possible to do this between centers or with a pivot chuck. Turn a 5 to 10mm deep dovetail recess first.

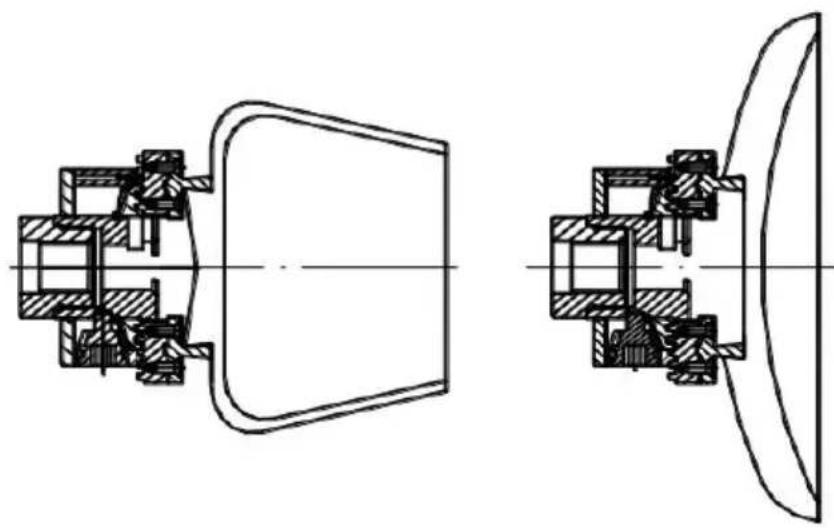

EXPANSION MODE

For this application a recess is turned into the workpiece. The depth of the recess depends on the actual size of the workpiece as well as the type of timber used. The minimum depth should be 5mm to 10mm.

MAINTENANCE

The chuck is engineered to close tolerances and may initially be stiff to operate. With use movement will be easier. To maintain easy jaw action, regularly spray oil into the scroll and work Key chuck through full range movement. Inspect chuck regularly for build-up of dust in the scroll and jaws. Clean as required.

BEGINNER'S HINTS

Prepare the workpiece the following way:

200-250mm dia. 40-50mm thick; RPM 80-100

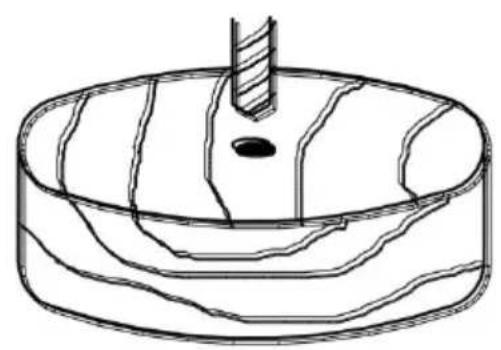

1. Drill a 25mm deep and 7-8mm dia. hole in the center of workpiece (av drilling the end grain, less grip).
2. Make sure the workpiece is as round as possible.
3. Choose appropriate speed before you start the lathe.

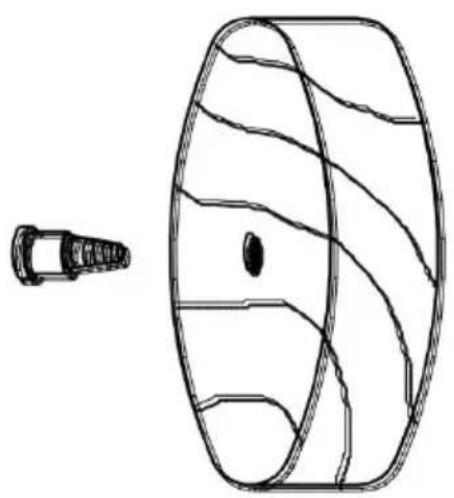

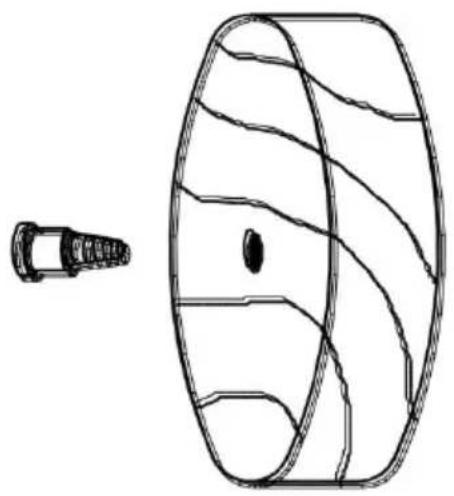

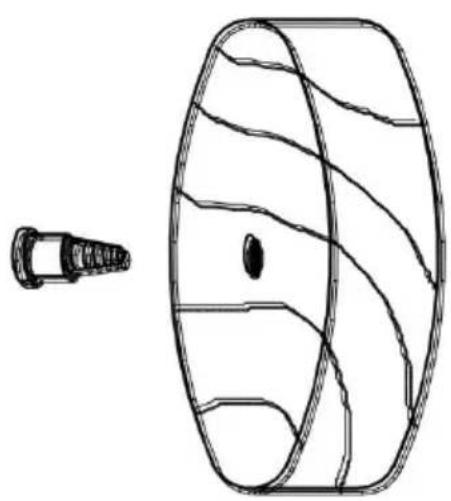

4. Screw the workpiece hard against the jaws.
5. Heavy or unbalanced work pieces should not be fastened directly to the screw chuck. Use the faceplate rings instead.
