USER MANUAL PHD 110 F2 PARKSIDE

Black lawn mower with attached blades and wheels, no visible text or symbols

PDF ONLINE www.104-service.com

PETROL LAWNMOWER PBRM 53 A1

BENZIN-RASENMÄHER PBRM 53 A1

TONDEUSE À GAZON THERMIQUE PBRM 53 A1

PETROL LAWNMOWER

Operating and Safety Instructions

Translation of the original operating instructions

TONDEUSE À GAZON THERMIQUE

Before reading, unfold the page with the illustrations and then familiarise yourself with all the functions of the product.

DE AT CH

GB / IE / NI / CY / MT Operating and Safety Instructions Page 1

3 E 11 A 9 8

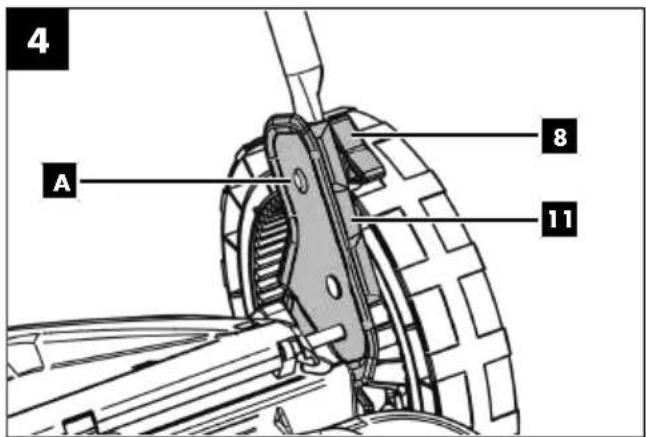

4 A 8 11

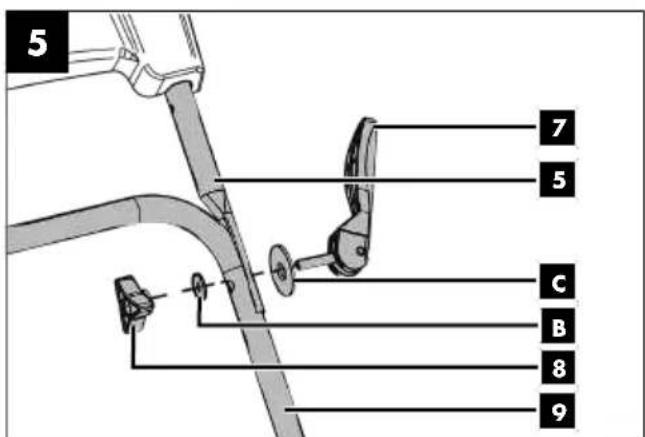

5 7 5 C B 8 9

Diagram of a mechanical linkage or lever system with numbered components and directional arrows indicating motion or movement.

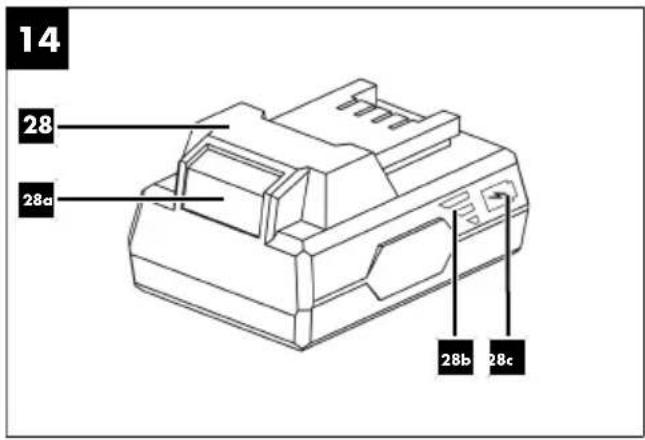

14 28 28a 28b 28c

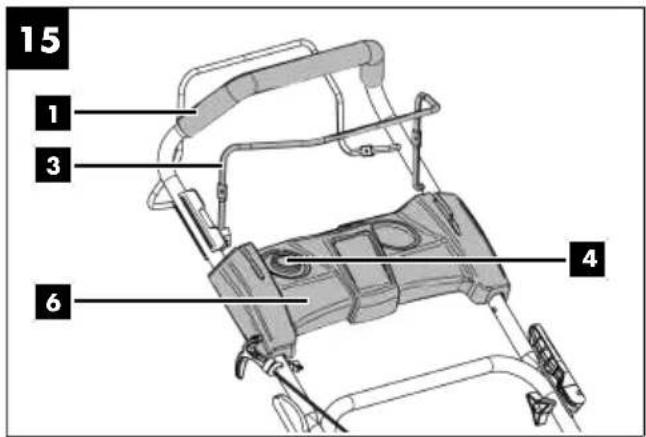

15 1 3 4 6

16 1 3 26

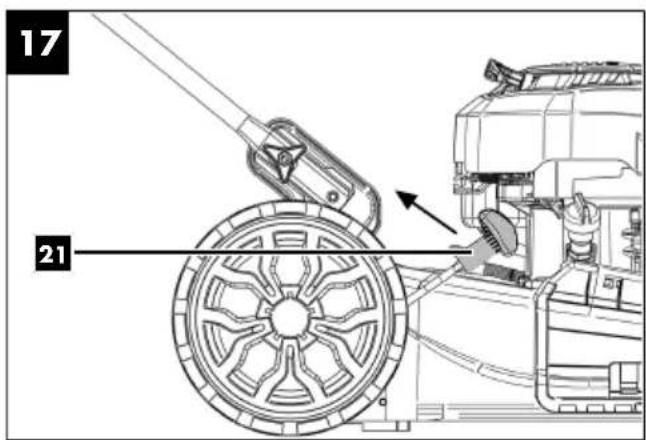

17 21

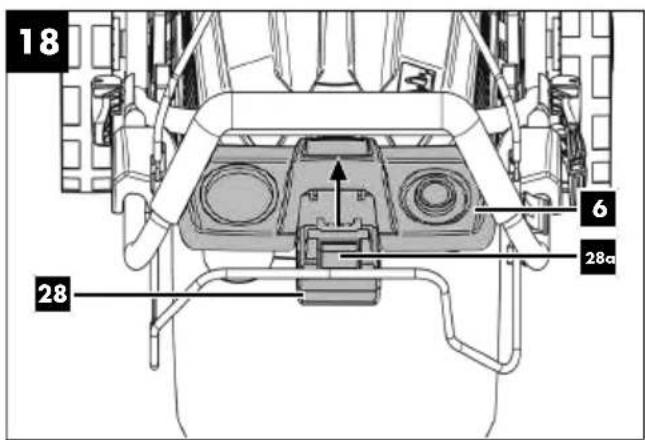

18 6 28a 28

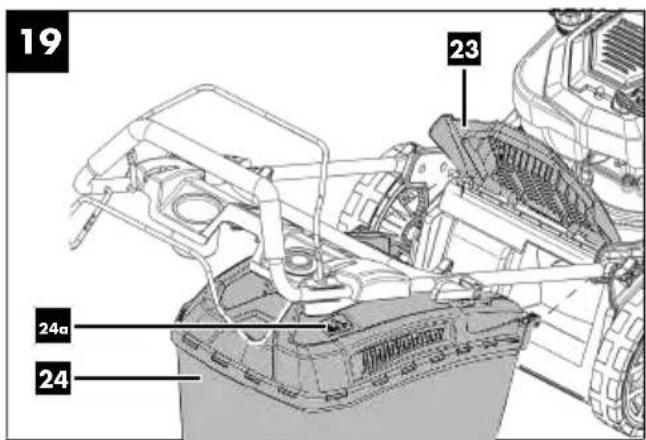

19 23 24a 24

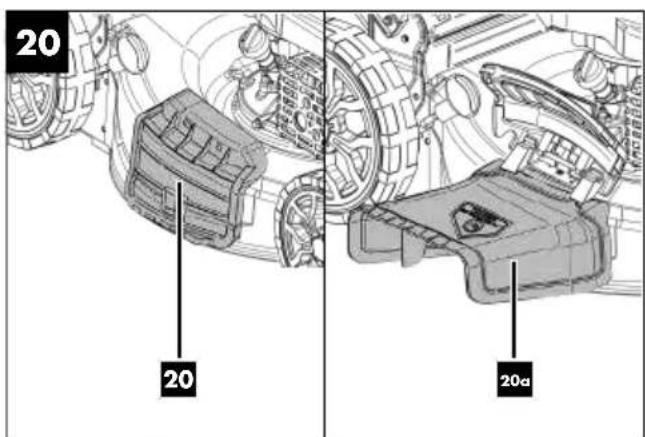

20 20 20a

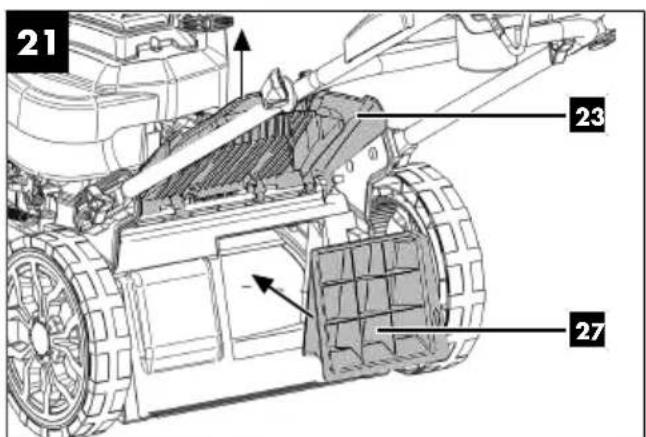

21 23 27

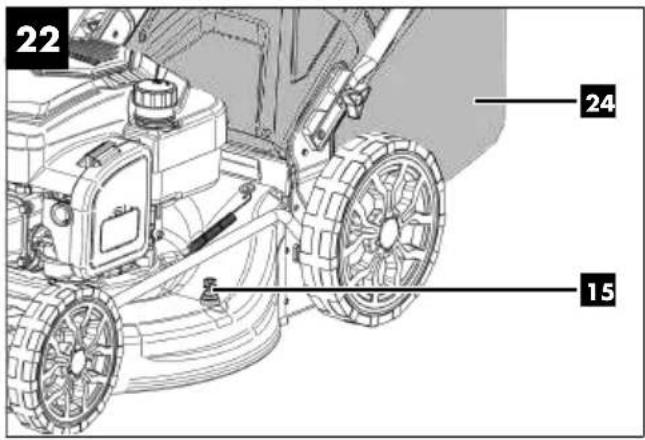

22 24 15

23 35

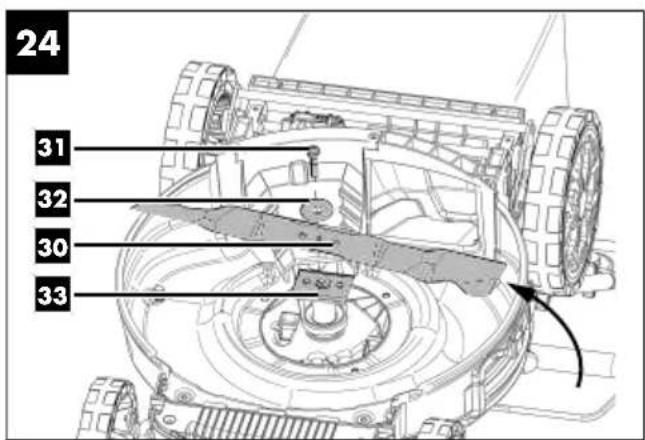

24 31 32 30 33

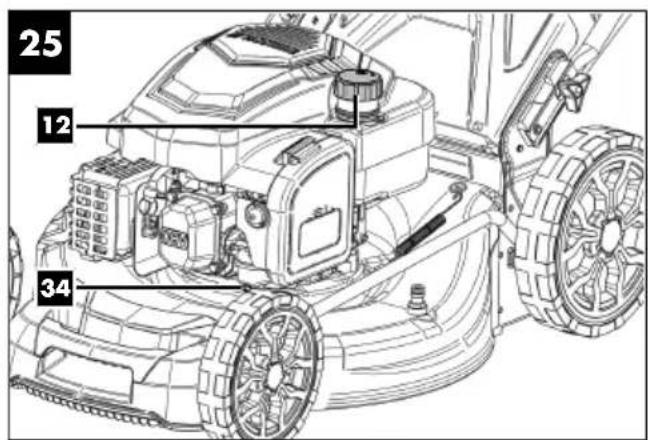

25 12 34

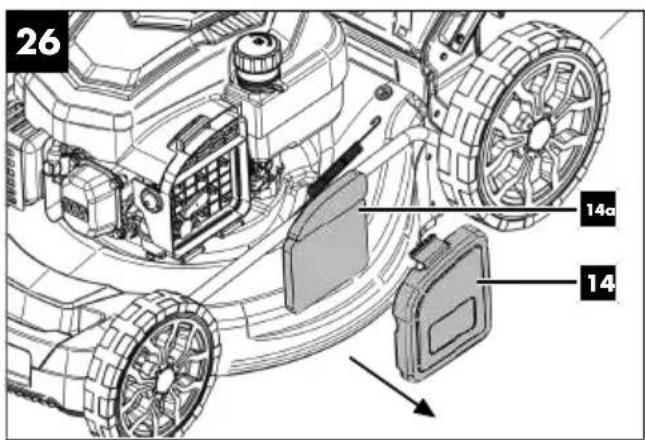

26 14a 14

27 17

28 0.75 mm (0.030") 17a

Table of contents

1 Explanation of the symbols on the product.... 2

2 Introduction.... 3

3 Product description (Fig. 1-28).... 3

4 Scope of delivery (Fig. 1-2).... 3

5 Proper use.... 4

6 Safety instructions 4

7 Technical data 7

8 Unpacking.... 7

9 Assembly.... 8

10 Before commissioning 8

11 Start-up.... 10

12 Operation 10

13 Cleaning.... 13

14 Transport.... 14

15 Storage 14

16 Maintenance.... 15

17 Repair & ordering spare parts.... 17

18 Disposal and recycling 18

19 Troubleshooting.... 18

20 EU Declaration of Conformity.... 19

21 Warranty certificate.... 20

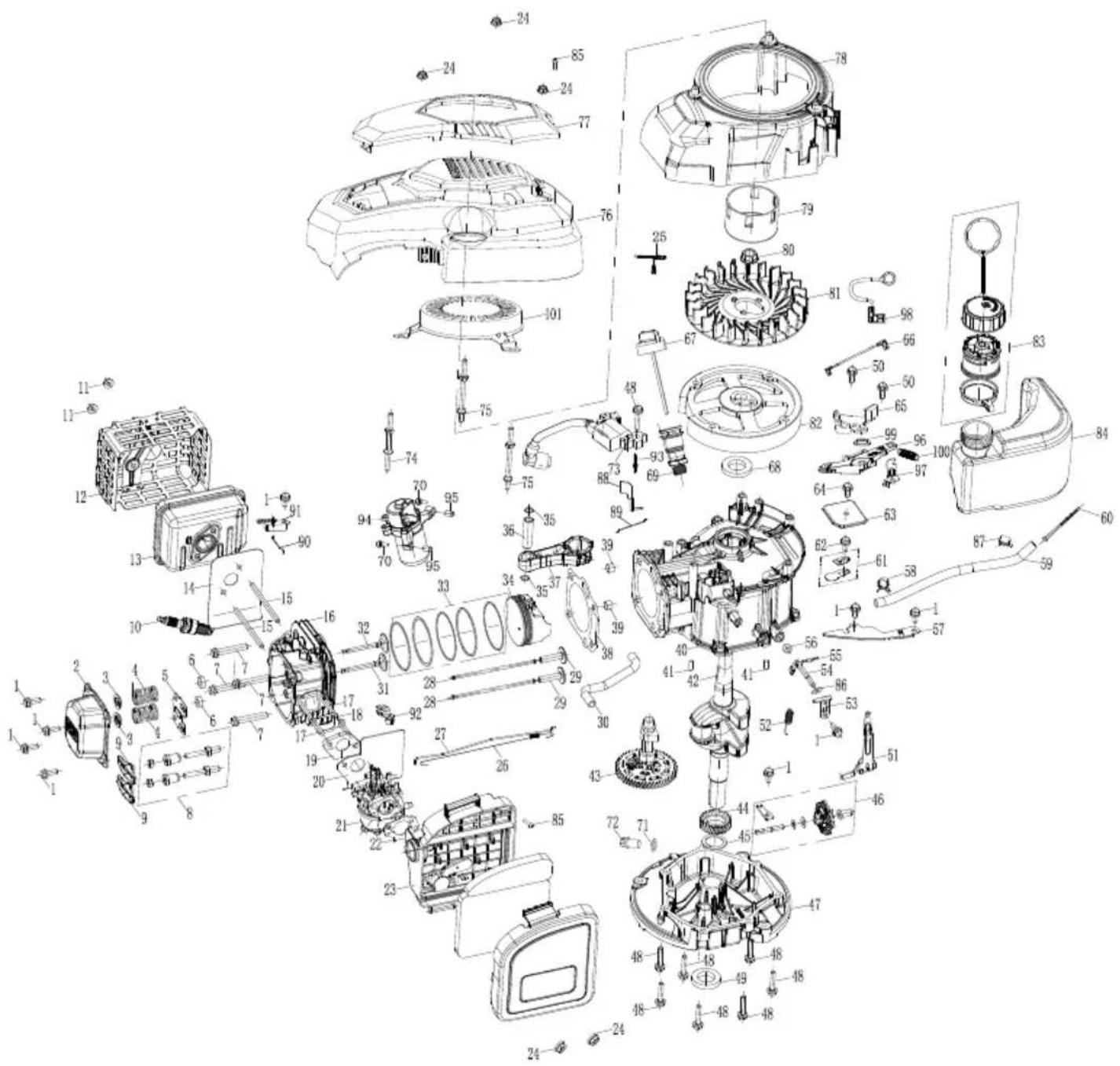

22 Exploded view.... 235

1 Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.		ATTENTION! Operating materials are flammable and explosive - danger of burning. Do not refuel while the engine is hot or running.
	Before commissioning, read and observe the operating manual and safety instructions!		Tank contents
	Do not mow uphill or downhill. Engine
	Before operating the lawnmower, remove any small parts lying around that could be thrown about.		Blade length. Max. cutting width.
	Danger due to parts flying off while the engine is running.		Guaranteed sound power level of the product.
	Make sure that other persons maintain a sufficient safety distance.		Check the oil level.
	Remove the spark plug connector prior to all maintenance work.		DRIVE - Drive bow STOP - Engine brake lever
	Keep your hands and feet away from the rotating blades.		Danger of poisoning! Only use the product outdoors and never in closed or poorly ventilated rooms.
	Attention: hot surface - danger of burning.		The product complies with the appli-cable European directives.
	Wear hearing protection. Wear safety goggles.

2 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

Read the whole text of the operating manual before assembly and commissioning.

This operating manual should help you to familiarise yourself with your product and to use it for its intended purpose.

The operating manual includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The product may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such products must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

3 Product description (Fig. 1-28)

1. Steering
2. Drive bow
3. Engine brake lever
4. Electric starter
5. Upper push bar
6. Electric starter unit
7. Quick clamp lever
8. Star grip nut
9. Lower push bar
10. Cable clip
11. Guide for push bar
12. Fuel filler cap
13. Fuel tank
14. Air filter cover
    14a. Air filter
15. Water connection
16. Idler
17. Spark plug connector
    17a. Spark plug
18. Exhaust pipe
19. Oil dipstick
20. Side discharge flap
    20a. Side discharge
21. Cutting height adjustment
22. Drive wheel
23. Discharge flap
24. Grass collection basket
    24a. Grass collection basket fill level indicator
25. Rope hook
26. Pull starter
27. Mulching insert
28. Battery
    28a. Battery unlocking lever
    28b. Battery charge status indicator
    28c. Button for battery charge status indicator
29. Battery charger
30. Blade
31. Blade screw
32. Washer
33. Engine spindle
34. Carburettor screw
35. V-belt

4 Scope of delivery (Fig. 1-2)

Item Quantity Designation

5 1 x Petrol lawnmower with upper push bar
7 2 x Quick clamp lever
8 4 x Star grip nut
9 1 x Lower push bar
10 1 x Cable clip
11 2 x Guide for push bar
20 a 1 x Side discharge
24 1 x Grass collection basket
27 1 x Mulching insert
28 1 x Battery
29 1 x Battery charger
A 2 x Screw M8

B 2 x Washer, small

C 2 x Washer, large

D 4 x Screw

E 2 x Plastic disc

F 2 x Velcro tape

2 x Operating manual (PBRM 53 A1,

battery, battery charger)

5 Proper use

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

WARNING

For your own safety, please thoroughly read this manual and the general safety instructions before turning the product on. If you give the product to third parties, always include these usage instructions.

The product is part of the Parkside X 20 V TEAM and can be operated using Parkside X 20 V TEAM range batteries. The batteries are permitted to be charged using the Parkside X 20 V TEAM range battery chargers.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

6 Safety instructions

Who is not permitted to use the product:

• Children and other people who do are not familiar with the usage instructions (local stipulations may specify a minimum age for users).
  • People under the influence of alcohol, drugs and medication, as well as those who are tired or ill.

Safety instructions for hand-operated lawnmowers

• Read the usage instructions with due care. Familiarise yourself with the settings and proper operation of the machine.
• Never allow children or other persons who are unfamiliar with the usage instructions to use the lawnmower. Contact your local governmental agency for information regarding minimum age requirements for operating the lawnmower.
• Never mow while people, especially children or animals are nearby. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.
• Only mow when visibility is good. It is necessary to keep third parties away.
• If you give the device to any other person, give them this operating manual as well.
  • Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.
• Check the terrain on which the machine will be used and remove all objects that could be caught up and violently flung out of the chute (like stones, toys, sticks and wires etc.).
• Switch off the engine, wait for it to stop and disconnect the spark plug connector if

• You are leaving the device.

• You are removing blockages or obstructions.

• The product has been in contact with foreign objects.
• Malfunctions and unusual vibrations occur on the device.

WARNING

Fuel is highly flammable:

• Only store fuel in containers (canisters) designed for this purpose.
• Refuel outdoors only and do not smoke while refuelling.
• Fuel must be filled before starting the engine. While the engine is running or immediately after switching off the product, do not open the fuel filler cap or add fuel.
• If fuel overflows, no attempts should be made to start the engine. Instead, the product must be removed from the area contaminated with fuel. Do not try to start the engine until the fuel vapours have evaporated.
• For safety reasons, the fuel tanks and other fuel caps must be replaced if damaged.
• Never store fuel near a source of sparks. Always use a tested canister. Keep fuel away from children.
• Replace defective silencers.
• Prior to use. always perform a visual inspection to check whether the blade and fastening bolts are worn out or damaged. To prevent an imbalance, worn out or damaged blades and bolts may only be replaced in sets.

Electrical safety

• The connection plug of the electric tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Follow the safety instructions. and the notes regarding charging and correct use, as specified in the operating manual for your Parkside X 20 V Team range battery and battery charger.

A detailed description of the charging process and further information are provided in this separate operating manual.

Incorrect use of the battery or battery charger can cause electric shock or fire.

WARNING

This product generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the product.

Handling:

• Make sure that all nuts, bolts and screws are securely tightened so that the product is kept in a safe working condition.
• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
• Allow the engine to cool down before parking the product in enclosed spaces.
• In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).
• Regularly check the catch basket for signs of wear and loss of functionality.
• For safety reasons, replace worn or damaged parts.
• If the fuel tank has to be drained, you must do this outdoors.
• Do not run the combustion engine in closed rooms in which hazardous carbon monoxide can collect.
• Only mow in daylight or with good artificial lighting.
• Avoid using the product on wet grass as far as possible.
• Do not use the product in a thunderstorm - Danger of lightning strike!
  • Always maintain good footing on inclines.
• Only guide the product at walking pace.
• The following applies to wheeled products: Always mow across hills i.e. never straight up or straight down. Take particular care when changing direction on a slope.
• Do not mow on excessively steep slopes and nearby rubbish tips, ditches and dykes. Take particular care when reversing the product or pulling it towards you.
• Stop the blade when the lawnmower has to be tilted, when transporting over areas other than grass and when moving the lawnmower to and from the area to be mowed.

CAUTION

The lawnmower must not be used without either the full grass catcher or the self-closing separating guard for the ejection opening in place.

- Never use the lawnmower if the blade or safety grilles are damaged, or without the attached guards, e.g. deflectors and/or grass catching devices.

- Do not adjust and overclock the engine speed settings.

- Release the engine brake and disengage all cutting tools and drives before starting the engine.

- Start the engine with care, in accordance with the manufacturers instructions. Ensure that your feet are far enough away from the blade.

- Do not tip the lawnmower when you start the engine unless the lawnmower must be raised off of the ground a little in order to start it. In this case, only tilt as far as absolutely required and only lift the side away from the operator.

- Do not start the engine if you are standing in front of the ejector chute.

- Never out hands and feet on or under rotating parts. Always keep clear of the ejection opening.

- Never lift or carry a lawnmower while the engine is running.

- Stop the engine and make sure that all moving parts have come to a standstill and that the ignition key, if present, is removed:

- Before you dislodge any blockages or clogs in the ejector chute.

- Before checking or cleaning the product, or performing work on it.

- If it came into contact with a foreign object. Inspect the product for damage and perform the required repairs before starting again and working with the product. If the product begins to experience exceptionally strong vibrations, switch it off immediately and check it.

– Any time you leave the product.

- Before you refuel.

- When the engine runs out, close the throttle valve. If the engine has a petrol shut-off valve, close it after use.

- Operating the product at excessive speed can increase the risk of accidents.

- Be careful when adjusting the product and avoid trapping fingers between the moving blade and rigid parts of the device.

- Be particularly careful when mowing on yielding ground, nearby rubbish tips, ditches and dykes.

- Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way.

- Watch out for traffic near a road.

DANGER

Risk of tripping!

Exercise particular caution when moving backwards and pulling the product.

Before reversing, make sure there are no small children behind you.

• The user must be adequately trained in the use, adjustment and operation of the machine (including prohibited operations).
• Check the product regularly and make sure that all start locks and push buttons are working properly before each use.
• Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modification of safety devices can result in damage to the product and serious injury to the person working with it.
• Please note that the product's safety systems or equipment must not be tampered with or deactivated. Never remove any safety-related parts.
• Please note that the user must not change or manipulate any sealed engine speed control settings.
• Use only blades and accessories recommended by the manufacturer. Use of other insert tools and accessories may result in injury to the user.
  • Always keep the product in good operating condition.
• It is necessary to take enough breaks to reduce noise and vibration exposure.

Residual risks and protective measures

Neglect of ergonomic principles

Negligent use of personal protective equipment (PPE)

Careless use or omission of personal protective equipment may result in serious injury.

- Wear prescribed protective equipment.

Human behaviour, misconduct

• Always concentrate fully on all work.

Residual danger

- Can never be ruled out

Danger from noise

Hearing damage

Prolonged unprotected work with the product may cause hearing damage.

• Always wear hearing protection as a matter of principle.

Behaviour in an emergency

In the event of an accident, initiate the necessary first aid measures and seek medical assistance as quickly as possible.

7 Technical data

Type of motor 4-Stroke engine / air cooled

Displacement 224 cm3

Rotation speed 2800 rpm

Engine output 4.4 kW / 6 PS (3600 rpm)

Fuel Regular grade petrol/lead-free max. 10% bioethanol

Tank contents 1.2 l

Engine oil SAE 10W-30/SAE 10W-40

Oil tank capacity 0.4 l

Cutting height adjustment 25-75 mm/7 stages

Grass collection basket capacity 55 l

Cutting width 53 cm

Weight 33.3 kg

Subject to technical changes!

Rechargeable battery / battery charger

The technical data for the rechargeable battery and battery charger can be found in the accompanying operating manual.

ATTENTION

The product is part of the Parkside X 20 V TEAM and can be operated using Parkside X 20 V TEAM range batteries. The batteries are permitted to be charged using the Parkside X 20 V TEAM range battery chargers.

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

Information about the noise level measured in accordance with applicable standards (EN ISO 5395-1:2013 Annex F):

Noise data

Sound pressure level L_pA	75.0 dB
Measurement uncertainty K_pA	2.15 dB
Sound power level L_wA	95.0 dB
Measurement uncertainty K_wA	2.15 dB

If necessary, adhere to rest periods and limit the duration of work to the bare minimum.

Vibration parameters

Vibration a_hv		5.7 m/s ^2
Measurement uncertainty K_n		2.3 m/s ^2

Keep the noise level and vibration to a minimum!

• Only use faultless products.
• Maintain and clean the product at regular intervals.
• Adapt your working methods to the product.
• Do not overload the product.
• Have the product checked if necessary.
• Switch the product off if it is not in use.
• Wear gloves.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

Observe the following information to reduce hazards:

• Keep your body and especially your hands warm in cold weather.
  • Take regular breaks and move your hands to promote circulation.
• Ensure as little vibration as possible of the product via regular maintenance and stable parts on the product.

8 Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the product by means of the operating manual before using for the first time.

• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

• When ordering please provide our article number as well as type and year of manufacture for the product.

ATTENTION

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9 Assembly

CAUTION

Danger of injury due to rotating blade. Only work on the product when the blade is switched off and stationary!

Some parts of the delivery come disassembled. For quick and easy assembly, read and follow the instructions below.

NOTE

You will need the following additional tools, which is not included in the scope of delivery, for assembly, and also for maintenance work:

• Oil collecting tray, flat (for oil change)*
• 1 litre measuring beaker (oil / petrol-proof)*
• Fuel canister*
• Funnel*
• Cloth*
• Fuel extraction pump*
• Oil can with hand pump*
• Pliers*
• Phillips screwdriver*
• Open-ended spanner/socket spanner, size 10 mm*
• Open-ended spanner/socket spanner, size 17 mm*
• Socket spanner, size 21 mm*

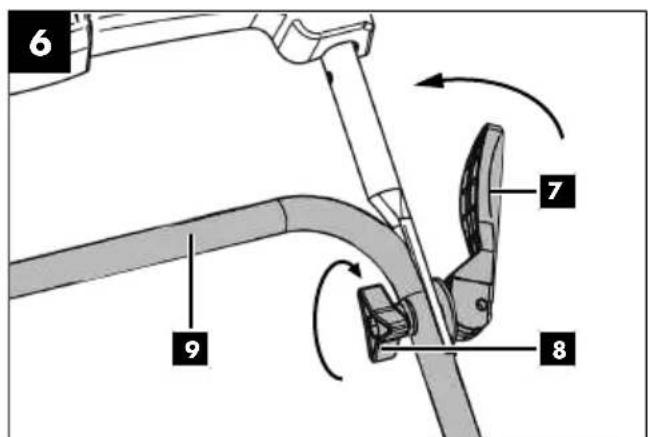

9.1 Installing the push bar (Fig. 3-6, 10)

ATTENTION

Ensure that the throttle cable is not squeezed when mounting the push bars.

1. Hold the lower push bar (9) with one guide for the push bar (11) each at the holes provided for this on the lawnmower.
2. Install the lower push bar (9) with the guide for the push bar (11) by pushing one M8 screw (A) each through the hole provided for this from the inside.
3. Secure the M8 screw (A) with a plastic washer (E) and a star grip nut (8). Ensure that the pull cord, which will be fastened later with a cable clip (10), and the Bowden cable are not in the way.
4. Screw the upper push bar (5) tight to the lower push bar (9) using one quick clamp lever (7), one large washer (C), one small washer (B) and one plastic star grip nut (8) on each side.

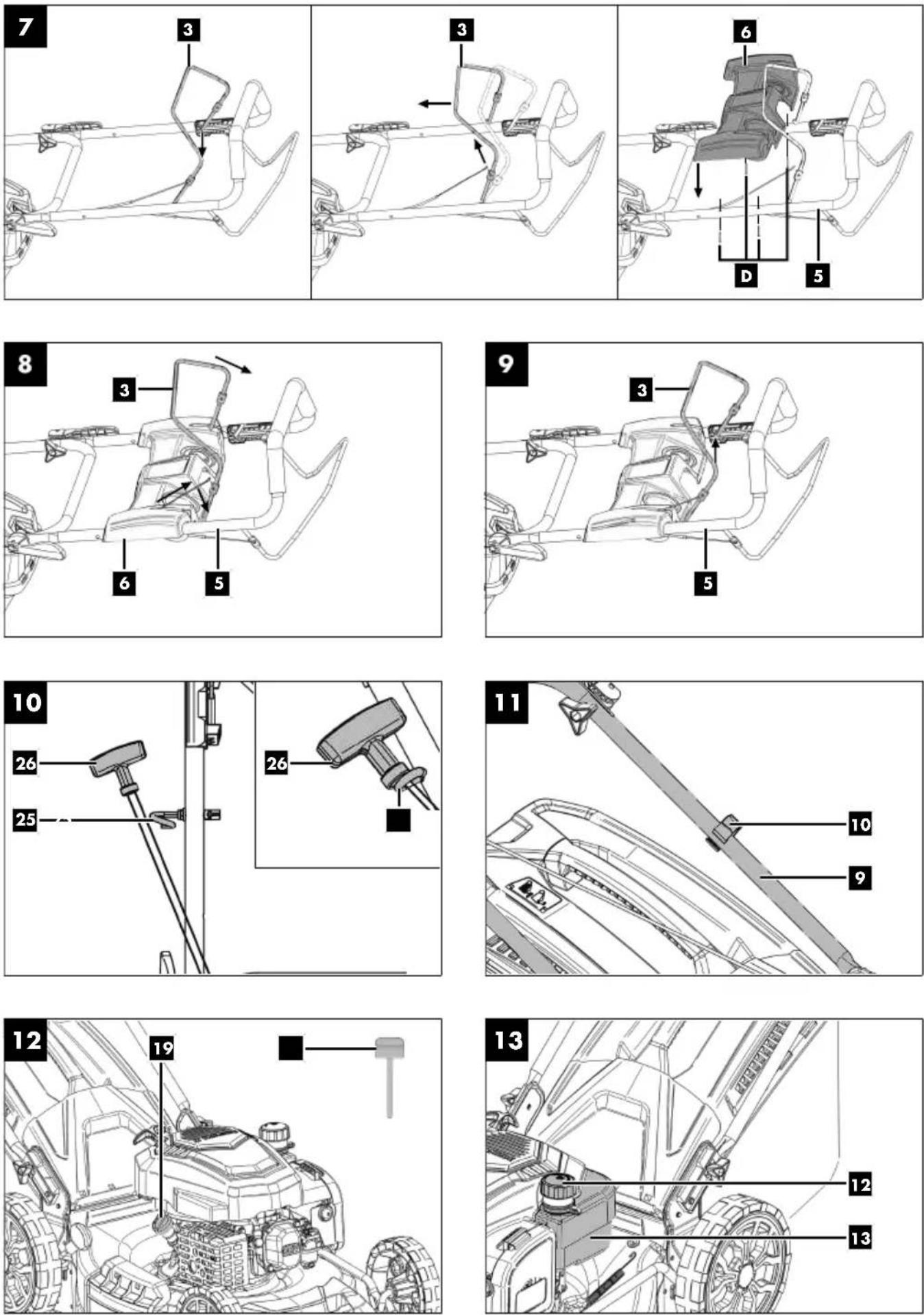

9.2 Fitting the electric starter unit (6) (Fig. 1, 7-11)

The throttle cable is pre-assembled on the engine brake lever (3) when delivered. To install the electric starter unit, you must first unhook it.

1. To relieve the strain on the throttle cable, press the right-hand side of the engine brake lever (3) out of the plastic holder on the upper push bar (5).
2. Now move the engine brake lever (3) forwards to unhook the throttle cable from the holder on the engine brake lever (3).
3. Use the screws (D) to secure the electric starter unit (6) to the upper push bar (5).
4. Use a Phillips screwdriver* to tighten the screws (D).
5. Use two velcro tapes (F) to fasten the electric starter unit (6) cable to the lower push bar (9).
6. Pull the throttle cable through the electric starter unit (6) as shown in Fig. 8.
7. Insert the throttle cable into the engine brake lever (3) and press the right-hand side of the engine brake lever (3) back into the plastic holder on the upper push bar (5).
8. Hook the handle of the pull starter (26) into the cable hook (25).
9. Fix the throttle cable with the enclosed cable clip (10) to the lower push bar (9).
   * = not included in the scope of delivery!

10 Before commissioning

ATTENTION

Always make sure the product is fully assembled before commissioning!

WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

ATTENTION

Product damage!

Using the product without or with too little engine and gear oil can result in engine damage.

- Fill with fuel and oil before commissioning. The product is supplied without engine and gearbox oil.

ATTENTION

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

– Fill/empty oil only on level, paved surfaces.
- Use a filling nozzle or funnel.
- Collect drained oil in a suitable container.
- Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
– Dispose of oil as per local regulations.

ATTENTION

Risk of damage!

If incorrectly stored or undrained fuel is used, the carburettor may become clogged or engine operation may be affected.

- Put unused fuel in an airtight vessel and store it in a dark, cool room.

Check before operation

• Check all sides of the engine for oil or fuel leaks.
• Check the engine oil level.
• Check the fuel level – the fuel tank should be at least half-full.
• Check the condition of the air filter.
• Check the condition of the fuel lines.
• Make sure that the spark plug connector is attached to the spark plug.
• Look for signs of damage.

- Check that all protective covers are in place and all screws, nuts and bolts are tightened.

10.1 Filling up with engine oil (Fig. 12)

ATTENTION

The product is delivered without engine oil. Therefore, ensure that you add oil before starting it up. Use multigrade oil (SAE 10W-30 or 10W-40) for this.

Check the oil level regularly before commissioning. An oil level that is too low can damage the motor.

1. Place the lawnmower on a level, even surface.
2. Unscrew the oil dipstick (19).
3. Fill the tank with engine oil using a funnel (not included in scope of delivery). Note the max. filling capacity of 0.4 l. Fill the oil up to the lower edge of the filling nozzle carefully.
4. Wipe the oil dipstick (19) with a clean, lint-free cloth.
5. Reinsert the oil dipstick (19) and check the oil level without screwing the oil dipstick (19) tight again.
6. The oil level must be within the middle mark on the oil dipstick (19).
7. If the oil level is too low, add the recommended amount of oil (max. 0.4 l).
8. Then screw the oil dipstick (19) in again.

10.2 Filling up with fuel (Fig. 13)

DANGER

Risk of fire and explosion!

When filling, fuel may ignite and even explode. This can lead to severe burns or death.

• Switch off the engine and let it cool down.
• Keep heat, flames and sparks away.
• Only fill up with fuel outdoors.
• Wear protective gloves.
• Avoid contact with skin and eyes.
• Start the product at a distance of at least 3 m from the fuel filling point.
• Watch out for leaks. If fuel is leaking, do not start the engine.

ATTENTION

The product is delivered without fuel. It is therefore essential to fill with fuel before commissioning. Use Super E10 petrol for this.

1. Clean the area surrounding the filling area. Impurities in the fuel tank (13) lead to operational faults.
2. Carefully open the tank cover (12) so that any possible overpressure can be relieved.
3. Fill the fuel tank (13) with fuel using a funnel (not included in scope of delivery). Note the max. filling capacity of 1.2 litres. Carefully fill the fuel up to the lower edge of the filling port.
4. Close the tank cover (12) again. Ensure that the fuel filler cap (12) is tightly sealed.
5. Clean the tank cover (12) and the surroundings.
6. Check the fuel tank (13) and fuel lines for leaks.
7. Start the product at a distance of at least 3 m from the fuel filling point.

10.3 Charge status of the battery (28) (Fig. 14)

The lawnmower is equipped with an electric starter (4). A lithium ion battery (28) is used as the starter battery. Using the battery (28) and the battery charger (29) is described in the user manual supplied.

1. To check the charge status, press the charge status indicator button (28c) on the battery (28). The battery charge status indicator (28b) indicates the charge status of the battery (28).
2. The battery (28) may only be charged using the battery charger (29) supplied. The battery (28) is not re-charged when operating the lawnmower.

11 Start-up

NOTE

Some noise pollution from this product is unavoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods and limit the duration of work to the bare minimum.

For your personal protection and the protection of nearby persons, wear suitable hearing protection.

11.1 Blade stop device

Before each use, you must check the blade stop device. Start the engine as described under 12.4.

1. Release the engine brake lever (3). The engine switches off and the blade (30) is braked.

2. The blade (30) must stop within 7 seconds.

11.2 Setting the cutting height (Fig. 17)

ATTENTION

Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.

• In dense, tall grass, set the highest cutting level and mow more slowly. A high cutting height should be selected for the first cut of the season. Adjust the cutting height so that the product is not overloaded.
• Set the cutting height depending on the actual length of the lawn.
• Carry out several passes so that a maximum of 4 cm of lawn is removed at a time.
• The correct cutting height for
• ornamental grass is about 30mm - 45mm - utility turf about 40mm - 65mm .

The cutting height is adjusted via the cutting height adjustment lever (21). Different cutting heights can be set.

1. Pull the cutting height adjustment lever (21) outwards.
2. Slide the cutting height adjustment lever (21) to the desired cut height position.
3. Release the cutting height adjustment lever (21) again. The lever locks into the desired position.

11.3 Inserting/removing the battery (28) (Fig. 18)

1. To remove the battery (28) from the product, press the battery unlocking lever (28a) on the battery (28) and pull the battery (28) out.
2. To insert the battery (28), push the battery (28) along the guide rail into the product. It clicks into place audibly.

11.4 Preparing the area to be mowed

1. Before mowing, carefully examine the area.
2. Remove stones, sticks, bones, wires, toys and other objects that may be ejected by the product.
3. Ensure that no other people are present on the surface to be mowed.

12 Operation

Working instructions

- Only cut with sharp, flawless mowing blades so that the blades of grass do not fray and the lawn does not turn yellow.

• To achieve a clean cut, guide the lawnmower in the straightest possible paths. These strips should always overlap by a few centimetres so that no patches remain.
• Keep the underside of the mower housing clean and be sure to remove grass debris. Deposits make the starting process more difficult, impair cutting quality and grass discharge.
• On slopes, the cutting path should be made perpendicular to the slope. It is possible to prevent the lawnmower from slipping by lifting it upwards at an angle.

12.1 Mowing with the grass collection basket

ATTENTION

Do not operate the product without the grass collection basket fully attached or without a mulching insert.

ATTENTION

Only remove or attach the grass collection basket when the engine is switched off and the blade is stationary.

12.1.1 Inserting the grass collection basket (24) (Fig. 19)

1. Lift the rear discharge flap (23).
2. Hold the grass collection basket (24) by the carrying handle.
3. Hang the grass collection basket (24) in the grass collection basket suspension provided at the rear of the product.
4. Put down the rear discharge flap (23), it holds the grass collection basket (24) in position.

12.1.2 Level indicator (24a) on the grass collection basket (24) (Fig. 19)

The air flow generated by the blade (30) lifts the level indicator (24a). When the grass collection basket (24) is full, the air flow stops. If the air flow is too low, the level indicator (24a) closes. This is a note to empty the grass collection basket (24).

The unrestricted function of the level indicator (24a) is only assured with optimum air flow. External influences such as wet, dense or high grass, low cutting levels, dirt or similar can affect the air flow and the function of the level indicator (24a).

• Flap open: Grass collection basket (24) is being filled
• Flap closed: Grass collection basket (24) is full

12.1.3 Emptying the grass collection basket (24) (Fig. 19)

WARNING

Before removing the grass collection basket, switch off the engine and wait for the blade to stop.

ATTENTION

Danger of injury!

Remove the grass collection basket only when the engine is switched off and the blade is stationary.

The grass collection basket must be emptied as soon as grass cuttings are left lying behind on the ground during mowing.

1. To remove the grass collection basket (24), lift the rear discharge flap (23).
2. Take out the grass collection basket (24) by the carrying handle. In accordance with the safety regulations, the discharge flap (23) closes when the grass collection basket (24) is unhooked and closes the rear ejection opening.
   If grass cuttings remain in the opening, it is advisable to pull the lawnmower back about 1m to make it easier to start the engine.

ATTENTION

Do not remove cuttings in the mower housing and on the working tool by hand or with your feet, but with suitable aids, e.g. brush or hand brush.

To ensure good collection, the grass collection basket (24) and in particular the air filter (14a) must be cleaned from the inside after use.

12.2 Mowing with side discharge

The side discharge (20a) enables you to even manage high and wild grass that is only mown rarely.

12.2.1 Inserting the side discharge (20a) (Fig. 20)

1. First remove the grass collection basket (24) and insert the mulching insert (27) (see 12.3).
2. Open the side discharge flap (20) and hold it tight.
3. Insert the side discharge (20a).
4. Close the side discharge flap (20) slowly. The side discharge flap (20) secures the side discharge (20a) to prevent it falling out.

12.2.2 Removing the side discharge (20a) (Fig. 20)

1. Open the side discharge flap (20) and hold it tight.

2. Remove the side discharge (20a) and close the side discharge flap (20).

12.3 Mowing with the mulching insert

When mulching, the cuttings are shredded in the closed mower housing and then dispersed on the lawn. Grass collection and disposal are not required. The fine green waste falls back into the grass root as a natural fertiliser, adds moisture to the lawn and supplies it with important nutrients.

NOTE

Mulching is only possible on relatively short lawns.

12.3.1 Inserting the mulching insert (27) (Fig. 21)

1. Lift the rear discharge flap (23).
2. Remove the grass collection basket (24) (if used) by the carrying handle.
3. Lift the discharge flap (23) and insert the mulching insert (27).
4. Adjust the cutting height (see 11.2).

Tips for mulching and mowing:

- Cut the grass back by 2 cm if the grass is 4-6 cm high.

12.4 Starting the engine

NOTE

The blade rotates when the engine is started.

Do not start the product if the ejector chute is covered by one of the following parts:

• Grass collection basket
• Mulching insert

12.4.1 Using the electric starter to start the engine (Fig. 15)

1. Check the charge status of the battery (28) (see 10.3) and charge it if required.
2. Check the fuel and engine oil levels before each start (see sections 10.1 and 10.2). Make sure that the spark plug connector (17) is connected to the spark plug (17a).
3. Slide the charged battery (28) along the guide rail into the product. The battery (28) clicks into place audibly.
4. Stand behind the lawnmower.
5. Press the engine brake lever (3) to the steering (1) and hold it.
6. Press the electric starter (4) and hold it.
7. The engine will start.

12.4.2 Starting the engine without the electric starter (Fig. 16)

1. Check the fuel and engine oil levels before each start (see sections 10.1 and 10.2). Make sure that the spark plug connector (17) is connected to the spark plug (17a).
2. Stand behind the lawnmower. One hand pushes the engine brake lever (3) to the steering (1), the other pulls the pull starter (26).
3. Start the engine with the pull starter (26). To do this, pull the handle out approx. 10-15 cm (until resistance is felt). And then pull hard with a jerk. If the engine does not start, pull on the pull starter (26) again.
4. Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the product and should be considered normal. This is a normal process.

ATTENTION

• Do not let the pull starter whip back in. This can result in damage.
  – In case of cool weather, it may be necessary to repeat the starting process numerous times.

12.5 Shut off engine

WARNING

Danger of injury!

After switching the engine off, the blade continues to run for a few seconds. If you touch the rotating parts, you may cut yourself.

• Wait until the blade comes to a standstill.
• Do not stop the blade with your hand.
• Wear protective gloves.

• Keep the blade away from your feet.

• In order to shut the engine down, first release the drive bow (2) and then the engine brake lever (3). Wait until the blade (30) stops.

• Disconnect the spark plug connector (17) from the spark plug (17a) to prevent the engine from restarting.
• Remove the battery (28) (see 11.3).

12.6 Driving mode

The lawnmower is equipped with a rear-wheel drive.

12.6.1 Switching the drive on

1. Start the lawnmower (see 12.4).
2. Pull and hold the drive bow (2) to the steering (1).
3. The drive is switched on (the wheel (16) moves) and the lawnmower starts to move forwards.

ATTENTION

Avoid damage to the product! Always actuate the drive bow completely (until it reaches the stop) in order to avoid subsequent damage to the transmission.

12.6.2 Switching the drive off

1. Release the drive bow (2). The drive is switched off and the lawnmower stops.
2. The engine continues to run.

12.7 After mowing

• Always allow the engine to cool down before parking the lawnmower in an enclosed space.
  Remove grass, leaves, grease, and oil before storage. Do not store other objects on the lawnmower.
• Check all screws and nuts before the next use. Tighten up loose screws.
• Empty the grass collection basket before the next use.
• Please also observe the chapter "Storage".

13 Cleaning

WARNING

Danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the motor before carrying out any cleaning or maintenance work.
• Allow the motor to cool down.
• Disconnect the spark plug connector from the spark plug.
• Remove the battery.

WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

13.1 Cleaning the lawnmower (Fig. 1)

• Cleaning with a garden hose is only recommended at low pressure. A high-pressure cleaner is not suitable for cleaning the product.
• Unhook the grass collection basket and brush it out with a hand brush. You can also roughly clean the housing of the lawnmower with the sweeper.

- For larger soiling, you can wipe the product with a damp cloth.

NOTE

Before tilting the lawnmower, empty the fuel tank fully using a fuel extraction pump (not included in the scope of delivery).

Do not tilt the lawnmower beyond 90 degrees.

1. It is best to tilt the lawnmower backwards. Make sure that the spark plug (17a) is pointing upwards. If the spark plug (17a) points downwards, oil can leak out and cause major damage to the engine and carburettor.
2. Alternatively, you can tilt the product on its side, but you must make sure that the air filter cover (14) is on the upper side.
3. Clean the underside of the lawnmower with a spatula and hand brush. The spatula helps to remove coarse and larger plant debris from the area of the blade (30). Cleaning the underbody is easier and more thorough immediately after use. Then dirt and plant residues are still fresh and can be loosened more easily.
4. If necessary and if the dirt is difficult to remove, you can also use a special cleaner. Do not use aggressive cleaning products such as cold cleaners or white spirit.
5. Check that the grass ejection is clear of grass residues and remove these if necessary.

13.2 Cleaning the lawnmower via the water connection (15) (Fig. 1, 22)

NOTE

Push the spark plug connector onto the spark plug properly again.

1. First remove the mulching insert (27) or the grass collection basket (24).
2. For cleaning, connect a garden hose to the water connection (15) via the built-in plug-in coupling.
3. Turn on the water and start the lawnmower (see 12.4).
4. The rotating blade (30) swirls the water.
5. After a few minutes, the lawnmower is free of all adhering dirt and grass residues.
6. Allow the lawnmower to run for a short time without water to remove most of the moisture through the circulating air of the blade (30).

13.3 Cleaning the V-belt (35) (Fig. 23)

1. Tilt the lawnmower backwards.
2. Use a brush or compressed air to clean the V-belt (35) after each use.

14 Transport

WARNING

Danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the motor before carrying out any cleaning or maintenance work.
• Allow the motor to cool down.
• Disconnect the spark plug connector from the spark plug.
• Remove the battery.

NOTE

For transport, the cutting height must always be set in the highest position.

1. Empty the fuel tank using a petrol extraction pump (not included in the scope of delivery) into a collection container.
2. Drain the motor oil of the warm motor.
3. Clean the cooling fins of the cylinder and the housing.
4. Fold in the top push bar (5) (see 15.3).
5. Wedge a few layers of corrugated cardboard between the upper (5) and lower push bars (9), and the engine to prevent any chafing.
6. The product must be secured against tipping and slipping during transport in vehicles in order to prevent damage and injuries.

15 Storage

ATTENTION

Clean and maintain the product before storage.

ATTENTION

Do not store the product with the grass collection basket full. In hot weather, the grass begins to ferment under heat. There is a risk of fire!

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5^ C and 30^ C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture.

Store the operating manual with the product.

• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
• Allow the engine to cool down before parking the product in enclosed spaces.
• In the event of prolonged storage, empty the fuel tank with a fuel extraction pump (not included in the scope of delivery).
• In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).

15.1 Preparing the lawnmower for long-term storage

WARNING

Do not remove the fuel in enclosed spaces, near fire or when smoking. Petrol fumes can cause explosions and fire.

1. Drain the fuel tank (13) with a fuel extraction pump (not included) (see 16.4).
2. Carry out an oil change (see 16.3).
3. Remove the spark plug connector (17) from the spark plug (17a). Remove the spark plug (17a) with a spark plug wrench (not included in the scope of delivery).
4. Fill the cylinder with approx. 20 ml of oil from an oil can.
5. Pull the pull starter (26) slowly so that the oil protects the inside of the cylinder.
6. Screw the spark plug (17a) back in.
7. Clean the cooling fins of the cylinder and the housing (see 13.1).
8. Be sure to clean the entire product to protect the paint.
9. Store the product in a well-ventilated place.

15.2 Battery (28) and battery charger (29)

Follow the safety instructions. and the notes regarding charging and correct use, as specified in the operating manual for your Parkside X 20 V Team range battery (28) and battery charger (29). A detailed description of the charging process and further information are provided in this separate operating manual.

15.3 Folding the push bar up

WARNING

Risk of jamming!

Always hold the push bar with one hand at the highest point.

- Never place fingers between the upper push bar and the lower push bar.

For space-saving storage, the push bar is foldable.

1. Remove the grass collection basket (24).
2. Unhook the pull starter (26) from the cable hook (25).
3. Open the quick clamp levers (7) on the lower push bar (9).
4. Turn the quick clamp levers (7) at a right angle to the push bar. To do this, you must move the quick clamp levers (7) away from the lower push bar (9) slightly.
5. Fold both push bars down. The cables must not be pinched in the process.

16 Maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

There is a risk of accident! Always carry out maintenance and cleaning work with the engine switched off and the spark plug connector removed. There is a danger of injury! Let the Product cool down before all maintenance and cleaning tasks. Elements of the engine are hot. There is a danger of injury and burning!

The product can start unexpectedly and cause injuries.

1. Switch off the motor before carrying out any cleaning or maintenance work.
2. Allow the motor to cool down.
3. Disconnect the spark plug connector from the spark plug.
4. Remove the battery.

WARNING

Before starting work on or near electrical components, the battery must be removed.

• Regular, careful servicing is required to guarantee the safety level and performance of the product.
• Ensure that all nuts, pins and screws are securely tightened so that the product is in a safe working condition.
• Check the grass collection basket regularly for signs of wear and loss of functionality.
• For safety reasons, replace worn or damaged parts.
• Check that the front and rear wheels are secured.
  • To ensure smooth running of the wheels, we recommend cleaning the wheel axles and wheel hubs at least once per season.
• Any work not described in this operating manual must be performed by an authorised specialist workshop only.

16.1 Changing the blade (30) (Fig. 24)

WARNING

There is a risk of injury if you work with a damaged blade.

• Wear protective gloves!
• For safety reasons you should only ever have your blade sharpened and balanced by an authorised specialist workshop. For optimum results it is recommended that the blade should be inspected once a year.

• When changing the blade, only use original spare parts.

• Empty the fuel tank (13) with a fuel extraction pump (not included in the scope of delivery) before removing the cutting edge. Never tip the lawnmower to the side or forwards with a full fuel or oil tank! This will damage the engine and void the warranty.

• Hold the blade (30) tightly with one hand.
• Turn the blade screw (31) anticlockwise using a open-end spanner AF17 (not included in the scope of delivery) from the engine spindle (33). Remove the washer (32).
• Re-install the new blade (30) in reverse order. Fasten the blade screw (31) properly. Make sure that the blade (30) is correctly positioned and flush against the engine spindle (33).
• The tightening torque of the blade screw (31) is 45Nm. Also replace the blade screw (31) when replacing the blade (30).

16.1.1 Damaged blades (30)

Should the blade (30) come into contact with an obstruction, shut down the engine immediately and remove the spark plug connector (17).

• Check the blade (30) for damage.
• Damaged or bent blades (30) must be replaced.
• Never attempt to bend a bent blade (30) back to straight again.
• Never mow the lawn with a bent or heavily worn blade (30) as this will cause vibrations and can lead to further damage to the lawnmower.

16.2 Checking the oil level (Fig. 12)

WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

ATTENTION

Product damage!

Using the product without or with too little engine and gear oil can result in engine damage.

• Fill with fuel and oil before commissioning. The product is supplied without engine and gearbox oil.
• Only use SAE 10W-30 or SAE 10W-40 engine oil.

ATTENTION

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

– Fill/empty oil only on level, paved surfaces.
- Use a filling nozzle or funnel.
– Collect drained oil in a suitable container.
- Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
– Dispose of oil as per local regulations.

1. Place the lawnmower on a level, even surface.
2. Turn the oil dipstick (19) anticlockwise to unscrew it and wipe it with a clean, lint-free cloth.

3. Reinsert the oil dipstick (19) and check the oil level without screwing the oil dipstick (19) tight again.

4. Pull the oil dipstick (19) out and read the oil level in the horizontal position. The oil level must be positioned between the max. and min. of the oil dipstick (19).

5. Then screw the oil dipstick (19) in again.

16.3 Oil change

The engine oil change should be completed annually before the start of the season while the engine is at operating temperature and shut off.

Only use engine oil (SAE 10W-30/SAE 10W-40).

1. Place the lawnmower on a level, even surface.
2. Unscrew the oil dipstick (19) by turning it anticlockwise.
3. Use an oil pump (not included in scope of delivery) and the hose to suck out the engine oil through the filling nozzle.
4. Fill up with fresh engine oil and check the oil level (see 10.1

16.4 Drain fuel with a fuel extraction pump (Fig. 25)

1. Hold a collection bucket under the hose of the fuel extraction pump (not included in the scope of delivery).
2. Unscrew and remove the fuel filler cap (12).
3. Push the hose of the fuel extraction pump into the fuel tank (13) and drain out the fuel tank completely using the fuel extraction pump.
4. Retighten the fuel filler cap (12).
5. To ensure that no fuel remains in the carburettor, the remaining fuel must be drained out of the carburettor. To do this, place a suitable container (not included in the scope of delivery) under the carburettor and open the carburettor screw (34) with the aid of an open-end wrench AF10 (not included in the scope of delivery).

16.5 Maintenance of the air filter (14a) (Fig. 26)

DANGER

Risk of fire and explosion!

If not cleaned correctly, fuel may ignite and even explode. This can lead to severe burns or death.

• Only clean the air filter by knocking it out.
• Never clean the air filter with petrol or flammable solvents.

ATTENTION

Risk of damage!

Operating the engine without a filter element or with a damaged filter element can cause engine damage.

- Never run the engine without the air filter element or with a damaged filter element. This would allow dirt into the engine, which would result in severe damage to the engine.

Fouled air filters (14a) diminish the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential.

The air filter (14a) should be checked every 25 operating hours and cleaned as required. The air filter (14a) must be checked more often in case of very dusty air.

1. Take off the air filter cover (14) and remove the air filter (14a).
2. Clean the air filter (14a) only by knocking it out.
3. Replace a defective air filter (14a) with a new one.
4. Put the air filter (14a) back in place and replace the air filter cover (14).

16.6 Maintaining the spark plug (17a) (Fig. 27+28)

Check the spark plug (17a) for contamination for the first time after 10 operating hours and clean it with a copper wire brush if necessary. Then maintain the spark plug (17a) every 50 operating hours.

1. Pull off the spark plug connector (17) with a twisting motion.
2. Remove the spark plug (17a) with a spark plug wrench (not included in the scope of delivery).
3. Use a feeler gauge to set the gap to 0.75 mm(0.030"). Refit the spark plug (17a) and take care not to overtighten it.

16.7 Engine brake lever (3) (Fig. 1, 16)

The engine is equipped with a mechanical brake which has to be checked regularly. When releasing the engine brake lever (3), the blade (30) must come to a standstill within 7 seconds.

A running blade (30) produces clearly perceptible wind noises. The running of the blade (30) is signalled by the wind noise generated and can thus be controlled.

NOTE

If you notice that the blade stopping device is not working correctly, please contact the customer service or a specialist workshop.

Ensure that the product is in perfect condition for the entire duration of its service life. Improper maintenance may cause life-threatening injuries.

17 Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

NOTE

Important note in the case of repairs

When returning the product for repair, for safety reasons, ensure that it is free of oil and fuel when it is sent to the service centre.

17.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Blade information:
Manufacturer:	DJ = CHONGQING DAJIANG POWER EQUIPMENT CO.,LTD., China
Blade code: 602081
Blade - Article no.: 791	1200627
Engine oil - Article no.:	7850000025

17.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Spark plug, air filter, blade, V-belt

* = not included in the scope of delivery!

18 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

– Public disposal or collection points (e.g. municipal works yards)
– LIDL offers you return options directly in the shops and markets. Return and disposal are free of charge.
- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
– Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

Notes on lithium-ion batteries

Remove the battery before disposing of the device!

• Do not dispose of the battery in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.
• Defective or used batteries must be recycled in accordance with Directive 2006/66/EC.
• Hand in the device and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.
• Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.
• Dispose of batteries according to local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the product, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

19 Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Product runs unsteadily and vibrates heavily	Screws are loose Check screws
	Blade fasteners are loose	Check blade fasteners
	Blade is unbalanced	Replace blade
Engine does not run Engine brake lever not pressed Press engine brake lever
		Throttle in wrong position Check setting
		Spark plug is defective Replace spark plug
		Fuel tank is empty Refill with fuel
		Contaminated fuel Empty the fuel tank and fill with clean fuel
		Engine defective Contact authorised customer service
Engine runs unsteadily Air filter dirty	Clean the air filter
	Spark plug dirty Clean the spark plug
Lawn turns yellow, uneven mowing results	Air filter dirty Clean the air filter
	Spark plug dirty Clean the spark plug
The discharge of grass clippings is unclean	Cutting height is too low Adjusting the cutting height
	Blade is worn Replace the blade
	Grass collection basket blocked Empty the grass collection basket or remove the blockage

20 EU Declaration of Conformity

Original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: Parkside

Art. designation: BENZIN RASENMÄHER – PBRM 53 A1

Article name: PETROL LAWNMOWER - PBRM 53 A1

Nom d'article: TONDEUSE THERMIQUE - PBRM 53 A1

Item No. 3911256979, 3911256980, 39112569915

IAN no. 445178_2307

Series no. 01001-06086

EU directives:

2014/30/EU, 2006/42/EC, 2011/65/EU*

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN ISO 5395-1:2013/A1:2018;

EN 5395-2:2013/A2:2017; EN 14982:2009

Conformity assessment procedure:

2000/14/EG\_2005/88/EC - Appendix: VI

Guaranteed sound

power level (LWA): 98 dB

Measured sound

power level (LWA): 95 dB

Power (P): 4.4 kW

Notified body: TÜV SÜD Industrie Service GmbH, Westendstrasse 199,

80686 Munich, Germany

Number: 0036

2016/1628/EU

Emission. No:

e24*2016/1628*2018/989SRA1/P*0456*00

Documentation authorised representative:

Tobias Ihle

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
- Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

- The guarantee is valid for a period of 5 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

- In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Service-Hotline (GB):

00800 4003 4003

Service-Email (GB):

[e-mail]

Service Address (GB):

Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Service-Hotline (IE):

00800 4003 4003

Service-Email (IE):

[e-mail]

Service Address (IE):

Forest Park & Garden

Coed Court, Taffsmead

Road Treforest, Ind. Estate,

Pontypridd CF375SW

Service-Hotline (NI):

00800 4003 4003

Service-Email (NI):

[e-mail]

Service Address (NI):

Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Service-Hotline (CY):

00800 4003 4003

Service-Email (CY):

[e-mail]

Service Address (CY):

GEORGE C SOLOMONIDES

& SON LTD

PO.BOX 56236 / 169,

LEONTIOS A'

GR - 3022 LIMASSOL/CYPRUS

[e-mail]

At www.lidl-service.com you can download this and many more manuals, product videos plus installation software.

The QR code takes you directly to the Lidl service page (www.lidl-service.com) and you can open your operating manual by entering the article number (IAN) 445178_2307.

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Garantieurkunde

Service-Adresse (DE):

Scheppach GmbH

Günzburger Str. 69

DE - 89335 Ichenhausen

Service-Hotline (AT):

00800 4003 4003

[e-mail]

Service-Adresse (AT):

Gausch Hubert

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Certificat de garantie

Chère Cliente, Cher Client,

Service-Hotline (BE):

00800 4003 4003

Service-Email (BE):

[e-mail]

Service Adresse (BE):

TeleMarCom European Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Service-Hotline (CH):

00800 4003 4003

Service-Email (CH):

[e-mail]

Service Adresse (CH):

Klaus-Häberlin AG

Industriestraße 6

CH - 8610 Uster

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

4 Meegeleverd (afb. 1-2)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Garantiebewijs

Geachte klant,

Service-hotline / Hotline du service (NL): Service-hotline (BE):

00800 4003 4003 00800 4003 4003

E-mailadres / Email du service (NL): E-mailadres (BE):

[e-mail] [e-mail]

Serviceadres / Adresse du service (NL): Serviceadres (BE):

TeleMarCom European Services GmbH TeleMarCom European Services GmbH

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Záruční list

Važena zakaznice, važeny zakazniku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Article name: PETROL LAWNMOWER –

PBRM 53 A1

Nom dárticle: TONDEUSE THERMIQUE –

PBRM 53 A1

Č. výr. 3911256979,

3911256980, 39112569915

Č. IAN 445178_2307

Division Manager Product Center

Andreas Pecher

Head of Project Management

Záručný list

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

JÓTÁLLÁSI TÁJÉKOZTATÓ

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Gwarancja

Drodzy Klienci,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Division Manager Product Center

Andreas Pecher

Head of Project Management

Garantibevis

Kære kunde,

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

Notizen

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

FR RECO

FSC

www.fsc.org

MIX

Paper from responsible sources

C186238 C186238 C18

FSC

www.fsc.org

MIXTE
