USER MANUAL SPT-605-16 Vevor

Affordable. Reliable. Home Improvement.

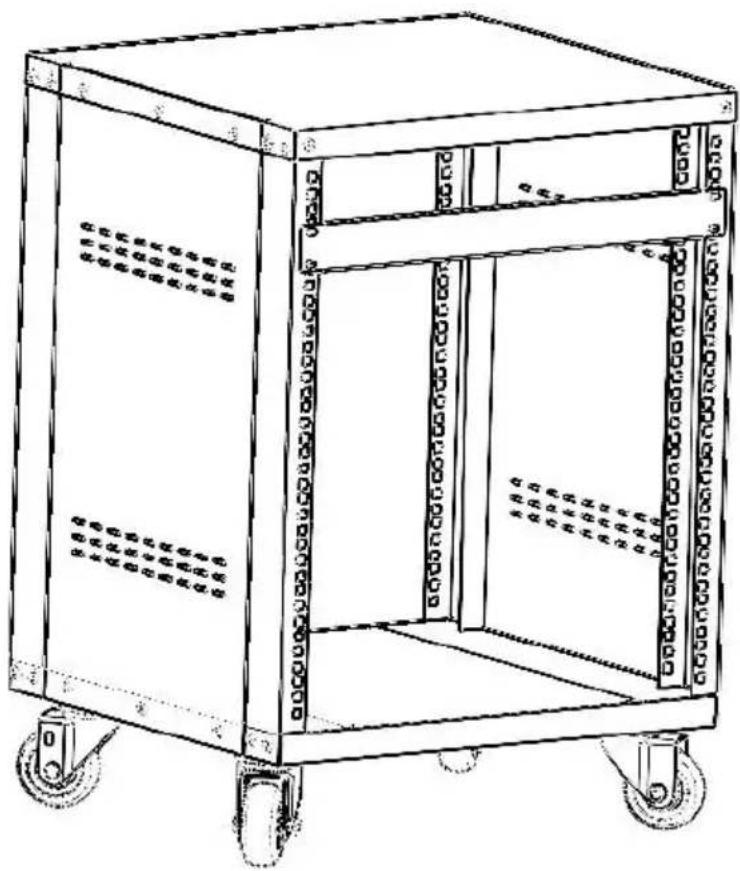

Rolling Server Rack Cabinet

Model: SPT-605-12/SPT-605-16

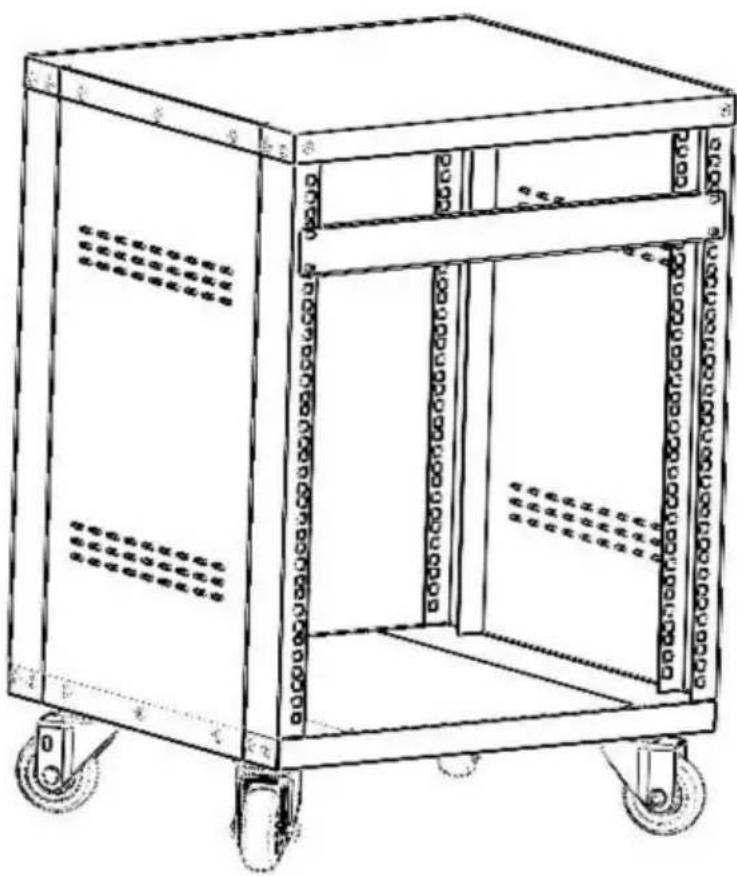

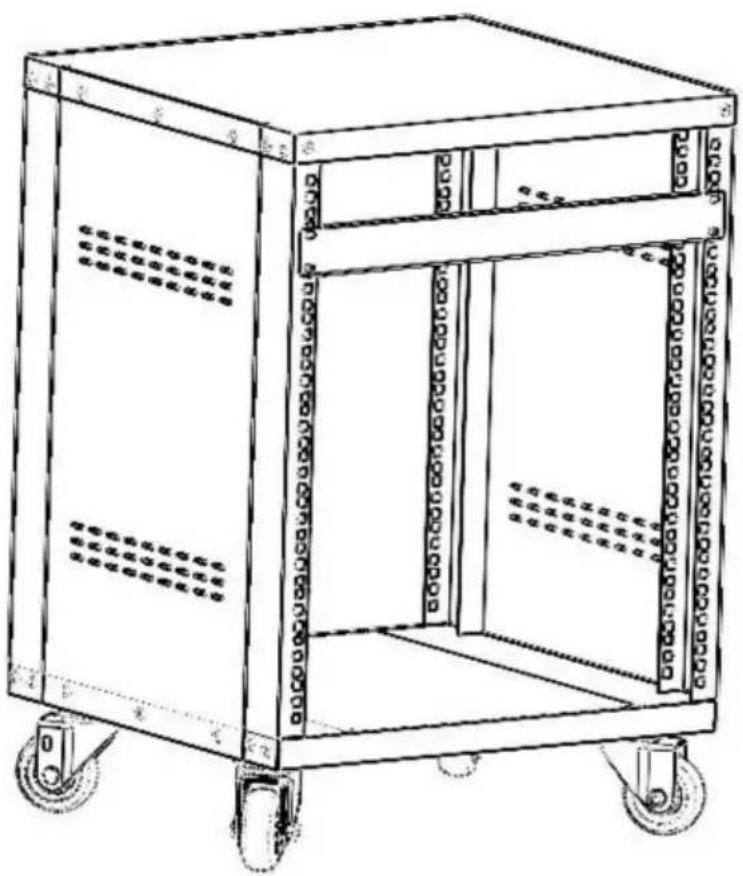

Line drawing of a multi-tiered industrial container with wheels and side panels (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

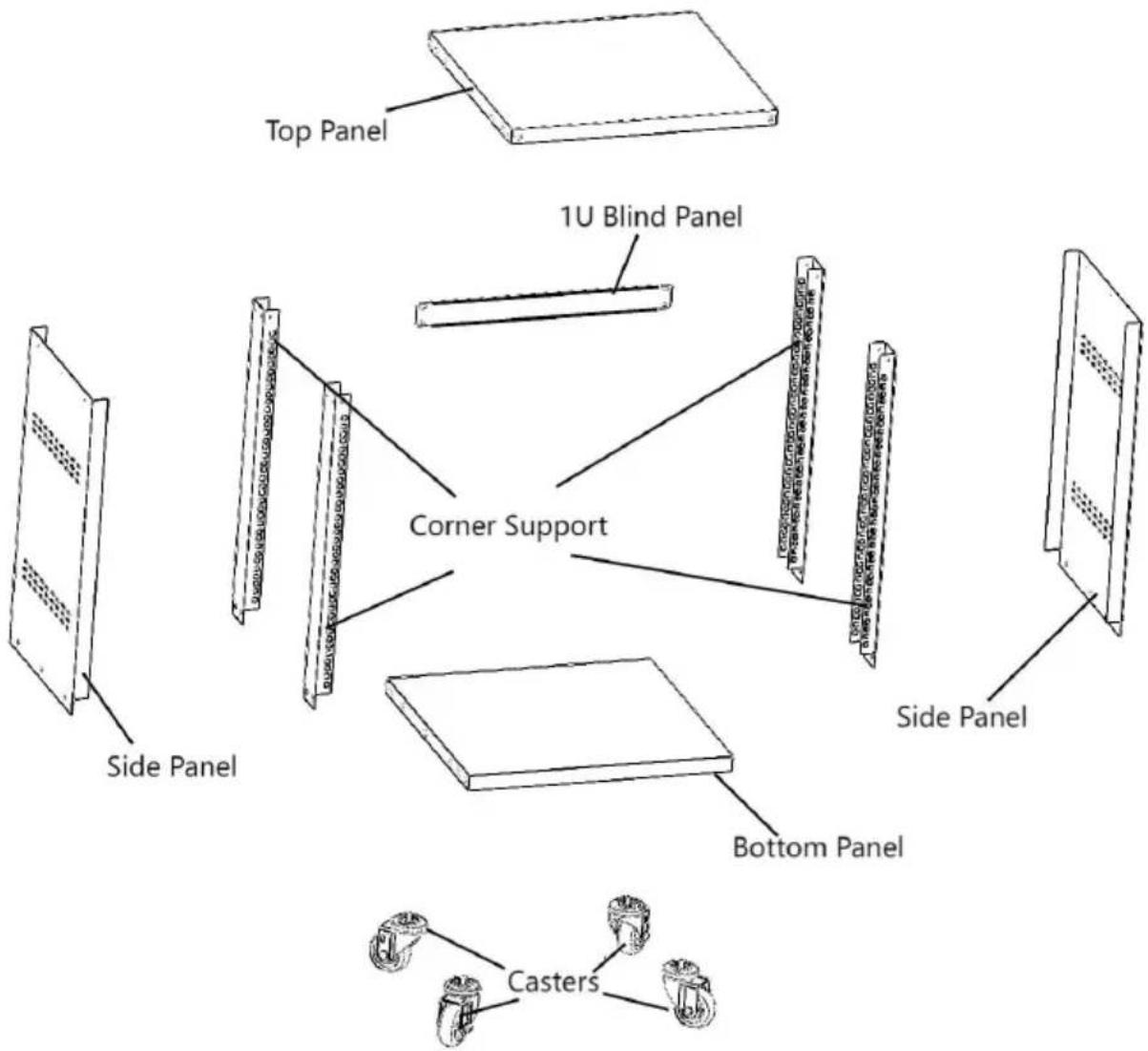

PRODUCT DIAGRAM

Top Panel 1U Blind Panel Corner Support Side Panel Bottom Panel Side Panel Casters

PACKAGE CONTENTS
Part No.	Part Name	QTY	Photo
1	Top Panel	1	as diagram showed
2	Bottom Panel	1
3	Corner Support	4
4	Side Panel	2
5	1U Blind Panel	1
6	Casters	4
7	M5 assembly fix screws	40
8	M6 cage nuts	24
9	M6*12 cross head screws	24

SPECIFICATION DATA

Name	Rolling Server Rack Cabinet
Model	SPT-605-12	SPT-605-16
Material	Cold Roll Steel
Color	Black
Depth	18"(455mm)
Mounting Height	12U	16U
Ground-Mounted Load-Bearing	500 lbs(static load)
Product Size(W*D*H) (with casters)	510*460*700mm	510*460*872mm
Product Weight	13.0Kg	16.30Kg
Accessories	40 x M5 assembly fix screws; 24x M6 cage nuts; 24 x M6*12 cross head screws; 4 x casters; 1 x 14mm spanner; 1 x Instruction manual.

REQUIREMENT

2X +

● Two People (for assembly)
● Electrical Phillips Head Screwdriver(sold separately) x 1
● 14mm Spanner (parts package has included)

SERVER RACK INSTALLATION

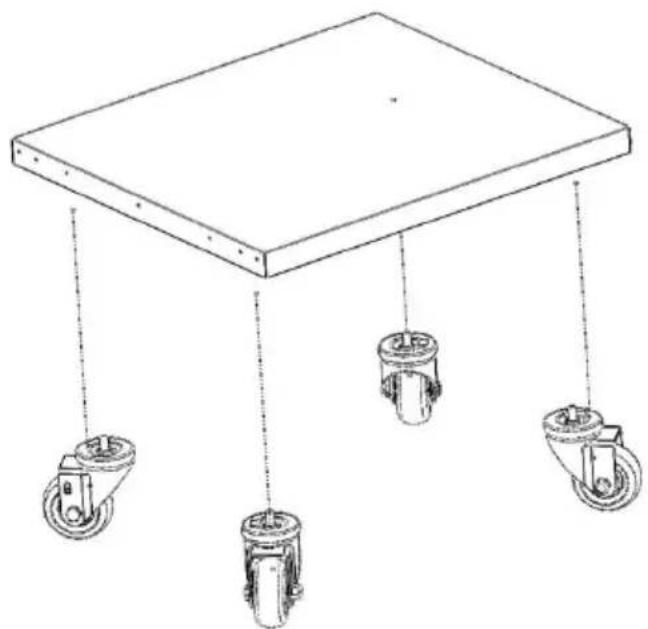

1. Place Casters(⑥) on the bottom of the Bottom Panel(②),screw them with the rack's bottom nuts(tips:first lock the caster then to screw the rack bottom nut will be easier).Tighten them by 14mm spanner.See Fi

Technical line drawing of a mechanical support structure with four wheels (no text or symbols)

Figure 1

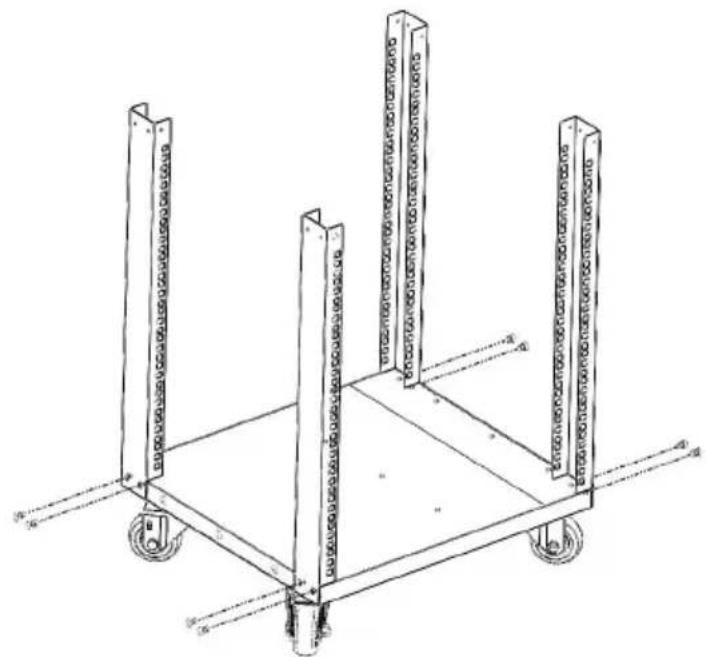

1. Align the Corner Support(③) with Bottom Panel(②), Secure with 2pcs M5 assebmly fix Screws(⑦) by electrical screwdriver.then adopts same step to fix the rest of 3pcs Corner Support(③).See Figure 2. Notes: during assembly,need notice the Corner Support direction,make sure the vertical mounting holes are aligned.make sure the side with numerical scale faces outward.

Technical line drawing of a mechanical cart with four vertical supports and wheels, no text or symbols present

Figure 2

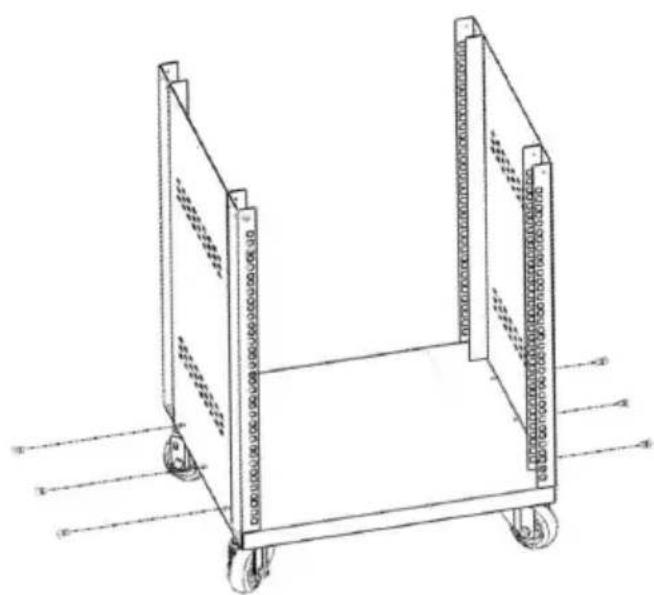

1. Align the Side Panel(④) with Bottom Panell(②), Secure with 3pcs M5 assembly fix Screws(⑦) by electrical screwdriver.then adopts same step to fix another Side Panel(④).See Figure 3.

Notes: during assembly, need notice the Side Panel direction, make sure the vertical mounting holes are aligned.

Technical line drawing of a two-bar electrical cabinet with wheels and side-mounted panels (no text or symbols)

Figure 3

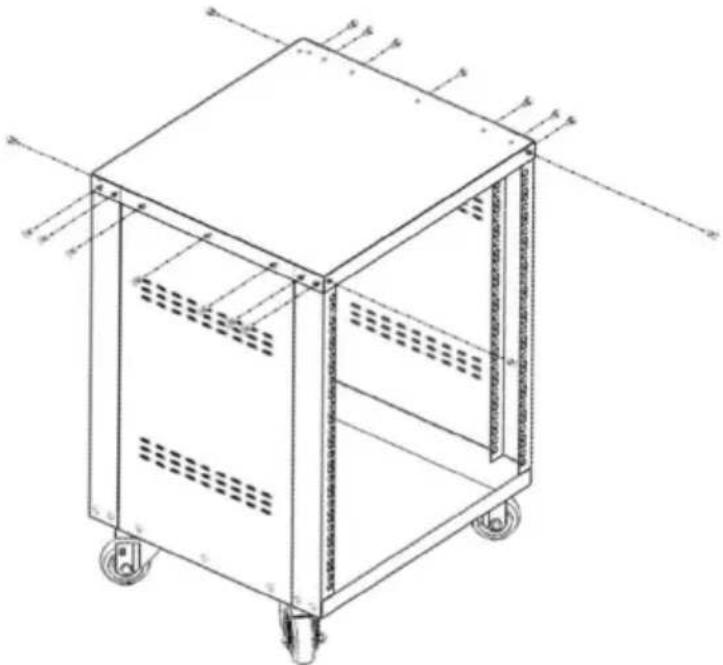

1. Put Top Panel(①) on the top of the rack, Align the Top Panel with Corner Support(③) and Side Panel(④), Secure with 18pcs M5 assembly fix Screws(⑦) by electrical screwdriver. See Figure 4.

Technical line drawing of a modular server rack unit with wheels and ventilation slots (no text or symbols)

Figure 4

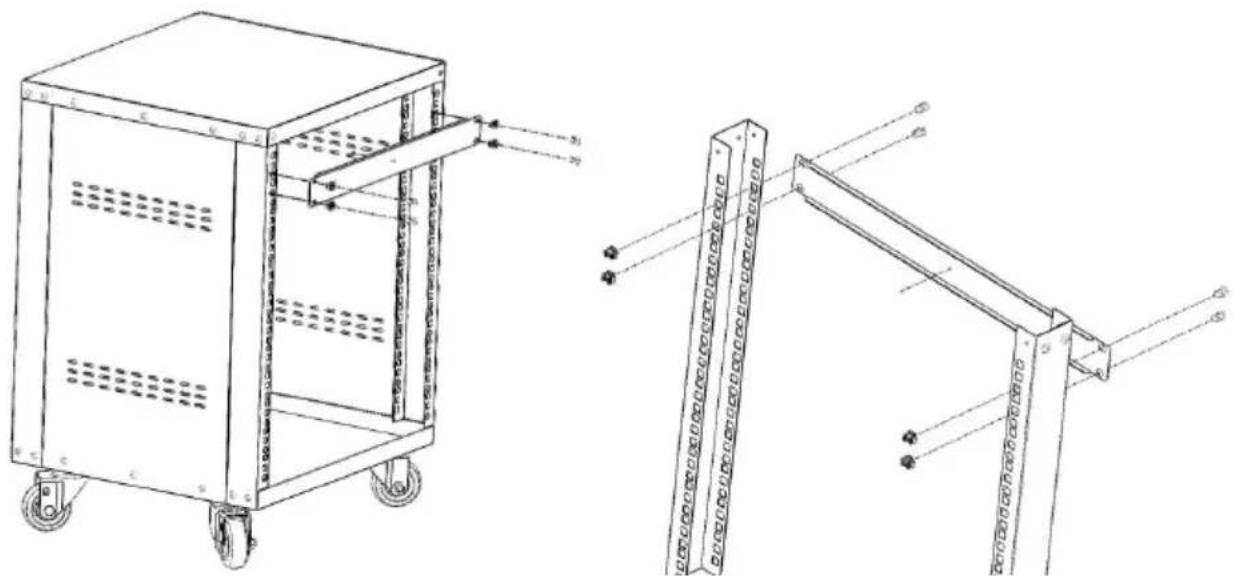

1. Place 1U Blind Panel(⑤) on the Rack. Secure with the 4pcs M6 Nuts(⑧) and 4pcs M6*12 cross head screws(⑨). See Figure 5.

Technical line drawing of a two-wheeled industrial machine with wheels and structural details (no text or symbols)

Figure 5

EQUIPMENT INSTALLATION

Use the included M6 cage nuts(⑧),M6*12 corss head screws(⑨) to install equipment into the wall mount server rack.

1. Insert the wing(side) of an M6 cage nut(⑧) into the back of the desired cage nut hole.
2. Apply pressure by hand or with the cage nut tool, to insert the sewing of the M6 cage nut(⑧) into the desired cage nut hole.
3. Repeat steps 1 and 2 to insert the desired number of cage nuts application.
4. Align the Mounting holes in the equipment with the M6 cage nuts installed in steps 1-3.
5. Thread an M6*12 corss head screws(⑨), Repeat until the desired number of M6*12 corss head screws(⑨) have been prepared.
6. Tighten the screws, using a phillips head screwdriver.

Installation Video

QR code image containing encoded data, no visible human-readable text
