USER MANUAL XYFG-04 Vevor

Affordable. Reliable. Home Improvement.

LAUNDRY ROOM CABINETS

MODEL:XYFG-04

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:XYFG-04

Vevor XYFG-04 - MODEL:XYFG-04 - 1

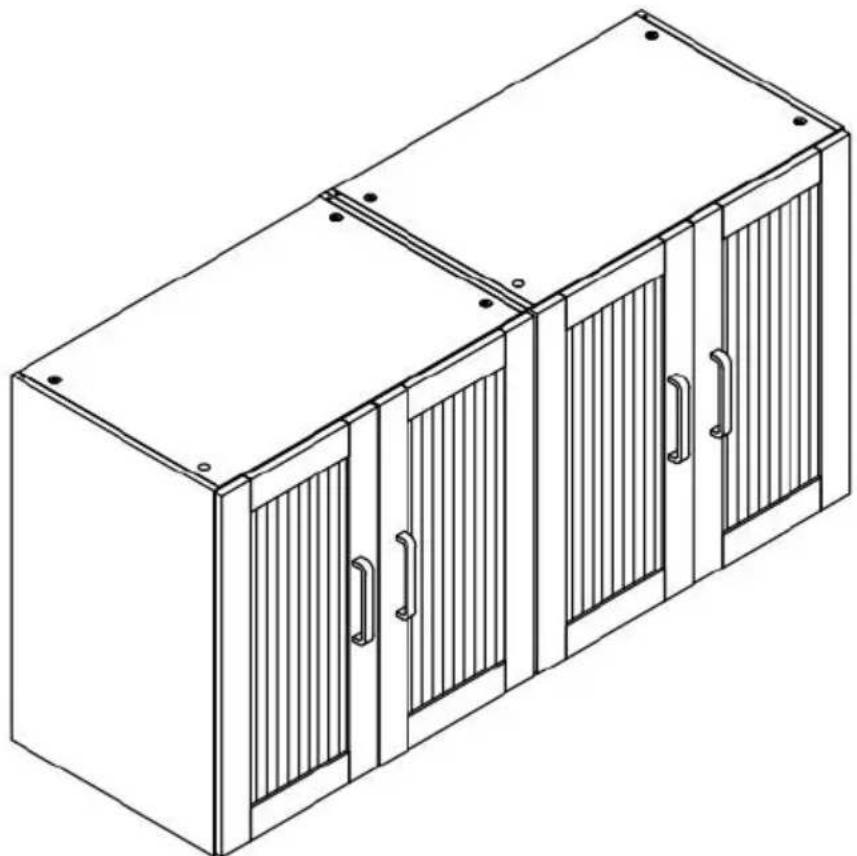

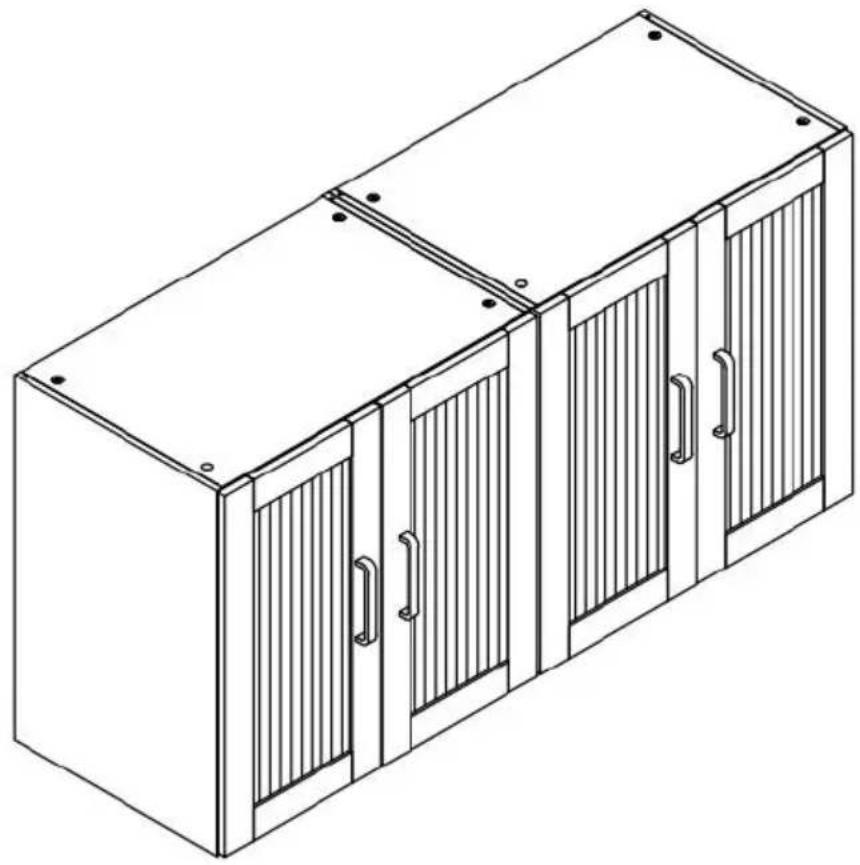

natural_image Line drawing of a multi-compartment cabinet or enclosure with three doors and vertical slats (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

  1. Assemble only according to these instructions. Improper assembly may create hazards.
  2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
  3. Keep the assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble if tired or when under the influence of alcohol, or medication.
  6. The product capabilities apply to properly and completely assembled products only.
  7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Laundry Room Cabinets.
  8. If possible, you can use power tools to make assembly easier.
  9. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.
  10. It is recommended that the Laundry Room Cabinets be installed on load-bearing wall.

Use precautions

  1. Do not exceed specified weight capacities.
  2. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Laundry Room Cabinets.
  3. Use as intended only.
  4. Inspect before every use; do not use if parts are loose or damage
  5. If there is a gap in the cabinet door, it can be eliminated by ad the hinge, refer to step 12 of the assembly instructions.

SAVE THIS MANUAL

PARTS LIST

Vevor XYFG-04 - PARTS LIST - 1Vevor XYFG-04 - PARTS LIST - 2Vevor XYFG-04 - PARTS LIST - 3Vevor XYFG-04 - PARTS LIST - 4Vevor XYFG-04 - PARTS LIST - 5
A×24B×16C×8E×8F×4
Vevor XYFG-04 - PARTS LIST - 6Φ3.5*12Vevor XYFG-04 - PARTS LIST - 7Φ3.5*30Vevor XYFG-04 - PARTS LIST - 8[1]Vevor XYFG-04 - PARTS LIST - 9Vevor XYFG-04 - PARTS LIST - 10
G×32H×8I×4J×8K×1
Vevor XYFG-04 - PARTS LIST - 11
L×24
Spare Parts
Vevor XYFG-04 - PARTS LIST - 12Vevor XYFG-04 - PARTS LIST - 13
A×2B×2

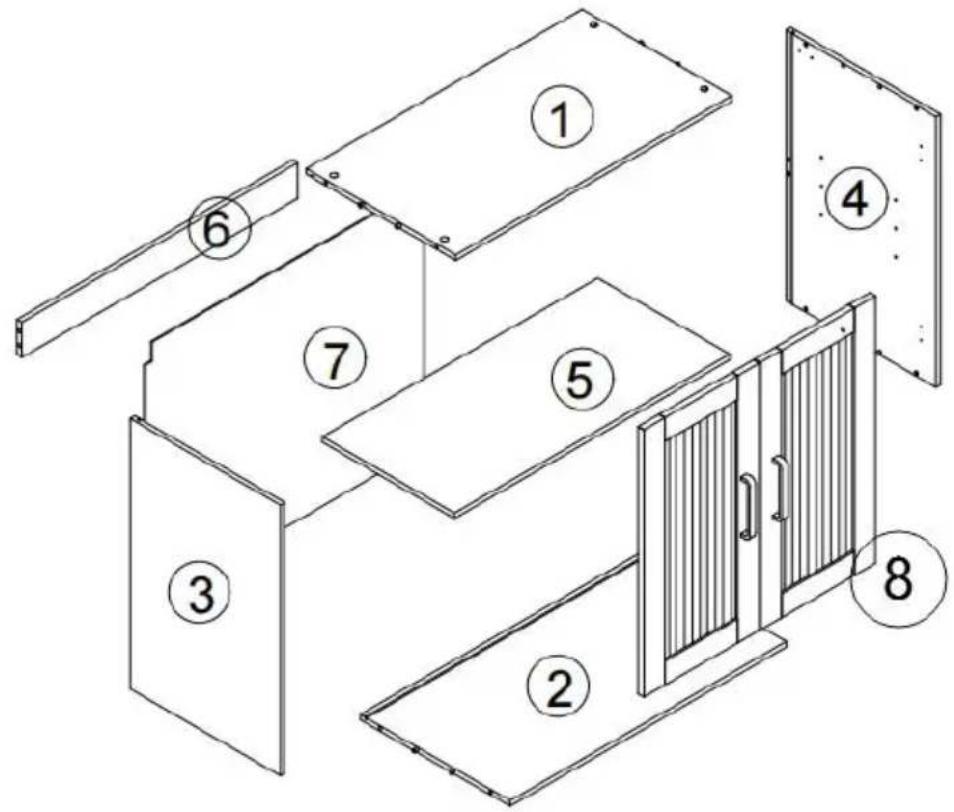

Technical diagram of a multi-panel door assembly with numbered components for identification

Technical diagram of a multi-panel door assembly with numbered components for identification

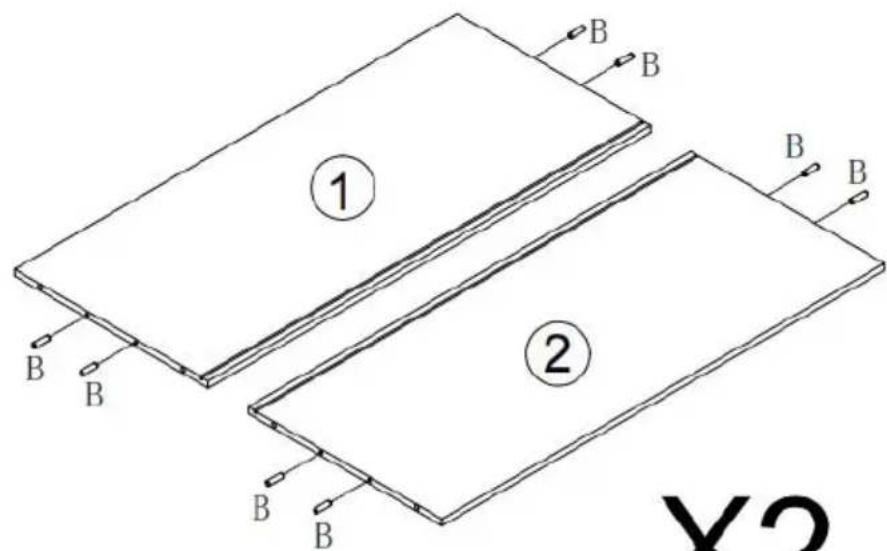

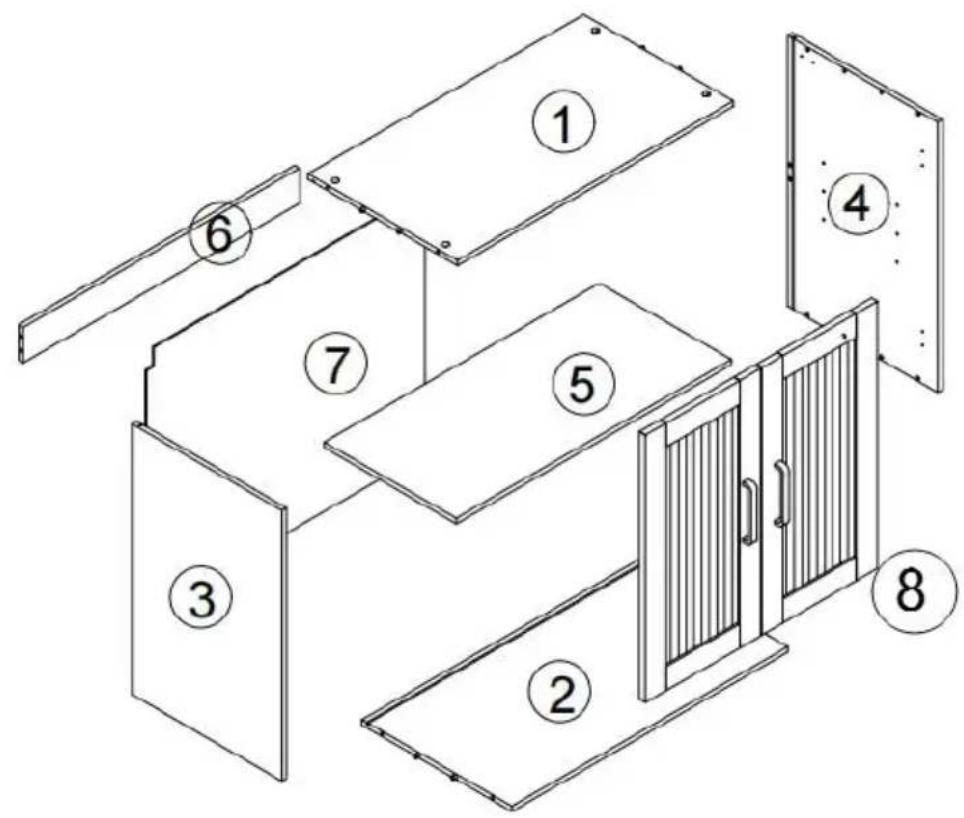

1Vevor XYFG-04 - PARTS LIST - 16585.5x289x12 2 PCS2Vevor XYFG-04 - PARTS LIST - 17585.5x289x12 2 PCS3Vevor XYFG-04 - PARTS LIST - 18610x290x12 2 PCS
4Vevor XYFG-04 - PARTS LIST - 19610x290x12 2 PCS5Vevor XYFG-04 - PARTS LIST - 20583.5x243x12 2 PCS6Vevor XYFG-04 - PARTS LIST - 21585.5x80x12 2 PCS
7Vevor XYFG-04 - PARTS LIST - 22592x592.5x3 2 PCS8Vevor XYFG-04 - PARTS LIST - 23605x300.5x15 4 PCS

1

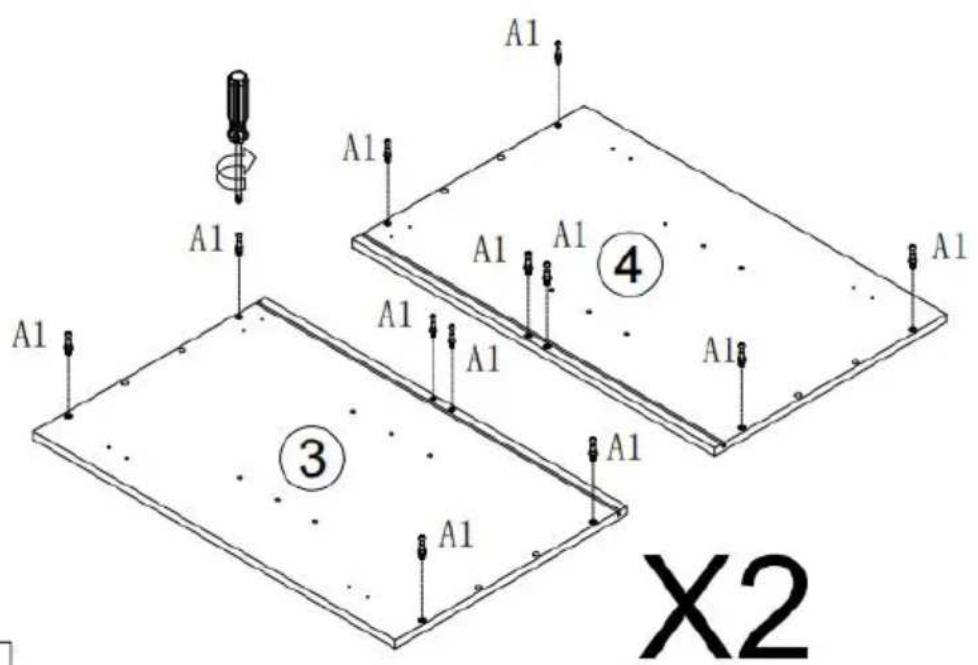

A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 ④ ③ X2

A1
Vevor XYFG-04 - PARTS LIST - 25
2

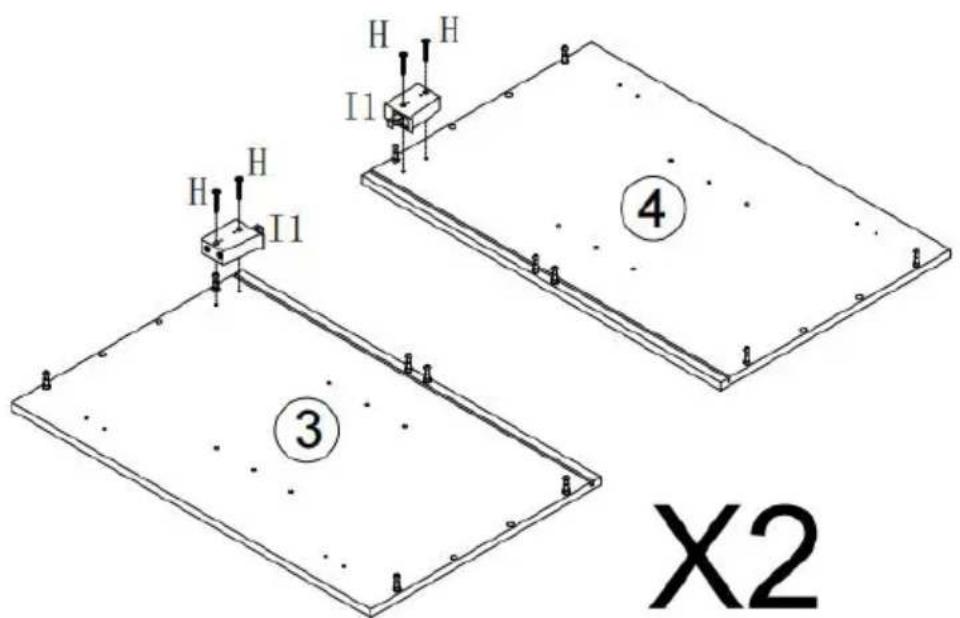

H H H I1 I1 ④ ③ X2

I1
Vevor XYFG-04 - PARTS LIST - 27
H

Vevor XYFG-04 - PARTS LIST - 28

3

G G C ⑧ G G C ⑧ G G C x2

X2

C 8pcs G Φ3.5*12 16pcs

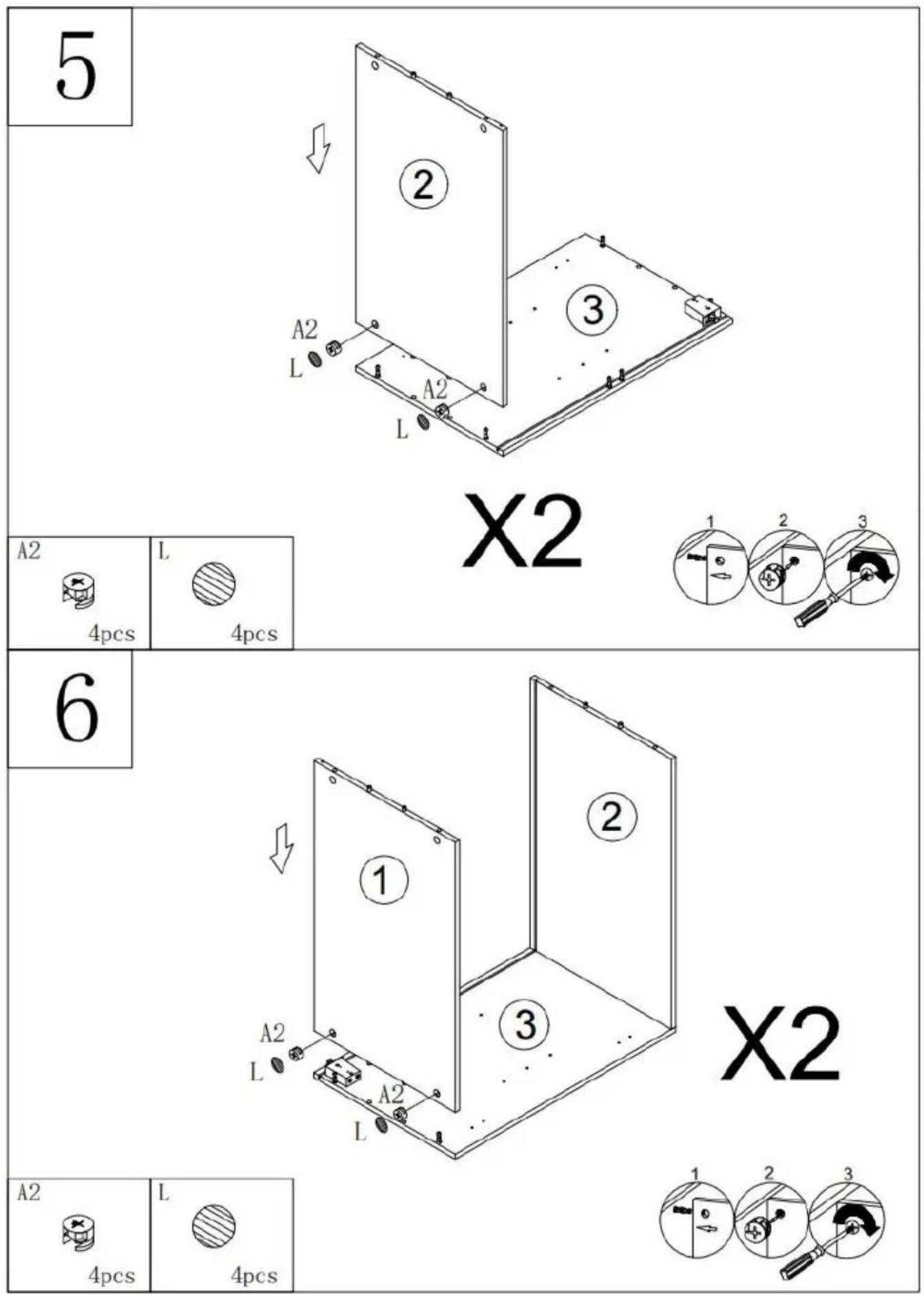

5 A2 L A2 L ② ③ X2 1 2 3 A2 4pcs L 4pcs 6 A2 4pcs L 4pcs ① ② ③ X2 1 2 3

7

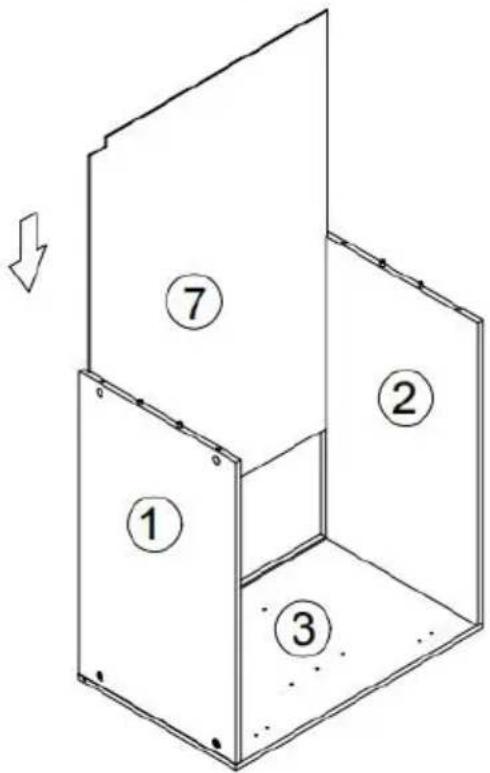

Note that part ⑦ is cut up.

Diagram of a 3D mechanical part with numbered sections and an arrow indicating direction, likely illustrating a folding or assembly process.

X2

8

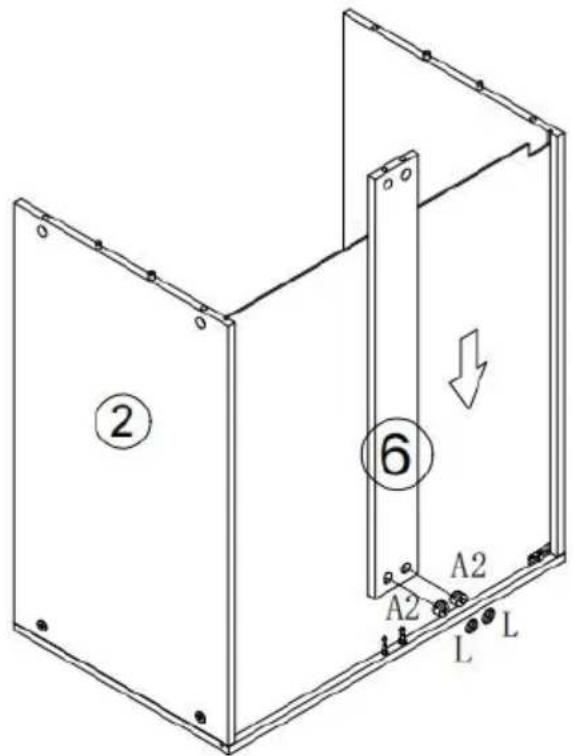

② ⑥ A2 A2 L L

X2

A2Vevor XYFG-04 - PARTS LIST - 344pcsLVevor XYFG-04 - PARTS LIST - 354pcs

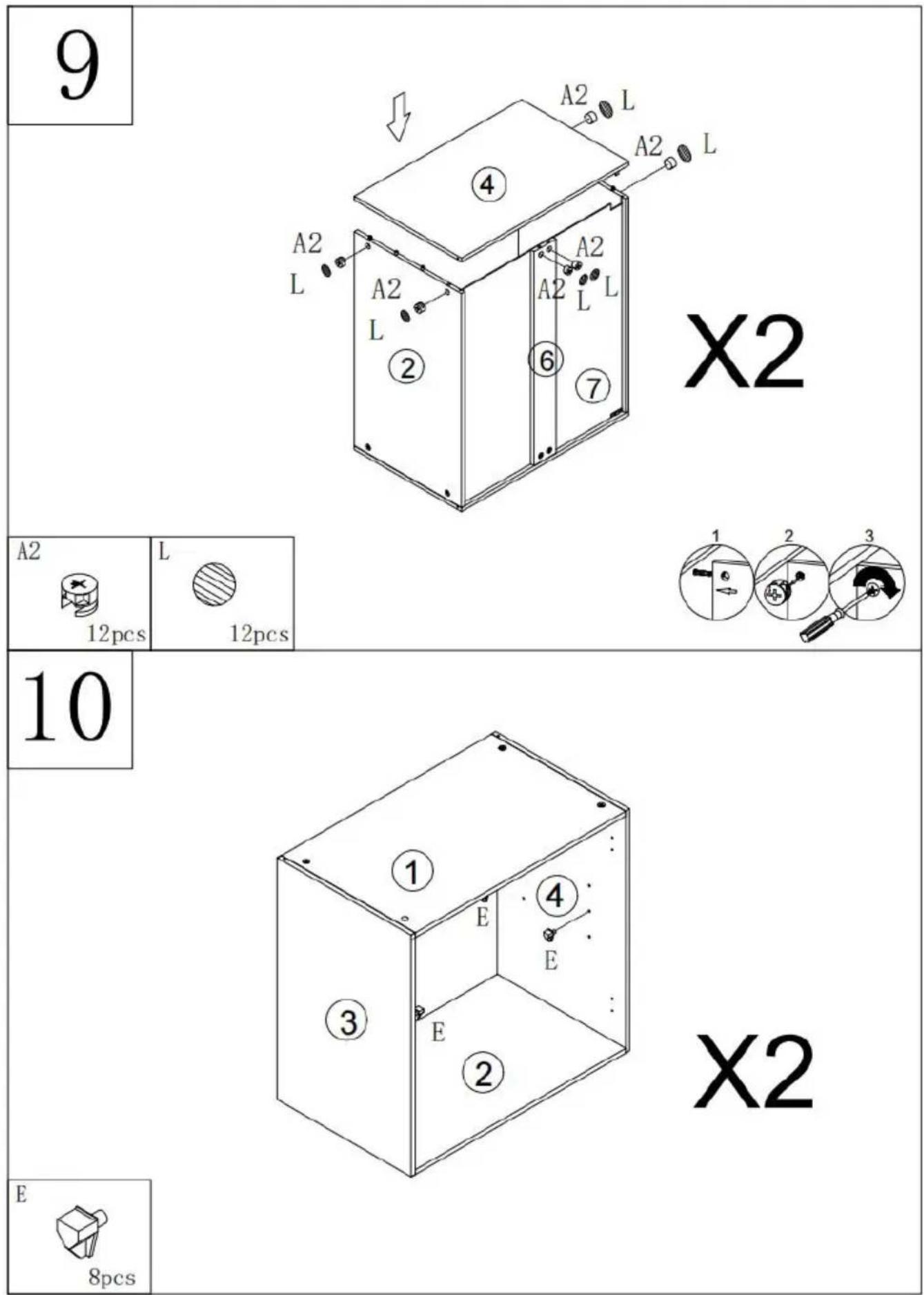

9 A2 L A2 L A2 L A2 L X2 A2 L 12pcs 12pcs 1 2 3 10 ① E ④ ③ E ② X2 E 8pcs

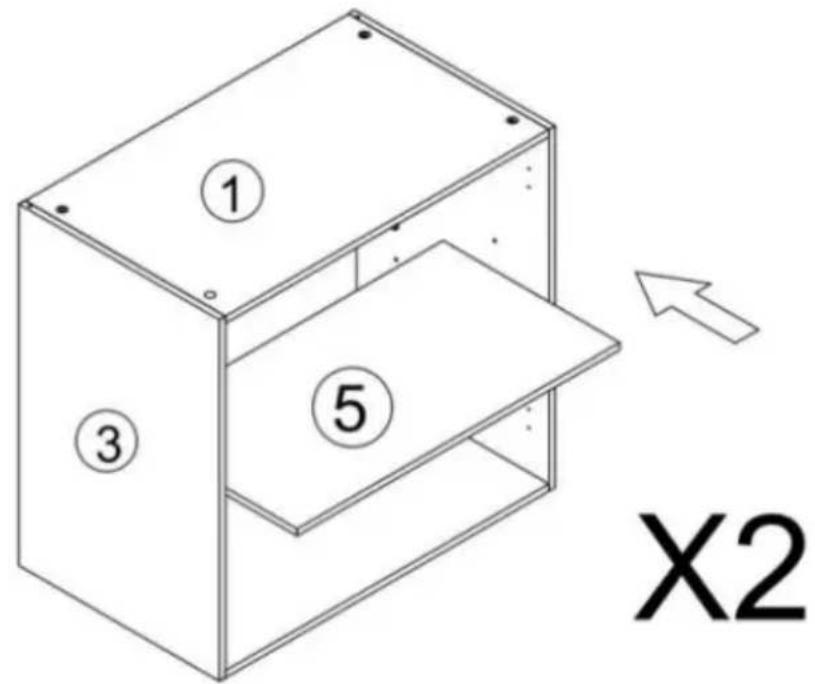

11

① ③ ⑤ X2

12

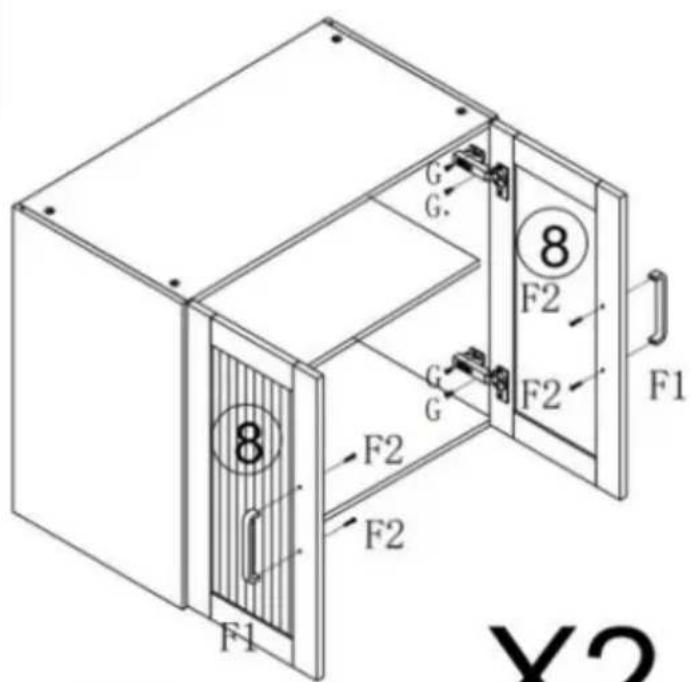

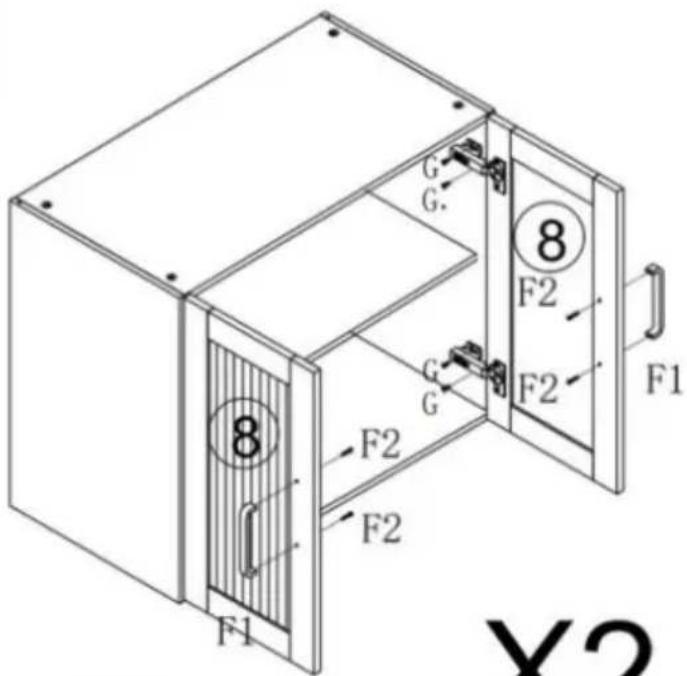

G G. G F2 F1 F2 F2 F1 8 8 x2

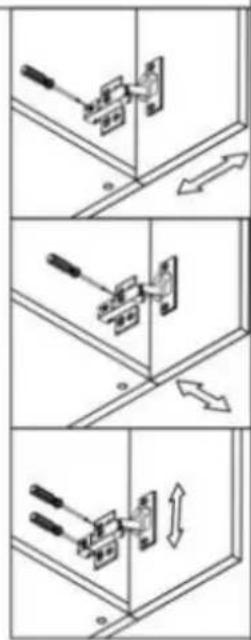

Diagram showing three sequential steps of a mechanical or electrical component assembly with directional arrows indicating movement.

F1 4pcs F2 Φ4*18 4pcs G Φ3.5*12 16pcs

X2

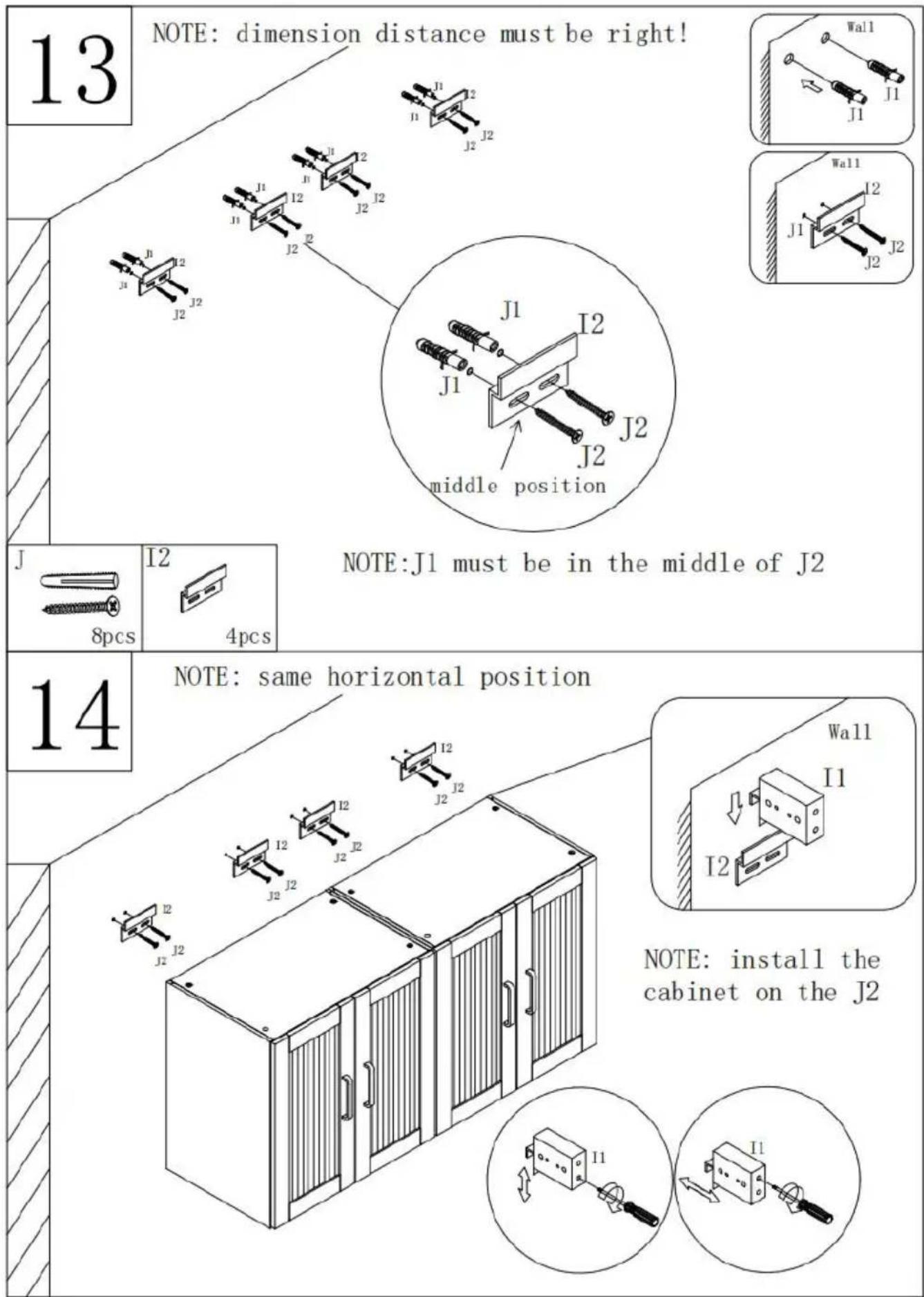

Vevor XYFG-04 - PARTS LIST - 41

ModelXYFG-04
Main ColorWhite
Safe Loading Weight160 lbs
Single Product Size(D W× H)305*610*610mm
Product Size(D W× H)305*1220*610mm
Net Weight25kg

* Products such as specifications, appearance, and design are subject to modification without prior notice.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

Vevor XYFG-04 - PARTS LIST - 42

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SZAFKI DO PRALNI

MODELE: XYFG-0 4

www.vevor.com/support
