USER MANUAL T271802 Vevor

Affordable. Reliable. Home Improvement.

TOOL CART

MODEL: T271802

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL: T271802

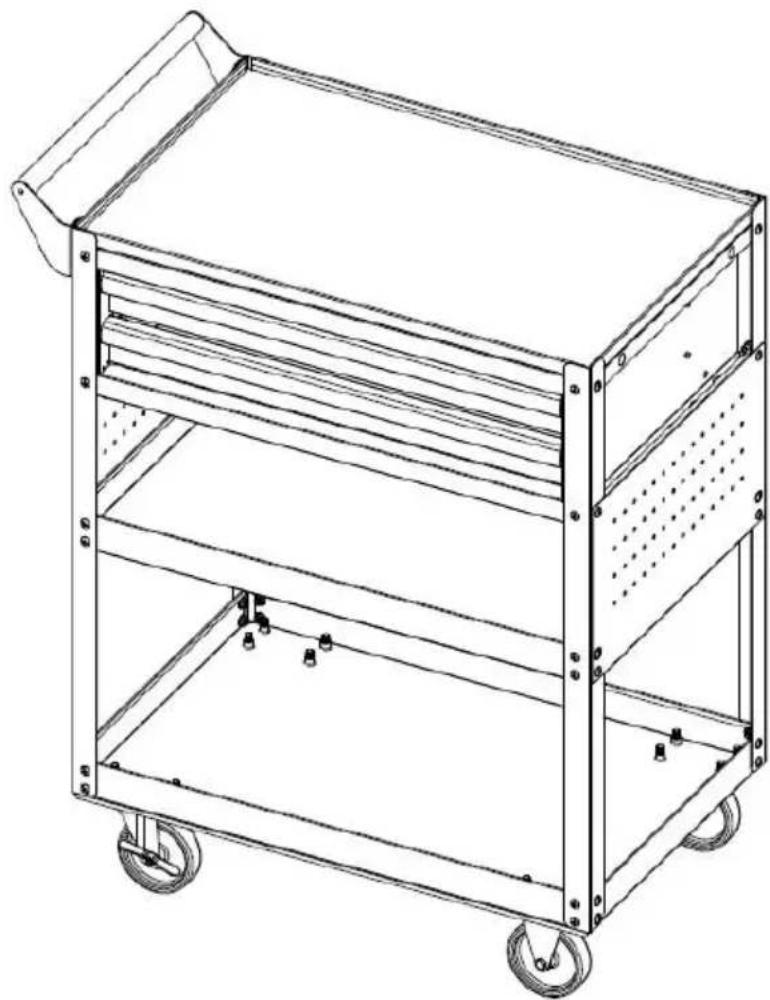

Line drawing of a multi-tiered industrial cart with wheels and handle (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user make. The appearance of the product shall be subject to the product you need. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

	Warning - To reduce the risk of injury, user must re instructions manual carefully.
	This symbol, placed before a safety comment, indicate kind of precaution, warning, or danger. Ignoring this may lead to an accident. To reduce the risk of injure electrocution, please always follow the recommendation shown below.
	Warning- Be sure to wear gloves when using this pr

WARNING!

1) Keep this manual for the safety warnings and precautions. The ma offers important information on how to assemble, use and maintain this product.
2) Please handle metal edges carefully.
3) DO NOT stand on this product or use it as a ladder.
4) DO NOT alter this product in any manner that is not intended, as may cause product damage or personal injury.
5) Always assemble on an even surface.
6) The maximum loaded weight on the tool cart is no more than 40 evenly distributed.
7) Bind the goods with the cart tightly with the Tie-down strap before moving.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assem
3. Do not try to assemble the product when feeling tired or when un influence of alcohol, drugs or medication.

4. Load-bearing capacity and other product parameters are applied to properly and completely assembled product only.

5. A Philips screwdriver, an open end wrench 14# and a pair of glo may also be used (Not included in the carton).

USE PRECAUTIONS

1. This product is not a toy. Do not allow children to play with or go to this item.
2. Check carefully before use. Do not use if parts get loosened or damaged.
3. Use on flat and hard surfaces only.
4. Do not exceed the listed load-bearing capacity. Tighten all the kno securely before placing weights on them. Be aware of the dynamic load-bearing capacity! Sudden load changes may temporarily cause excessive load, resulting in product failure.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

MODEL	T271802
Product size	785*450*945 mm
Total load limit	400 lbs

PART LIST

Part	Description	Picture	Part Qty		Part	Description	Picture	Part Qty
1	Bottom shelf		1		10	Handle		1
2	Middle shelf		1		11	Back board		1
3	Top shelf		1		12	Top EVA		1
4	Drawer		2		13	Drawer EVA		2
5	Left drawer mounting plate (with lock)		1		14	Swivel Caster with Brake		2
6	Right drawer mounting plate		1		15	Rigid Caster		2
7	Pegboard		2		16	Bolt M8*20		16
8	Upright		4		17	Bolt M6*12		52
9	Beam		2		18	Nut M6		32

Attention:

For additional information regarding the parts listed below, please refer to the sssembly diagram in this manual. Unwrap and separate a parts in a clear work area.

ASSEMBLY STEP

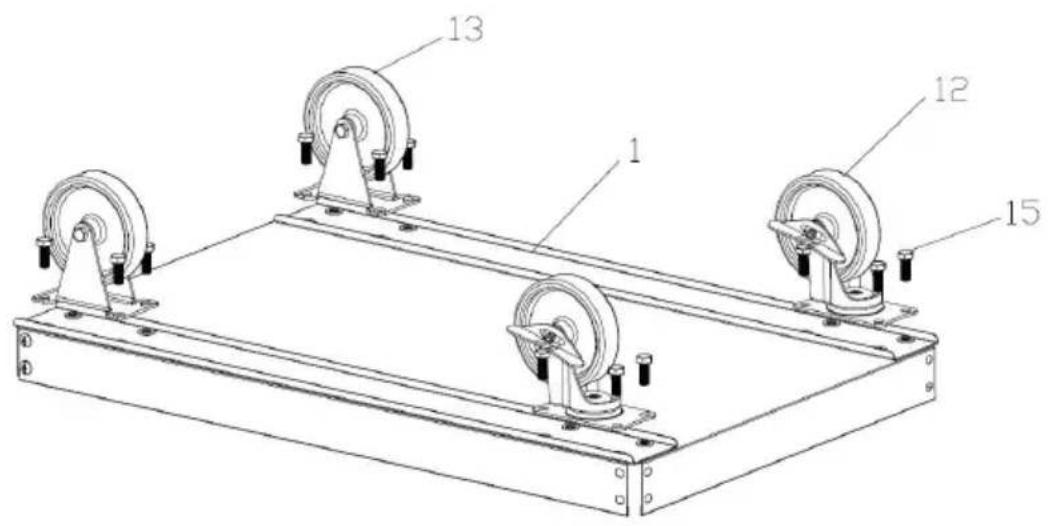

Step 1: Assembly the Casters.

1. Turn over the Bottom shelf 1#.
2. Assemble the Casters 12#&13# with Bolts 15# as shown.

Technical diagram of a mechanical assembly with labeled components 1, 12, and 13

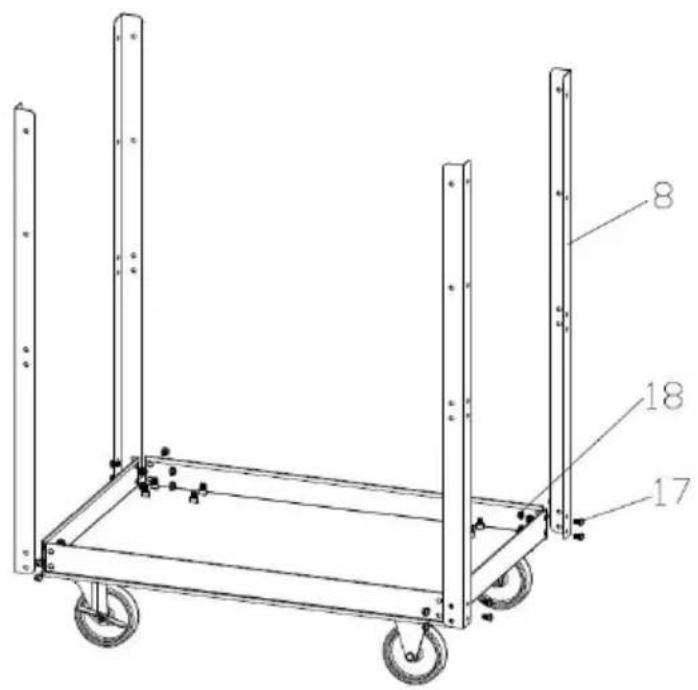

Step 2: Assembly the Upright 8#.

1. Turn over the Bottom shelf and put the Casters on the ground.
2. Assembly the Uprights 8# with Bolt 17# and Nut 18#, attention to the Up direction, and don't lock the bolt too tight.

8 18 17

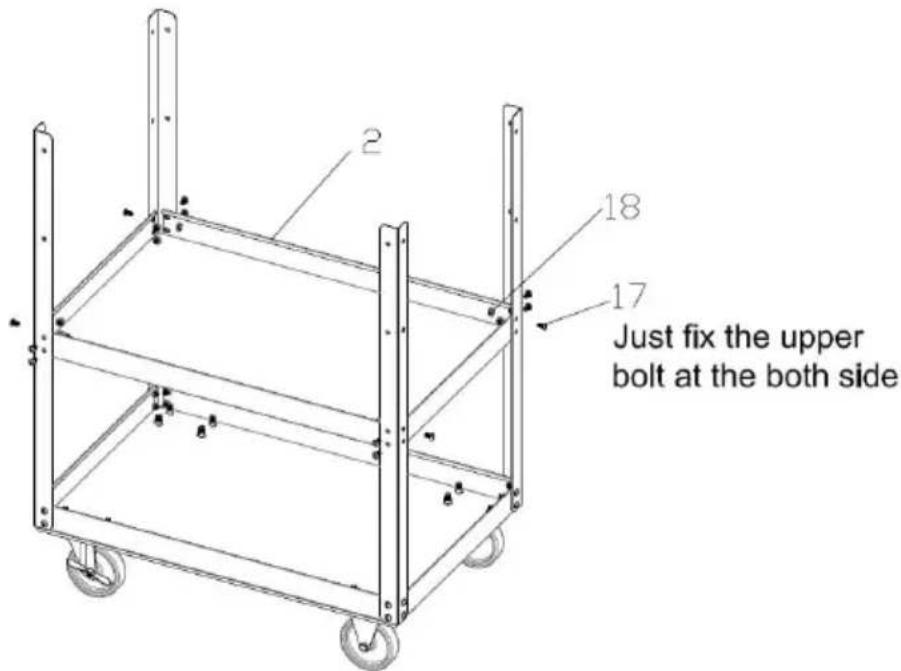

Step 3: Assembly the Middle shelf 2#.

1. Put the Middle shelf 2# as shown and fix with Bolt 17# and Nut 18#; attention: just fix the upper bolts on the both sides first, and don't lock the tight.

Just fix the upper bolt at the both side

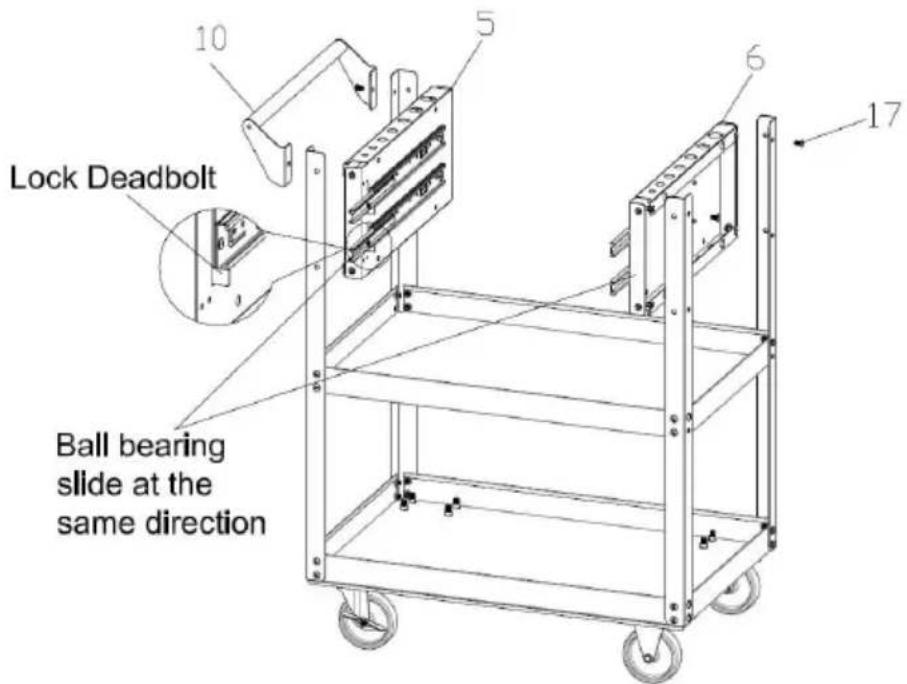

Step 4: Assembly the mounting plates 5#&6#, and Handle 10#.

1. Assembly the Left drawer mounting plate 5#, Right mounting plate and Handle 10# with Bolt 17# as shown; attention the Left mounting pla a lock, and put the ball bearing slide in the same direction; just fix the bolts first, and don't lock the bolt too tight.

10 5 6 17 Lock Deadbolt Ball bearing slide at the same direction

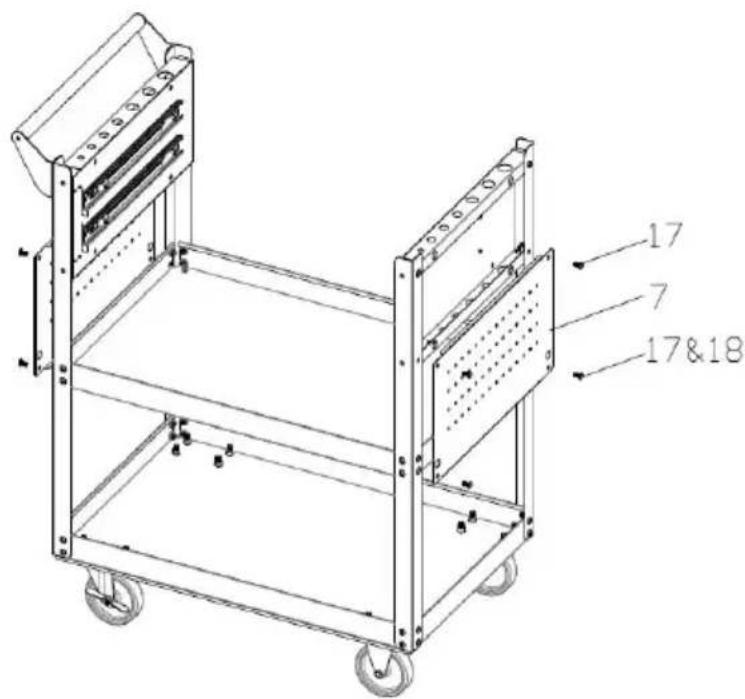

Step 5: Assembly the Pegboard 7# with bolt 17#.

1. 1. Put the Pegboard 7# as shown and fix with Bolt 17#, and don't lock too tight.

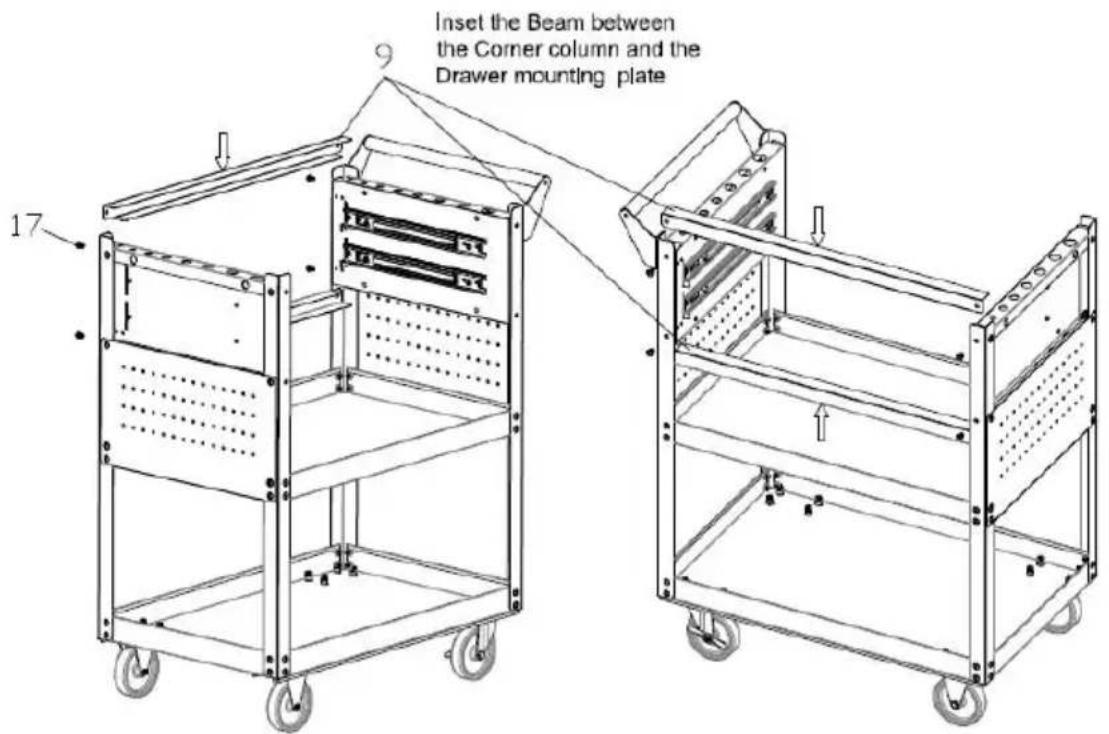

Step 6: Assembly the Beam 9# and Back board 11# with Bolt 17#.

1. Inset the Beam 9# between the Upright and the drawer mounting plate as shown and fix with Bolt 17#, Attention to the ball bearing slide and the Top hole in the same direction.

Inset the Beam between the Corner column and the Drawer mounting plate 17

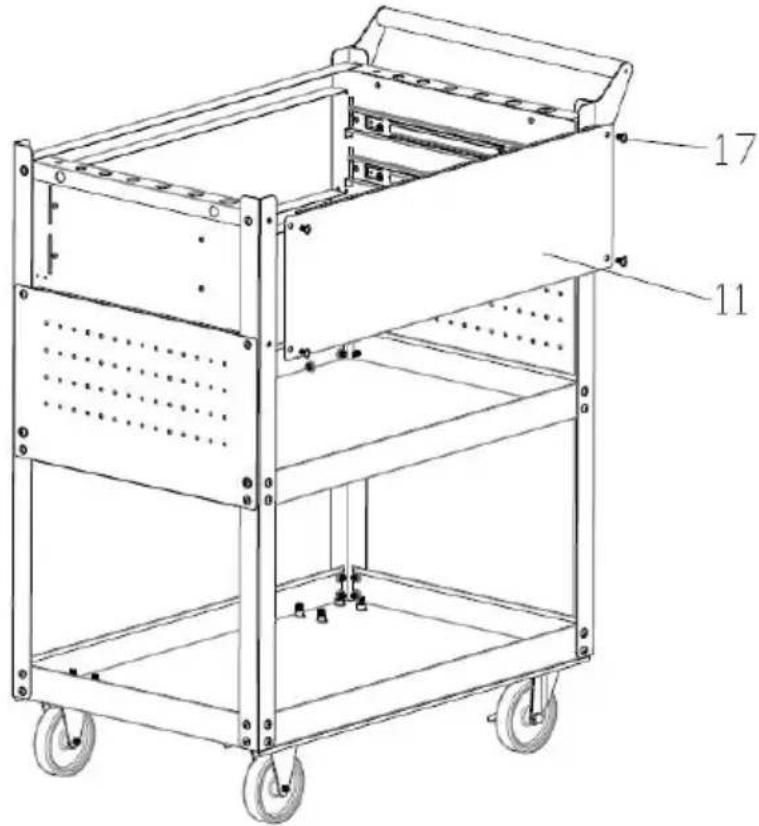

Step 7: Assembly the Back board 11#.

1. Put the Back board 11# as shown and fix with Bolt 17#.

Technical line drawing of a multi-level industrial cart with numbered components labeled 11 and 17

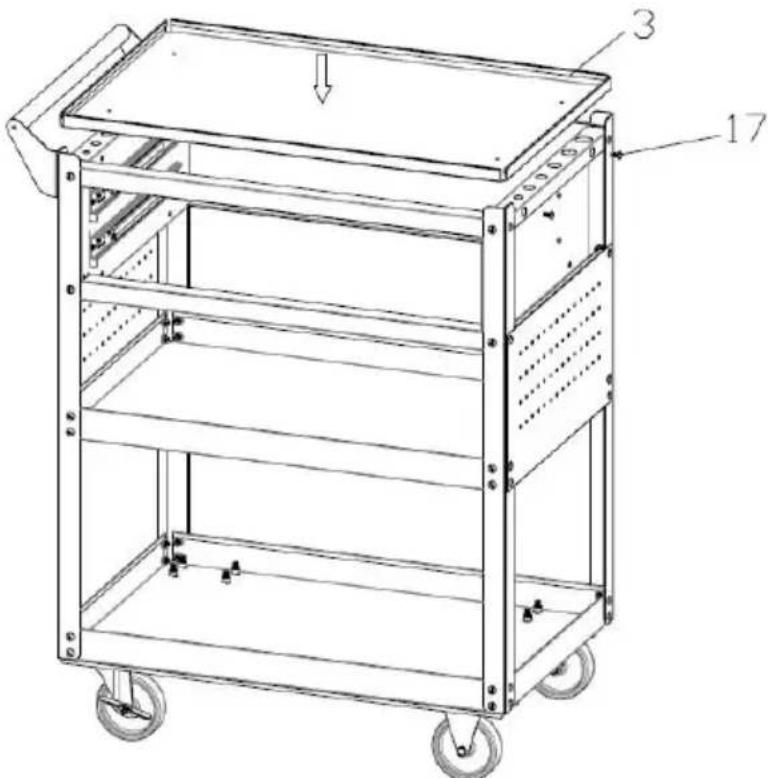

Step 8: Assembly the Top shelf 3#.

1. Put the Top shelf 3# as shown and fix with Bolt 17#, then fix all the b

Technical diagram of a multi-level industrial cart with labeled parts 3 and 17, showing structural components and mounting holes.

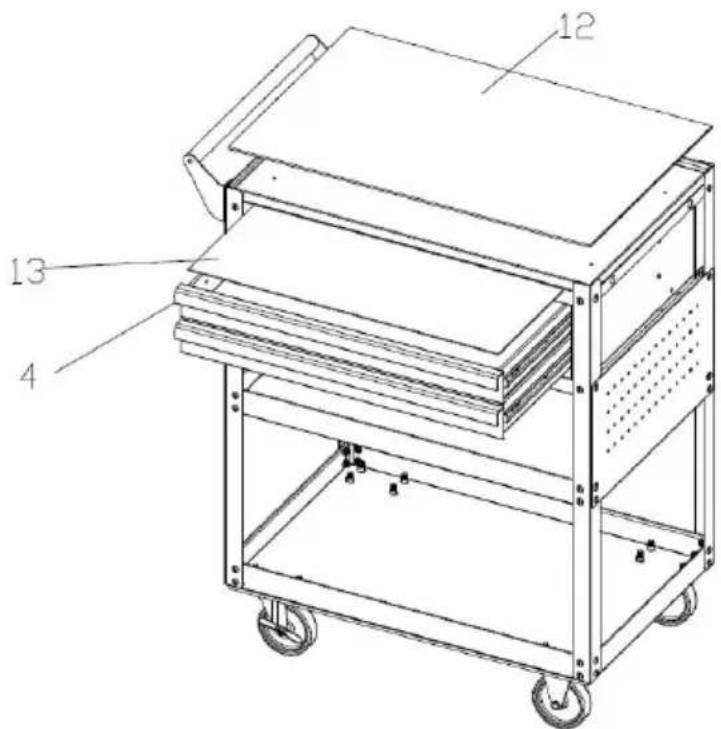

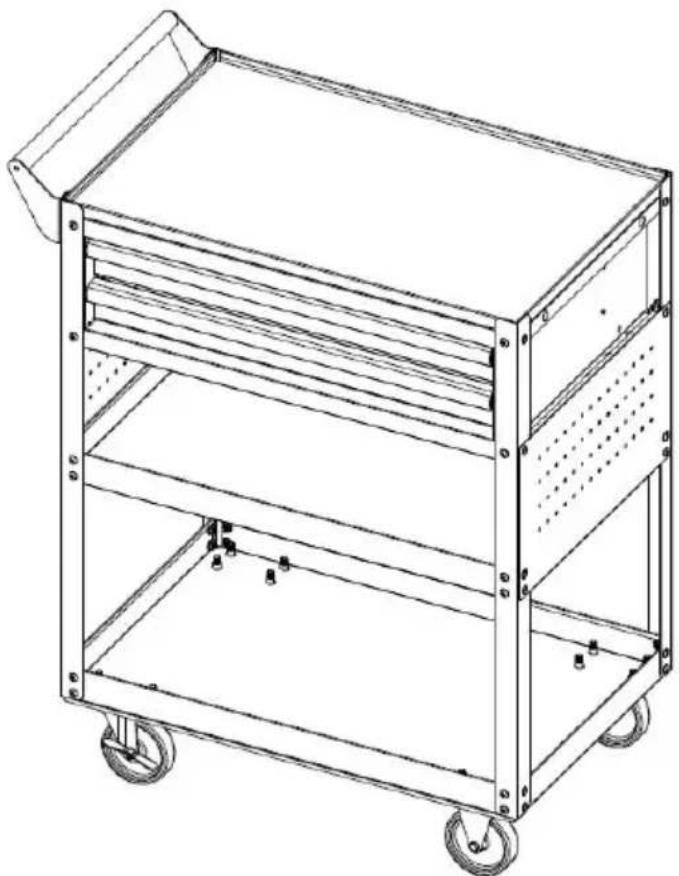

Step 9: Assembly the Drawer 4# and EVA.

1. Pull out the ball bearing slides and put the Drawer into it as shown, the Top EVA 12# and Drawer EVA 13# in their place.

Technical diagram of a multi-tiered mechanical cart with numbered components labeled 4, 12, and 13.

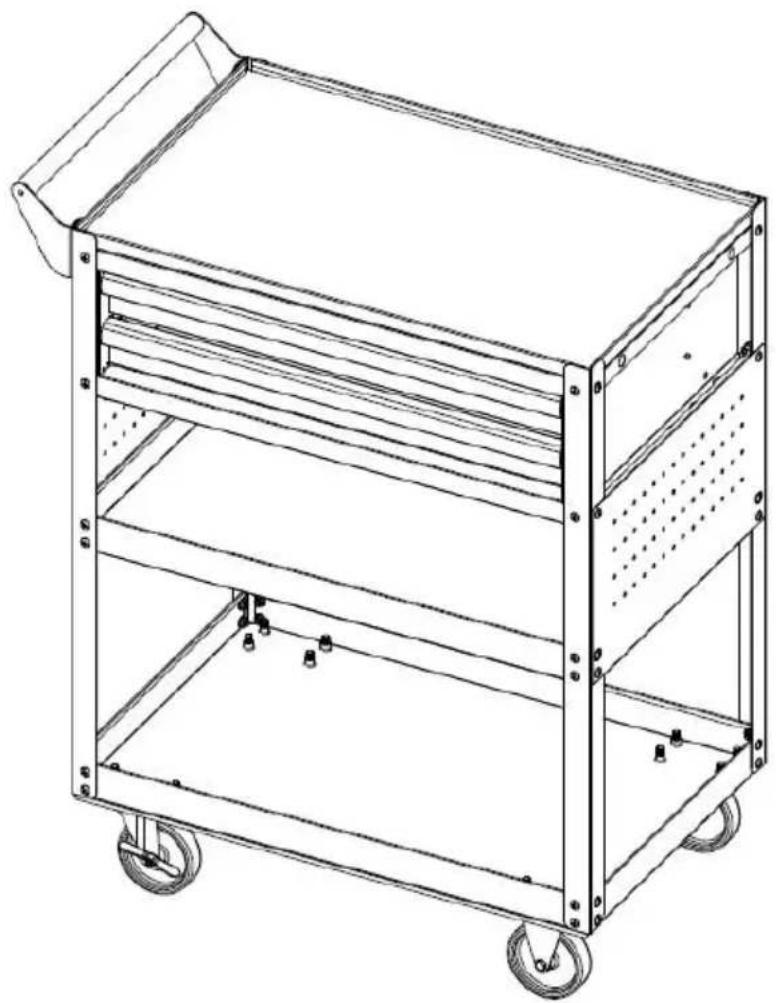

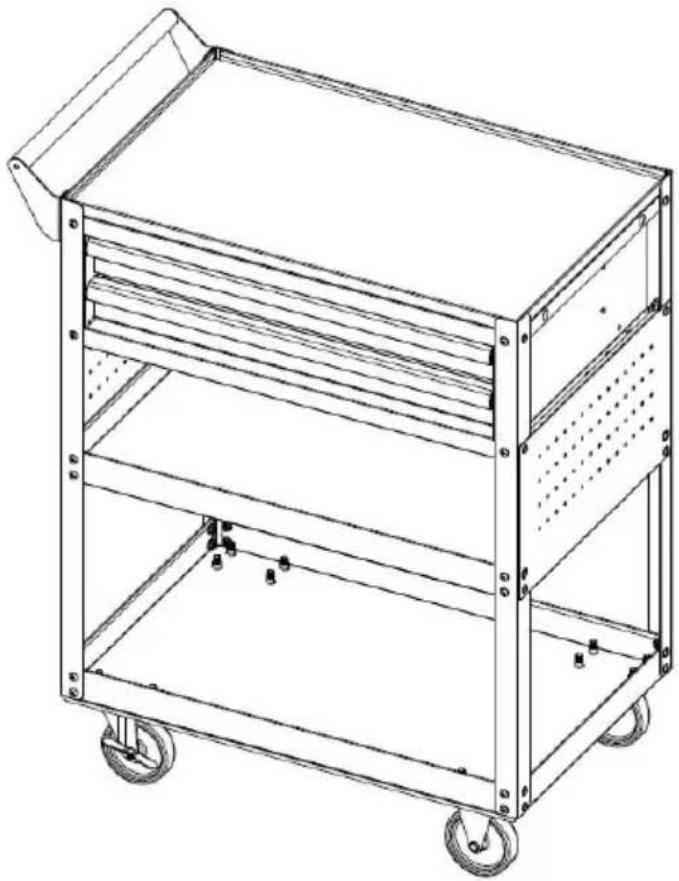

Step 10: Assembly complete.

Line drawing of a multi-tiered industrial cart with wheels and handle (no text or symbols)

Note: During installation, do not tighten the screws until all parts installed.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support
