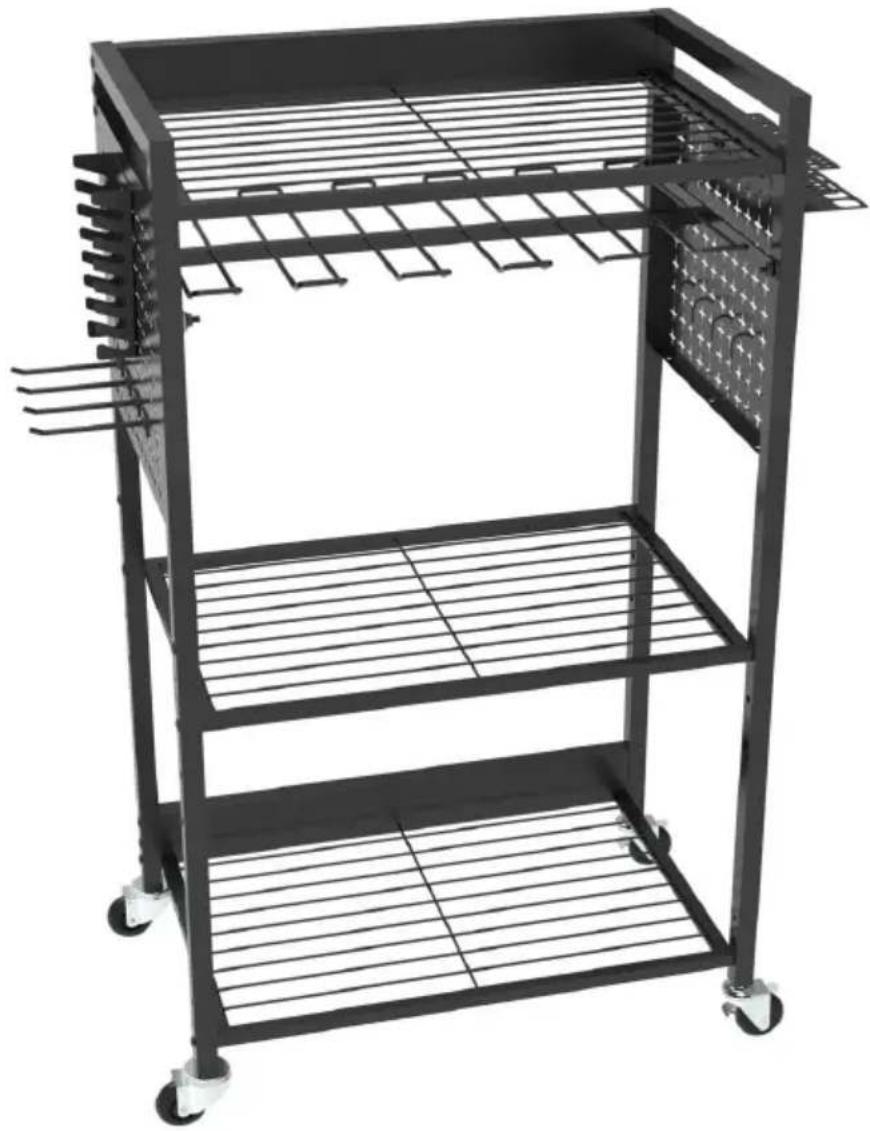

Black metal rack with grid and wheels, no visible text or symbols

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user may. The appearance of the product shall be subject to the product you need. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

ASSEMBLY PARTS LIST

Number	Description	Qty
1	Left upper plate	1
2	bracing piece	4
3	Right upper plate	1
4	Reticulated pla	3
5	Hanging pane	1
6	Dam-board	2
7	Screw holder	1
8	Hole hook	4

Safety Tips:

1. Lay a soft cloth or paper on the floor assembly to prevent the floor from scratching the parts.

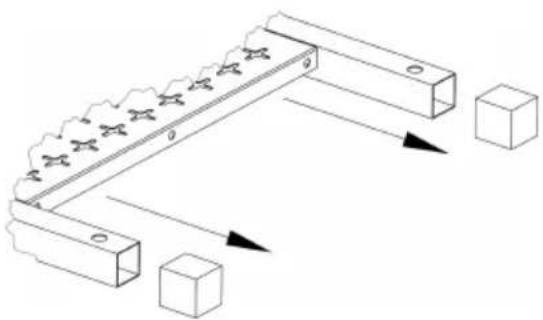

2. Before installation, remove the protective rubber caps of the left and right upper components, as shown in the right picture

Diagram of a conveyor belt system with directional arrows and components (no text or symbols)

1. The maximum load of each layer after assembly is 45 LBS.
2. The items on each layer should be evenly distributed.

Step1

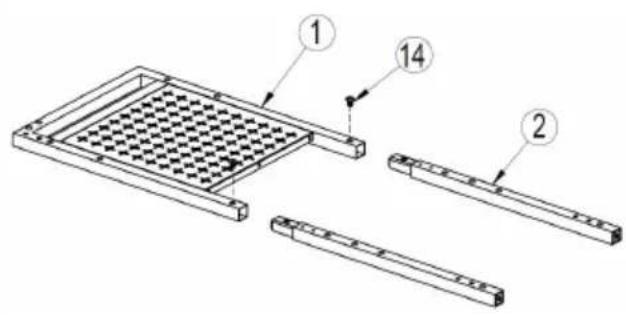

Connect Part①" and Part②" with screw ⑭".

Technical diagram of a grid-patterned metal frame assembly with numbered components

Step2

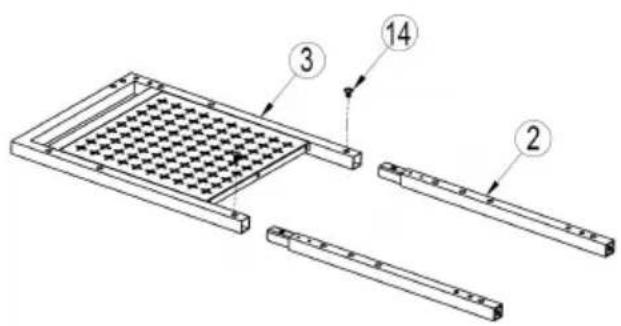

Connect Part③" and Part②" with screw⑭".

Technical diagram of a grid-based mechanical assembly with numbered components

Step3

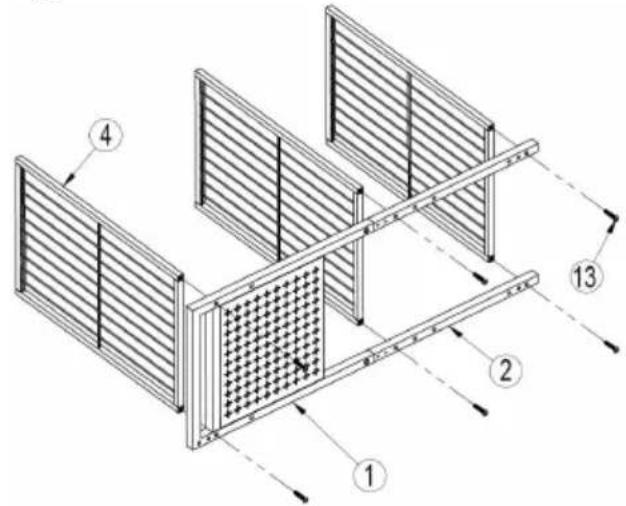

Attach parts “④” onto the assembled “①” and “②” with scr “⑬”.

Technical diagram of a structural frame with numbered components and directional arrows indicating assembly or flow.

Step4

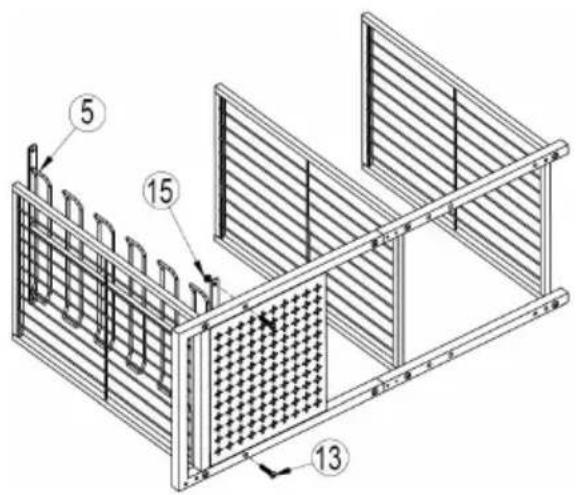

Attach Part “⑤” to the assem with screws “⑬” and nuts “⑮

5 15 13

Step5

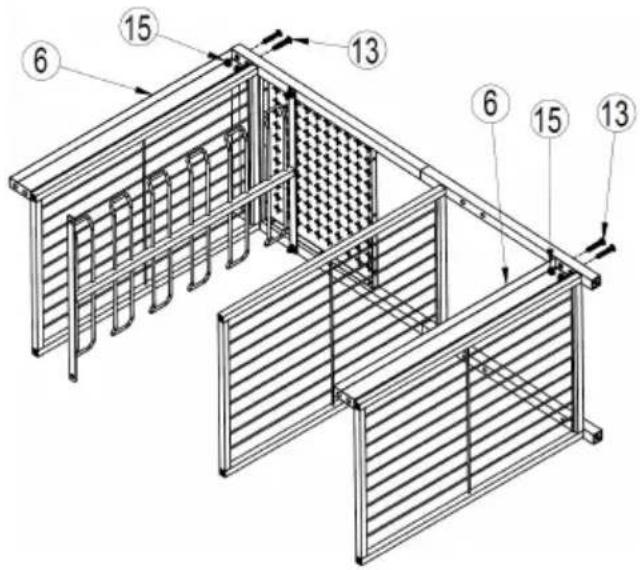

Attach part⑥" to the assembly screws ⑬" and nuts⑮".

Technical diagram of a structural frame with numbered components, likely for architectural or engineering design.

Step6

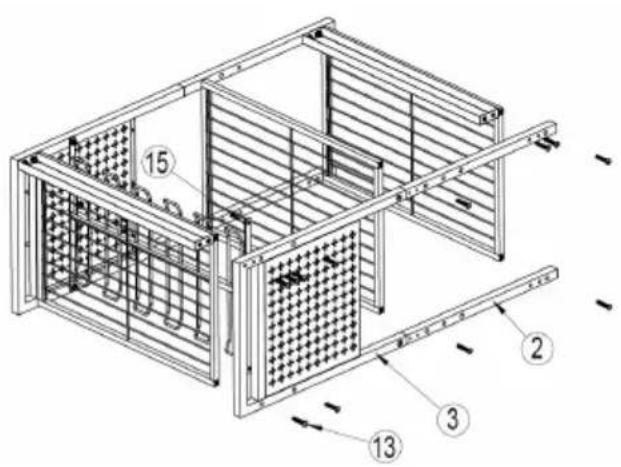

Repeat Steps 3-5 to connect the installation kit in Step 2 to the installation component.

Technical diagram of a modular cage or enclosure with numbered components and structural details

Step7

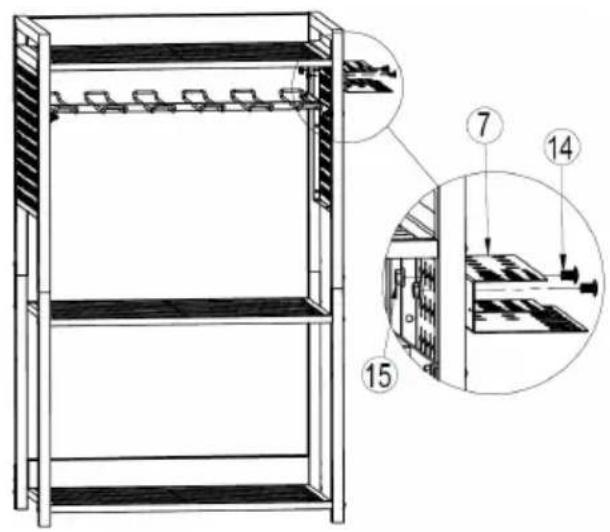

Attach part⑦” to the assembly screws ⑭” and nuts⑮”.

Technical diagram of a multi-level storage or rack system with numbered components and structural details

Step8

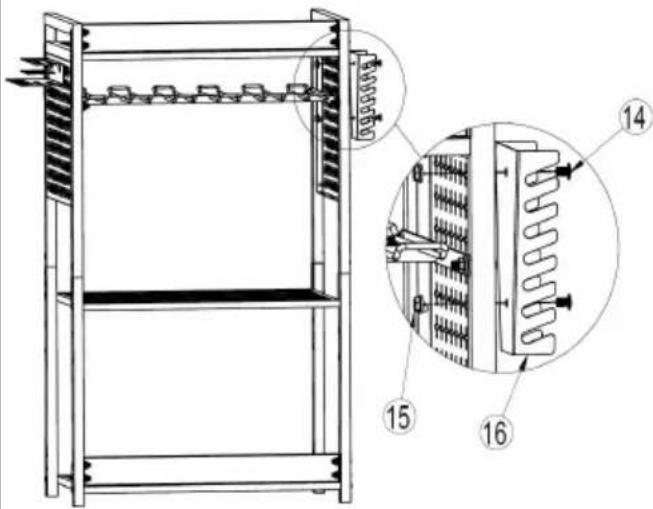

Attach part ⑯" to the assembl with screws ⑭" and nuts ⑮".

Technical diagram of a multi-tiered storage or rack system with labeled components and internal structure details

Step9

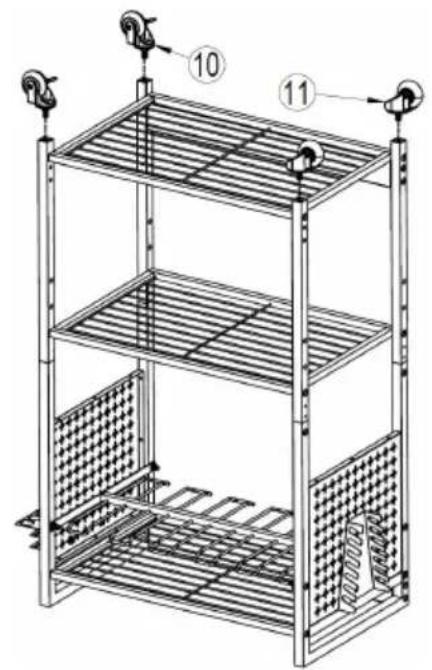

Install casters⑩” and ⑪” onto th assembly with wrench⑫”.

Technical diagram of a multi-level metal storage rack with labeled components 10 and 11, showing structural layout and mounting connections.

Step10

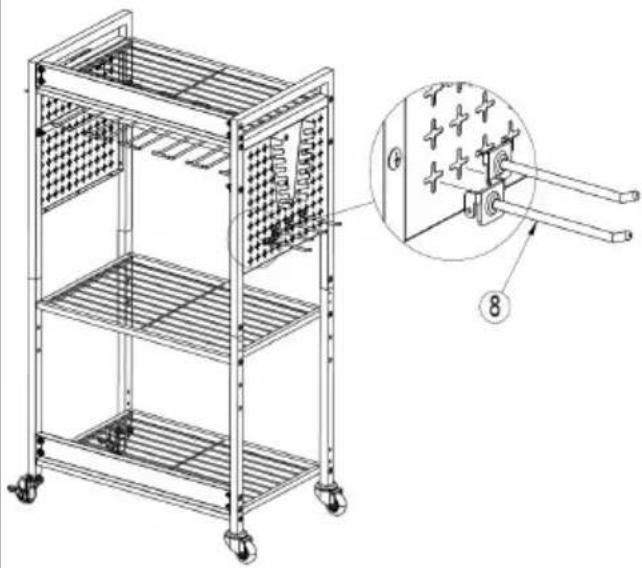

Install part ⑧” on the assembly as shown.

Technical line drawing of a multi-tiered shelving unit with a magnified inset showing internal components (no text or symbols)

Step11

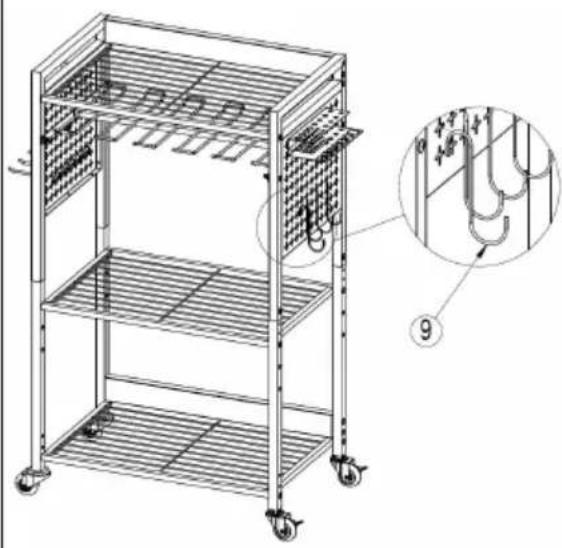

Install part⑨” on the assembly as shown.

Technical line drawing of a multi-tiered shelving unit with wheels and internal panels, showing structural details (no text or symbols)

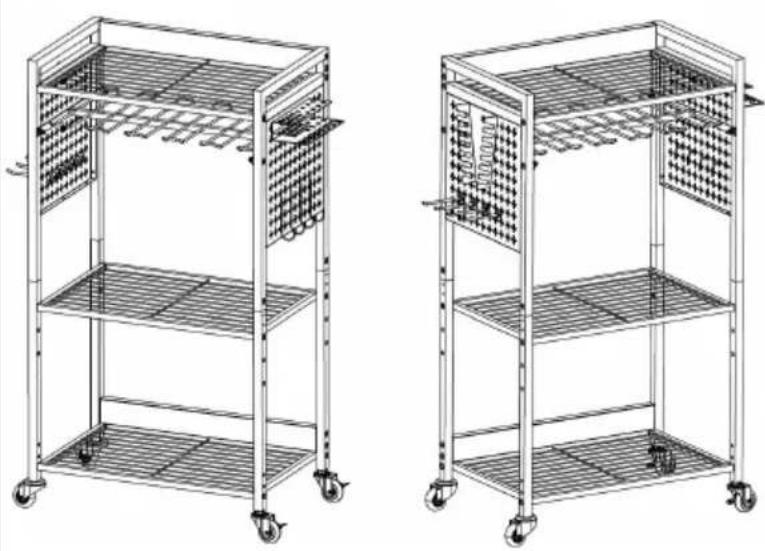

Installation complete

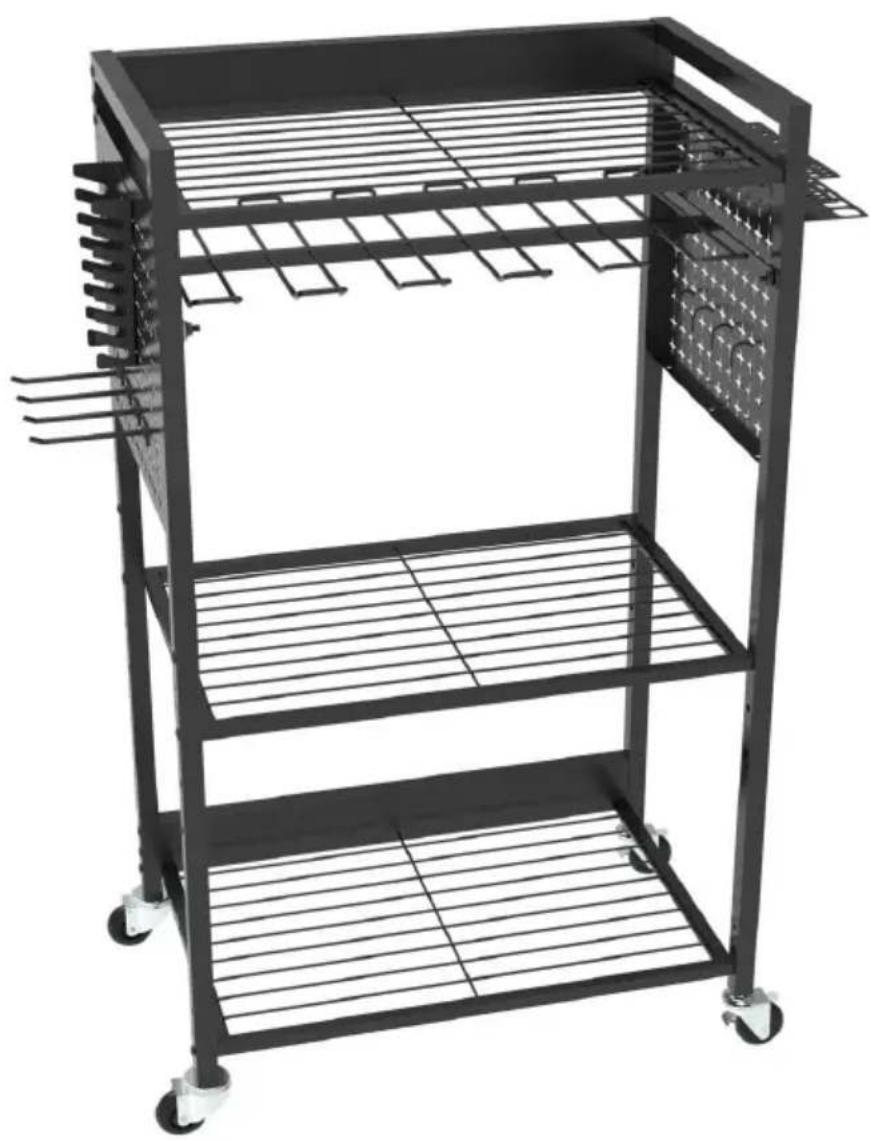

Two identical metal shelving units with grid panels, displayed on wheels (no text or symbols visible)

Note: During installation, do not tighten the screws until all parts installed.

PARAMETER

MODEL	ETT03
Cart body size	560*350*970 mm
Total load limit	150 lbs

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
