BELT GRINDER SANDER

Model:BS282

VEVOR

Affordable. Reliable. Home Improvement.

BELT GRINDER SANDER

MODEL:BS282

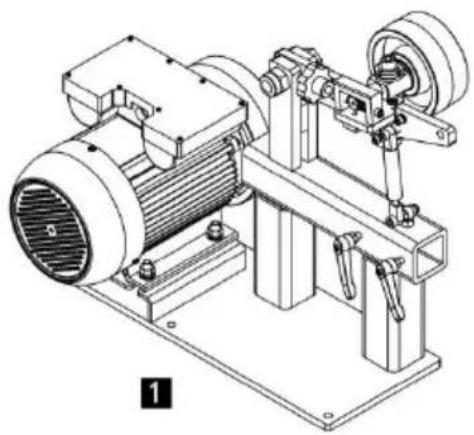

Technical line drawing of a mechanical assembly with exploded view and component details (no text or labels)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

First of all, thank you for purchasing the VEVOR series belt grinder sander. order to safely, effectively and skillfully master the various performance and operation methods of the machine, fully understand the structure, function an maintenance method of each part of the machine, you must read the instructions carefully before using it.

Because we are committed to the continuous improvement of the belt grinder sander, the information provided by our company is subject to change without notice.

PRODUCT DESCRIPTION

This brand new Belt Grinder Machine is an ideal machine for stock removal profiling, handles and finish work, satin or mirror finish. It is all steel constr and all steel frame is welded at all joints that makes this sander very soli precise belt control. Besides, it runs smooth and the tracking is very stable will not make a lot of noise. The drive will convert 1 phase into 3 phase greater control when doing detail work and reducing heat after blades are h treated. This grinder has top of the line idlers wheels ,motor & drive.

You must abide by certain safety precautions when using the equipm In order to prevent injuries and damages from occurring, you must always read through this operating manual carefully.

This manual must be kept in a safe place so that the information that it contains is always available. This operating manual must accompany the equipment if it is transferred to somebody else.

We do not accept any liability for accidents or damage arising from ignoring this manual and the safety instructions.

UNPACKING INSPECTION MATTERS

Each grinder has undergone strict factory testing before leaving the factory. The grinder has been unpacked, please perform the following inspection steps

1. Whether the product is damaged.
2. Whether the model, parameters and power supply value of the machine consistent with your order.
3. If you find any omission or damage, please contact your supplier as soon possible.

DEVICE PARAMETER

Model:	BS282
Motor:	120V~/1.5kw 60Hz	220~240V/1.5kw 50Hz
No-Load Speed:	0~2800 r/min	0~2800 r/min
Belt line speed:	32m/s	32m/s
Belt:	82*2 inch	82*2 inch
Package:	Wooden box	Wooden box
Machine size:	920*365*520mm	920*365*520mm
3 sets of grinding tools:	1× Round Grinding Whe 1× Flat Grinding Asseml 1× Arc Grinding Asseml	1× Round Grinding Whe 1× Flat Grinding Asseml 1× Arc Grinding Asseml

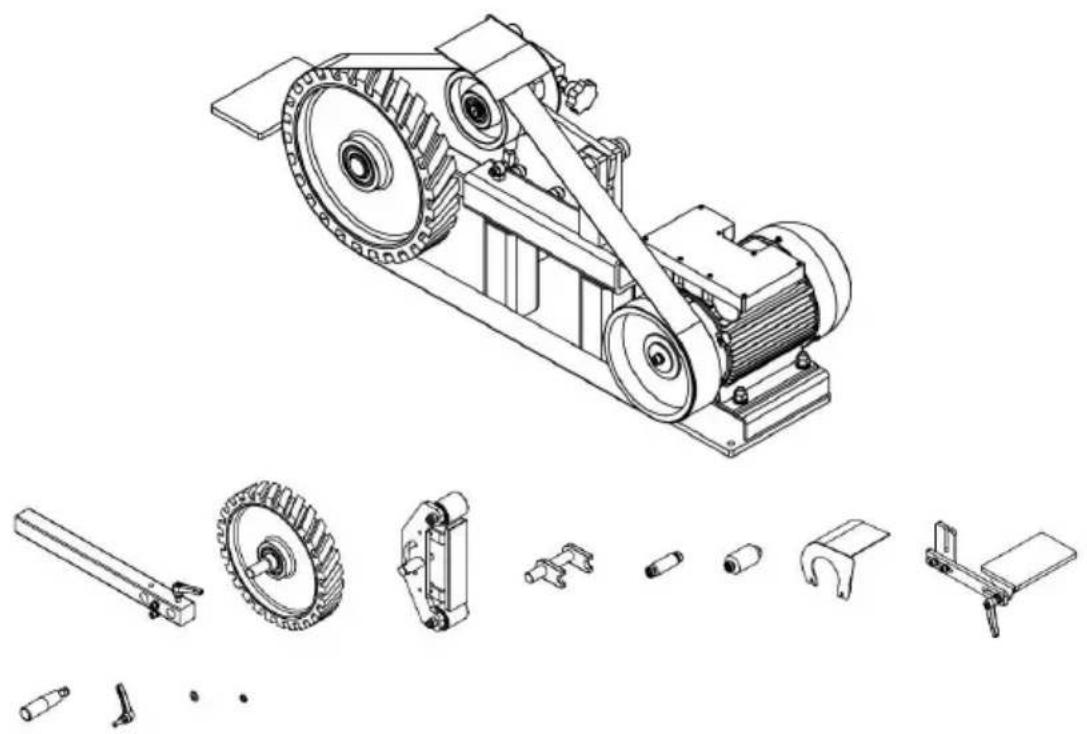

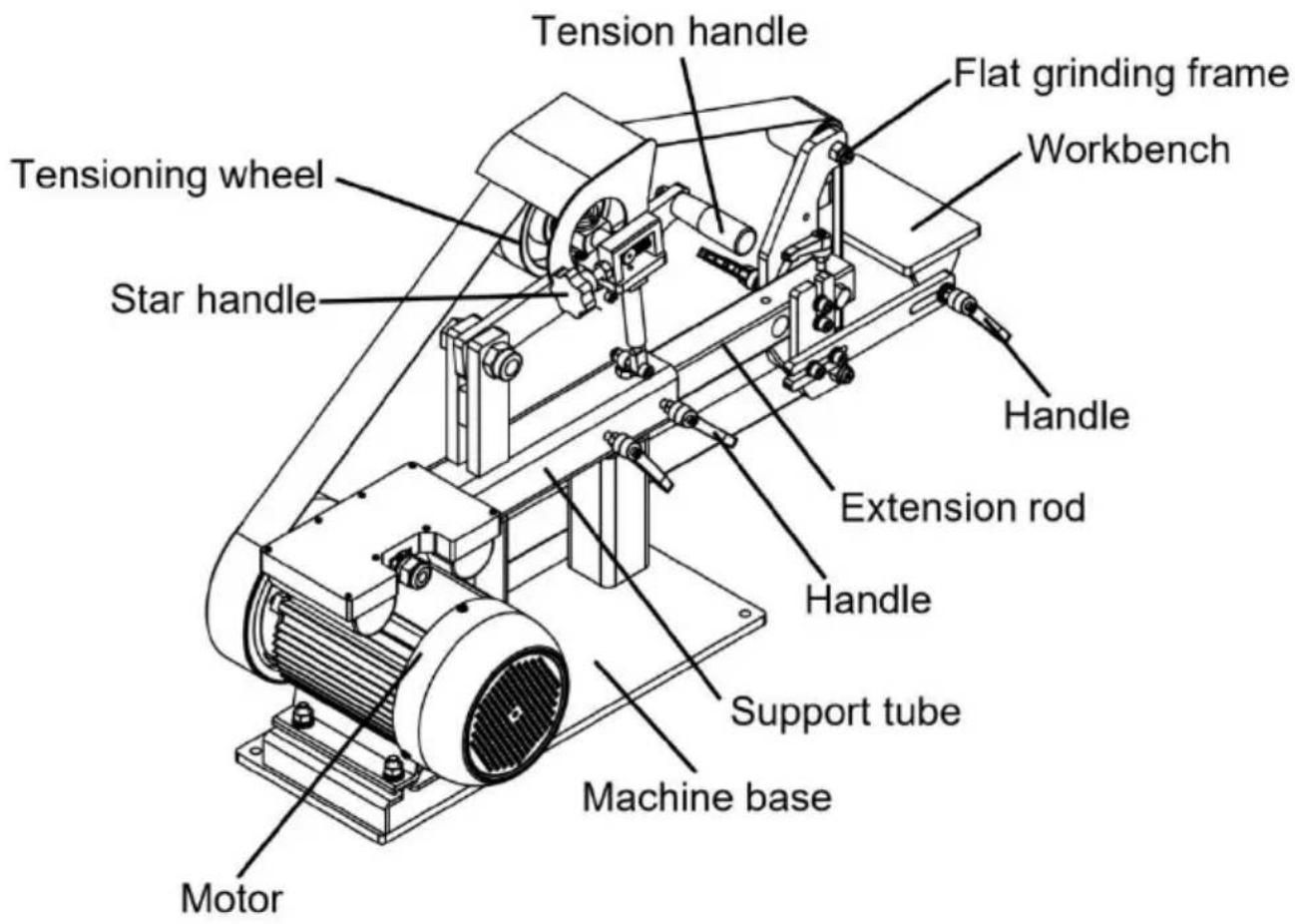

Tension handle Flat grinding frame Workbench Tensioning wheel Handle Star handle Extension rod Handle Support tube Machine base Motor

PACKAGE CONTENTS

No.	Item	Qty
1	BS282 Machine	1
2	Extension rod	1
3	Round grinding wheel	1
4	Flat grinding assembly	1
5	Arc grinding frame	1
6	Arc grinding wheel-25mm	1
7	Arc grinding wheel-40mm	1
8	Guard	1
9	Workbench assembly	1
10	Tension handle assembly	1
11	Handle	1
12	Washer	1
13	Spring pads	1
14	Sander Belt (not shown)	3

Technical line drawing of an electric motor with rotating components and mounting base (no text or symbols)

Technical line drawing of a mechanical tool or bracket (no text or symbols)

2

3

4

5
6
7
8

9

10
11
12
13

INSTALLATION METHOD

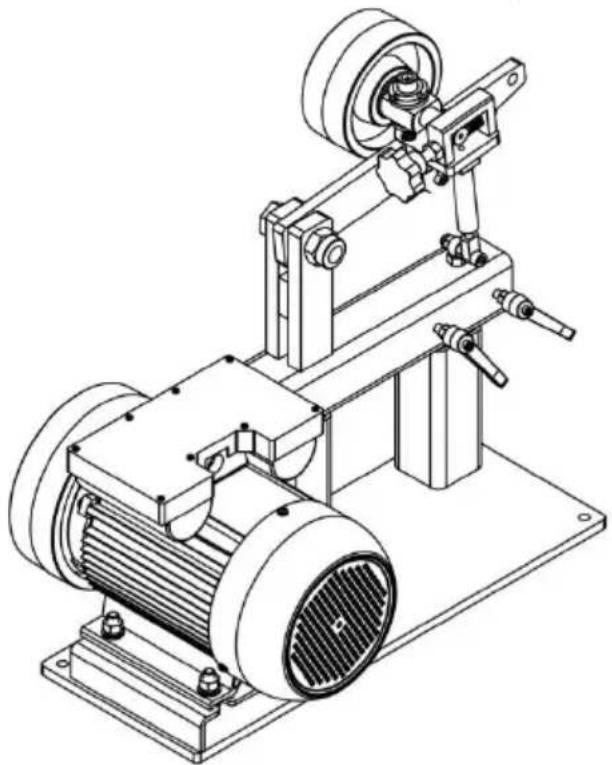

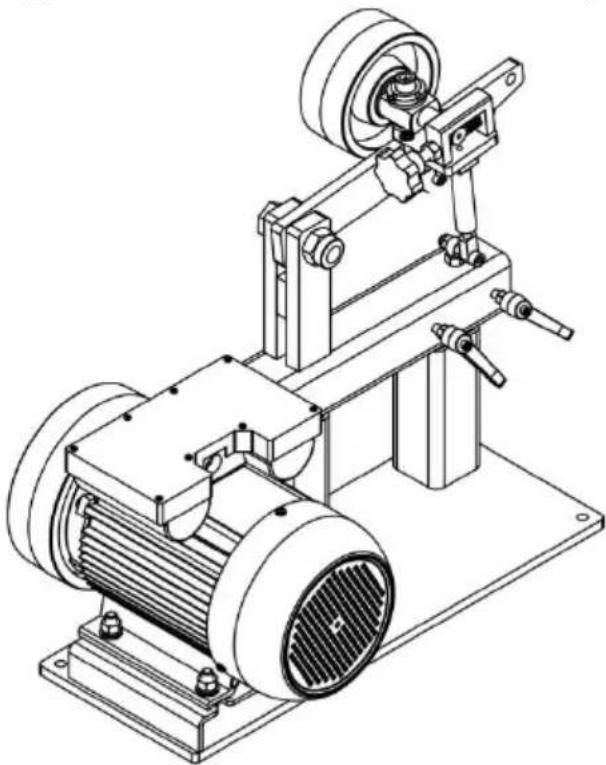

1. Place the device on a workbench or flat ground.

Technical line drawing of an electric motor with rotating components and mounting base (no text or symbols)

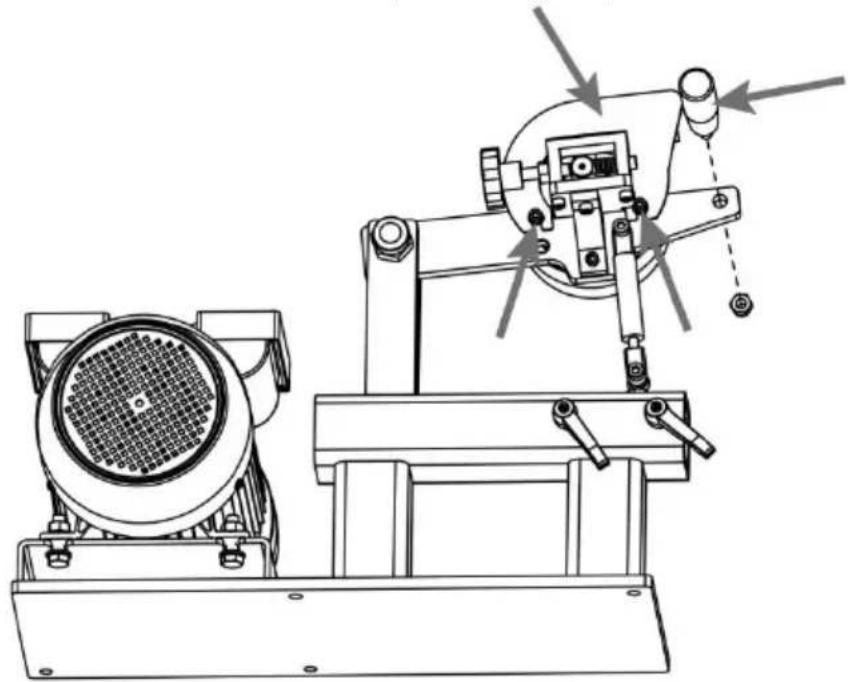

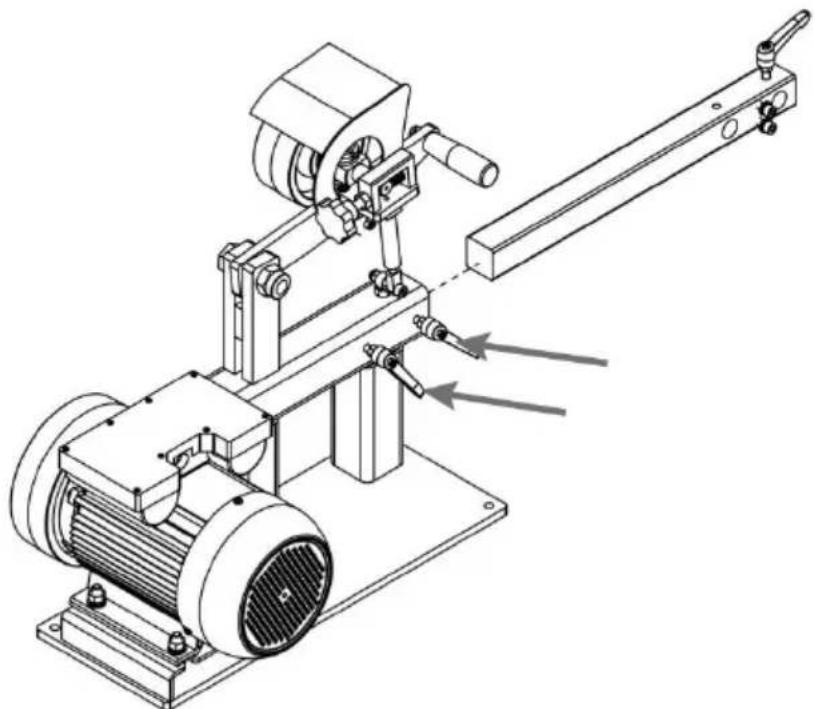

1. Install the guard and tension handle.

Technical line drawing of a mechanical device with no visible text or symbols

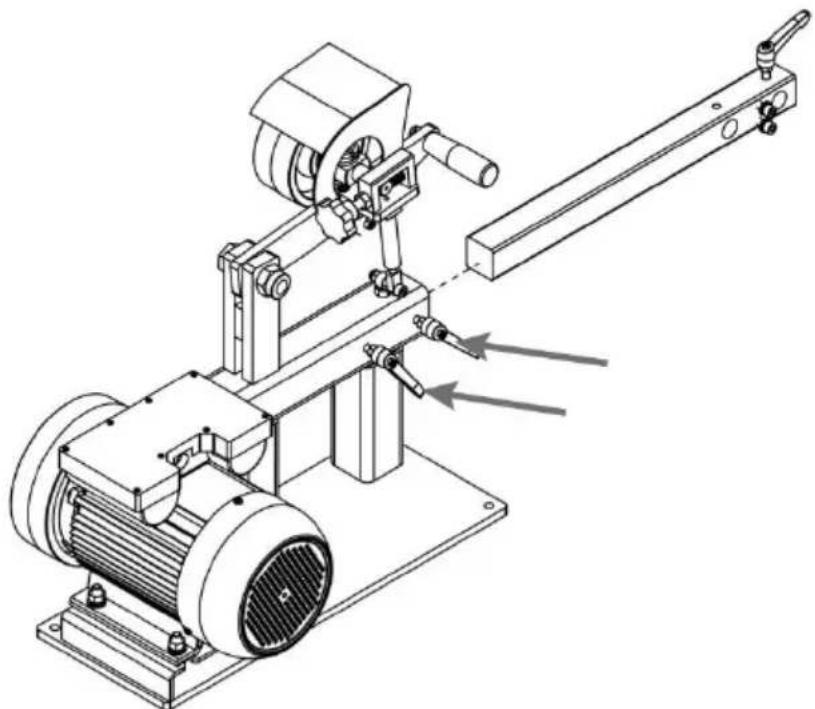

1. Loosen the handle on the support tube and insert the extension rod into the support tube.

Technical line drawing of a mechanical device with motor and lever assembly (no text or symbols)

1. Install the corresponding components:

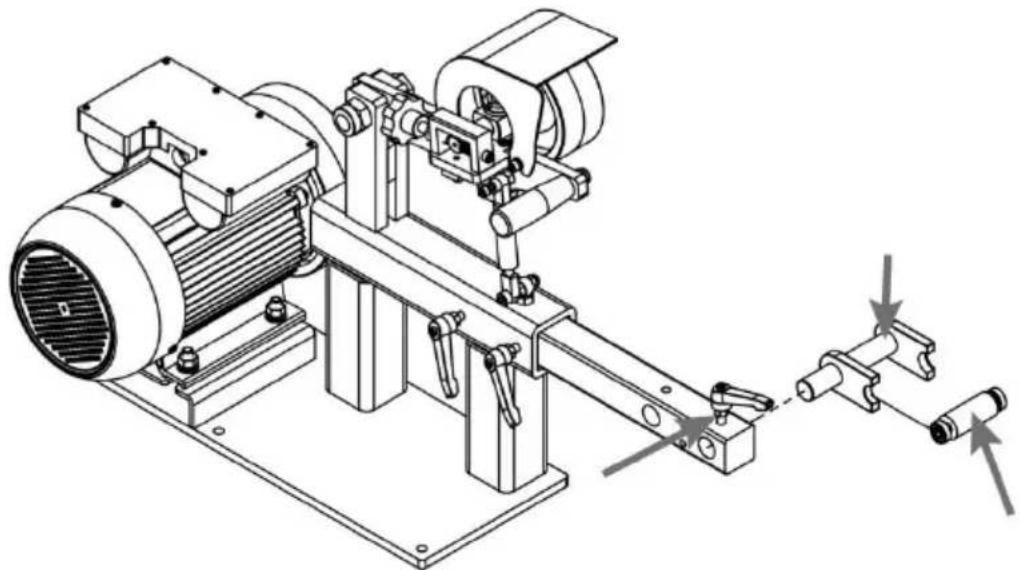

a) Arc Grinding Wheel Assembly

i. Loosen the handle on the extension rod, install the axis of the arc grind wheel bracket into the extension rod, and lock the handle;

ii. Select a 25mm or 40mm arc grinding wheel and install it into the arc grinding wheel bracket.

Technical line drawing of an industrial machine with mounting base and tool assembly (no text or symbols)

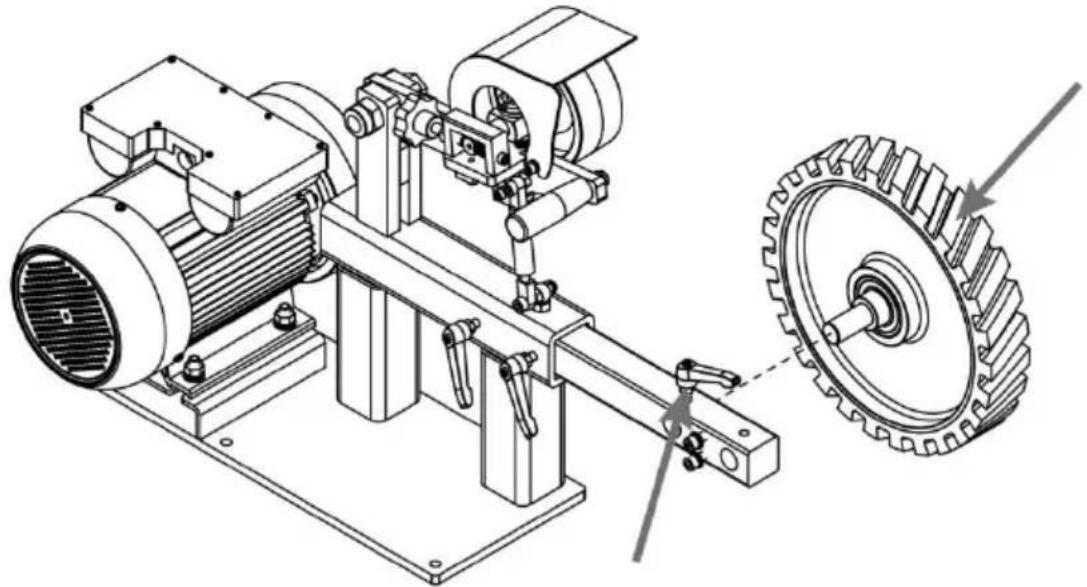

b) Round Grinding Wheel Assembly

i. Loosen the handle on the extension rod. install the shaft of the round grinding into the hole of the extension rod and lock the handle

Technical line drawing of a mechanical assembly with motor, gear, and shaft components (no text or labels)

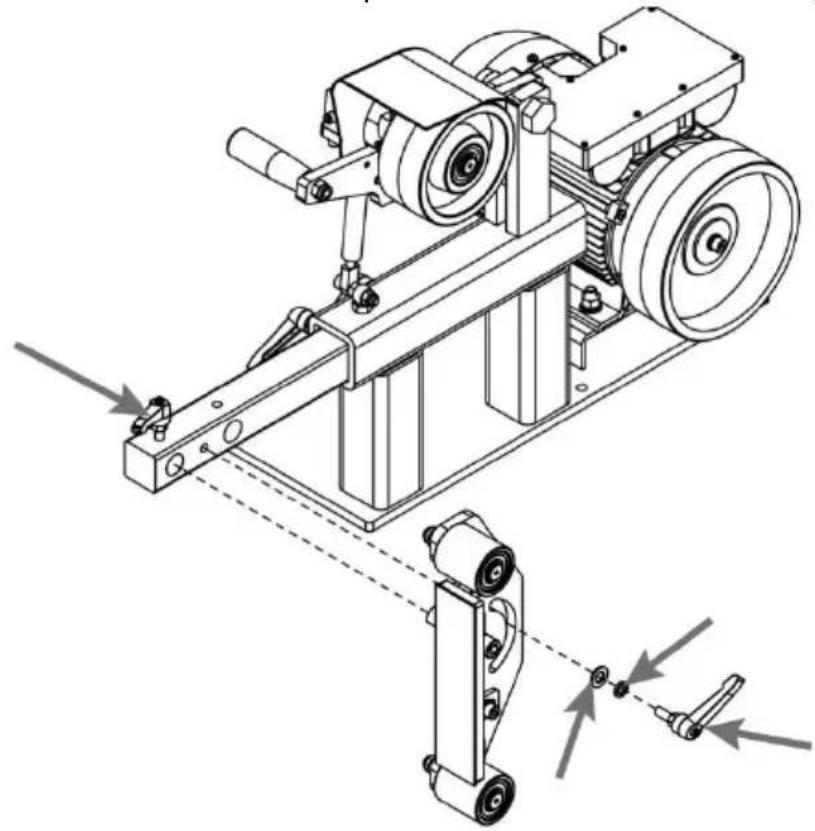

c) Flat Grinding Wheel Assembly

i. Loosen the handle on the extension rod install the flat grinding wheel assembl the extension rod and lock the handle install the flat grinding wheel handle and washers to the position shown in the diagram and lock it.

Technical line drawing of a mechanical assembly with pulleys and gears, showing motion indicators (no text or symbols)

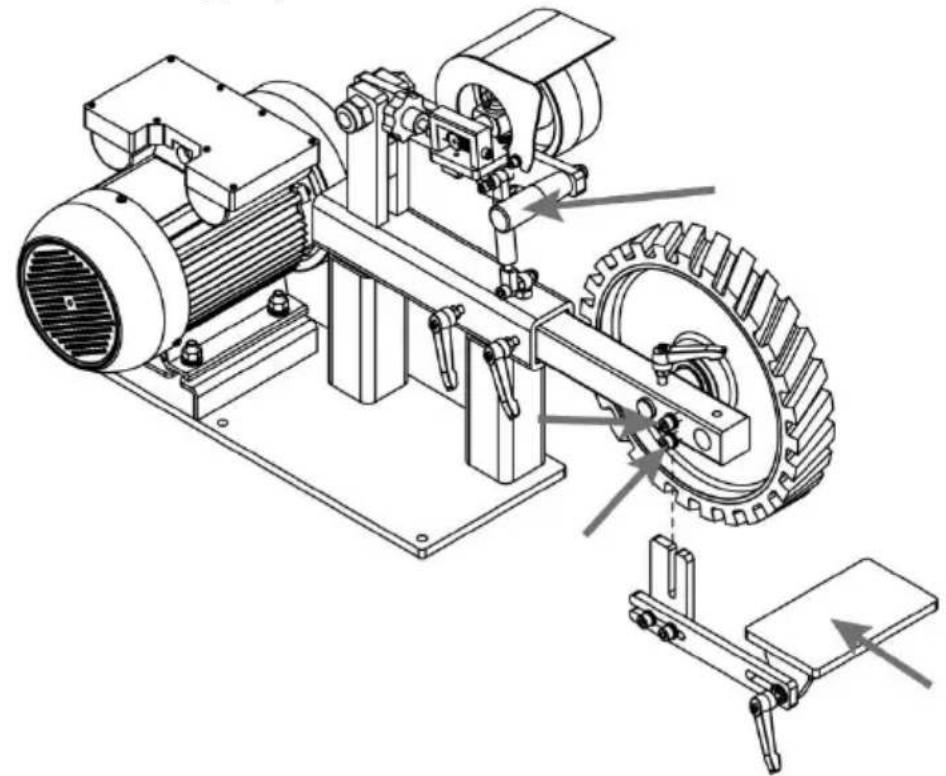

1. Install the table assembly to the extension rod and tighten the locking screws

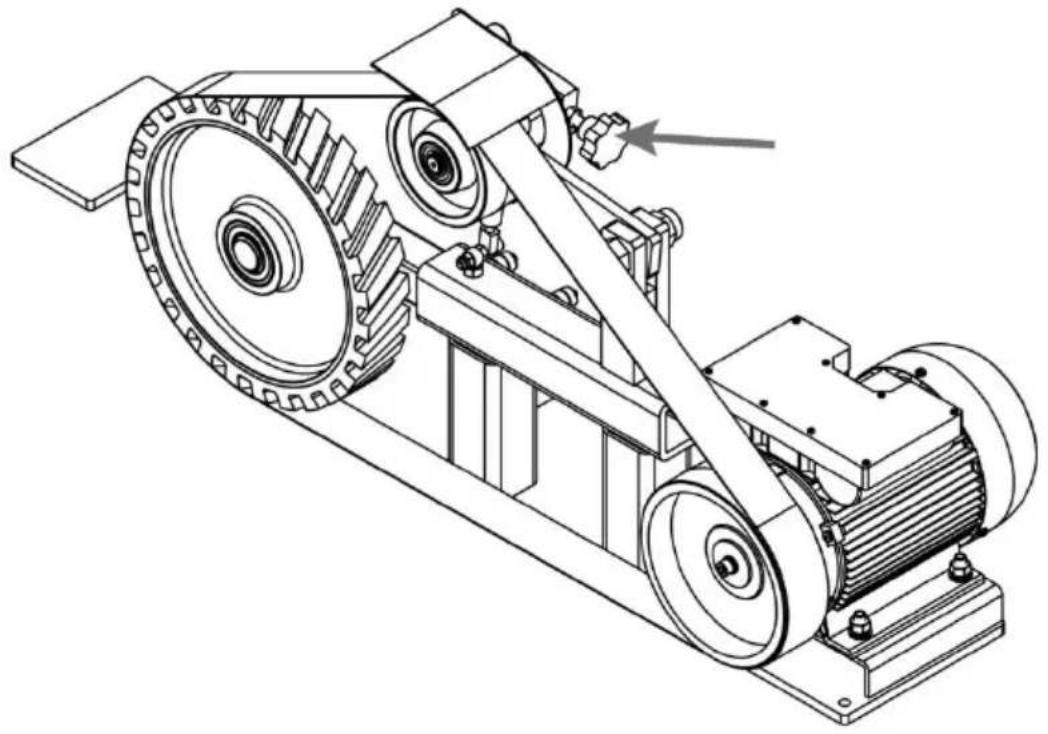

2. Press down on the tension handle, install the sand belt adjust the length of extension rod to the appropriate tension and lock the extension rod handle.

Technical line drawing of an industrial machine with gears and mounting brackets (no text or symbols)

1. Jog on when the machine is turned onso that it is easy to use the star hair adjust the position of the sand belt to prevent the sand belt from deviating or r out.

Technical line drawing of a mechanical conveyor system with gears and rollers (no text or symbols)

OPERATE

1. According to different types of grinding, user can choose from three different grinding wheel.
   i. First, you need to insert the movable rod of grinding wheel, hanging on the compression the spring.
   ii. Second, you must pull the movable rod with maximum length.
   iii. Finally, lock the handle and gently lift the pressure bar.
2. User need to manually turn the belt a few laps, then the power can be swit. You can adjust the knob slightly for making the wheel not to deviate.

Warning! Arc grinding wheels are not suitable for long-term high-speed operation.

COMMON PROBLEMS AND SOLUTIONS

1. Sand belt mistracking: Generally, the tension is insufficient, press down the terhandle, extend the extension rod to increase the belt tension, lock the tie rod angently lift the tension handle.
2. Sudden shutdown during use: Turn off the power completely for more than 2 minutes and then restart the power.
3. When the motor is overheated: if the motor will heat up when in use, it is phenomenon, the temperature rise below 80 degrees Celsius has no effect on the motor, when the temperature rise of the motor exceeds 80 degrees Celsius, please stop for a period of time, and continue to use the motor after it cools down.
4. Overload Speed Limiting: When overloaded, the speed of the machine will be reduced to prevent the circuit breaker from tripping, and when the load returns to normal, the speed of the machine will be restored.

NOTES

1. The belt grinding machine belongs to the high linear speed machinery, you may pay attention to safety when using, do not touch the running abrasive belt and train with your hands, and wear protective glasses and masks when using it, so to cause harm to the human body caused by dust.
2. This machine shall not be ground with water, and it is easy to enter the ele control box with water, causing potential safety hazards such as leakage, and even burning the electronic control motherboard.
3. When using mechanical grinding and polishing, do not use too much force, w

easy to make the motor stalled due to instantaneous deceleration, and will also damage the abrasive belt, so that cracks appear at the interface of the abrasive and even break and fly out to hurt people.

1. The machine must be reliably grounded to prevent electric shock.
2. Metal grinding is done after the belt is running.
3. The machine flat grinding wheel and deviation adjustment wheel, the new bear inside needs to be run-in, the new bearing will be heated, do not run at the high speed for a long time during the run-in period, you can drive to 70% of the maximum speed, generally 1-2 months of running-in.
4. This machine has precision steel parts, which should be placed in a dry and ventilated place and should not be used in a humid environment.

PRECAUTIONA ON USING BELT GRINDER SANDER

Attention! You must abide by the following basic safety measures against e shocks, injuries and the danger of fire when using electric tools. Read and these instructions before you start to use any tools. These instructions must a safe place.

-- The equipment must never be used in surroundings where an explosive atmosphere exists. Do not let the cable touch any parts of your body.
-- Only use the extension cable approved for use in the working area.
-- Do not force the machine for unsuitable work, for example, rough grinding etc. Otherwise, dangers and harms will be caused.
-- Only use identical replacement parts when servicing. Otherwise, risk-free of can't be guaranteed.
--The accessories' allowed speed must be at least the same as the maximum speed of the machine. Or else, they may be broken or cracked running speed goes over the machine's allowed speed.
-- Do not use damaged accessories. Before use, always check whether the accessories are nicked or cracked. For example, to grinding pad, please the support plate is not cracked. Ensure everybody to be out of the machir area and run the machine at max. speed for one minute, which can fully t accessories.
-- Cleaning the exhaust port on your machine in regular. When working, core machine firmly with both hands to ensure safe operation.
-- We recommend that you always wear industrial safety gloves and safety

when working with the BELT GRINDER SANDER.

-- Wearing close-fitting clothes is mandatory.
-- Always allow for reaction torque.
-- Wear protection mask P2 to protect you from hazardous dusts and choose acuum cleaner.

LABELS ON YOUR TOOL(IF ANY)

V	Volts	Hz	Hertz
~	Alternating current	W	Watts
no	No load speed	/min or min-1	Revolutions orreciprocation per minute

For your personal safety, READ and UNDERSTAND before using.

Save This Instruction For Future Reference

For your personal safety, READ and UNDERSTAND before using.

Always Wear Ear Protection With This Tool

Always Wear Eye Protection With This Tool

Always Wear a breathing Mask With This Tool

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party. Responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, these limits are desired to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Correct Disposal:

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol.

Products marked as such may not be discarded with normal domestic waste but must be taken to a collection point for recycling electrical and electronic devices.

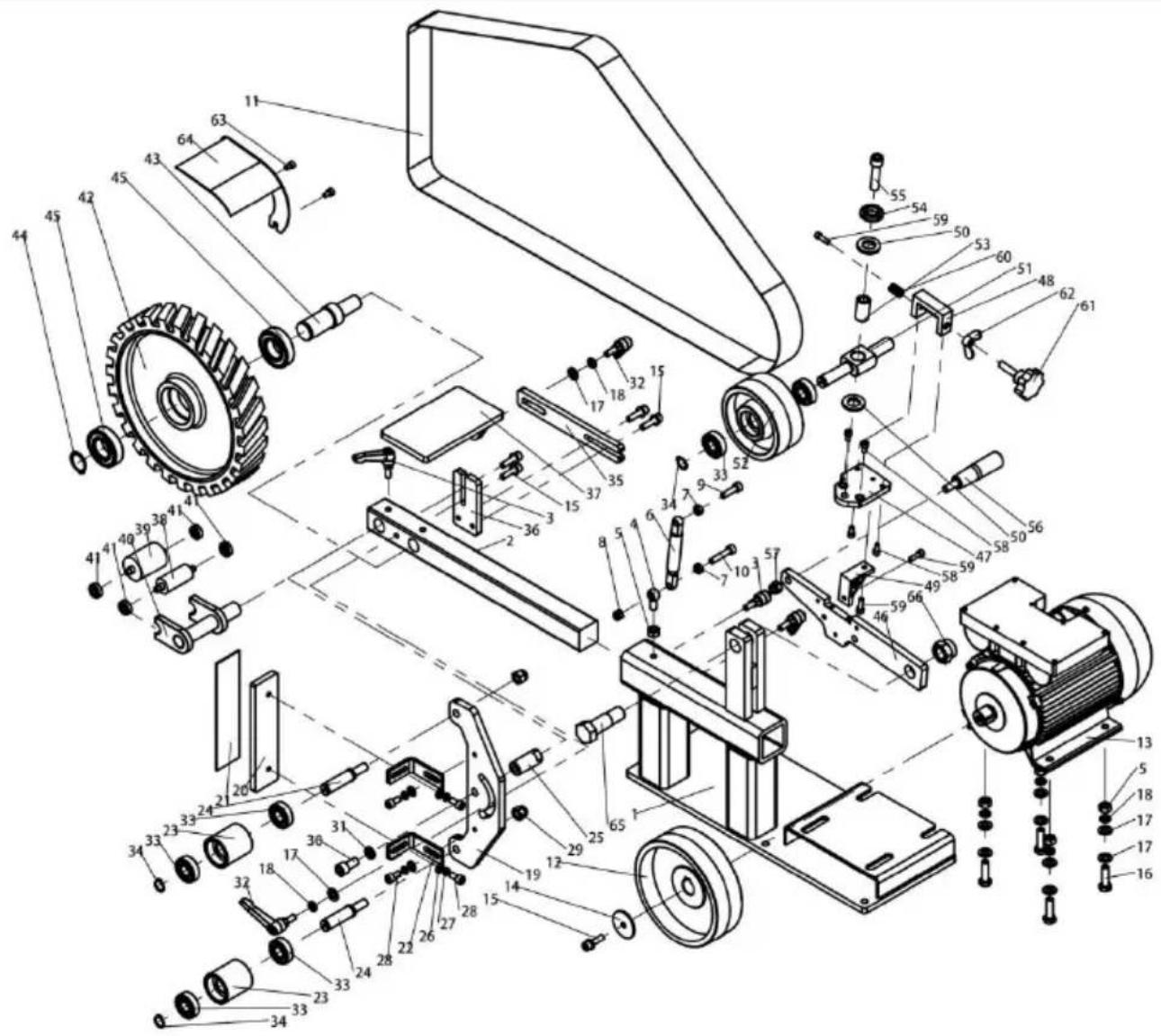

Exploded view diagram of a mechanical assembly with numbered components for identification

No.	Name	Qty	No.	Name	Qty
1	Base	1	23	Flat Grinding Wheel	2
2	Support Rod	1	24	Flat Grinding Wheel Sha	2
3	Locking Handle Assembly	3	25	Flat Grinding Wheel Assembly Shaft	1
4	Bolt-M10×30	1	26	Flat Washer Grade C-8	4
5	Nut-M10	5	27	Spring Washer-8	4
6	Compressed Gas Spring	1	28	Screw-M8×16	4
7	Nut-M8	2	29	Lock Nut-M12	2
8	Lock Nut-M8	1	30	Screw-M12×25	1
9	Screw-M8×30	1	31	Spring Washer-12	1
10	Screw-M8×40	1	32	Locking Handle Assembly-M10*30	2
11	Sand Belt	1	33	Bearing-6203-2Rz	6
12	Driving Wheel	1	34	Retaining Ring For	3
13	Motor	1	35	Workbench Stand 1	1
14	Sand Barrel Pressure Pla	1	36	Workbench Stand 2	1
15	Screw Assembly-M8×30	5	37	Workbench	1
16	Bolt-M10×35	4	38	Arc Grinding Wheel 25	1
17	Flat Washer Grade C-10	10	39	Arc Grinding Wheel 40	1
18	Spring Washer-10	6	40	Arc Grinding Wheel Bracket Assembly	1
19	Flat Grinding Bracket	1	41	Bearing-608-2Z-S&F	4
20	Flat Grinding Support Pla	1	42	Rubber Wheel 250	1
21	Graphite Plate	1	43	Rubber Axle	1
22	Support Plate Bracket	2	44	Retaining Ring For	1
45	Bearing-6206-2Rz	2	56	The Handle	1
46	Tensioner Fixing Plate	1	57	Lock Nut-M10	1
47	Adjustment Frame Fixed Plate	1	58	Screw-M6×12	4
48	Tension Wheel Adjustme Frame	1	59	Screw-M6×20	3
49	Aluminum Corner Code	1	60	Rectangular Spring	1
50	Bearing-Axk2025+2As	2	61	Seven Star Handle	1
51	Tension Axle	1	62	Disc Nut Round Wing-M1	1
52	Tensioning Wheel	1	63	Screw-M6×10	2
53	Tensioning Wheel Sleeve	1	64	Tensioner Guard Assembl	1
54	Round Nut-M20×1.5	1	65	Tension Assembly Shaft	1
55	Screw-M12×50	1	66	Lock Nut-M20	1

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
