WFS-1031-YW - Sander Vevor - Free user manual and instructions

Type of Product	Air Sander
Model	WFS-1031-YW
Brand	Vevor
Free Speed	15000 RPM ±10%
Required Air Pressure	90 PSI
Average Air Consumption	3.0 CFM ±15%
Air Inlet Size	1/4"
Recommended Air Hose Size	3/8"

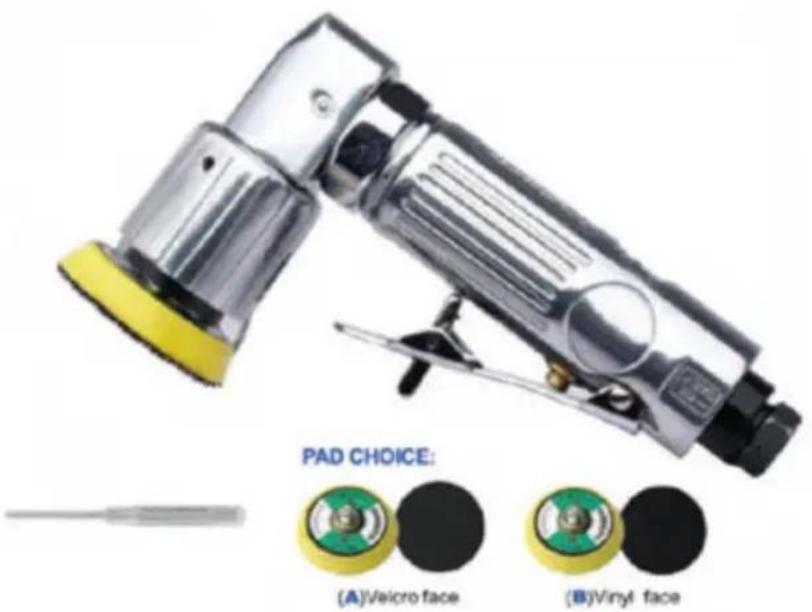

Pad Options	Velcro face or Vinyl face (1", 2", 3" diameter)
Operation Type	Pneumatic
Lubrication Requirement	Daily with air tool oil before and after use
Safety Requirements	ANSI Z87.1 safety glasses and ANSI S3.19 hearing protection
Weight (Approx.)	1.5 lbs
Dimensions (Approx.)	6 x 4 x 4 inches
Maximum Operating Pressure	90 PSI
Included Accessories	Pad choices (Velcro/Vinyl), user manual
Maintenance	Clean with damp cloth, lubricate regularly
Application	Sanding and finishing
Body Material	Aluminum
Warranty	Technical support and e-warranty certificate at www.vevor.com/support
Storage	Keep in dry place, out of children's reach
Country of Origin	China

Frequently Asked Questions - WFS-1031-YW Vevor

What type of air pressure is required for the Vevor WFS-1031-YW air sander?

The air sander requires a maximum operating pressure of 90 PSI. Do not exceed this pressure as it may cause the tool to explode.

How do I lubricate the air sander?

Lubrication is required before initial use and before/after each use. Disconnect the tool, place about 5 c.c. of air tool oil into the air inlet while depressing the trigger, then connect to air and run for 20-30 seconds.

What safety equipment should I wear when using this tool?

Always wear ANSI Z87.1 safety glasses with shield and ANSI S3.19 hearing protection. Avoid loose clothing and tie back long hair.

Can I use this sander with a standard air compressor?

Yes, as long as the compressor can supply 3.0 CFM at 90 PSI. Use a 3/8-inch air hose for optimal performance.

What are the different pad options available?

The sander comes with two pad choices: Velcro face and Vinyl face. Both are available in 1-inch, 2-inch, and 3-inch diameters.

How do I change the sanding pad?

First, disconnect the tool from the air supply. Then remove the existing pad and attach the new one by aligning it securely. Ensure it is firmly attached before use.

Why is my sander not operating at full speed?

Possible causes include insufficient air pressure (below 90 PSI), inadequate air flow (hose too small or compressor CFM too low), or lack of lubrication. Check these factors.

How should I clean and store the sander?

After use, disconnect the air supply. Clean with a damp cloth (not wet) and lubricate before storage. Store in a dry place, out of children's reach.

Is this sander suitable for commercial use?

The manual states the product is not suitable for commercial use. It is intended for light-duty or hobby applications.

What does the warranty cover?

The warranty covers technical support and e-warranty certification. For details, visit www.vevor.com/support.

USER MANUAL WFS-1031-YW Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

AIR SANDER

MODEL: WFS-1031-YW

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

AIR SANDER

Model: WFS-1031-YW

Note: The quantity of parts shown in the manual is the actual usage; unused parts are spare parts.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules on this page to ensure your safe use.

This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with codes.

Please read ALL the instructions before using your machine.

1. Only persons well acquainted with these rules of safe operation should be allowed to use the air tool.
2. Do not exceed any pressure rating of any component in the system.

DANGER: DO NOT exceed the maximum operating pressure of the air tool (90 PSI). The air tool could explode and result in death or serious injury.

1. Disconnect the air tool from the air supply before changing tools or attachments, and during non-operation.
2. Always wear safety glasses and ear protection during operation.

WARNING

Always wear ANSI approved Z87.1 safety glasses with side shields.

WARNING

Always wear ANSI S3.19 hearing protection.

1. Do not wear loose fitting clothing or apparel that contains loose straps, etc., which could become entangled in moving parts of the tool and result in serious personal injury. Ensure that long hair is tied back when around the machine when it is in use.
2. Do not wear jewelry, watches, identifications, bracelets, necklaces, etc., when operating any tool. They may become caught in moving parts and result in serious injury.
3. Do not depress the trigger when connecting the air supply hose.

⚠ WARNING: DO NOT use hand tool sockets. Use impact quality sockets.

1. Never lever the tool when it is not applied to a work object. Attachments must be securely attached. Loose attachments can cause serious injury.
2. Protect air lines from damage or puncture.
3. Never point an air tool at yourself or any other person. Serious injury can occur.
4. Check air hoses for weak or worn condition before each use. Make sure connections are secure.
5. Keep all nuts, bolts, and screws tight and ensure equipment is in safe working condition.
6. Do not put hands near or under moving parts.

WARNING: Do not misuse the product. Avoid excessive exposure to vibration, working in awkward positions, and repetitive work motions.

1. This product cannot be used for other purposes. Not suitable for commercial use.
2. Keep children and bystanders far away during operation of this tool.
3. Maintain air tools. If the tools are damaged, have them repaired before use.
4. Do not smoke during use.
5. Always stay alert and keep an eye on what you are doing. Do not use the product if you feel tired or under the influence of drugs, alcohol, or medication. A moment of distraction when operating cranes may result in serious personal injury.
6. Do NOT let children and minors get close to or touch the product.
7. Do NOT immerse the appliance in water or any other liquid.
8. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
9. Do not attempt to modify the machine in any way.
10. If the machine is not to be used for a long period of time, clean and store it in a dry and safe place.
11. KEEP IT OUT OF CHILDREN'S REACH.
12. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.
13. While every effort has been made in the manufacture of your machine to

remove any sharp edge, you should handle all components with care in order to avoid accidental injury.

1. Keep away from flammable material and fluids such as petroleum, alcohol, diesel fuel, kerosene and charcoal lighter fluid or vehicles while in use. Do not use these materials to light or relight also.
2. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

WARNING! Remove all packaging materials and keep them for future use. Packaging materials are not a toy.

WARNING! Don't let children and pets play with the packaging materials. If they swallow the packaging materials, they will suffocate!

WARNING! Keep children and pets away. Children must not operate or play with this machine.

WARNING! Failure to follow instructions could result in death, serious bodily injury and/or property loss.

PRODUCT PARAMETERS

Model: WFG-1010
Free Speed:	15000RPM ±10%
Required Air Pressure:	90 PSI
Average Air Consumption:	3.0 CFM ±15%
Pad:	1” 2” 3”
Air Inlet:	1/4”
Required Air Hose Size:	3/8”

DANGER: DO NOT exceed the maximum operating pressure of the air tool (90 PSI). The air tool could explode and result in death or serious injury.

BEFORE EACH USE

1. Drain water from air compressor tank and condensation from air lines. (Please refer to air compressor's operation manual.)
2. Lubricate the tool. (Please refer to the "Maintenance" section in the manual.)
3. Connect air grinder to air source with the hose of recommended size.

OPERATING INSTRUCTIONS

Please dispose of all plastic bags carefully and keep them away from children. Check all components provided according to the list in this manual. Make sure you have all of the parts listed. If not, contact your local store who will be able to help you.

1. Turn on the air compressor and allow its tank to be filled.
2. Set the air compressor regulator to 90 PSI. This air grinder operates at a maximum of 90 PSI air pressure.
3. Depress the trigger to start operating the tool.
4. Release the trigger to stop the tool.
5. When changing the collet, always disconnect the air supply to avoid injury.
6. When the job is completed, turn off the air compressor and store the air tool properly.

ATTENTION!

While every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present.

NOTE! Wear safety goggles and hearing protection during assembly and use.

LUBRICATION

Air tools require lubrication throughout the lifetime of the tools. The air motor bearing uses compressed air to power the tool. Due to the moisture in the compressed air, the air motor and other parts inside the tool may rust, so lubrication is required daily. Failure to lubricate the air tool properly will dramatically shorten the life of the tool and will void the warranty.

CAUTION: This air tool requires lubrication BEFORE initial use, and also before and after each additional use. To lubricate the air tool manually:

1. Remove any attachment on the drive of the air tool, such as sockets, chisels, etc.
2. Disconnect the tool from the air supply source, and place the air inlet facing up.
3. Depress the trigger and place about 5 c.c. of air tool oil into the air inlet. (Depressing the trigger will help circulate oil in the motor.) NOTE: Use SAE weight oil if air tool oil is not available.

WARNING: Keep out of the reach of children. If taken internally, do not induce vomiting; call a doctor immediately.

1. Connect the tool to the air source, cover the exhaust end with a towel, and run the tool for about 20 to 30 seconds.

△WARNING Any excess oil in the motor is immediately expelled from the exhaust port. Always direct the exhaust port away from people or objects.

CLEANING, MAINTENANCE AND STORAGE

1. Ensure that the product is not in working condition, unplug the air pipe and related connectors.
2. Use a brush to clean, wipe the surface with a damp (not wet) cloth or with a clean lint-free cotton cloth.
3. Lubricate the tool. (Please refer to the “Maintenance” section in the manual.)
4. Put the cleaned products and accessories into the tool carton.

Note: Wear safety goggles and heavy-duty work gloves during cleaning.

Note: The air tool must be lubricated before storing. Follow the “Lubrication instruction” with exception of step .
