This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Safety & Warning

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable prope
• While assembling this product, keep work area clean and well lighted, a keep spectators and children out of the work area.
• When using the stove, please be sure to check whether it is deformed damaged. Especially if there is a crack or breakage on the glass, never
• When the stove is used once, the color of the stainless steel grid will This has nothing to do with badness. It is recommended to burn at high temperature for 2 hours after the first use.

- When setting the stove, please set it in a flat place.

- When assembling the product, the hand clips and sharp parts may be disassembled up and down. Please be sure to wear gloves for assembly.

- Please pay attention to the use of stoves in tents or extended spaces. keep the air well ventilated.

- Carbon monoxide is a colorless and transparent gas that must be disch safely to avoid accumulation in a closed environment.

- It is best to place a carbon monoxide detector in the space of the st. Never let children and pets near the stove, it will be very hot.

- Try to install safety protection devices, and be careful not to let children their hands.

- When using the stove, please put it on the fire-resistant floor to prevent tent floor from catching fire. Please add fuel carefully when opening the injection port.

- Every time you operate the parts of the high-temperature furnace, pleas heat-resistant gloves to avoid burns.

- Fuel, propane, fuel nozzle, paint, thinner and combustible materials should be stored away from the stove and ventilation pipes. This kind of combustible material is recommended to be 6 feet (about 180 cm) away from the funnel.

- The furnace may be overturned under special circumstances such as collision, earthquake and fuel input. Please pay attention to the stove care

to prevent it from tipping over!

- Don't touch the heater with your hands when using it, it will cause se burns.

- Please wait for the stove to cool sufficiently before storing it to prevent. Please pay attention. Pots, vermicelli, pots and other objects heated on the stove should be prevented from being stable and falling off! Don't use fuel tank to make a fire. Fuel such as fuel tank and ignition device contains combustible gas may explode in the furnace, causing serious injury, injury, death and fire.

- During the use of the furnace, it needs to be confirmed continuously. I leave the burning furnace unattended for a long time.

- When storing the stove, carefully observe the surroundings to prevent IV from igniting the surrounding environment

- It's better to have a fire extinguisher of suitable size nearby. To decide size, please discuss it with the local fire department.

- Pay attention to the choice of fuel. Or paint-treated wood will discharge harmful toxins when it burns. Please pay attention when there are no tox chemicals in the fuel. This product should be installed with chimney and Please keep the fuel injection port closed except for injection.

- When installing the chimney, please pay attention to whether the abnorr air flow at least 3m in the sky is suitable for the surrounding environment use, please wipe off the flow, dust, food and other leaves and store the wiping off.

- In the manufacturing process, small scratches in the assembly process no style in the use of products, so they have nothing to do with product

Specifications

Model Series	VOLD-002A
Cavity Volume (in3)	3000
Length of Exhaust Pipe (ft)	6.3
Gross Weight (kg)	25.5
MEAS(mm)	625×400×340

Components of the Product

NO.	Part	Description	NO.	Part	Description
A	Legs		B	Fire Box
C	Side wall net		D	Bottom Flue Support
E	The first/second/third/fourth Flue Pipe		F	Shovel
G	Funnel Cover		H	Damper
I	M6*15 bolt 16 pcs		J	M5*10 bolt+M5 nut 3 sets
K	Cotton gloves		L	Grate

Instructions

Technical line drawing of a mechanical device with three vertical rods and a dome-shaped base (no text or symbols)

Diagram showing two mechanical components with a red dashed line indicating alignment or movement (no text or symbols)

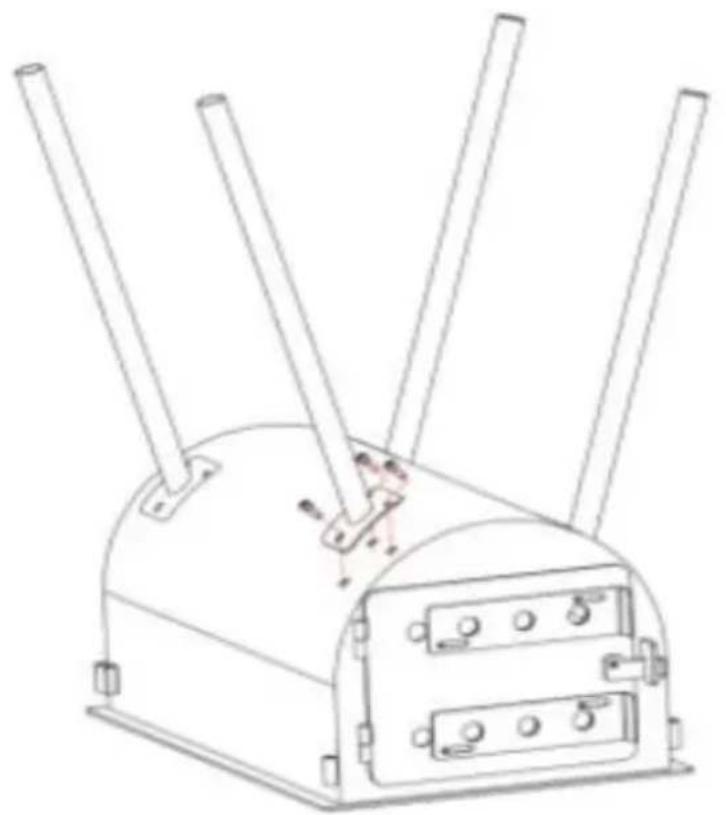

STEP1: Legs (A) to Fire Box (B) with screw (I).

Technical line drawing of a portable device with a cylindrical top and base, emitting red light rays from a side panel (no text or symbols)

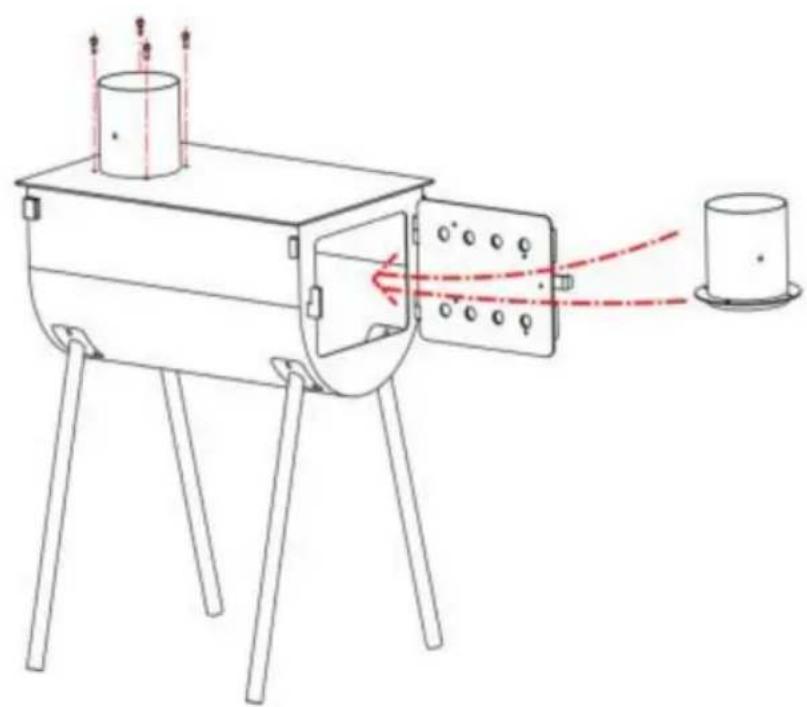

STEP2: Attach the Bottom Flue Support (D) to Fire Box (B) with the (I).

M6 butterfly bolt Damper φ 6mm washer spring φ 6mm washer M6 butterfly nut

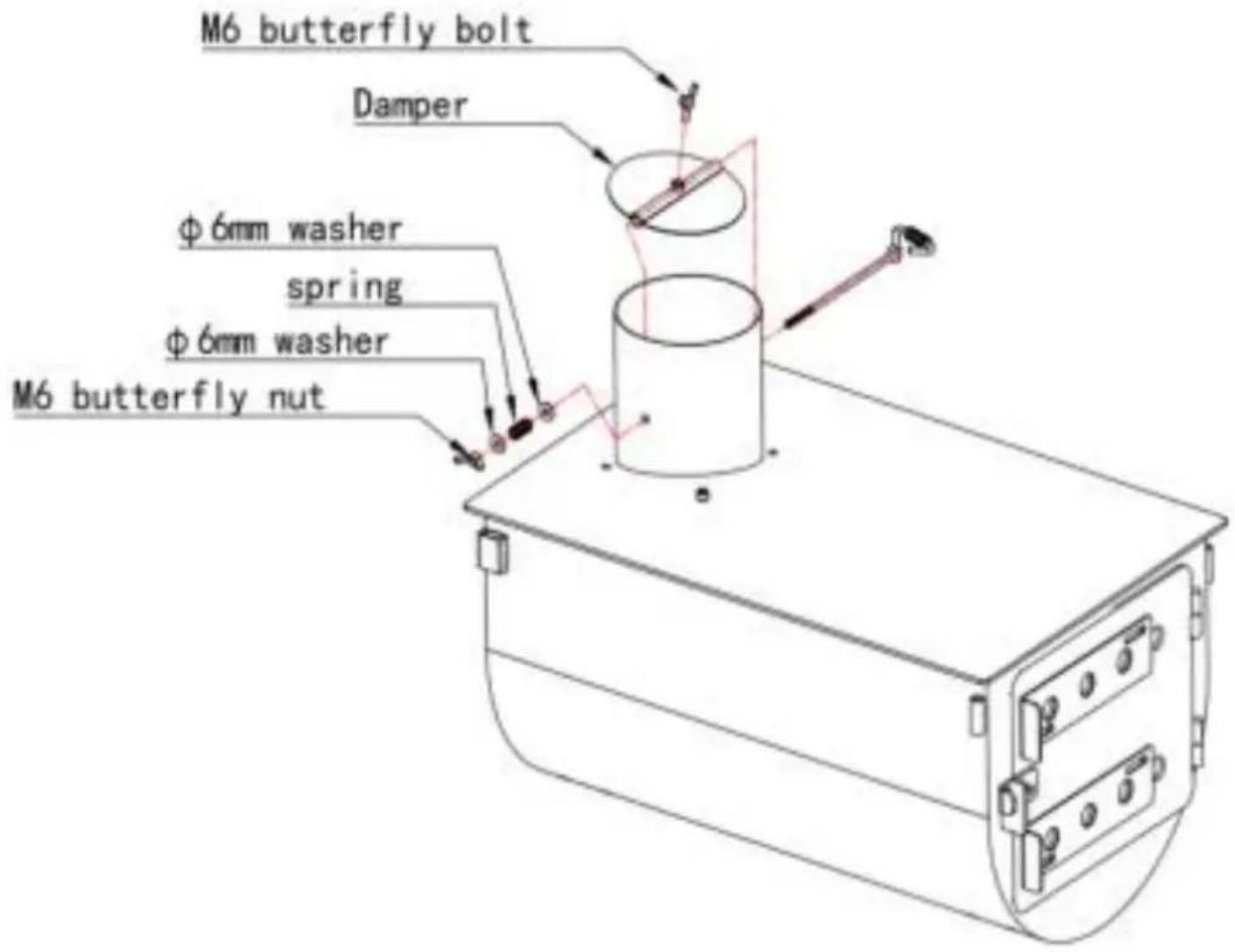

STEP3: Put the round dumper into the chimney base, connect it with long rod, place it in the middle, tighten the butterfly bolt, and install externally as shown in the figure above. Adjust the tightness of the ( ) by screwing the butterfly nut.

Please make sure that the internal valve plate is open during ignition

Technical line drawing of a cylindrical container with circular holes and a top lid (no text or symbols)

The Fourth Flue

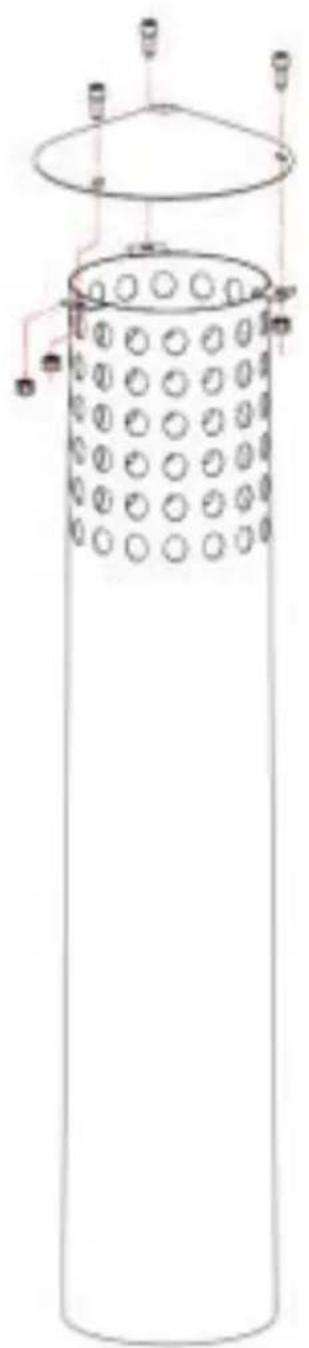

STEP4: Assemble the chimney cover. Use the screw (J) to assemble chimney cover and the thinnest chimney (with exhaust hole at the top

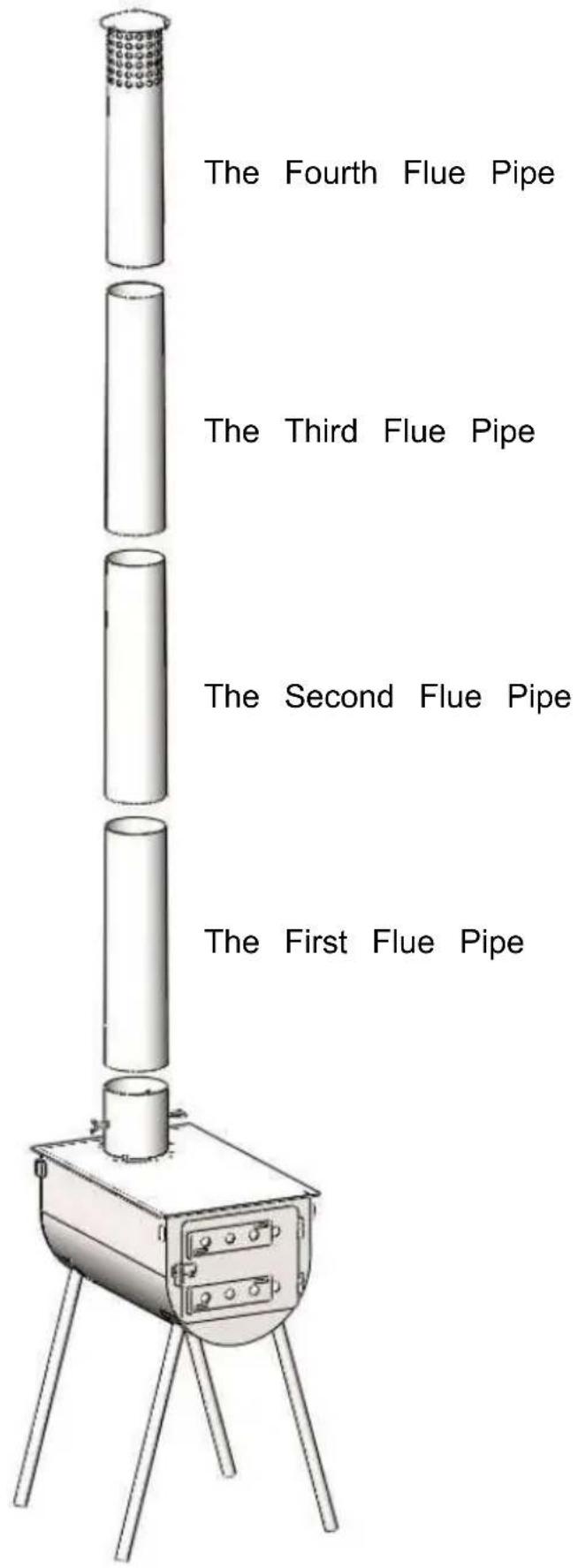

The Fourth Flue Pipe The Third Flue Pipe The Second Flue Pipe The First Flue Pipe

STEP5: Attach Top Flue Pipe to remaining Flue Pipe.

Line drawing of a portable stove with a cylindrical top and metal frame (no text or symbols)

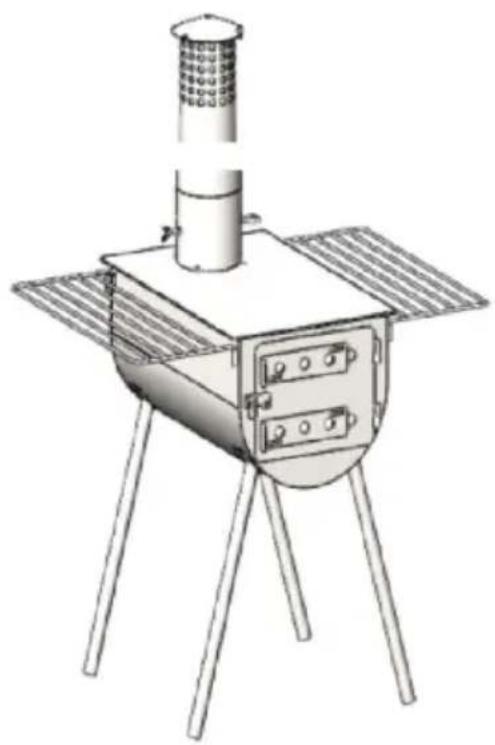

STEP6: Place side nets on both sides.

Line drawing of a portable stove with red light beams and ventilation grilles, no text or symbols present

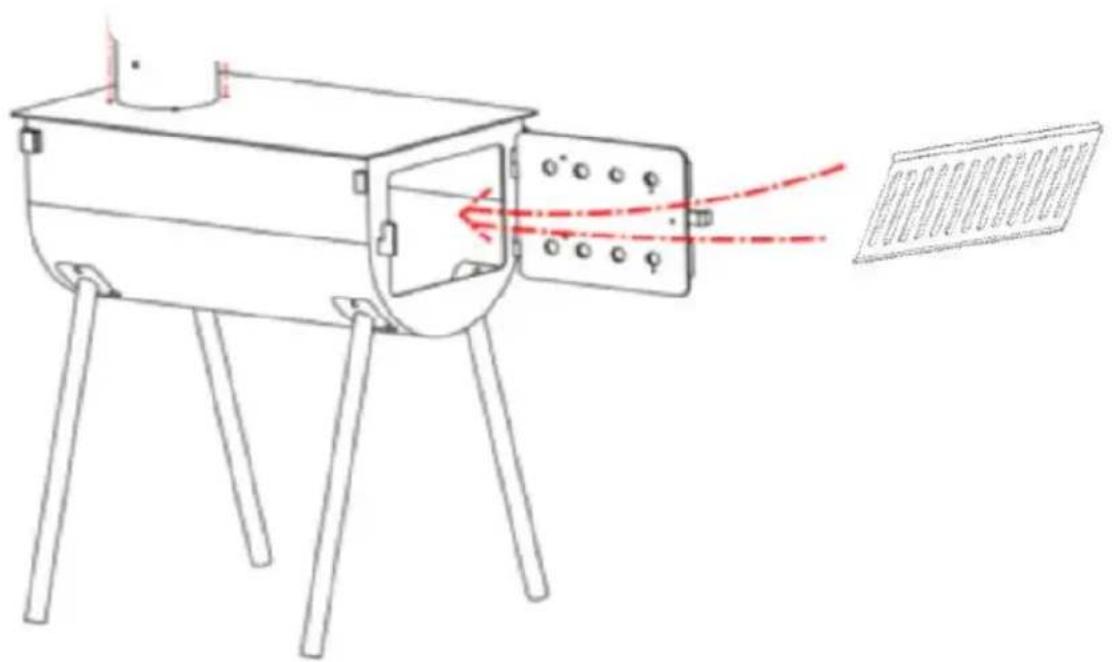

STEP7: Put the grate into the furnace chamber
