USER MANUAL WBS-009 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL ALIGNMENT SYSTEM

MODEL:WBS-009

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repressor estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

WHEEL ALIGNMENT SYSTEM

MODEL:WBS-09

Two metal structural components with yellow and black safety goggles, alongside a pair of matching gloves (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using the wheel alignment system. And this product is not a toy. Do not allow children to play.
• Keep away from sharp points, blades and other items.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly can create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol, drugs or medication.
• Product capabilities apply to properly and completely assembled product only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts of children's reach.

SAVE THESE INSTRUCTIONS

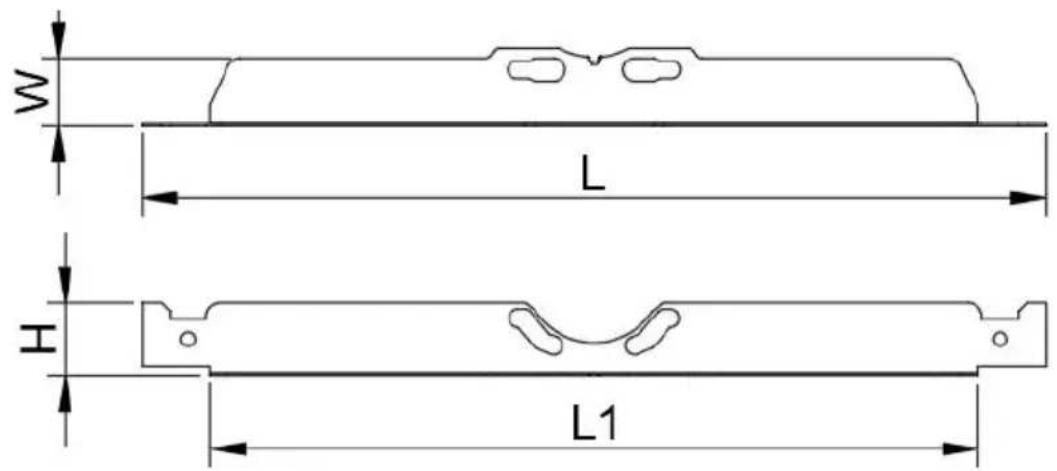

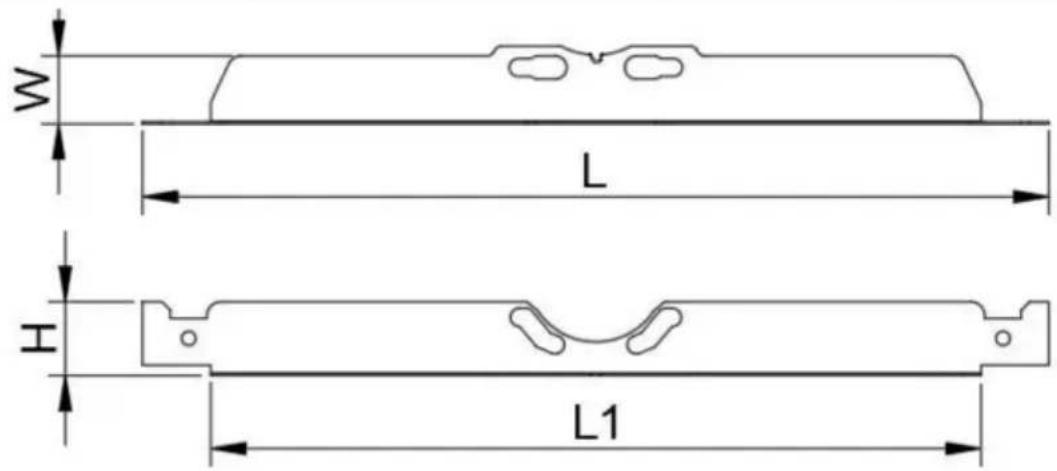

PRODUCT SPECIFICATIONS:

Model	L(mm)	L1(mm)	H(mm)	W(mm)
WBS-009	647	550	56.8	54

W L H L1

PACKAGE INCLUDE

No	Components	Picture	Q'ty
1	Tape measure		2pcs

TOE PLATES TOE MEASUREMENT INSTRUCTIONS

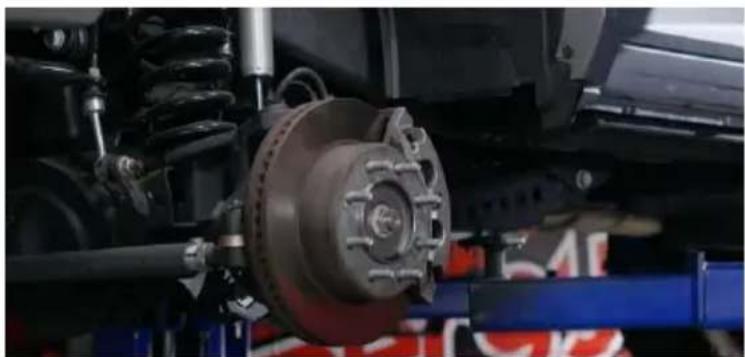

Before you can start measuring the toe of your truck, you need to lift your truck chassis, remove the 4 wheels, and clean the brake disc of the car, and then you can start the toe measurement of the car.

Note: This tool is only available for suspension trucks and JEEP SUVs.

Close-up of a car brake system with suspension and wheel assembly (no visible text or symbols)

Step 1: Install toe plate

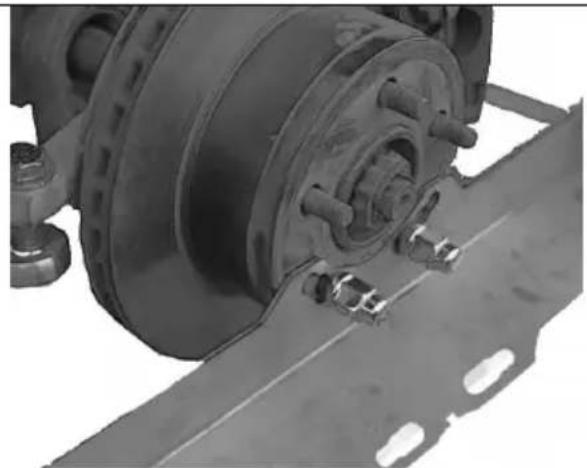

Insert the toe plate into the hub mounting screw of the brake disc and tighten it with the nut that co with the car.

It is recommended to install a flat washer before the nut and the measuring tool so that the tool is more parallel to the brake disc.

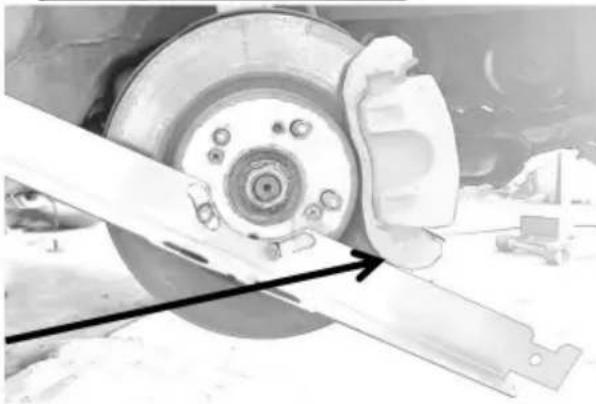

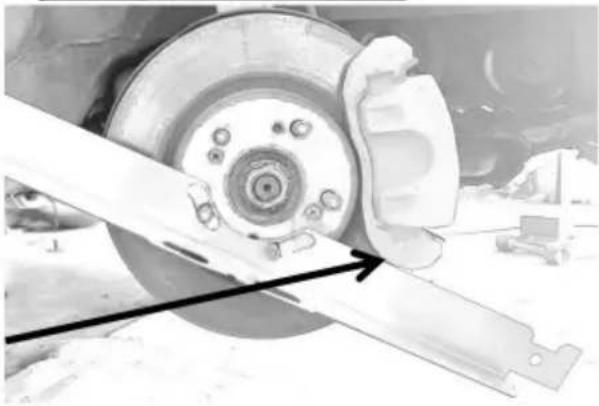

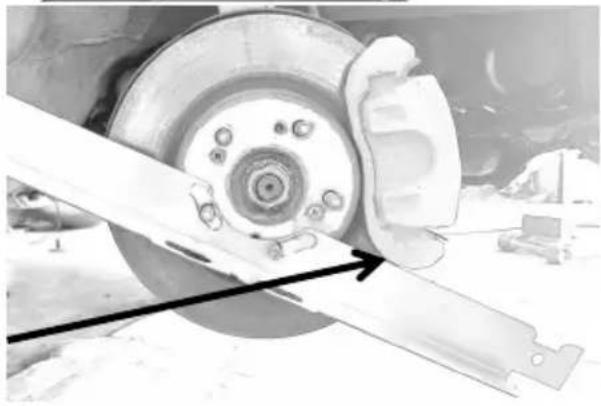

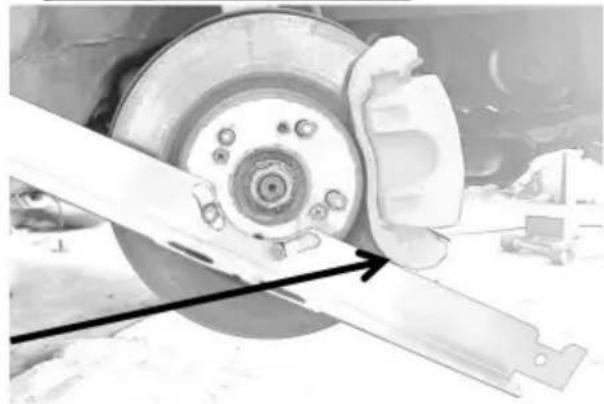

CAUTION: In some cars, the brake bracket may interfere with the measuring tool, in which case a f washer can be placed between the tool and the brake disc until the disc can pass freely.

Note : The product is not equipped with a flat washer, if necessary, y need to obtain your own.

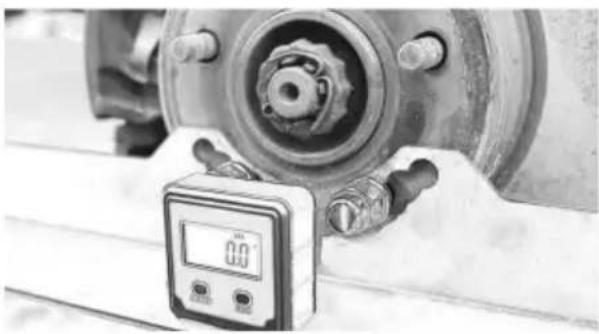

Step 2: Adjust the level

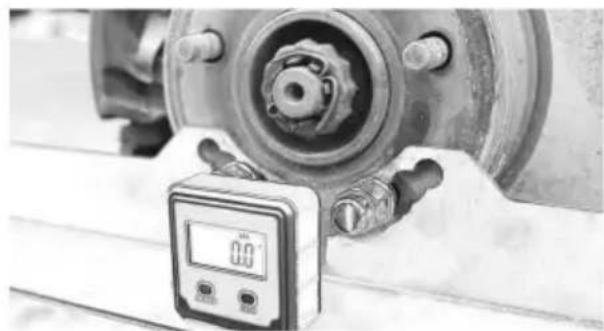

By turning the measuring tool to the horizontal position, you can use a level to adjust, which will make the tool as level as possible, so that the value of measurement is more accurate.

Install the measuring tool on the other side in the same way.

Note : The product is not equipped with a Digital Protractor, if necessary you need to obtain your own.

Close-up of a car brake assembly with visible components and mounting brackets (no text or symbols)

Close-up of a car brake system with a wheel and brake caliper (no visible text or symbols)

Close-up of a mechanical component with a digital pressure gauge showing 0.0° measurement (no visible text or symbols)

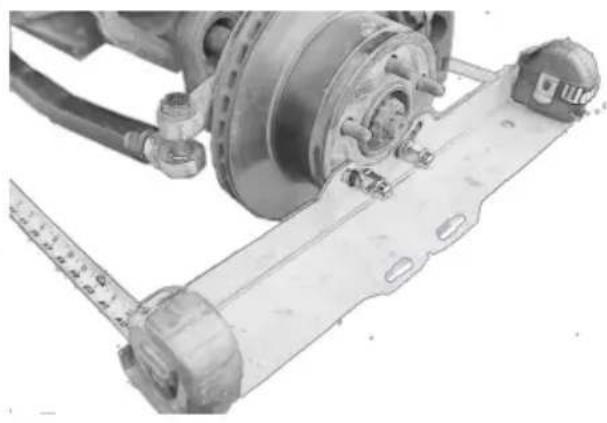

Step 3: Extend tape measures

Run the tape measures underneath the car as shown, 80 inches should be enough.

Unlock the tape measures and slide them into the slots. DO NOT re-lock tape measures.

Leaving them unlocked will apply the proper amount of tension. Pull on their slightly and note the measurements.

The rear tape measurement (side towards the rear of the vehicle) minus the front tape measurement(side closes to the front of the vehicle) is the total of the axle. A larger measurement on front side indicates toe out, and a large measurement on the rear side indicate toe in.

For example, if the front measurement D1 is 66" and the rear measurement is 66 3/32 the axle has a total toe in 3/32"

Mechanical assembly showing a brake caliper and suspension components (no visible text or symbols)

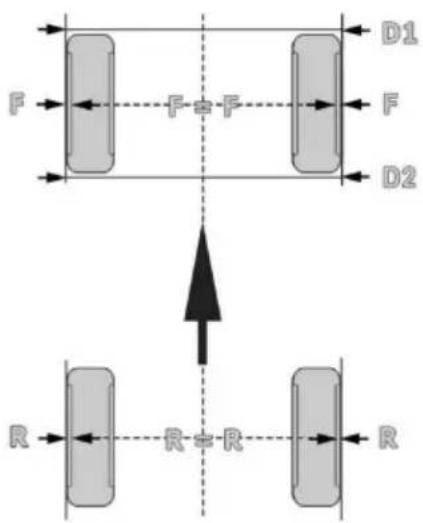

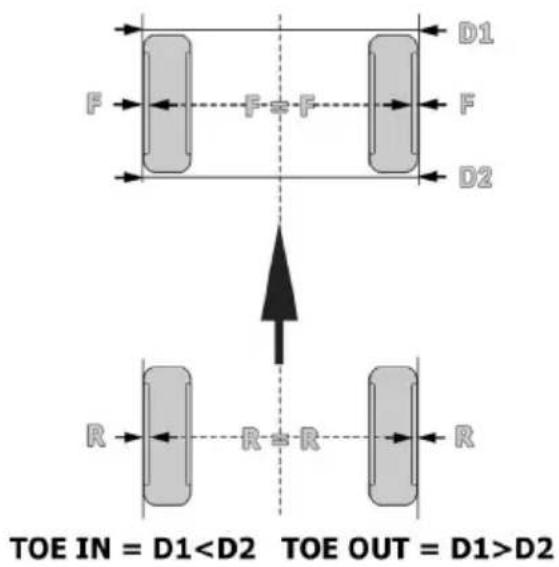

D1 F ← F → F ← F D2 R ← R → R ← R TOE IN = D1D2

TOE PLATE DEGREES TO INCH CONVERSION CHART

Example: If the vehicle specs specify 0.4 degrees the toe shall way between 1/8" and 3/16" measured by the toe plates.

Degrees Specification	0	0.16	0.32	0.48	0.64	0.8	0.96
Equivalent	0	1/16”	1/8”	3/16”	1/4”	5/16”	3/8”

Note: When using alignment specs, note that the toe plates measure the TOTAL toe, not the toe of each wheel. Thus, if your specs are given for wheel, you will need to add those values together.

For example, if the toe-in of each wheel is supposed to be 0.15 degrees, then t total toe should be 0.15 + 0.15 = 0.3 degrees.

The optional alignment specs give total toe, so these specs do not need modification; however, you should use the degree specifications, NOT the inch specifications.

Tip: If the toe is correct, but the steering wheel is crooked, turn the tin on one side in and the tie rod on the other side out an equal number. This will keep the toe measurement but adjust the position of the steeri wheel. Make sure to adjust it in the right direction!

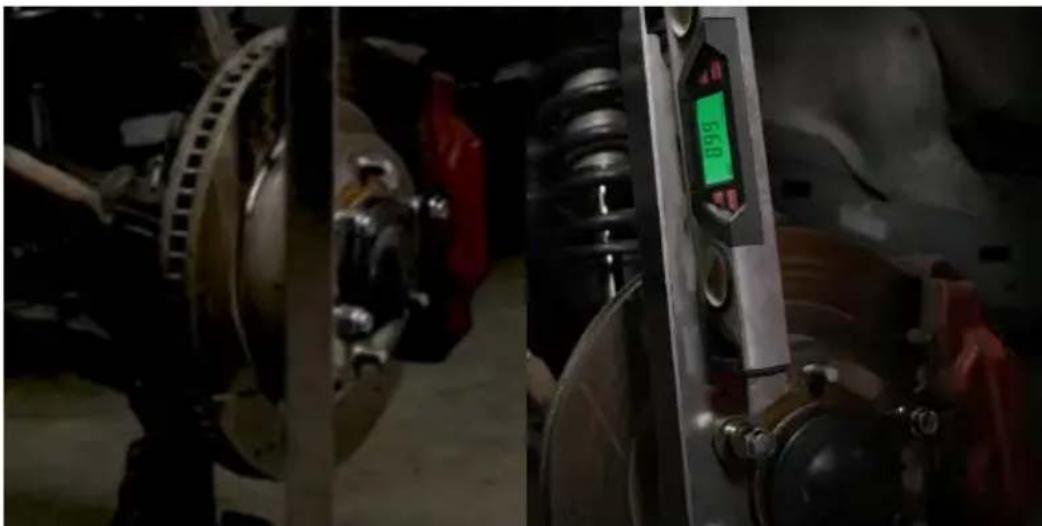

Turn the toe plate to 90 degrees, with a level that you can also use to measure camber of the car.

Interior view of a vehicle suspension system with visible mechanical components and a green digital display (no readable text or symbols)
