WPSR-XM017 - Wardrobe Vevor - Free user manual and instructions

Product Type	Wall-mounted Pipe Shelf
Brand	Vevor
Model	WPSR-XM017
Approximate Dimensions (H x W x D)	1755 x 1730 x 305 mm
Materials	Steel pipes, particleboard shelves
Maximum Load Capacity per Shelf	22.7 kg (50 lb)
Number of Shelves	4 (estimated)
Mounting Type	Wall-mounted (screws and expansion anchors included)
Recommended Use	Indoor only, on solid wall (brick, concrete, wood ≥ 6 cm)
Package Contents	Pipes, T-connectors, elbow connectors, mounting flanges, screws, anchors, boards
Care and Cleaning	Wipe with a damp cloth, avoid abrasive products
Safety Precautions	Do not exceed maximum load, keep away from children, assemble on a flat, well-lit surface
Spare Parts and Repairability	Parts available upon request from Vevor support
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - WPSR-XM017 Vevor

What is the maximum weight supported by the WPSR-XM017 shelf?

The maximum recommended weight per shelf is 50 lb (22.7 kg). Do not exceed this limit to avoid deformation or breakage.

On what type of wall can this cabinet be installed?

Installation must be on a solid wall: solid brick, concrete or wood at least 6 cm thick. Installation on hollow walls or drywall is not recommended.

Can the product be used outdoors?

No, this product is intended for indoor use only. Exposure to moisture or weather can damage the materials.

Is specific tooling required for assembly?

A screwdriver and a drill with a masonry bit (for hard walls) are required. Screws and expansion anchors are included.

How many people are recommended for installation?

It is recommended to have at least two people to facilitate placement and ensure correct assembly.

How to clean the shelves?

Wipe with a damp cloth and dry immediately. Avoid abrasive or solvent-based cleaners.

Can children use this furniture?

No, this is not a toy. Keep children away during assembly and use. Do not let them climb on the shelves.

What if I lose a part?

Contact Vevor technical support via www.vevor.com/support. Spare parts can be ordered separately.

Can I mount the shelf on a wooden wall?

Yes, provided the wooden wall is at least 6 cm thick. Use suitable screws (not included).

What is the warranty for this product?

Vevor offers an electronic warranty. Register your product at www.vevor.com/support to activate the warranty.

USER MANUAL WPSR-XM017 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PIPE SHELVES

MODEL:WPSR-XM016/WPSR-XM017

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: WPSR-XM016/WPSR-XM017

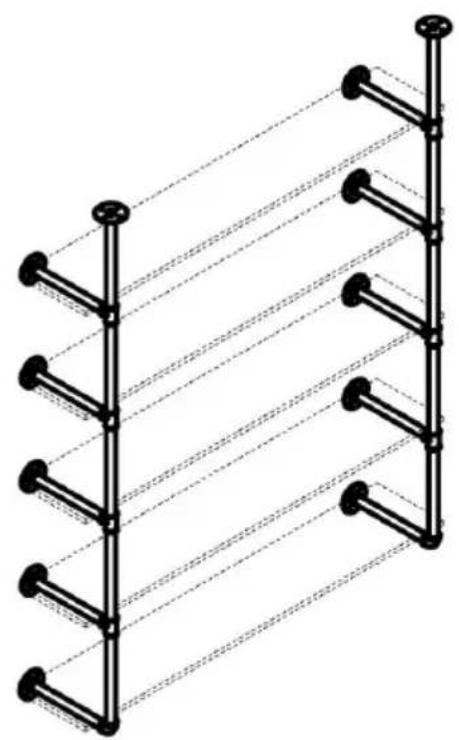

Isometric line drawing of a multi-tiered vertical structure with no text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do not allow children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Do not place too heavy weight on the pipe shelves, it may bend or even break the board, we recommend placing the weight of no more than 50lb
• The pipe shelves is installed only on solid walls, such as solid brick wall and concrete walls. If the pipe shelves is installed on wooden walls, the thickness of the wooden wall be at least 6cm.

CAUTION:

• When installing the pipe shelves, pay attention to keeping the board in horizontal state, so as to have a better experience of placing items
• This product is intended for indoor installation use only.

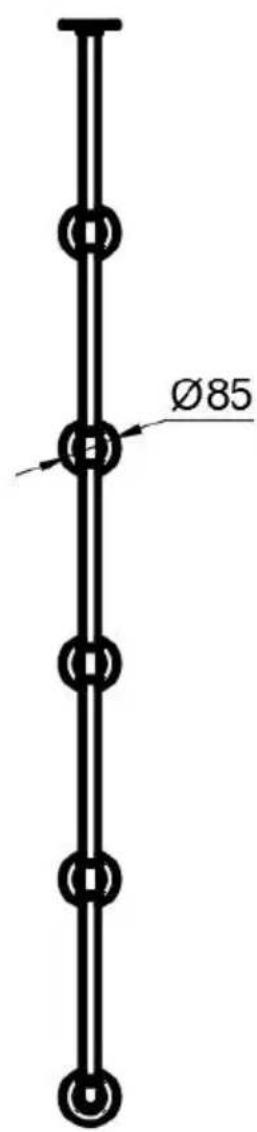

SPECIFICATION

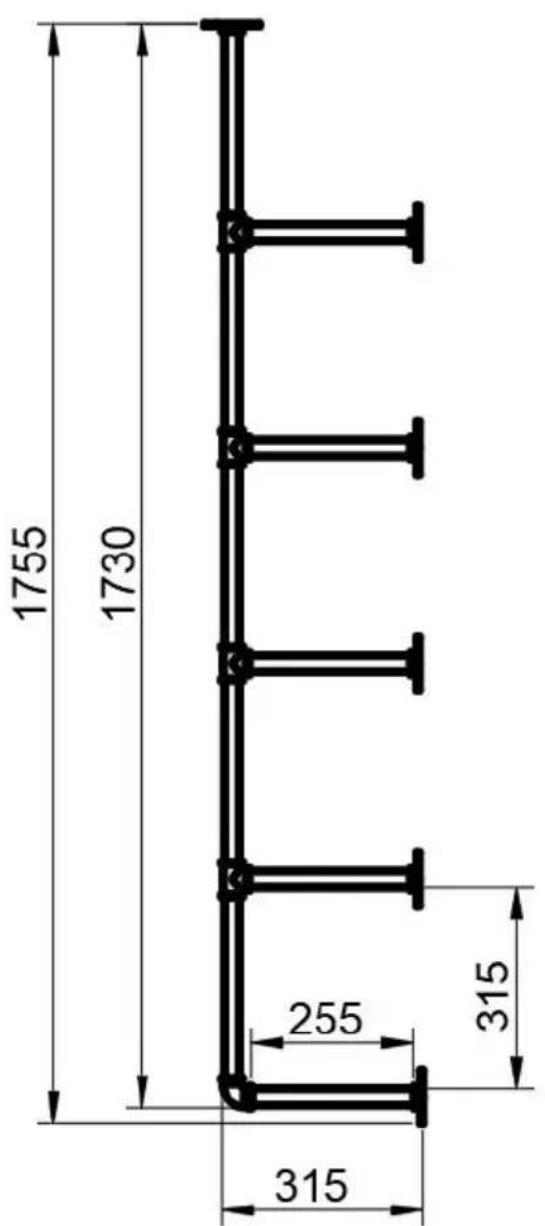

MODEL: WPSR-XM016

1755 1730 255 315 315

Ø85

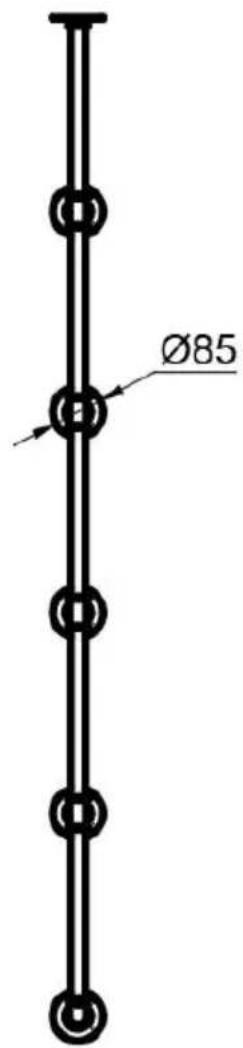

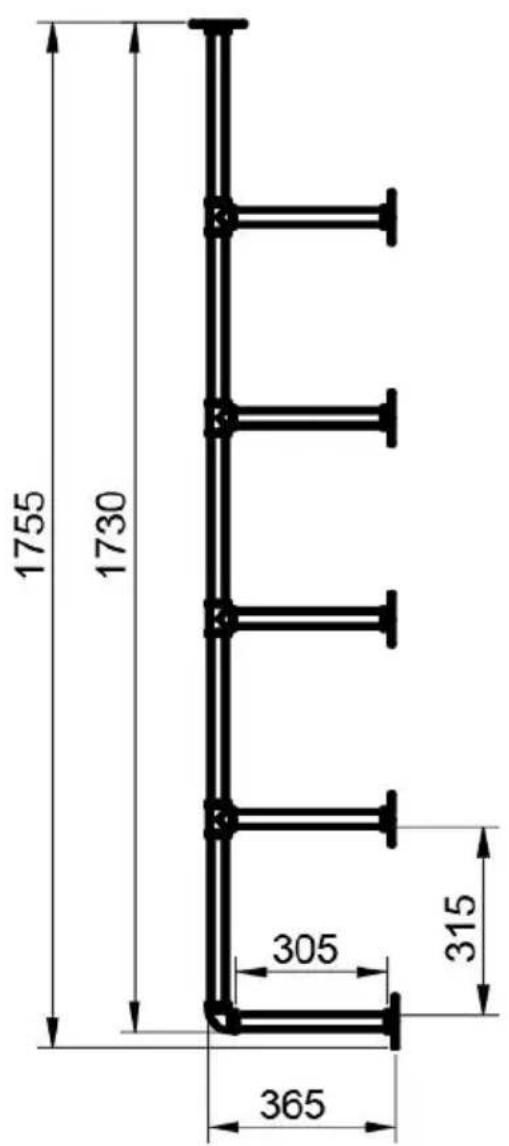

MODEL: WPSR-XM017

1755 1730 305 365 315

Ø85

Note: The number unit in the figure is mm.

Part List

Mark	Name	Picture	QTY	Specifications
				WPSR-XM016	WPSR-XM017
A	Tee connector		8	/
B	elbow connector		2	/
C	Mounting flange		12	/
D	Pipe		10	L=310mm	L=310mm
E	Pipe		10	L=276mm	L=326mm

Install accessories

Mark	Name	Specifications	Picture	QTY
R	Screw	M5*40mm		48
S	Plastic expansion tube	D=8mm		48

PIPE SHELVES ASSEMBLE

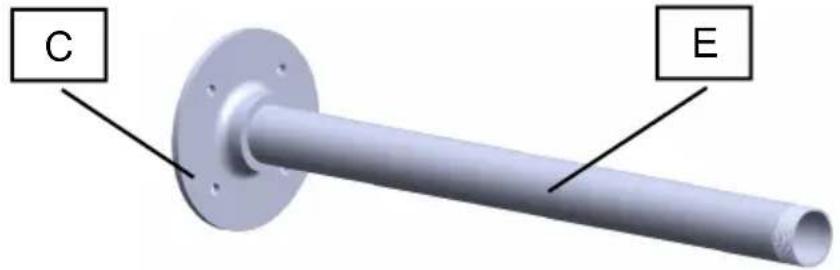

STEP1.Screw the mounting flange C together with the pipe F. 10 groups total.

C E

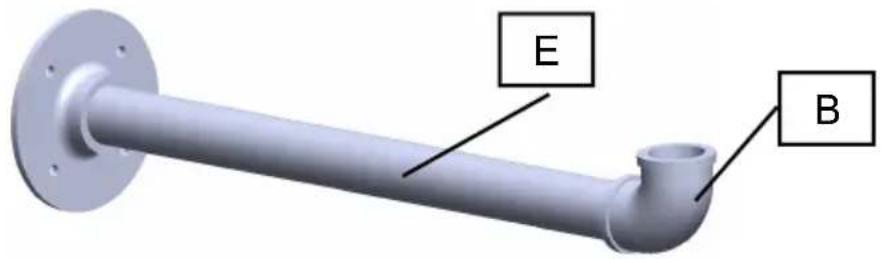

STEP2. Tighten the elbow connector B into the previous component. 2 groups in total.

E B

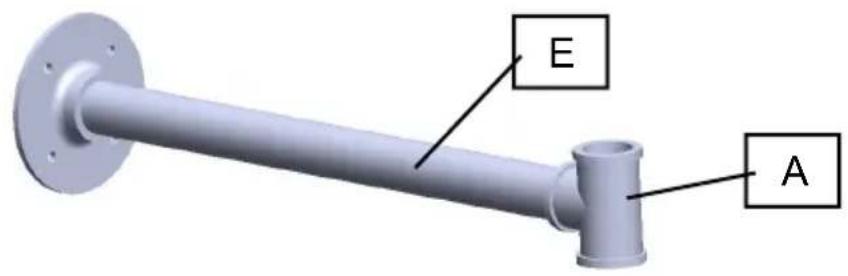

STEP3. Tighten the elbow connector A into the previous component of Step1. 8 groups in total.

E A

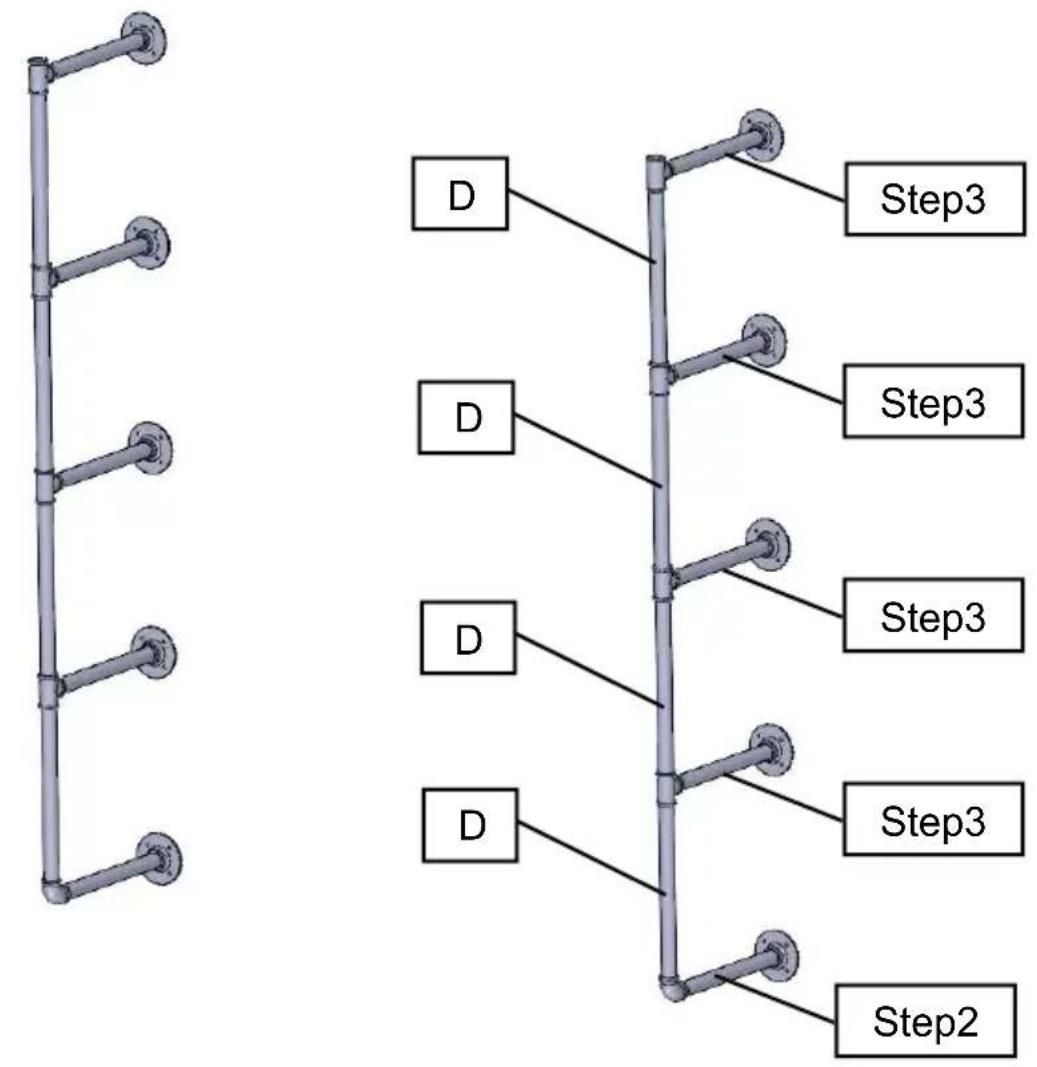

STEP4. Connect the components of Step 2 and Step 3 with pipe D.

D Step3 D Step3 D Step3 D Step3 Step2

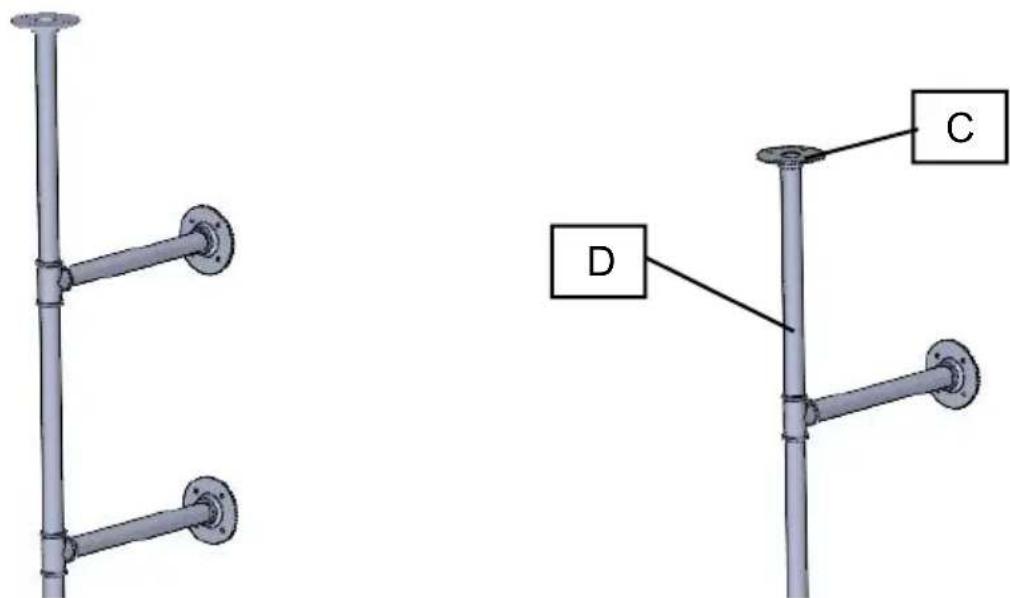

STEP5. Connect the pipe D and Mounting flange C.

ATTACH PIPE SHELVES TO THE WALL

Note: At least one assistant is recommended.

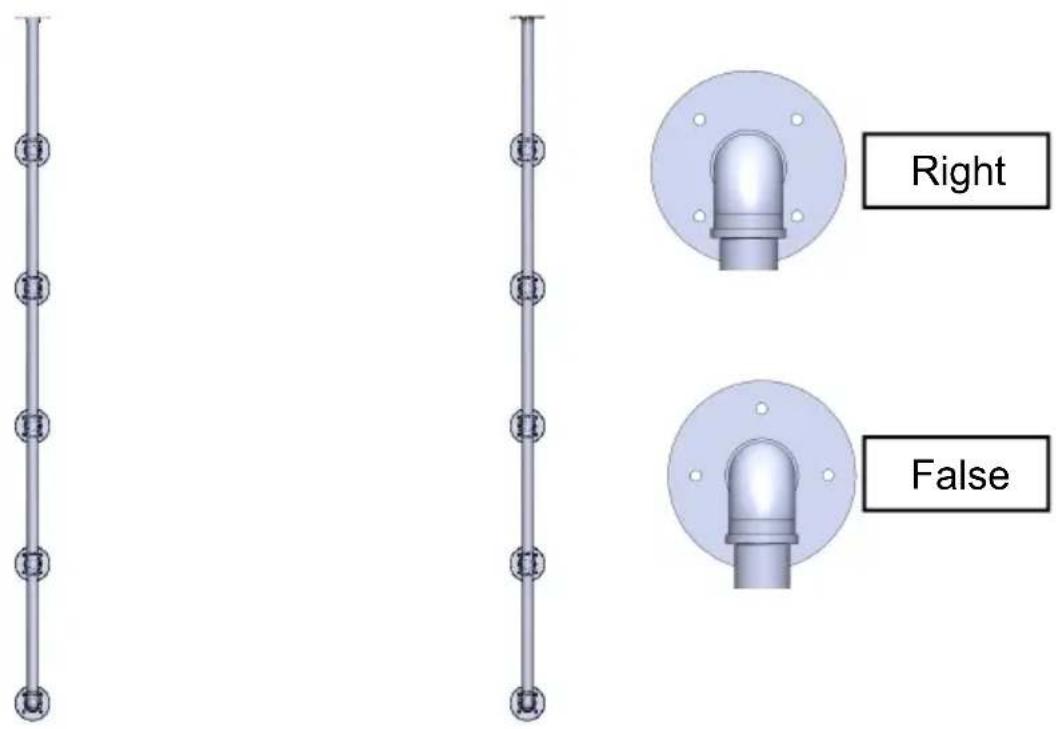

STEP1: Locate the pipe shelves to the wall and determine the height you want to install them at. Use a level to make sure the boards are level, mark the location holes on the mounting flange.

Right False

Note: The fixed points of the flange should be distributed on both of the tube for better operation to tighten the screw.

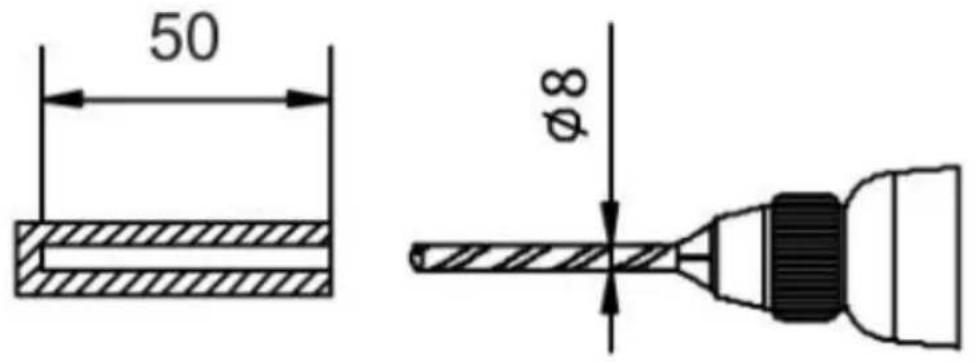

STEP2: Drill holes in the concrete wall with an impact drill bit. The size of the holes is shown below.(If mounted on a wooden wall, drill holes with common drill bit.)

50 Ø8

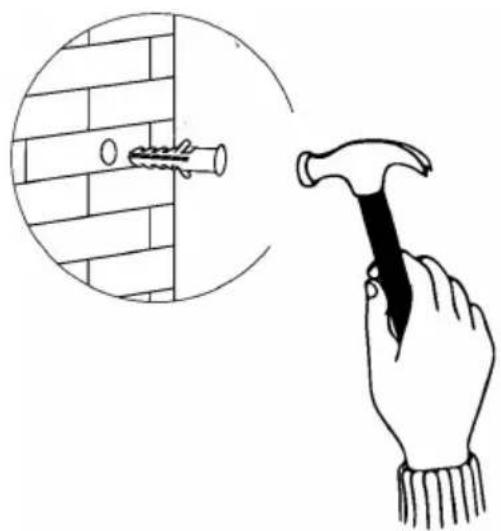

STEP3:Drive Plastic expansion tube into each hole.

Illustration of a hand using a hammer to tighten a bolt on a brick wall, with a magnified inset showing the tool (no text or symbols present)

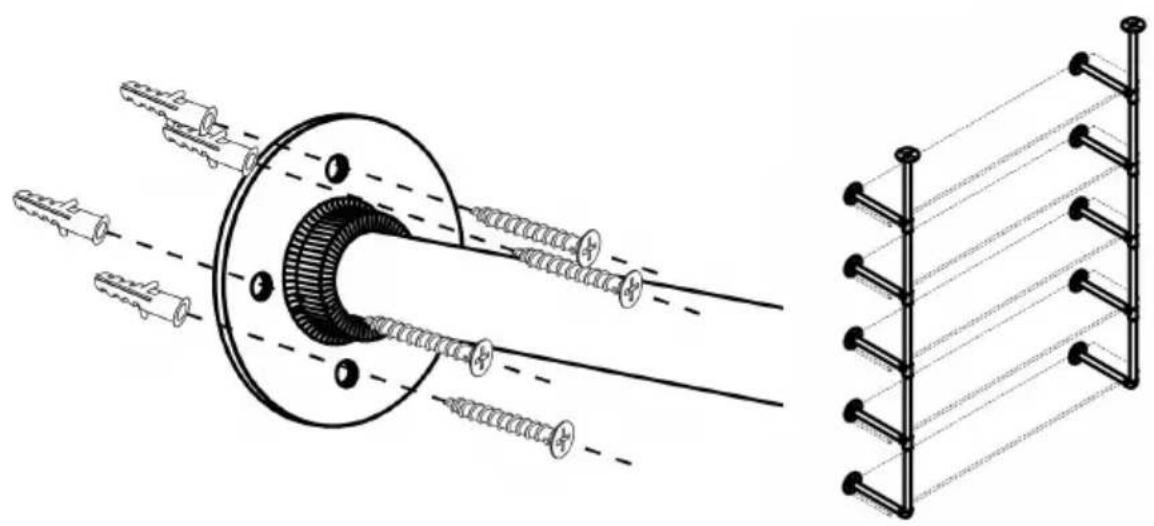

STEP4: For each mounting hole, secure pipe shelves with tapping screws.

Technical diagram showing a mechanical assembly with threaded fasteners and a multi-tiered structural frame (no text or symbols present)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered vertical structure with evenly spaced nodes and dashed lines indicating hidden edges (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

Illustration of a hand using a hammer to clean or store tiles, with a magnified inset showing a nail being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a multi-tiered structural frame (no text or symbols present)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Isometric line drawing of a multi-tiered vertical structure with no text or symbols

Technical diagram showing two labeled metal railings (C and D) with flange connections and a central pipe fitting.

Illustration of a hand using a hammer to clean or store tiles, with a magnified inset showing a nail being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a multi-tiered structural frame (no text or symbols present)

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Ort, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered vertical structure with no text or symbols

HO BISOGNO DI AIUTO? CONTATTACI!

Technical diagram showing two labeled metal railings (C and D) with flange connections and a vertical support structure.

FISSARE GLI SCAFFALI TUBO ALLA PARETE

Illustration of a hand using a hammer to clean or store tiles, with a magnified inset showing a nail being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a multi-tiered structural frame (no text or symbols present)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered vertical structure with no text or symbols

Technical diagram showing two labeled metal railings (C and D) with flange connections and a central support structure.

FIJAR ESTANTES PARA TUBERÍAS A LA PARED

Bien FALSO

Illustration of a hand using a hammer to clean or store tiles, with a magnified inset showing a nail being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a multi-tiered structural frame (no text or symbols present)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Isometric line drawing of a multi-tiered vertical structure with evenly spaced nodes and dashed lines indicating hidden edges (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Vertical metal pipe structure with multiple flanged ends (no text or symbols)

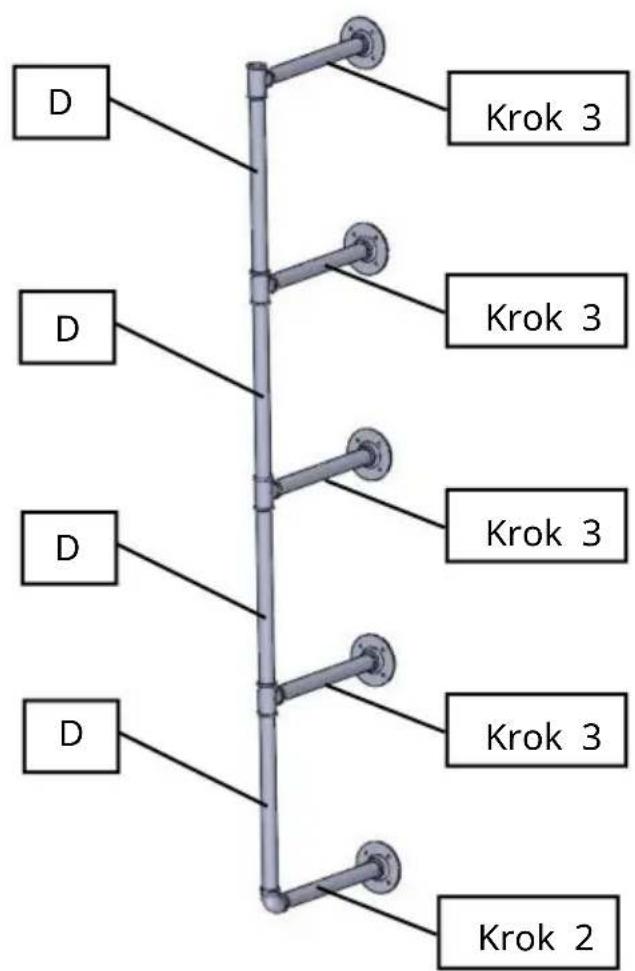

D Krok 3 D Krok 3 D Krok 3 D Krok 3 Krok 2
