TRIANGLE CORNER CABINET USER MANUAL

MODEL NO.: J10034-33-FB

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Triangle Corner Cabinet

MODEL NO.: J10034-33-FB

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

Please read and observe carefully all the assembly instructions before beginning assembly.

Unit should be assembled by two or more people.

DO NOT CLIMB

Please do not let your child climb on the product. If y kids or animals who like to climb, we highly recomme using the wall anchors and brackets/straps that come the package.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Triangle Corner Cabinet.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Triangle Corner Cabinet.
4. Use as intended only.
   Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	J10034-33-FB
Rating(s)	12A, 125V, 60Hz, 1500W MAX/220-240Vac, 50/60Hz 16A Max
Product Dimensions (LxWxH)(mm)	715*540*1633
Net Weight(kg)	About 24.8

*Products such as specifications, appearance, and design are subject to modification without prior notice.

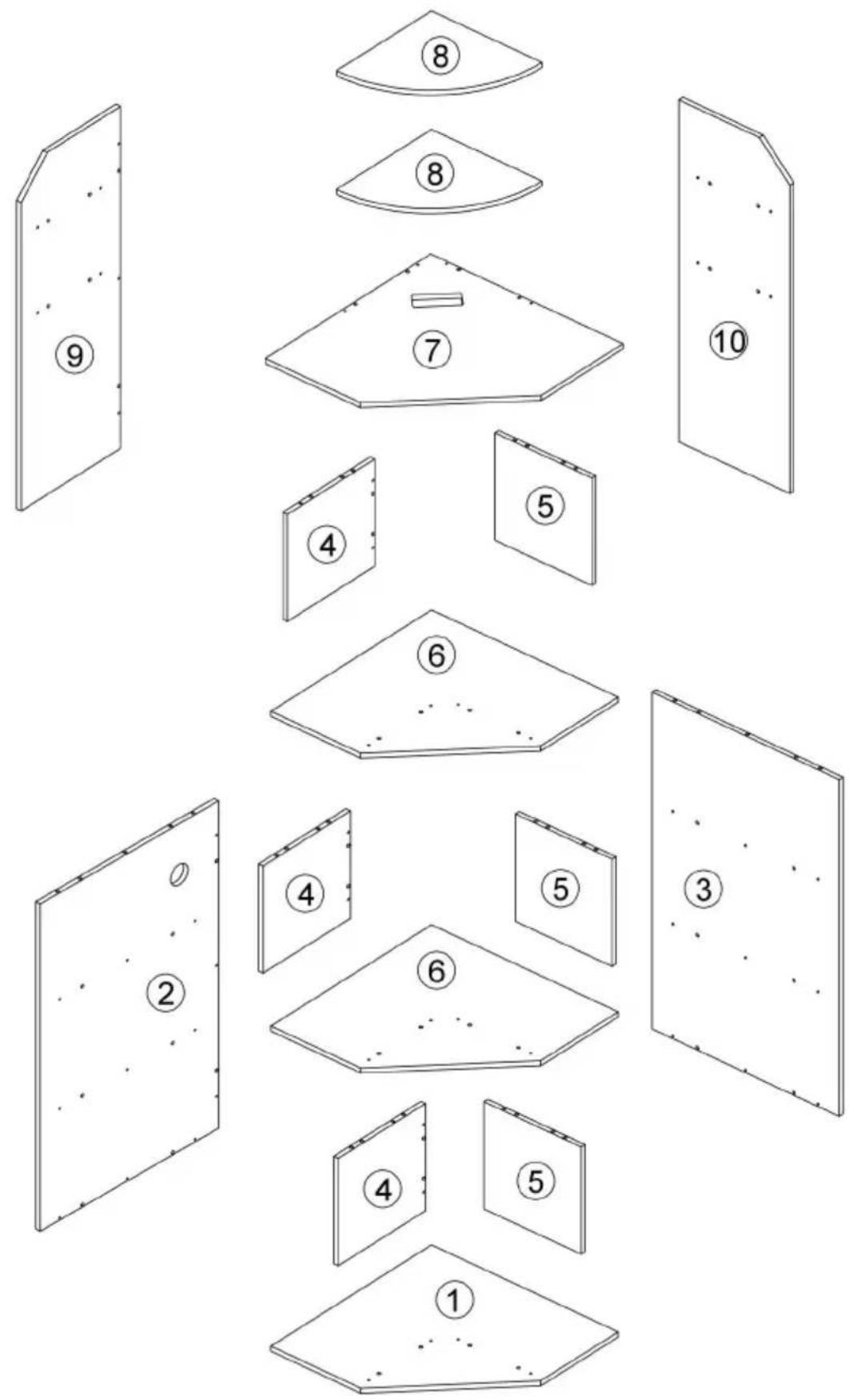

PACKAGE CONTENTS

Diagram showing 10 numbered geometric shapes arranged in a grid, with some highlighted and dotted patterns.

A72X+4X	B62X+2X	C72X+4X	D1X
E2X	F2X+4X	G2X+2X	H2X

ASSEMBLY STEPS

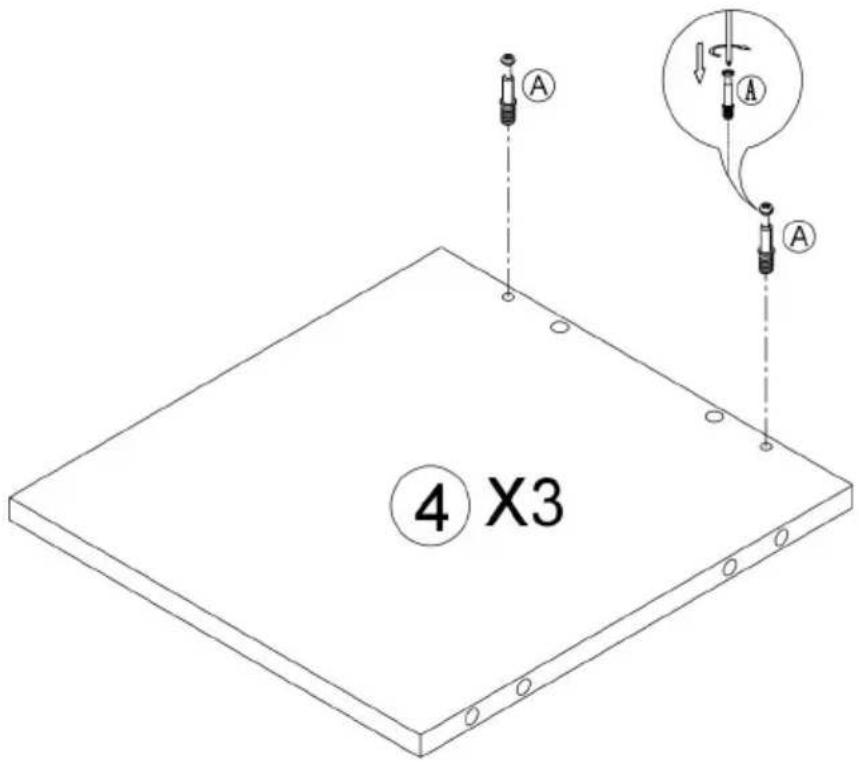

Step 1

④ X3

A

6

Step 2

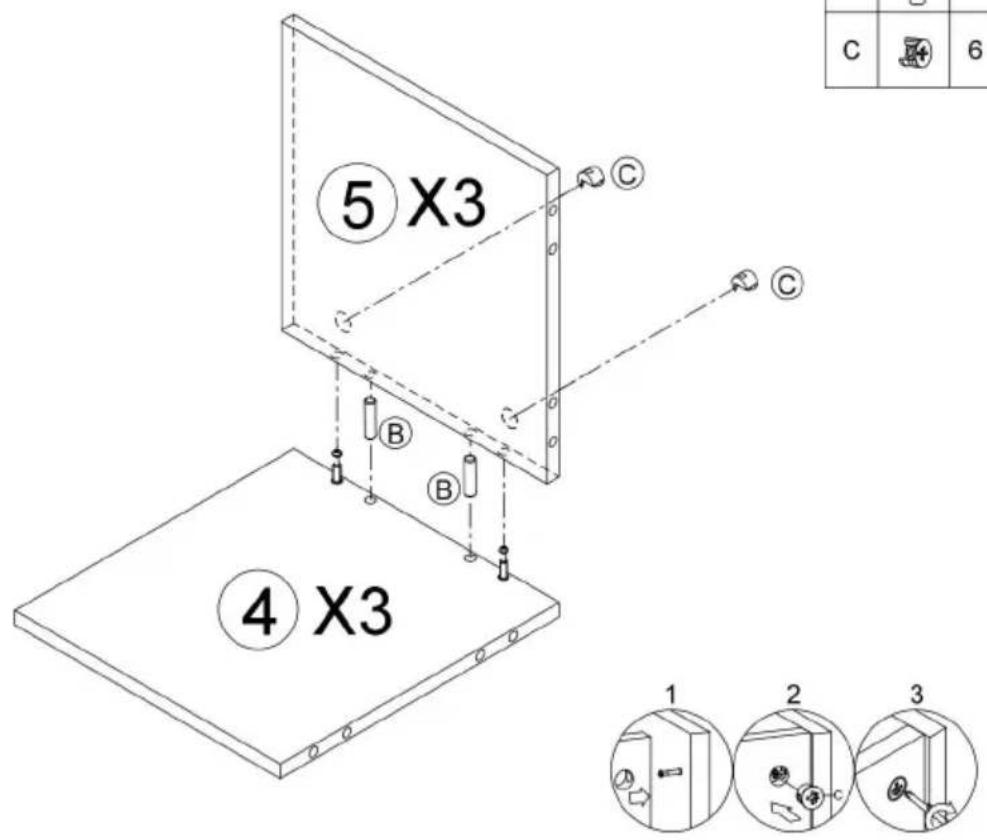

5 X3 4 X3 1 2 3 C 6

B		6
C		6

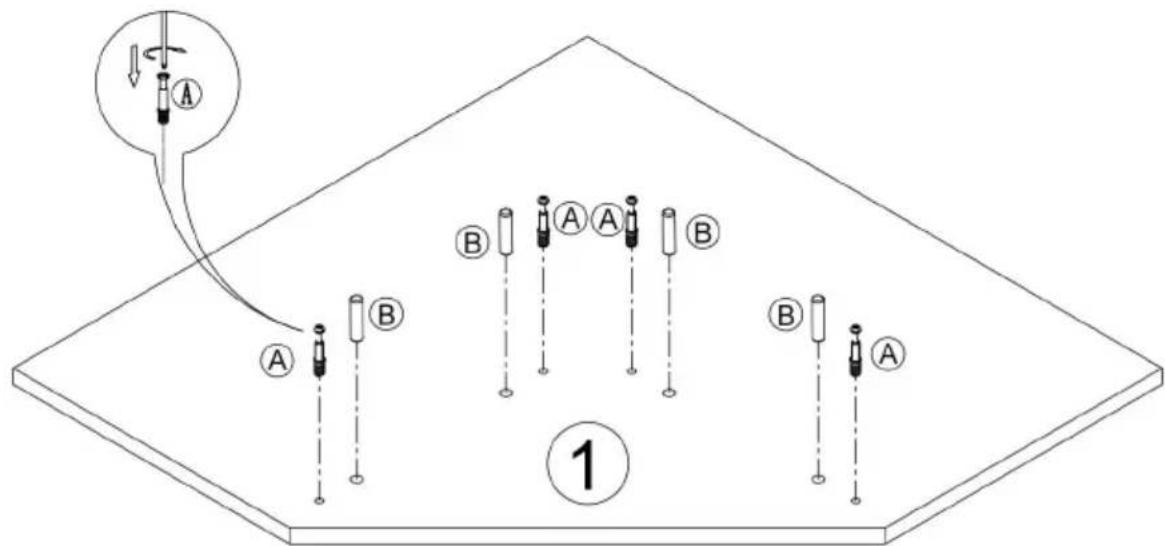

Step 3

A		4
B		4

Diagram illustrating a mechanical or electrical setup with labeled components A and B, including a directional arrow and numbered section 1.

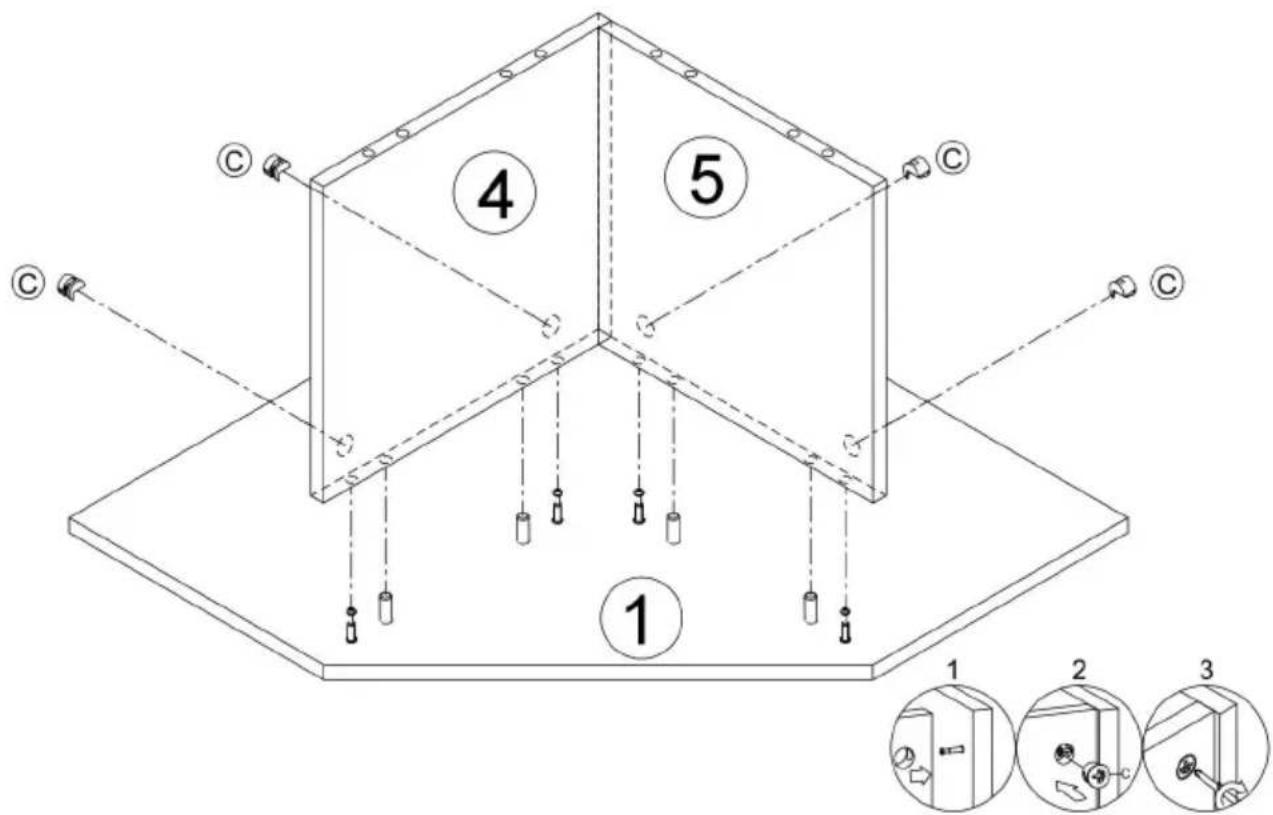

Step 4

C

4

① ② ③ ④ ⑤ ① ② ③

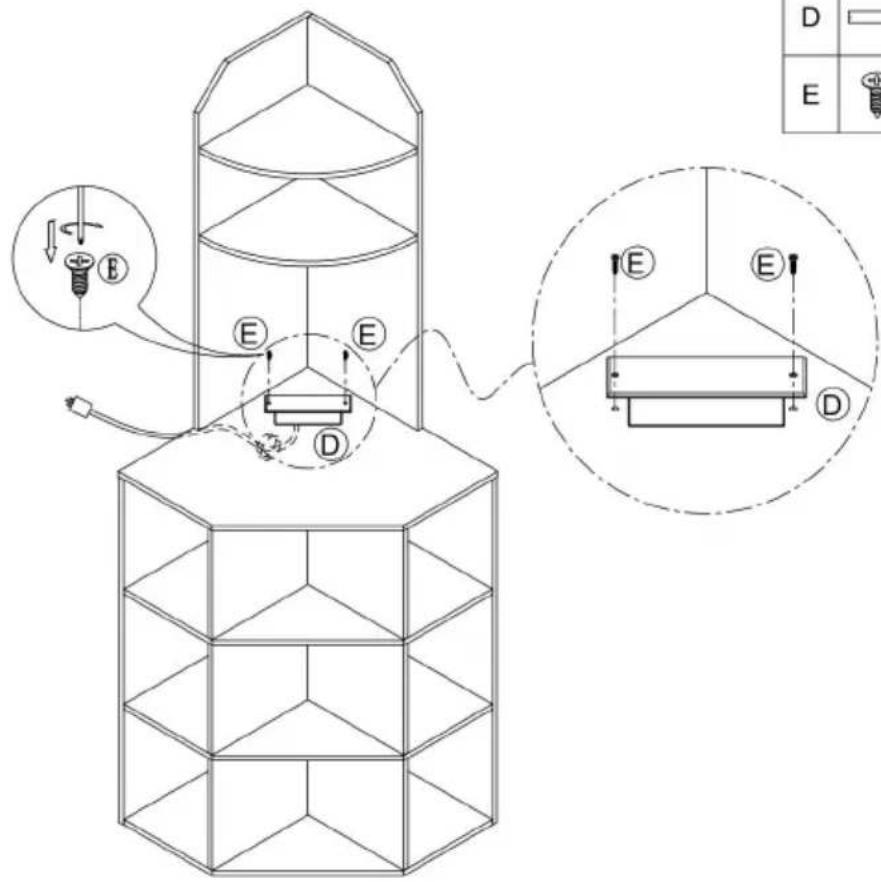

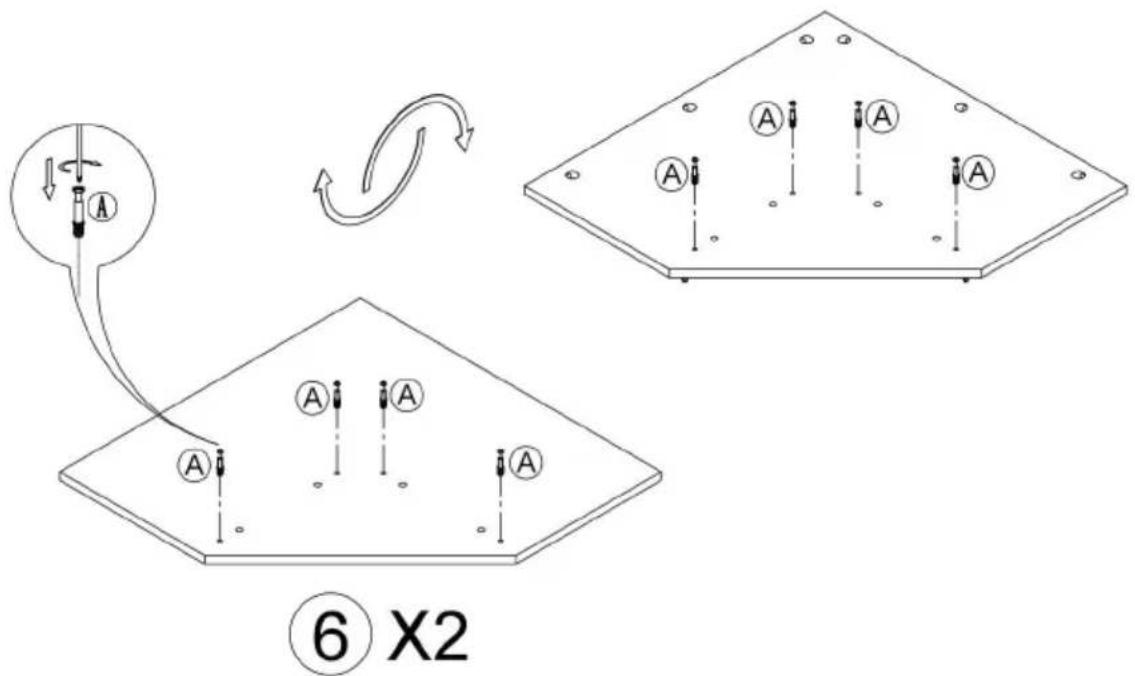

Step 5

A

16

⑥ X2

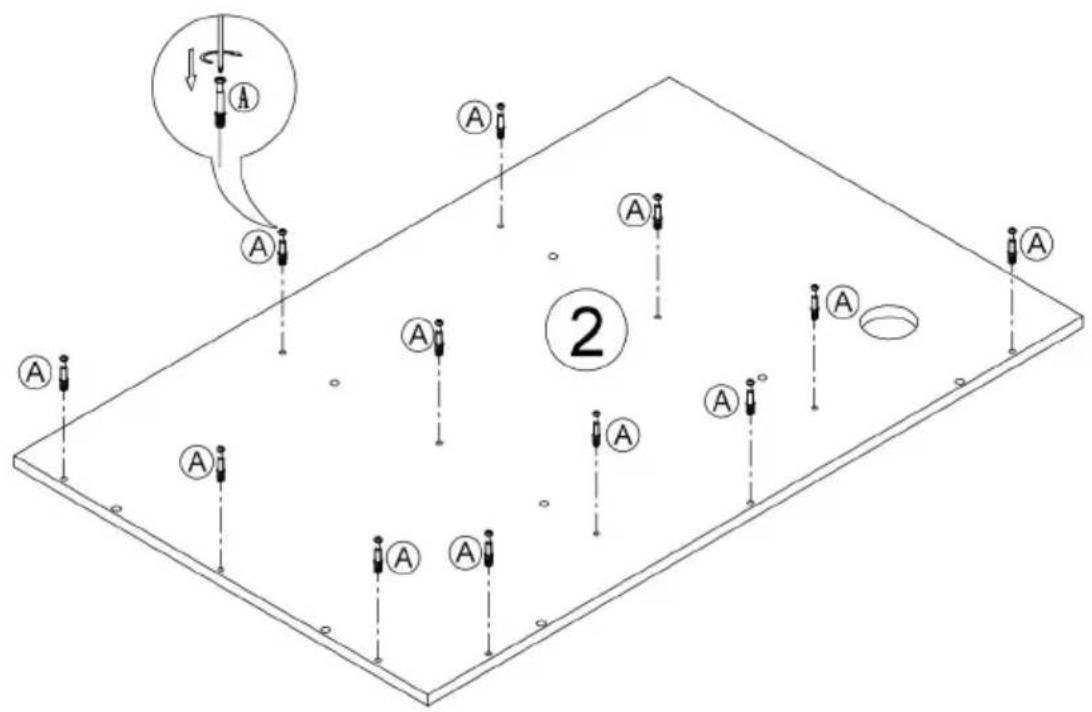

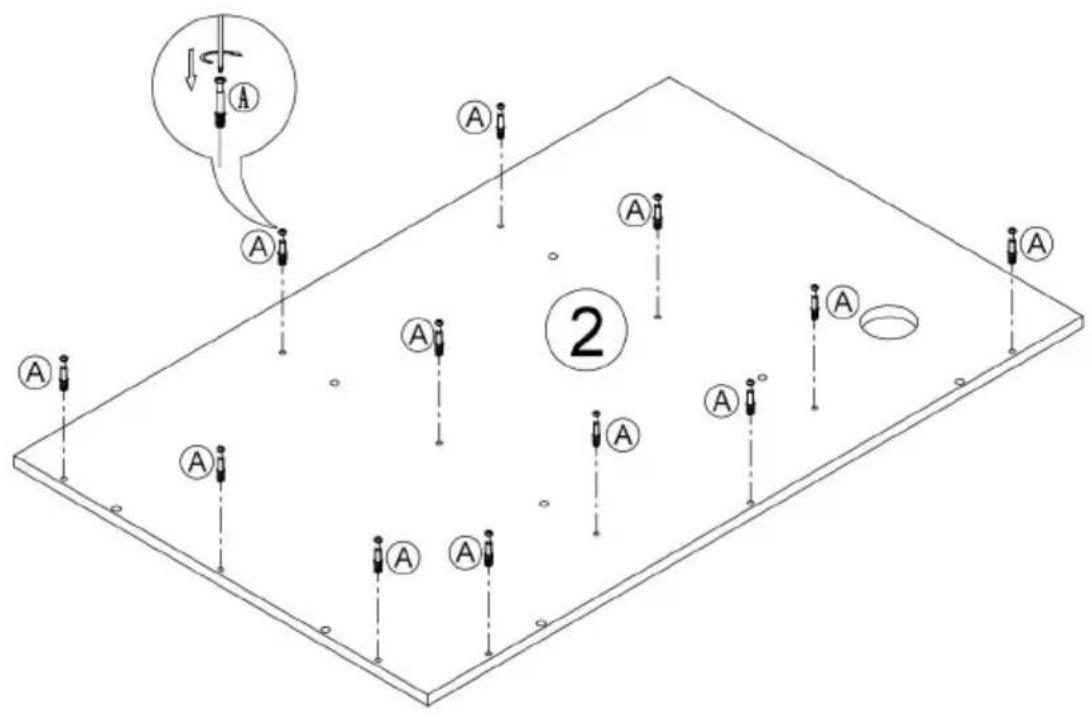

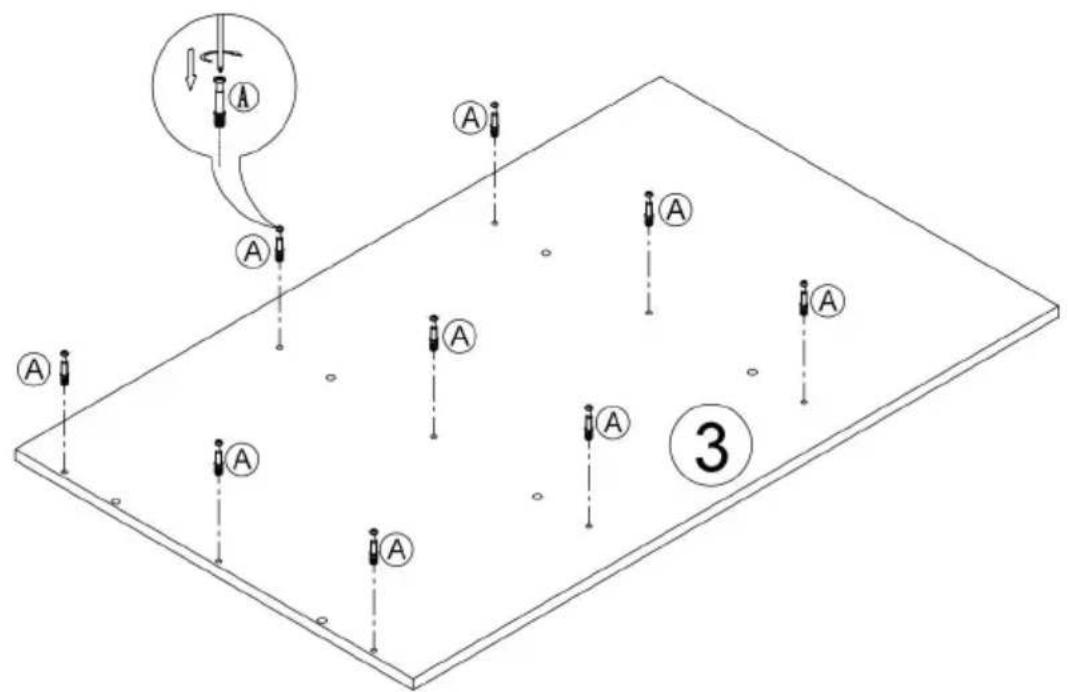

Step 6

B		4
C		4

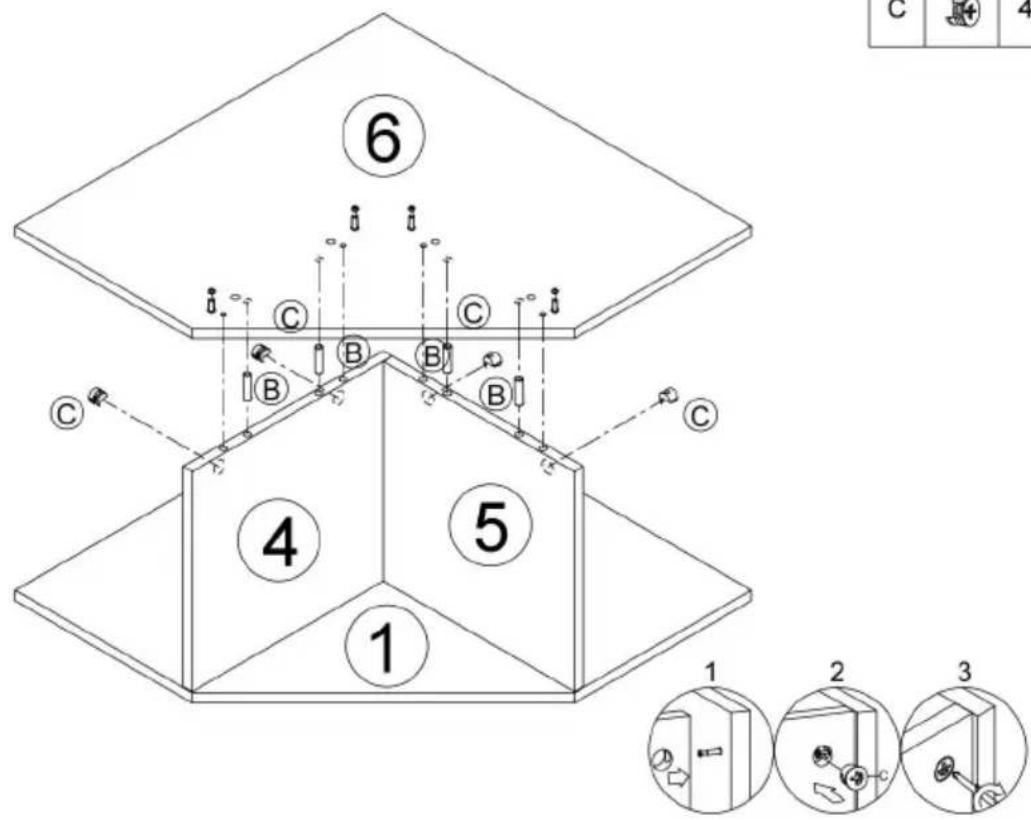

6 C B B B C 4 5 1 1 2 3 C 4

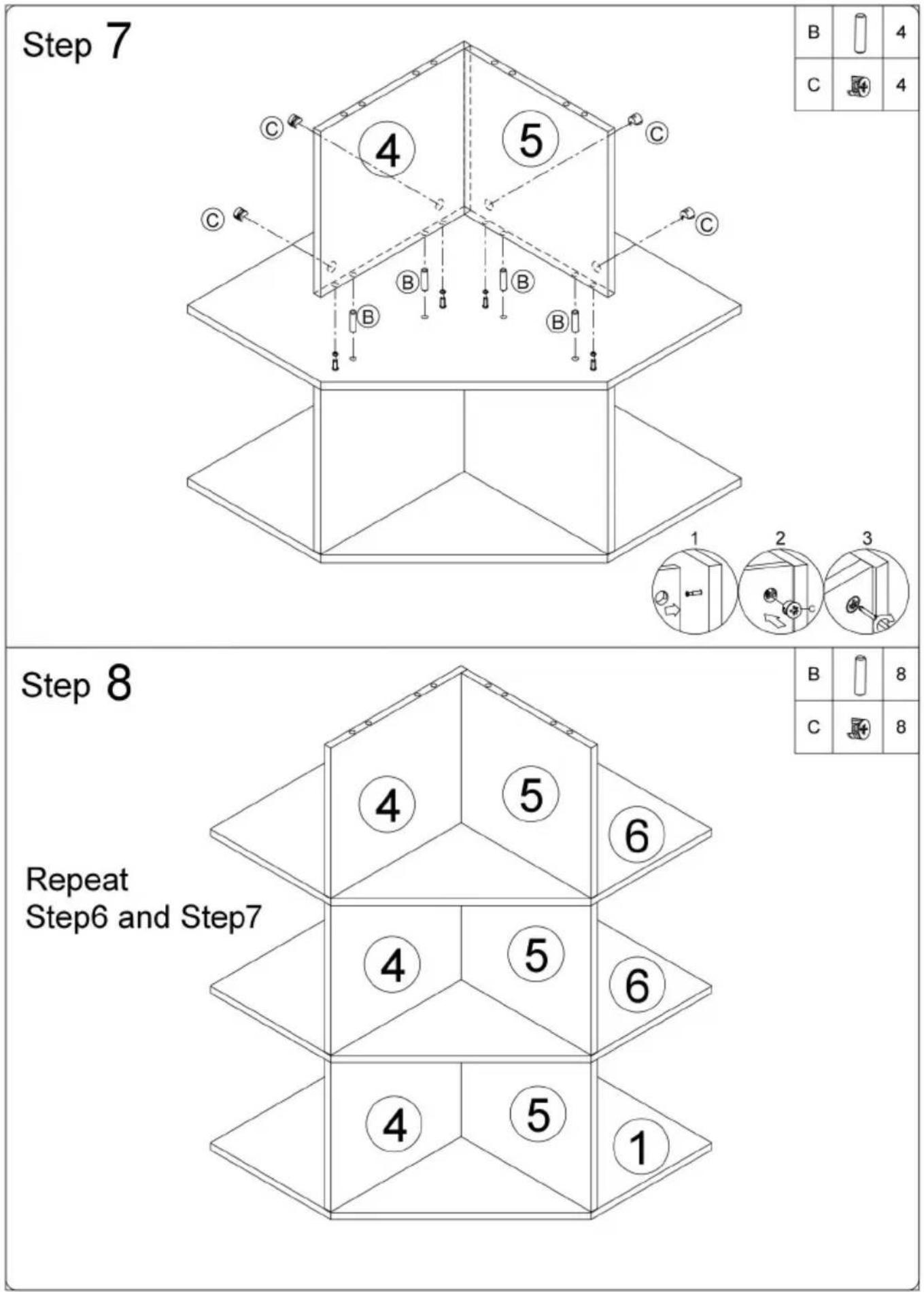

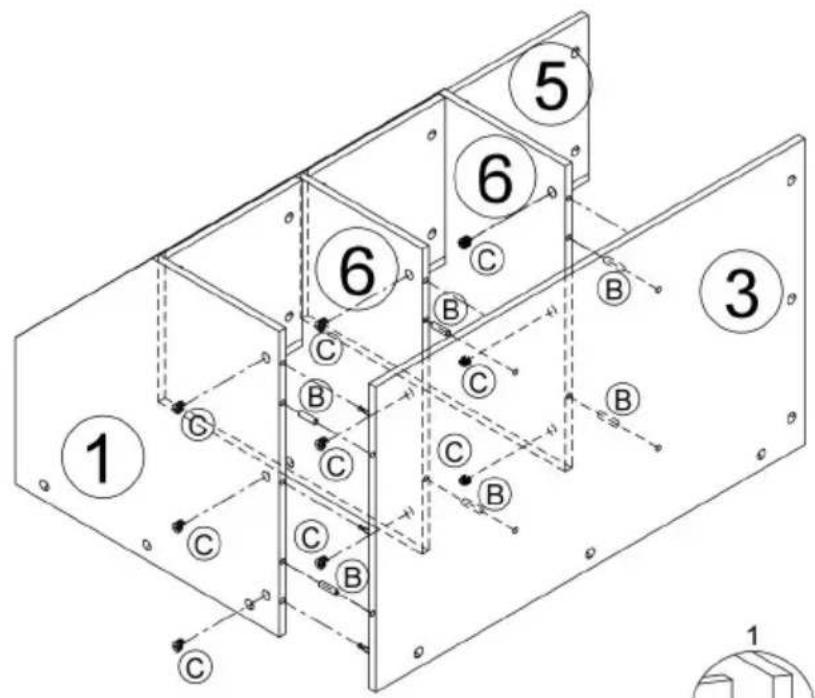

Step 7 B 4 C 4 1 2 3 Step 8 Repeat Step6 and Step7 B 8 C 8 4 5 6 4 5 6 4 5 1

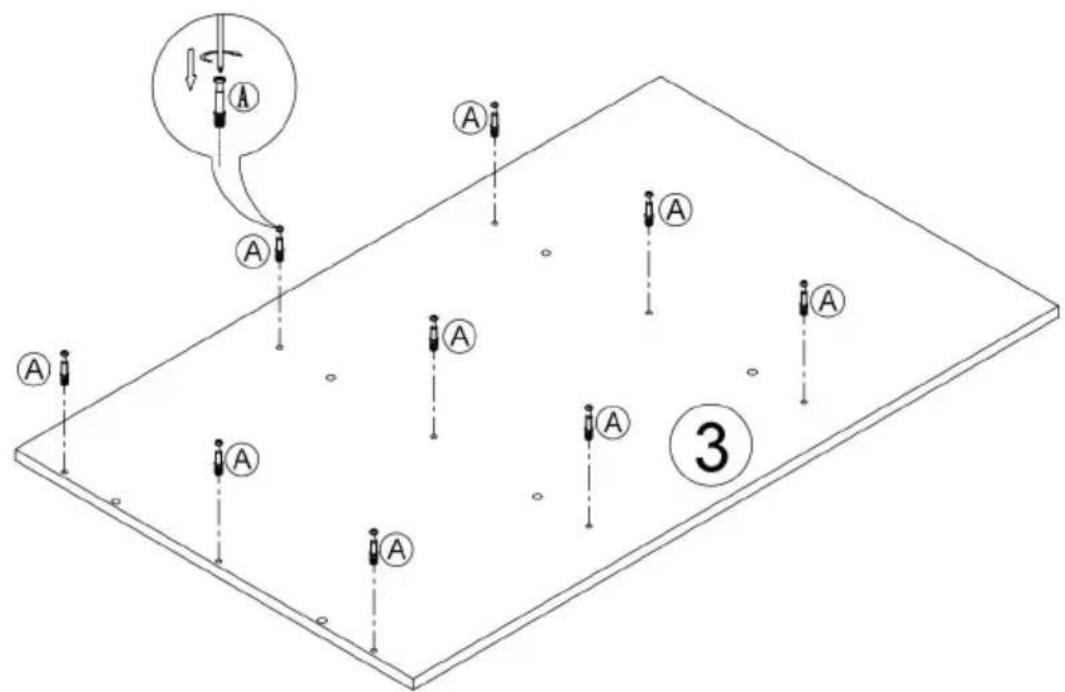

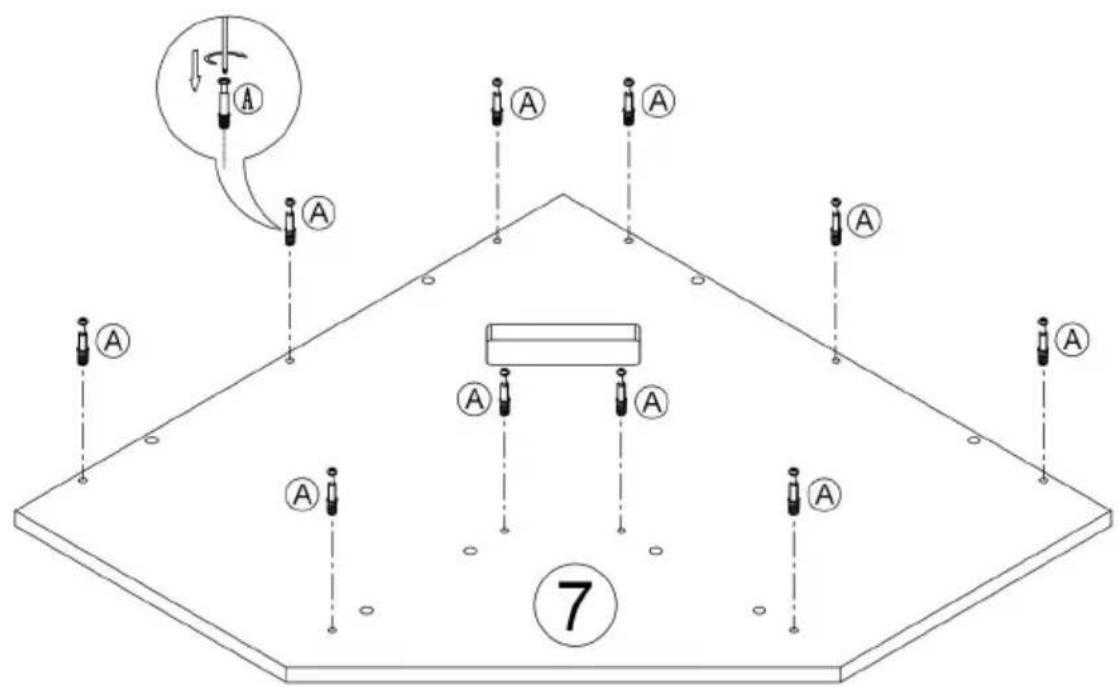

Step 9

A

9

Diagram of a scientific apparatus with labeled components and a circled section number 3, showing electrodes and a magnified view.

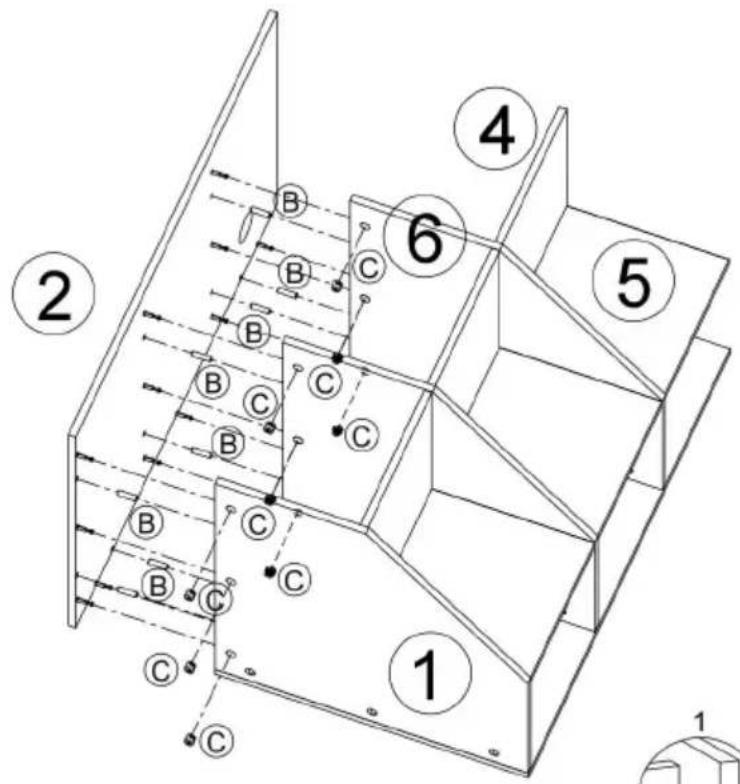

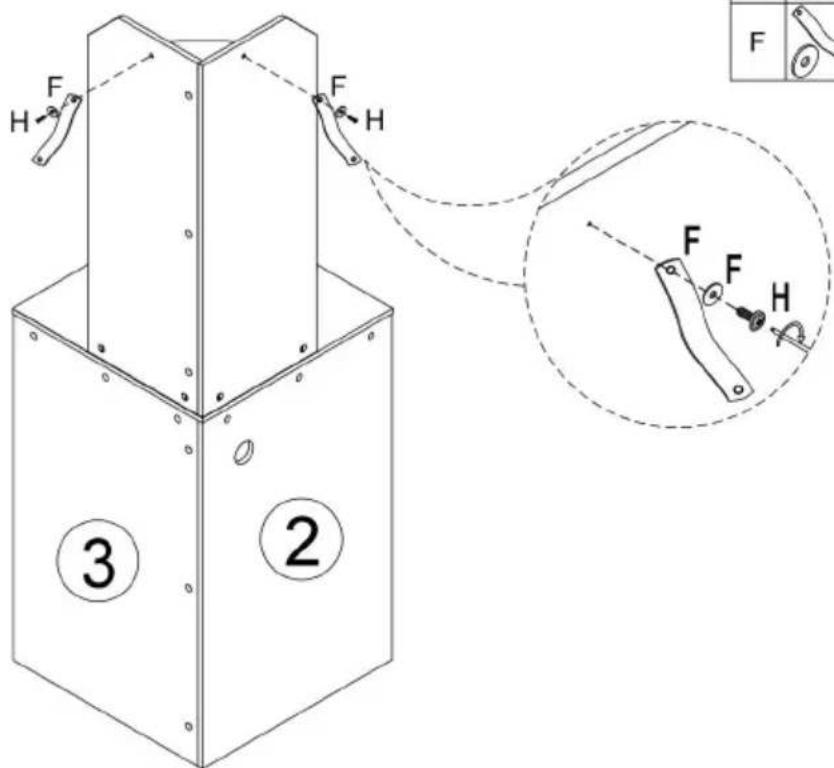

Step 10

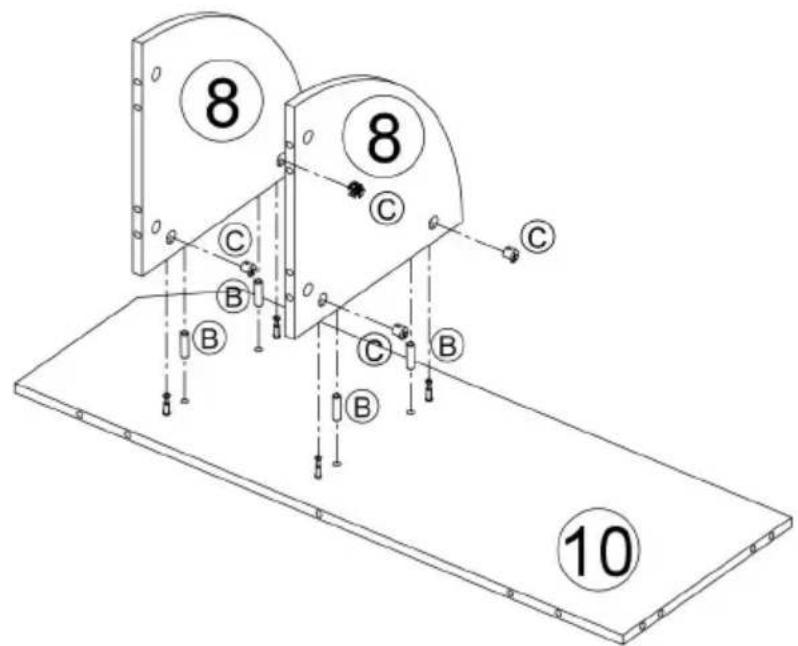

B		6
C		9

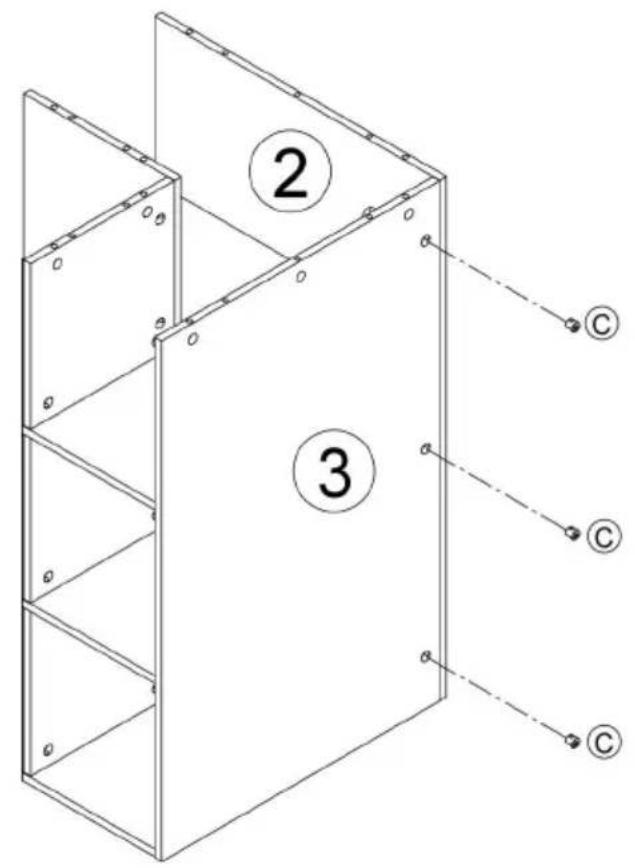

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

Diagram showing three steps of door opening and locking mechanism with labeled parts

Step 11

Diagram of a scientific apparatus with labeled components and a numbered section, showing electrodes and measurement indicators.

Step 12

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ B C B C B C B C B C C C

1 2 3

Step 13

2 3 C C C

Step 14

Diagram of a mechanical or electrical setup with labeled components and a numbered circle, showing connections and a magnified inset with a circular component.

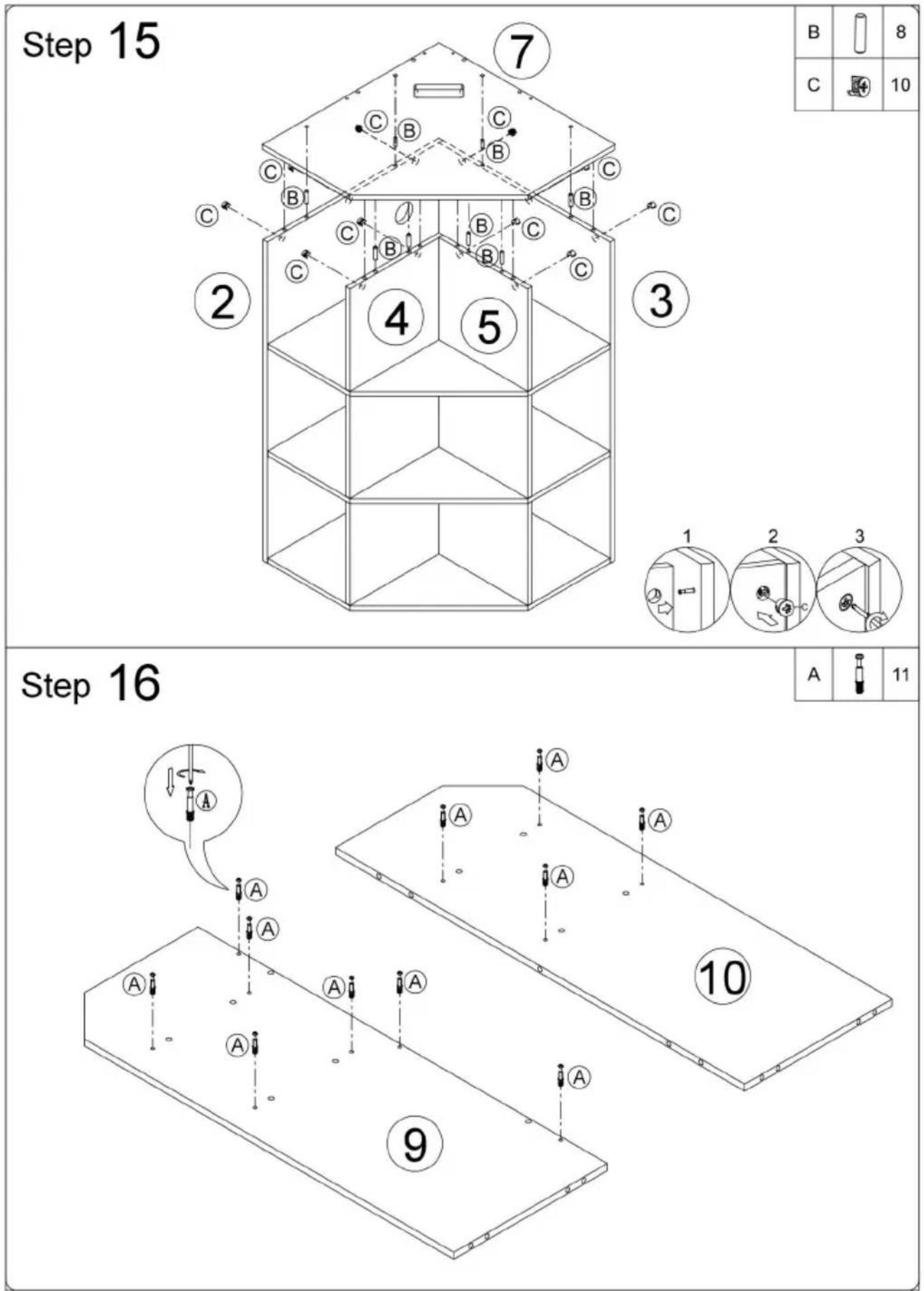

Step 15 7 B 8 C 10 2 4 5 3 1 2 3 Step 16 A 11 9 10

Step 17

B		4
C		4

Diagram showing three steps of door opening and locking mechanism with labeled parts

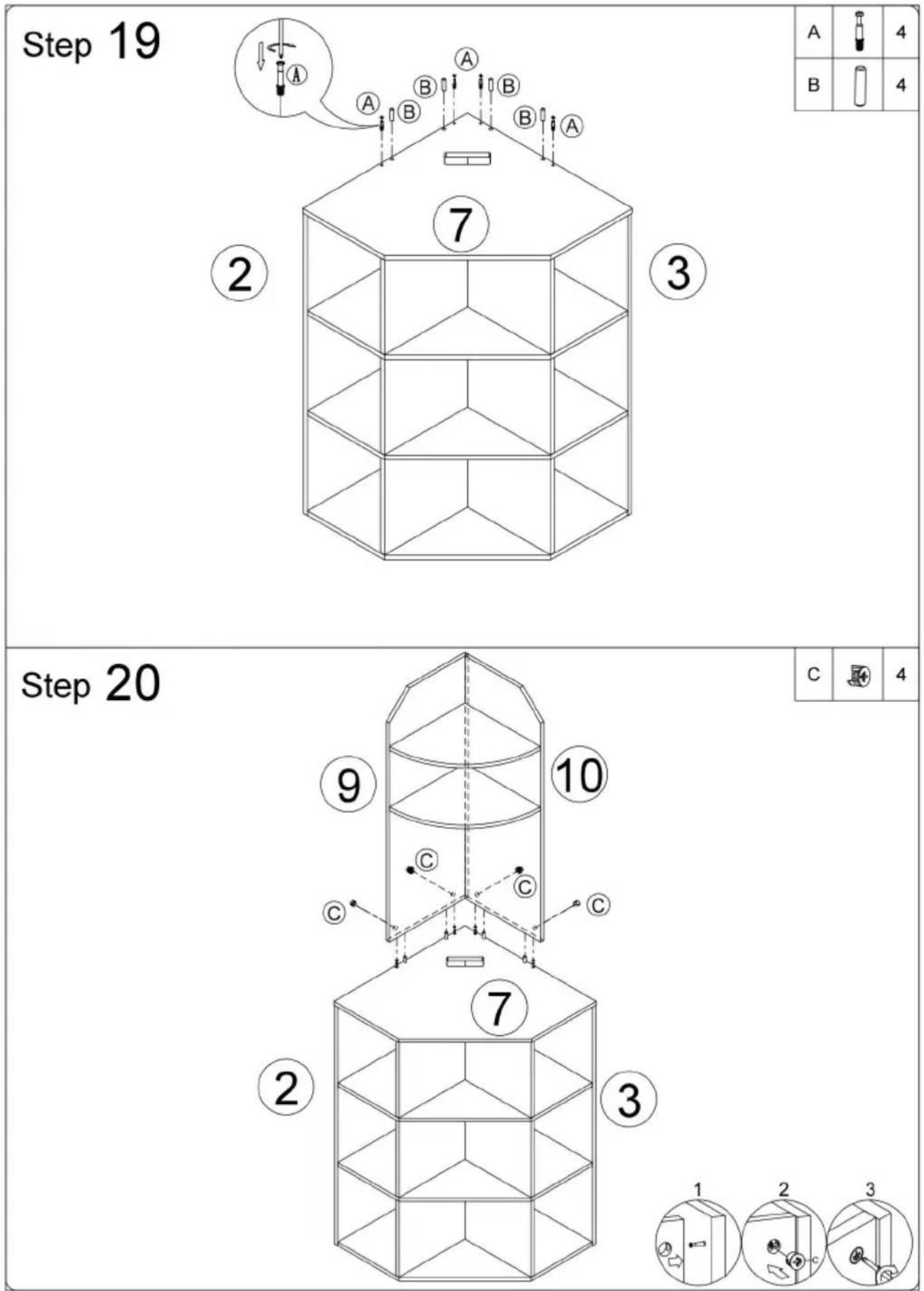

Step 19 A 4 B 4 ② ③ ⑦ Step 20 C 4 ⑨ ⑩ ① ② ③ ⑦ ② ① ② ③

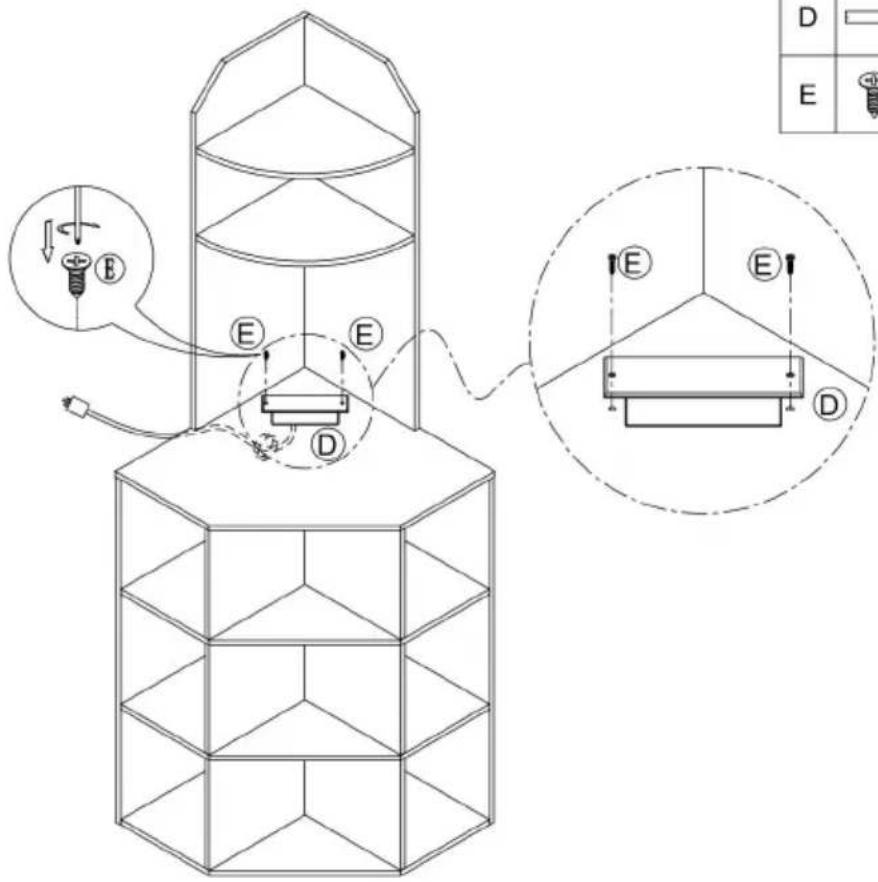

Step 21

Technical diagram of a mechanical device with labeled components and electrical connections, including E and D terminals.

D		1
E		2

Step 22

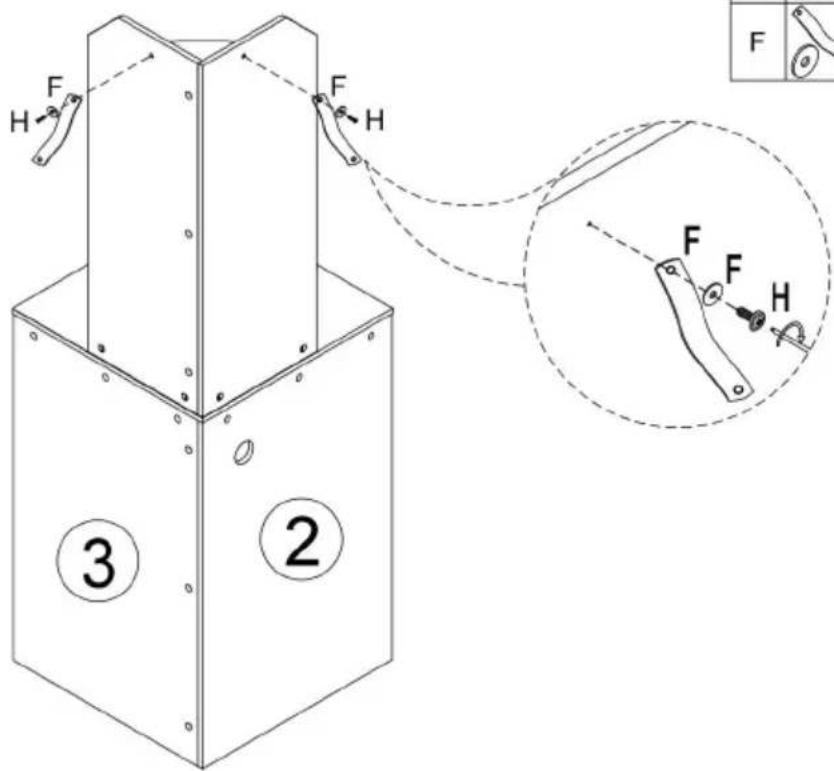

F H F H F F H ③ ②

H		2
F		2

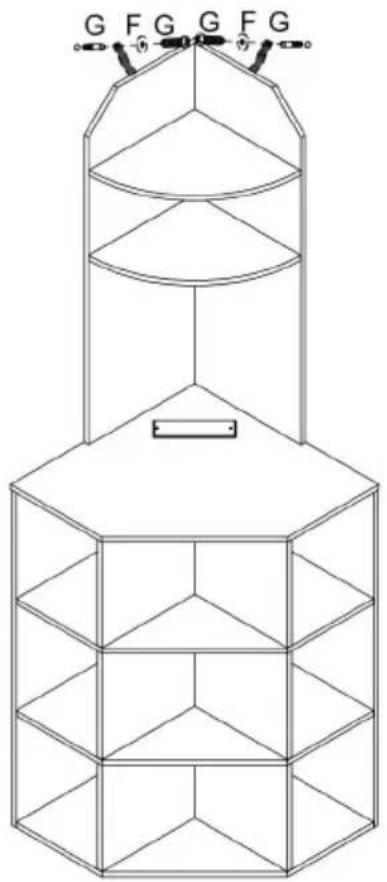

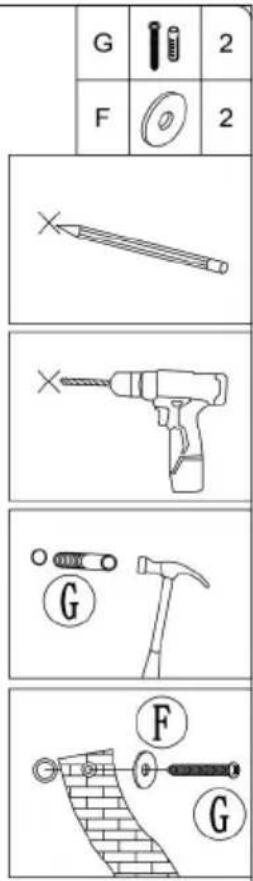

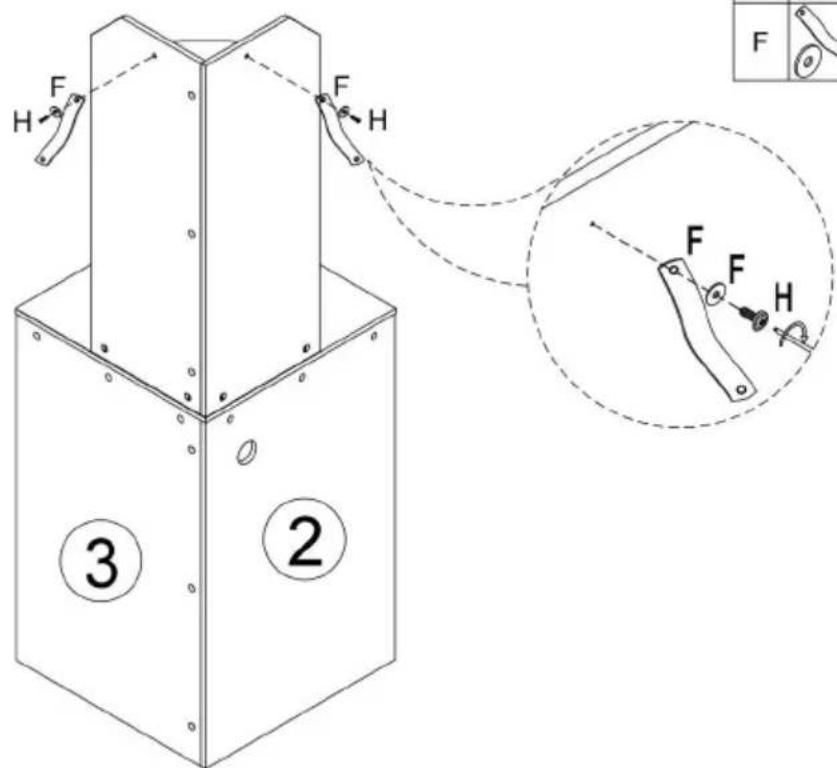

Step 23

Technical line drawing of a multi-tiered mechanical or architectural structure with no visible text or symbols

G F 2 2 X X G F G

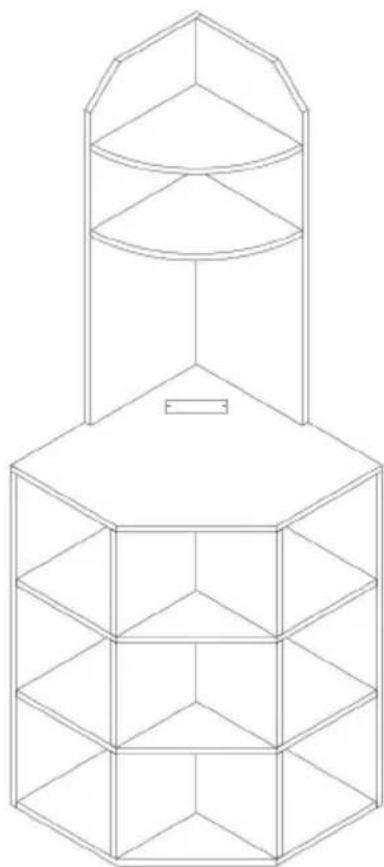

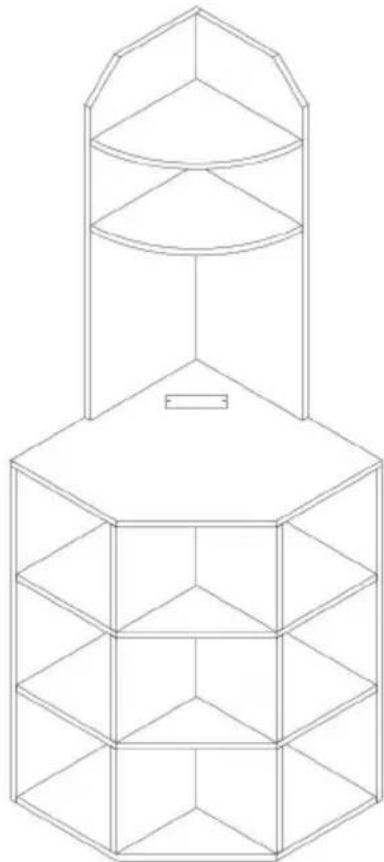

COMPLETION

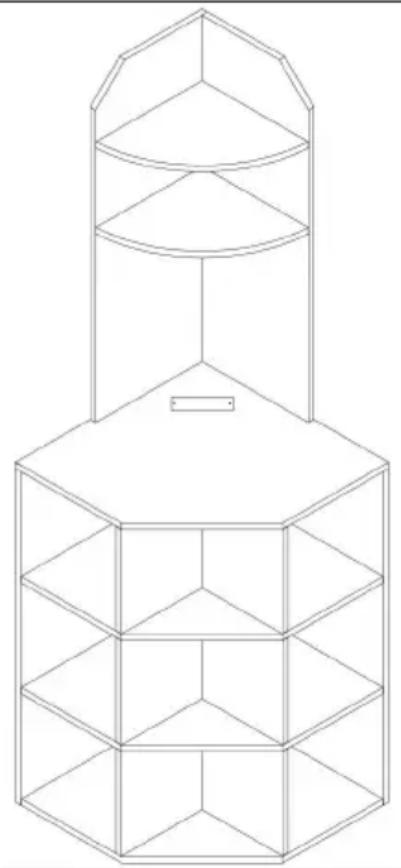

Line drawing of a multi-tiered storage cabinet or shelf unit with no text or symbols

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
