MAIL ORGANIZER

USER MANUAL

MODEL NO.: HZFC008-BL/HZFC008-BN/HZFC008-GY

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL NO.: HZFC008-BL/HZFC008-BN/HZFC008-GY

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Mail Organizer.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, level, hard and smooth surface capable of sa supporting a fully loaded Mail Organizer.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

TECHNICAL SPECIFICATIONS

Model HZFC008-BL/HZFC008-BN/HZFC008-GY
Main Material Board
Color Black/Brown/Grey
Product Dimensions (LxWxH)(mm)	800*297*550
Net Weight (kg)	17.8

PACKAGE CONTENTS

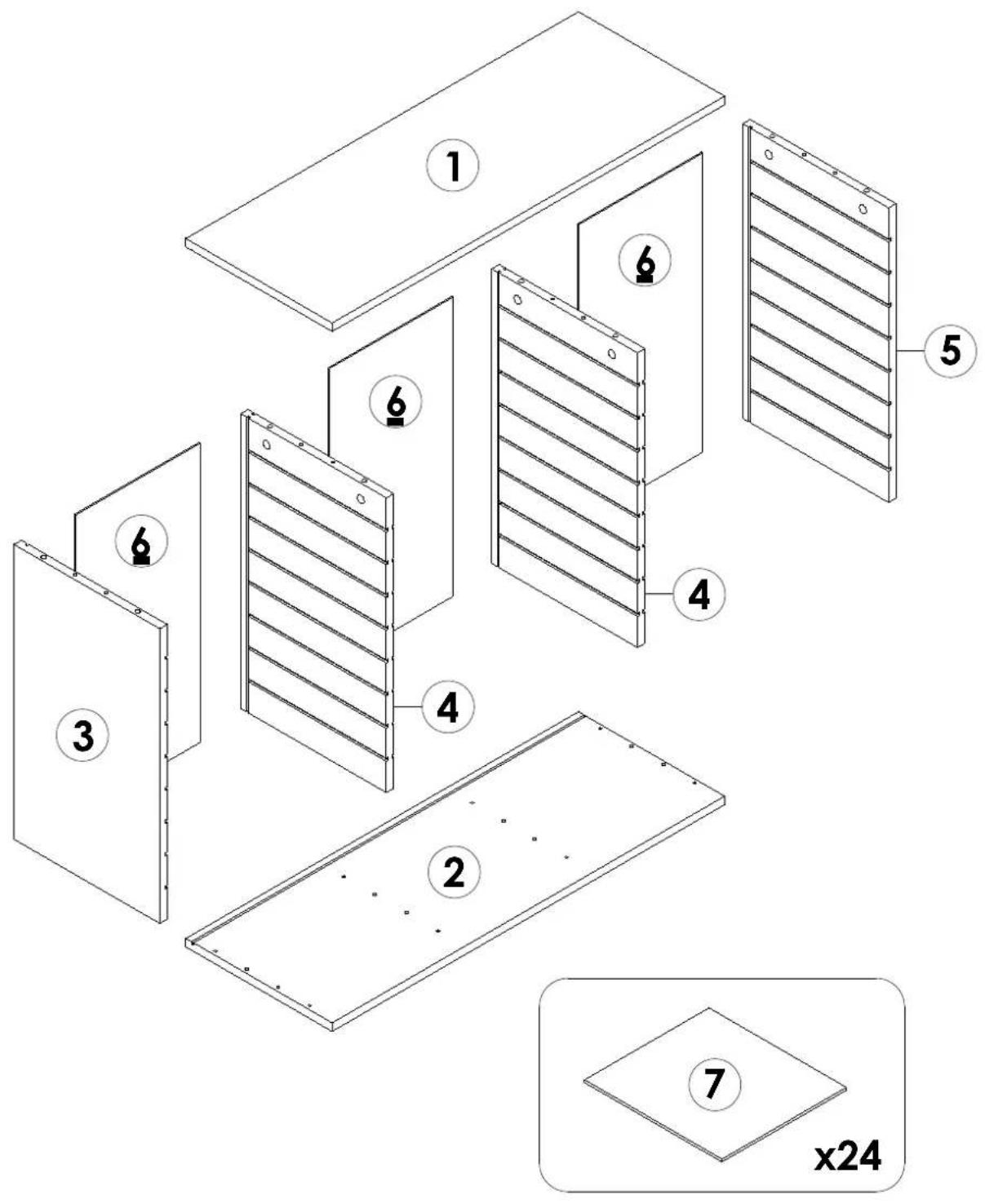

Exploded view diagram of a solar panel assembly with numbered components and a 24x24 multiplier label

A B C D		E
M6x35mm	8+1PCS	28+1PCS	8+1PCS	M4x40+2PCS	12+1PCS	2Sx30mm		M3x14mm
F

ASSEMBLY STEPS

STEP 1

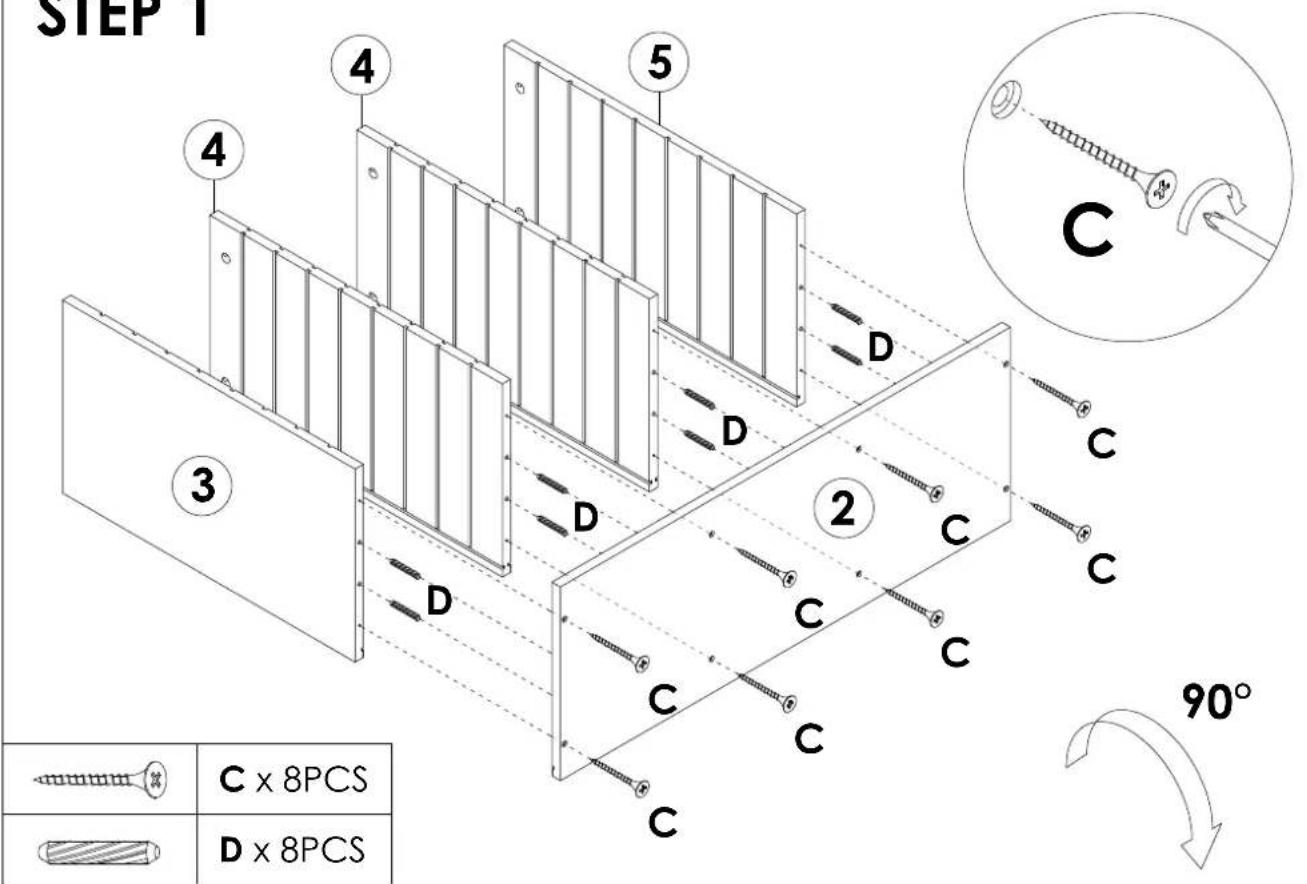

STEP 1 4 5 4 3 D 2 C C C C C C C C C C 90° C x 8PCS D x 8PCS

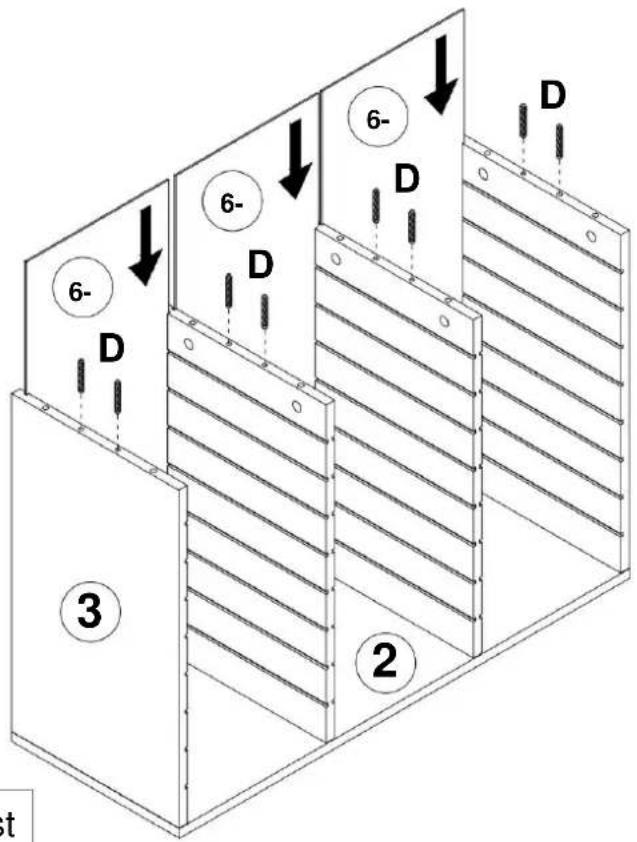

STEP 2

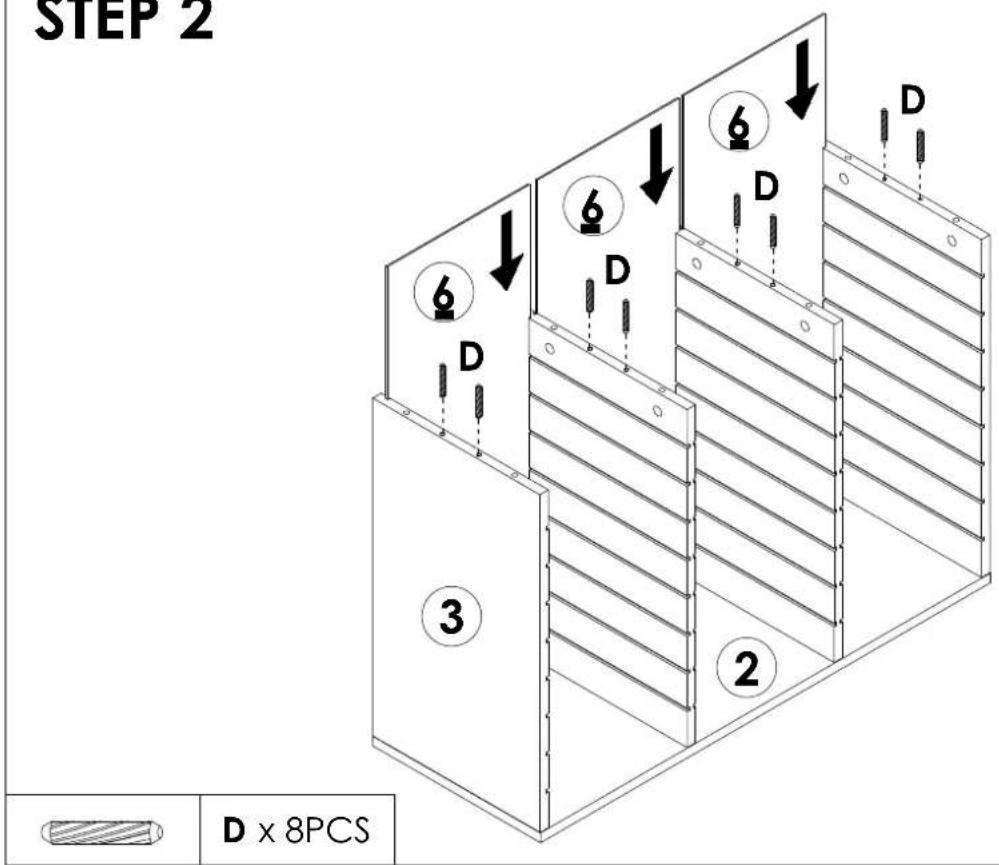

STEP 2 6 6 D D D D 3 2 D x 8PCS

STEP 3

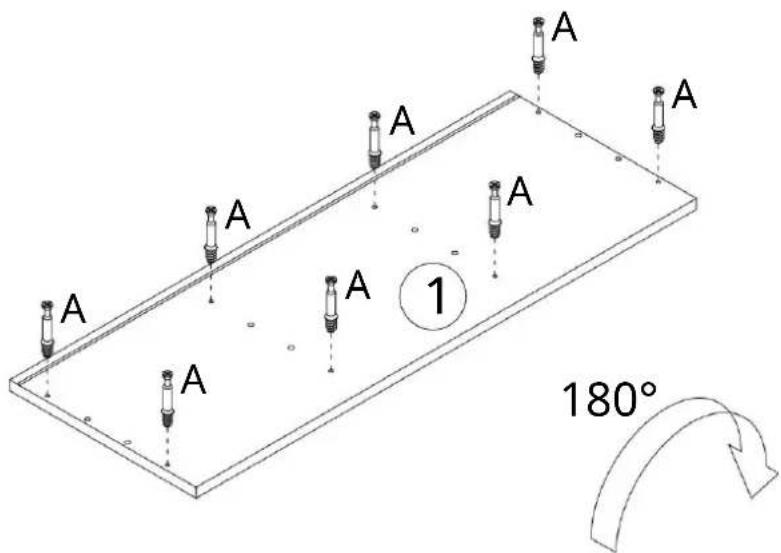

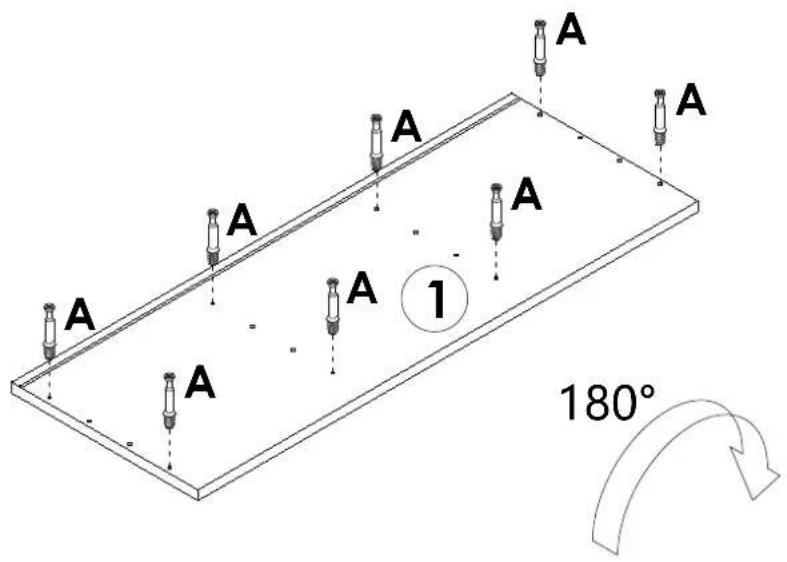

A

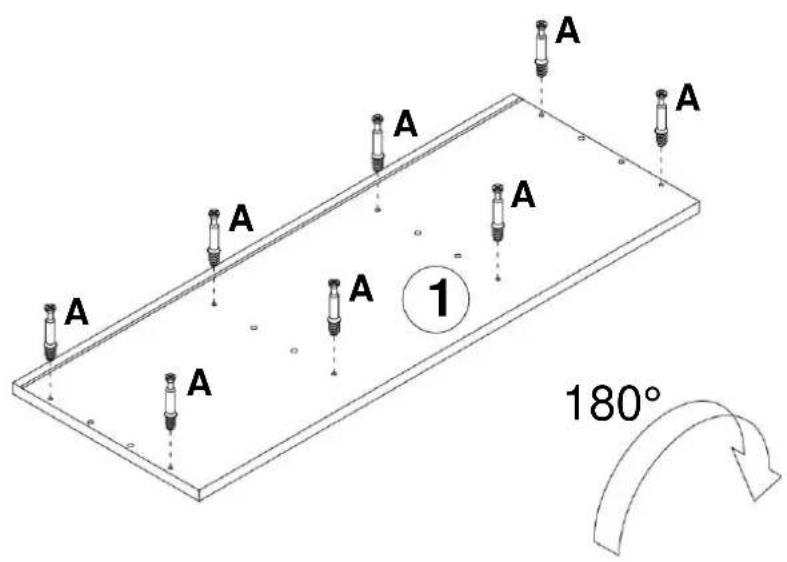

A A A A A A 1 180°

A × 8PCS

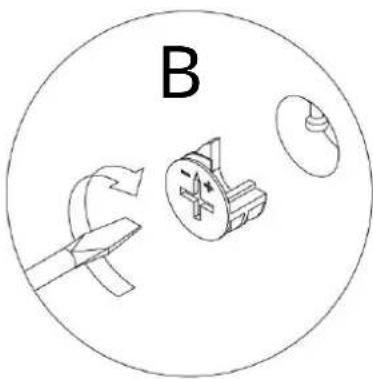

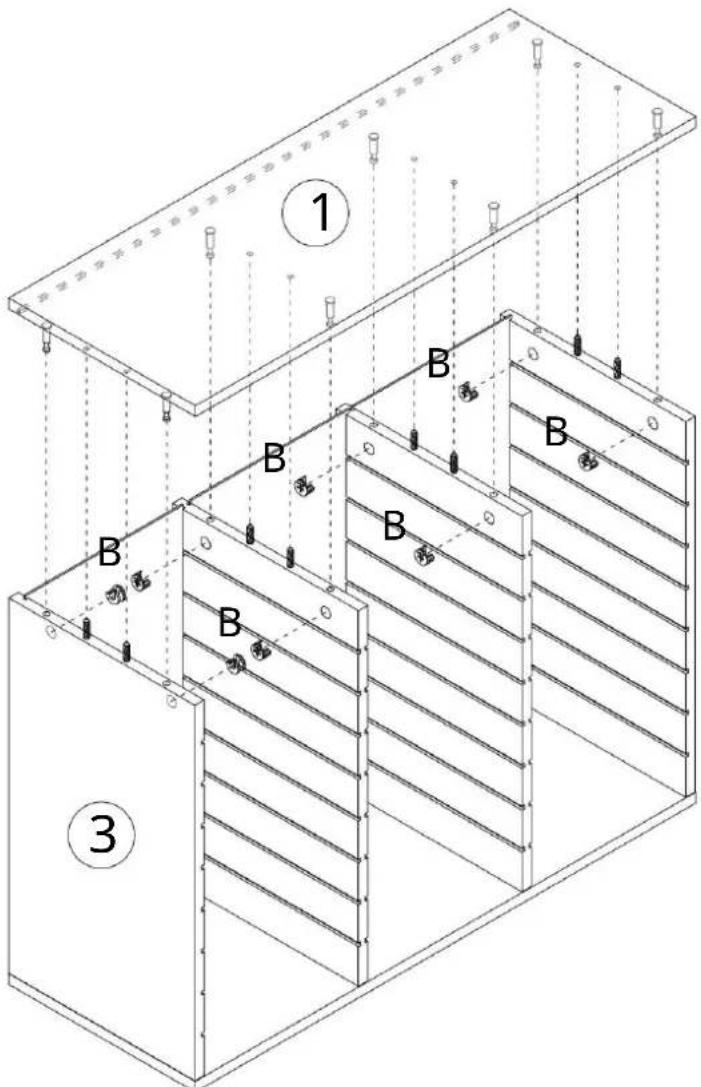

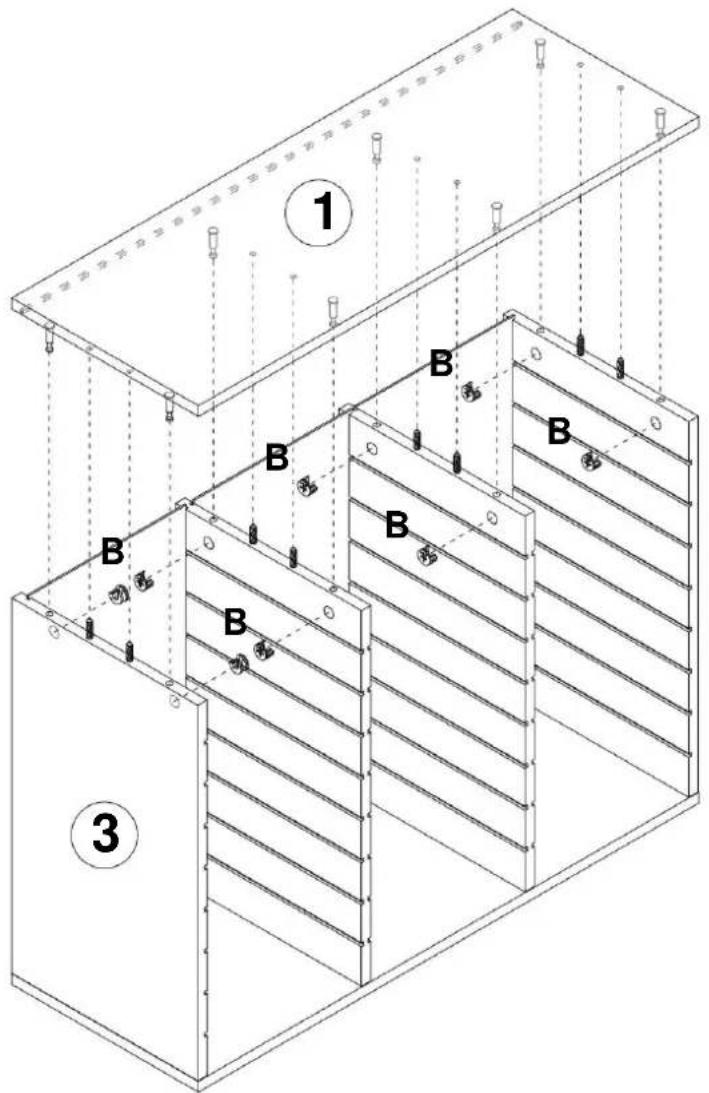

STEP 4

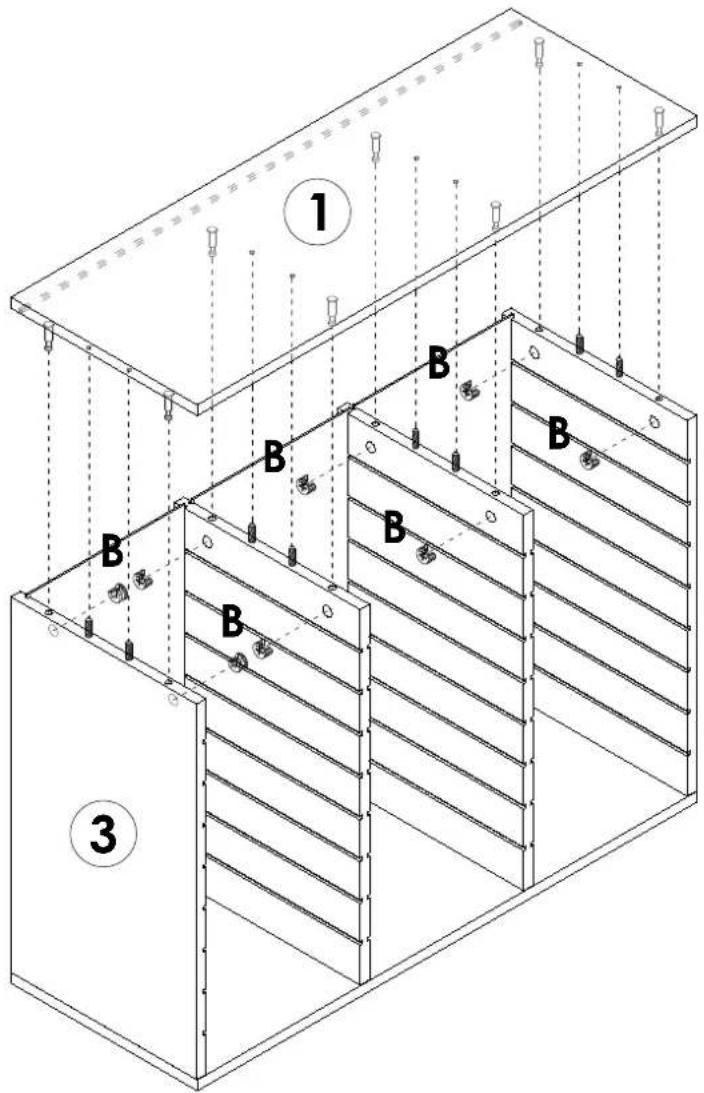

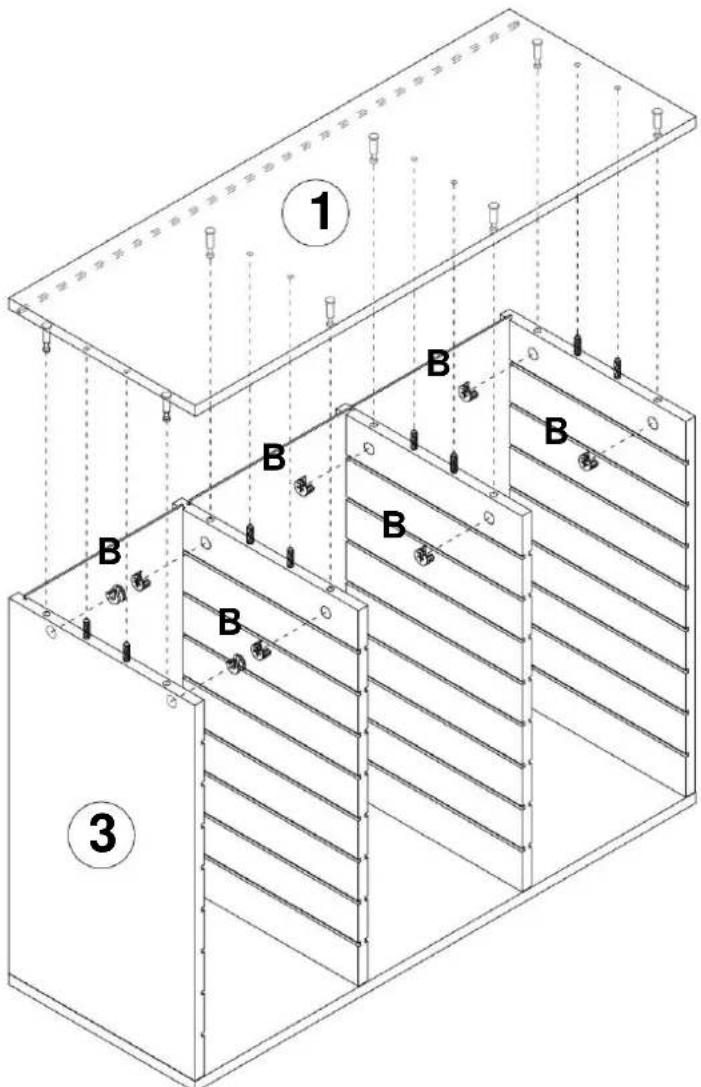

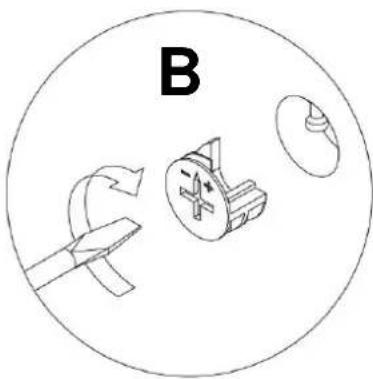

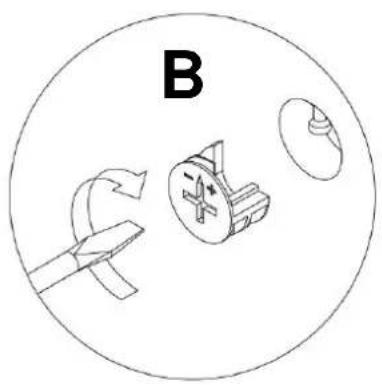

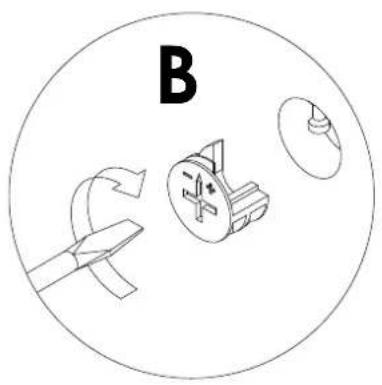

B

180°

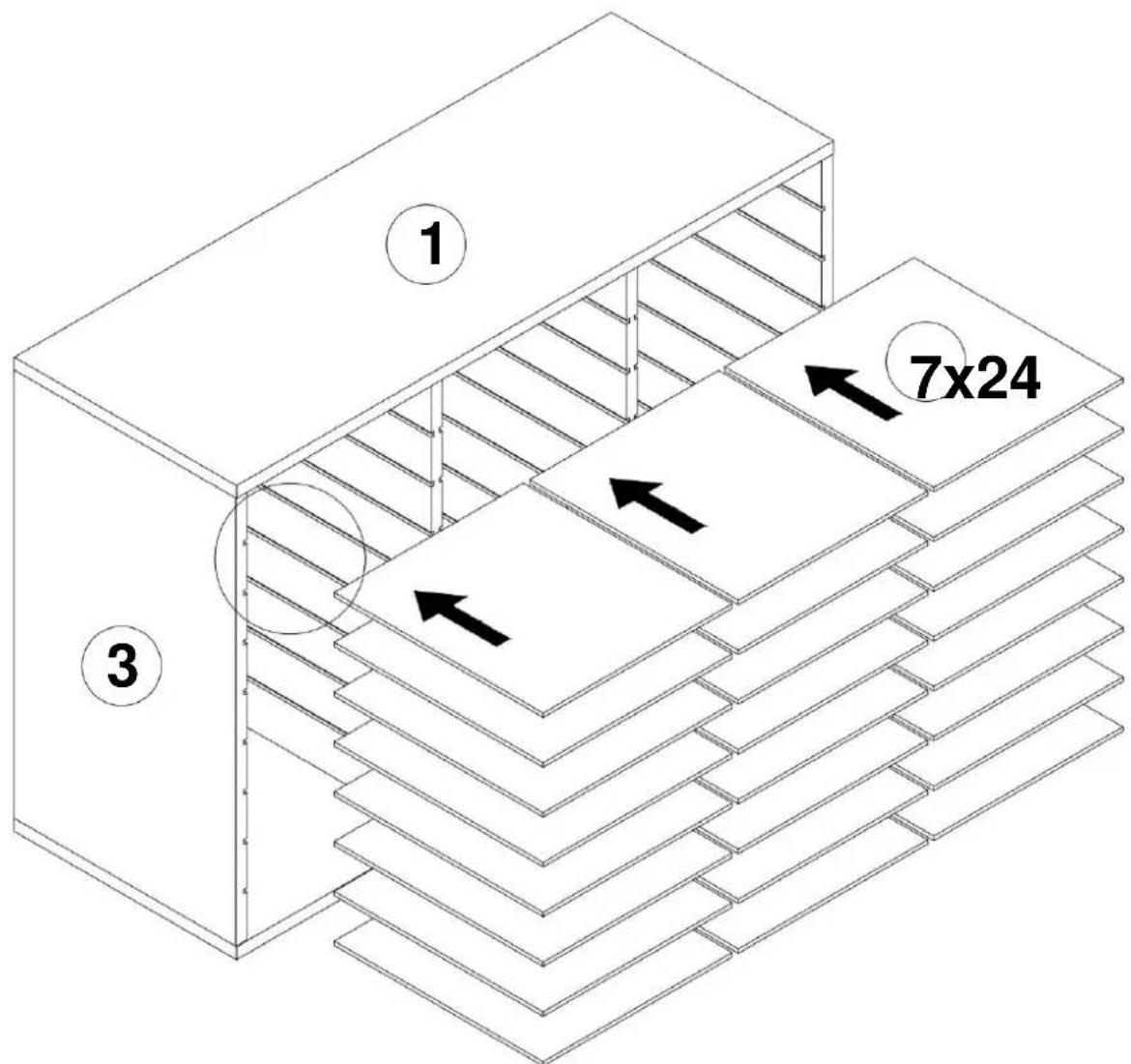

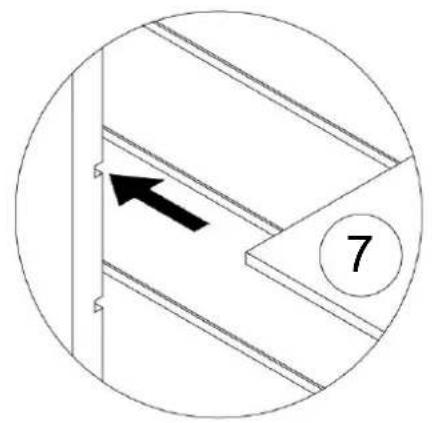

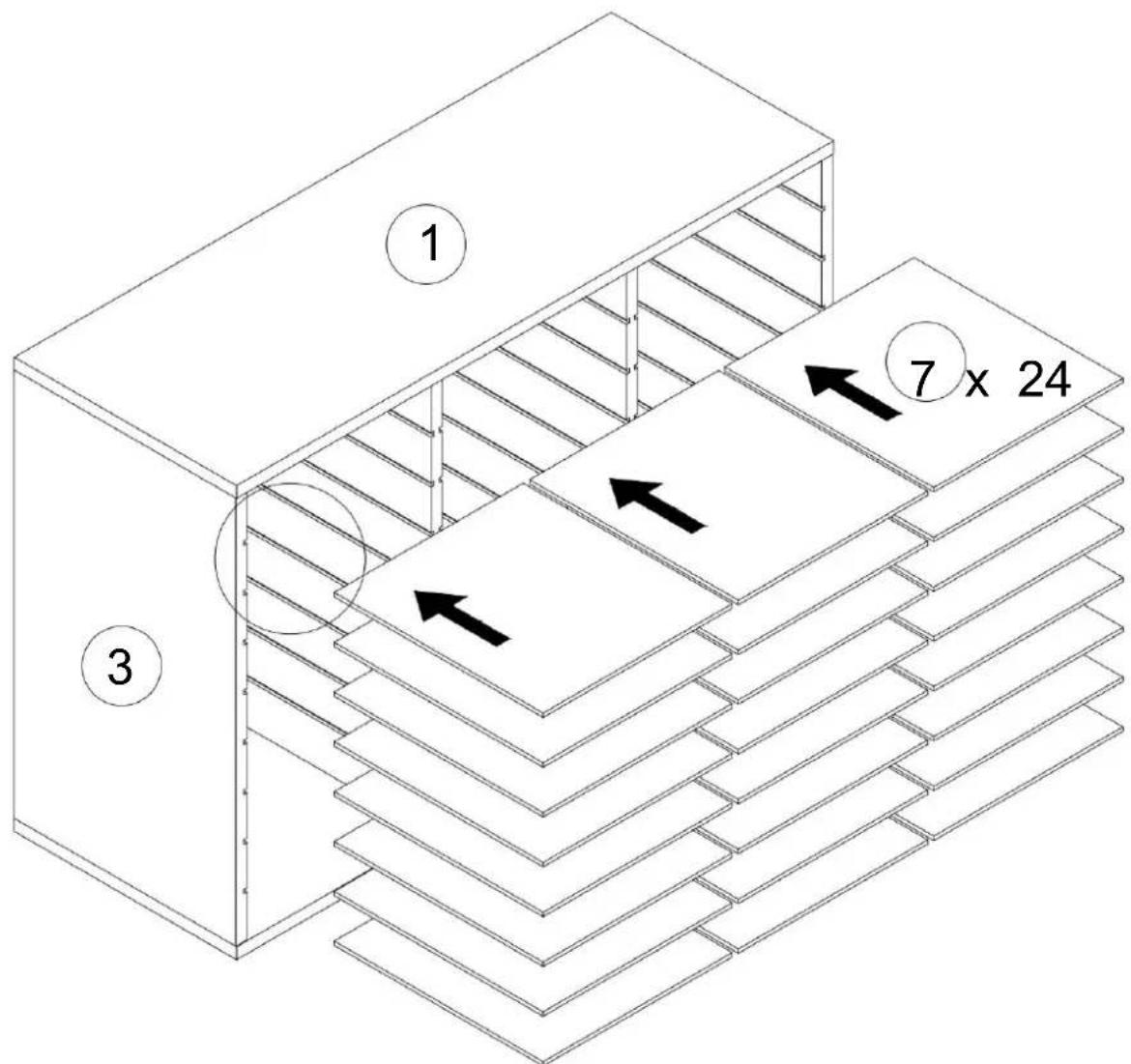

① ③ ⑦ x24

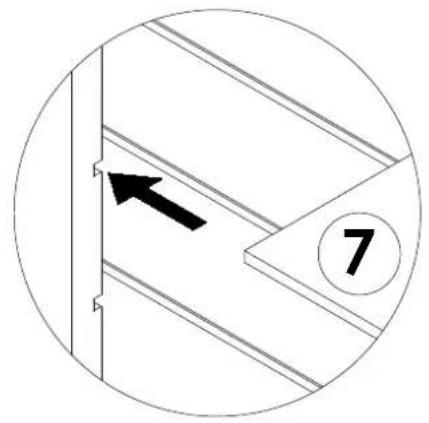

Diagram showing a mechanical component with an arrow pointing to a section, labeled with number 7 (no text or symbols beyond the number)

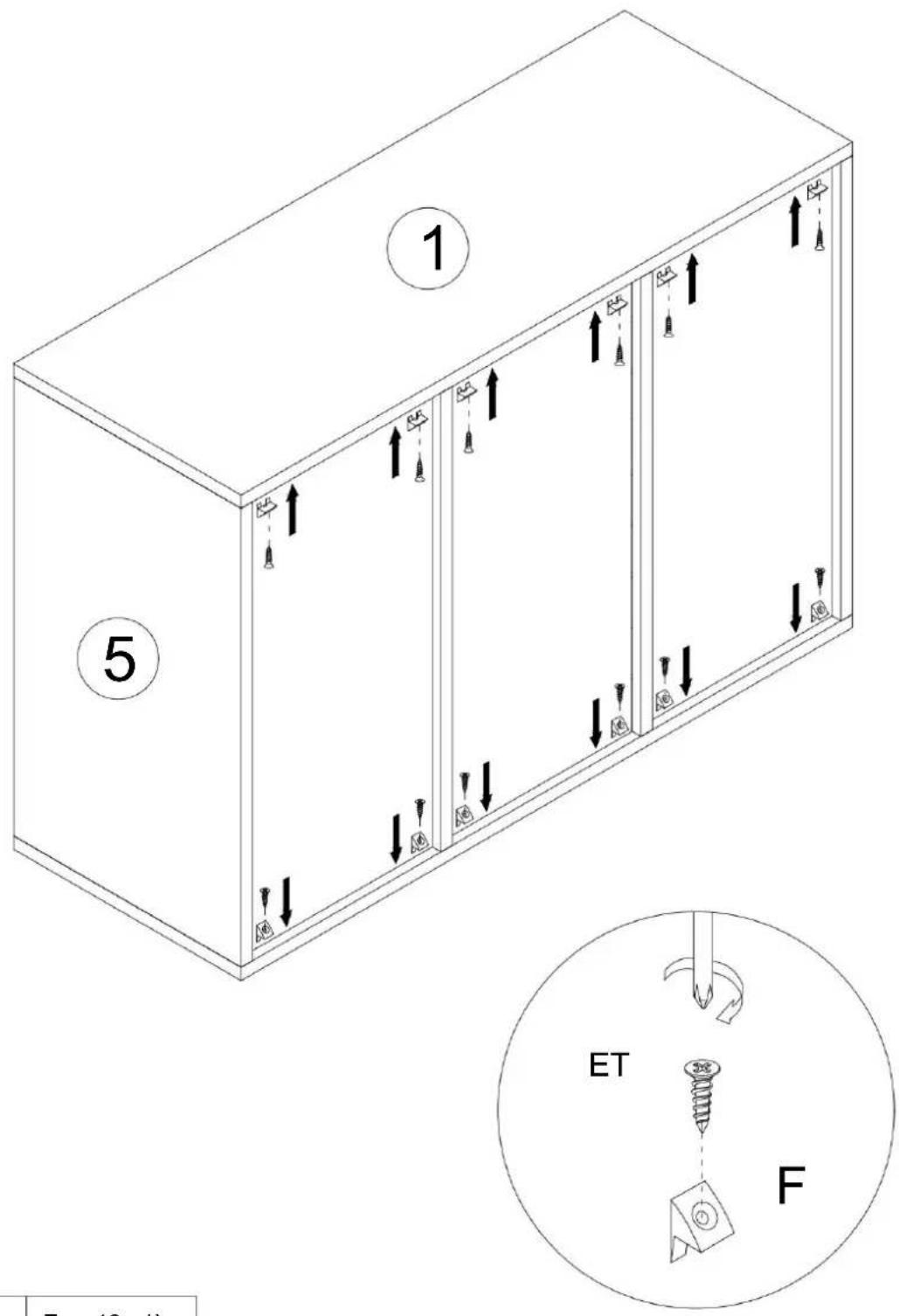

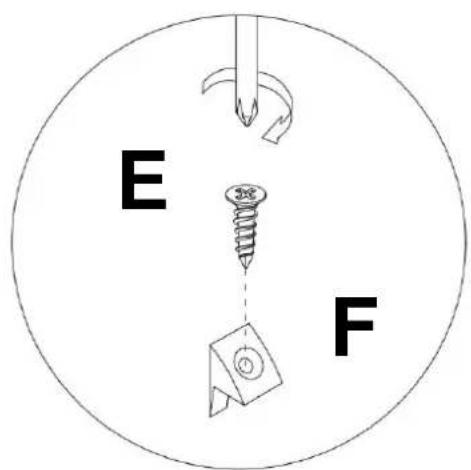

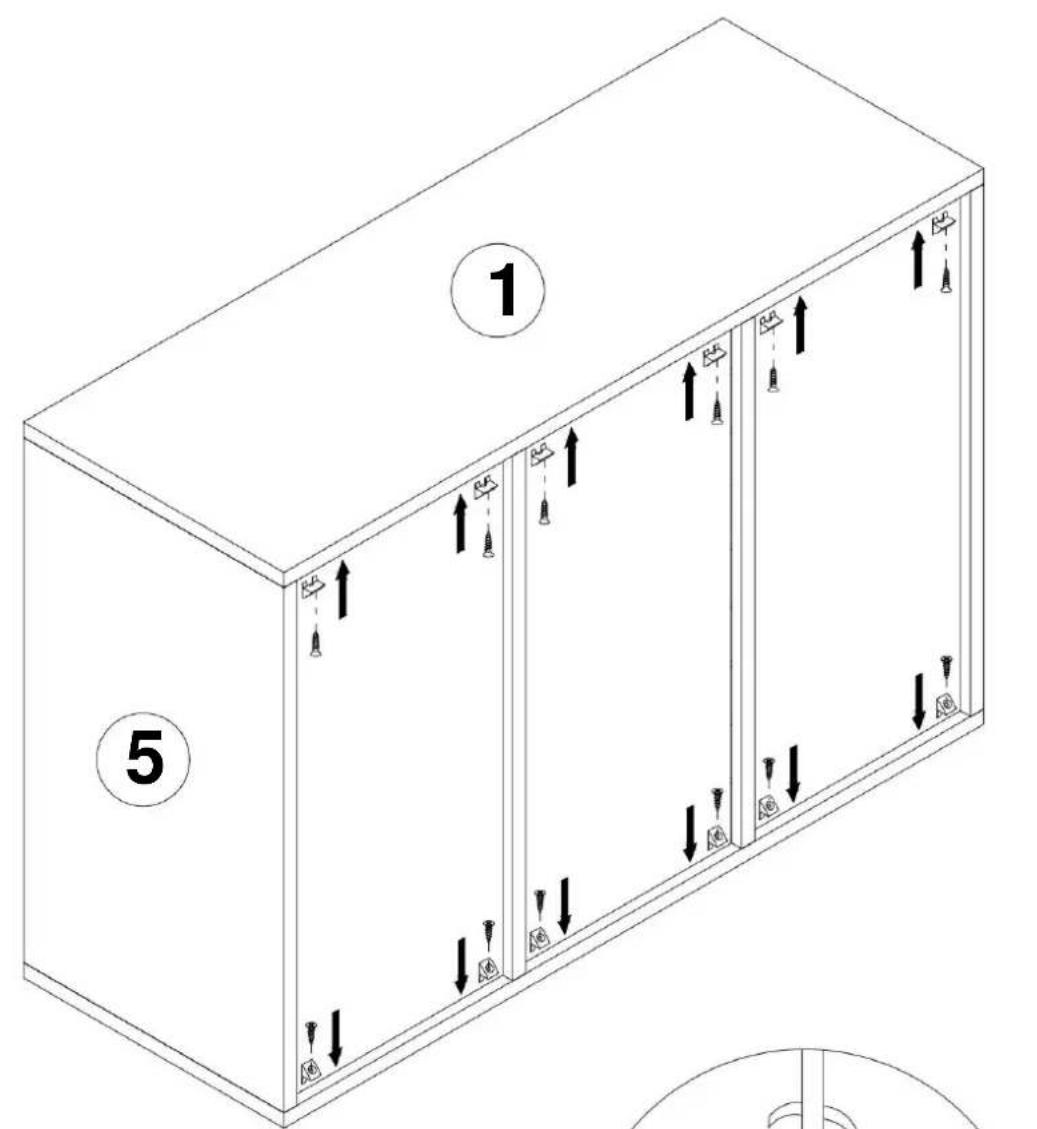

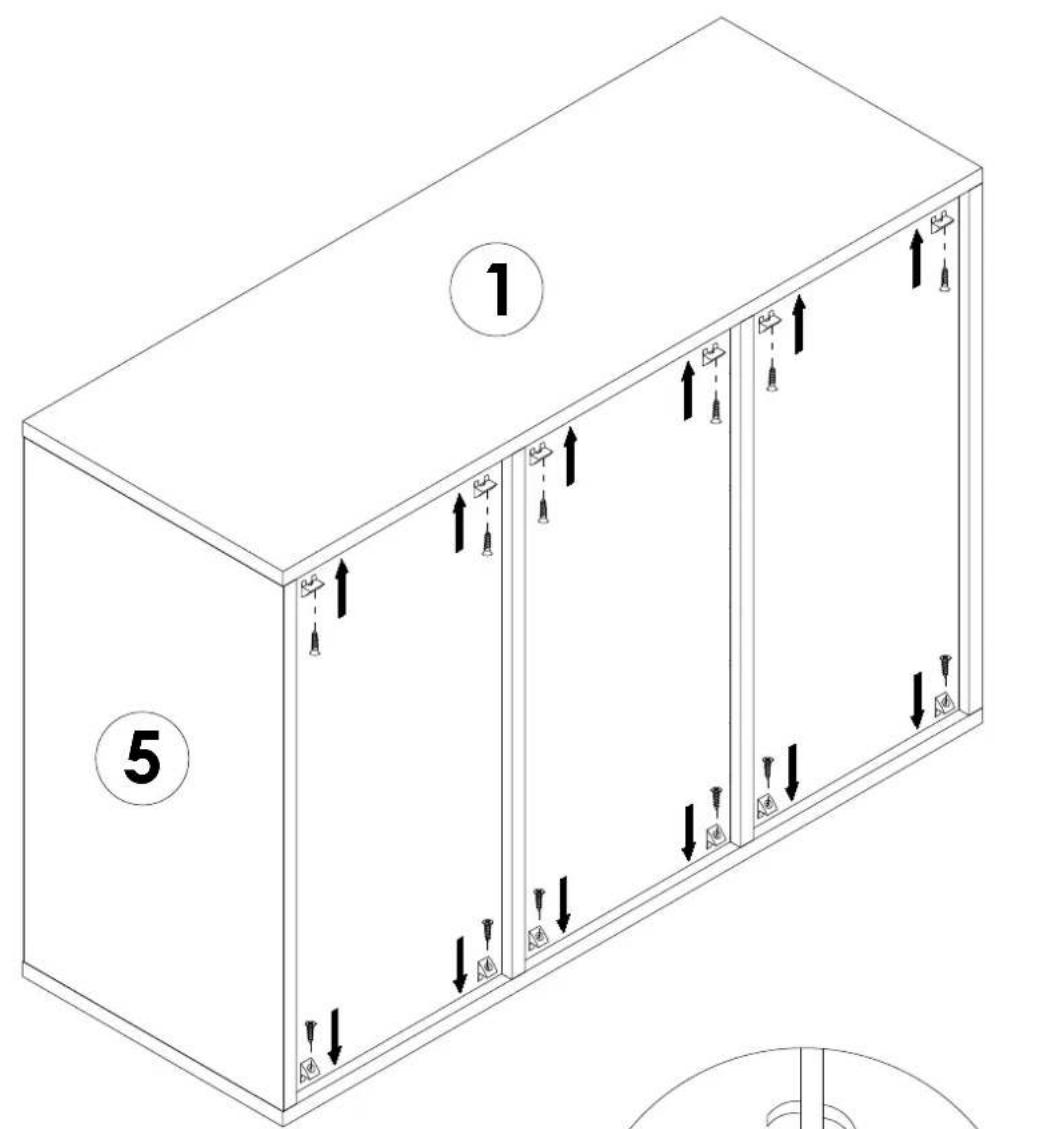

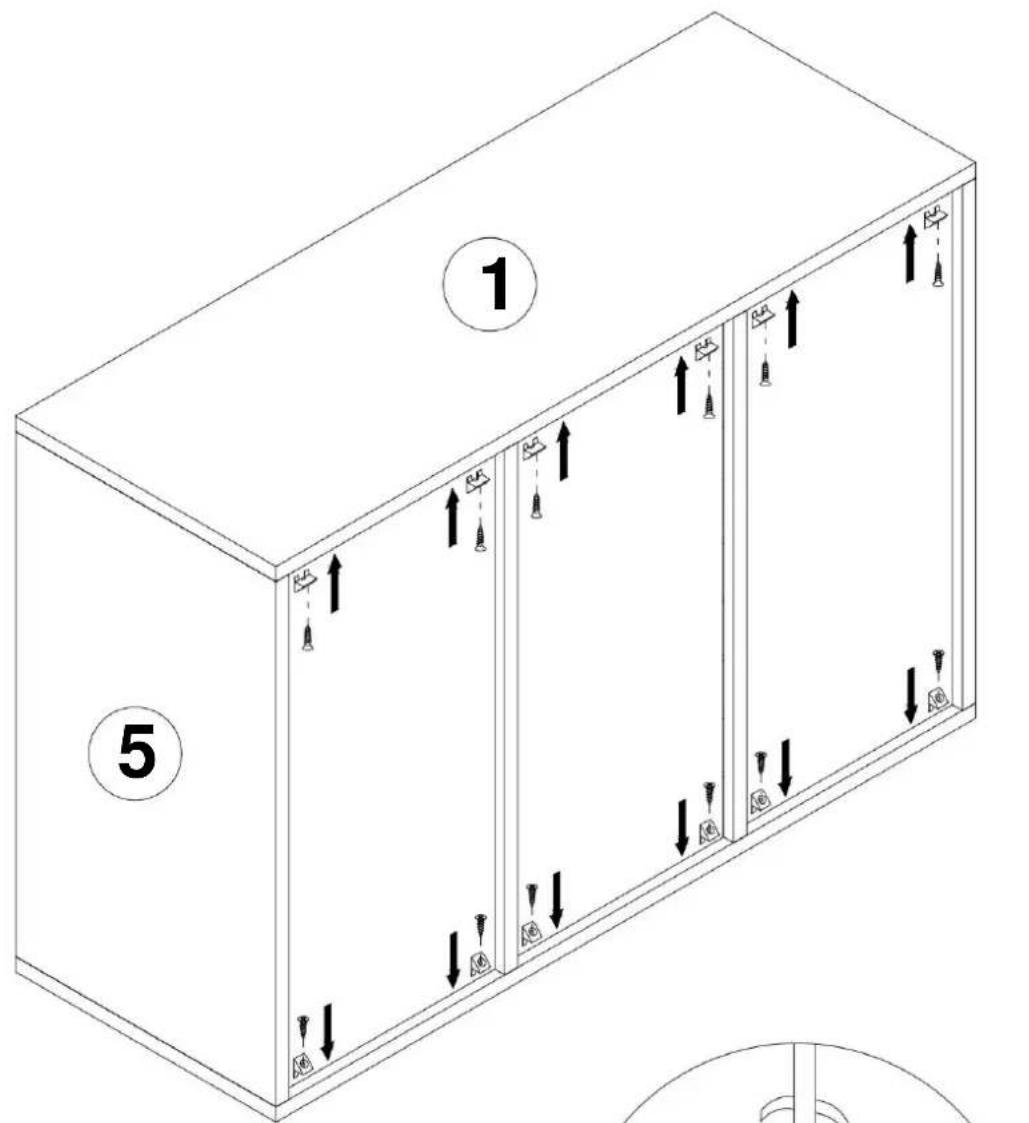

STEP 6

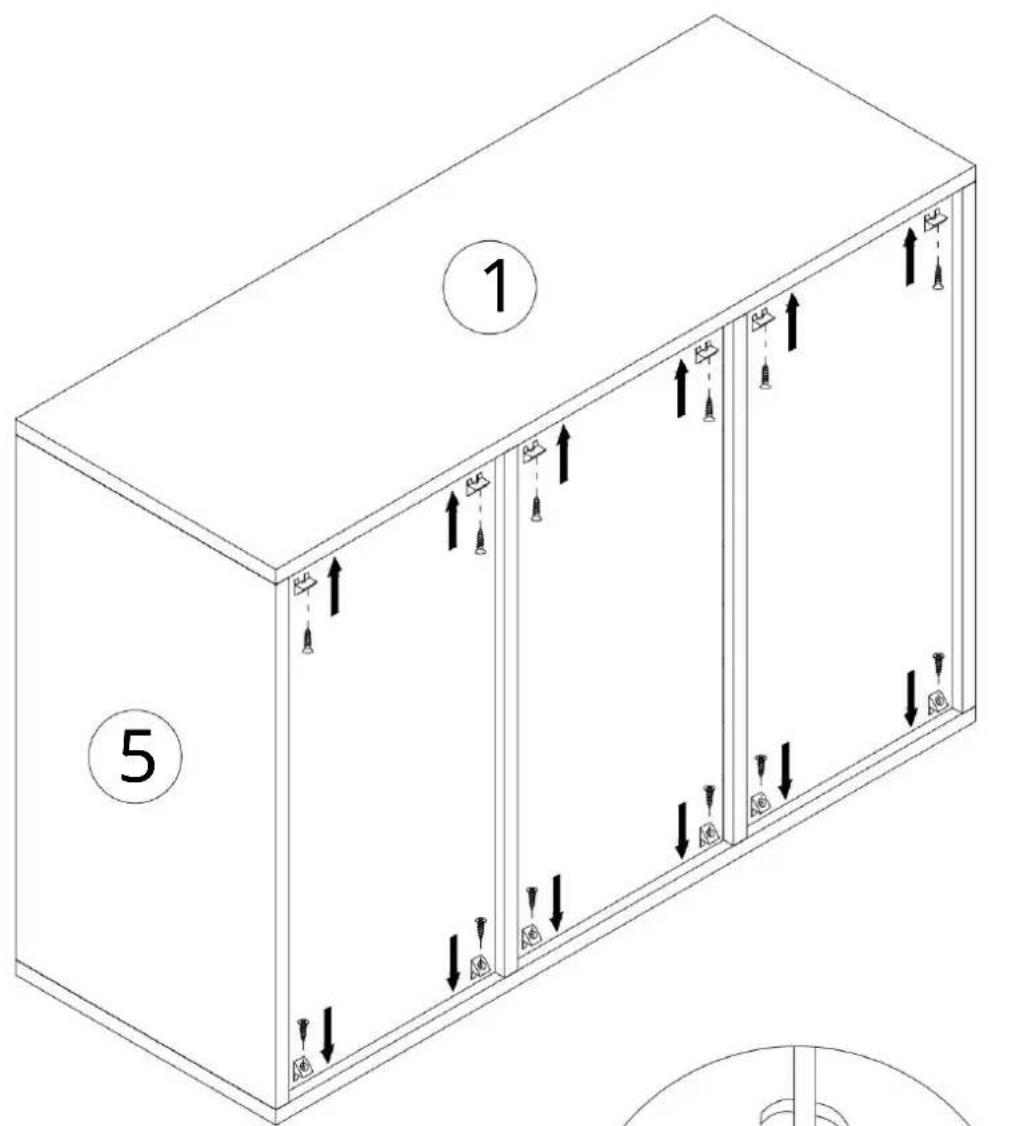

1 5

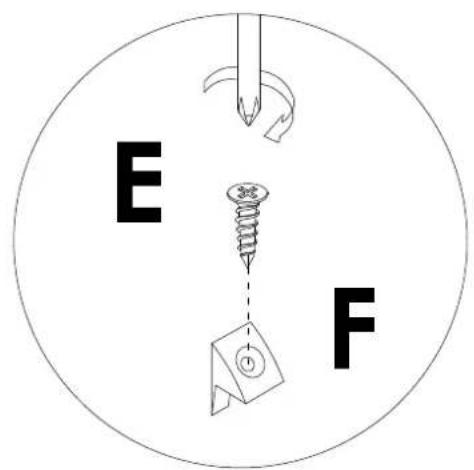

E F

	E×12PCS
	F×12PCS

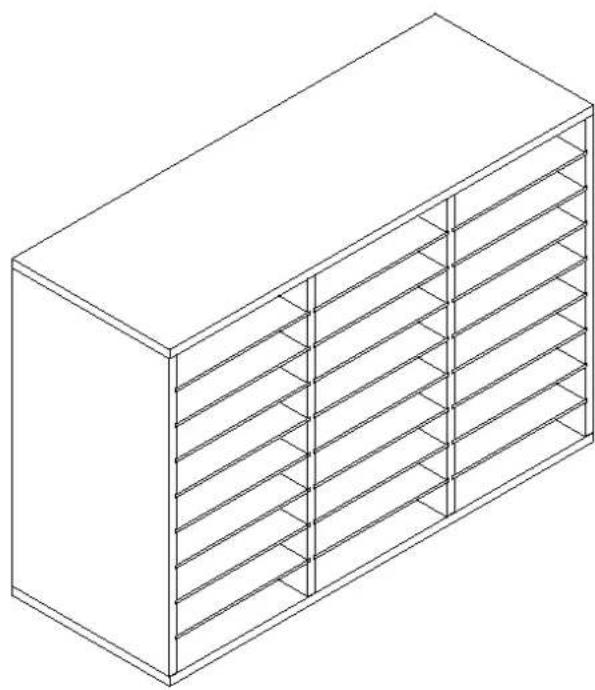

COMPLETION

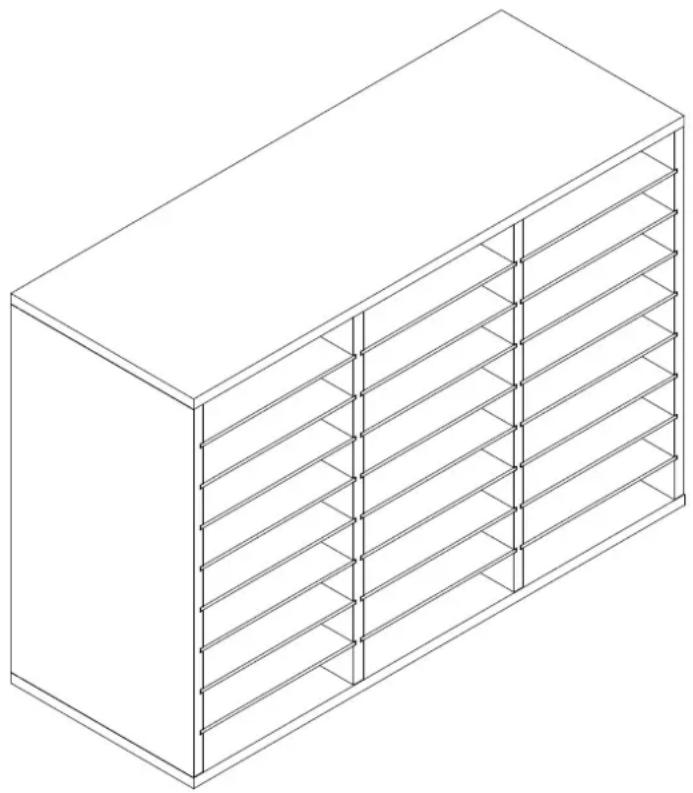

Isometric line drawing of a rectangular storage unit with vertical slats (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical diagram showing 7 labeled components of a solar panel assembly, including slatted panels and heat sinks.

				C		DBUN ET
M6x35mm				8+1 pièces	14 x 9mm	18-21 pièces	126,130 mm	15x9mm	M3x14mm
F

ÉTAPES D'ASSEMBLAGE

Technical diagram of a modular storage or rack system with labeled components and structural connections

B x 8 pièces

ÉTAPE 5

1 3 7 x 24

Diagram showing a mechanical component with an arrow pointing to a section, labeled with number 7 (no text or symbols beyond the number)

ÉTAPE 6

1 5 ET F

Isometric line drawing of a rectangular storage unit with vertical slats (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

A/S YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames, Surrey,

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

				C		D		BA
M6x35mm				M4x40mm	8 + 1 STK	16x20STK	15x9nSTK	M3x14STK	12 + 1 STK
F12 + 1 STK

MONTAGEANLEITUNG

SCHRITT 1 4 5 4 D C 3 D 2 C C 90° C x 8 STK D x 8 STK SCHRITT 2 6- D 6- D 6- D 3 2 D x 8 STK

SCHRITT 3

A

A A A A A A 1 180°

Eine x 8 STK

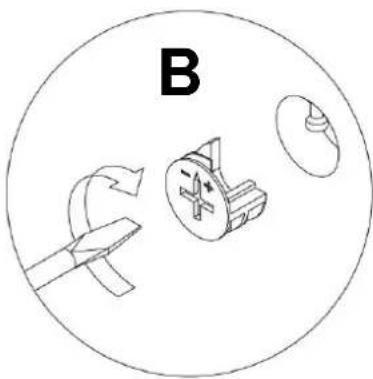

SCHRITT 4

B

180°

Diagram showing a mechanical component with an arrow and number 7, no readable text or symbols present.

SCHRITT 6

1 5

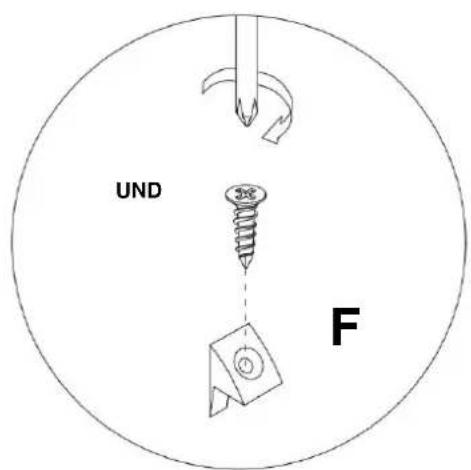

UND F

	E x 12 STK
	F x 12 STK

FERTIGSTELLUNG

Isometric line drawing of a rectangular cabinet with vertical slats (no text or symbols)

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Technical diagram of a modular storage or rack system with labeled components and structural elements

B x 8 PZ

PASSO 5

1 3 7x24

Diagram showing a mechanical component with an arrow and number 7, no readable text or symbols present

PASSO 6

1 5

E F

	E x 12 PZ
	F x 12 PZ

COMPLETAMENTO

Isometric line drawing of a rectangular cabinet with vertical slats (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames, Surrey, TW184AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Technical diagram showing 7 labeled components of a solar panel assembly, with numbered parts and a scaled version indicator.

A A A A A 1 180°

Diagram showing a mechanical component with an arrow and number 7, no readable text or symbols present.

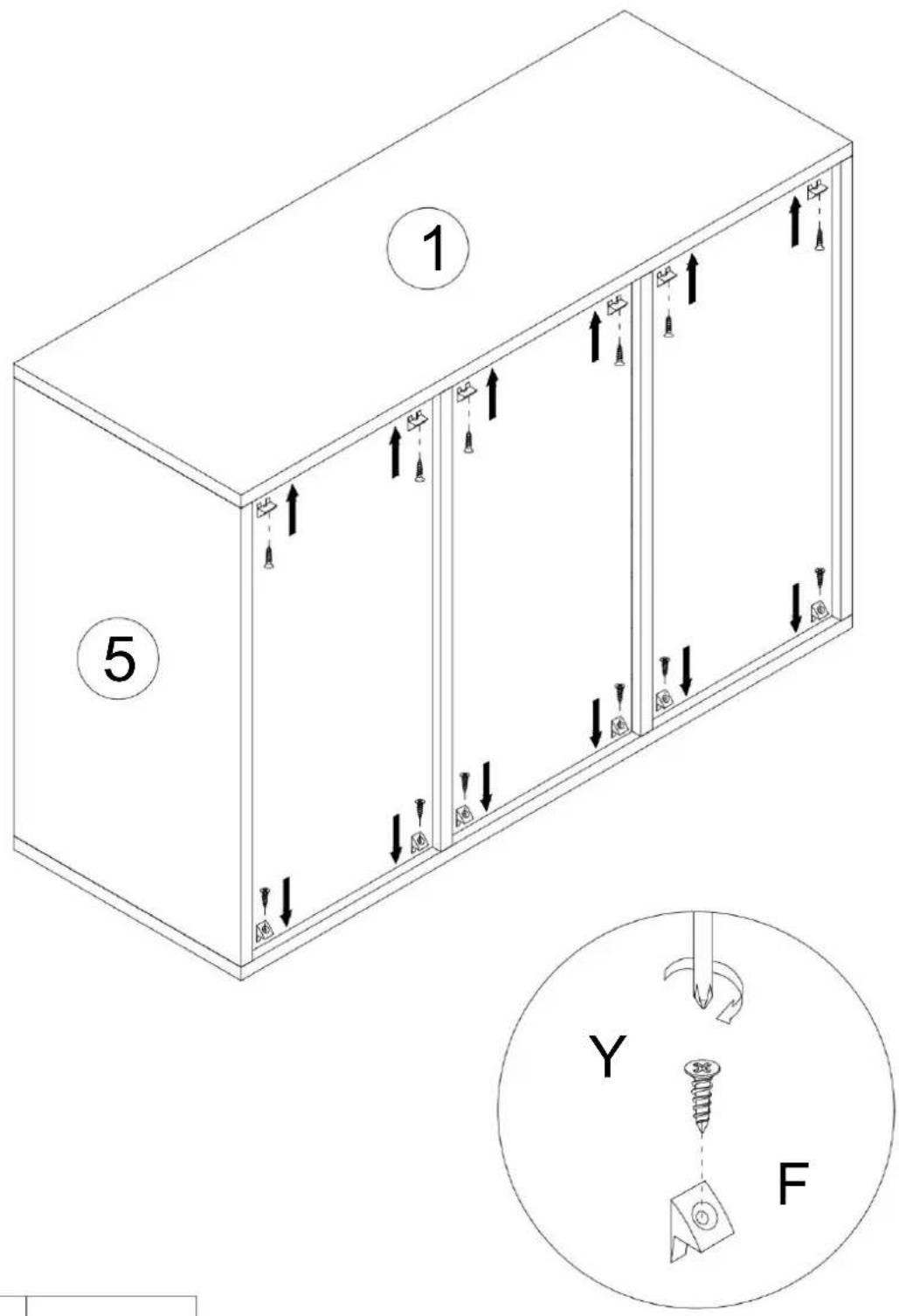

PASO 6

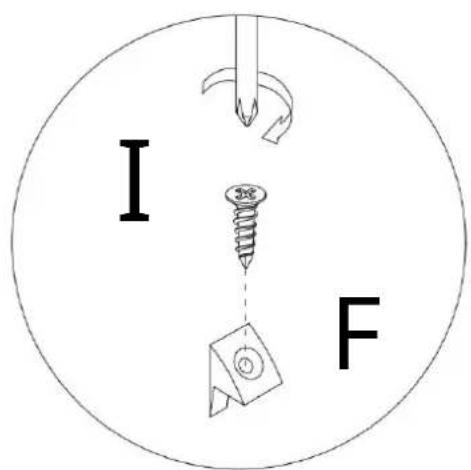

1 5 Y F

Isometric line drawing of a rectangular cabinet with vertical slats (no text or symbols)

C/O YH Consulting Limited Oficina 147, Centurion Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical diagram showing seven labeled components of a solar panel assembly, with numbered parts and a 24x24 multiplier label.

				C		DBAI
M6x35mm			8+1 SZT.	8+4x92Tm1	8+21 SZT.	26x30SZTn	215x9mm	M3x14mm
F,12+1 SZT.

KROKI MONTAŻU

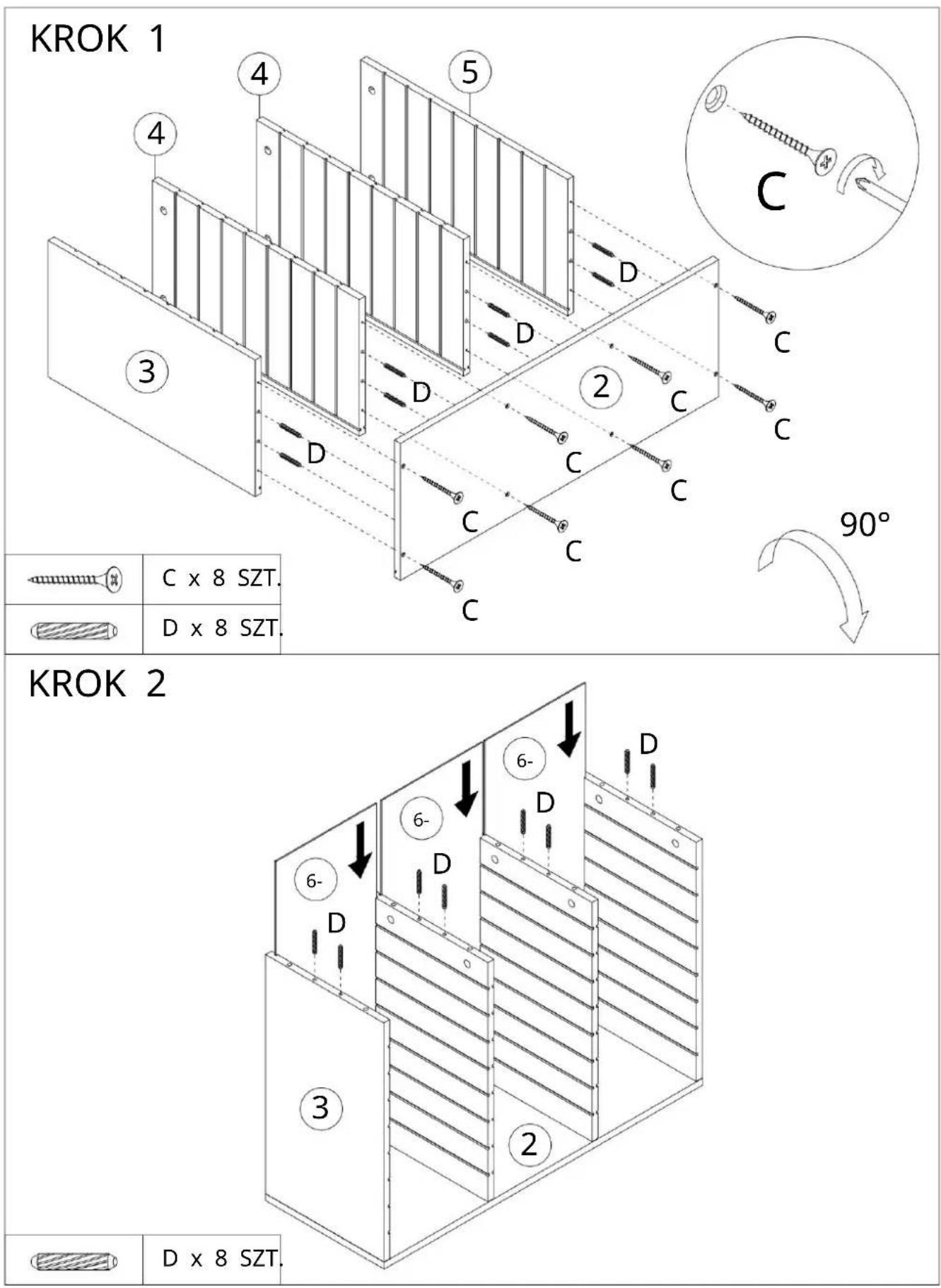

KROK 1 ③ ④ ⑤ ② C D C C C C 90° C x 8 SZT. D x 8 SZT. KROK 2 ③ ② ⑥- D 6- D 6- D D D D x 8 SZT.

KROK 3

A

A A A A A 1 180°

A x 8 SZT.

KROK 4

B

180°

Diagram showing a mechanical component with an arrow indicating direction, labeled with number 7 (no text or symbols beyond the number)

KROK 6

1 5

I F

	E x 12 SZT.
	F x 12 SZT.

UKOŃCZENIE

Isometric line drawing of a rectangular storage unit with vertical slats (no text or symbols)

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

C/O YH Consulting Limited Biuro 147, Centurion Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

A A A A A A 1 180°

Een x 8PCS
STAP 4

B

180°

Diagram showing a mechanical component with an arrow and number 7, no readable text or symbols present.

STAP 6

1 5

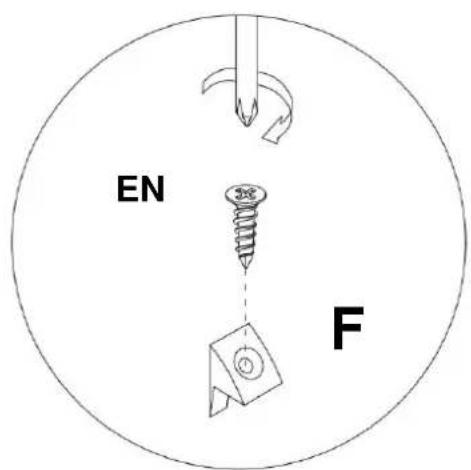

EN F

	E x 12PCS
	F x 12STUKS

VOLTOOING

Isometric line drawing of a rectangular cabinet with vertical slats (no text or symbols)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Kantoor 147, Centurion

Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

A		Bocm		C		D
		∅15x9mm	∅8x30ms	∅142518m	∅6s38m	st 12+1 st		M3x14mm
F

MONTERINGSSEG

STEG 1

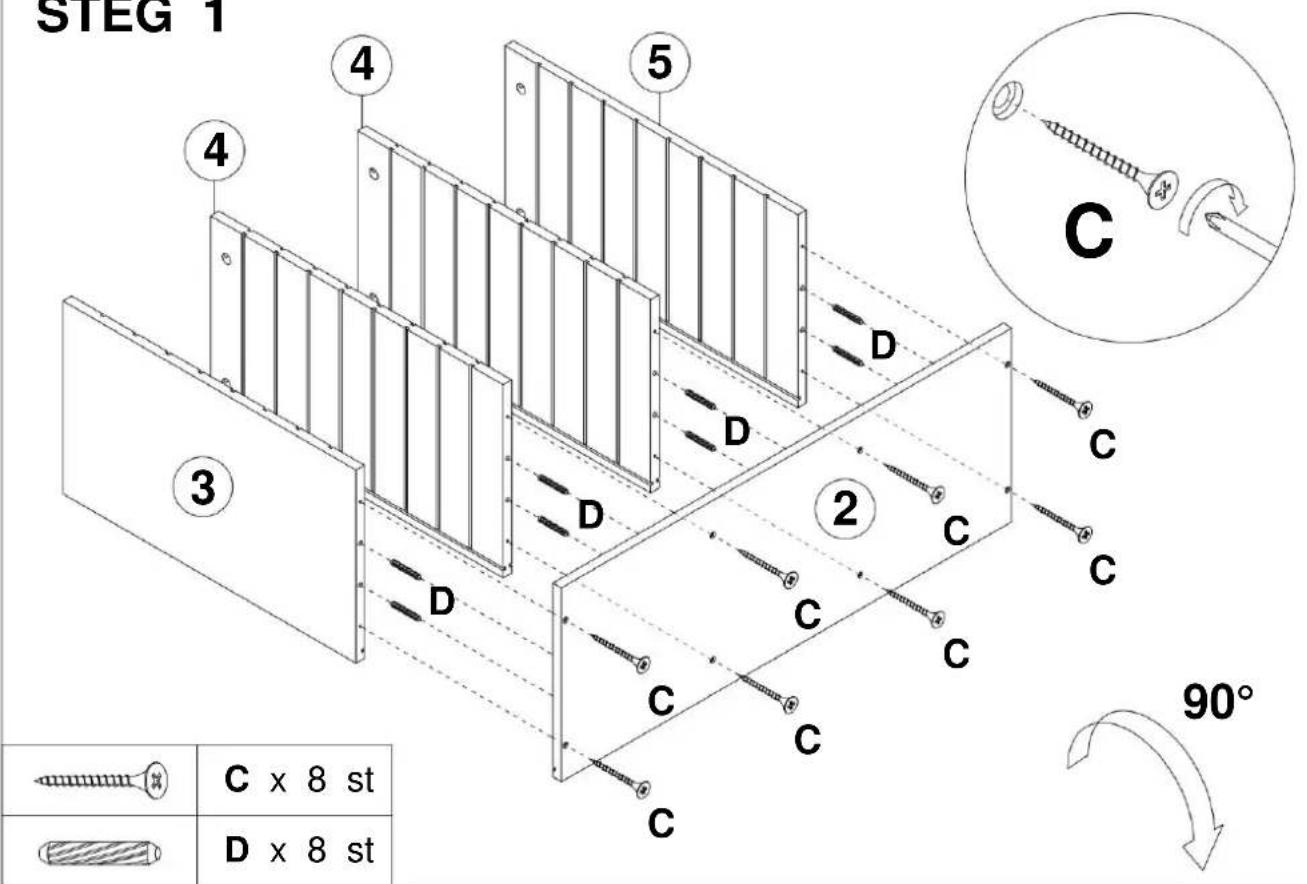

STEG 1 4 5 4 3 2 C x 8 st D x 8 st C C C C C C C D D D D C C C C C C C 90°
