USER MANUAL WFH-1046 Vevor
Affordable. Reliable. Home Improvement.

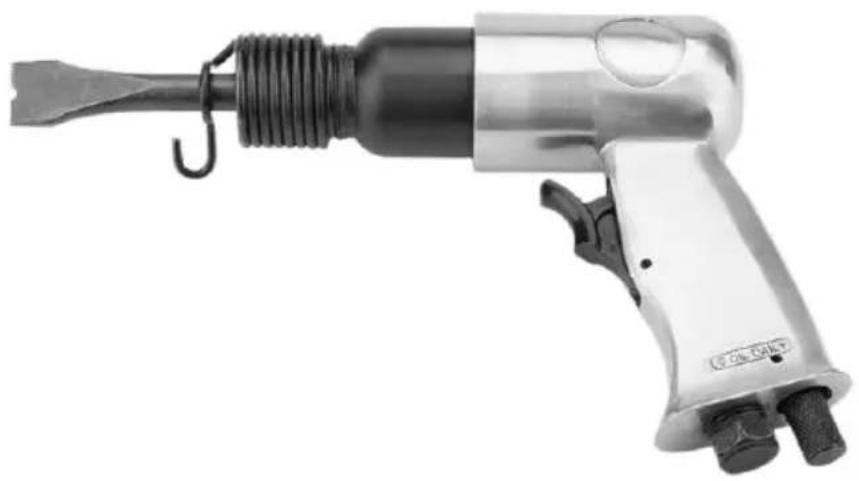

Air Hammer Model: WFH-1046
Model: WFH-1046
 | Warning-To reduce the risk of injury, user must read instructions manual carefully. |
 | Warning-marking concerning risk of Eye Injury |
 | Warning-marking concerning Risk of Hearing Loss |
 | Never use oxygen or other bottled gasses |
First Time Usage
- Preparing a tool for first time operation
Please read and adhere to these Operating Instructions before using the tool. Fundamental safety precautions must always be rigorously observed to prevent damage to the equipment and to ensure the personal safety of the user as others working in the vicinity of the operation.
- Connection to the compressed air system
Ensure that the pressure provided by the compressed air system does not set the maximum permissible pressure of the fastener driving tool. Initially, set the pressure to the lower end of the recommended allowable pressure range (ref: TECHNICAL DATA).
HOW TO GET STARTED
Step 1. Choose the suitable shovel and position it within the machine.


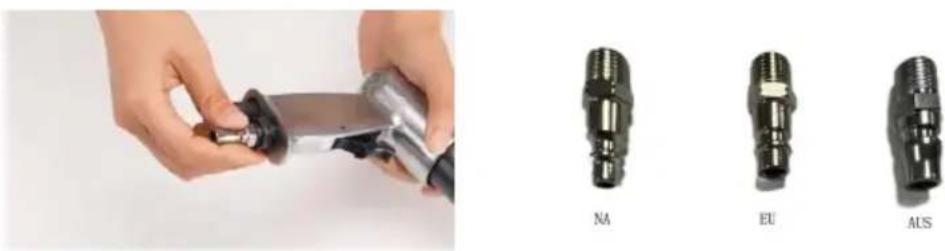

NOTE: The product features three distinct types of air connectors, tailored for European, American, and Australian styles.

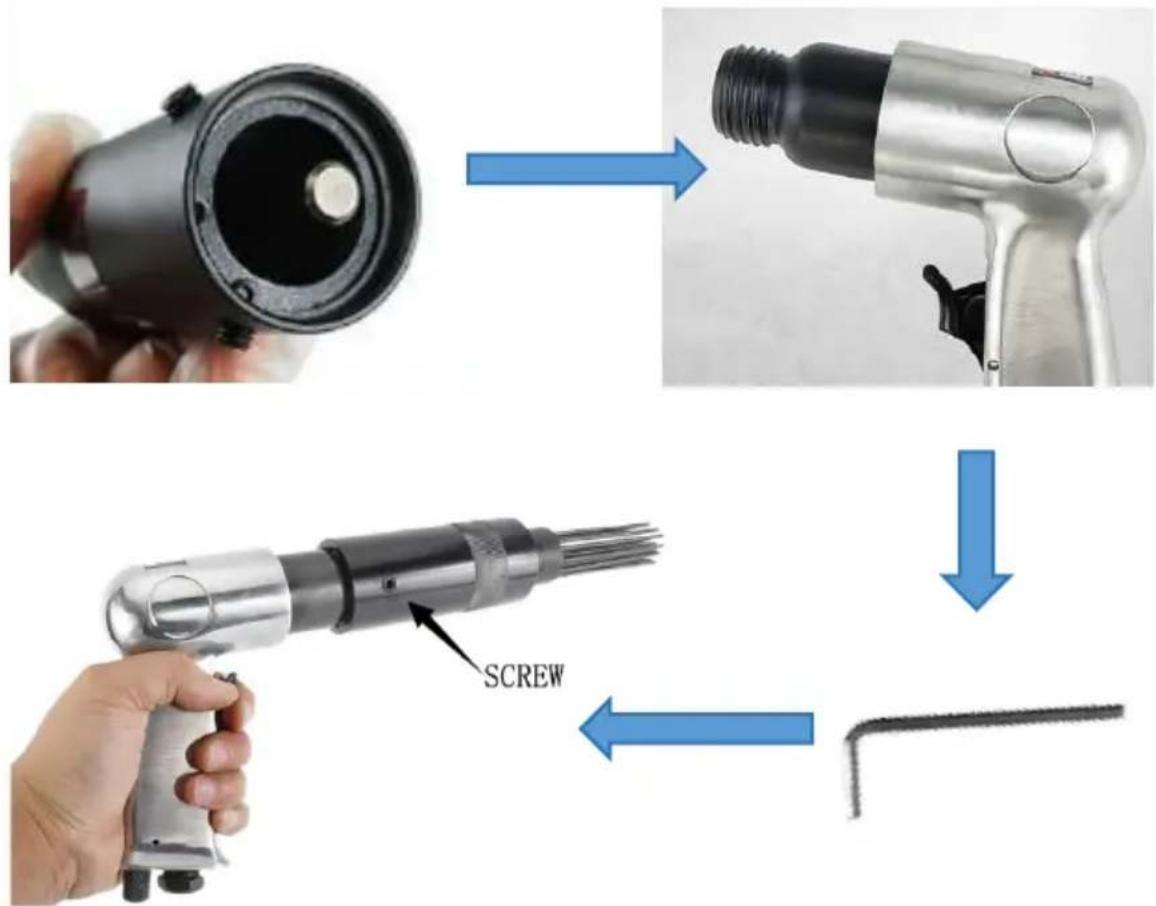

Step 4. Securely attach the Air Needle Scaler mounting sleeve to the machir and use a hex wrench to tighten the screw.
Maintenance and Cleaning
-
Disconnect the tool from the compressor prior to making any adjustments, clearing jams, performing servicing and maintenance, relocating, and during periods of non-operation.
-
Regular lubrication is essential. If your tool is not equipped with a in-line automatic oiler, add 2 or 6 drops of pneumatic tool oil into the inlet before each workday or after 2 hours of continuous use, depend the characteristics of the workpiece or the type of fasteners being used
-
Air-operated tools must be inspected regularly, and any worn or br parts must be replaced to ensure the tool operates safely and efficient Check and replace all damaged O-rings, seals, etc. Tighten all screws caps to prevent personal injury. This maintenance should be performed a qualified expert..
- Make regular inspection for free movement of trigger, spring and A nozzle to assure safe system is complete and functional: no loose ar missing parts, no building or stocking parts.
- Keep magazine and nose of tool clean and free of any dirt lint or abrasive particles.

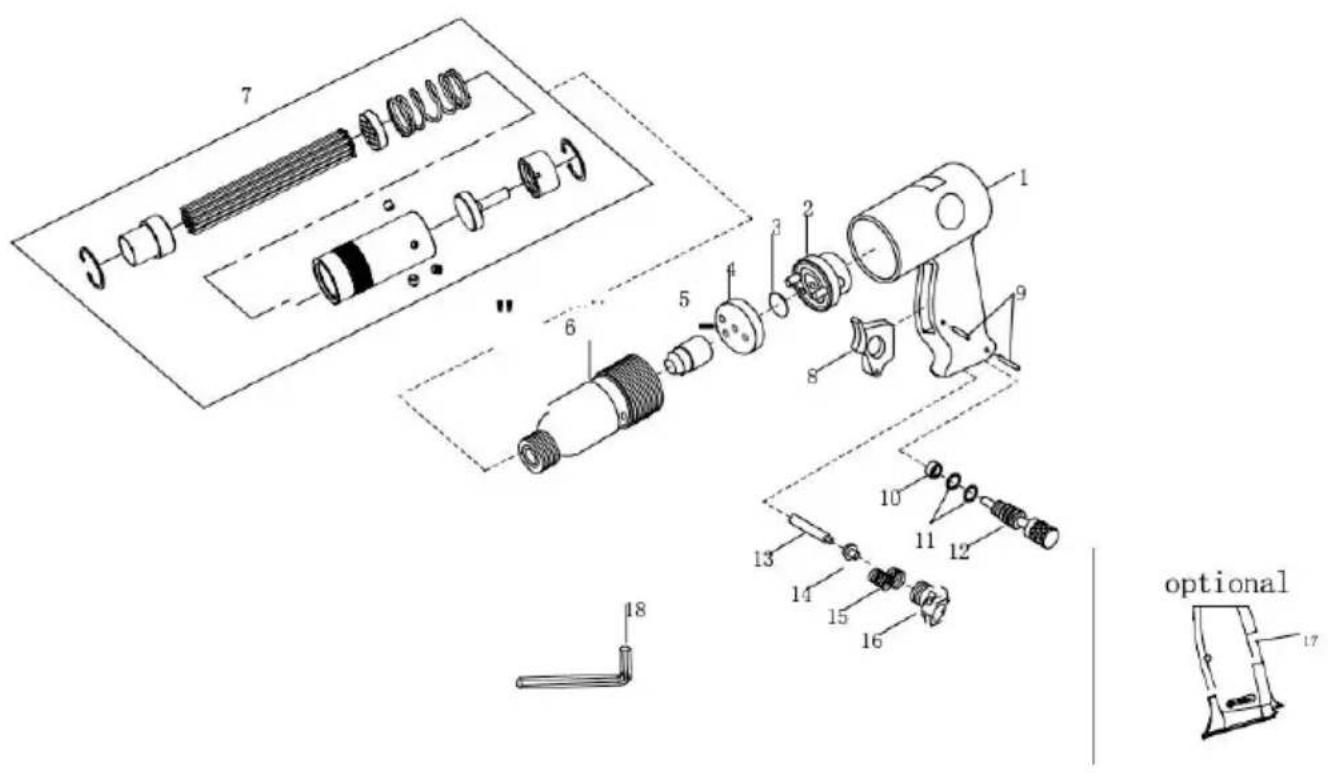

SCHEMATIC&PART LIST
| Ref. Part# Description Q'TY | |||
| 1 | WFH-1040-01 | Housing | 1 |
| 2 | WFH-1040-02 | Sealing Valve | 1 |
| 3 | WFH-1040-03 | Valve Plate | 1 |
| 4 | WFH-1040-04 | Sealing Valve's Cover | 1 |
| 5 | WFH-1040-05 | Piston | 1 |
| 6 | WFH-1040-06 | Cylinder | 1 |
| 7 | WF-H3-Z000 | Derusting Cylinder | 1 |
| 8 | WFH-1040-08 | Trigger | 1 |
| 9 | 3*16 | Straight Pin | 2 |
| 10 | WFH-1040-09 | Throttle Valve | 1 |
| 11 | O-RING 8*1.9 | O-Ring | 2 |
| 12 | WFH-1040-10 | Adjusting Valve Pole | 1 |
| 13 | WPH-1040-11 | Pin | 1 |
| 14 | WFH-1040-12 | Gas Admittance Valve | 1 |
| 15 | WFH-1040-13 | Taper Spring | 1 |
| 16 | WER-1060-02 | Air Inlet Connector | 1 |
| 17 | WFH-1040-14 | Jacket | 1 |
| 18 | 3mm | 3mm Hex Key | 1 |
PRODUCT PARAMETER
| MODEL NO | WFH-1046 |
| Chisel Shank (Round) | 0.401inch |
| Blow Per Minute | 4500BPM |
| Air Inlet. | 1/4inch |
| Air Consumption | 90PSI (6.3Bar) |
| Weight | 2.5KG |
| Functional accessory | 1. 120MM scrapers (round heads) * 4PCS2. Air nozzle connectors (US/Europe/Australia)* 3PCS3. Spring round seat scraper seat * 1PCS4.Air Needle Scaler5. wrench *1pcs |
   1 2 3  5 | |
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centu House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
Affordable. Reliable. Home Improvement.
Marteau pneumatique
Modèle: WFH- 1046
VEVOR
Affordable. Reliable. Home Improvement.
Air Hammer
Modèle: WFH- 1046
Close-up of a hand holding a black cylindrical object with threaded end (no visible text or symbols)natural_image
Close-up of a hand holding a black wire spring with a hook, against a plain background (no text or symbols visible)Maintenance and Cleaning
C/O YH Consulting Limited Office 147, Centu House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
Affordable. Reliable. Home Improvement.

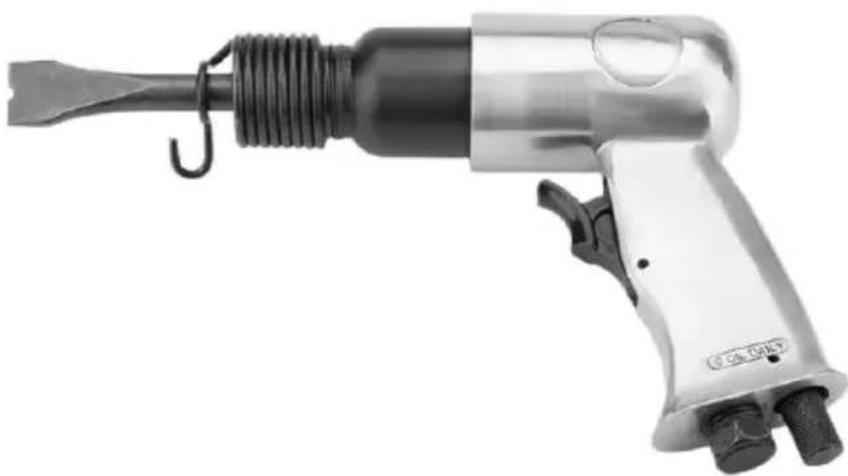

Drucklufthammer Modell: WFH -1046
