ZPN-35 - Drill Vevor - Free user manual and instructions

Product type	Concrete vibrator
Brand	Vevor
Model	ZPN-35
Power supply	Mains (alternating current)
Protection class	II (double insulation)
Motor	Brush motor
Carbon brushes	Replaceable
Bearings	6200RS, 608Z
Main components	Rotor, stator, gearbox, gear, shaft, vibrating lance
Switch	On/Off
Power cable length	Approx. 2 meters
Weight	Approx. 10 kg
Dimensions (L x W x H)	Approx. 50 x 20 x 30 cm
Housing material	Reinforced plastic
Included accessories	Vibrating lance, wrench, wind guard, cord sleeve
Intended use	Concrete compaction during construction
Safety	Wear safety glasses, gloves, hearing protection; use an RCD outdoors
Recommended maintenance	Clean ventilation slots, check brushes periodically, lubricate if necessary
Service and support	Technical support and warranty via www.vevor.com/support
Warranty	Electronic warranty certificate available online

Frequently Asked Questions - ZPN-35 Vevor

How to use the Vevor ZPN-35 concrete vibrator?

Plug the device into a compatible mains socket. Make sure the switch is in the off position before plugging in. Place the vibrating lance into fresh concrete and turn on the device. Move the lance slowly to compact the concrete. Turn off before removing the lance.

What are important safety instructions?

Always wear safety glasses, gloves, and hearing protection. Use a residual current device (RCD) outdoors. Do not leave the device unattended. Unplug it before any maintenance. Consult the manual for complete warnings.

How to maintain the ZPN-35 vibrator?

Clean the ventilation slots regularly with a soft brush. Check the condition of the carbon brushes and replace them if worn. Inspect mounting screws and tighten if necessary. Keep the device dry.

How to replace the carbon brushes?

Unplug the device. Remove the brush holder (part no. 13 on the diagram). Take out the old brushes and insert the new ones, ensuring they slide freely. Replace the brush holder. After replacement, run the motor idle for 15 minutes to seat the brushes.

What to do if the vibrator does not start?

First check that the device is plugged in and the outlet works. Inspect the power cord for any damage. If the problem persists, check the carbon brushes: if they are too worn, replace them. Contact technical support if necessary.

Can I use an extension cord with the ZPN-35?

Yes, but use an extension cord suitable for outdoor use with sufficient cross-section to avoid voltage drops. Ensure the extension cord is in good condition and equipped with an RCD if used outdoors.

What type of oil to use for lubrication?

The manual does not specify a particular oil type. For the gearbox, use a standard gear oil. Apply sparingly to moving parts according to the diagram indications. Avoid excess oil.

How to clean the vibrating lance?

After use, clean the lance with clean water to remove concrete residues. Dry it thoroughly before storing. Never immerse the motor or electrical part in water.

Where to find spare parts for the ZPN-35?

Spare parts are available from Vevor after-sales service. Visit www.vevor.com/support to order carbon brushes, bearings, vibrating lance, etc. Use the parts list in the manual to identify references.

Is the device suitable for outdoor use?

Yes, but it is mandatory to use a residual current device (RCD) to protect against electrical hazards. Do not expose the device to rain or excessive humidity. Store it in a dry place after use.

USER MANUAL ZPN-35 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CONCRETE VIBRATOR

USER MANUAL

MODEL: ZPN-35

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

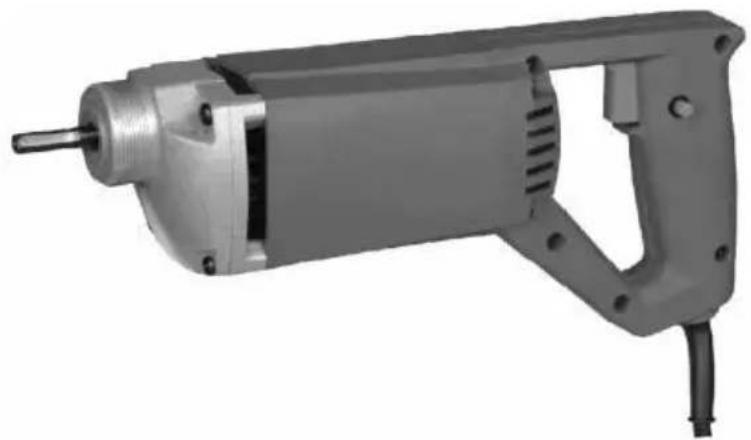

ZPN-35

Exterior view of a gray electric drill bit with handle and screw base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Warning - To reduce the risk of injury, users must read instructions manual carefully.

	This symbol, placed before a safety comment, indicates a precaution, warning, or danger. Ignoring this warning may an accident. To reduce the risk of injury, fire, or electroplease always follow the recommendation shown below.
	Alternating current
	This product is of protection class II. That means it is e with enhanced or double insulation.
	Warning- Be sure to wear ear protectors when using this
	Warning- Be sure to wear eye protectors when using this product.
	Warning- Be sure to wear gloves when using this produc
	CORRECT DISPOSALThis product is subject to the provision of european Dir 2012/19/EU. The symbol showing a wheelie bin crossed t indicates that the product requires separate refuse collect the European Union. This applies to the product and accessories marked with this symbol. Products marked as may not be discarded with normal domestic waste, but r taken to acollection point for recycling electrical and ele devices.
	This symbol, placed before a safety comment, indicates a precaution, warning, or danger. Ignoring this warning may an accident. To reduce the risk of injury, fire, or electr please always follow the recommendation shown below

specifications provided by this CONCRETEVIBRATOR. Failure to follow instructions listed below may result in electric shock, fire and/or serious injury (Note: In the following, the word "power tool" refers to "CONCF VIBRATOR").

Work Area Safety

a) Keep work area clean and well-lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in presence of flammable liquids, gases or dust. Power tools create spar that may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in way. Do not use any adapter plugs with earthed (grounded) power to Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pip radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water enter power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edge moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suit for outdoor use. Using a cord suitable for outdoor use reduces the r electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal Safety

a) Stay alert, watch what you are doing and use common sense who operating a power tool. Do not use a power tool while you are tired under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as a dust mask, non-skid safety shoes, ha or hearing protection for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is off-position before connecting to power source and/or battery pack, picking up or carrying tool. Holding power tools with your finger on the button or energizing tools with the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power too wrench or a key left attached to a rotating part of the power tool in personal injury.

e) Refrain from overreaching. Keep proper footing and balance at all This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your and clothing away from moving parts. Loose clothes, jewelry or long can be caught in moving parts.

g) If devices are provided for connecting dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools make you become complacent and ignore tool safety principles. A careless action cause severe injury within a fraction of a second.

Power Tool Use And Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer a

rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and power tool that cannot be controlled with the switch is dangerous and be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustment changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and only allow familiar with the power tool or these instructions to operate the power. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tool with sharp cutting edges are less likely to bind and are easier to cc g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the to be performed. Use of the power tool for operations different from intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Other Basic Safety

1. Read all instructions.

2. To protect against fire, electric shock and injury to persons, do no immerse cord, plugs or machine in water or other liquid.

3. Close supervision is necessary when any appliance is used by or children.
4. This power tool can be used by children aged 8 years and above persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and undersh the hazards involved. Children shall not make cleaning and user maintenance without supervision).
5. Unplug from outlet when not in use, before putting on or taking c and before cleaning. To unplug, grasp plug and pull from electrical or Never pull cord.
6. Avoid contact with moving parts

SAVE THESE INSTRUCTIONS

INSTALLATION

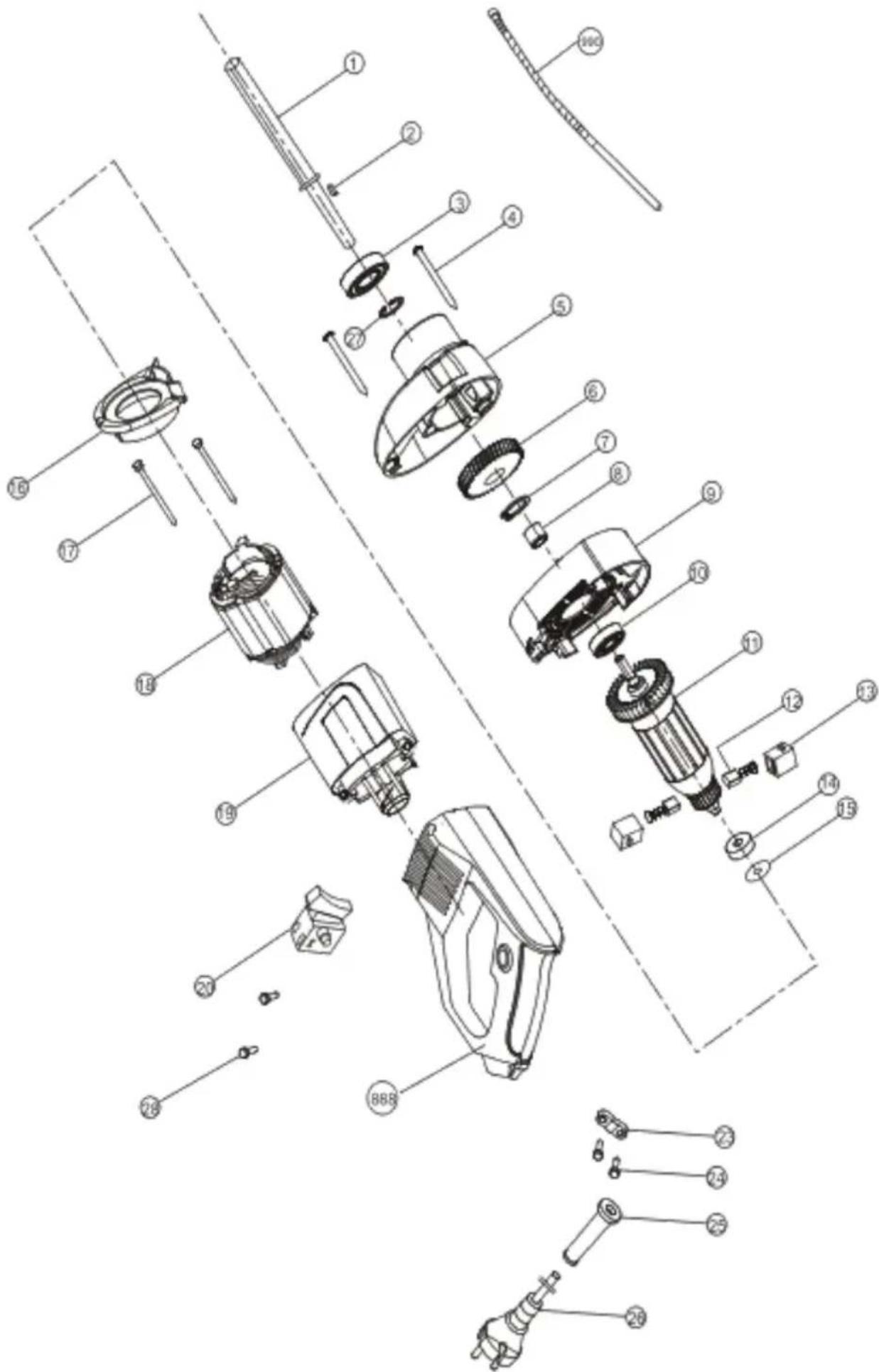

NO.	DESCRIPTION	NO.	DESCRIPTION
1	SPINDLE	15	WASHER
2	KEY	16	WIND GUARD
3	BEARING 6200RS	17	SCREW
4	SCREW	18	STATOR
5	GEAR BOX	19	HOUSING
6	GEAR	20	SWITCH
7	CIRCLIP	23	CORD CLAMP
8	STEEL BUSH	24	SCREW
9	MIDDLE COVER	25	CORD SLEEVE
10	BEARING 6200RS	26	CORD
11	ROTOR	27	CIRCLIP
12	CARBON BRUSH	28	SCREW
13	CARBON BRUSH HOLDEF	990	VIBRATION SPEAR
14	BEARING 608Z	888	HANDLE ASSEMBLE

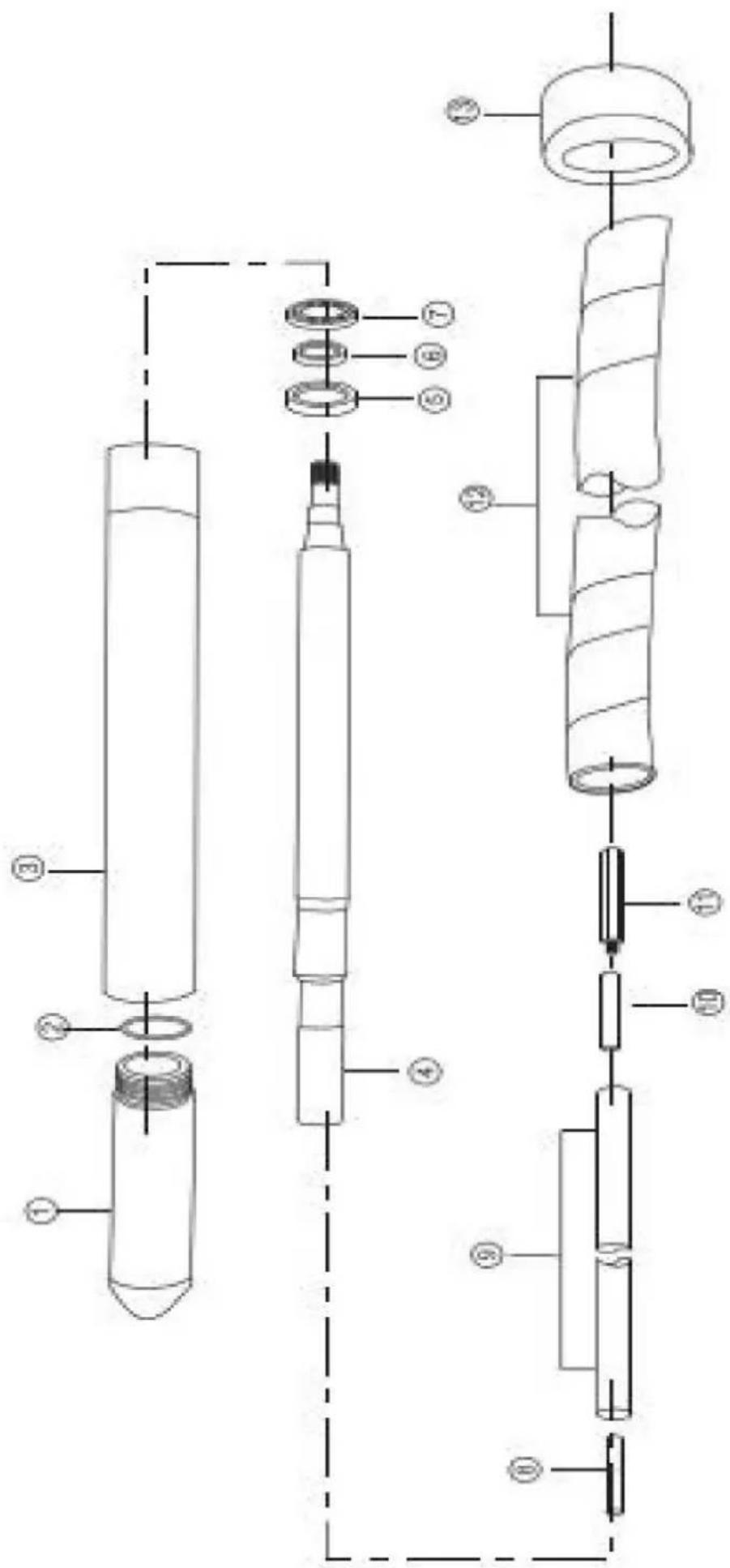

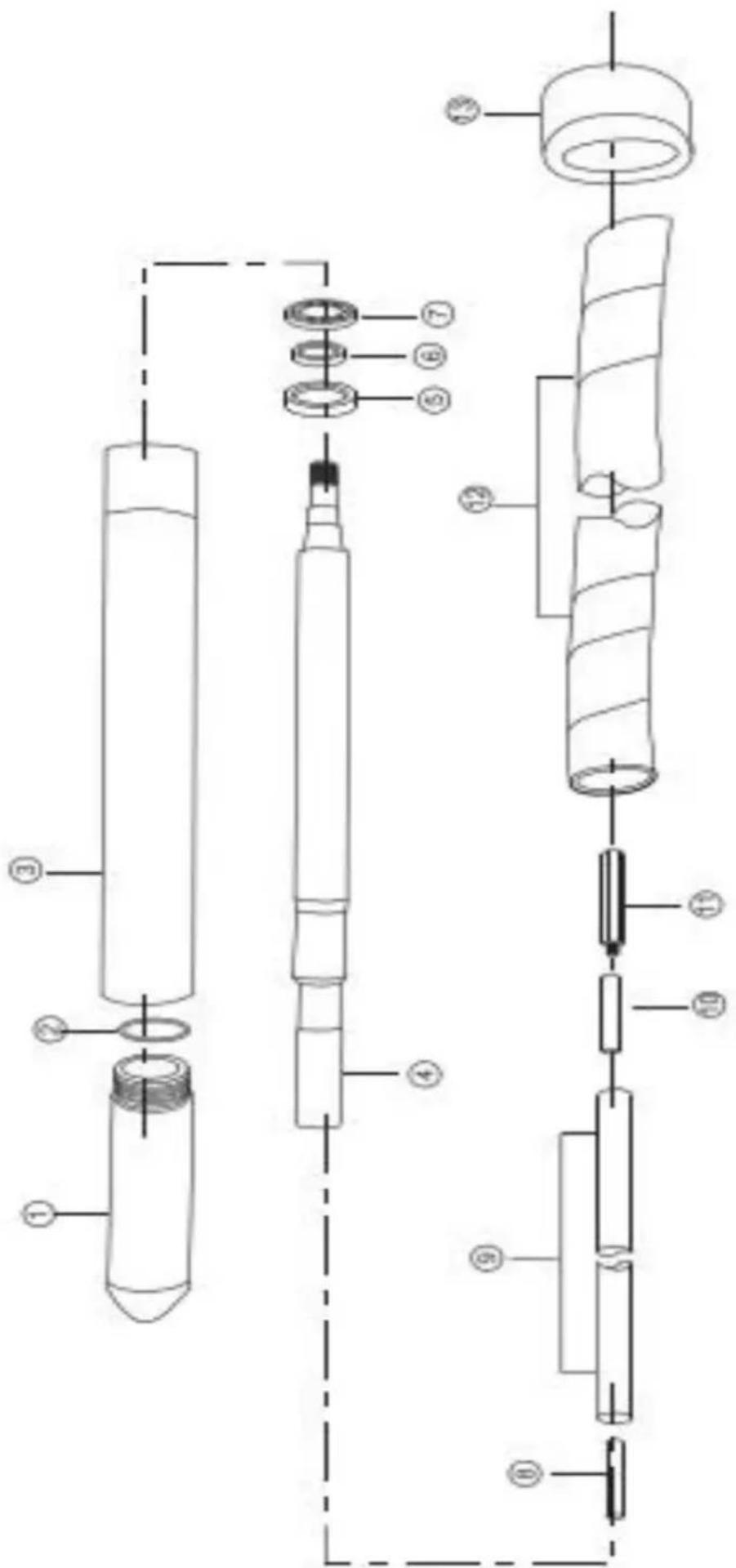

NO.	DESCRIPTION
1	CAP HEAD
2	O-RING
3	CASE
4	ROTARY SHAFT
5	COUNTER OIL SEAL
6	OIL SEAL
7	BEARING
8	SHAFT JOINT
9	FLEXILE SHAFT
10	SHAFT JOINT
11	HEX SHAFT JOINT
12	FLEXILE HOSE
13	LOCKING NUT

Maintenance and Inspection

Before any work on the machine itself, pull the mains plug.

1. The brushes should be checked periodically and worn-out brushes should be replace in time. After replacing, inspect whether the new brus can move freely in the brush holder, Keep running the motor for 15 to match the contact of the brushes and commutator.
2. Keep the ventilation slots clear from dirt, clean off the accumulated and oil dirt periodically.
3. During normal operation, if anything happens, the power supply should be cut off at once and the tool should be checked and repaired.
4. Regularly inspect all mounting screws and ensure that they are prop tightened, should any of the screws be loosen, tighten them

immediately, Failure to do so could result in personal injury.

1. Do not expose the tool to rain, Do not use power tools in damp or location. Keep work area well lit. Do not use power tools where there risk of causing cause fire or explosion.
