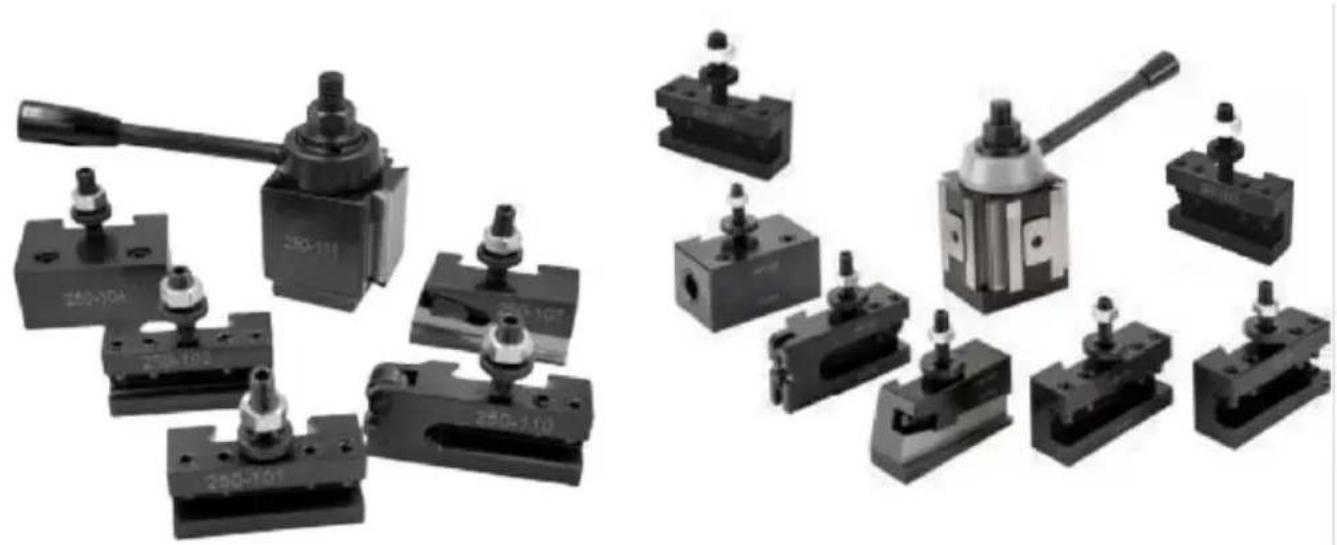

Quick Change Tool Post Set User Manual

MODLE: 250-100(6), 250-200(6), 250-100(8), 250-200(8)

250-000(6), 250-111(6), 250-222(6),

250-111(8), 250-222(8)

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: 250-100(6), 250-200(6), 250-100(8), 250-200(8), 250-000(6), 250-111(6), 250-222(6), 250-111(8), 250-222(8)

Collection of industrial cutting tool holders and clamps, no visible text or symbols

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Features:

● All working parts hardened & ground.
● Maximum rigidity for chatter-free performance. No time wasted with shims.
● Increases productivity of all lathe operations.
- Completely sealed for maintenance free operation.
- Change tools in seconds.

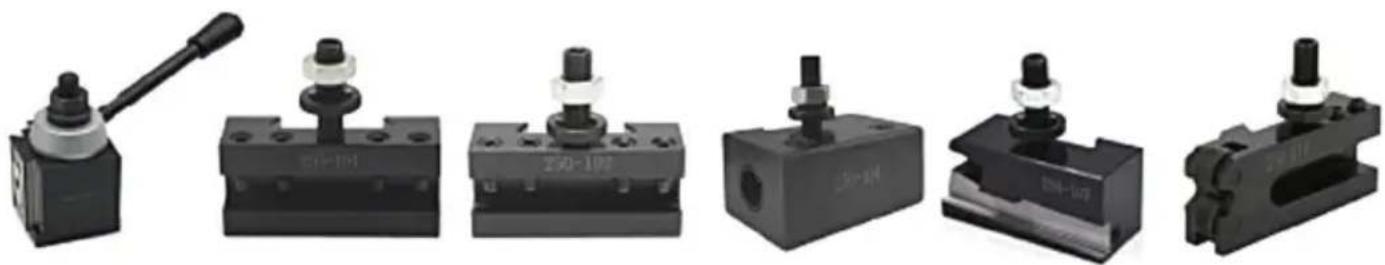

Six black industrial cutting tool holders with different mounting brackets and mounting features, shown from different angles (no visible text or symbols)

◆ PISTON TYPE TOOL POST SETS

Five black industrial control switches with no visible text or symbols on their body, arranged in a row (no readable labels or symbols)

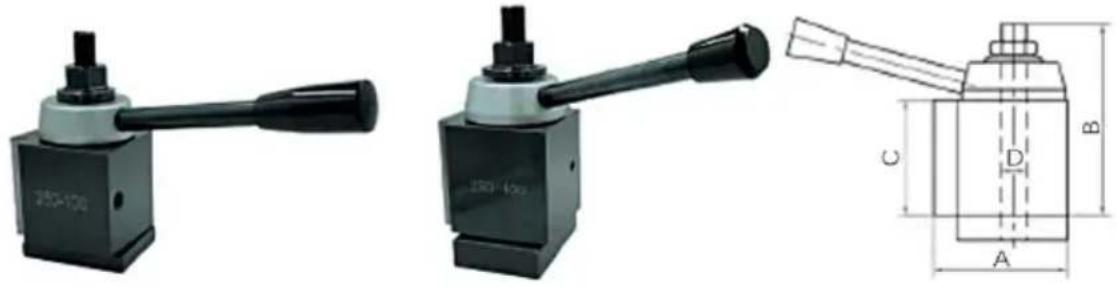

WEDGE TYPE TOOL POST SETS

Each set consists of one pision type tool post and one of each of

Quick Change Tool Post Piston Style-accessories

Technical drawings of three mechanical components with dimension labels (A, B, C) and part numbers (150-100), no readable text or symbols beyond labels.

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-100	12	2- 1/2	3-7/8	2 -1/4	9/16
250-200	10-15	3	4 - 5/8	2 - 3/4	5/8
250-300	13-18	3 - 3/8	5 -1/8	3	3/4
250-400	14-20	4	6 -1/4	3 5/8	7/8

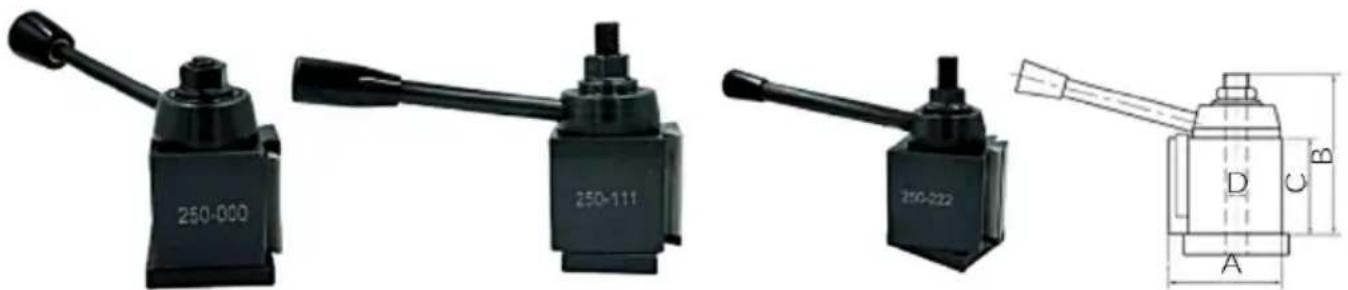

Quick Change Tool Post Wedge Style

Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-000	12	1.75	2.95	1.57	0.40
250-111	10-15	2-1/2	3-7/8	2-1/4	9/16
250-222	13-18	3	4-5/8	2-3/4	5/8
250-333	14-20	3-3/8	5-1/8	3	3/4
250-444	17-48	4	6-1/4	3-5/8	7/8

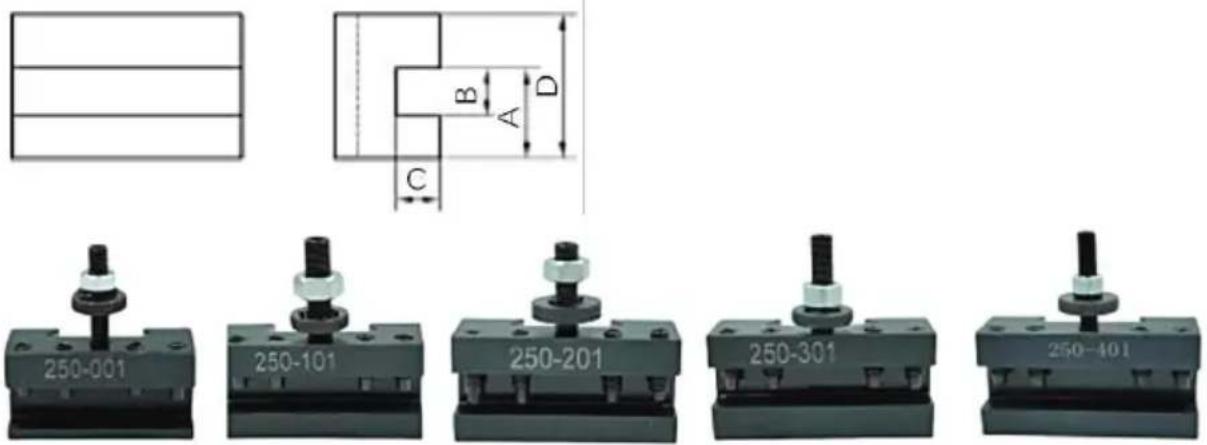

Turning and facing holder

250-001 250-101 250-201 250-301 250-401

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-001	0.68	0.5	0.327	1.1	3/16—1/2
250-101	1	1/2	29/64	1—1/2	3/16—1/2
250-201	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-301	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-401	1—12/32	1	3/4	2—1/2	1/2—1

Suitable for any size smaller than max. Height h.

Turning and facing holder

d B A D C

Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-102T	1"	5/8"	1/2"	1-1/2"	3/16-5/8"
250-202T	1-1/8"	3/4"	5/8"	1-3/4"	1/4-3/4"

Turning and facing holder

B A D C

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)

ORDER NO.	A	B	C	D
	INCH	INCH	INCH	INCH
250-101T	1"	5/8"	1/2"	1-1/2"
250-201T	1-1/8"	3/4"	5/8"	1-3/4"

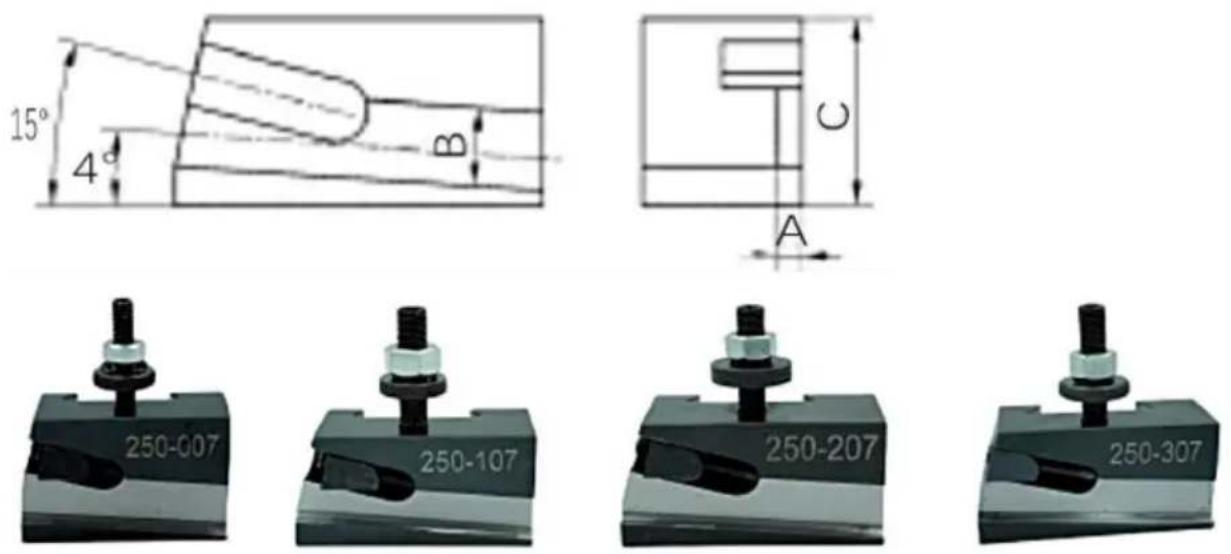

Boring, turning and facing holder

Scanned document with two horizontal lines of Chinese text, likely a form or template section header.

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-002	0.66	0.5	0.327	1.1	3/16—1/2
250-102	1	1/2	29/84	1—1/2	3/16—1/2
250-202	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-302	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-402	1—12/32	1	3/4	2—1/2	1/2—1

V groove hold round shank boring bars and tools as well as sauare tool bits to machine end face,external,cutting, boring etc.

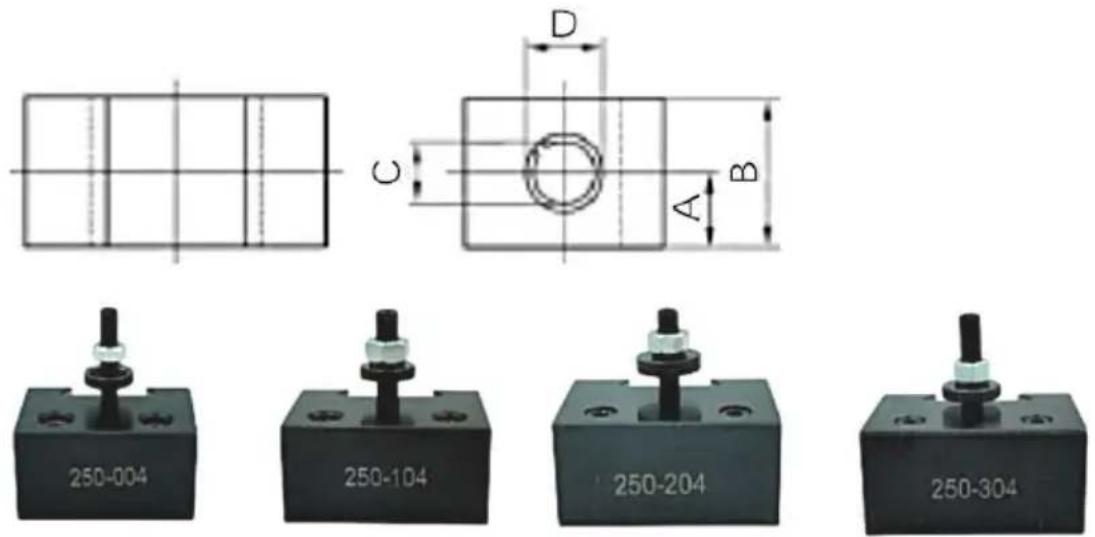

Heavy Duty Boring Bar Holder

250-004 250-104 250-204 250-304

Split bushing suitable for small boring bars & drill

Universal parting blade tool holder

ORDER NO.	A	B	C	CLAMPING RANGE	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-010	0.53	1.77	1.18	3/16—1/2	1/2*3/16*3/16
250-110	7/8	1—1/2	1—9/16	3/16—1/2	3/4*3/8*1/4
250-210	1	2—5/8	1—3/4	1/4—5/8
250-310	1—3/16	3—1/8	2	1/2—3/4
250-410	1—7/16	3—3/4	2—1/2	1/2—1

It may be used for knuring, if square tool is used, it may process end face, ex cutting, boring etc.

Lips: In order to provide better protection for your product, will apply anti rust oil, which may cause oil leakage.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of industrial cutting tool holders and clamps with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Caractéristiques:

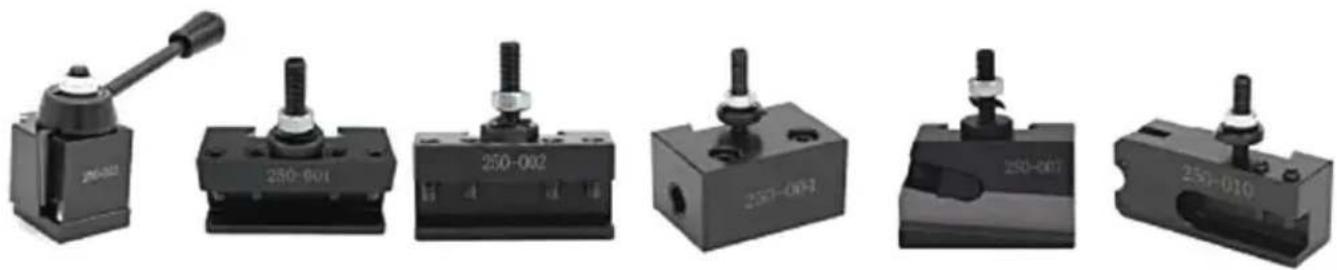

Six black industrial cutting tool holders with different mounting brackets and mounting tips, displayed against a white background (no text or symbols visible)

◆ ENSEMBLES DE POST-OUTILS DE TYPE PISTON

COMMANDENON.	TOURÀBALANCEMENT	6 PIÈCES CHAQUE ENSEMBLE COMPREND (6 PCS/ENSEMBLE)
250-100 (6)	12"	250-100, 250-101, 250-102, 250-104, 250-107, 250-110 CIIACUN 1F
250-200 (6)	10"-15"	250-200, 250-201, 250-202, 250-204, 250-207, 250-210 CHAQUE 1F
250-300 (6)	13"-18"	250-300, 250-301, 250-302, 250-304, 250-307, 250-310 CHAQUE 1F
250-400 (6)	14"-20"	250-400, 250-401, 250-402, 250-404, 250-407, 250-410 CIIAQUE 1F

COMMANDENON.	TOURÀBALANCEMENT	8 PIÈCES CHAQUE ENSEMBLE COMPREND (8 PCS/ENSEMBLE)
250-100 (8)	12"	250-100, 250-101, 250-102, 250-104, 250-107, 250-110 CHACUN 1F250-101T*2 PCS
250-200 (8)	10"-15"	250-200, 250-201, 250-202, 250-204, 250-207, 250-210 CHAQUE 11250-201T*2 PCS

Five black industrial control switches with no visible text or symbols on their surfaces

ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE

Technical drawings of mechanical components including a lever and a cylindrical part with labeled dimensions (no text or symbols present)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-100	12	2- 1/2	3-7/8	2 -1/4	9/16
250-200	10-15	3	4 - 5/8	2 - 3/4	5/8
250-300	13-18	3 - 3/8	5 -1/8	3	3/4
250-400	14-20	4	6 -1/4	3 5/8	7/8

Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-000	12	1.75	2.95	1.57	0.40
250-111	10-15	2-1/2	3-7/8	2-1/4	9/16
250-222	13-18	3	4-5/8	2-3/4	5/8
250-333	14-20	3-3/8	5-1/8	3	3/4
250-444	17-48	4	6-1/4	3-5/8	7/8

Simple rectangular outline with three horizontal lines inside, no text or symbols present.

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes (no visible text or symbols)

Close-up of a mechanical component with a bolt and mounting base (no visible text or symbols)

Mechanical component with a black base and metallic fitting, labeled '250-201' (no other text or symbols visible)

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes, labeled '250-301' (no other text or symbols visible)

Mechanical component with a black base and cylindrical protrusion, labeled '250-401' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-001	0.68	0.5	0.327	1.1	3/16—1/2
250-101	1	1/2	29/64	1—1/2	3/16—1/2
250-201	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-301	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-401	1—12/32	1	3/4	2—1/2	1/2—1

Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-102T	1"	5/8"	1/2"	1-1/2"	3/16-5/8"
250-202T	1-1/8"	3/4"	5/8"	1-3/4"	1/4-3/4"

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)

ORDER NO.	A	B	C	D
	INCH	INCH	INCH	INCH
250-101T	1"	5/8"	1/2"	1-1/2"
250-201T	1-1/8"	3/4"	5/8"	1-3/4"

Scanned document with three horizontal lines of Chinese text, likely a form or template

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-002	0.66	0.5	0.327	1.1	3/16—1/2
250-102	1	1/2	29/64	1—1/2	3/16—1/2
250-202	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-302	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-402	1—12/32	1	3/4	2—1/2	1/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Merkmale:

Six black industrial cutting tool holders with different mounting brackets and mounting tips, displayed against a white background (no text or symbols visible)

◆ KOLBENTYP-WERKZEUGHALTERSÄTZE

BEFEHL NEIN.	DREHBANK-SCHWENKEN	JEDES SET ENTHÄLT 6 STÜCKE (6 STÜCKE/SET)
250-100 (6)	12"	250-100, 250-101, 250-102, 250-104, 250-107, 250-110, je 1 Stück
250-200 (6)	10"-15"	250-200, 250-201, 250-202, 250-204, 250-207, 250-210, je 1 Stück
250-300 (6)	13"-18"	250-300, 250-301, 250-302, 250-304, 250-307, 250-310, je 1 Stück
250-400 (6)	14"-20"	250-400, 250-401, 250-402, 250-404, 250-407, 250-410, je 1 Stück

BEFEHL NEIN.	DREHBANK-SCHWENKEN	8 STÜCKE, JEDES SET ENTHÄLT (8 STÜCKE/SET)
250-100 (8)	12"	250-100, 250-101, 250-102, 250-104, 250-107, 250-110, je 1 Stück250-101T*2 Stück
250-200 (8)	10"-15"	250-200, 250-201, 250-202, 250-204, 250-207, 250-210, je 1 Stück250-201T*2 Stück

Five black industrial control switches with no visible text or symbols on their parts, arranged in a row (no readable labels or symbols)

WERKZEUGHALTER-SÄTZE IN KEILFORM

Technical drawings of mechanical components including a lever and a cylindrical part with labeled dimensions (A, B, C)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-100	12	2- 1/2	3-7/8	2 -1/4	9/16
250-200	10-15	3	4 - 5/8	2 - 3/4	5/8
250-300	13-18	3 - 3/8	5 -1/8	3	3/4
250-400	14-20	4	6 -1/4	3 5/8	7/8

Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-000	12	1.75	2.95	1.57	0.40
250-111	10-15	2-1/2	3-7/8	2-1/4	9/16
250-222	13-18	3	4-5/8	2-3/4	5/8
250-333	14-20	3-3/8	5-1/8	3	3/4
250-444	17-48	4	6-1/4	3-5/8	7/8

Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-102T	1"	5/8"	1/2"	1-1/2"	3/16-5/8"
250-202T	1-1/8"	3/4"	5/8"	1-3/4"	1/4-3/4"

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)

ORDER NO.	A	B	C	D
	INCH	INCH	INCH	INCH
250-101T	1"	5/8"	1/2"	1-1/2"
250-201T	1-1/8"	3/4"	5/8"	1-3/4"

Scanned document with three horizontal lines of Chinese text, likely a form or template

C B A D

Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical clamp or bracket component with a bolt and nut, labeled '250-102' (no readable text beyond label)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a black base and cylindrical protrusion, labeled '250-402' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-002	0.66	0.5	0.327	1.1	3/16—1/2
250-102	1	1/2	29/64	1—1/2	3/16—1/2
250-202	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-302	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-402	1—12/32	1	3/4	2—1/2	1/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of industrial cutting tool holders and clamps with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Caratteristiche:

Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no text or symbols visible)

◆ SET DI PORTAUTENSILI TIPO PISTONE

ORDINE NO.	TORNIO ORIENTABILE	6 PEZZI OGNI SET INCLUDE (6 PEZZI/SET)
250-100 (6)	12"	250-100、250-101、250-102、250-104、250-107、250-110 CIASCUNO 1PZ
250-200 (6)	10"-15"	250-200、250-201、250-202、250-204、250-207、250-210 CIASCUNO 1PZ
250-300 (6)	13"-18"	250-300、250-301、250-302、250-304、250-307、250-310 CTASCUNO 1PZ
250-400 (6)	14"-20"	250-400、250-401、250-402、250-404、250-407、250-410 CTASCUNO 1PZ

ORDINE NO.	TORNIO ORIENTABILE	8 PEZZI OGNI SET INCLUDE (8 PEZZI/SET)
250-100 (8)	12"	250-100、250-101、250-102、250-104、250-107、250-110 CIASCUNO 1PZ250-101T*2 PZ
250-200 (8)	10"-15"	250-200、250-201、250-202、250-204、250-207、250-210 CIASCUNO 1PZ250-201T*2 PZ

Five black industrial cutting tool holders with labeled mounting points, shown from different angles (no text or symbols on components)

SET DI PORTAUTENSILI A CUNEO

Technical drawings of mechanical components with dimension labels (A, B, C) and part numbers (100, 100-250), no readable text or symbols beyond labels.

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-100	12	2- 1/2	3-7/8	2 -1/4	9/16
250-200	10-15	3	4 - 5/8	2 - 3/4	5/8
250-300	13-18	3 - 3/8	5 -1/8	3	3/4
250-400	14-20	4	6 -1/4	3 5/8	7/8

Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-102T	1"	5/8"	1/2"	1-1/2"	3/16-5/8"
250-202T	1-1/8"	3/4"	5/8"	1-3/4"	1/4-3/4"

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)

ORDER NO.	A	B	C	D
	INCH	INCH	INCH	INCH
250-101T	1"	5/8"	1/2"	1-1/2"
250-201T	1-1/8"	3/4"	5/8"	1-3/4"

Scanned document with three horizontal lines of Chinese text, likely a form or template

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Mechanical component with a black base and cylindrical protrusion, labeled '250-302' (no other text or symbols visible)

Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-002	0.66	0.5	0.327	1.1	3/16—1/2
250-102	1	1/2	29/84	1—1/2	3/16—1/2
250-202	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-302	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-402	1—12/32	1	3/4	2—1/2	1/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Características:

Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no text or symbols visible)

Six black industrial cutting tool holders with no visible text or symbols on their parts, arranged in a row (no readable labels or symbols)

Technical drawings of mechanical components including a lever, block, and cylindrical part with dimension labels (A, B, C)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-100	12	2- 1/2	3-7/8	2 -1/4	9/16
250-200	10-15	3	4 - 5/8	2 - 3/4	5/8
250-300	13-18	3 - 3/8	5 -1/8	3	3/4
250-400	14-20	4	6 -1/4	3 5/8	7/8

Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-102T	1"	5/8"	1/2"	1-1/2"	3/16-5/8"
250-202T	1-1/8"	3/4"	5/8"	1-3/4"	1/4-3/4"

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)

ORDER NO.	A	B	C	D
	INCH	INCH	INCH	INCH
250-101T	1"	5/8"	1/2"	1-1/2"
250-201T	1-1/8"	3/4"	5/8"	1-3/4"

Scanned document with three horizontal lines of Chinese text, likely a form or template.

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a black base and cylindrical protrusion, labeled '250-402' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-002	0.66	0.5	0.327	1.1	3/16—1/2
250-102	1	1/2	29/64	1—1/2	3/16—1/2
250-202	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-302	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-402	1—12/32	1	3/4	2—1/2	1/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Cechy:

Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no visible text or symbols)

◆ ZESTAWY NARZĘDZI TYPU TŁOKOWEGO

ZAMÓWIENIE NIE.	HUŠTAWKA TOKARKI	6 SZTUK W KAŻDYM ZESTAWIE ZAWIERA (6 SZT./ZESTAW)
250-100 (6)	12"	250-100, 250-101, 250-102, 250-104, 250-107, 250-110 KAŻDY 1 SZT.
250-200 (6)	10"-15"	250-200, 250-201, 250-202, 250-204, 250-207, 250-210 KAŻDY 1 SZT.
250-300 (6)	13"-18"	250-300, 250-301, 250-302, 250-304, 250-307, 250-310 KAŻDY 1 SZT.
250-400 (6)	14"-20"	250-400, 250-401, 250-402, 250-404, 250-407, 250-410 KAŻDY 1 SZT.

ZAMÓWIENIE	TOKARKAHUŠTAWKOWA	KAŻDY ZESTAW ZAWIERA 8 ELEMENTÓW (8 SZT./ZESTAW)
NIE.
250-100 (8)	12"	250-100, 250-101, 250-102, 250-104, 250-107, 250-110 KAZDY 1 SZT.250-101T*2 SZT.
250-200 (8)	10"-15"	250-200, 250-201, 250-202, 250-204, 250-207, 250-210 KAZDY 1 SZT.250-201T*2 SZT.

Five black industrial control switches with no visible text or symbols on their surfaces

ZESTAWY NARZĘDZI TYPU KLIN

Technical drawings of mechanical components with dimension labels (A, B, C) and part numbers (250-100), no readable text or symbols beyond labels.

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-100	12	2- 1/2	3-7/8	2 -1/4	9/16
250-200	10-15	3	4 - 5/8	2 - 3/4	5/8
250-300	13-18	3 - 3/8	5 -1/8	3	3/4
250-400	14-20	4	6 -1/4	3 5/8	7/8

Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-000	12	1.75	2.95	1.57	0.40
250-111	10-15	2-1/2	3-7/8	2-1/4	9/16
250-222	13-18	3	4-5/8	2-3/4	5/8
250-333	14-20	3-3/8	5-1/8	3	3/4
250-444	17-48	4	6-1/4	3-5/8	7/8

Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-102T	1"	5/8"	1/2"	1-1/2"	3/16-5/8"
250-202T	1-1/8"	3/4"	5/8"	1-3/4"	1/4-3/4"

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)

ORDER NO.	A	B	C	D
	INCH	INCH	INCH	INCH
250-101T	1"	5/8"	1/2"	1-1/2"
250-201T	1-1/8"	3/4"	5/8"	1-3/4"

Scanned document with three horizontal lines of Chinese text, likely a form or template

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Close-up of a mechanical clamp or bracket component with a bolt and nut, labeled '250-102' (no readable text beyond label)

Mechanical component with a black base and cylindrical protrusion, labeled '250-202' (no other text or symbols visible)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-002	0.66	0.5	0.327	1.1	3/16—1/2
250-102	1	1/2	29/84	1—1/2	3/16—1/2
250-202	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-302	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-402	1—12/32	1	3/4	2—1/2	1/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Functions:

Six black industrial cutting tool holders with different mounting brackets and mounting tips, displayed against a white background (no text or symbols visible)

◆ ZUIGERTYPE GEREEDSCHAPSPAALSETS

Six black industrial control switches with no visible text or symbols on their body, arranged in a row (no readable labels or symbols)

WIGTYPE GEREEDSCHAPSPAALSETS

Technical drawings of mechanical components including a lever and a cylindrical part with labeled dimensions (no text or symbols present)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-100	12	2- 1/2	3-7/8	2 -1/4	9/16
250-200	10-15	3	4 - 5/8	2 - 3/4	5/8
250-300	13-18	3 - 3/8	5 -1/8	3	3/4
250-400	14-20	4	6 -1/4	3 5/8	7/8

Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-000	12	1.75	2.95	1.57	0.40
250-111	10-15	2-1/2	3-7/8	2-1/4	9/16
250-222	13-18	3	4-5/8	2-3/4	5/8
250-333	14-20	3-3/8	5-1/8	3	3/4
250-444	17-48	4	6-1/4	3-5/8	7/8

Close-up of a black mechanical component with a cylindrical bolt and mounting holes, labeled '250-102T' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-102T	1"	5/8"	1/2"	1-1/2"	3/16-5/8"
250-202T	1-1/8"	3/4"	5/8"	1-3/4"	1/4-3/4"

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)

ORDER NO.	A	B	C	D
	INCH	INCH	INCH	INCH
250-101T	1"	5/8"	1/2"	1-1/2"
250-201T	1-1/8"	3/4"	5/8"	1-3/4"

Scanned document with three horizontal lines of Chinese text, likely a form or template

C B A D

Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Mechanical component with a black base and cylindrical protrusion, labeled '250-302' (no other text or symbols visible)

Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-002	0.66	0.5	0.327	1.1	3/16—1/2
250-102	1	1/2	29/84	1—1/2	3/16—1/2
250-202	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-302	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-402	1—12/32	1	3/4	2—1/2	1/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Drag:

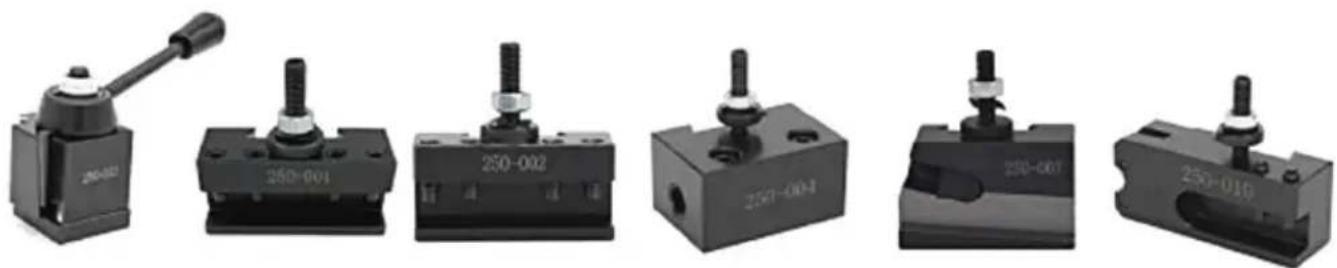

Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no text or symbols visible)

◆ KOLVTYP VERKTYGSPOSTSÄTT

BESTÄLLAINGA.	VARVGUNG	6 DELAR VARJE SET INGÅR (6 STK/SET)
250-100 (6)	12"	250-100, 250-101, 250-102, 250-104, 250-107, 250-110 VARJE 1 ST
250-200 (6)	10"-15"	250-200, 250-201, 250-202, 250-204, 250-207, 250-210 VARJE 1 ST
250-300 (6)	13"-18"	250-300, 250-301, 250-302, 250-304, 250-307, 250-310 VARJE 1 ST
250-400 (6)	14"-20"	250-400, 250-401, 250-402, 250-404, 250-407, 250-410 VARJE 1 ST

BESTÄLLAINGA.	VARVGUNG	8 DELAR VARJE SET INGÅR (8 st/SET)
250-100 (8)	12"	250-100、250-101、250-102、250-104、250-107、250-110 VARJE 1 S'250-101T*2 STK
250-200 (8)	10"-15"	250-200, 250-201, 250-202, 250-204, 250-207, 250-210 VARJE 1 ST250-201T*2 STK

Six black industrial cutting tool holders with different mounting brackets, shown from different angles (no text or symbols visible)

Technical drawings of mechanical components with dimension labels (A, B, C) and part numbers (250-100), no readable text or symbols beyond labels.

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-100	12	2- 1/2	3-7/8	2 -1/4	9/16
250-200	10-15	3	4 - 5/8	2 - 3/4	5/8
250-300	13-18	3 - 3/8	5 -1/8	3	3/4
250-400	14-20	4	6 -1/4	3 5/8	7/8

Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)

ORDER NO.	SWING FOR LATHE	A	B	C	D
	INCH	INCH	INCH	INCH	INCH
250-000	12	1.75	2.95	1.57	0.40
250-111	10-15	2-1/2	3-7/8	2-1/4	9/16
250-222	13-18	3	4-5/8	2-3/4	5/8
250-333	14-20	3-3/8	5-1/8	3	3/4
250-444	17-48	4	6-1/4	3-5/8	7/8

Close-up of a black mechanical component with a cylindrical bolt and mounting holes, labeled '250-102T' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-102T	1"	5/8"	1/2"	1-1/2"	3/16-5/8"
250-202T	1-1/8"	3/4"	5/8"	1-3/4"	1/4-3/4"

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)

ORDER NO.	A	B	C	D
	INCH	INCH	INCH	INCH
250-101T	1"	5/8"	1/2"	1-1/2"
250-201T	1-1/8"	3/4"	5/8"	1-3/4"

Scanned document with three horizontal lines of Chinese text, likely a form or template

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)

ORDER NO.	A	B	C	D	TOOL BIT RANGE
	INCH	INCH	INCH	INCH	INCH
250-002	0.66	0.5	0.327	1.1	3/16—1/2
250-102	1	1/2	29/84	1—1/2	3/16—1/2
250-202	1—1/8	5/8	1/2	1—3/4	1/4—5/8
250-302	1—7/16	3/4	5/8	2—1/8	1/2—3/4
250-402	1—12/32	1	3/4	2—1/2	1/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
