TRUCK RUNNING BOARDS

MODEL:TR-GTB-012

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

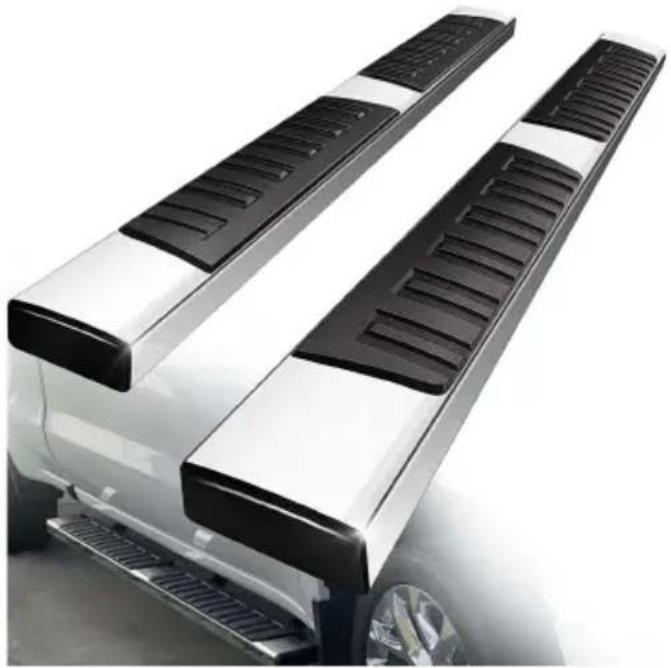

TRUCK RUNNING BOARDS

MODEL:TR-GTB-012

Exterior view of a silver and black off-road vehicle (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

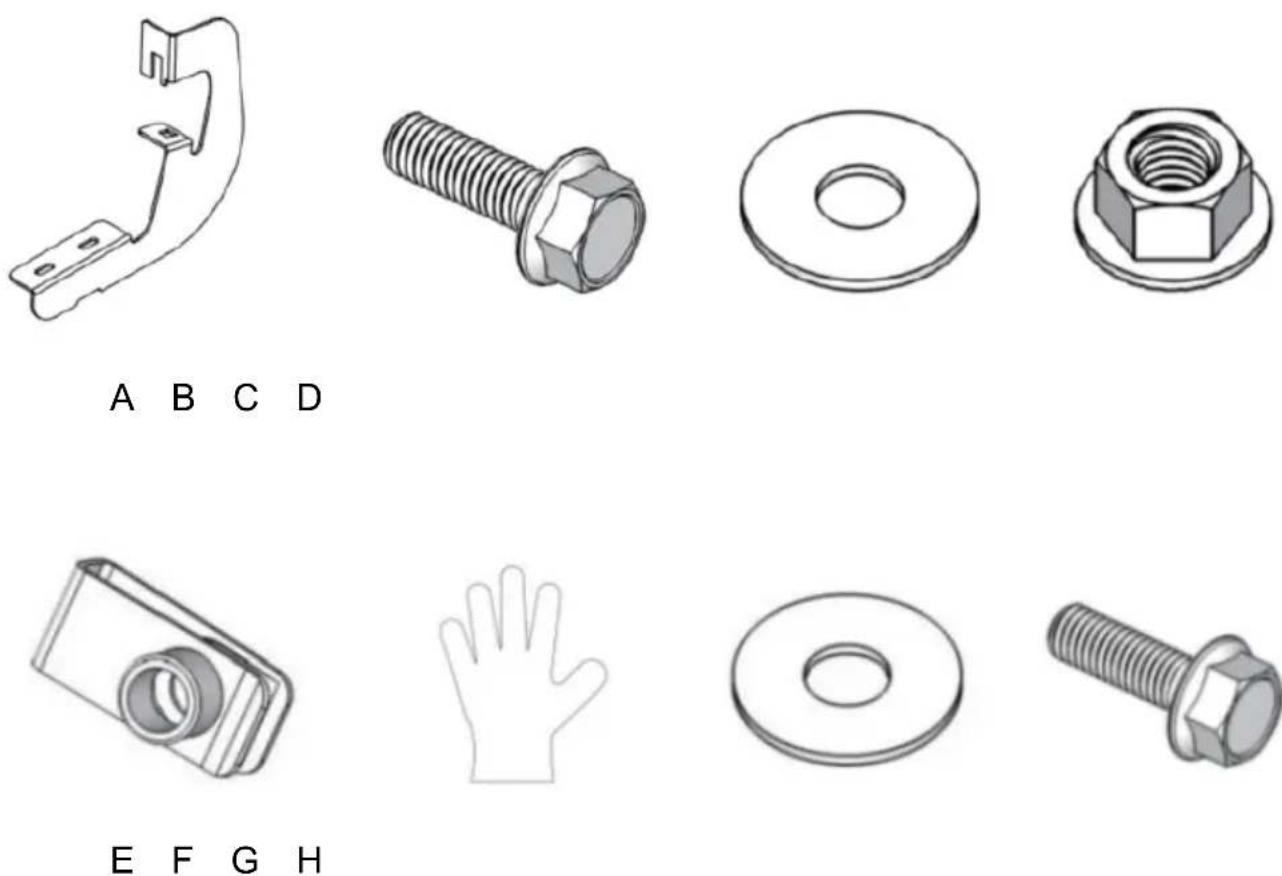

Parts List

	Qty Description
A	×8	Mounting Bracket
B	×16	M8 Hexagon Flange Bolt
C	×16	M8 Flat Washer
D	×8	M8 Hexagon Flange Nut
E	×8	M8 Clip Nut
F	×2	Glove
Pre-Install on Step Bar
G	×16	M8 Flat Washer
H	×16	M8 Hexagon Flange Bolt

CARE AND USE INSTRUCTIONS

1. Before Installation

Read this instruction carefully before starting installation.

Proper tools will improve the quality of installation and reduce the time

It is NOT compatible with diesel engine vehicles.

If missing parts or any damage is found, please take a picture and c

Professional installation would be highly recommended.

Step1

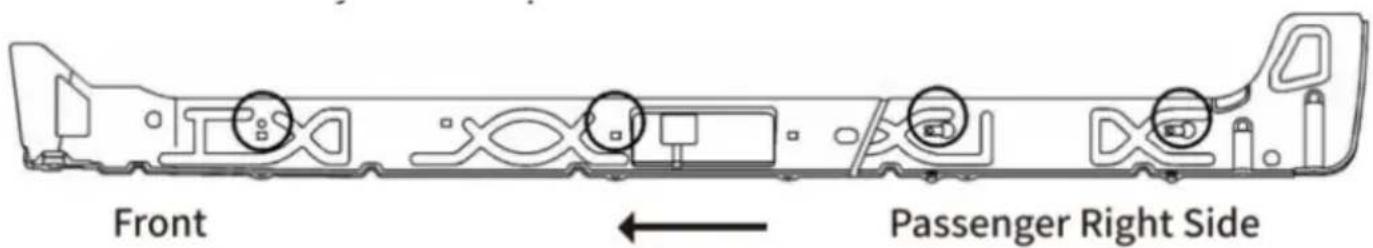

1. Locate (4) mounting positions on each side.
2. Remove the rubber plugs on the inner rocker panel.
3. Insert clip nuts onto existing holes in the inner rocker panel.

Note : Some vehicles may equipped with threaded inserts in the rocker them directly in step 2.

Front ← Passenger Right Side

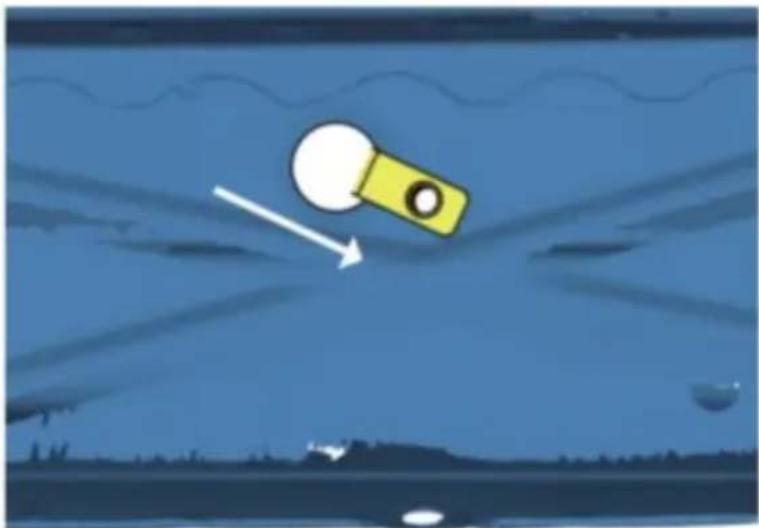

Insert the M8 clip nut onto the large hole and over the smaller hole threads inside of the inner rocker panel.

Illustration of a yellow light bulb with a white lens on a blue background, no text or symbols present.

Step2

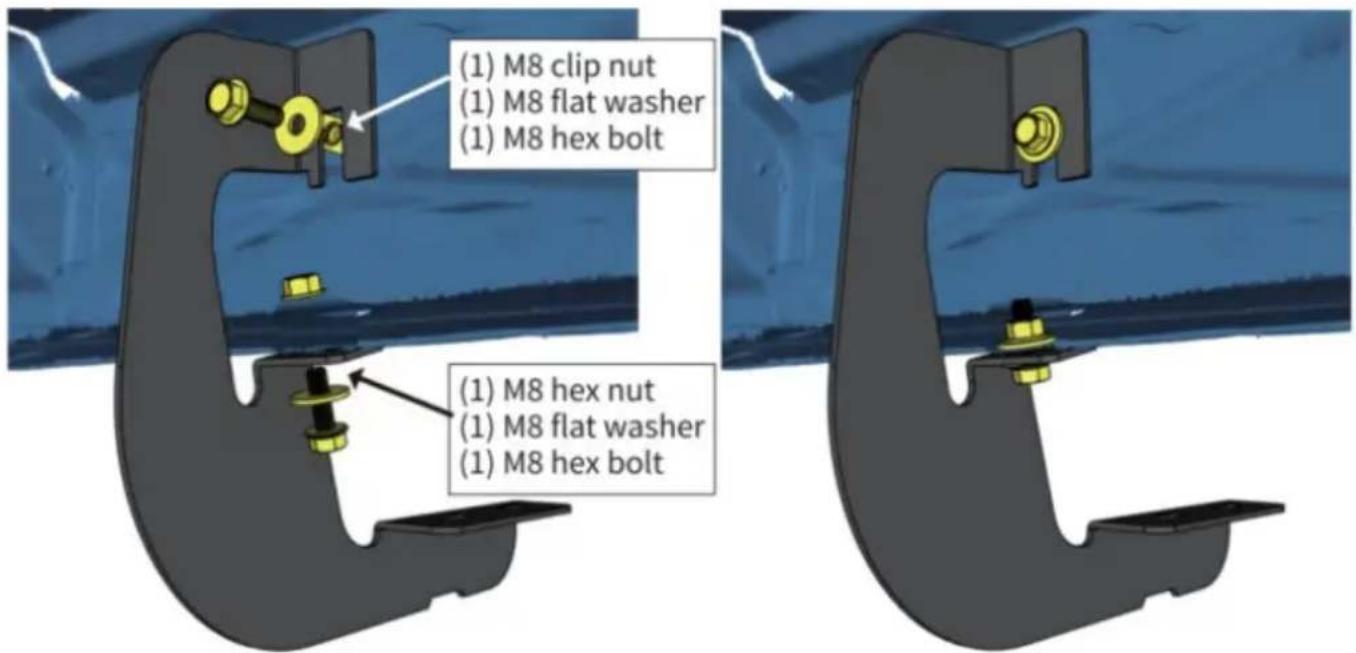

1. Attach the bracket to the inner rocker panel and secure it with (and (1) M8 flat washer.
2. Secure the bracket to pinch weld with (1) M8 hex bolt, (1) M8 hex nut.

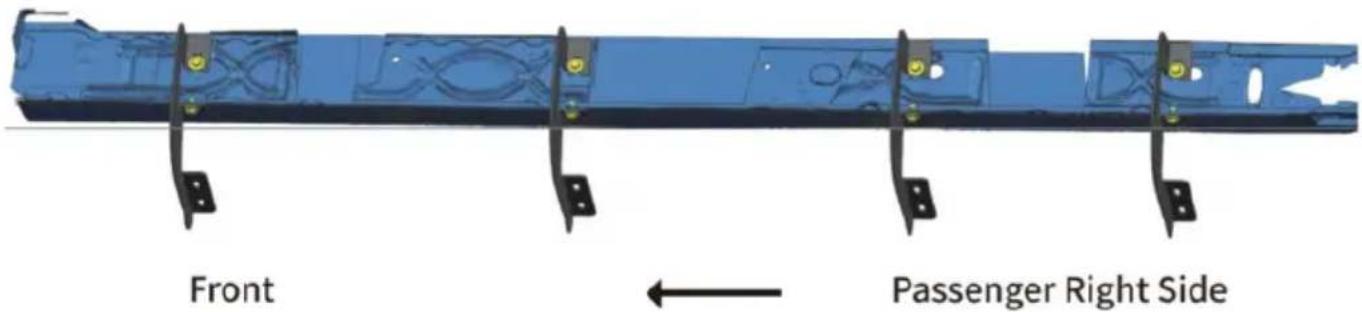

3. Repeat to install the remaining brackets; do not fully tighten.

(1) M8 clip nut (1) M8 flat washer (1) M8 hex bolt (1) M8 hex nut (1) M8 flat washer (1) M8 hex bolt

Note :

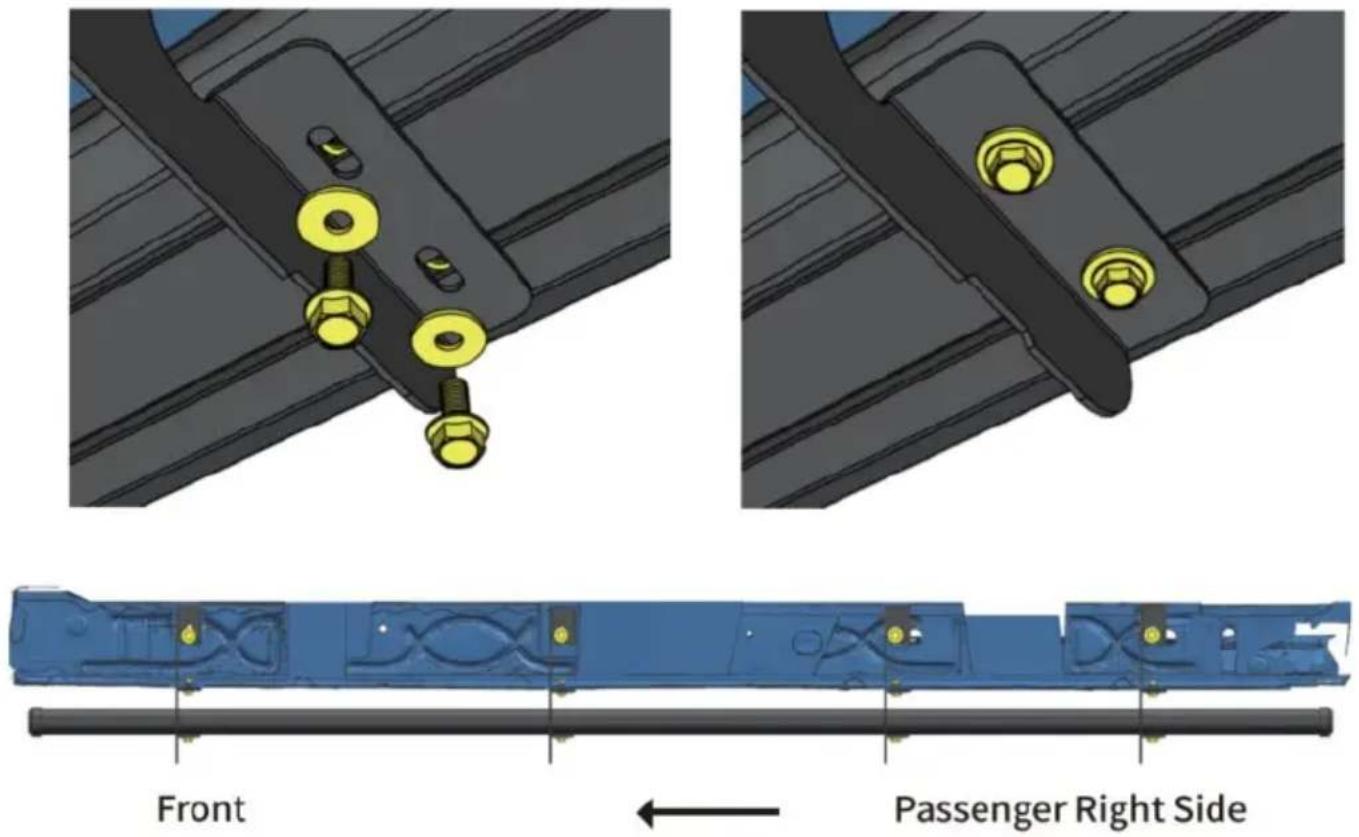

For vehicle with factory threaded inserts and weld nuts, clean the rust around the threads before installation. Proper lubrication is required.

Front ← Passenger Right Side

Step3

1. Remove (8) M8 hex bolts and (8) M8 flat washer from tr
2. Slide mounting tracks to proper positions.
3. With assistance, lift and attach the step bar to brackets.

Secure the step bar on brackets with (8) M8 hex bolts and (8)

1. Repeat to install the other side step bar; do not fully tighten it.

Note :

M8(H) Hexagon Flange Bolt and M8(G) Flat Washer Pre-Install on Step

Front ← Passenger Right Side

Step4

1. Tighten M8 hex bolts and nuts on vehicles with 15 ft-lbs torque.
2. Adjust the step bar to level and tighten M8 hex bolts with 15 ft-lb
3. After the step bar is installed, periodic check to ensure all mounting remains secure and tight.
