USER MANUAL TJAA-2000B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

A-FRAME JACK

MODEL: TJAA-2000B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

A-FRAME JACK

MODEL:TJAA-2000B

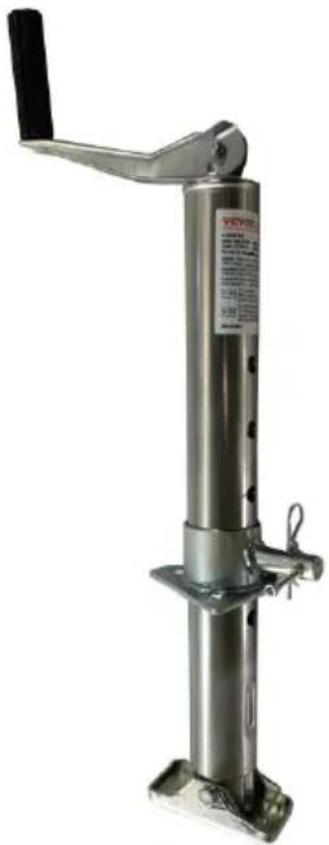

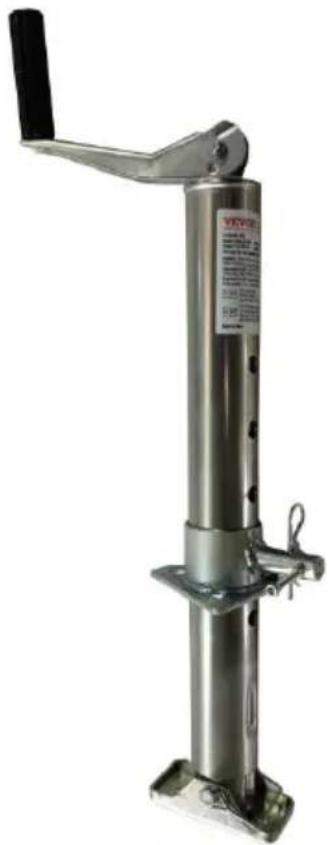

Metal mechanical device with lever and base mount (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. The “WARNING” symbol above is a sign that a service or mainten procedure involves a safety risk and may cause death or serious if not performed safely and within the parameters set forth in this manual.
2. Always wear eye protection when performing service or maintenance to the vehicle. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the service.
3. Never allow anyone unfamiliar with this product to install, operate or service this product.
4. Never lift or level the trailer without a properly installed foot pad.
5. Never crank the jack or couple the trailer without preventing the t from rolling.
6. Never exert excessive side forces on the trailer jack.
7. Never allow anyone, including the operator, to put any body parts under the trailer jack or the supported load during jack operation.
8. Never exceed the load capacity!
9. Never use a trailer jack to lift the trailer for service or tire chang
10. Never move the trailer before the trailer jack is fully retracted.
11. Keep children and bystanders away from the work area while operating the tool. Do not allow children to handle the jack.
12. It is for use on flat, level, hard surfaces capable of supporting lo
13. Do not use blocks for additional ground clearance.
14. When using the drop foot or drop leg, make certain the supplied fully inserted through both sides of the inner tube and the drop before using the jack.
15. If the trailer jack has a drop leg, never attempt to adjust the dr when there is any load on the jack.

Note:

1. The jack is only designed for vertical movement of the trailer.

2. Rapid and continuous lifting is not recommended to avoid gear heat and reduce service life.

MODEL AND PARAMETERS

Model	TJAA-2000B
Capacity	2000 lbs
Mounting Bracket Type	A-Frame Mounting Bracket
Crank Type	Top-Wind
Range	5.8-28inch
Screw Travel	14.2inch
Foot Size	4.53x2.3" (Rectangle)

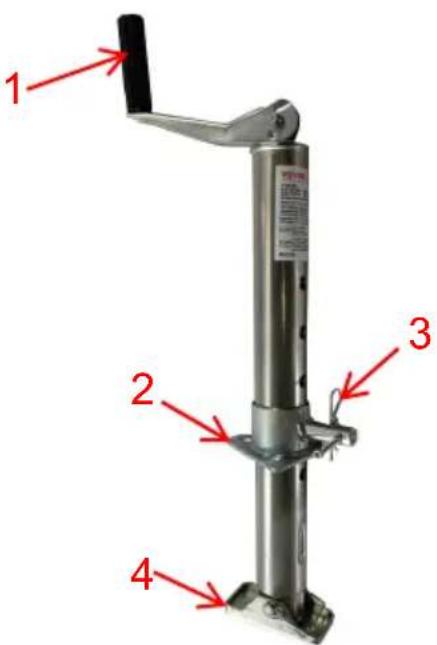

STRUCTURE DIAGRAM

1 2 3 4

1. Handle 2. Connecting Plate 3. Safety Pin 4. Foot Plate

COMPONENTS

No.	Picture	Name	Qty
1		Jack	1
2		User Manual	1

ASSEMBLY

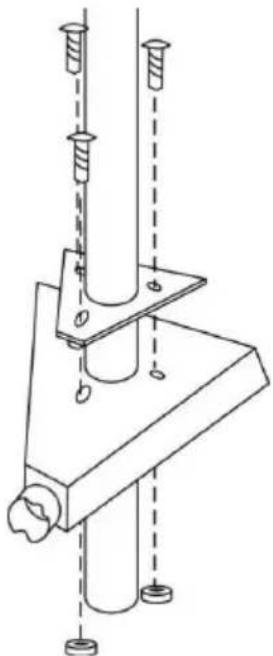

Technical line drawing of a mechanical device with two vertical posts and a central U-shaped component (no text or symbols)

1. When mounting trailer jack, it is best to hook up to the tow vehi make sure the trailer is secure.
2. Mount jack based on drawing shown above.
3. Slide A-frame jack through hole on top of A-frame coupler.
4. Line up the three slotted holes on jack mounting plate to the three holes in the coupler.
5. With three bolts and nuts (sold separately) secure jack tightly to the a-frame coupler. (Regularly check to ensure bolts/nuts are tightened securely.)
6. Select the appropriate hole position according to the body height.

Imported to USA SHEETLASTMCKDOW 2015 Imported to USA: System Siding 9160 Anamom Plas, Route Tons E-Conv. Cutout Molecule Emission 53.3207 Forward VH CONJUSTIN 1998 GJC W/Channing Guarantee Impairment 4000-Devon Ducture Made in China Safety Pin Rotate to release the clamp shaft.

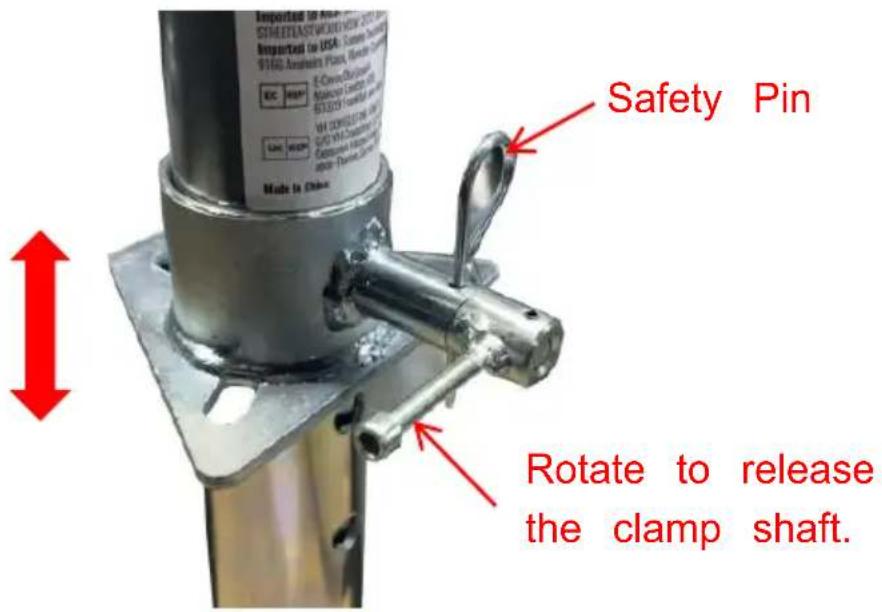

WARNING: Make sure you plug in the safety pin!

OPERATION

1. Turn handle clockwise to raise.
2. Turn handle counterclockwise to lower.

MAINTENANCE

1. Occasional cleaning with mild soap and water, along with light oil lubrication of pivot points, will prolong peak performance and appearance.
2. Periodically check whether the screws are loose.
3. Before each use, inspect jack tubes and replace them if bent or damaged.
4. The following procedures should be performed at least annually Apply a lightweight oil to the screw stem. If this product is used marine environment, flush the jack assembly and bushings with fre water, and apply fresh lubricant.

Oil
