USER MANUAL LD100A-030-00 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HYDRAULIC FLOOR JACKS

MODEL: LD100A-030-00

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

HYDRAULIC FLOOR JACKS

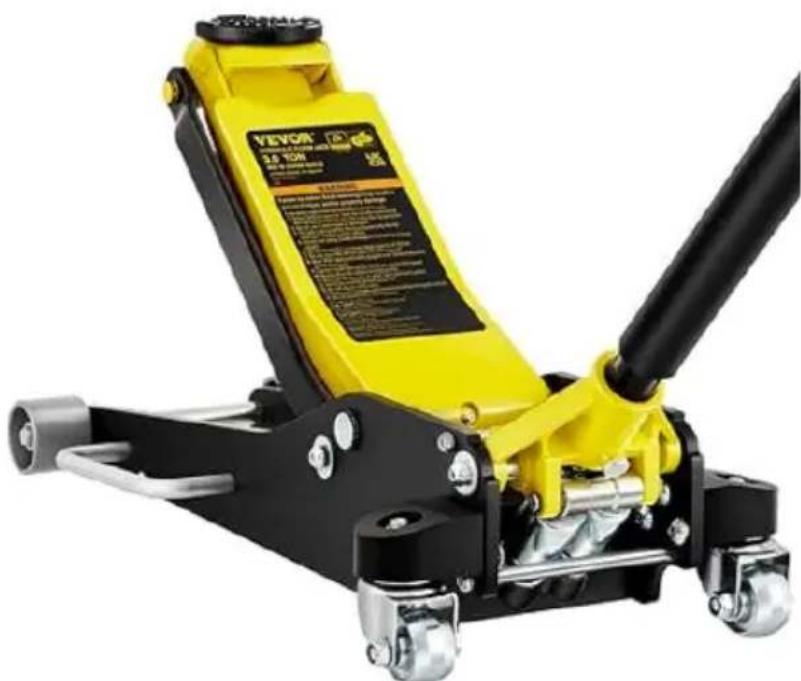

Yellow Yevon lift with black handle and wheels, no visible text or symbols on the device itself.

LD100A-030-00

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

DESCRIPTION OF THE SYMBOLS

WARNING: The jack must be used only on hard level surfaces and free to roll during lifting and lowering. Do not get under a vehicle t supported only by a trolley jack-use support stands.

CAUTION: Carefully read instructions and procedures for safe operations.

INSPECTIONS

1. Before Each Use

Visual inspection should be made before each use of the garage jack for abnormal conditions such as cracked welds, leaks and damaged, loose, or missing parts.

2. After Each Use

The garage jack should be inspected immediately if the lift is believed to have been subjected to an abnormal load or shock. It is recommended that inspection be made by manufacturer's or supplier's authorised repair facility.

1. The jack should be used on a hard level surface and be free to roll du lifting and lowering.
2. The unlifted wheels of the vehicle should be chocked.
3. The load should be centrally located on the head cap.
4. No person should remain in a vehicle that is being lifted.
5. The jack should be used for lifting and lowering only. The raised vehicle be supported on vehicle support stands.
6. No person should get their body under a vehicle that is supported only by hydraulic trolley jack.
7. The vehicle manufacturer owner's manual should be consulted prior to the lifting of the vehicle.
8. Make sure that the lift point is stable and properly centered on the head
9. Do not move or dolly the vehicle while on the jack.

CAUTION BEFORE USING

Due to shipment and/or handling air can be trapped in the hydraulic system, can interfere with the jacks lifting. To release air from the hydraulic system:

1. Open release valve by turning the jack handle counterclockwise.
2. Remove the oil filler plug from the cylinder.
3. Rapidly pump jack handle through several full strokes.
4. Replace the oil filler plug into the cylinder.

WARNING

1. The unlifted wheels of the vehicle should be chocked.
2. The load should be centrally located on the head cap.
3. No person should remain in a vehicle that is being lifted.
4. The vehicle manufacturer owner's manual should be consulted prior to lifting of the vehicle.
5. The hydraulic trolley jack should be used for lifting and lowering only. And can not be used as a support tool.

SET UP - BEFORE USE

WARNING: Read the ENTIRE IMPORTANT SAFETY INFORMATION

section at the beginning of this manual including all text under

subheadings therein before set up or use of this product.

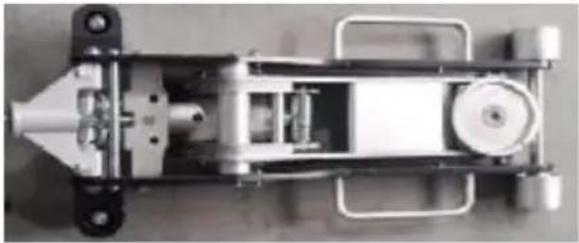

Part List
No.	Name	Picture	QTY.
1	Jack		1
2	Lower Handle		1
3	Upper Handle		1
4	Tray Mat		1

ATTACHING THE HANDLE

1. Attach the Upper Handle to the Lower Handle.
2. Loosen the Set Screw and insert the assembled Handle into the Handle Socket.
3. Tighten the Set Screw.

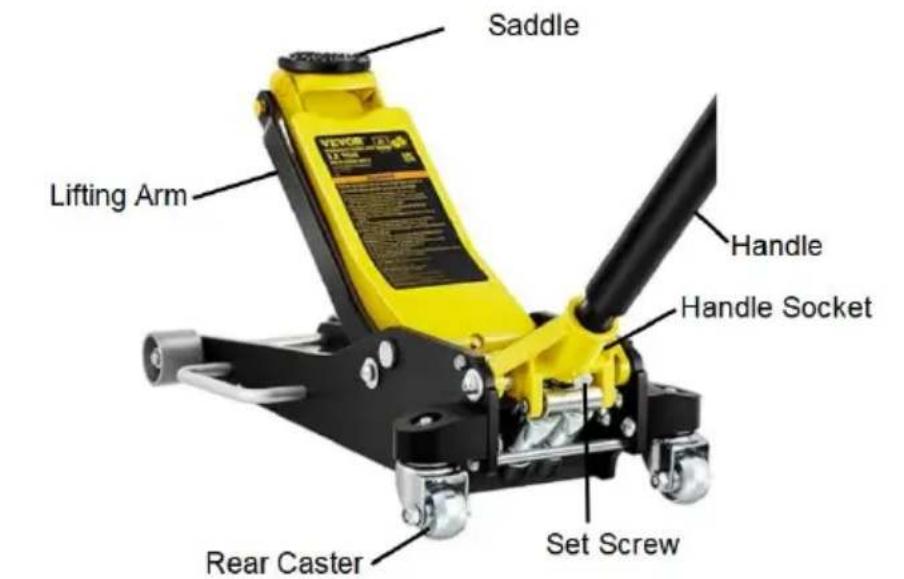

FUNCTIONS (Take WD-B-03000-B00-0 as an example)

Saddle Lifting Arm Handle Handle Socket Set Screw Rear Caster

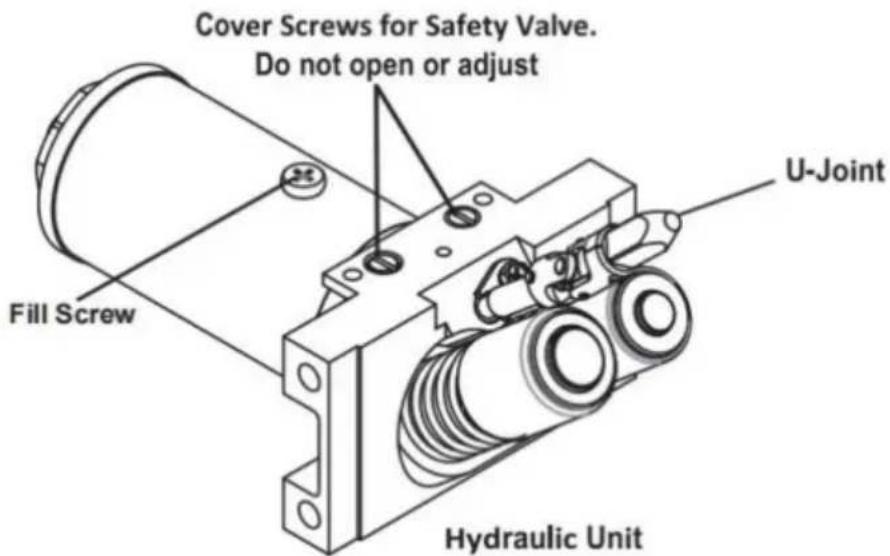

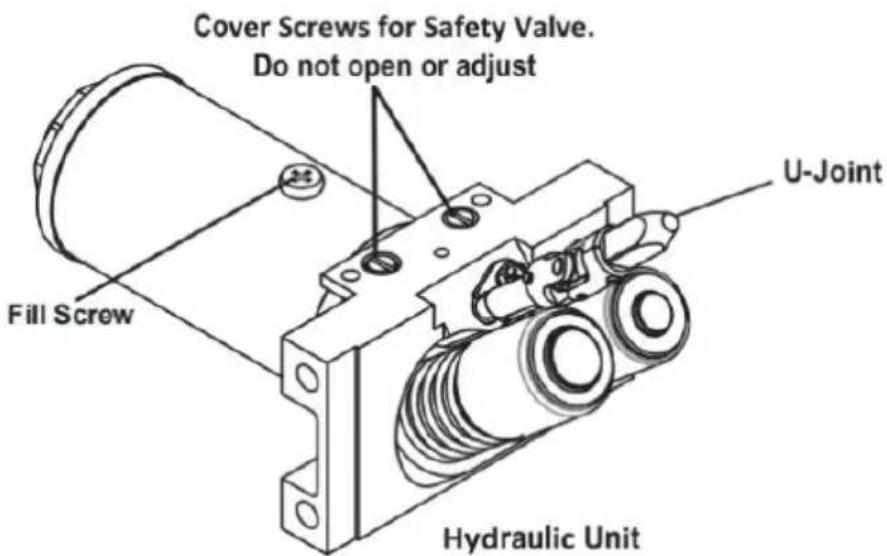

Cover Screws for Safety Valve. Do not open or adjust U-Joint Fill Screw Hydraulic Unit

WARNING: Read the ENTIRE IMPORTANT SAFETY INFORMATION

section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

AIR REMOVAL

BEFORE EACH USE OR IF JACK PERFORMANCE DECREASES

Check for excessive air and proper hydraulic fluid level in Jack. If Jack appears not to be working properly, it may be necessary to purge its hydraulic system excessive air as follows:

1. Loosen the Fill Screw.
2. Check fluid level and, if necessary, top off by adding Hydraulic Fluid.
3. Twist the Handle clockwise to the tightest position to close the Valve, the pump the Handle several times quickly.
4. IMPORTANT: After the air is removed, test the Jack for proper operation to its actual use.
5. If the air is removed and the Jack does not appear to be working properly not use it until repaired by a qualified service technician.

ADDING HYDRAULIC FLUID

1. Remove the Fill Screw. Do not remove or loosen Safety Valve Cover Scr
2. Add high grade hydraulic fluid (sold separately) slowly until the fluid reach 1/4" below the top of the Fill Port.

Note: Do not touch the handle when adding hydraulic fluid.

1. Tighten the Fill Screw.

LIFTING

WARNING: Park vehicle on a flat, level, solid, surface safely away from

oncoming traffic. Turn off the vehicle's engine. Place the vehicle's transmission "PARK" (if automatic) or in its lowest gear (if manual). Set the vehicle's engine brake. Then chock the wheels that are not being lifted.

1. Slowly twist the Handle counterclockwise to lower the Jack. Once the Jack fully lowered, twist the Handle clockwise to the tightest position to close the 2. Carefully position the Jack's Saddle under the vehicle manufacturer's recommended lifting point.

(See the vehicle manufacturer's owner's manual for the location of the frame lifting point.)

1. Pump the Handle until the top of the Saddle has nearly reached the veh lifting point. Position the Saddle directly under the vehicle's lifting point.
2. To lift the vehicle, pump the Handle. Use smooth, full strokes.
3. Select matching jack stands (sold separately) of appropriate capacity. Set the jack stands to the same height according to the manufacturer's instructions, making sure they lock securely into position.
4. Position the jack stands' saddles under the vehicle manufacturer's recommended support points.

WARNING! Ensure that the vehicle support points are fully seated in the sac of both jack stands. Use a matched pair of jack stands per vehicle to support end only.

1. Slowly twist the Handle counterclockwise to lower the vehicle onto the jacI stands' saddles.
2. Once the vehicle is fully seated on the jack stands, continue slowly lower the Jack until it is completely lowered.
3. Remove the Jack and store safely out of the way.

LOWERING

1. Carefully remove all tools, parts, etc., from under the vehicle.
2. Position the Jack's Saddle under the lifting point. Turn the Handle firmly clockwise and raise the vehicle high enough to clear the jack stands.
3. Carefully remove the jack stands.
4. Slowly turn the Handle counterclockwise to lower the vehicle onto the grou
5. Lower the Jack completely. Store the Jack indoors out of children's reach.

WARNING: Procedures not specifically explained in this manual must be performed only by a qualified technician.

WARNING: TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use

CLEANING, MAINTENANCE AND LUBRICATION

1. BEFORE EACH USE, inspect the general condition of the Jack. Check for

2. Loose hardware
   ● Misalignment or binding of moving parts

3. Cracked or broken parts
   ● Any condition that may affect its safe operation

4. BEFORE EACH USE, thoroughly test the Jack for proper operation prior to actual use. If the Jack appears not to be working properly, follow AIR REMC instructions.

5. AT LEAST ONCE EVERY THREE YEARS, change the hydraulic fluid:

- With the Jack fully lowered, remove the Fill Screw.

- Tip the Jack over to allow the old hydraulic fluid to drain out completely.

Dispose of the old hydraulic fluid in accordance with local regulations.

• With the Jack upright, completely fill the Hydraulic Unit with high grade hydraulic fluid until the fluid is 1/4" below the top of the Fill Port.
• Turn the Handle counterclockwise to open the Release Valve.
• Pump the Handle up and down quickly several times to purge air from the system.

● Recheck fluid level and re-fill as needed.

- Replace the Fill Screw.

1. AFTER EACH USE, wipe with a clean cloth. Store the Jack indoors out children's reach.

WARNING

TO PREVENT SERIOUS INJURY:

Use caution when troubleshooting a malfunctioning jack. Stay well clear of the supported load. Completely resolve all problems before use. If the solutions presented in the Troubleshooting guide do not solve the problem, have a qua technician inspect and repair the jack before use.

After the jack is repaired:

Test it carefully without a load by raising and lowering it fully, checking for operation, BEFORE RETURNING THE JACK TO OPERATION.

DO NOT USE A DAMAGED OR MALFUNCTIONING JACK

POSSIBLE SYMPTOMS						PROBABLE SOLUTION(Make certain that the Ja is not supporting a load while attempting a solution.)
Jack will not lift a its weight capacity	Saddle lowers under load	Pump stroke feels spongy	Saddle will not lift all the way	Handle moves up when jack is under load	Fluid leaking from the fill plug
X	X					Check that the Release Valve is fully closed.
						The jack needs to expel
X	X			X		Valves may be blocked a may not close fully. To the valves:1. Lower the saddle and securely close the release valve.2. Manually lift the saddle several inches.3. Open the release valve by turning the Handle counterclockwise. And force the saddle down as quickly as possible.
X		X	X			Jack may be low on hydraulic fluid. Check fluid level and refill if needed
						The jack needs to expel
					X	The unit may have too much hydraulic fluid inside. Check fluid level and adj if needed.

PLEASE READ THE FOLLOWING CAREFULLY

The manufacturer and/or distributor has provided the parts list and assembly diagram in this manual as a reference tool only. Neither the manufacturer no distributor makes any representation or warranty of any kind to the buyer that or she is qualified to make any repairs to the product or that he or she is to replace any parts of the product. In fact, the manufacturer and/or distributor expressly states that all repairs and parts replacements should be undertaken certified and licensed technicians and not by the buyer. The buyer assumes risk and liability arising out of his or her repairs to the original product or replacement parts thereto or arising out of his or her installation of replacement parts thereto.

NOTE: Some parts are listed and shown for illustration purposes only, and a available individually as replacement parts.

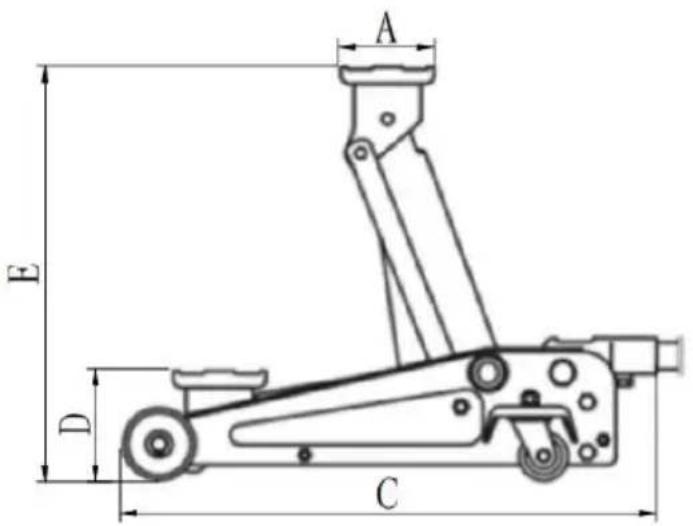

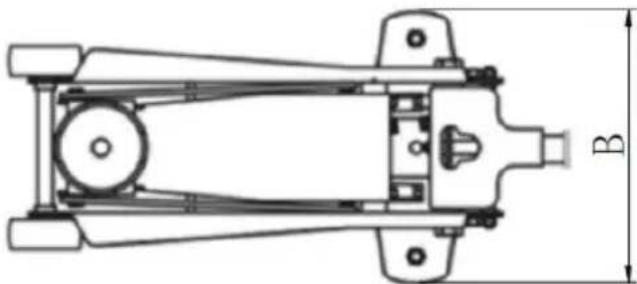

TECHNICAL SPECIFICATION

A B D C

Technical line drawing of a mechanical assembly with labeled dimension B (no text or symbols beyond label)

ModelParameter	LD100A-030-00
Lift Weight Capacity	3 Tons
Load Bearing Method	Hydraulic Double Cylinder
Tray Diameter A(mm)	Φ100
Width B(mm)	320
Length C(mm)	670
Min Height D(mm)	93
Max Height E(mm)	480
Material	Aluminum
