Product Type	Bolt-on Jack
Brand	Vevor
Model	R20TSW-B
Capacity	2000 lb (907 kg)
Mounting Bracket Type	Bolt-on Bracket
Crank Handle Type	Top Wind
Height Range	10.5 to 20.2 inches (26.7 to 51.3 cm)
Screw Stroke	10 inches (25.4 cm)
Foot Size	7 x 3.93 inches (rectangular)
Product Height (without handle)	16.5 inches (41.9 cm)
Main Material	Steel
Swivel Function	Yes, with pull pin
Rotation Direction to Raise	Clockwise
Rotation Direction to Lower	Counterclockwise
Intended Use	Trailer Vertical Movement
Included Components	Jack, mounting plate (x2), bolts with nuts (x4), user manual
Maintenance	Clean with soapy water, light lubrication of pivot points, inspection before each use
Annual Lubrication	Light oil on screw shaft
Marine Environment	Rinse with fresh water and lubricate after use
Safety	Do not exceed capacity, use on flat hard ground, do not stand under load, keep children away
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online

Frequently Asked Questions - R20TSW-B Vevor

What is the maximum capacity of the R20TSW-B jack?

The maximum capacity is 2000 lb (907 kg). Never exceed this load.

How to mount the jack on the trailer?

Use the provided mounting plates and bolts with nuts. Tighten firmly and check tightness regularly. Mount the jack when the trailer is hitched to the towing vehicle.

How to swivel the jack?

Pull the pull pin to unlock, swivel the jack to the desired position, then release the pin to fully engage. Perform this maneuver only when the trailer is securely attached.

In which direction to turn the crank to raise the trailer?

Turn the handle clockwise to raise, and counterclockwise to lower.

What are the recommended periodic maintenance?

Clean with mild soap and water, lubricate pivot points with light oil. At least once a year, apply oil to the screw shaft. In marine environments, rinse with fresh water after each use.

Can I use the jack to change a trailer tire?

No, the jack is intended only for vertical movement of the trailer (hitching/unhitching). Do not use it to lift the trailer for maintenance or tire change.

Can the jack be used on dirt or sloped ground?

No, the jack must be used on a flat, level, hard surface capable of supporting the load. Do not use blocks to increase ground clearance.

What to do if the pull pin does not engage?

Ensure the pin hole is aligned and the pin is pushed fully through both sides. If the problem persists, check for dirt or damage.

Is it safe to leave the trailer raised with the jack?

No, never allow a person or body part under the raised trailer. Always use a properly installed jack stand before working under the trailer.

Where can I find technical support or warranty?

Visit www.vevor.com/support for technical support and the electronic warranty certificate.

USER MANUAL R20TSW-B Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

BOLT-ON JACK

MODEL: R20TSW-B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BOLT-ON JACK

MODEL:R20TSW-B

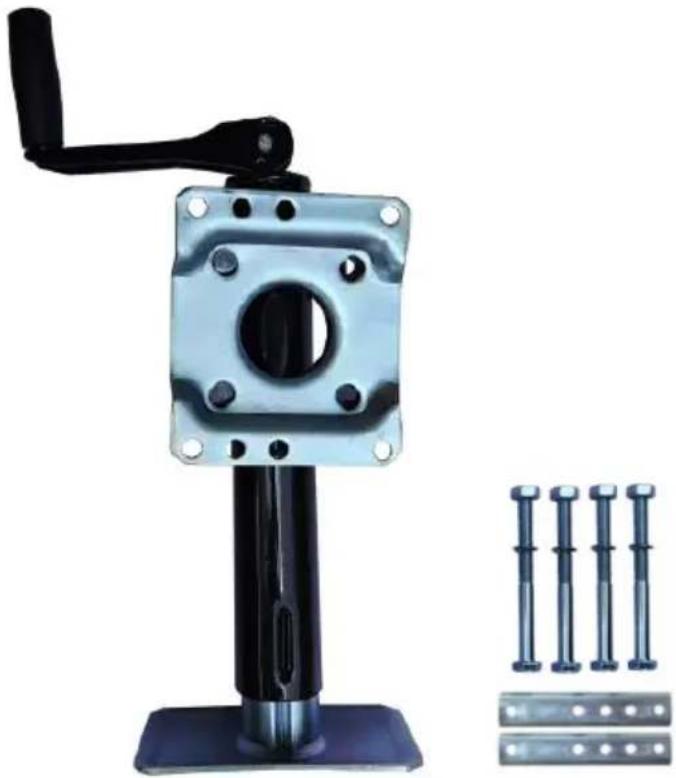

Mechanical device with black lever and mounting base, accompanied by four metallic bolts (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. The “WARNING” symbol above is a sign that a service or mainten procedure involves a safety risk involved and may cause death or serious injury if not performed safely and within the parameters so forth in this manual.

2. Always wear eye protection when performing service or maintenance to the vehicle. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the service.

3. Never allow anyone unfamiliar with this product to install, operate a service this product.

4. Never lift or level the trailer without a properly installed footpad.

5. Never crank the jack or couple the trailer without preventing the train from rolling.

6. Never exert excessive side forces on the trailer jack.

7. Never allow anyone, including the operator, to put any body parts under the trailer jack or the supported load during jack operation.

8. Never exceed the load capacity!

9. Never use a trailer jack to lift the trailer for service or tire chang

10. Never move the trailer before the trailer jack is fully retracted.

11. Keep children and bystanders away from the work area while operating the tool. Do not allow children to handle the jack.

12. Do not use the jack where there is a risk of causing a fire or explosion; e.g., in the presence of flammable liquids, gases, or dust. The jack can create sparks, which may ignite the flammable liquid gases, or dust.

13. It is for use on flat, level, hard surfaces capable of supporting lo

14. Do not use blocks for additional ground clearance.

15. When using the drop foot or drop leg, make certain the supplied fully inserted through both sides of the inner tube and the drop before using the jack.

16. If the trailer jack has a drop leg, never attempt to adjust the dr when there is any load on the jack.

Note:

1. The jack is only designed for vertical movement of the trailer.
2. Rapid and continuous lifting is not recommended to avoid gear heat and reduce service life.

MODEL AND PARAMETERS

Model	R20TSW-B
Capacity	2000 lbs
Mounting Bracket Type	Bolt-On Mounting Bracket
Crank Type	Top-Wind
Range	10.5-20.2inch
Screw Travel	10inch
Foot Size	7x3.93" (Rectangle)
Product Height	16.5"(Handle not included)

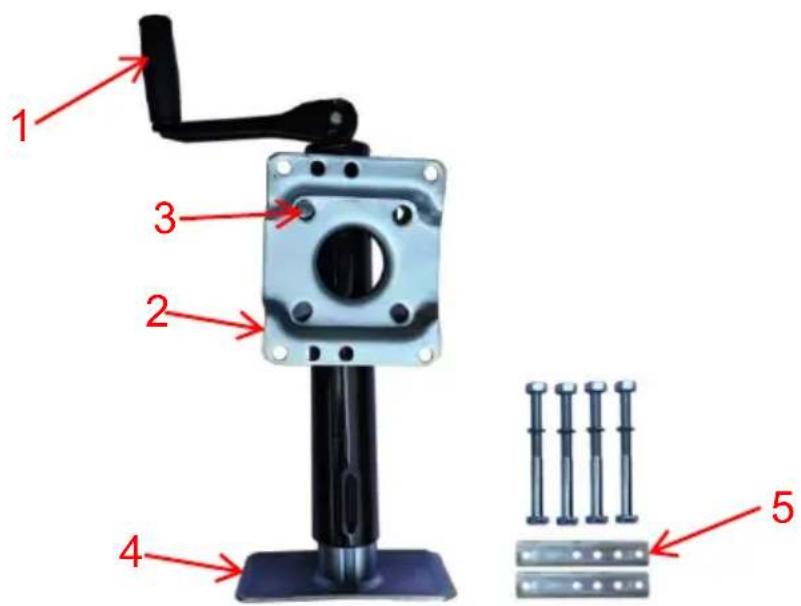

STRUCTURE DIAGRAM

1. Handle
2. Connecting Plate

3. Pull Pin

4. Foot Plate

5. Mounting Fittings

COMPONENTS

No.	Picture	Name	Qty
1		Jack	1
2		Mounting Plate	2
3		Bolt(Including nut)	4
4		User Manual	1

ASSEMBLY

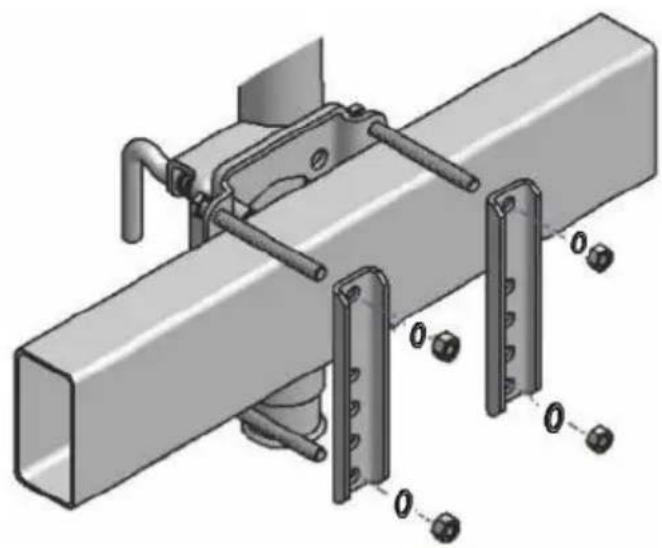

Mechanical assembly diagram showing a metal bracket connected to a bracket with bolts and a connecting rod (no text or symbols present)

1. When mounting the trailer jack, it is best to hook it up to the to to make sure the trailer is secure.
2. Mount jack based on drawing shown above.
3. Make sure bolts and nuts are securely tightened.
4. (Regularly check to make sure bolts and nuts are securely tight.)
5. After the jack is mounted to trailer, attach the handle assembly to with bolt fastener provided.

OPERATION

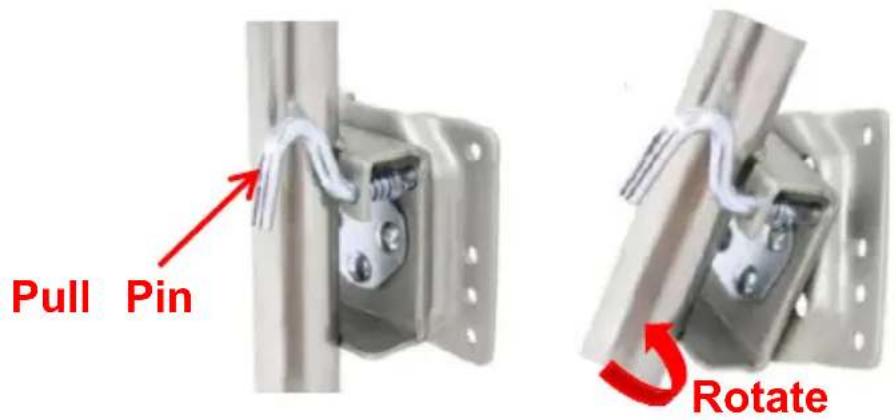

1. To activate the swivel function on the jack, pull the pull pin and jack into desired position.
2. Only swivel jack when trailer is securely attached to a tow vehicle. Make sure pull pin is properly engaged after swiveling into desire position.

1. Turn handle clockwise to raise.
2. Turn handle counterclockwise to lower.

Note: Remember that the jack must not interfere with the vehicle or when turning or passing over speed bumps, boat ramps, etc.

MAINTENANCE

1. Occasional cleaning with mild soap and water, along with light oil lubrication of pivot points, will prolong peak performance and appearance.
2. Periodically check whether the screws are loose.
3. Before each use, inspect jack tubes and replace them if bent or damaged.
4. The following procedures should be performed at least annually. Apply a lightweight oil to the screw stem. If this product is used marine environment, flush the jack assembly and bushings with fresh water, and apply fresh lubricant.
