USER MANUAL 107A-0010-00-00 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
TOE JACK
MODEL:107A-0010-00-00/107A-0025-00-00/107A-0050-00-00
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:107A-0010-00-00/107A-0025-00-00/107A-0050-00-00


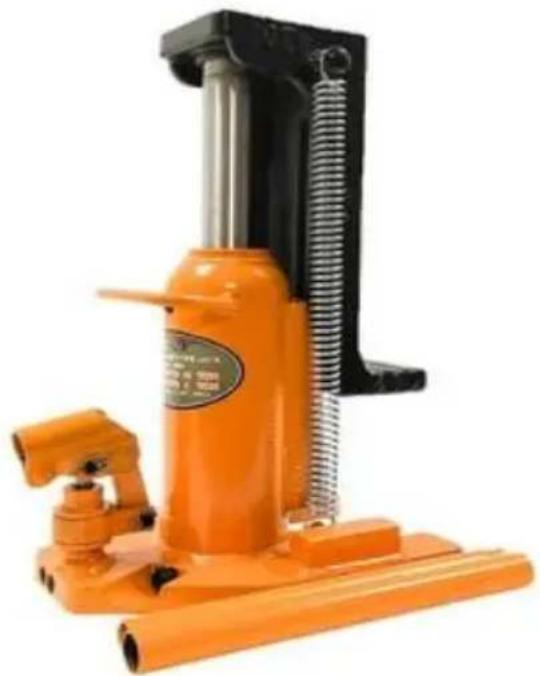

Orange industrial hydraulic jack with black frame and coiled spring (no visible text or symbols)NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
PARAMETER LIST
| Model | 107A-0010-00-00 | 107A-0025-00-00 | 107A-0050-00-00 |
| Top Lifting Range (mm) | 320-480 | 227-340 | 287-440 |
| Toe Lifting Range (mm) | 30-190 | 20-135 | 20-173 |
| Toe Capacity (t) | 10 | 2.5 | 5 |
| Top Capacity (t) | 20 | 5 | 10 |
| Product Size (mm) | 297*210*315 | 210*135*227 | 263*190*287 |
| Net Weight(kg) | 33.5 | 9.75 | 22.6 |
PART LIST


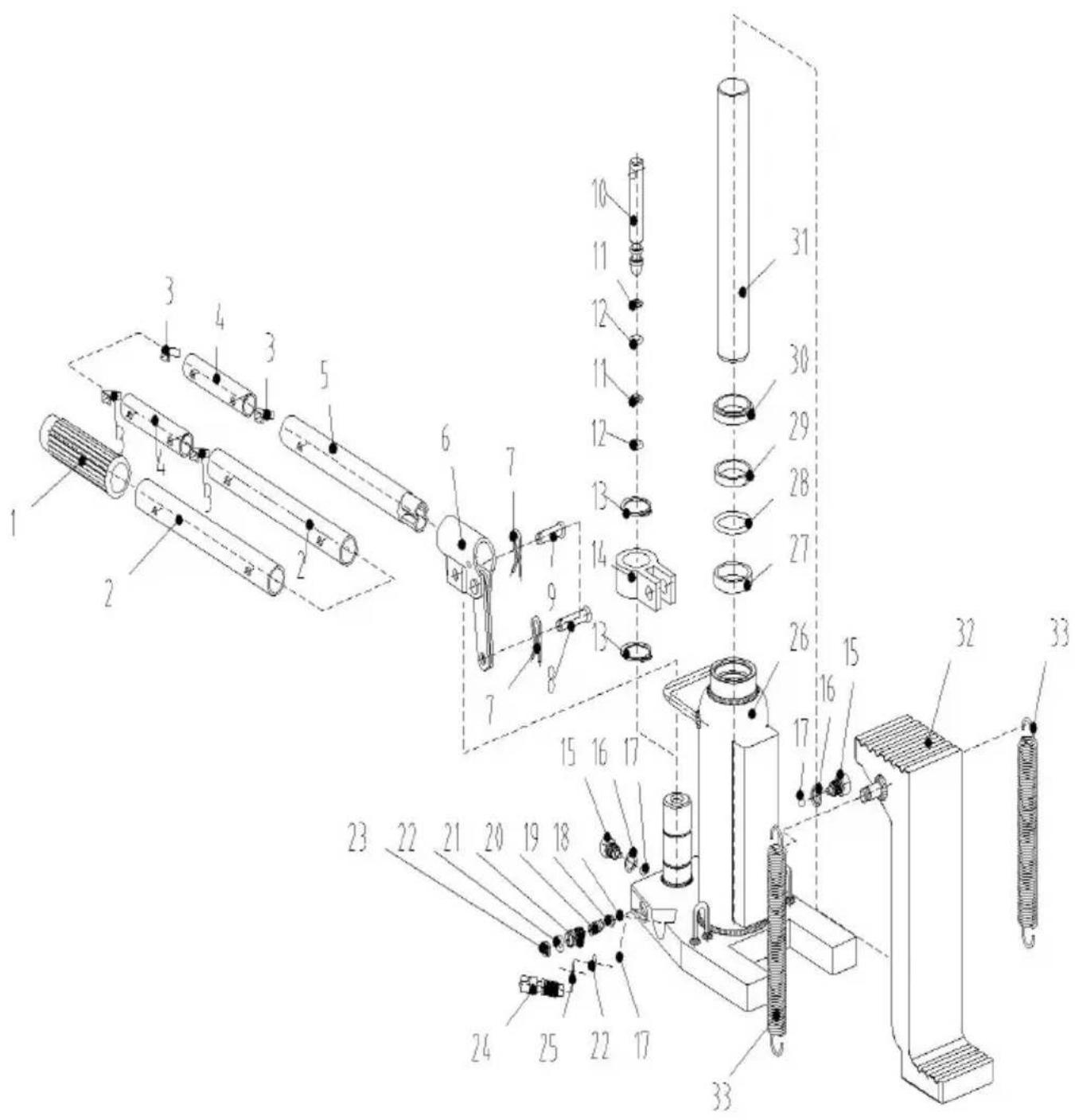

Technical diagram of a mechanical assembly with numbered components for identification| No. | Product Name | number |
| 1 | handle sleeve | 1 |
| 2 | Rear handle tube | 2 |
| 3 | Spring locking plate | 4 |
| 4 | Connecting pipe | 2 |
| 5 | Front handle tube | 1 |
| 6 | Handle socket | 1 |
| 7 | R-shaped pin | 2 |
| 8 | Pin A | 1 |
| 9 | Pin B | 1 |
| 10 | Small piston | 1 |
| 11 | back-up ring | 2 |
| 12 | O-ring | 2 |
| 13 | Shaft circlip | 2 |
| 14 | Socket rotating sleeve | 1 |
| 15 | Sealing bolt | 2 |
| 16 | Sealing flat gasket | 2 |
| 17 | D6 steel ball | 3 |
| 18 | D4 steel ball | 1 |
| 19 | Spring seat | 1 |
| 20 | spring | 1 |
| 21 | Relief valve core | 1 |
| 22 | O-ring | 2 |
| 23 | Decorative hat | 1 |
| 24 | pressure relief valve | 1 |
| 25 | back-up ring | 1 |
| 26 | Valve body module | 1 |
| 27 | Y-shaped sealing ring | 1 |
| 28 | O-ring | 1 |
| 29 | wear ring | 1 |
| 30 | Dust ring | 1 |
| 31 | piston rod | 1 |
| 32 | toe | 1 |
| 33 | tension spring | 2 |
Mechanical adjustment level, heavy moving engineering, shipbuilding, Bridge, civ engineering, steel frame pillar engineering and other use!

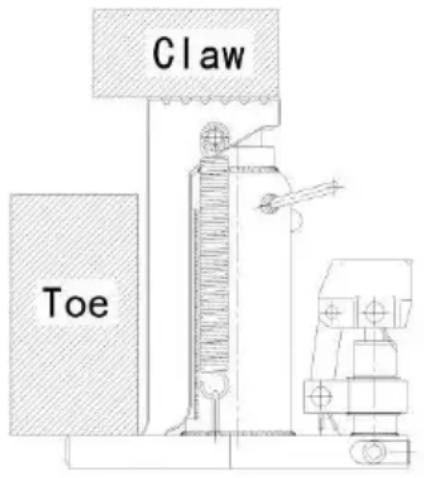

Usage Diagram
- This series of products currently have 3 specifications: 2.5 tons, 5 tons, 1 Widely used in mechanical equipment, bridge, construction, railway track and other aspects of installation and maintenance; Loading and unloading of heavy objects for transportation; Automobile tractor maintenance and other aspects.
- This series of products use imported jacks, the use of high-quality steel a welding heat treatment, with a simple structure, easy to use, durable, stable safe and reliable. Lifting dual-purpose, easy to operate, is a widely used lifting
- The operation handle of this series of products is designed to rotate 180 degrees, which can be changed according to different places, so as to be convenient to use.
- Pay attention to the following problems when using the product:
A. Before operation, the machine should be placed securely and avoid swingi and it is strictly prohibited to lift the weight without stable placement, resulting tilting and other situations;
B. It is strictly prohibited to increase the height beyond the limit required by product, resulting in the occurrence of guide rail detachment;
C. It is strictly prohibited to use excess load;
D. It is strictly prohibited to put human body parts (hands, feet, etc.) under objects under working conditions.
E. The claw jack generally has a fixed use of oil, do not use other oil bock affecting the normal use of the claw jack, please place the claw jack in an upright state when refueling, refueling until the oil hole overflows, that is, the filled.
5. Please lubricate the guide rail before use, keep the product clean, and put gently after use.
No collision, arbitrary throwing, and other adverse conditions occur, resulting in damage and oil circuit failure.
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
