TC0519 - Tire storage Vevor - Free user manual and instructions

Product Type	Wall-mounted tire rack
Brand	Vevor
Model	TC0519
Dimensions	1420 x 265 x 685 mm (L x H x D, max)
Material	Steel
Box Contents	2 triangular frames (L and R), 2 tubes A (25 mm), 2 tubes B (20 mm), 4 M10x35 hex socket screws, 6 M8x70 lag screws, manual
Installation Type	Wall-mounted, on wooden wall thickness ≥ 8 cm
Usage	Indoor only
Load Capacity	Not specified, for storage of standard car tires
Precautions	Do not let children use. Assemble according to instructions. Capacity valid only if fully assembled. Keep mounting area clean and well-lit.
Maintenance	Clean with a damp cloth and mild detergent
Spare Parts	Screws and tubes available from manufacturer (www.vevor.com/support)
Repairability	Simple structure: parts can be replaced individually
Safety	Read manual before use. Avoid sharp objects. Do not assemble under the influence of substances.
General Information	Warranty and technical support: www.vevor.com/support

Frequently Asked Questions - TC0519 Vevor

How to install the Vevor TC0519 tire rack?

To install the rack, mark the mounting holes on a wooden wall (thickness ≥ 8 cm) at the desired distance D (max 1350 mm). Drill holes 4 mm in diameter. Fix the two triangular frames to the wall using the M8x70 lag screws. Then insert tubes A and B into the holes of the frames and tighten with the M10x35 hex socket screws. Ensure the tubes are horizontal and that the connection length of tubes A and B respects the mark on tube B.

On what type of wall can this rack be installed?

This rack must be installed only on a wooden wall with a minimum thickness of 8 cm. It is not suitable for concrete, brick, or plasterboard walls.

What are the dimensions of the rack?

The maximum dimensions are: length 1420 mm, height 265 mm, depth 685 mm. The distance between frames (D) can be adjusted up to 1350 mm depending on tire width.

How many tires can be stored?

The load capacity is not specified, but the rack is designed to store standard car tires. Generally, it can accommodate up to 4 tires depending on their size.

What tools are needed for installation?

You will need a marker, an electric drill with a 4 mm bit, a hex key for the hex socket screws, and optionally a spirit level to check horizontality.

How to adjust the distance between frames?

The distance D between frames can be adjusted during installation by choosing the appropriate mounting holes on the wall. The size D must not exceed 1350 mm. You can also adjust the position of the tubes in the frame holes to fit the tire width.

What safety precautions should be taken?

Read the manual entirely before installation. Keep children away as the product is not a toy. Ensure the mounting area is clean and well-lit. Do not assemble if you are tired or under the influence. Use the rack only indoors.

Can the rack be used outdoors?

No, this rack is intended for indoor installation only. Exposure to weather could damage the metal parts and compromise safety.

What if parts are missing?

If parts are missing, contact customer service via the website www.vevor.com/support. You can also request replacement parts under warranty.

Where to find technical support?

Technical support and the electronic warranty certificate are available at www.vevor.com/support. You can also contact the UK representative: YH CONSULTING LIMITED at 60329 Frankfurt am Main.

USER MANUAL TC0519 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE RACK

MODEL:TC0519

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: TC0519

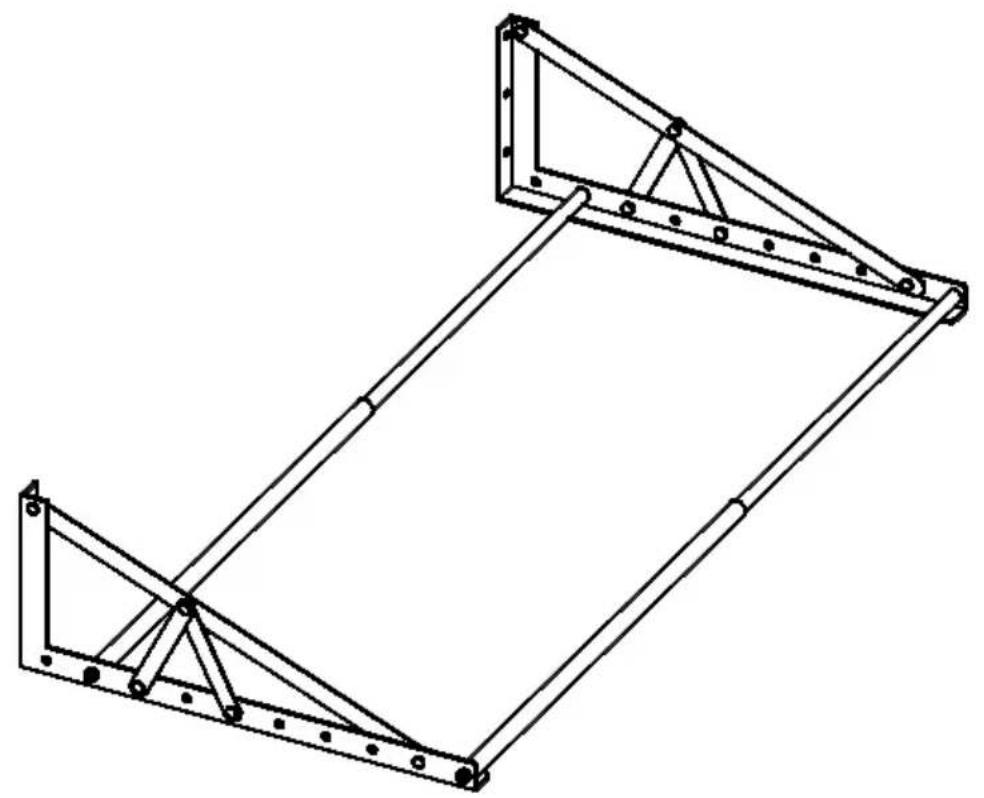

Technical line drawing of a mechanical frame structure with triangular supports and mounting holes (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operatir or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable prope

- Avoid children using the product. And this product is not a toy. Do not all children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• The Tire Rack is installed only on wooden walls, the thickness of the woo wall be at least 8cm.
• Only used to place tires.

CAUTION:

• When installing the Tire Rack, pay attention to keeping the Rack in a horizontal state, so as to have a better experience of placing items
• This product is intended for indoor installation use only.

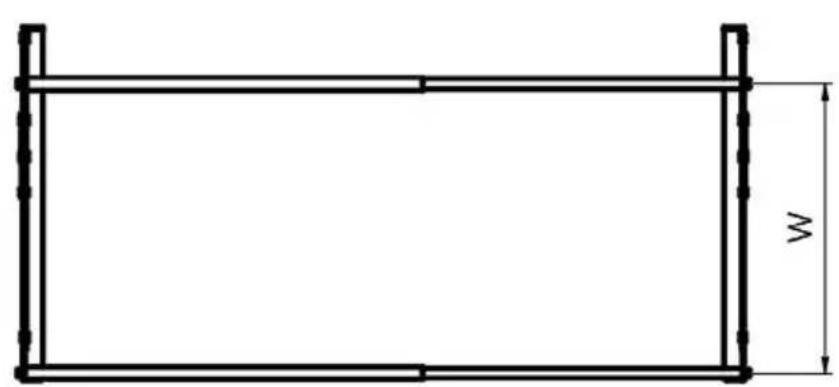

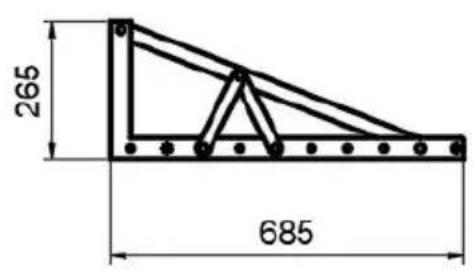

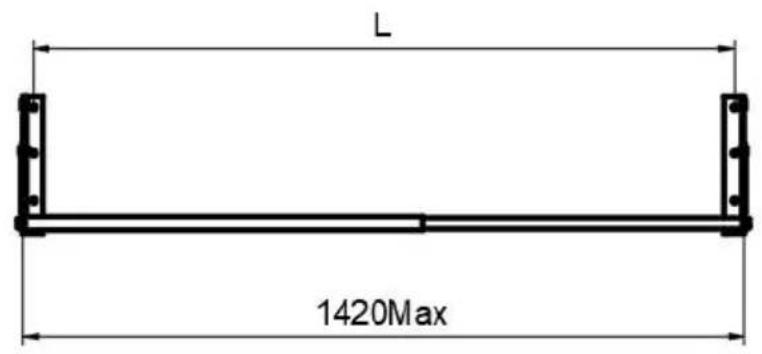

SPECIFICATION

Pure geometric diagram of a rectangular frame with vertical supports and a horizontal dimension labeled 'W' (no text or symbols beyond the label)

Note: The number unit in the figure is mm.

Part List

No.	Name	Specifications	Picture	QTY
1	Triangular frame-L	/		1
2	Triangular frame-R	/		1
3	Tube A	∅ 25		2
4	Tube B	∅ 20		2
5	Hexagon socket screw	M10*35		4
6	lag screws	M8*70		6
7	Manual	/	/	1

Tire Rack ASSEMBLE

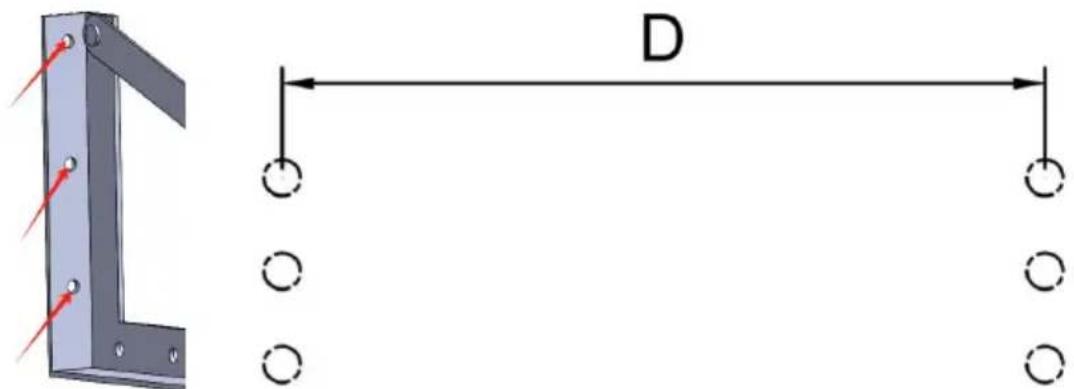

STEP1. The mounting holes corresponding to Triangular frames are marked on the wall with markers.

Depending on your mounting space or the width of the tire you want

place, choose the mounting size "D" of the rack. "D" size should not 1350mm(53.15in).

Note: Ensure that the mounting holes are in the same horizontal

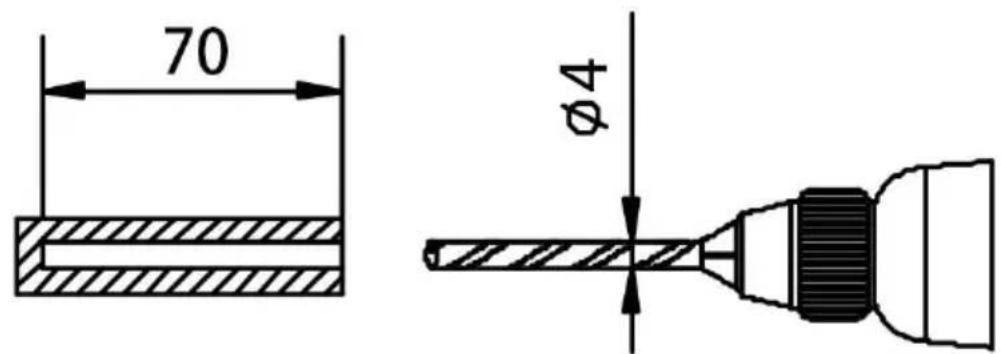

STEP2. As shown in the following figure, drill a hole in the wooden with an electric drill, and it is recommended that the diameter of the 4mm.

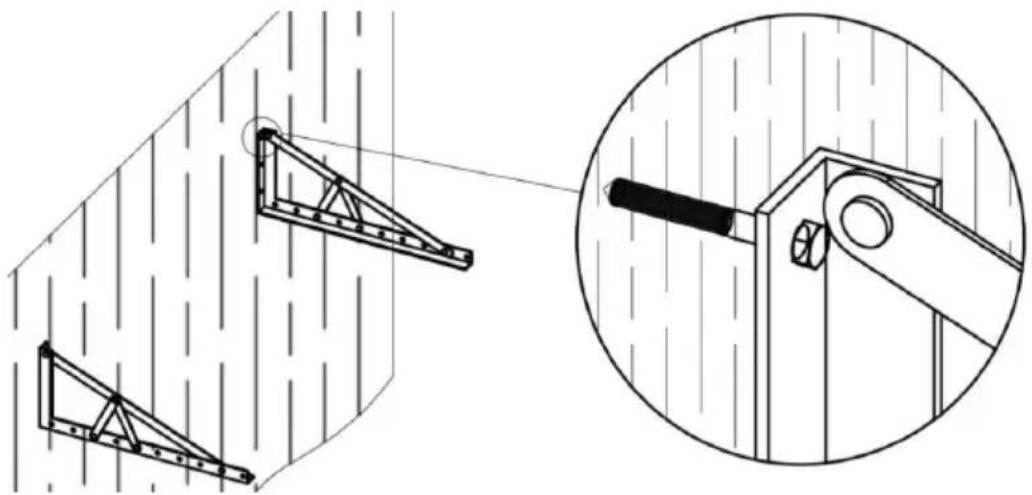

STEP3. Attach the two Triangular frames to the wall using lag so

Technical line drawing of a mechanical lifting device with raindrops, shown in two views (one circular, one diagonal), no text or symbols present.

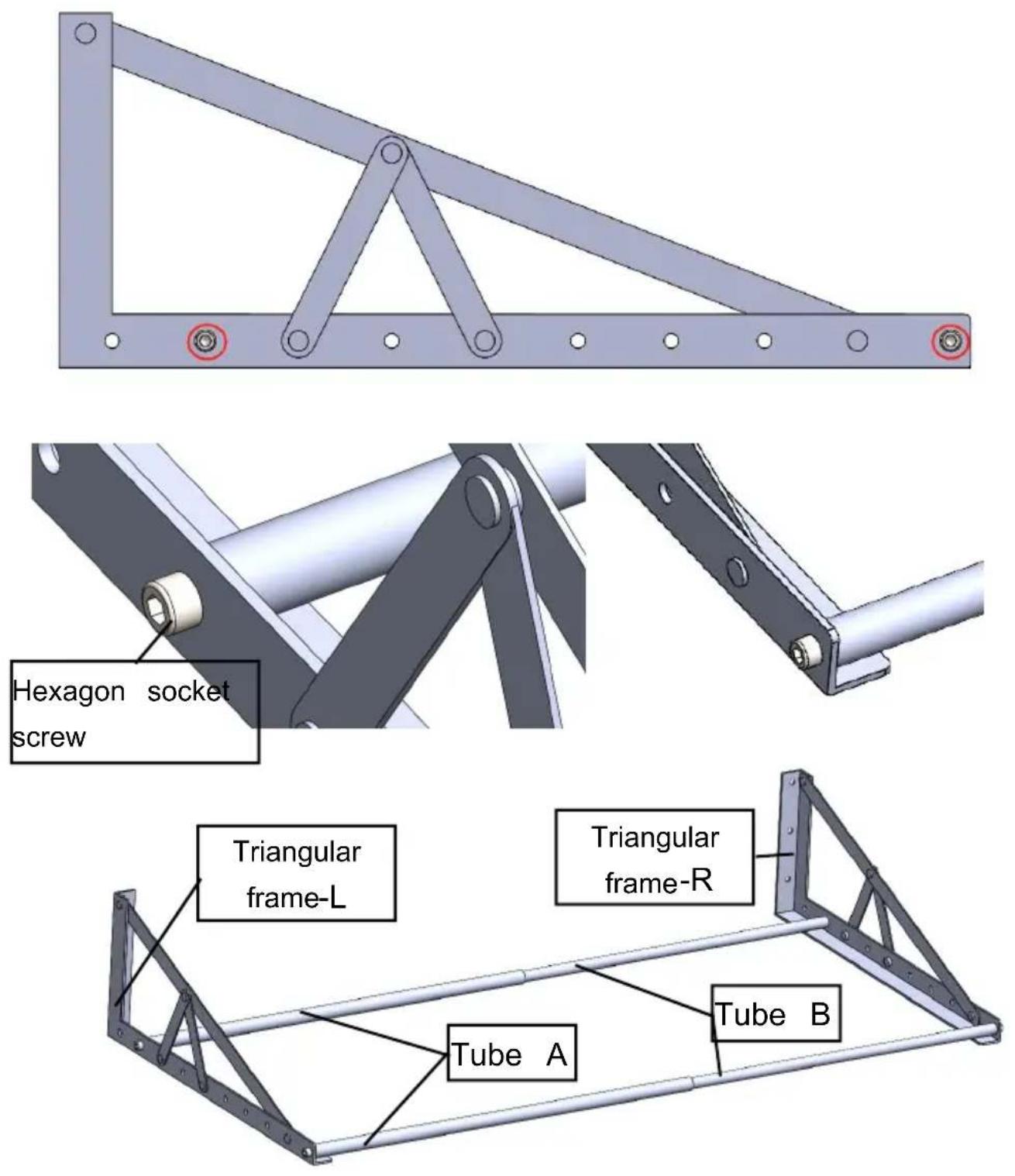

STEP4. Connect the pipe to the mounting hole of the Triangular frame and tighten it with M10*35mm Hexagon socket screw. It is recommended

to install the pipe on the two holes as shown in the figure.

Note: You can adjust the installation position of the pipe according to the specifications of the tire placed.

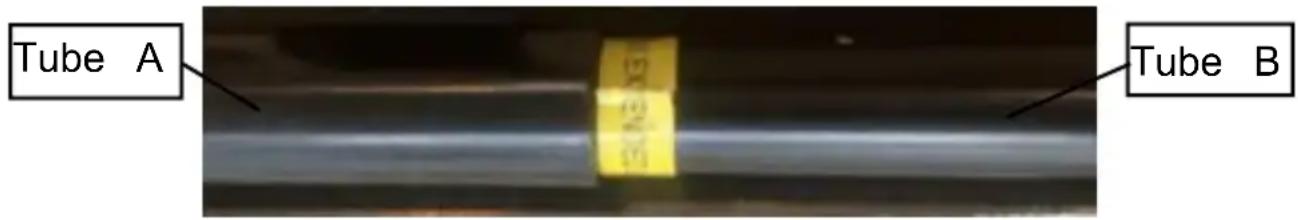

Note. Pipe B is marked with the maximum installation length mar When installing, the connection length of pipe A and B should n less than the marked length.
