TR15045200 - Tire storage Vevor - Free user manual and instructions

Product Type	Tire Stand / Tire Storage
Brand	Vevor
Model	TR15045200
Dimensions (L × W × H)	1500 × 450 × 1980 mm
Storage Capacity	Up to 18 standard tires
Number of Tiers	3
Main Material	Heavy-duty steel with powder coating
Intended Use	Vehicle tire storage
Place of Use	Indoor only
Assembly Required	Yes, keyhole system assembly
Required Tools	Rubber mallet (not included)
Package Contents	4 uprights, 6 long beams, 6 side beams, 3 center supports, 4 plastic feet, instruction manual
Safety	Follow instructions; do not overload; keep children away; indoor use only
Maintenance	Clean with a damp cloth and mild detergent. Avoid abrasive products.
Repairability	Spare parts available through Vevor customer service
Technical Support	www.vevor.com/support
Compatible Models	TR15045200 and TR13050180

Frequently Asked Questions - TR15045200 Vevor

What is the capacity of the TR15045200 tire stand?

This stand can hold up to 18 standard car tires distributed over 3 tiers.

What are the product dimensions?

The dimensions are 1500 mm in length, 450 mm in depth, and 1980 mm in height.

Is it easy to assemble?

Yes, assembly is simple thanks to the keyhole system. A rubber mallet is recommended to tap the beams in place.

Can I use this stand outdoors?

No, this stand is designed for indoor use only.

What type of tires can it store?

It is suitable for standard car tires (passenger cars). Check tire dimensions against the space between the beams.

Is the stand delivered assembled?

No, it is delivered as an assembly kit. All necessary parts are included.

How to clean the stand?

Clean with a damp cloth and mild detergent. Avoid abrasive cleaners.

Is it possible to buy spare parts?

Yes, contact Vevor customer service via www.vevor.com/support for spare parts.

Is there a warranty?

Vevor offers a warranty on this product. Please check the website for more details.

Can the stand support heavy loads?

The capacity is a maximum of 18 tires. Do not exceed this limit to avoid tipping.

USER MANUAL TR15045200 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE RACK

MODEL:TR15045200, TR13050180

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: TR15045200, TR13050180

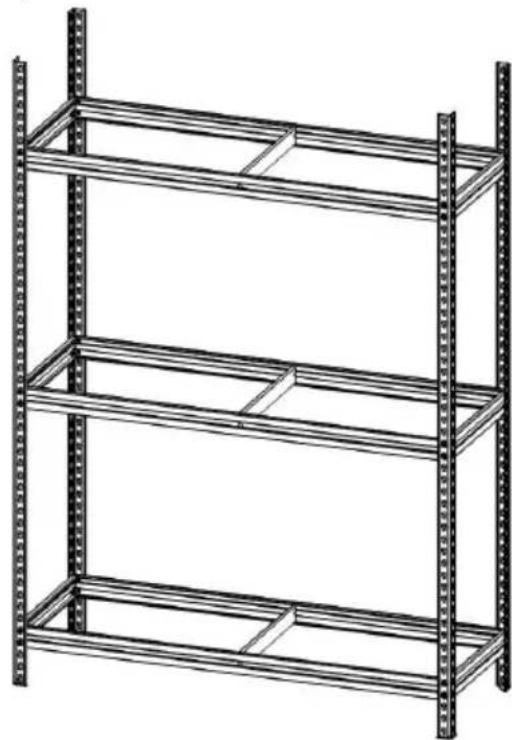

Line drawing of a three-tier metal shelving unit (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or dama

to valuable property.

- Avoid children using the product. And this product is not a toy. Do allow children to play.

SET UP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product onl
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Only used to place tires.
• This product is intended for indoor installation use only.

SPECIFICATION

Model	TR15045200	TR13050180
Size	L*W*H: 1500*450*1980mm	L*W*H: 1300*500*1790mm
Number of layers placed	3	2
Capacity	18 tyres	12 tyres

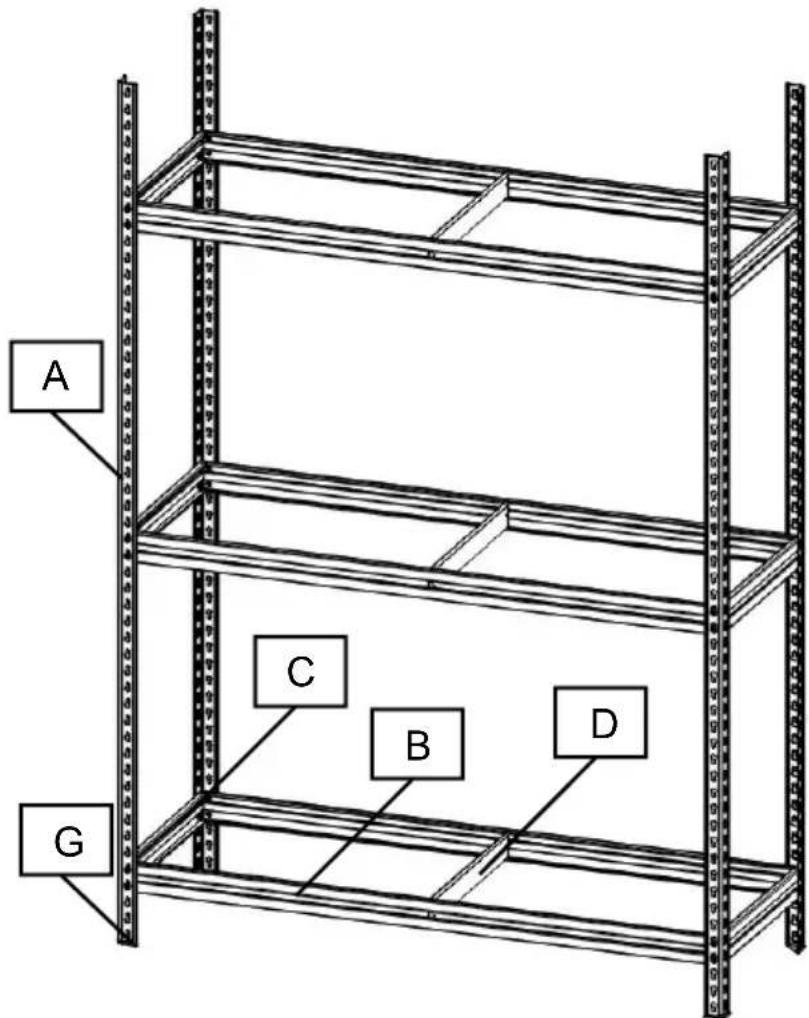

PART LIST

No.	identifier	Name	Picture	QTY
				TR15045200, TR13050180
1	A	Upright		4
2	B	Front & Bac Beam		6
3	C	Side Beam		6
4	D	Centre Support		3
5	G	Plastic foot		4
6		Manual	/	1

Tire Rack Assemble

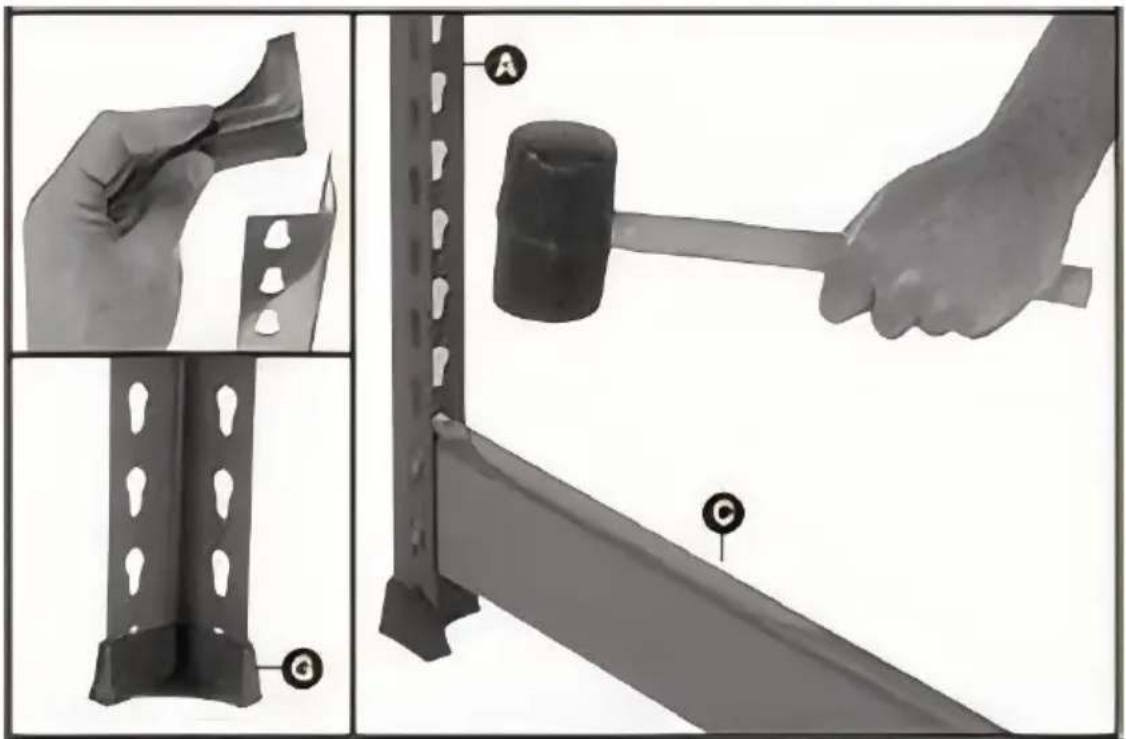

STEP1. Select two upright A and push on plastic feet G to the base. Insert a short side beam C into the key holes at the lowest shelf I required. Ensure the beam is 90 degrees to the upright.

Fig.1

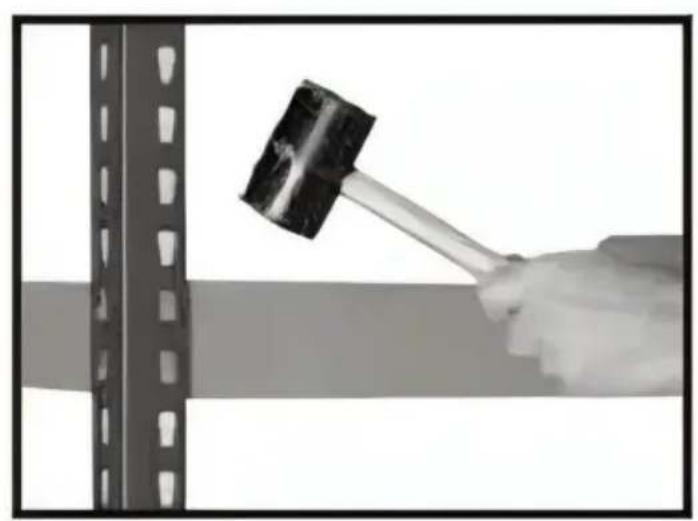

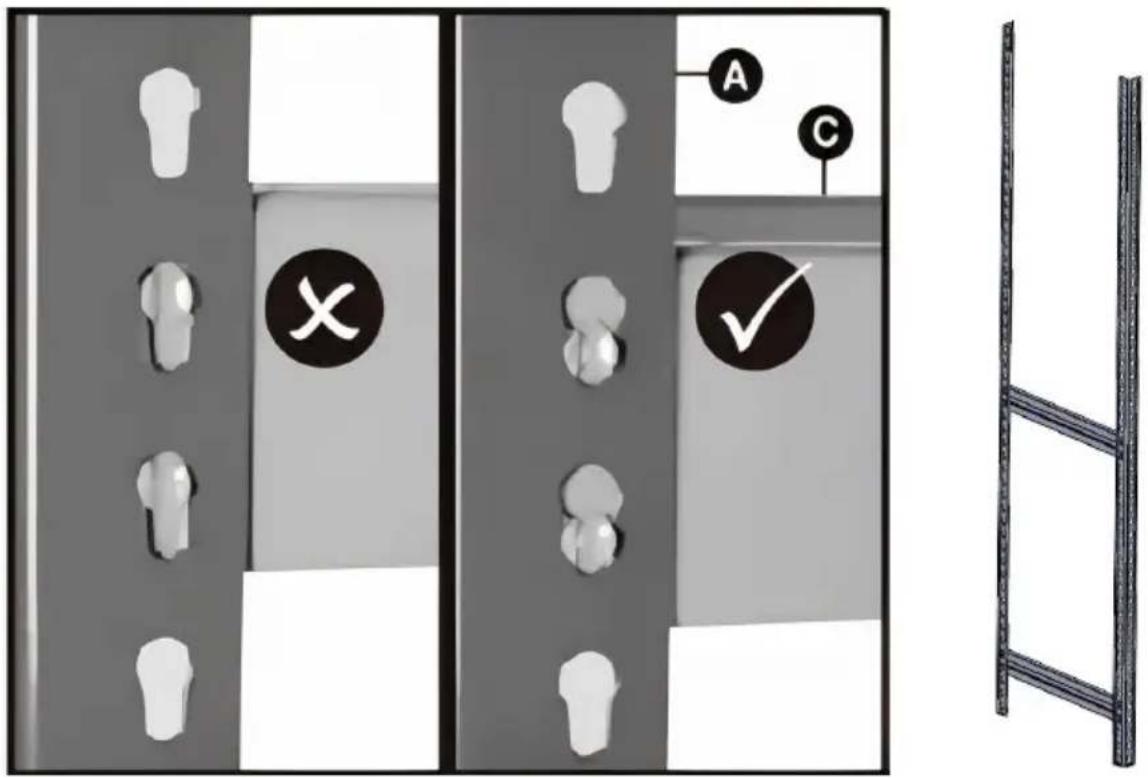

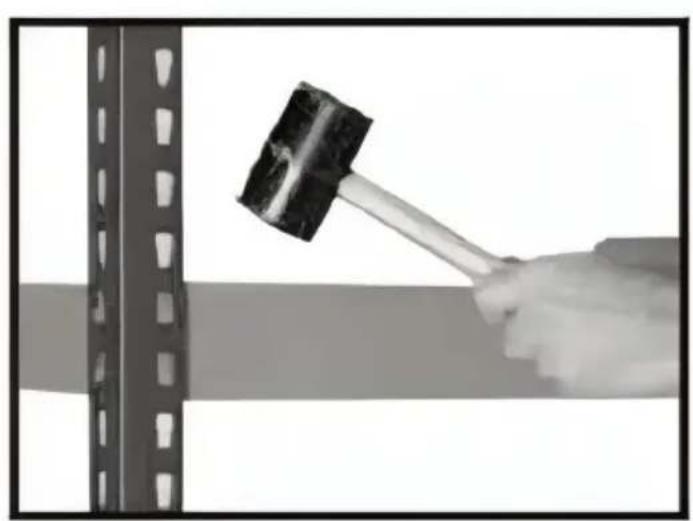

STEP2. Tap beam C with a Rubber mallet to ensure the end studs fully located in the bottom of the keyholes on both uprights. Lean the uprights A against a wall for support if needed.

Note: An assistant is recommended for installation.

Fig.2

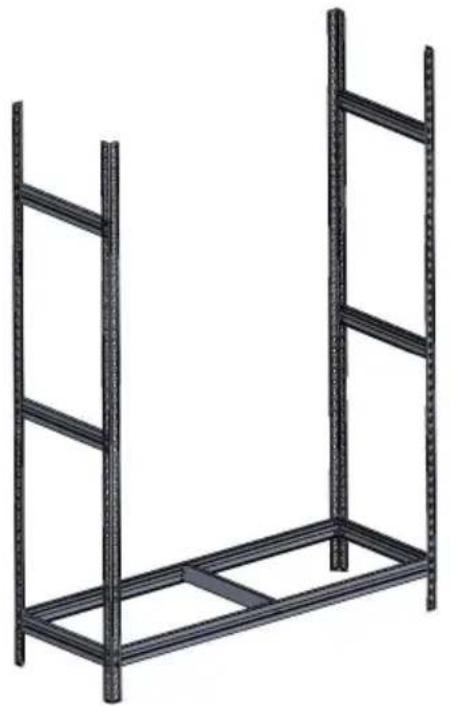

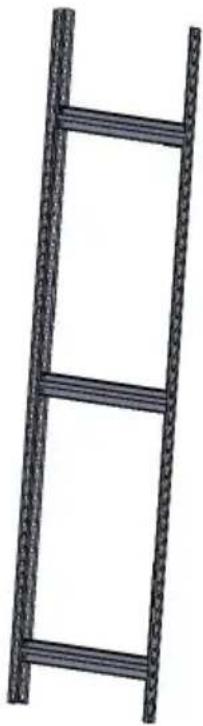

STEP3. Repeat steps 1 and 2 until you have created a "ladder style frame"

Tip: Now is a good time to check the space between beams sui items you want to store on the shelves and adjust as required.

Simple line drawing of a three-tier metal ladder (no text or symbols)

Fig.3

STEP4. Select two more uprights A and repeats teps1 to 3 until you second "ladder style frame".

Tip: Use the first frame as a template to get the Correct spacing.

3D rendering of a three-tiered metal ladder or ladder structure (no text or symbols)

Fig.4

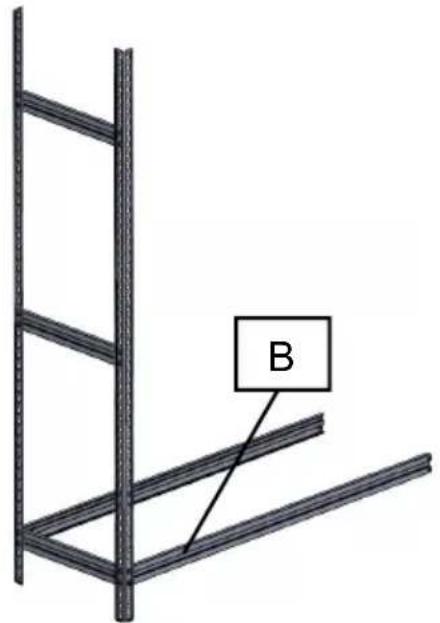

STEP5. Take two long beams B and insert them into the key holes. One frame at the same height as the short beams. Tap into place a rubber mallet.

Diagram of a metal shelving unit with labeled component B, showing structural beams and railings (no text or symbols beyond label)

Hand holding a hammer striking a wall-mounted object, no text or symbols visible

Fig.5

STEP6. Insert the other ends of the beams B into the second frame step 5.

Tip: Ask another person to hold the frames in place while you s them.

3D rendering of two black metal shelving units with vertical railings (no text or symbols)

Fig.6

Step7. Repeat steps 5 and 6 to add the remaining long beams. Ens each long beam is located at the same height as the side beams.

3D wireframe illustration of a three-tiered storage shelf (no text or symbols)

Fig.7

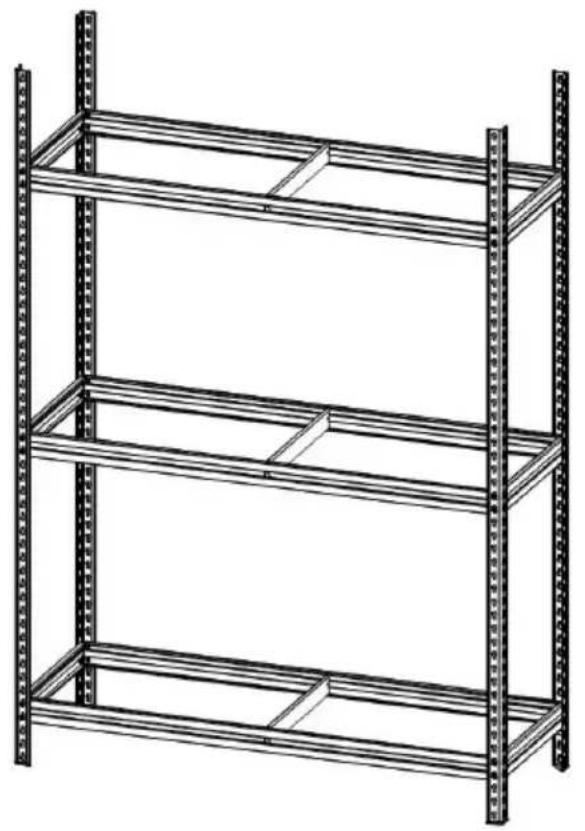

Step8. Locate a centre support beam D on to the metal studs on the of each long beam B. Tap into place and repeat for all levels.

Line drawing of a three-tiered shelving unit with vertical metal racks (no text or symbols)

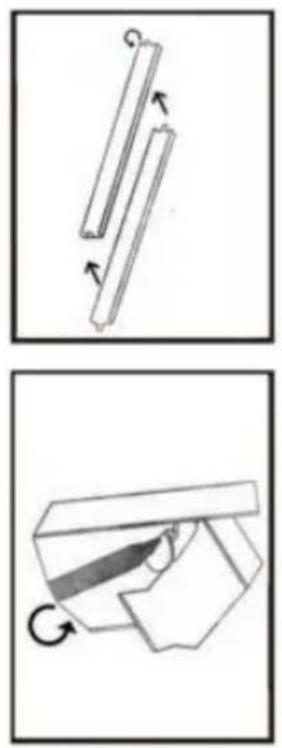

Two technical diagrams showing mechanical components with arrows indicating motion; no text or symbols present.

Fig.8

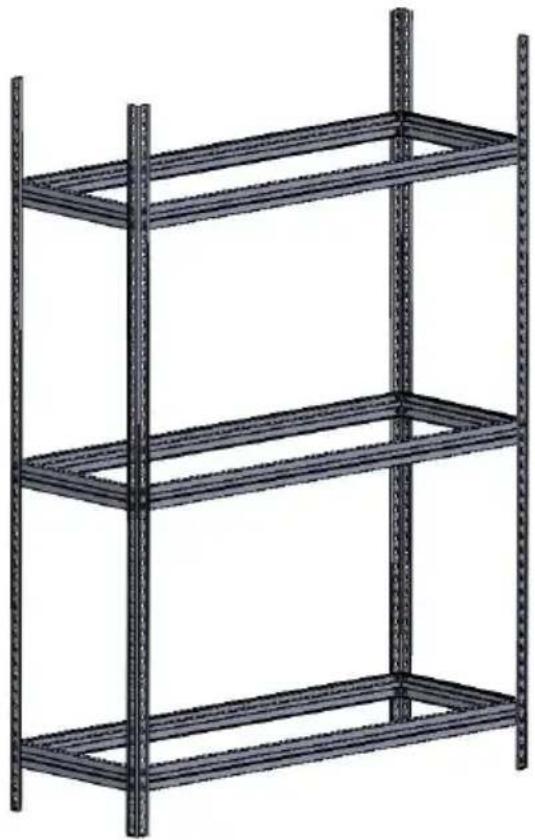

Step9. The bay is now completed and ready to use.

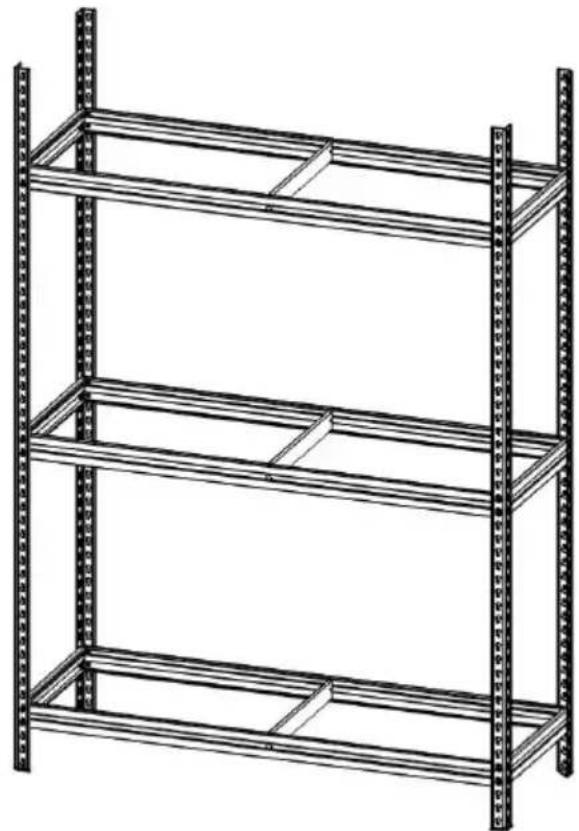

Line drawing of a three-tiered metal shelving unit (no text or symbols)

Fig.9

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a three-tiered metal shelving unit (no text or symbols)
