USER MANUAL LX061 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
TIRE RACK
MODEL: LX061
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

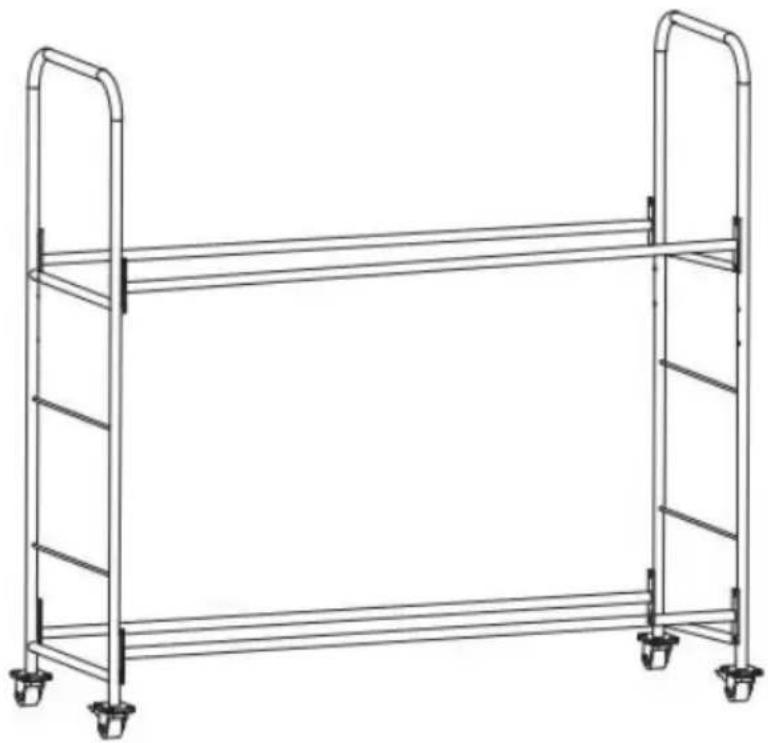

MODEL: LX061
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operatir or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable prope
- Avoid children using the product. And this product is not a toy. Do not all children to play.
SETUP PRECAUTIONS
- Assemble only according to these instructions. Improper assembly can create hazards.
- Keep the assembly area clean and well-lit.
- Capabilities apply to properly and completely assembled product only.
- Keep bystanders out of the area during assembly.
- Do not assemble when tired or when under the influence of alcohol, drug medication.
- Keep away from sharp points, blades and other items.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's
SAVE THESE INSTRUCTIONS
SAFETY AND PRECAUTIONS
WARNING:
- Only used to place tires.
- This product is intended for indoor installation use only.
SPECIFICATION
| Model | LX061 |
| Size | L*W*H: 1585*570*1520mm |
| Caster wheel | Included |
| Number of layer | 2 |
| Capacity | 8-12 tyres |
PART LIST
| No. | Name | Code | Picture | LX061 |
| 1 | Upright | A | ![]() | 2 |
| 2 | Beam | B | ![]() | 4 |
| 3 | Caster wheel | C1 | ![]() | 2 |
| 4 | Caster wheel (brake) | C2 | ![]() | 2 |
| 5 | M8X35 Screw | D | ![]() | 16 |
| 6 | Nut | F | ![]() | 32 |
| 7 | M8 X16 Bolt | G | ![]() | 16 |
| 8 | Dust cover rope | H | ![]() | 4 |
| 9 | Allen key | I | [SWAD] | 1 |
| 10 | 13mm open end wrench | J | ![]() | 1 |
| 11 | 14mm open end wrench | K | ![]() | 1 |
| 12 | Dust cover | L | ![]() | 1 |
| 13 | Manual | / | / | 1 |
Tire Rack ASSEMBLE

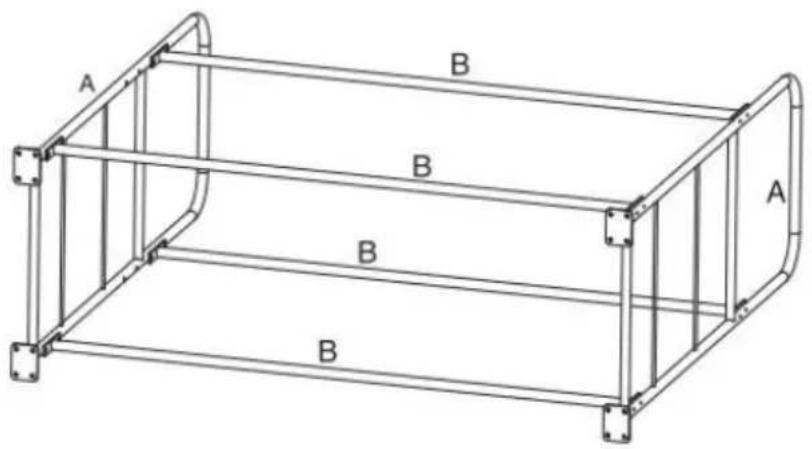

STEP1. Select the upright A, assemble it to the beam B, fasten the D with E, F.


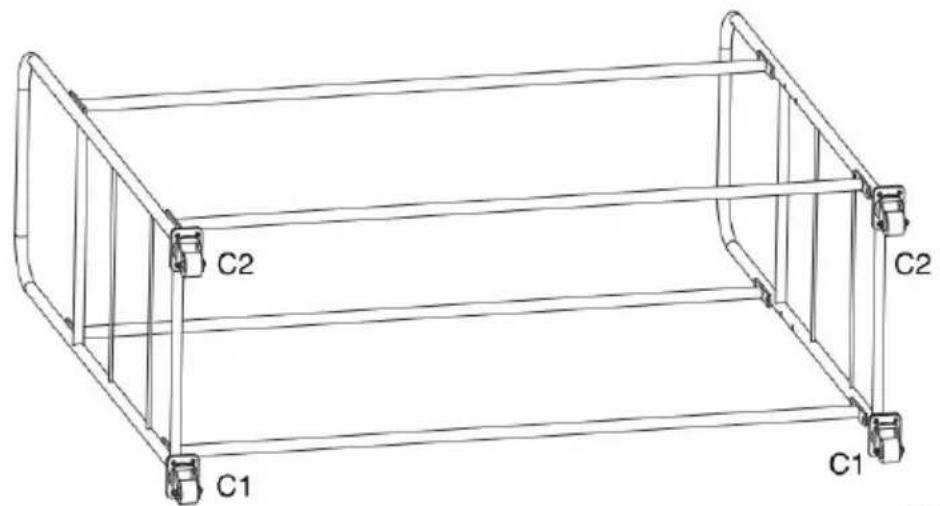

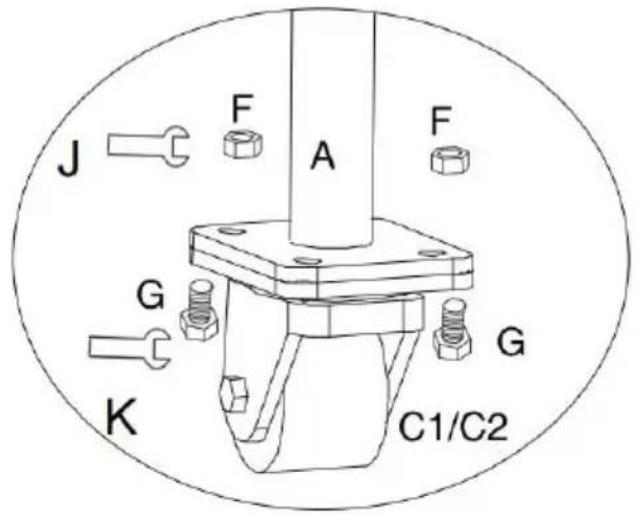

L I D F B L I D A F JSTEP2. Assemble the C1, C2 to A, use the tool J and K to fasten


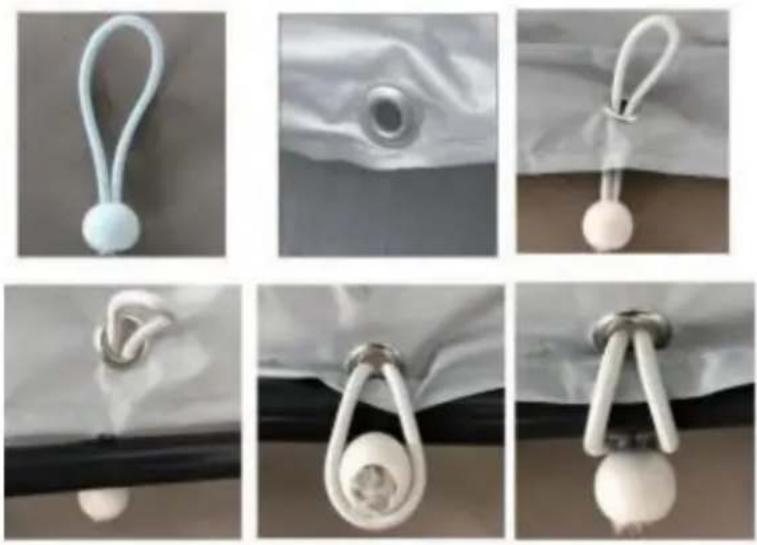

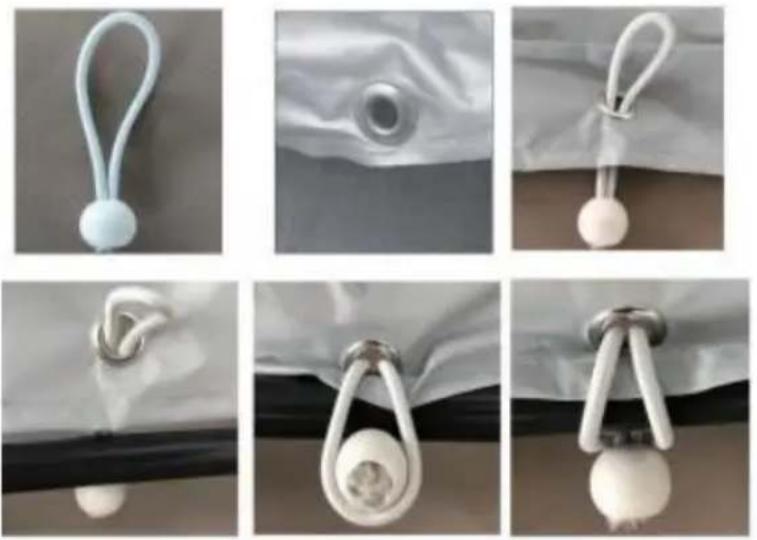

J F A F G K G C1/C2STEP3. Put the dust cover onto the tire rack frame, pass the duct (rope into the dust cover hole, until fasten the dust cover.

