TC0513 - Tire storage Vevor - Free user manual and instructions

Product Type	Wall-mounted tire rack
Brand	Vevor
Model	TC0513
Dimensions (L x W x H)	Max 1440 x 550 x 550 mm
Material	Steel (estimated)
Net weight	Approximately 5 kg (estimated)
Load capacity	Up to 4 passenger car tires (estimated)
Installation type	Wall mounting on wood (minimum thickness 8 cm)
Power supply	None (manual device)
Main function	Vertical tire storage to save space
Supplied parts	2 support assemblies, 2 tubes A (25 mm), 2 tubes B (20 mm), 4 hexagon screws M10x35, 6 lag screws M8x70, 2 pin assemblies, manual
Maintenance and cleaning	Clean with a dry cloth; periodically check screw tightness
Safety	Do not let children use; follow installation instructions; capacity applicable only if assembled correctly
Spare parts and repairability	Standard screws commercially available; contact Vevor support for specific parts
Warranty	Electronic warranty via www.vevor.com/support
Intended use	Indoor only, for tire storage

Frequently Asked Questions - TC0513 Vevor

What is the maximum load capacity of the Vevor TC0513 rack?

The exact capacity is not specified in the manual, but the rack can hold up to 4 passenger car tires of standard size (estimated). For heavier tires (4x4, van), reduce the number.

Can the Vevor TC0513 rack be installed on a concrete or brick wall?

No, according to the manual, the rack can only be installed on wooden walls at least 8 cm thick. For other materials, use appropriate anchors, but this is not guaranteed by the manufacturer.

What tools are needed to assemble the TC0513 tire rack?

You will need an electric drill (to drill 4 mm holes in wood), a screwdriver or wrench to tighten the hexagon socket screws M10x35 and lag screws M8x70.

How to adjust the rack width for different tires?

The distance between the two support assemblies can be adjusted by moving tubes A and B. The size 'D' (distance between supports) must not exceed 1380 mm. Adjust according to your tire width.

Can I use the Vevor TC0513 rack outdoors?

No, the manual states that this product is intended for indoor installation only. Exposure to weather could damage the rack and tires.

Does the rack come with screws for installation?

Yes, the kit includes 6 lag screws M8x70 to fix the supports to the wall and 4 hexagon screws M10x35 to connect the tubes to the supports.

How to maintain the Vevor TC0513 tire rack?

Clean it regularly with a dry cloth to remove dust. Periodically check the tightness of all screws, especially after initial installation.

What types of tires can be placed on this rack?

The rack is suitable for car tires (passenger cars, compact SUVs). For large or very heavy tires (truck, tractor), check the capacity and max width of 550 mm.

Is the product guaranteed? How to contact support?

Yes, Vevor offers an electronic warranty. Go to www.vevor.com/support for technical assistance and the warranty certificate.

Are there specific safety precautions?

Yes, read the manual carefully. Do not let children use or play with the rack. Assemble it correctly and do not exceed capacity. The rack must be installed horizontally for better stability.

USER MANUAL TC0513 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE RACK

MODEL: TC0513

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: TC0513

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage

to valuable property.

- Avoid children using the product. And this product is not a toy. Do not allow children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. Keep away from sharp points, blades, and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• The Tire Rack is installed only on wooden walls, the thickness of the wooden wall must be at least 8cm.
• Only used to place tires.

CAUTION:

• When installing the Tire Rack, pay attention to keeping the Rack in a horizontal state, so as to have a better experience of placing tires.
• This product is intended for indoor installation use only.

SPECIFICATION

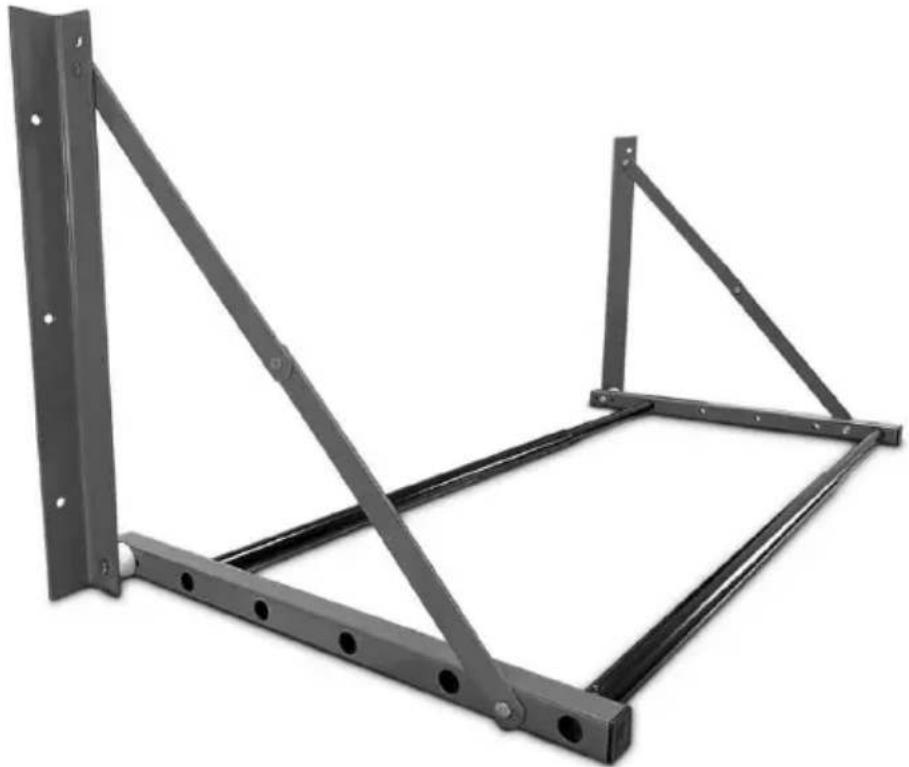

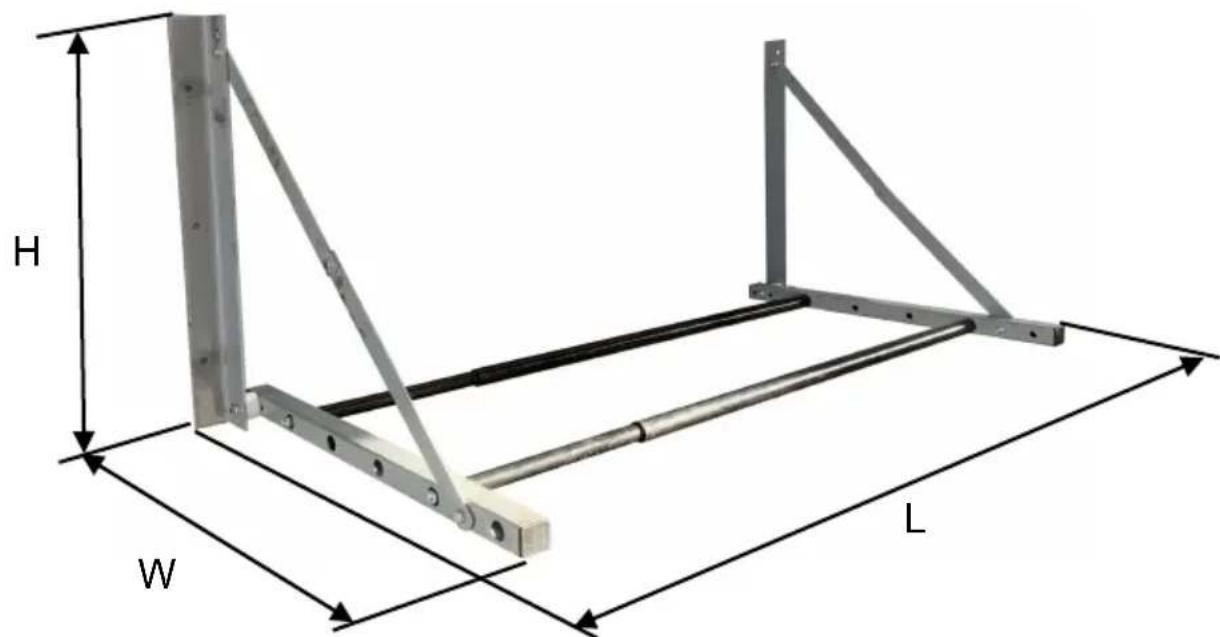

L*W*H: Max 1440*550*550 mm

Part List

No.	Name	Specifications	Picture	QTY
1	Support Assembly-L	/		1
2	Support Assembly-R	/		1
3	Tube A	∅ 25		2
4	Tube B	∅ 20		2
5	Hexagon socket screw	M10*35		4
6	lag screws	M8*70		6
7	Pin Assembly	/		2
8	Manual	/	/	1

Tire Rack ASSEMBLY

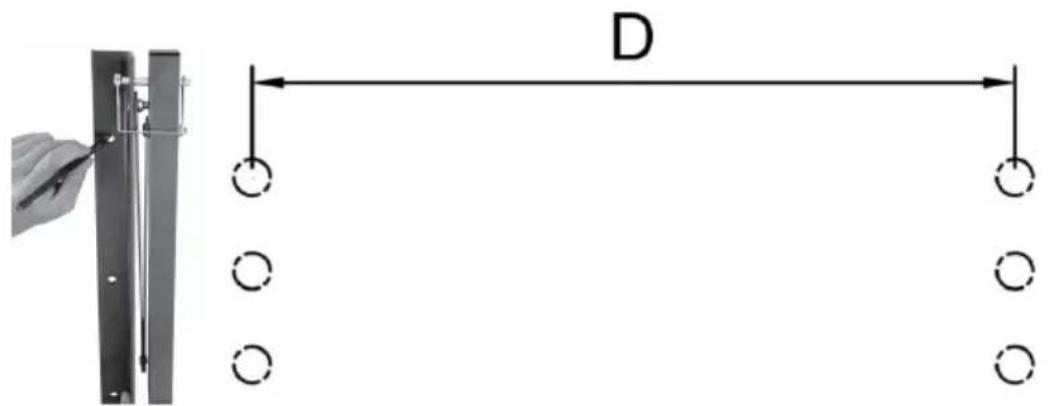

STEP 1. Mark the mounting holes corresponding to the Support Assembly on the wall with a marker.

Depending on your mounting space or the width of the tire you want to place, choose the mounting size "D" of the rack. "D" size should not exceed 1380 mm (54.33 in).

Note: Ensure that the mounting holes are in the same horizontal line.

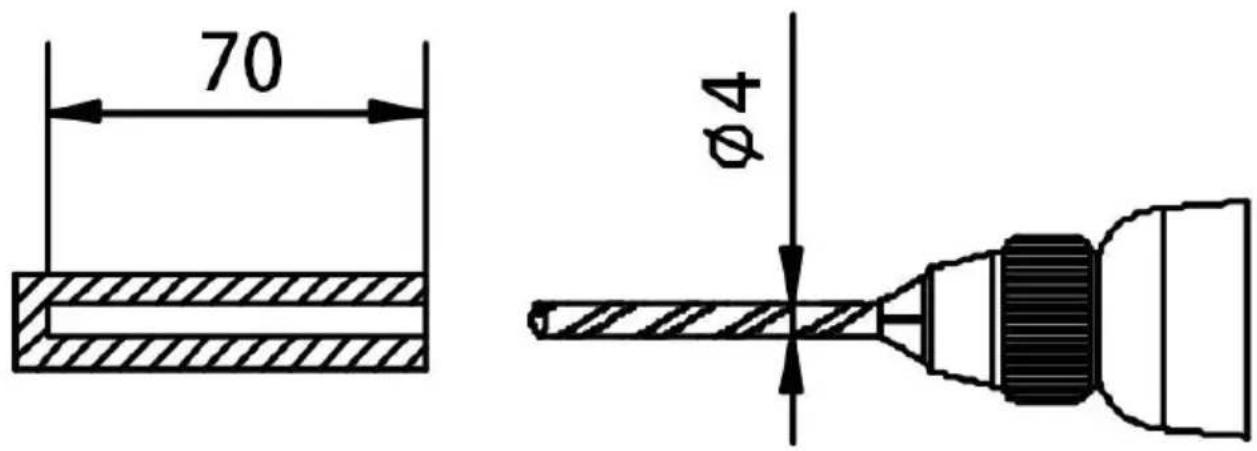

STEP 2. As shown in the following figure, drill a hole in the wooden wall with an electric drill. It is recommended that the diameter of the hole be 4 mm.

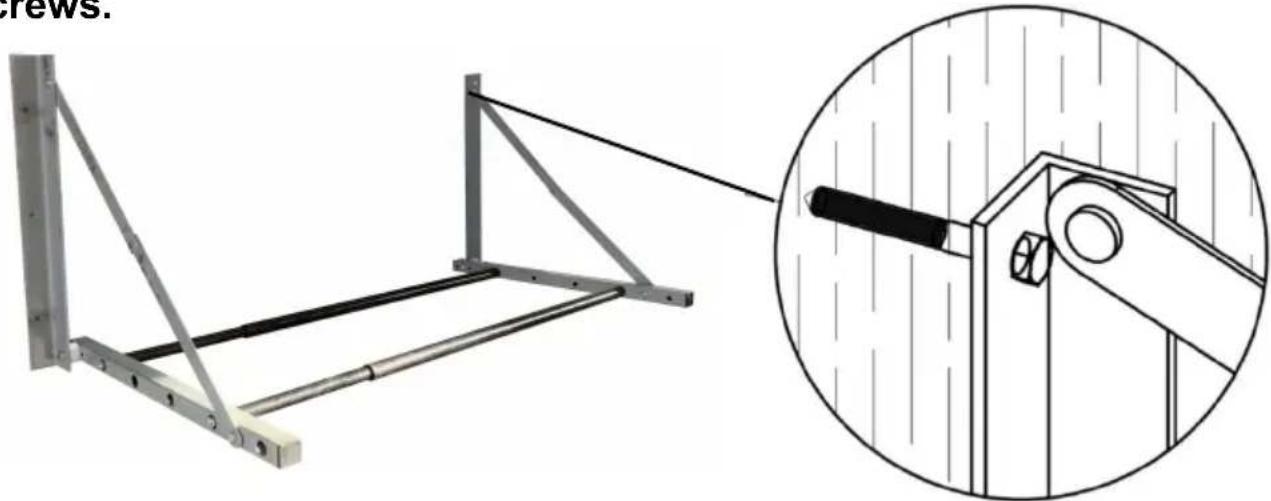

STEP 3. Attach the two Support Assemblies to the wall using wood screws.

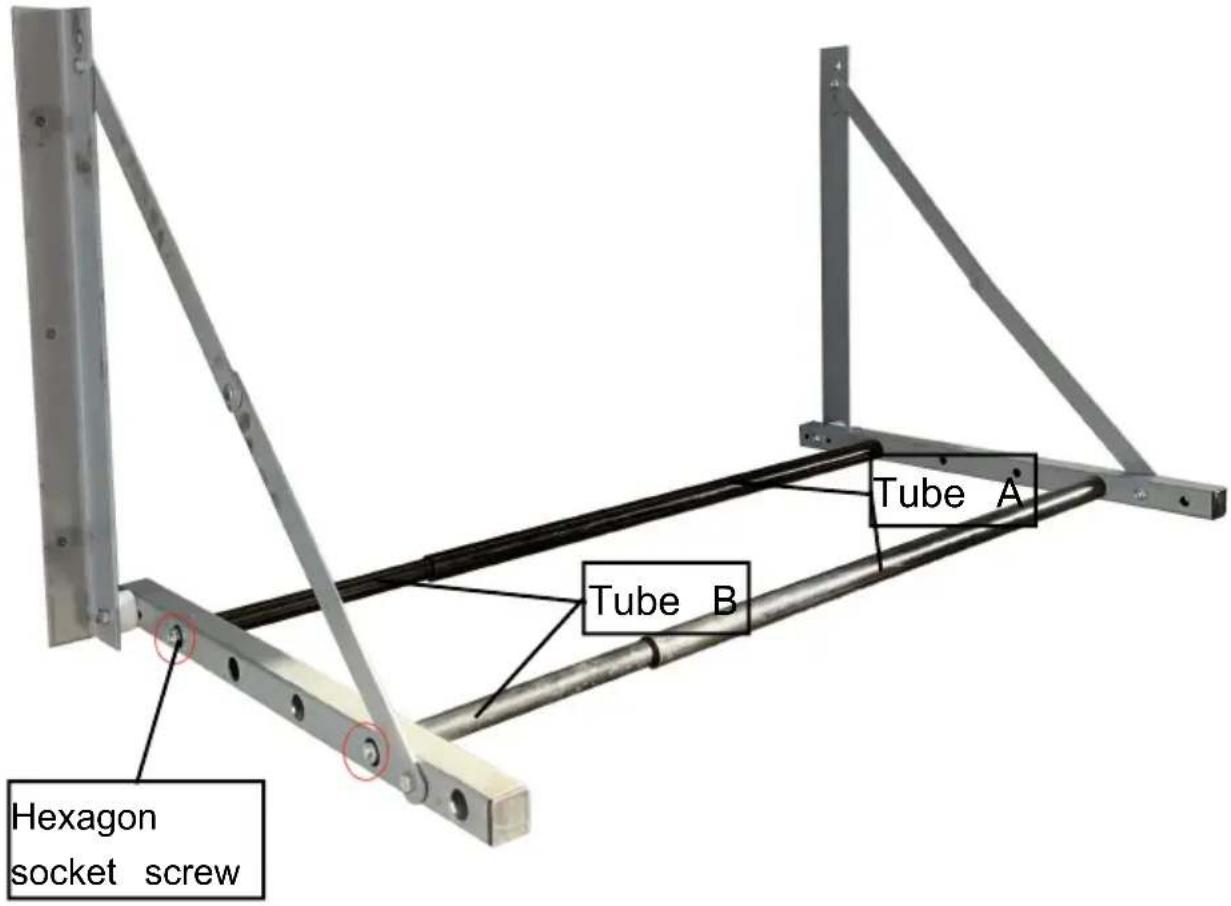

STEP 4. Connect the pipe to the mounting hole of the Support Assembly and tighten it with M10*35 mm hexagon socket screw. It is recommended to install the pipe on the two holes as shown in the figure.

Note: You can adjust the installation position of the pipe according to the specifications of the tire placed.

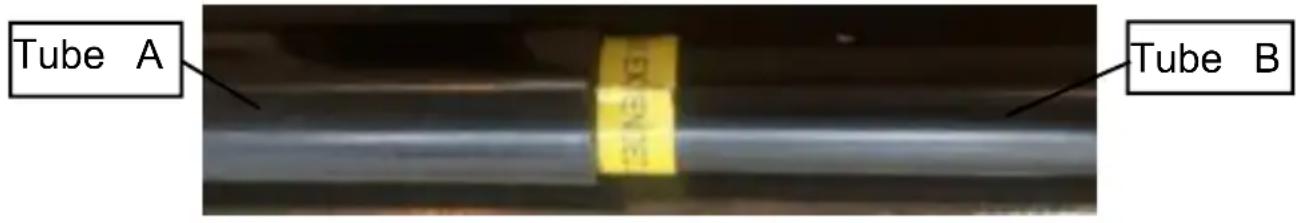

Note: Pipe B is marked with the maximum installation length mark. When installing, the connection length of pipe A and B should not be less than the marked length.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®
