LX060 - Tire storage Vevor - Free user manual and instructions

Product Type	Tire Storage Rack
Brand	Vevor
Model	LX060
Dimensions (L × D × H)	1150 × 495 × 1180 mm
Capacity	8 tires
Number of layers	2
Casters	Not included (optional)
Recommended Use	Indoor Only
Main Material	Steel
Kit Contents	2 upright posts, 4 beams, 4 foot supports, M8×45 screws, washers, plastic pads, Allen key, dust cover, manual
Assembly	Assembly required (Allen key included)
Maintenance	Clean with a dry cloth; avoid sharp objects
Safety	Read all instructions; do not let children play with it; assemble on a clean, well-lit surface
Warranty and Support	Technical support via www.vevor.com/support

Frequently Asked Questions - LX060 Vevor

How to assemble the Vevor LX060 tire rack?

Follow the steps in the manual: select the A uprights, assemble them to the B beams with M8×45 screws, washers and plastic pads. Attach the C foot supports. Finally, install the dust cover by threading the ropes through the holes. Use the included Allen key.

What is the maximum capacity of the rack?

The LX060 rack can hold up to 8 tires distributed over 2 levels. Make sure not to exceed this capacity to avoid any risk of tipping.

Can this rack be used outdoors?

No, this rack is designed for indoor use only. Exposure to weather could damage the structure and the cover.

Are casters included?

Casters are not included with the LX060 model. If you wish to move the rack, you can purchase compatible swivel casters separately.

How to clean and maintain the rack?

Clean regularly with a dry cloth to remove dust. Avoid water and abrasive products. Periodically check the tightness of the screws.

Is it possible to stack more than two levels?

No, the LX060 model is designed for 2 levels only. Do not attempt to add extra levels, as this would compromise stability.

What types of tires are suitable?

This rack can accommodate standard car tires, including summer and winter tires. For large tires (SUV, van), ensure the dimensions do not exceed 1150 mm in width.

Is there a warranty on the product?

Vevor offers technical support and an electronic warranty certificate. For any questions, contact support via www.vevor.com/support.

Can I purchase spare parts?

Yes, certain parts such as screws or the cover can be ordered. Refer to the manual for part numbers and contact Vevor customer service.

Is the rack stable on uneven ground?

For optimal stability, place the rack on a flat, hard surface. If the ground is uneven, you can use shims under the feet.

USER MANUAL LX060 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE RACK

MODEL: LX060

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: LX060

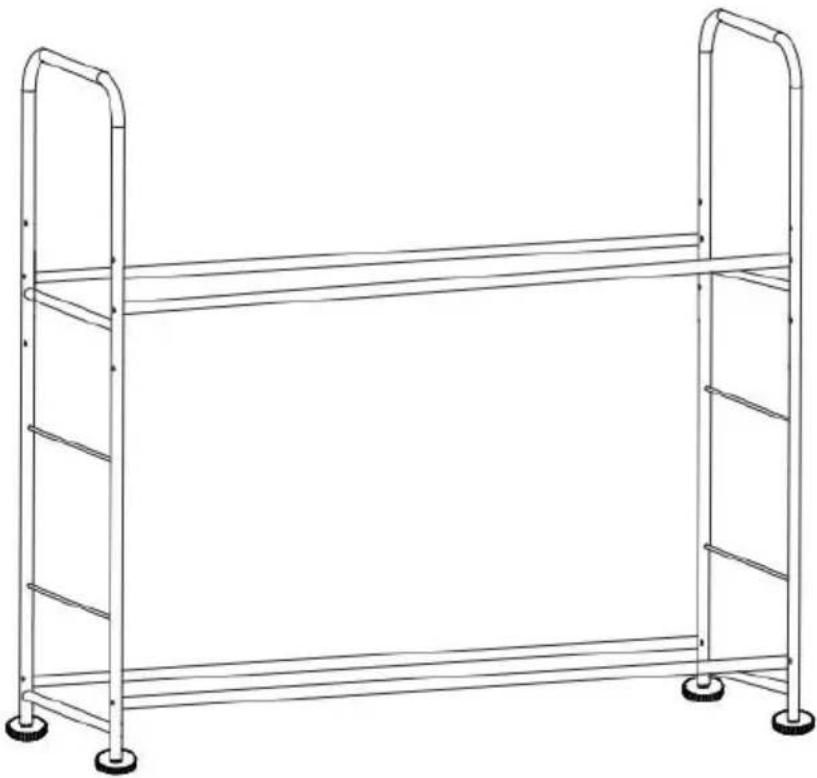

Line drawing of a two-tiered metal shelf with supports at both ends (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or dama

to valuable property.

- Avoid children using the product. And this product is not a toy. Do allow children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Only used to place tires.
• This product is intended for indoor installation use only.

SPECIFICATION

Model	LX060
Size	L*W*H: 1150*495*1180mm
Caster wheel	Not included
Number of layer	2
Capacity	8 tyres

PART LIST

No.	Name	Code	Picture	LX060
1	Upright	A		2
2	Beam	B		4
3	Foot mount	C		4
4	M8×45 Screw	D		8
5	Washer	E		8
6	Plastic pad	F		8
7	Allen key	G		1
8	Dust cover rope	H		4
9	Dust cover	L		1
10	Manual	/	/	1

TIRE RACK ASSEMBLE

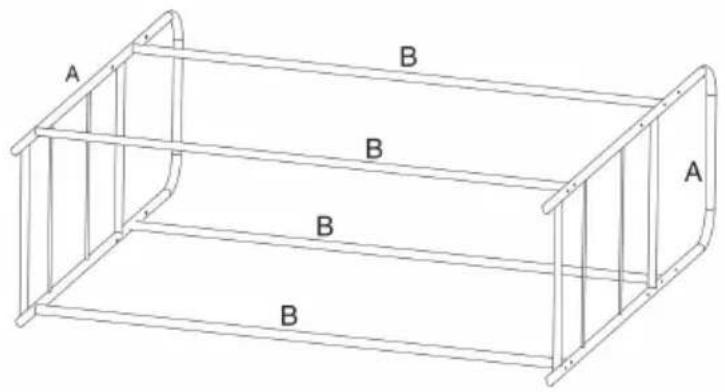

STEP1. Select the upright A, assemble it to the beam B, use the all to fasten the screws D with E, F.

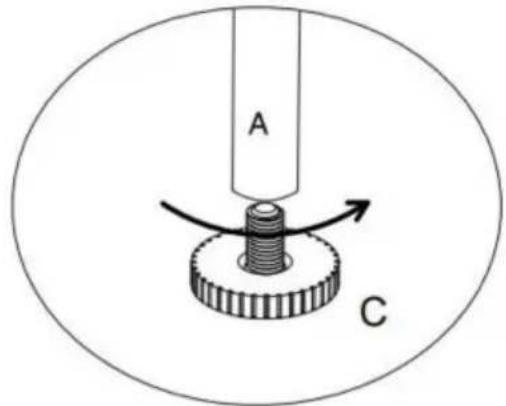

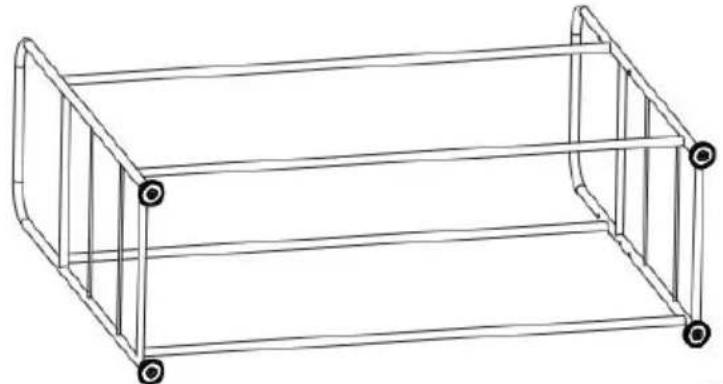

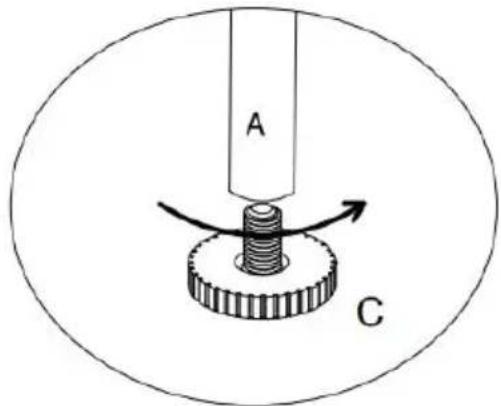

STEP2. Assemble 4 foot mount C, screw them into the A.

Line drawing of a rectangular metal frame structure with mounting holes (no text or symbols)

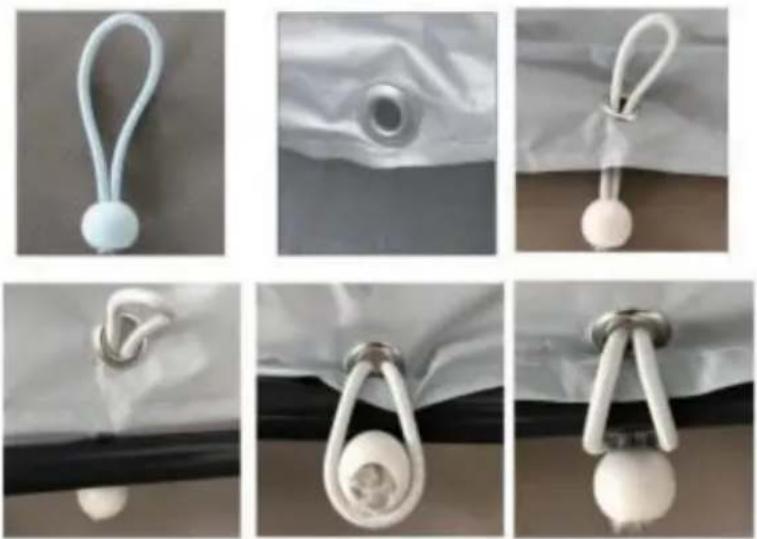

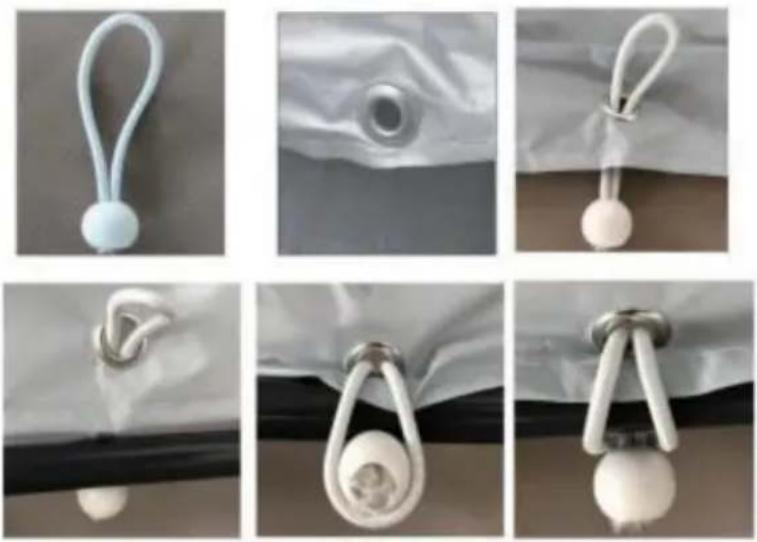

STEP3. Put the dust cover onto the tire rack frame, pass the duct (rope into the dust cover hole, until fasten the dust cover.

Simple line drawing of a rectangular box with wheels, no text or symbols present

White hanging string with a spherical end, isolated on a plain background (no text or symbols)

Close-up of a metallic eye with a circular lens, no visible text or symbols

Close-up of a white spherical object with a loop handle, placed on a textured surface (no text or symbols visible)

Close-up of a metallic ring attached to a black surface with a white spherical object at the bottom (no text or symbols visible)

Close-up of a metallic mechanical knob or knob with a spherical end, mounted on a black surface (no text or symbols visible)

Close-up of a white spherical object suspended by two metallic rods (no text or symbols visible)
