USER MANUAL SXRJL-2302 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HINGE JIG

MODEL: SXRJL-2302

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

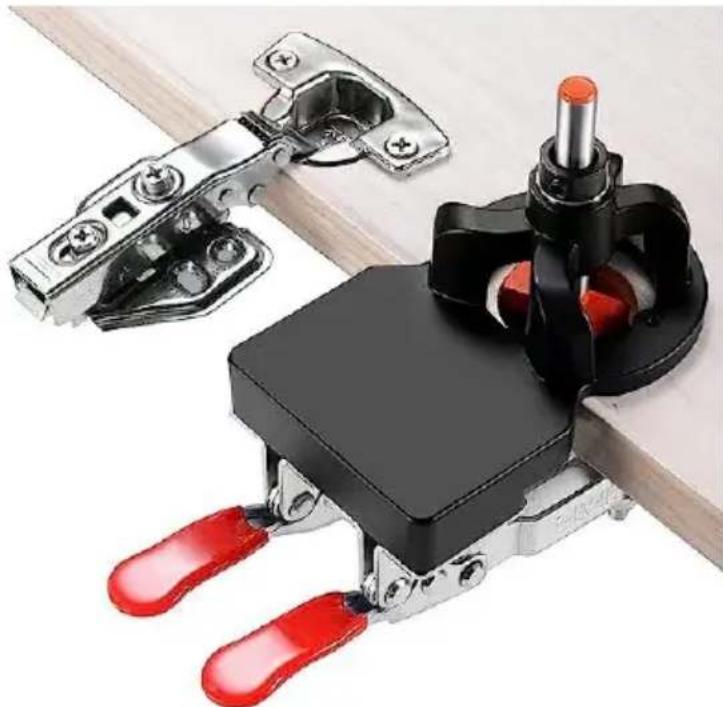

HINGE JIG

MODEL: SXRJL-2302

Close-up of mechanical clamping tools including a black block and metal bracket, with red-handled clips (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Always follow basic safety precautions when using these devices.

These include:

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields before commencing power tool operation. Always keep hands, face, hair, loose clothing, and bod at a safe distance from spindles and cutting tools. Always keep a firm grip tool handles when in operation. Always disconnect from power source before adjusting power tools.
3. Do not operate the hinge tapper after fatigue or alcohol.
4. Please refer to the manual to install and use the jig.
5. Please always wear eye protection during use.
6. Keep hands and body clear of sharp edges and moving parts.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	SXRJL-2302
Applicable Hinge Type	Φ35mm
Clamping Thickness	12-25mm
Depth of Opening	10-15mm
Margin Adjustable Range	3-7mm
Material	Aluminium Alloy
Color	Black

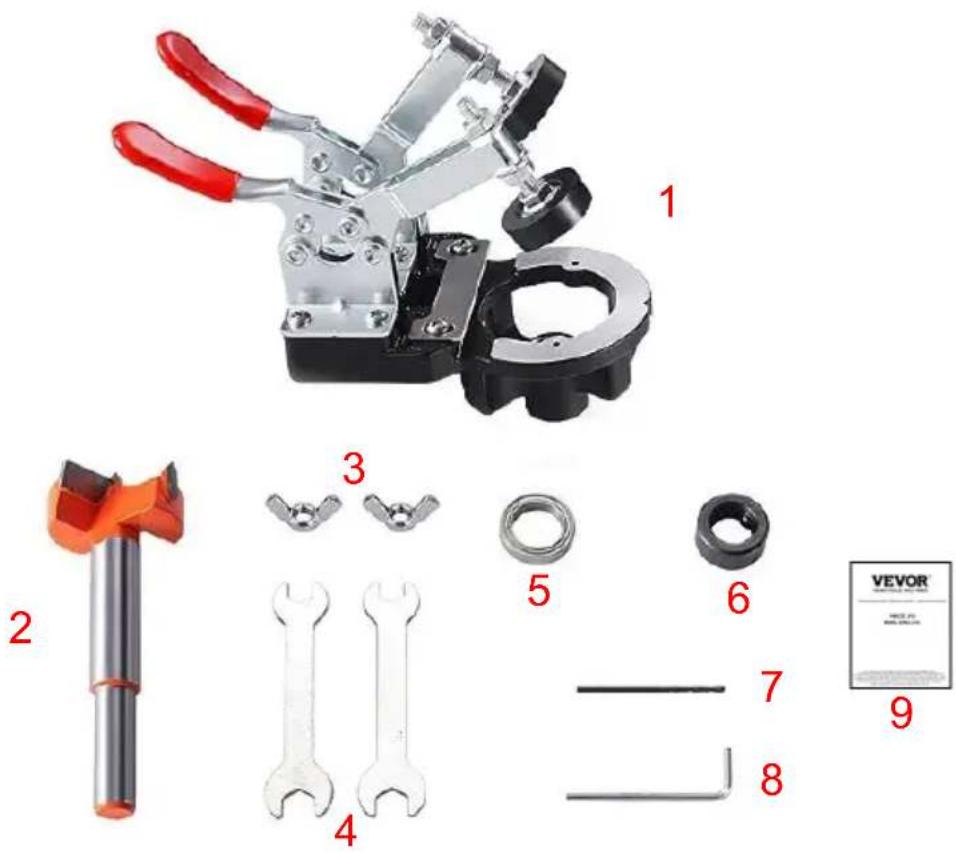

COMPONENTS

1 2 3 4 5 6 7 8 9 VEVOR® HIVEL PL HIVEL PL VEVOR®

No.	Name	Qty
1	Main body	1
2	Cutter	1
3	Butterfly Nuts	2
4	8-10 Open-end Wrench	2
5	Top Linkage Bearing	1
6	Stop collar	1
7	2mm Drill bit	1
8	Wrench	2
9	User Manual	1

OPERATION

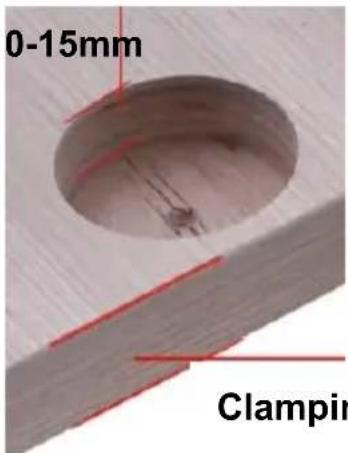

Depth of Opening:10-15mm

0-15mm Clampir

Clamping Thickness:12-25mm

NOTE: This product is only applicable to 35mm open hole drill, and does not support 40mm change.

Close-up of a wooden bowl with visible grain and texture, placed on a wooden surface (no text or symbols)

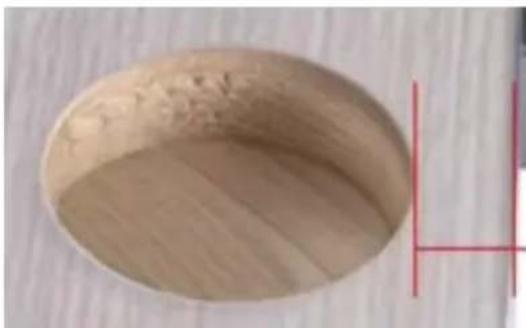

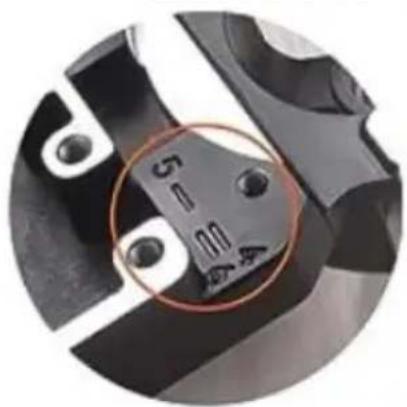

Margin Adjustable Range:3-7mm

Close-up of a mechanical component with a highlighted circular area showing a 50mm feature (no text or symbols present)

Close-up of a mechanical component with a highlighted circular area (no visible text or symbols)

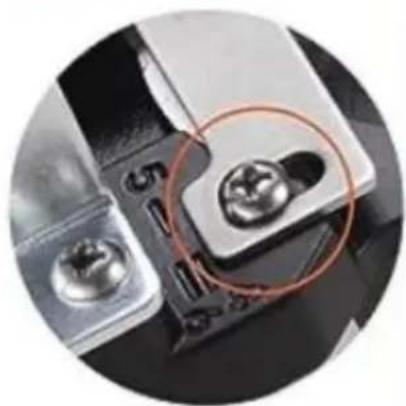

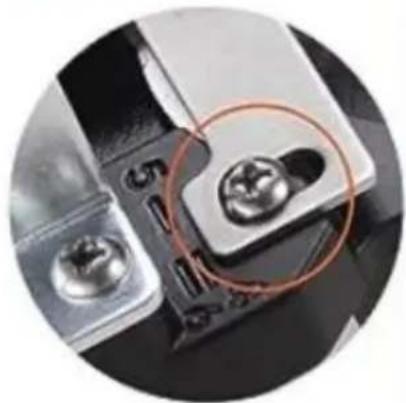

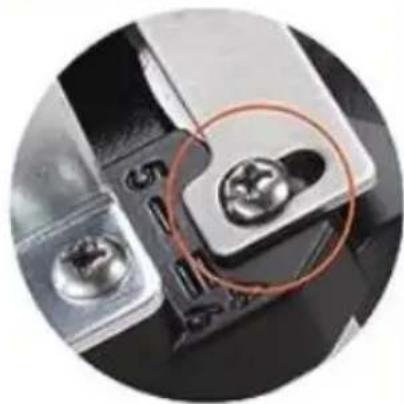

Loosen the screw to adjust

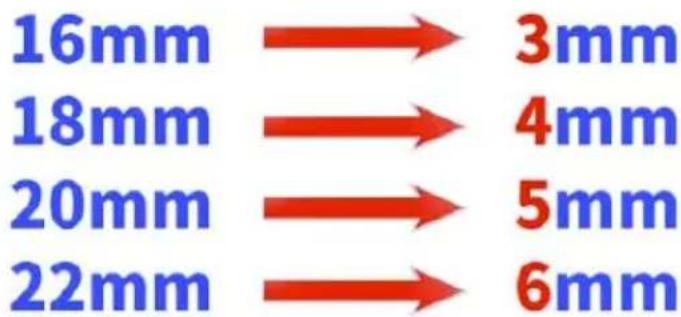

Board Thickness → Suggested hole margins

16mm → 3mm 18mm → 4mm 20mm → 5mm 22mm → 6mm

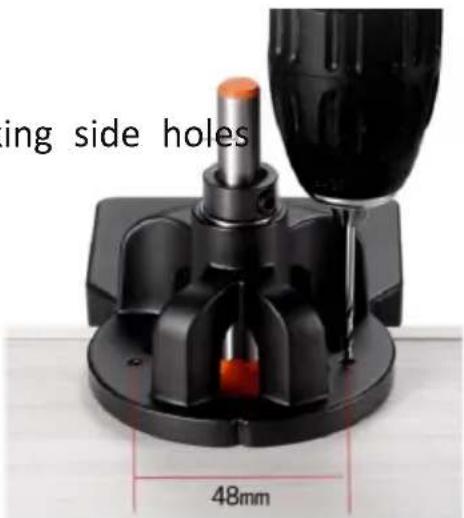

Side hole drilling method:

A: The fixed hole distance is 48mm.

Remove the drill before making side holes

ing side holes 48mm

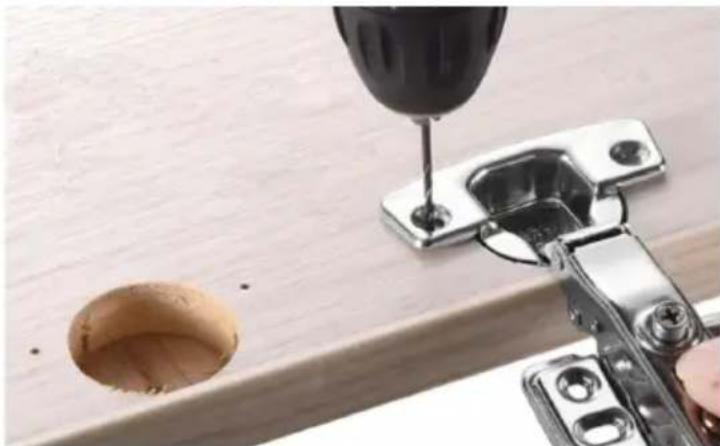

B: Use the hole in the hinge for positioning.

Close-up of a hand using a screwdriver to cut a small wooden component on a wooden surface (no text or symbols visible)

How to Use:

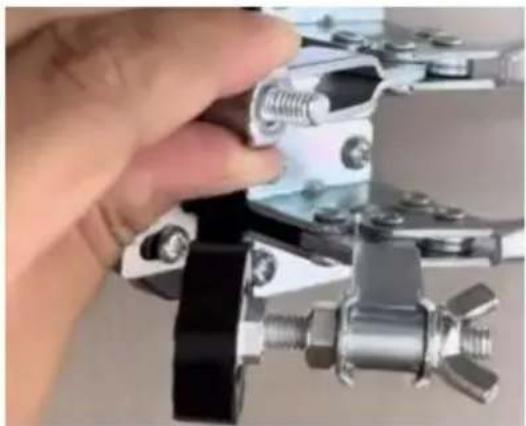

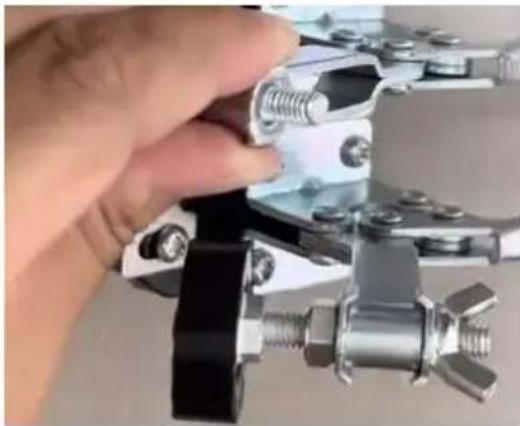

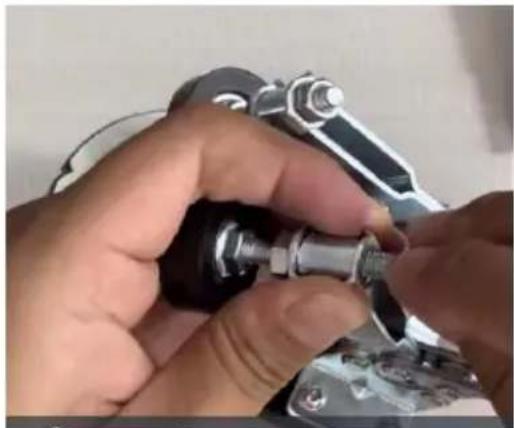

1. Replace the top nuts with butterfly nuts.

Close-up of hands assembling a mechanical component with a tool (no visible text or symbols)

Close-up of a hand adjusting a mechanical clamp or bracket component (no visible text or symbols)

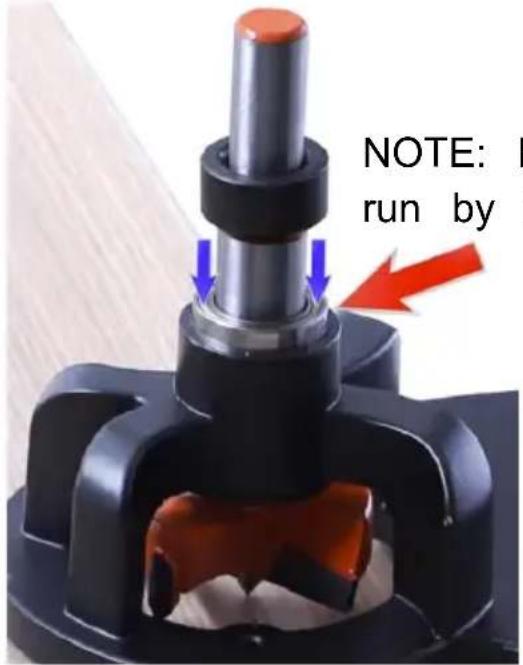

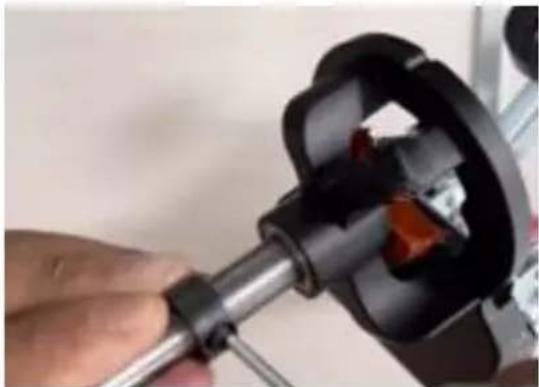

1. Install the cutter, top bearing and the stop collar in sequence.

NOTE: I run by

NOTE: Press down slowly and run by hand after installation.

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols.

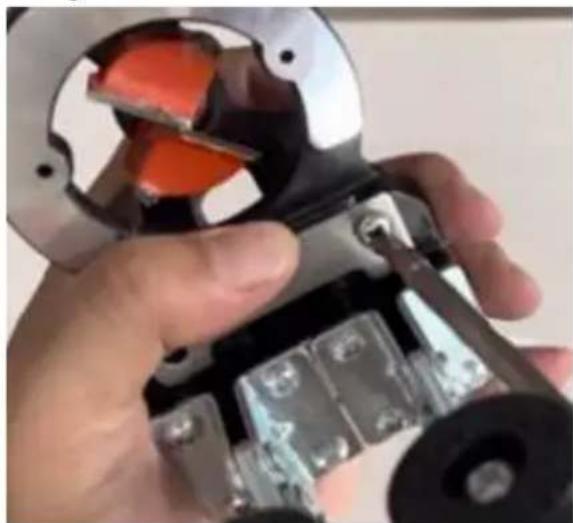

Tighten the fastening screws

1. Adjust the hole margin.

Close-up of hands assembling a mechanical component with red and black components (no visible text or symbols)

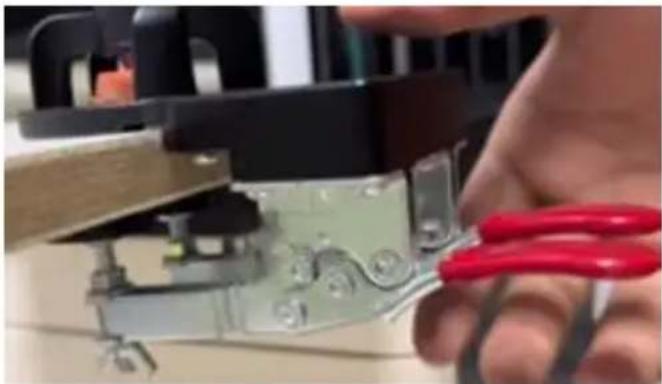

1. Adjust and clamp the plate according to plate thickness.

Close-up of a hand using red pliers to adjust or install a mechanical component (no visible text or symbols)

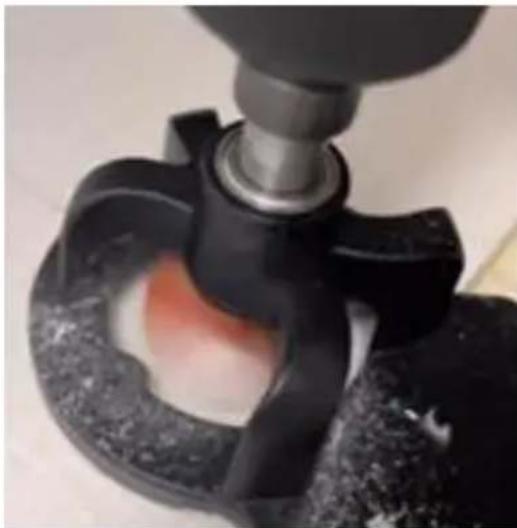

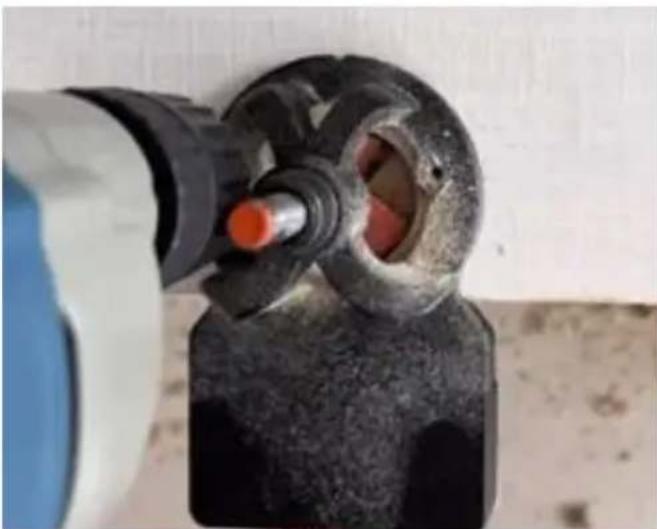

1. Fix and drill with an electric drill.

Close-up of a mechanical press or clamping device with a metallic component and a red-orange circular feature, no visible text or symbols.

1. Drill the side holes.

Close-up of a mechanical component with a tool inserted, showing a circular opening and red port (no text or symbols visible)

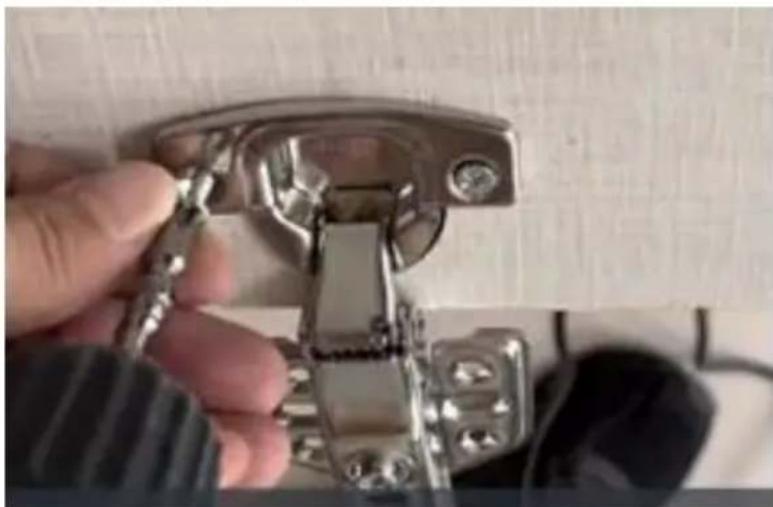

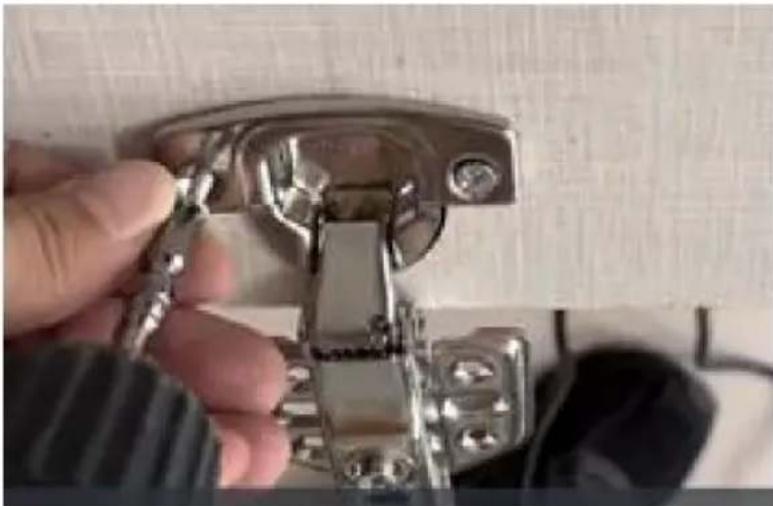

1. Clean the sawdust and install the hinge.

Close-up of a hand holding a metallic electrical switch component (no visible text or symbols)

MAINTENANCE

1. After each use, please install it in time and keep it properly to a losing parts.
2. Clean the surface after each use.
