XRSS2304 - Drilling template Vevor - Free user manual and instructions

USER MANUAL XRSS2304 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CABINET HARDWARE JIG

MODEL: XRSS2304

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CABINET HARDWARE JIG

MODEL: XRSS2304

Diagram showing a ruler measuring an object with three blue measurement devices aligned horizontally on a ruler, indicating measurement precision.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields before commencing power tool operation. Always keep hands, face, hair, loose clothing, and body at a safe distance from spindles and cutting tools. Always keep a firm grip on tool handles when in operation. Always disconnect from the power source before adjusting power tools.

MODEL AND PARAMETERS

Model	XRSS2304
Material	Aluminium Alloy+ABS+Stainless Steel
Longitudinal scale range	0-25cm/0-10inch
Horizontal scale range	0-20cm/0-8inch

STRUCTURE DIAGRAM AND COMPONENTS

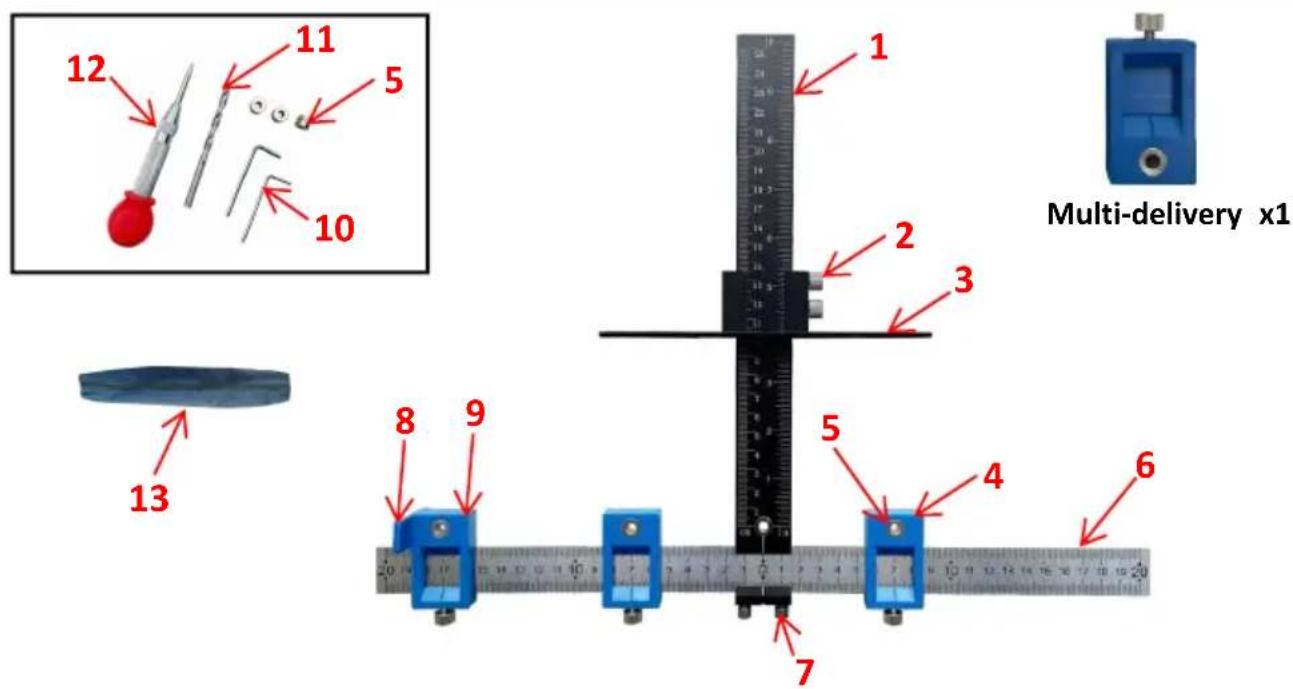

Multi-delivery x1 1 2 3 4 5 6 7 8 9 10 11 12 13

No.	Name	Qty

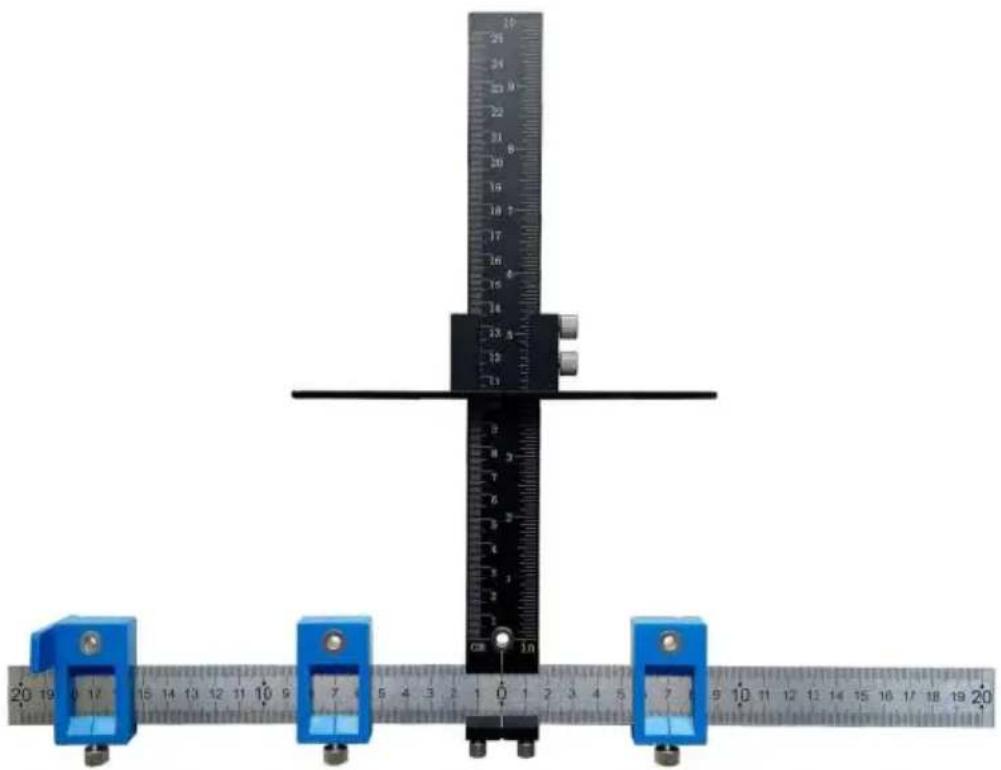

1	Main Ruler with Drill Guide	1
2	Hand Screw 1	6
3	Main Stop	1
4	Adjustable Drill Guide	3
5	Guide Sleeve(Φ5)	6
6	Transverse Ruler	1
7	Hand Screw 2	2
8	End Stop	1
9	Bushing Holder/Slide	1
10	Wrench	2
11	Twist Bit(Φ5)	1
12	Borehole Positioner	1
13	Storage Bag	1
14	User Manual	1

OPERATION

A: KNOB ON DRAWER FRONT(Center of width and height)

Four wooden panels with a yellow measuring tape placed between them, no visible text or symbols on the panels.

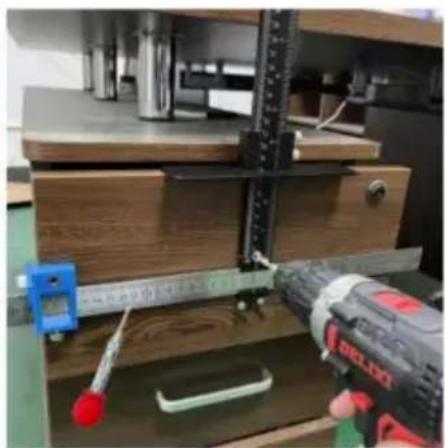

Close-up of a wooden mechanical setup with a drill bit and a blue tool, no visible text or symbols

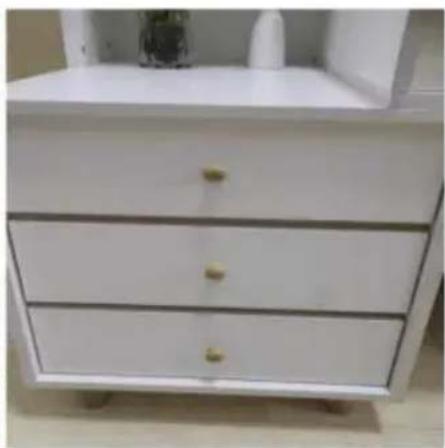

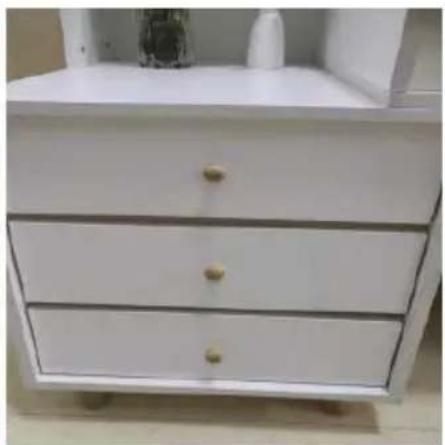

Close-up of a white nightstand cabinet with two drawers and three gold buttons (no text or symbols visible)

① ② ③

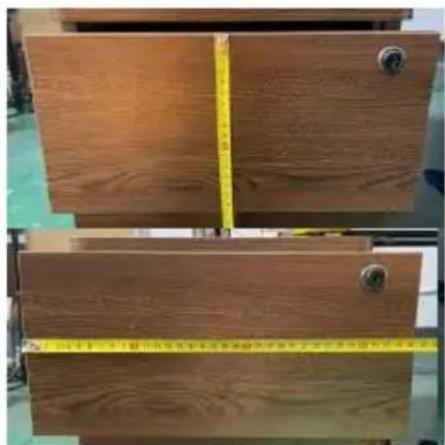

①Measure the width and height of the drawer.

② Set Large Stop at half of the drawer height, and set the sliding end stop at half of the drawer width. Finally, drill holes.

(NOTE: Using a center punch for positioning is more convenient.)

③Install the handle, and you're done.

B: HANDLE ON DRAWER FRONT(Center of width and height)

① ② ③ ④

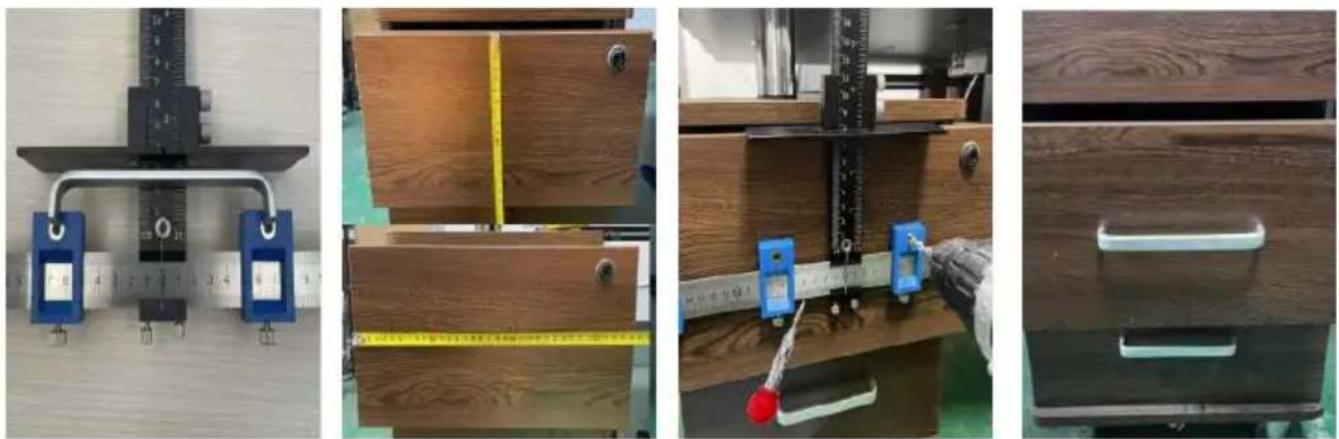

①:Measure hole centers of handles,adjust and tighten Sliding Drill Guides. (Cover unused bushing with tape)
②:Measure the width and height of the drawer.
③: Set Large Stop at half of the drawer height, and set the sliding end stop at half of the drawer width. Finally, drill holes .

(NOTE: Using center punch for positioning is more convenient.)

④:Install the handle, and you're done.

C: KNOB ON DOOR INSTALLATION (Off center of width and height)

① ② ③

①:Place the knob to find a position you like and mark it.
②:Measure from the top of the door to mark and set Sliding End Stop to the measurement.
③:Measure from the side of the door to mark and set Large Stop to the measurement.

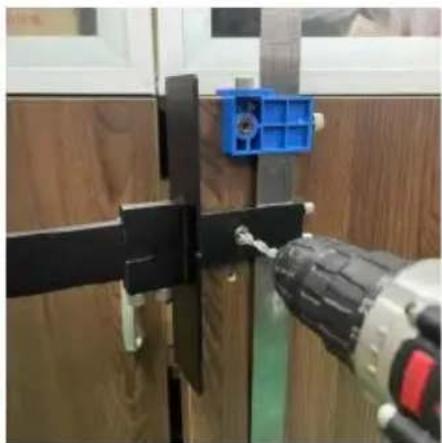

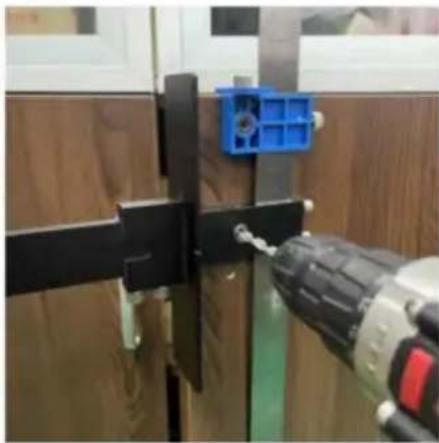

Close-up of a hand using a power drill to measure a metal rod with a blue clamp, next to wooden blocks (no visible text or symbols)

Close-up of a mechanical assembly with a blue plastic housing and a black tool inserted into a bracket (no visible text or symbols)

Interior view of a room with wooden cabinets and a doorway (no visible text or symbols)

④ ⑤ ⑥

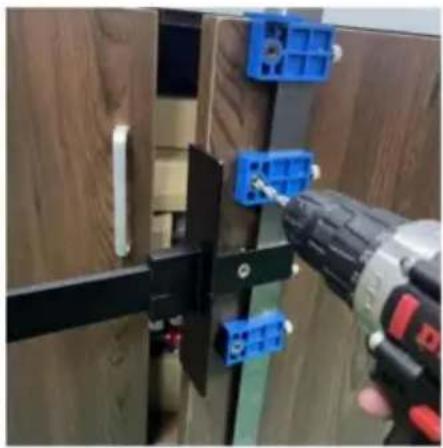

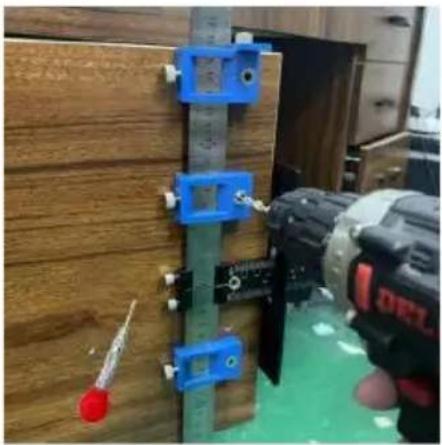

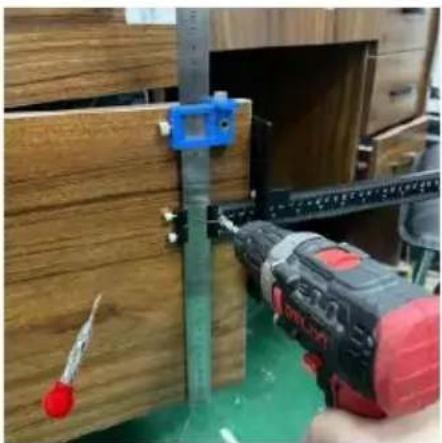

④:Place the tool as a picture and drill a hole through the drill bushing.

(NOTE: Using a center punch for positioning is more convenient.)

⑤:The flipping tool punches a hole in the other cabinet door.
⑥: Install the handle, and you're done.

D:HANDLE ON DOOR INSTALLATION(Off center of width and height)

Close-up of hands holding a white strip on a wooden cabinet door (no text or symbols visible)

Hand measuring a ruler with visible measurement markings and a pen, in a wooden office setting

Hand measuring a wooden plank with a yellow measuring tape showing measurement in centimeters

① ② ③

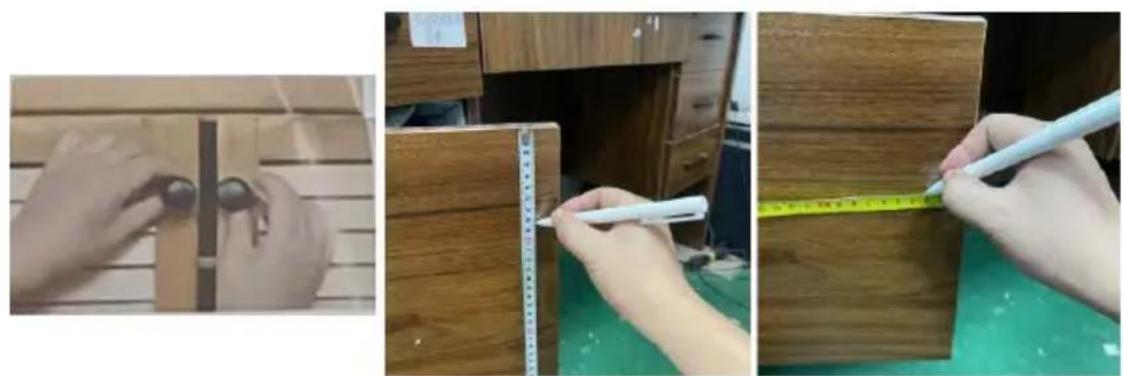

①:Place the handle to find a position you like and mark the bottom hole location.
②:Measure from the top of the door to mark and set Sliding End Stop to the measurement.

③:Measure from side of door to mark and set Large Stop to the measuremen

Close-up of a wooden cabinet with blue plastic fixtures and a tool, no visible text or symbols

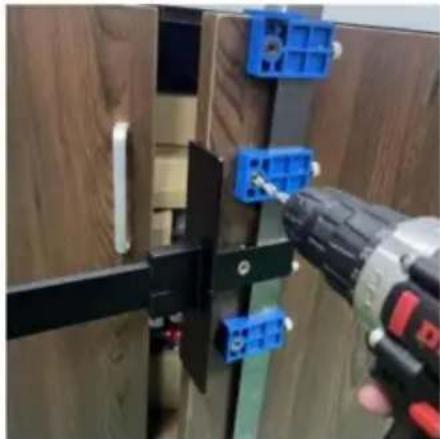

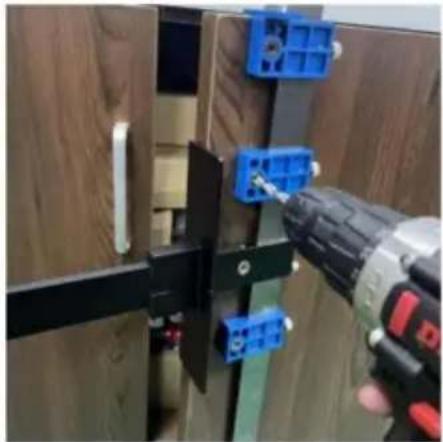

Close-up of a hand using a power drill to install blue plastic components on a wooden cabinet (no text or symbols visible)

Interior view of a cabinet with white panels and doorways (no visible text or symbols)

④ ⑤ ⑥

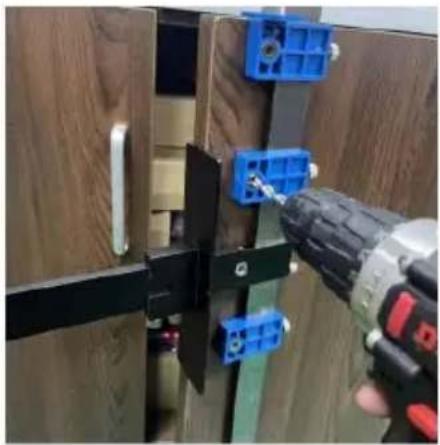

④:Place the tool as a picture and drill a hole through the drill bushing.

(NOTE: Using a center punch for positioning is more convenient.)

⑤:The flipping tool punches a hole in the other cabinet door.

⑥: Install the handle, and you're done.

MAINTENANCE

1. After each use, please install it in time and keep it properly to avoid losing parts.

2. Clean the surface after each use.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
