USER MANUAL XRSS2305 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CABINET HARDWARE JIG

MODEL: XRSS2305

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CABINET HARDWARE JIG

MODEL: XRSS2305

Diagram of a mechanical measuring device with ruler and alignment markers (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields before commencing power tool operation. Always keep hands, face, hair, loose clothing, and body at a safe distance from spindles and cutting tools. Always keep a firm grip on tool handles when in operation. Always disconnect from the power source before adjusting power tools.

MODEL AND PARAMETERS

Model	XRSS2305
Material	Aluminium Alloy
Longitudinal scale range	0-25cm/0-10inch
Horizontal scale range	0-20cm/0-8inch

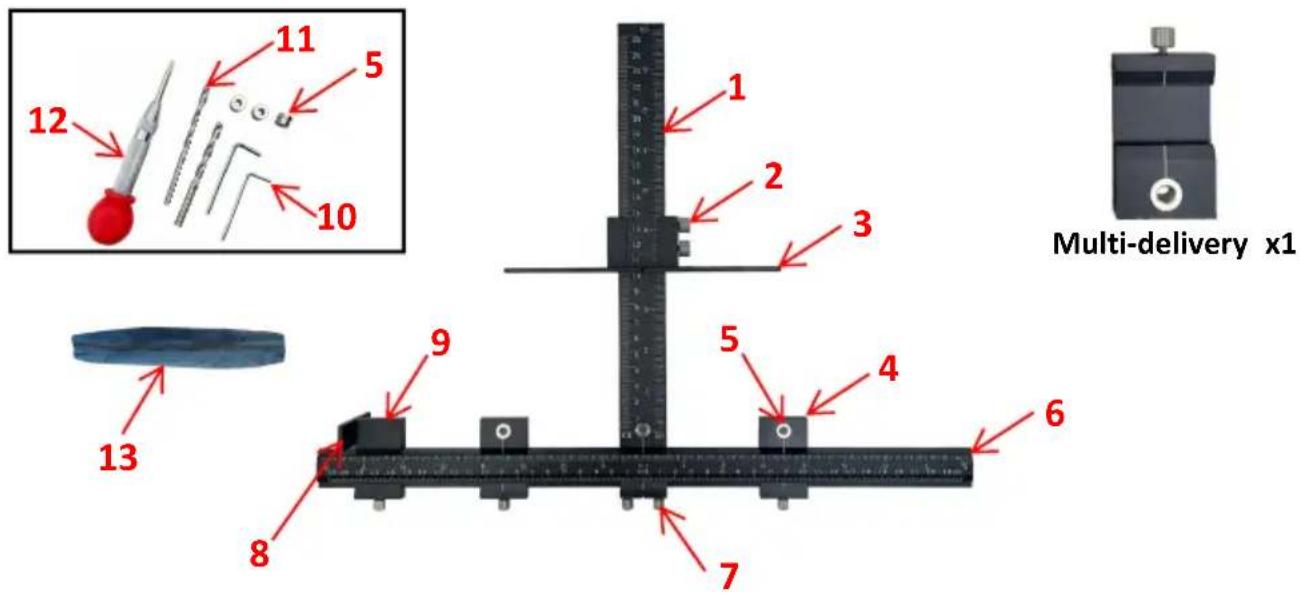

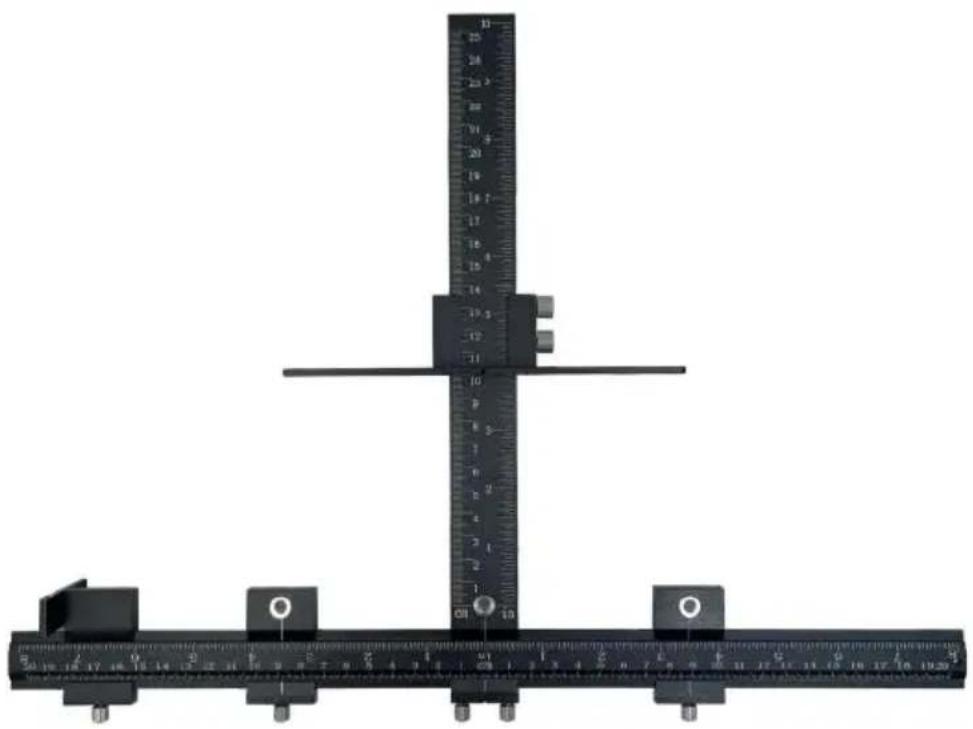

STRUCTURE DIAGRAM AND COMPONENTS

Multi-delivery x1 1 2 3 4 5 6 7 8 9 10 11 12

No.	Name	Qty
1	Main Ruler with Drill Guide	1
2	Hand Screw 1	6
3	Main Stop	1
4	Adjustable Drill Guide	3
5	Guide Sleeve(Φ4+Φ5)	6
6	Transverse Ruler	1
7	Hand Screw 2	2
8	End Stop	1
9	Bushing Holder/Slide	1
10	Wrench	2
11	Twist Bit(Φ4+Φ5)	2
12	Borehole Positioner	1
13	Storage Bag	1
14	User Manual	1

OPERATION

A: KNOB ON DRAWER FRONT(Center of width and height)

Four wooden cabinets with metal handles and a yellow measuring tape placed horizontally (no visible text or symbols)

Hand using a drill pen to adjust or install a wooden drawer in a workshop (no visible text or symbols)

White nightstand cabinet with two drawers and gold buttons (no text or symbols visible)

① ② ③

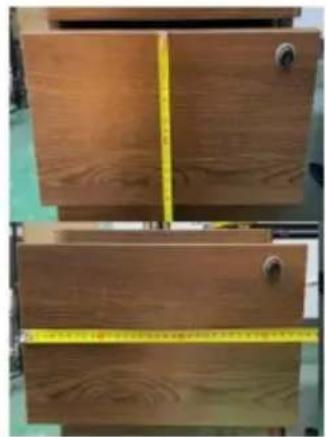

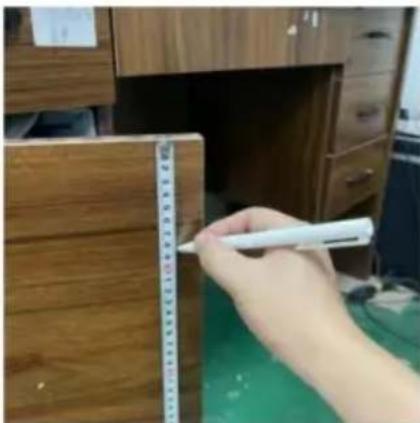

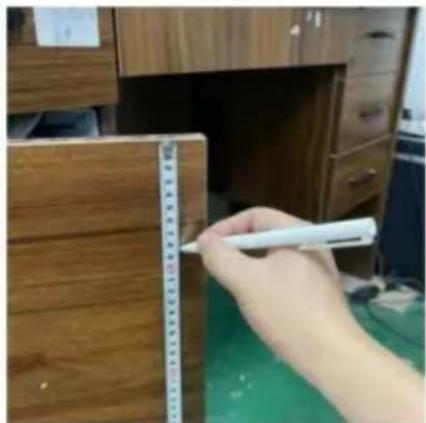

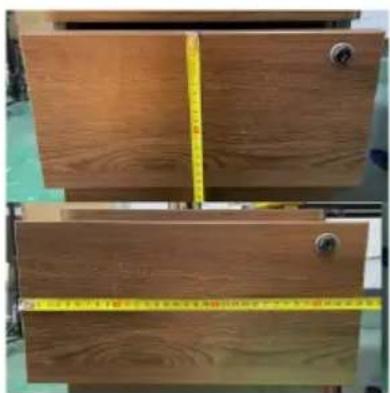

①Measure the width and height of the drawer.

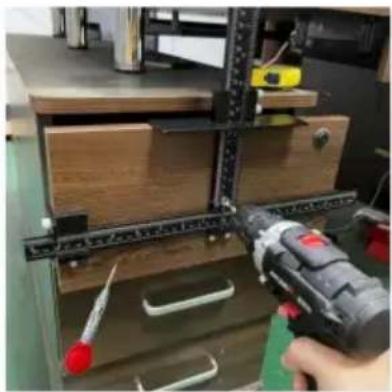

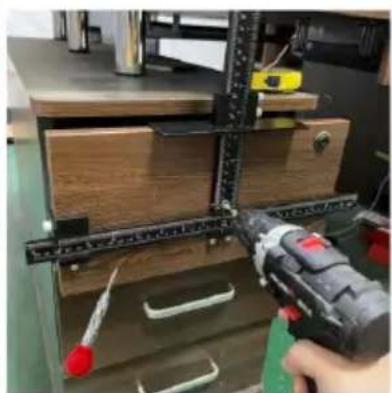

② Set Large Stop at half of the drawer height, and set the sliding end stop at

half of the drawer width. Finally,drill holes .

(NOTE: Using a center punch for positioning is more convenient.)

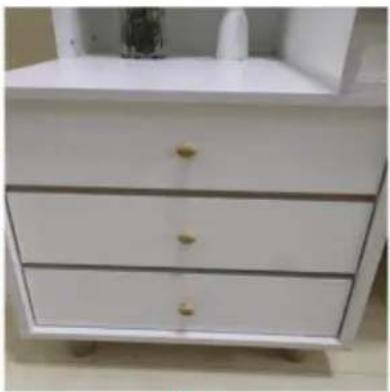

③Install the handle and you're done.

B: HANDLE ON DRAWER FRONT(Center of width and height)

① ② ③ ④

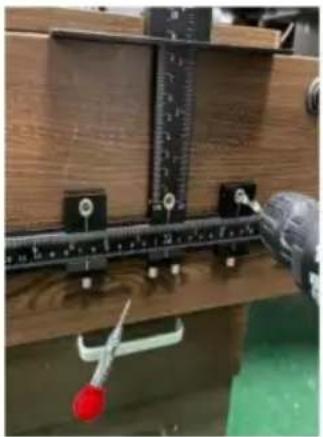

①:Measure hole centers of handles,adjust and tighten Sliding Drill Guides. (Cover unused bushing with tape)
②:Measure the width and height of the drawer.
③: Set Large Stop at half of the drawer height, and set the sliding end stop at half of the drawer width. Finally, drill holes.

(NOTE: Using a center punch for positioning is more convenient.)

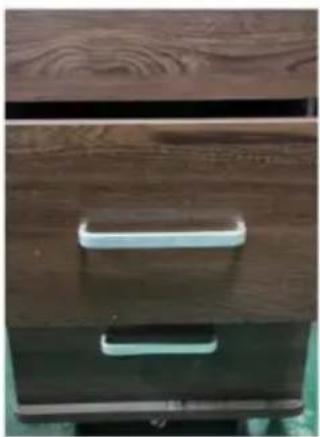

④:Install the handle, and you're done.

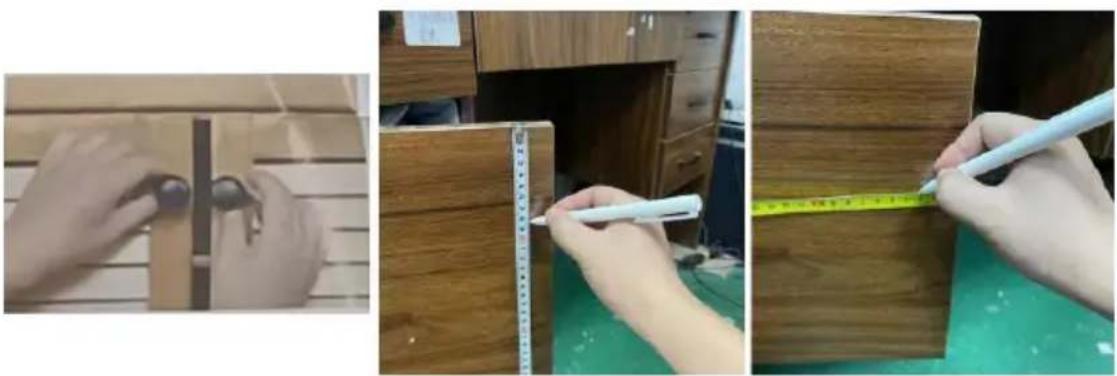

C: KNOB ON DOOR INSTALLATION (Off center of width and height)

Three-panel image showing hands measuring wood panels with a ruler and a measuring tool (no visible text or symbols)

① ② ③

①:Place the knob to find a position you like and mark it.

②:Measure from the top of the door to mark and set Sliding End Stop to the measurement.

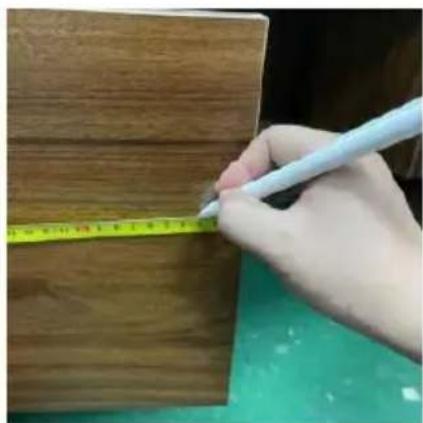

③:Measure from side of door to mark and set Large Stop to the measuremen

Close-up of a wooden register with a ruler and screwdriver, no visible text or symbols

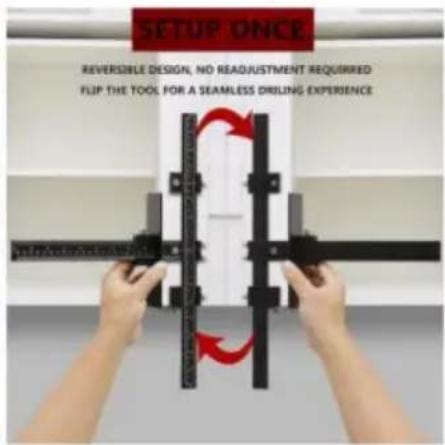

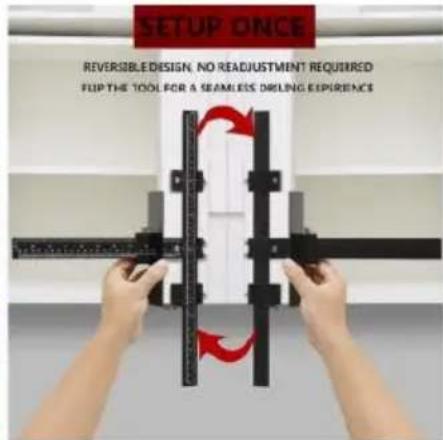

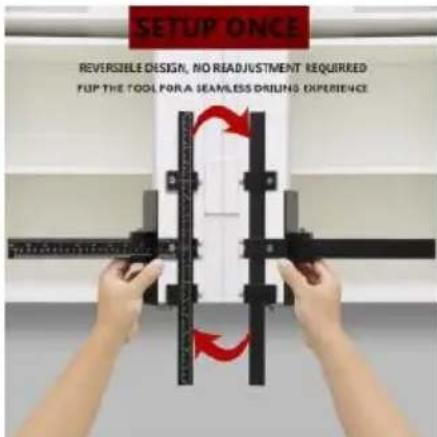

SETUP ONCE REVERSILE DESIGN, NO READJUSTMENT REQUIRED FUP THE TOOL FOR A SEANLESS DRILLING EXPERIENCE

Interior view of a modern kitchen or laundry cabinet with wooden doors and doorways (no visible text or symbols)

④ ⑤ ⑥

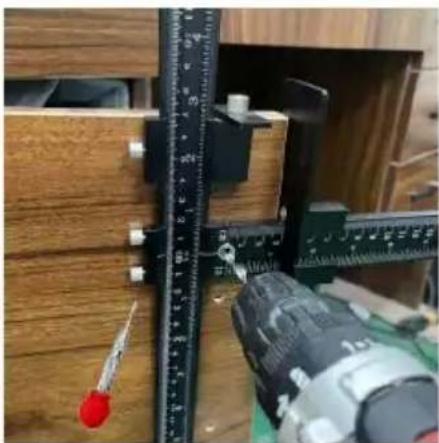

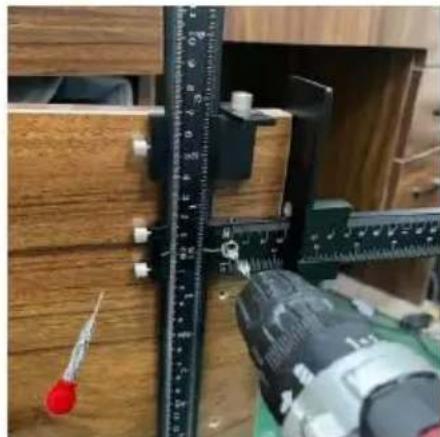

④:Place the tool as picture and drill hole through the drill bushing.

(NOTE: Using a center punch for positioning is more convenient.)

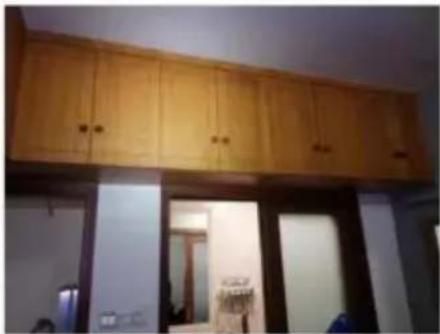

⑤:The flipping tool punches a hole in the other cabinet door.

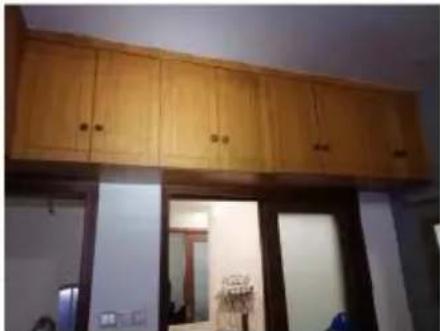

⑥: Install the handle, and you're done.

D:HANDLE ON DOOR INSTALLATION(Off center of width and height)

Close-up of hands holding a wooden cabinet with two white clips (no text or symbols visible)

Hand measuring a ruler with Chinese characters on the ruler, showing measurement markings and a pen.

Hand measuring wood grain with a yellow measuring tape, showing measurement in millimeters

① ② ③

①:Place the handle to find position you like and mark the bottom hole location.

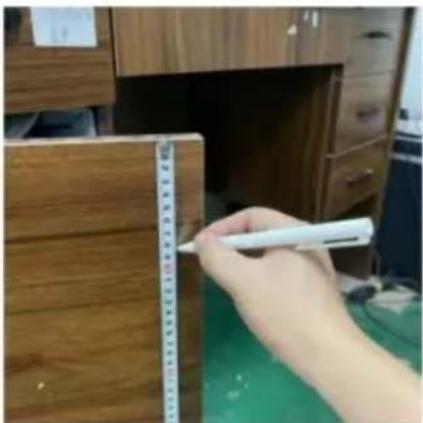

②:Measure from the top of the door to mark and set Sliding End Stop to the measurement.

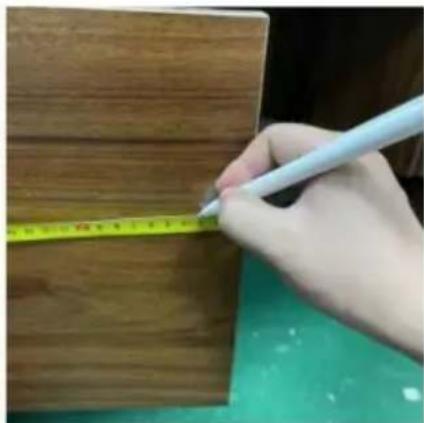

③:Measure from the side of the door to mark and set Large Stop to the measurement.

Close-up of a wooden drawer with a screwdriver and a measuring tool, no visible text or symbols

SETUP ONCE REVERSIBLE DESIGN, NO READJUSTMENT REQUIRED FLIP THE TOOL FOR A SEAMLESS DRILLING EXPRIENCE

DD DD 04 DD 03 DD 03 D D

④ ⑤ ⑥

④:Place the tool as picture and drill hole through the drill bushing.

(NOTE: Using a center punch for positioning is more convenient.)

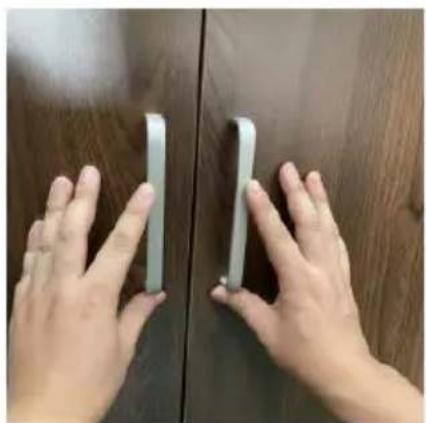

⑤:The flipping tool punches a hole in the other cabinet door.

⑥: Install the handle, and you're done.

MAINTENANCE

1. After each use, please install it in time and keep it properly to avoid losing parts.

2. Clean the surface after each use.
