POCKET HOLE JIG

MODEL:XRS026

1/2 3/4 1 1-1/4 5/8 7/8 1-1/8 1-1/2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this hole jig. Please read all of the ins before using it. The information will help you achieve the best possible results.

	Warning-To reduce the risk of injury, user must read instru manual carefully.
	Warning- Be sure to wear eye protectors when using this
	Caution! Wear a breathing mask. Dust which is injurious health can be generated when working on wood and other materials.

WARNING!

Read and understand all instructions before using this pocket hole jig. The operator must follow basic precautions to reduce the risk of personal injury a damage to the equipment. Keep this manual for safety warnings, precautions, operating or inspection and maintenance instructions.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit and free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the work area.
3. Store unused tools properly in a safe and dry location to prevent rust or damage. Lock pocket hole jig away and keep out of the reach of children.

PERSONAL SAFE TY

WARNING! Always Wear personal protective equipment.

PERSONA L PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection for the eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANS Z87.1 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration.
3. Wear protective clothing designed for the work environment and pocket hol
4. Non-skid footwear is recommended to maintain footing and balance in the environment.

PERSONAL PRECAUTIONS

Control the pocket hole jig, personal movement and the work environment to avoid personal injury or damage to pocket hole jig.

1. Do not operate any pocket hole jig when tired or under the influence of alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the movi parts of a tool. Keep long hair covered or bound.

SPECIFIC SA FETY PRECAUTIONS

1. Use the correct pocket hole jig for the job. This pocket hole jig was des a specific function. Do not modify or alter this pocket hole jig or use it for unintended purpose.
2. Keep body parts away from pinch areas while using.
3. Children are not allowed to operate this product unless accompanied by a adult
4. Pay attention to safety during use to avoid crushing fingers.

WARNING!

DO NOT let comfort or familiarity with product (gained from repeated use) restrict adherence to the tool safety rules. If you use this tool unsafely or inco you can suffer serious personal injury.

Model and Parameters

Model	XRS026
Number of Drilling Holes	2
Number of Chip Removal Holes	2

Structure Diagram

Assorted mechanical tools including a drill bit, pliers, and screws arranged on a wooden surface (no text or symbols visible)

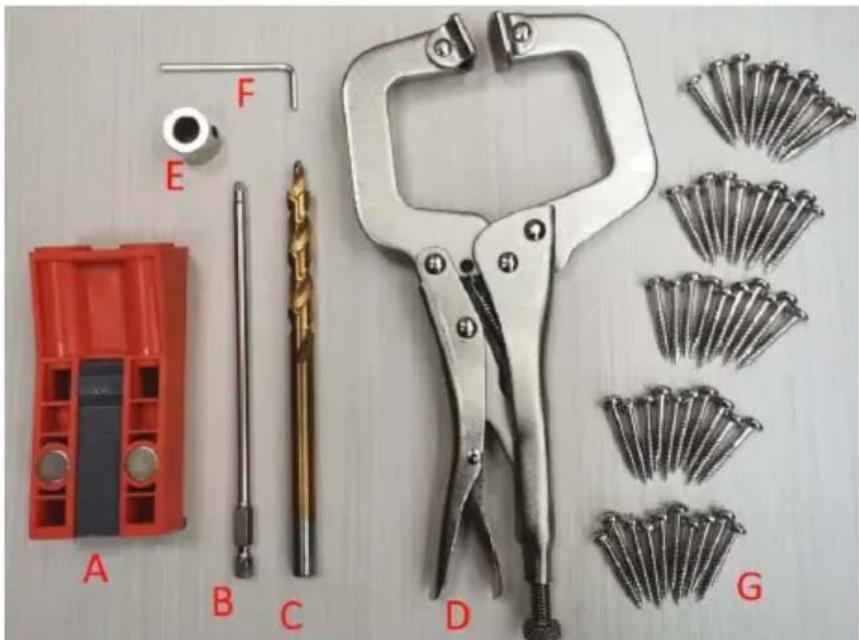

A: 1 x Pocket Hole

B: 1 x Cross Bits

C: 1 x Drill Bits

D: 1 x Clamping Plie

E: 1 x Stop Collar

F: 1 x Hex Key

G: 50 x Screws

Assembly and Use

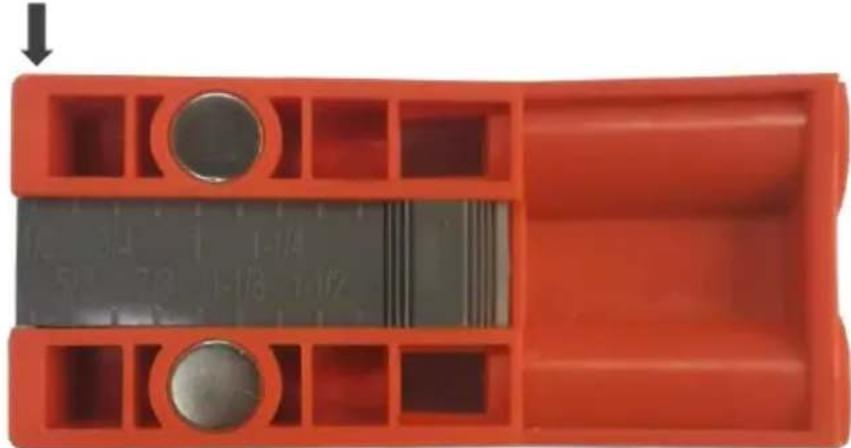

1. Adjustable Thickness Setting

Measure the thickness of your board.

You can quickly adjust the location of the slider according to the thickness c board.

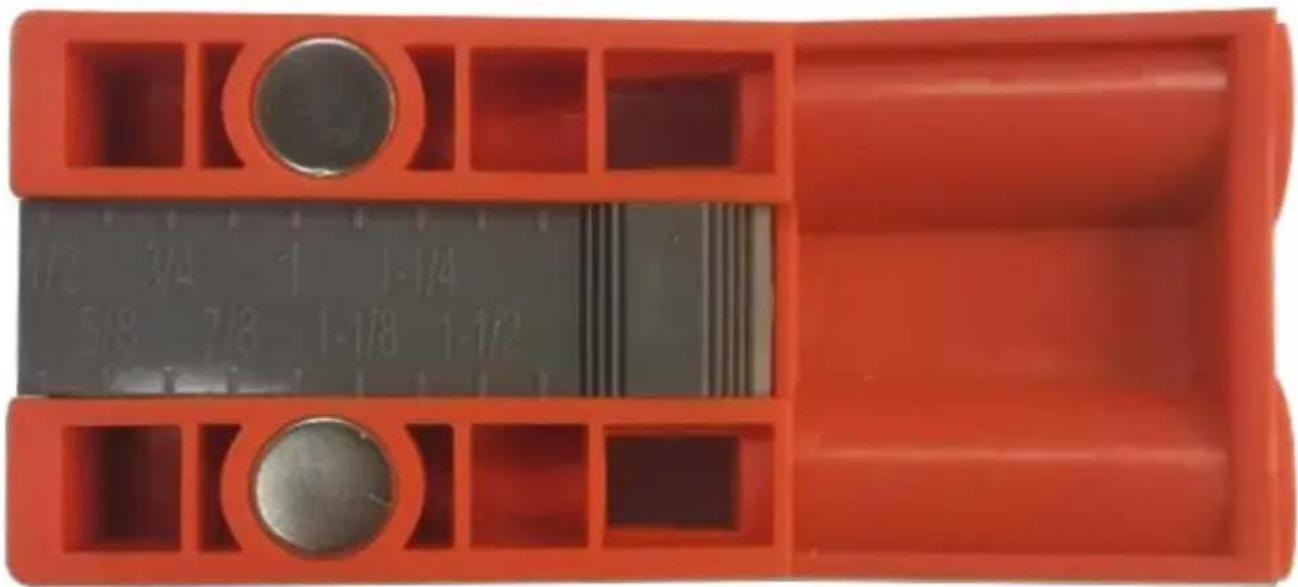

Red plastic tray with metal components and a ruler showing 1.1/4, 1.1/3, 1.1/2 (no text or symbols on the main object)

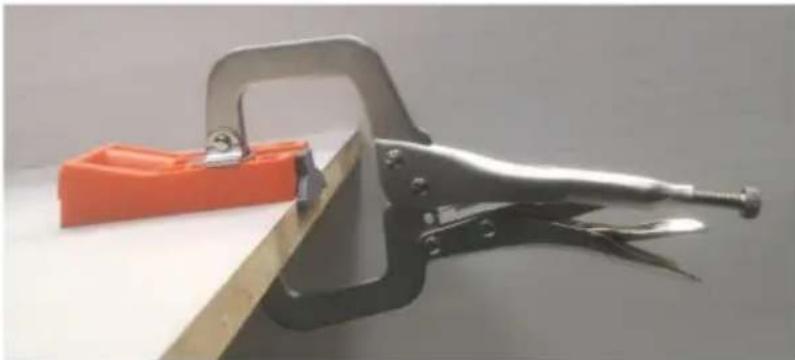

2. Quick Fixture

Adjust the opening size of the pliers by the bolt (slightly less than the thick the plate and fixture combined), Pulling the trigger causes the clamp to be fi

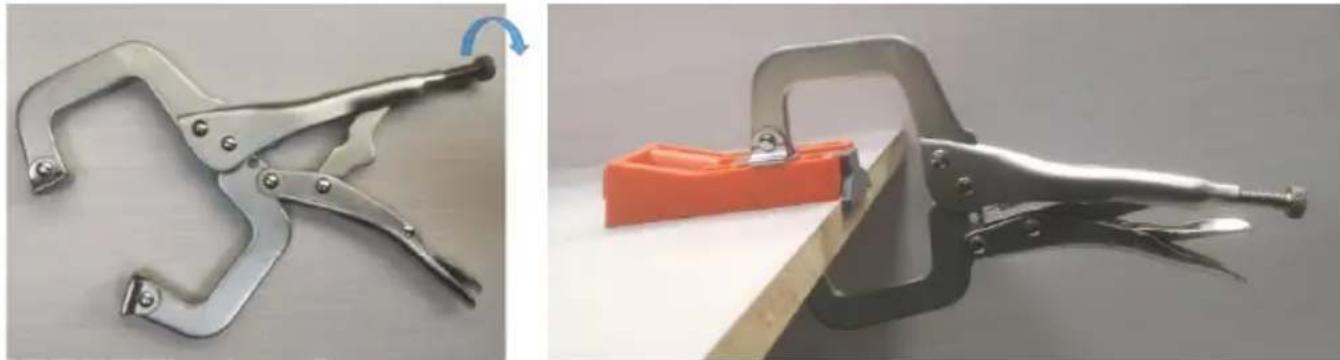

Two metal clampers shown from different angles, one with a blue rotation arrow and the other with an orange bracket (no text or symbols visible)

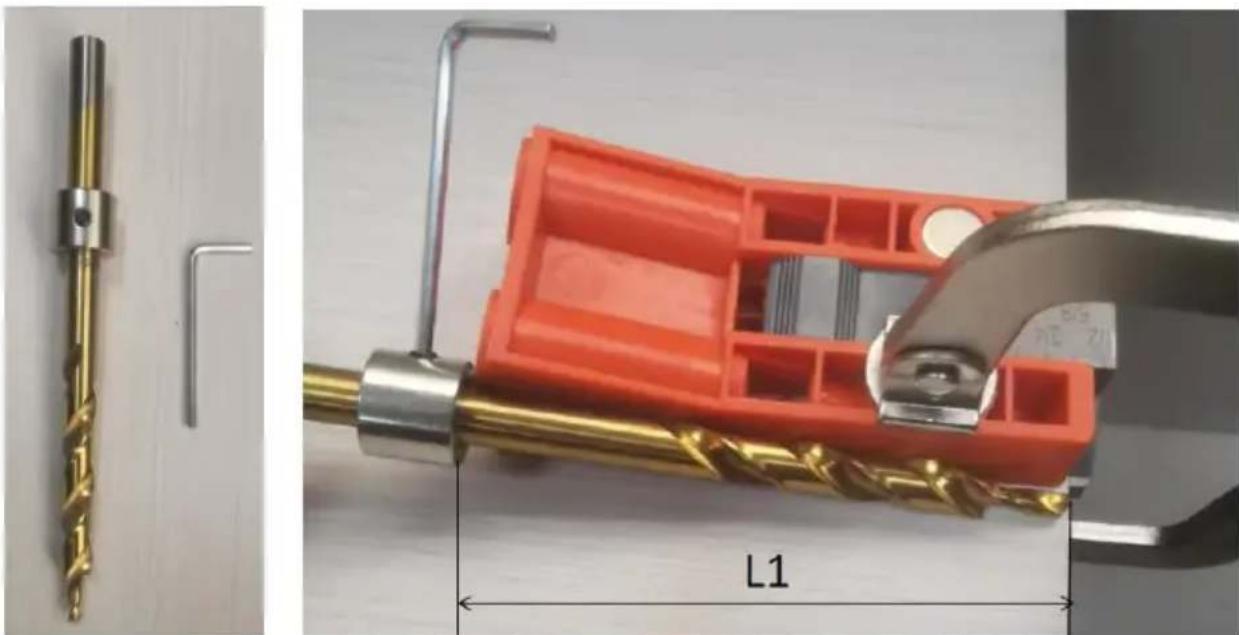

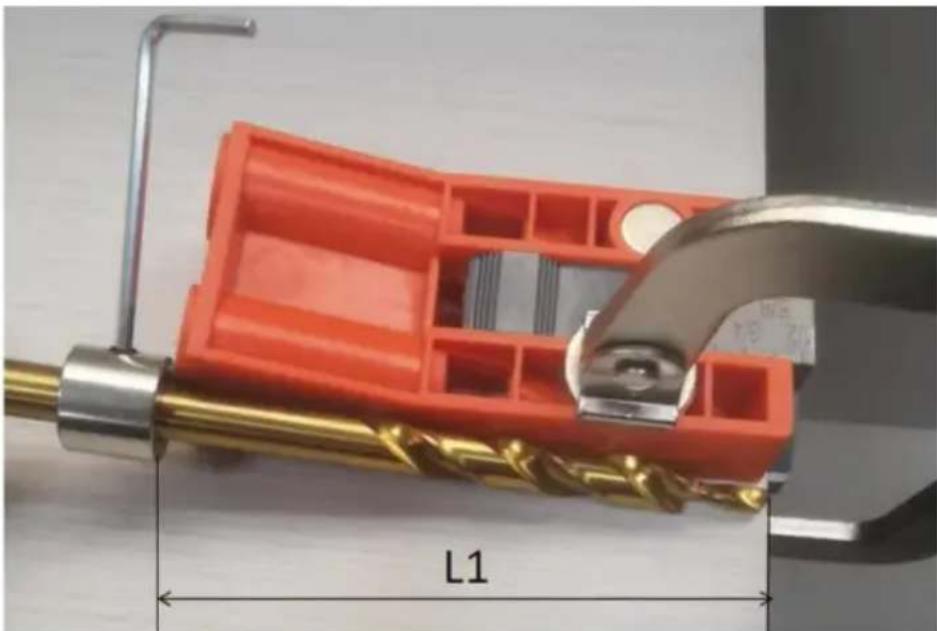

3. Adjust the depth of the hole

The stop collar is locked on the drill bits at a position equal to L1 as show

L1 24.0

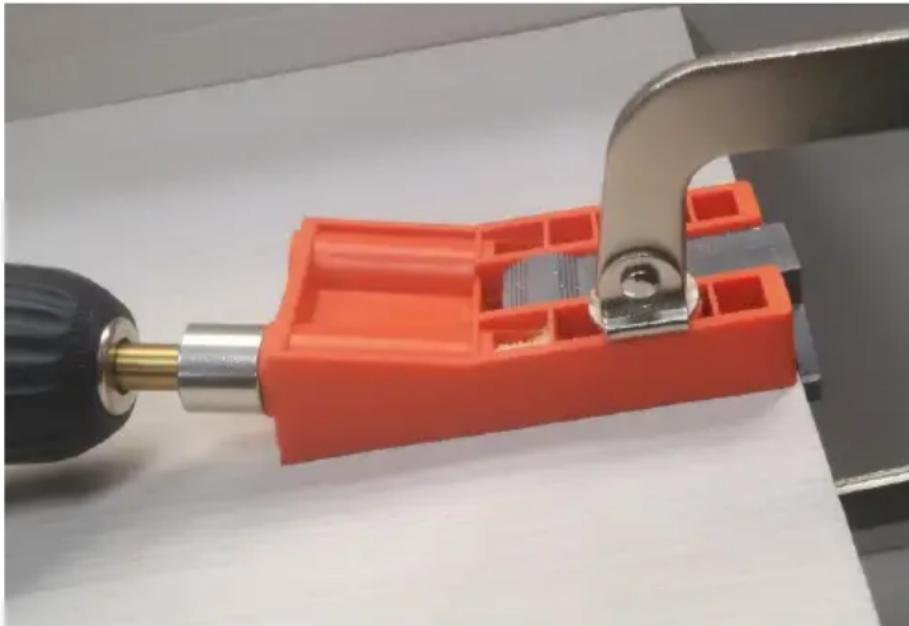

4. Drill hole

Drill depth of hole until the brake ring stops.

Note that the direction of drilling force is parallel to the pilot hole, Continuo operation for a long time will lead to the pilot hole heating and to the disadvantage of lifetime.

Close-up of a red plastic clamp tool with a black head and metal handle, no visible text or symbols

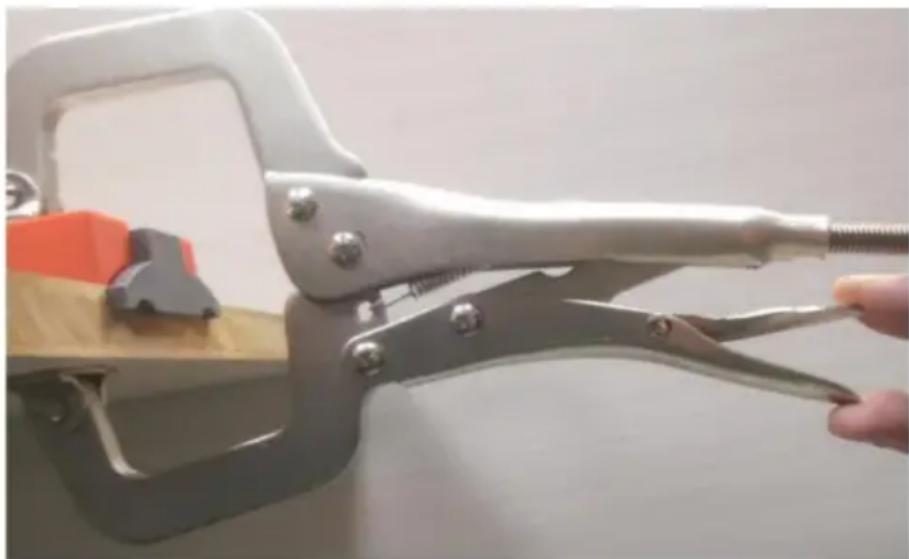

5. Quick release

Close-up of a hand using a metal clamp tool on a wooden surface, with a small inset image of a red and gray component nearby (no text or symbols visible)

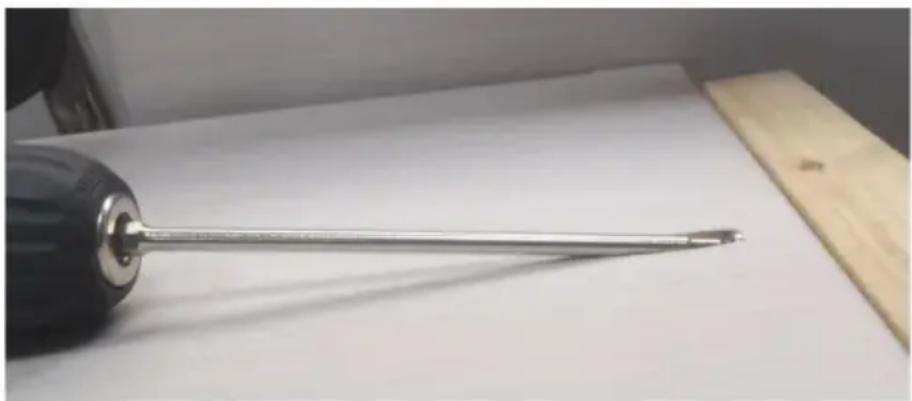

6. Screwing

Close-up of a screwdriver on a wooden surface, no text or symbols visible

Troubleshooting Instruction

Problem Reasons Solution
There are burrs around the hole.	This speed is too slow. Adjust the rotation speed of the screwdriver.
The hole was pierced.	1. The hole was drilled too deep.2. The hole jig is not secured.1. Adjust the stop collar to the proper position or the drill bit.2. Use the pliers to ensure the tool is secured.3. Buy the screws of appropriate length

Maintenance

1. Make sure that the drill is parallel to the direction of force, the hole sleeve easy to wear.
2. Wipe the anti-rust oil after using the drill to avoid rust.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
