USER MANUAL SXRJL-2303 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HINGE JIG

MODEL: SXRJL-2303

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HINGE JIG

MODEL: SXRJL-2303

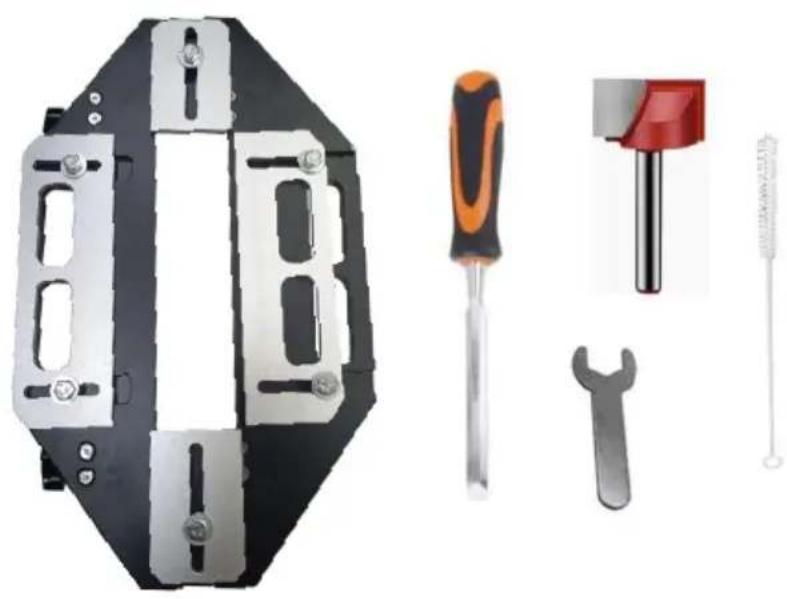

Collection of mechanical tools including screwdriver, wrench, and screwdriver with metal brackets (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Three identical black-and-white icon set of stylized human head and face profiles, no text or symbols present.

WARNING: Always follow basic safety precautions when using these devices. These include:

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields before commencing power tool operation. Always keep hands, face, hair, loose clothing, and bod at a safe distance from spindles and cutting tools. Always keep a firm grip tool handles when in operation. Always disconnect from power source before adjusting power tools.
3. Do not operate the hinge tapper after fatigue or alcohol.
4. Please refer to the manual to install and use the jig.
5. Please always wear eye protection during use.
6. Keep hands and body clear of sharp edges and moving parts.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	SXRJL-2303
Type	Slot Positioning
Max. Clamping Thickness	60mm
Material	Aluminium Alloy
Color	Black

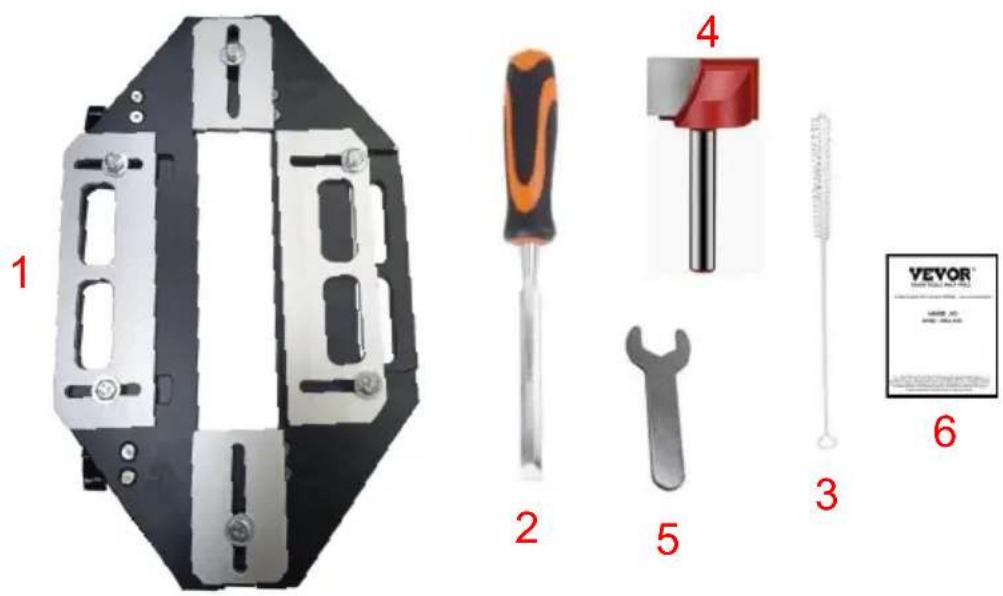

COMPONENTS

1 2 3 4 5 6 VEYOR VAYOR® 2017-09-01 VAVOR® 2017-09-02 VAVOR® 2017-09-03 VAVOR® 2017-09-04 VAVOR® 2017-09-05 VAVOR® 2017-09-06 VAVOR® 2017-09-07 VAVOR® 2017-09-08 VAVOR® 2017-09-09 VAVOR® 2017-09-10 VAVOR® 2017-09-11 VAVOR® 2017-09-12 VAVOR® 2017-09-13 VAVOR® 2017-09-14 VAVOR® 2017-09-15 VAVOR® 2017-09-16 VAVOR® 2017-09-17 VAVOR® 2017-09-18 VAVOR® 2017-09-19 VAVOR® 2017-09-20 VAVOR® 2017-09-21 VAVOR® 2017-09-22 VAVOR® 2017-09-23 VAVOR® 2017-09-24 VAVOR® 2017-09-25 VAVOR® 2017-09-26 VAVOR® 2017-09-27 VAVOR® 2017-09-28 VAVOR® 2017-09-29 VAVOR® 2017-09-30 VAVOR® 2017-09-31 VAVOR® 2017-09-32 VAVOR® 2017-09-33 VAVOR® 2017-09-34 VAVOR® 2017-09-35 VAVOR® 2017-09-36 VAVOR® 2017-09-37 VAVOR® 2017-09-38 VAVOR® 2017-09-39 VAVOR® 2017-09-40 VAVOR® 2017-09-41 VAVOR® 2017-09-42 VAVOR® 2017-09-43 VAVOR® 2017-09-44 VAVOR® 2017-09-45 VAVOR® 2017-09-46 VAVOR® 2017-09-47 VAVOR® 2017-09-48 VAVOR® 2017-09-49 VAVOR® 2017-09-50 VAVOR® 2017-09-51 VAVOR® 2017-09-52 VAVOR® 2017-09-53 VAVOR® 2017-09-54 VAVOR® 2017-09-55 VAVOR® 2017-09-56 VAVOR® 2017-09-57 VAVOR® 2017-09-58 VAVOR® 2017-09-59 VAVOR® 2017-09-60 VAVOR® 2017-09-61 VAVOR® 2017-09-62 VAVOR® 2017-09-63 VAVOR® 2017-09-64 VAVOR® 2017-09-65 VAVOR® 2017-09-66 VAVOR® 2017-09-67 VAVOR® 2017-09-68 VAVOR® 2017-09-69 VAVOR® 2017-09-70 VAVOR® 2017-09-71 VAVOR® 2017-09-72 VAVOR® 2017-09-73 VAVOR® 2017-09-74 VAVOR® 2017-09-75 VAVOR® 2017-09-76 VAVOR® 2017-09-77 VAVOR® 2017-09-78 VAVOR® 2017-09-79 VAVOR® 2017-09-80 VAVOR® 2017-09-81 VAVOR® 2017-09-82 VAVOR® 2017-09-83 VAVOR® 2017-09-84 VAVOR® 2017-09-85 VAVOR® 2017-09-86 VAVOR® 2017-09-87 VAVOR® 2017-09-88 VAVOR® 2017-09-89 VAVOR® 2017-09-90 VAVOR® 2017-09-91 VAVOR® 2017-09-92 VAVOR® 2017-09-93 VAVOR® 2017-09-94 VAVOR® 2017-09-95 VAVOR® 2017-09-96 VAVOR® 2017-09-97 VAVOR® 2017-09-98 VAVOR® 2017-09-99 VAVOR® 2017-10 -

No.	Name	Qty
1	Main body	1
2	12mm Woodworking Chisel	1
3	Hairbrush	1
4	Side Cutter	1
5	Open-end Wrench	1
6	User Manual	1

OPERATION

NOTE:

1. The tool needs to be used with the trimming machine.
2. After completion of slotting, all corners are rounded, you need to cut right angles before installation.

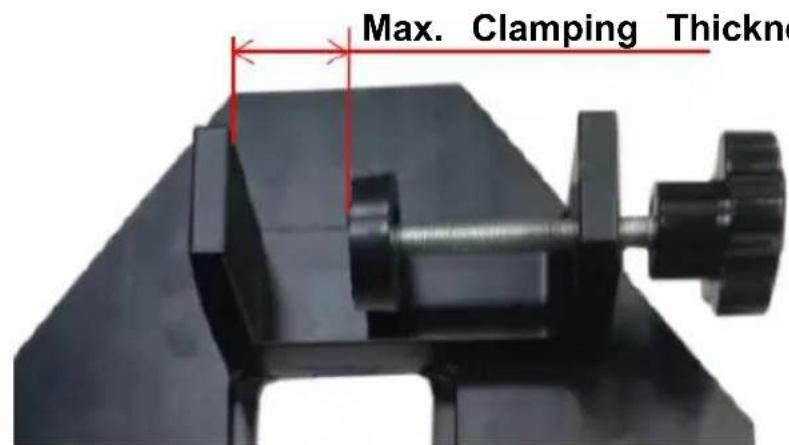

Max. Clamping Thickness

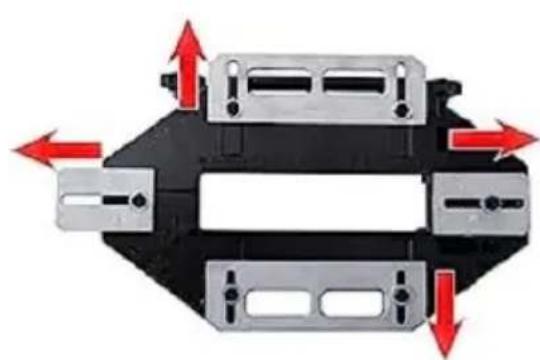

Mechanical component with red directional arrows indicating movement or force (no text or symbols)

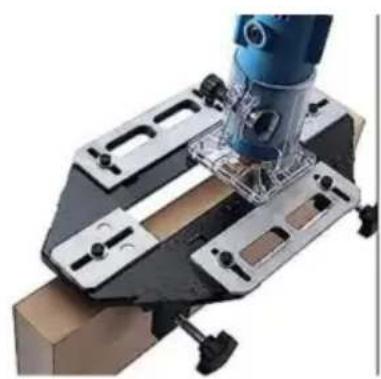

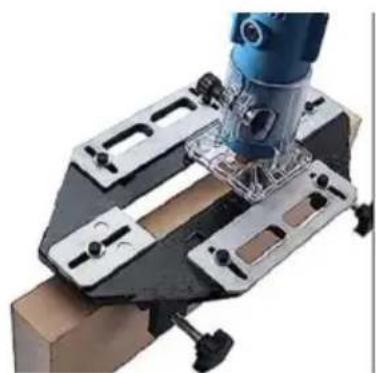

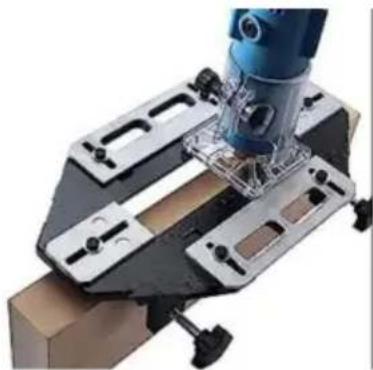

Mechanical setup showing a blue drill bit pressing into a workpiece with metal brackets and a wooden block (no visible text or symbols)

Install the lock body guide plate:

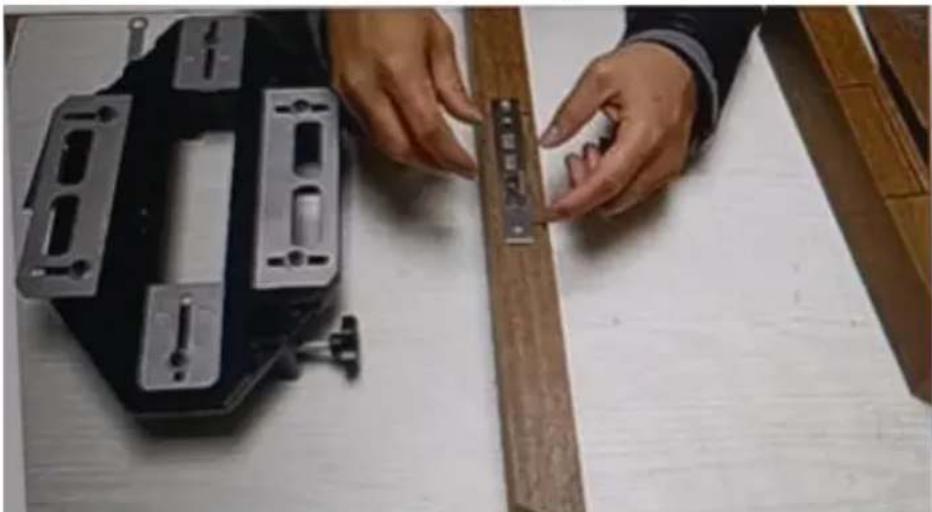

1. Mark the position of the lock body guide plate on the wooden door.

Close-up of hands assembling a wooden ruler and metal bracket on a workbench (no text or symbols visible)

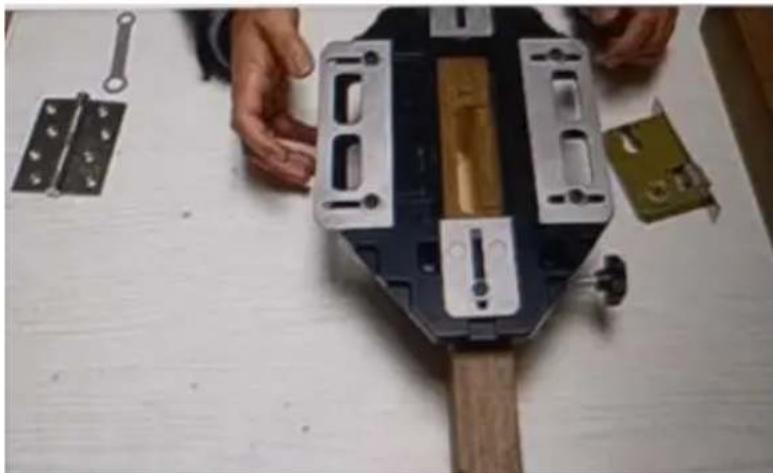

1. Put the slotted retainer on the wooden door and fix it (Clamp by tightening the black nuts.)

Close-up of hands assembling a mechanical component with metal brackets and a wooden base (no visible text or symbols)

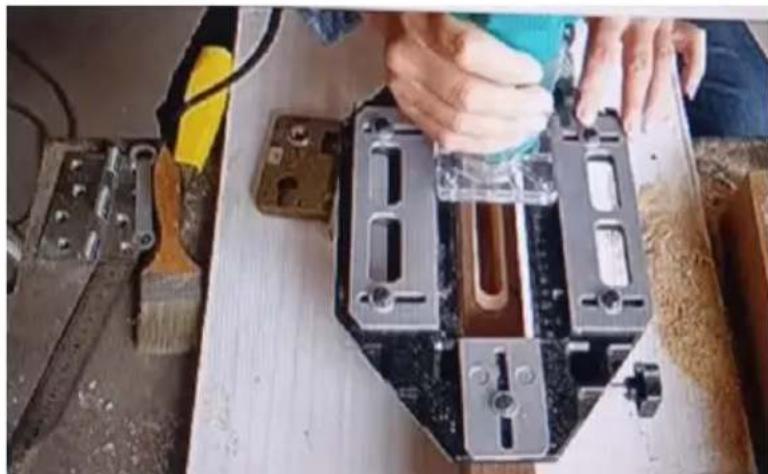

1. Using the wood router to slot.

Close-up of hands assembling or repairing a mechanical component on a workbench (no visible text or symbols)

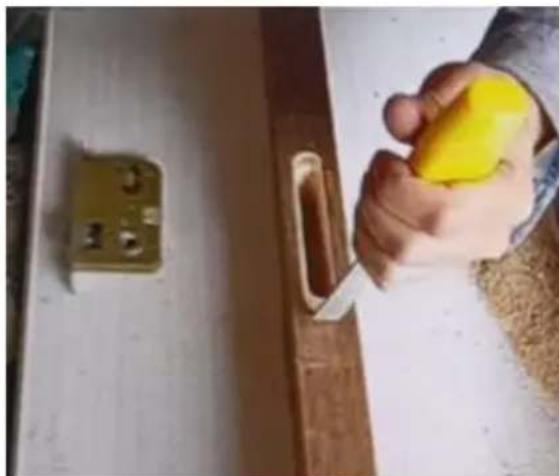

1. Use a chisel to chisel away the curved part to make the edge flat.

Close-up of a hand holding a yellow tool next to a small wooden door handle and a small metal bracket (no text or symbols visible)

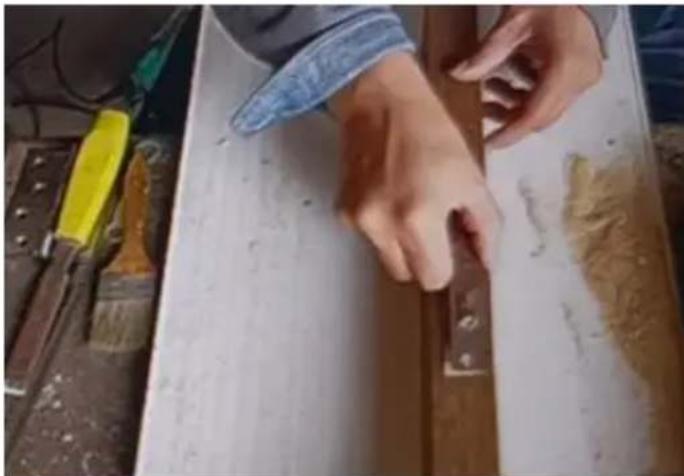

1. Complete the slot and install the lock body guide plate.

Close-up of hands working on a wooden panel with tools and debris in the background (no visible text or symbols)

Install the hinge:

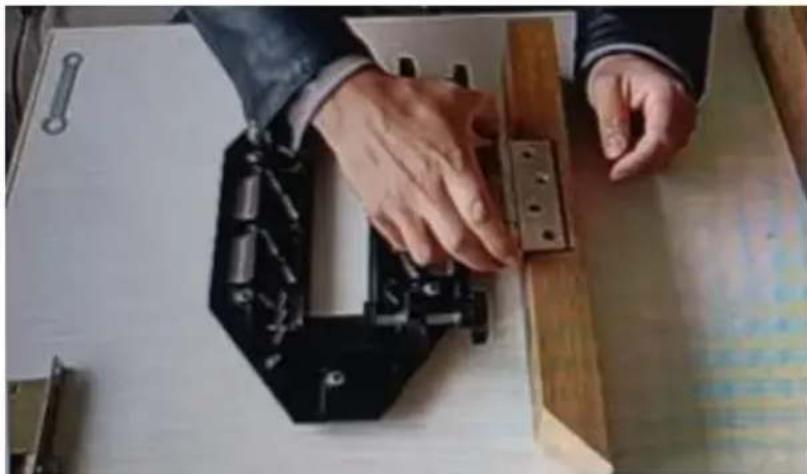

1. Mark the position of the hinge on the wooden door.

Person assembling a black mechanical bracket on a wooden workbench (no visible text or symbols)

1. Put the slotted retainer on the wooden door and fix it (Clamp by tightening the black nuts.)

Person assembling a mechanical device with metal brackets and a transparent casing (no visible text or symbols)

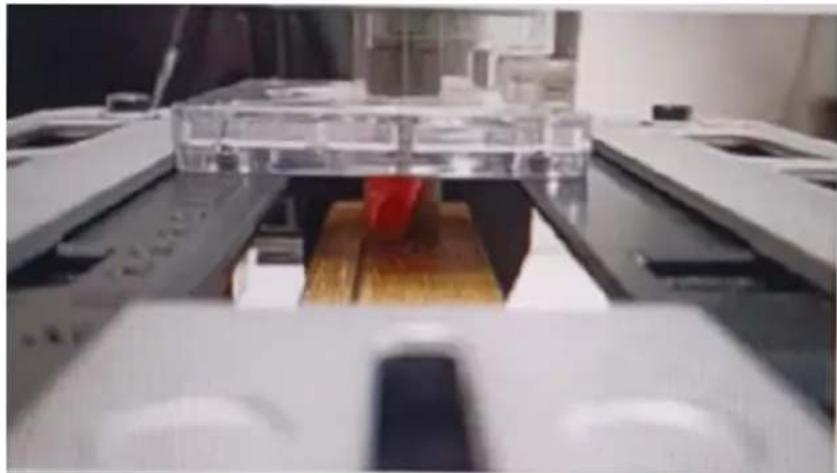

1. Adjust the screws on the four sides to determine the working range of the wood router.

Close-up of a printer's front panel with transparent plastic case and wooden base (no visible text or symbols)

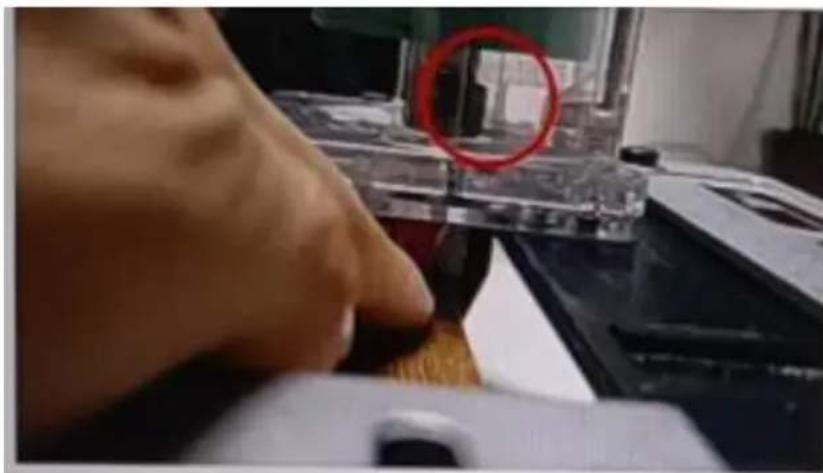

1. Adjust the depth of the blade of the wood router, and set the blade to extend beyond the edge of the door.

Close-up of a hand pressing down on a mechanical component, with a red circle highlighting a specific area (no visible text or symbols)

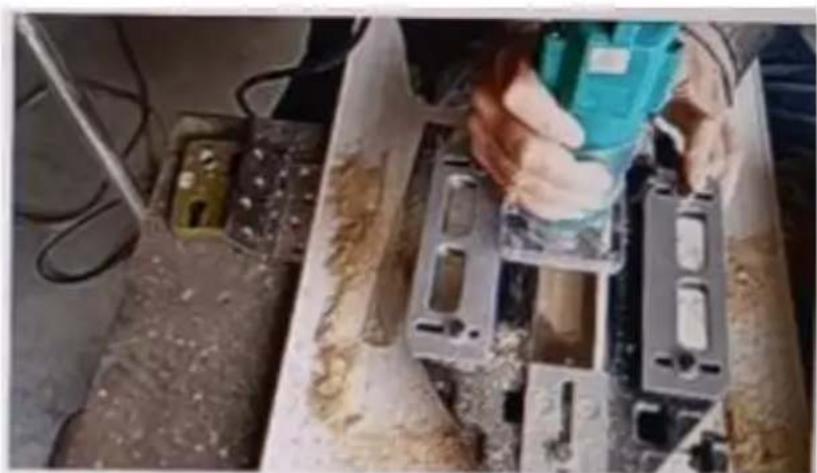

1. Slotting with the wooden router.

Person working inside a white plastic enclosure with exposed wiring and debris (no visible text or symbols)

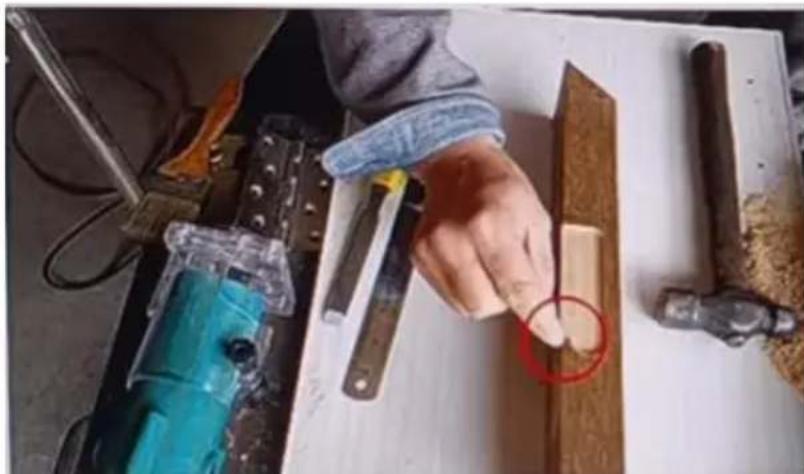

1. There is a certain chance that the edge of the door will be damaged when grooving (The material of the wood and the work of the cutter head may cause it), so don't hollow out all the wood at the edge.

Close-up of a hand using a tool on a workbench with tools and a red circle highlighting a small object (no visible text or symbols)

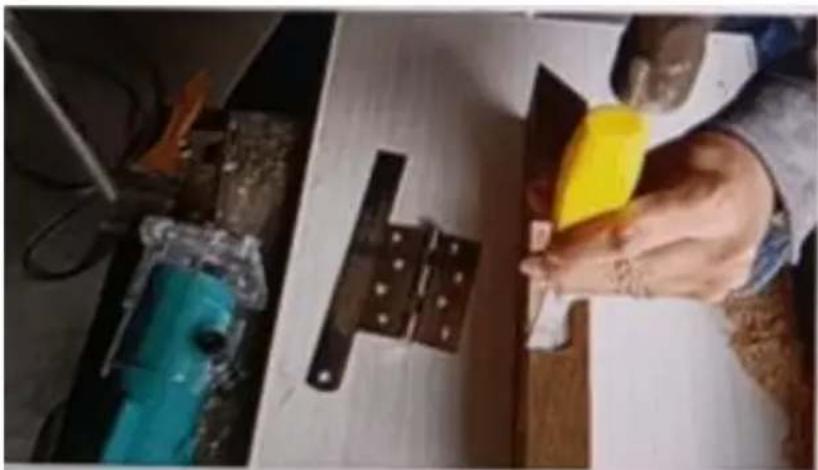

1. Use a chisel to chisel off the curved and reserved sections, makina sure the edges are flat.

Person assembling electronic components on a workbench (no visible text or symbols)

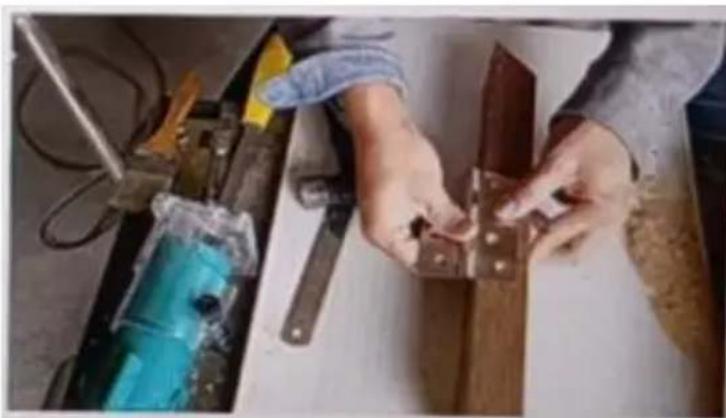

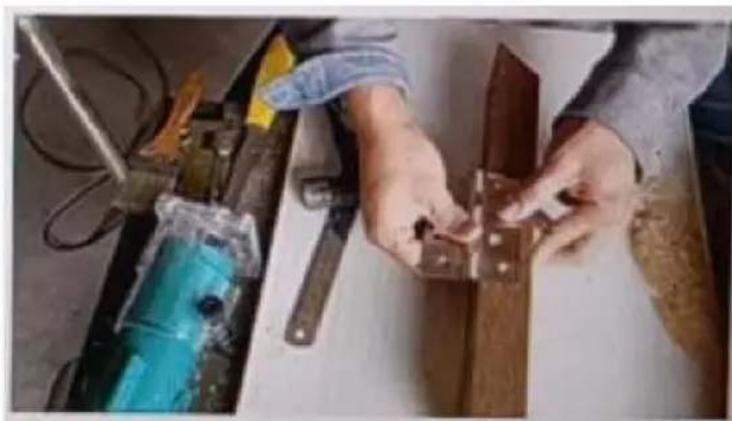

1. Finish slotting and install the hinge.

Close-up of hands assembling metal components on a workbench, with tools and a blue tool visible (no text or symbols)

MAINTENANCE

1. After each use, please install it in time and keep it properly to a losing parts.
2. Clean the surface after each use.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road. Staines-upon-Thames. Surrey. TW18 4
