SPT-605-12 - Storage furniture Vevor - Free user manual and instructions

Product Type	Rolling Server Cabinet (Storage Cabinet)
Brand	Vevor
Model	SPT-605-12
Capacity	12U (standard rack units)
Approximate Dimensions	Height: 53 cm, Width: 60 cm, Depth: 60 cm
Approximate Weight	20 kg
Main Material	Steel
Color	Black
Casters	4 swivel casters with brakes
Main Functions	Storage and mounting of 19-inch server equipment, mobility thanks to casters
Package Contents	Top panel, bottom panel, corner brackets (4), side panels (2), 1U blank panel, casters (4), screws and hardware
Assembly	Requires 2 people, Phillips screwdriver and 14 mm wrench
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Ensure even load distribution. Do not exceed the maximum load capacity (estimated 100 kg).
Spare Parts and Repairability	Casters, screws and nuts available as spare parts. Contact Vevor support.
Warranty	Electronic warranty certificate available at www.vevor.com/support
Technical Support	www.vevor.com/support

Frequently Asked Questions - SPT-605-12 Vevor

How to assemble the Vevor SPT-605-12 server cabinet?

Assembly requires two people. First attach the casters to the bottom panel with a 14 mm wrench, then install the corner brackets, side panels, top panel, and finally the 1U blank panel. Use a Phillips screwdriver for M5 and M6 screws. See the diagram in the manual.

What are the exact dimensions of the SPT-605-12?

The approximate dimensions are: height 53 cm (12U), width 60 cm, depth 60 cm. The exact dimensions are indicated in the downloadable manual.

What is the maximum weight supported by the cabinet?

The maximum load capacity is not specified in the excerpt, but for a 12U steel cabinet, it is generally around 100 kg, to be evenly distributed.

How to install equipment in the rack?

Use the supplied M6 cage nuts: insert the wing into the back of the hole, then align the equipment and screw with M6 Phillips screws. Tighten with a screwdriver.

Are the casters braked?

Yes, the swivel casters are equipped with brakes to ensure the stability of the cabinet once positioned.

Can I use this storage cabinet for something other than servers?

Yes, it can be used for storing any standard 19-inch equipment or as a sturdy shelf. Make sure not to exceed the load capacity.

How to clean the cabinet?

Use a soft, dry cloth to dust. For stains, a little soapy water then dry. Avoid corrosive products.

Where to find the complete user manual?

The complete PDF manual is available free of charge on notice-facile.com and on the Vevor support site (www.vevor.com/support).

Is the cabinet delivered with assembly instructions?

Yes, an illustrated assembly manual is included in the package. It details each step with diagrams.

How to contact Vevor technical support?

Go to www.vevor.com/support to access technical support and the electronic warranty certificate.

USER MANUAL SPT-605-12 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

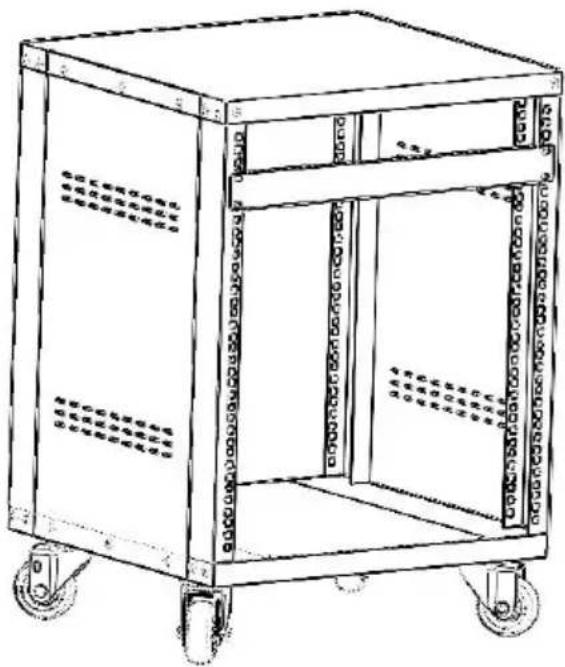

Rolling Server Rack Cabinet

Model: SPT-605-12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

Line drawing of a multi-tiered industrial storage unit with wheels and internal compartments (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

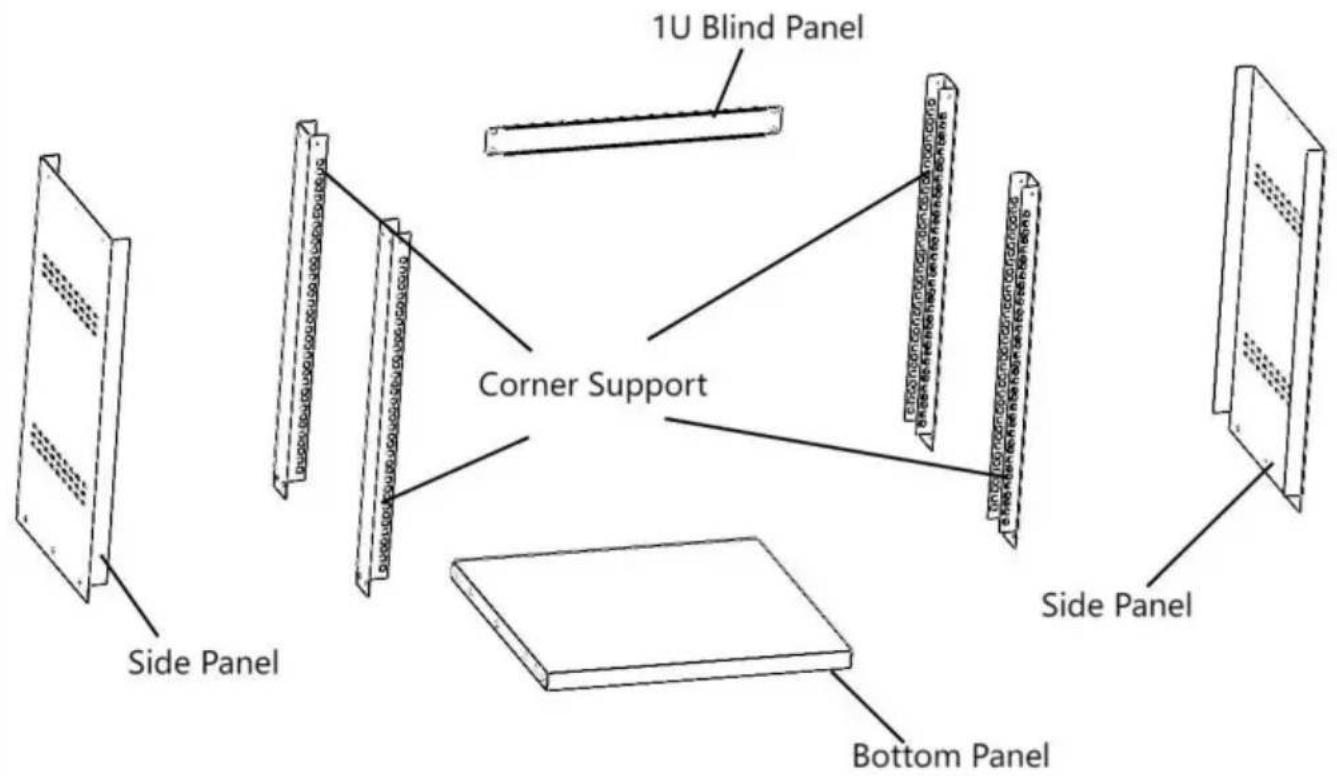

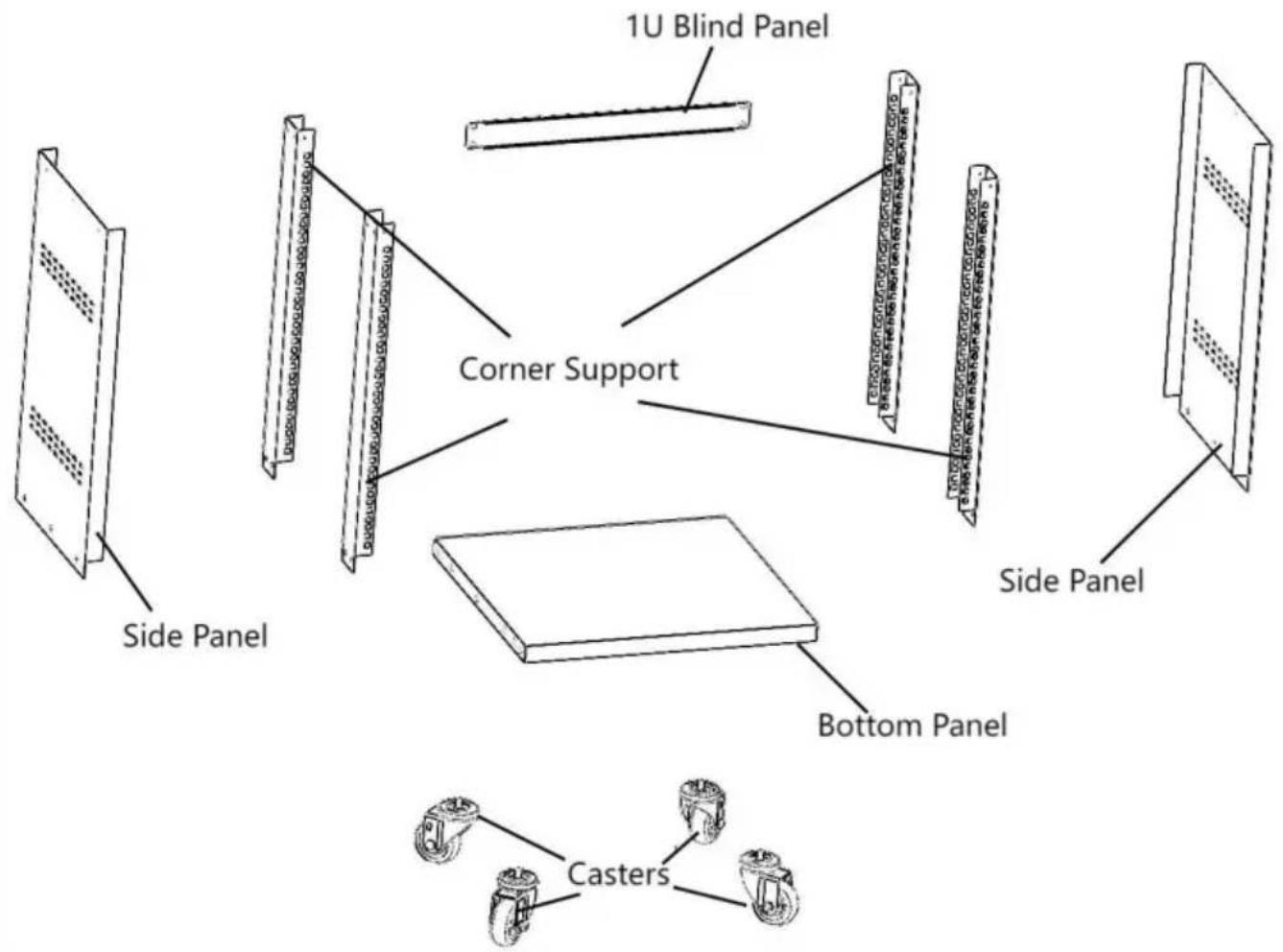

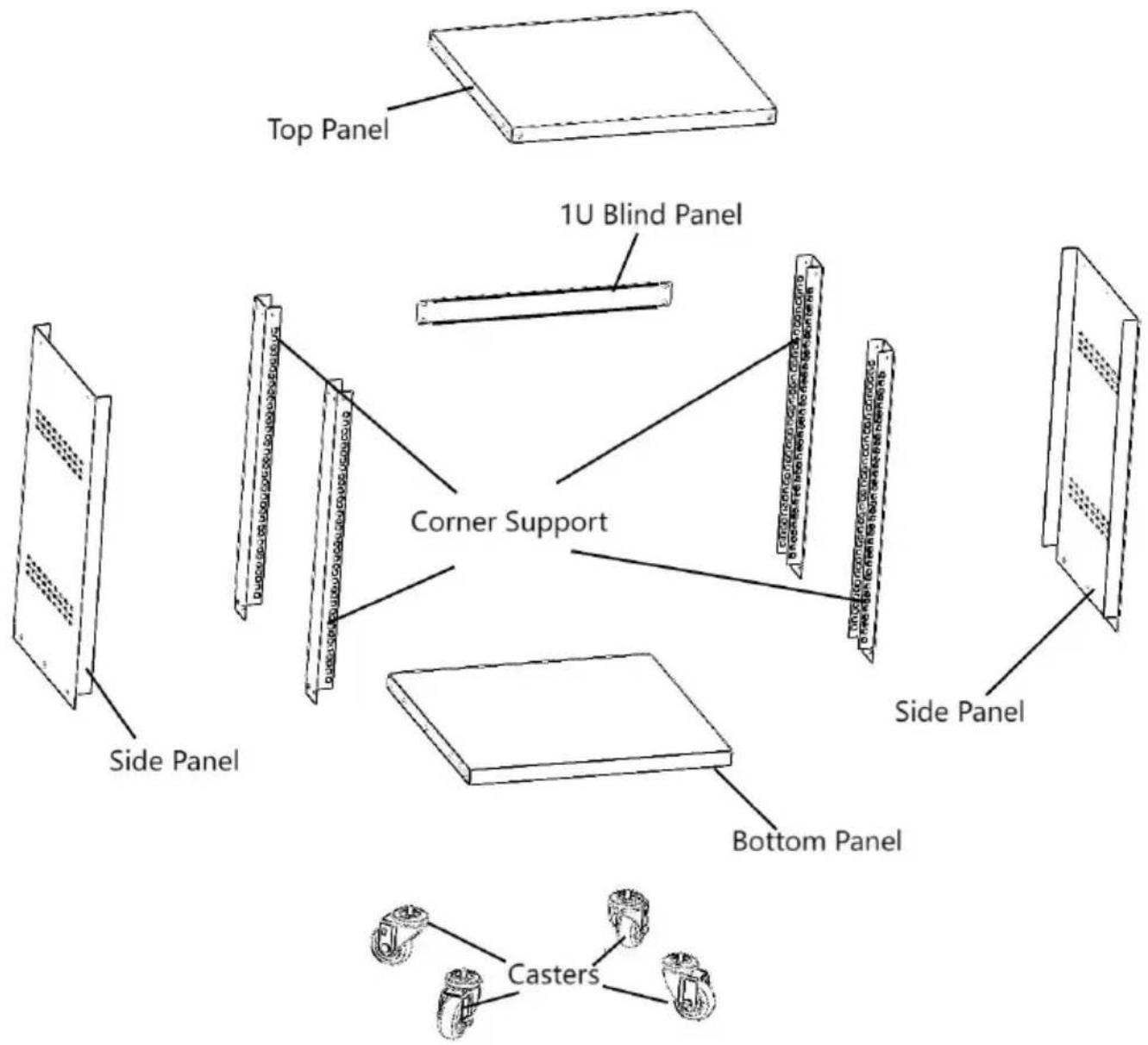

PRODUCT DIAGRAM

• Top Panel x1
• Bottom Panel x1
• Corner Support x4
• Side Panel x2
  ● 1U Blind Panel x1
• Casters x4

SPECIFICATION DATA

Name	Wall Mount Server Rack
Model	SPT-605-12
Material	Cold Roll Steel
Color	Black
Installation Width Standard	19"
Depth	18"(455mm)
Mounting Height	12U
Ground-Mounted Load-Bearing	500 lbs
Product Size(L*W*H)	510*460*700mm
Product Weight	11.55Kg
Accessories	40 x M5 assembly fix screws; 12 x M6 cage nuts; 12 x M6*12 cross head screws; 4 x casters; 1 x 14mm spanner; 1 x Instruction manual.

REQUIREMENT

Silhouette of a handheld electric drill bit (no text or symbols)

Metal wrench tool with a curved handle and flange (no text or symbols visible)

● Two People (for assembly)
● Electrical Phillips Head Screwdriver x 1
● 14mm Spanner (parts package has included)

SERVER RACK INSTALLATION

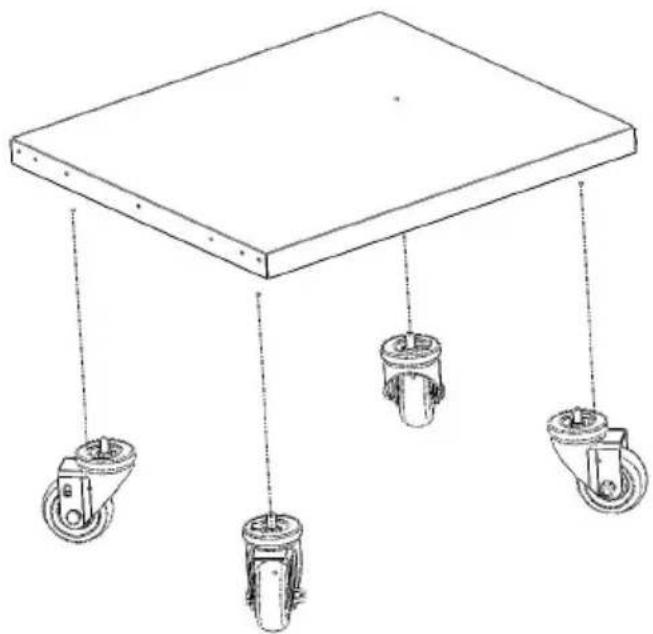

1. Place Casters on the bottom of the Bottom Panel, screw them with rack's bottom nuts. Tighten them by 14mm spanner. See Figure 1.

Simple line drawing of a rectangular frame with three hanging wheels, no text or symbols present

Figure 1

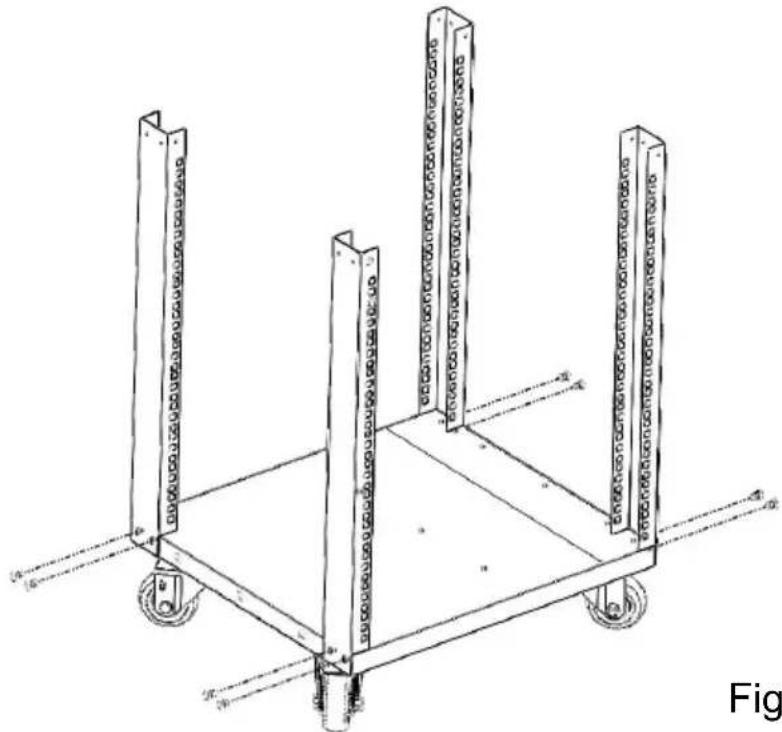

1. Align the Corner Support with Bottom Panel, Secure with 2pcs M5 Cross Head Screws by electrical screwdriver.then adopts same step to the rest of 3pcs Corner Support.See Figure 2.

Notes: during assembly, need notice the Corner Support direction, make sure the vertical mounting holes are aligned.

Technical line drawing of a wheeled cart with vertical supports and wheels, no text or symbols present

Figure 2

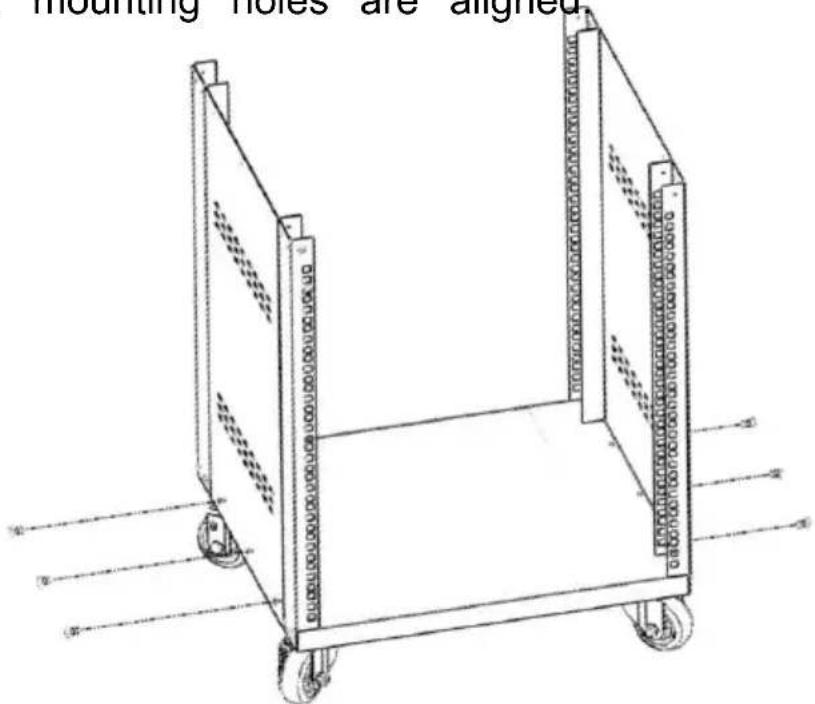

1. Align the Side Panel with Bottom Panel, Secure with 3pcs M5 Crack Head Screws by electrical screwdriver.then adopts same step to fix an Side Panel.See Figure 3.

Notes: during assembly, need notice the Side Panel direction, make sure the vertical mounting holes are aligned.

Figure 3

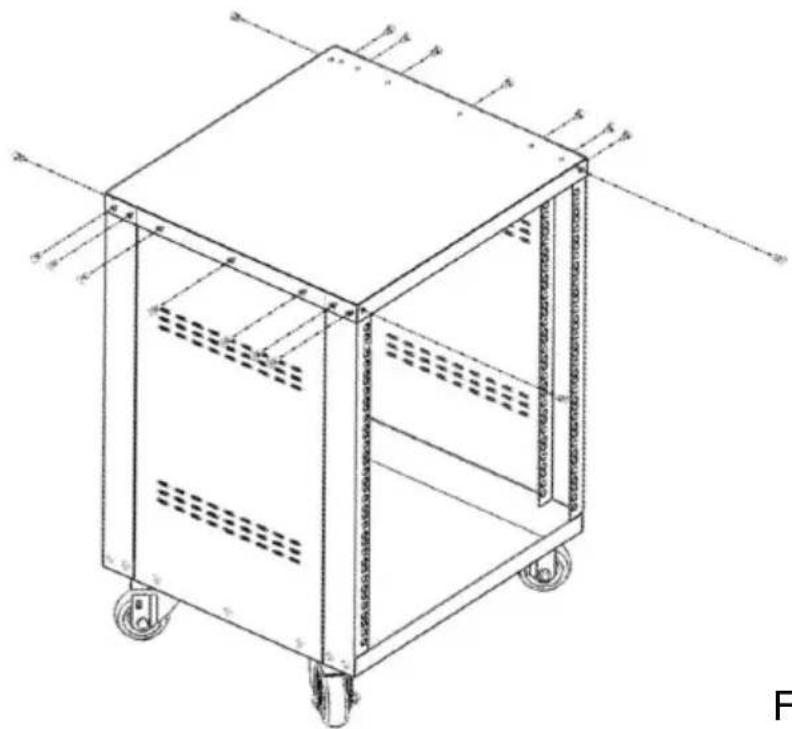

1. Put Top Panel on the top of the rack, Align the Top Panel with Support and Side Panel, Secure with 18pcs M5 Cross Head Screws electrical screwdriver. See Figure 4.

Technical line drawing of a modular server rack unit with wheels and ventilation slots (no text or symbols)

Figure 4

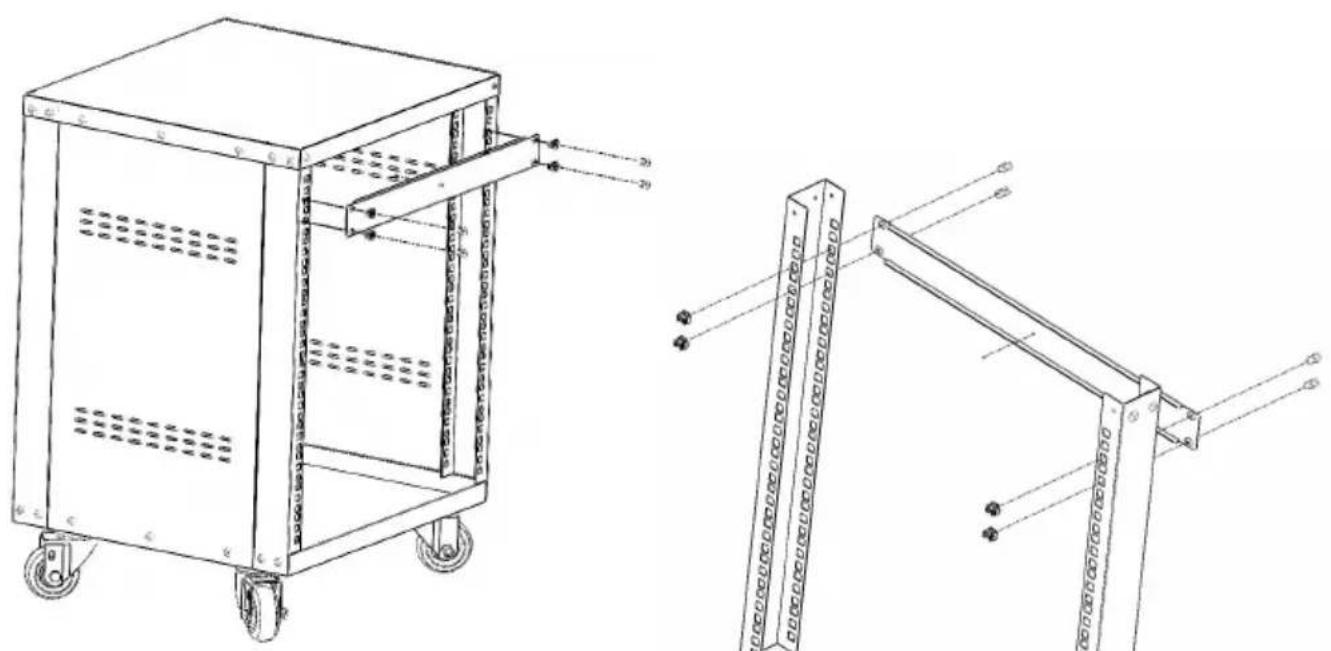

1. Place 1U Blind Panel on the Rack. Secure with the 4pcs M6 Cag and 4pcs M6*12 cross head screws. See Figure 5.

Technical line drawing of a two-wheeled industrial cart with mounting brackets and wheels (no text or symbols)

Figure 5

EQUIPMENT INSTALLATION

Use the included M6 cage nuts, screws to install equipment into the v mount server rack.

1. Insert the wing(side) of an M6 cage nut into the back of the desir nut hole.
2. Apply pressure by hand or with the cage nut tool, to insert the sewing of the M6 cage nut into the desired cage nut hole.
3. Repeat steps 1 and 2 to insert the desired number of cage nuts application.
4. Align the Mounting holes in the equipment with the M6 cage nuts installed in steps 1-3.
5. Thread an M6 screws, Repeat until the desired number of M6 screw have been prepared.
6. Tighten the screws, using a phillips head screwdriver.
