Product Type	Foosball (Table Football)
Brand	Vevor
Model	SUO-4824F7
Number of Players	2 to 4 players
Number of Rods	8 rods (2 two-player rods, 2 three-player rods, 2 five-player rods, 2 goalkeeper rods)
Players Included	22 pieces (11 blue, 11 black)
Balls Included	2 balls
Goals Included	2 goal boxes
Handles Included	8 handles with end caps
Table Surface Material	Composite wood
Rod Material	Steel
Assembly Required	Yes, recommended two adults
Recommended Age	3 years and up (not suitable for children under 3 due to small parts)
Safety	Choking hazard, small parts. Do not use outdoors in rainy weather.
Maintenance and Cleaning	Clean with a soft, non-abrasive cloth. Avoid excessive moisture.
Support	www.vevor.com/support
Warranty	Electronic warranty certificate available on Vevor website
Country of Manufacture	China (Shanghai)

Frequently Asked Questions - SUO-4824F7 Vevor

How to assemble the Vevor SUO-4824F7 foosball table?

Assembly requires two adults. Follow the steps in the manual: attach the aprons, insert the playing field, mount the legs and supports, then install the rods and players. Use the provided tools (wrench, Allen key). Do not overtighten screws initially.

What safety precautions should be taken?

Not suitable for children under 3 years (choking hazard). Supervise young children. Do not use outdoors in rainy weather. Do not sit on the table. Ensure all parts are securely fastened before each use.

How to clean the foosball table?

Use a soft cloth and non-abrasive cleaner. Avoid excess water. Do not use harsh chemicals. Dry immediately.

What to do if a part is missing or damaged?

Contact customer service via www.vevor.com/support. Refer to the parts list in the manual to identify the part number.

How many people can play at the same time?

The foosball table allows 2 or 4 players (two teams of 1 or 2 players). Each team controls the rods on one side.

Are the rods adjustable in height?

No, the rods are fixed. The table is designed for standing use. The standard height is approximately 80 cm (estimated).

Can I use the foosball table outdoors?

It is not recommended to use it outdoors, especially in rainy or humid weather, as it could damage the table surface and metal parts.

How to attach the handles to the rods?

Place the handles (#25) and end caps (#26) onto the rods. To make installation easier, spray a little glass cleaner on the rod ends before pushing on the handles.

Does the foosball table come with a warranty?

Yes, an electronic warranty certificate is available. You can obtain it and get technical support at www.vevor.com/support.

What tools are provided for assembly?

The kit includes a wrench (No. 14) and an Allen key (No. 28). Bolts and screws are included.

USER MANUAL SUO-4824F7 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TABLE SOCCER

MODEL:SUO-4824F7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

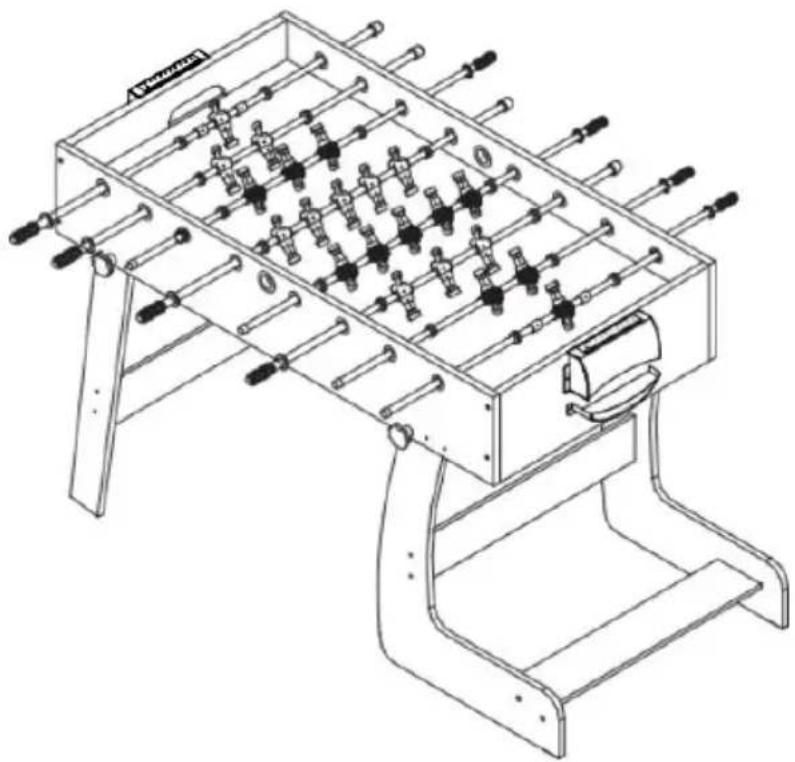

MODEL: SUO-4824F7

Line drawing of a two-fogging iron feeder with multiple bolts and a handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your product.

Warning-To reduce the risk of injury, user must read in manual carefully.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use manual will outline safety warnings and precautions, operating, maintenance. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Can and common sense are not built into this product, since we believe uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.

2. Do not assemble when tired or when under the influence of alcohol drugs or medication.

3. Weight and elastic and other product properties are only applicable correctly and completely assembled products.

4. Keep the assembly area clean and well-lit.

5. Keep bystanders out of the area during assembly.

6. This is a equipment, not a toy, it needs to be used under the g a professional. Do not allow children and pets to play alone or appro this item.

7. Use as intended only. Do not sit or stand on the product.

8. Inspect before every use. Do not use it if parts are loose or dan

9. Do not apply this unit to any other purposes than the indicated u

10. Do not use it for commercial purposes.

11. Do not clean it with any abrasive material.

12. Never leave it unattended while in use.

13. Pet urine and feces can damage the product, please keep away.

14. Do not place the product on or near hot air, electric burners or 15. Young children should be supervised to ensure that they do not with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes falls. People or pets hanging on the product will cause injury or death

Warning symbol image with exclamation mark inside triangle

WARNING: Choking Hazard--Toy contains small balls and/or small parts. Not for children under 3 years.

IMPORTANT! Please keep your instructions. Before attempting assembly, please read through this instruction

book to familiarize yourself with all the parts and assembly steps. We recommend that two adults assemble the football table. Please refer to parts list below and be sure that all parts have been included.

PARTS LIST

PARTS LIST
SIDE APRON2EA	2END APRON2EA	3SOCCERPLAYFIELD1EA	4LEG2EA	5LEG2EA	6END LEG BRACE3EA
UPPORT BRACE2EA	86X35MM BOLT4EA	9[642V]18X6.5MMWASHER8EA	10[1340]-3.5 X 35MMWASHER HEADSCREW24 EA	11Goal box2EA	12-3.5 X 12MMWASHER HEADSCREW8EA
13M6 NUT4EA	14WRENCH1EA	156X30MM WINGBOLT4EA	16[H430]3.5x18MM ROUNDHEAD SCREW26EA	17-2 PLAYER ROD2EA	182 PLAYER ROD2EA
3 PLAYER ROD2EA	5 PLAYER ROD2EA	21PLAYER(BLUE)11EA	22PLAYER(BLACK)11EA	23STOP RLNG4EA	24RUBBERBUMPER16EA
25HAND GRIP8EA	26END CAP8EA	27SOCCER BALL2EA	28ALLEN WRENCH1EA

AND GRIP 8EA
END CAP 8EA
SOCCER BALL 2EA
ALLEN WRENCH 1EA

ASSEMBLY INSTRUCTIONS:

We recommend that two adults work together to assemble this ga

1) Open the carton of your new football table close to the place where actually going to use the table.
2) Remove all the contents from inside the cartons and verify that you have all the listed parts as shown on the parts list. We suggest that the bottom carton as a clean flat working area to protect the table. C cut or tear the four carton corners from the largest carton so that the bottom carton is now your work area.

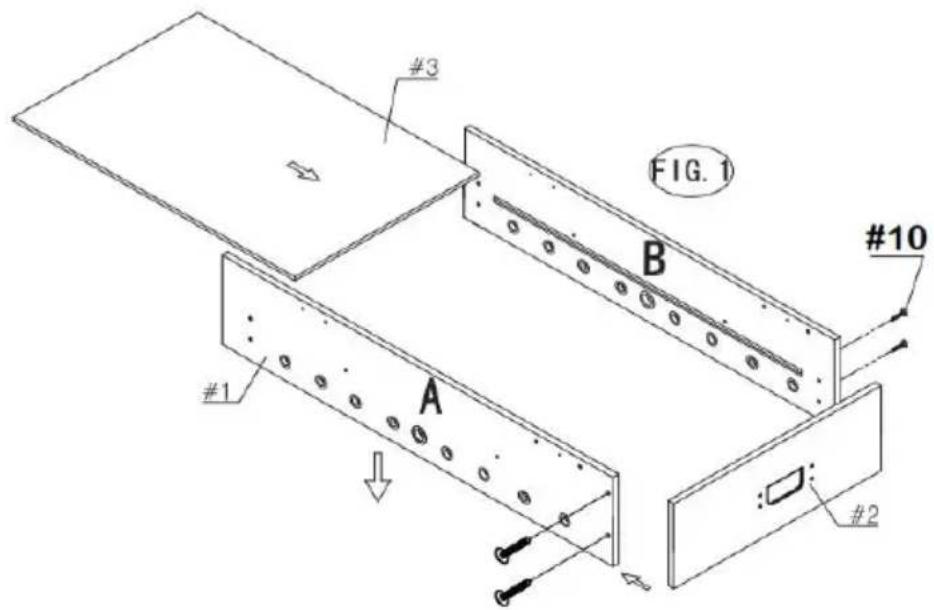

FIG.1.

3) Attach one End Apron (#2) between the Side Aprons (#1) using f Washer Head Screws (#10) per Side. See FIG.1.

NOTE:Leave connections loose -Do not tighten screws securely at this time.

4) Locate Playfield (#3) and slide the Playfiled with graphics facing down as shown in FIG.1. If the field does not slide smoothly, check to be set have not over tightened any screws or the playfiled is not caught by slot.

#1 A #1 #2 #3 B FIG. 1 #10

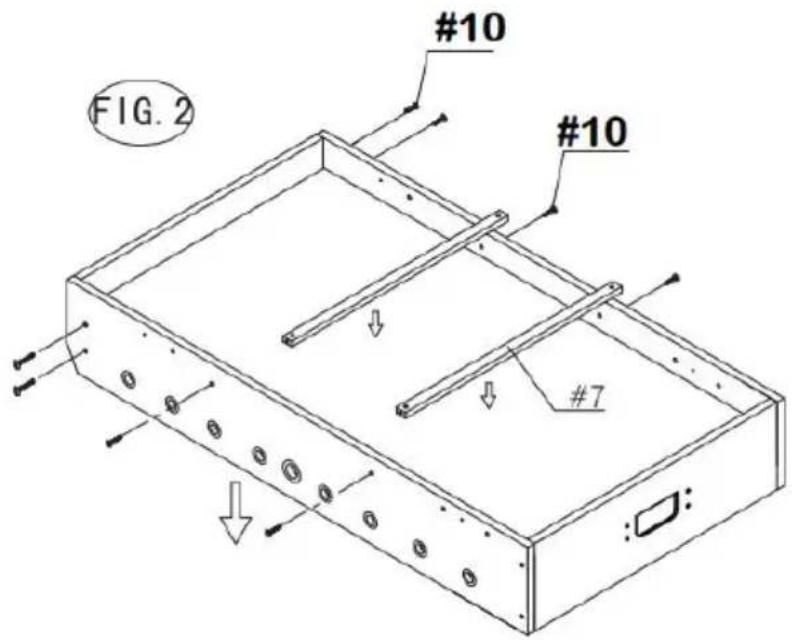

FIG.2.

5) Repeat the step to attach the other End Apron (#2) to the Side Aprons(#1). Center the playfield between the two end aprons, and make sure that the playfield is in the grooves of the side aprons and end

aprons.NOTE:Be sure that two side aprons and end aprons are square.Now go back and tighten all the connections.

6) Place the Support Brace (#7) on the Playfield (#3) as shown in FIG.2.Attach it using four of Washer Head Screws (#10).

FIG. 2 #10 #10 #7

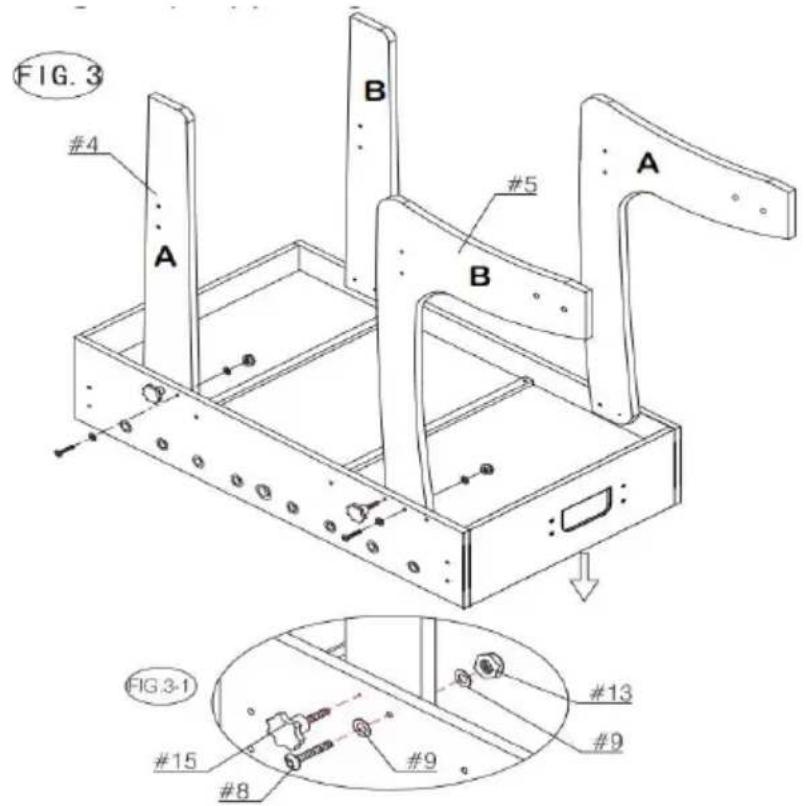

FIG.3.

7) Attach the (#4) and (#5) Legs to the Cabinet using one of Bolts of Washers (#9), one of Nut (#13), one of Wing Bolt (#15) per Leg as in FIG 3 and 3-1.

FIG. 3 #4 A B #5 A B : : FIG.3-1 #15 #8 #9 #13 #9

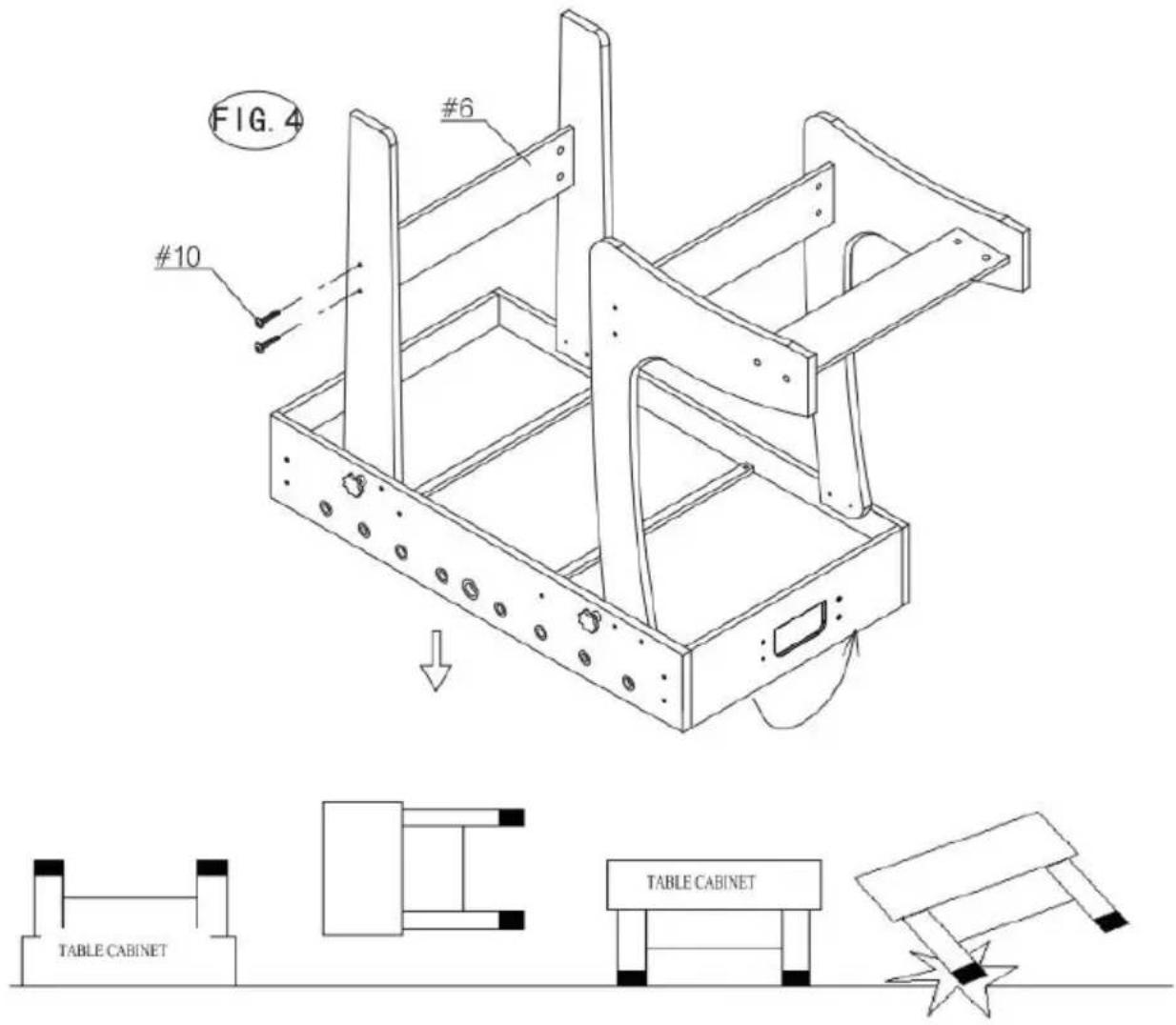

FIG.4.

8) attach the three EnHeg Braces(#6)to the Legs (#4 )using Wash Head Scen (#10).See FIG.4.
9) Lift the table assembly from the floor with two strong adults, tum it over, and set table on its legs in the location where you will play. Go and make sure that all connections are tight.

FIG. 4 #10 #6 TABLE CABINET TABLE CABINET

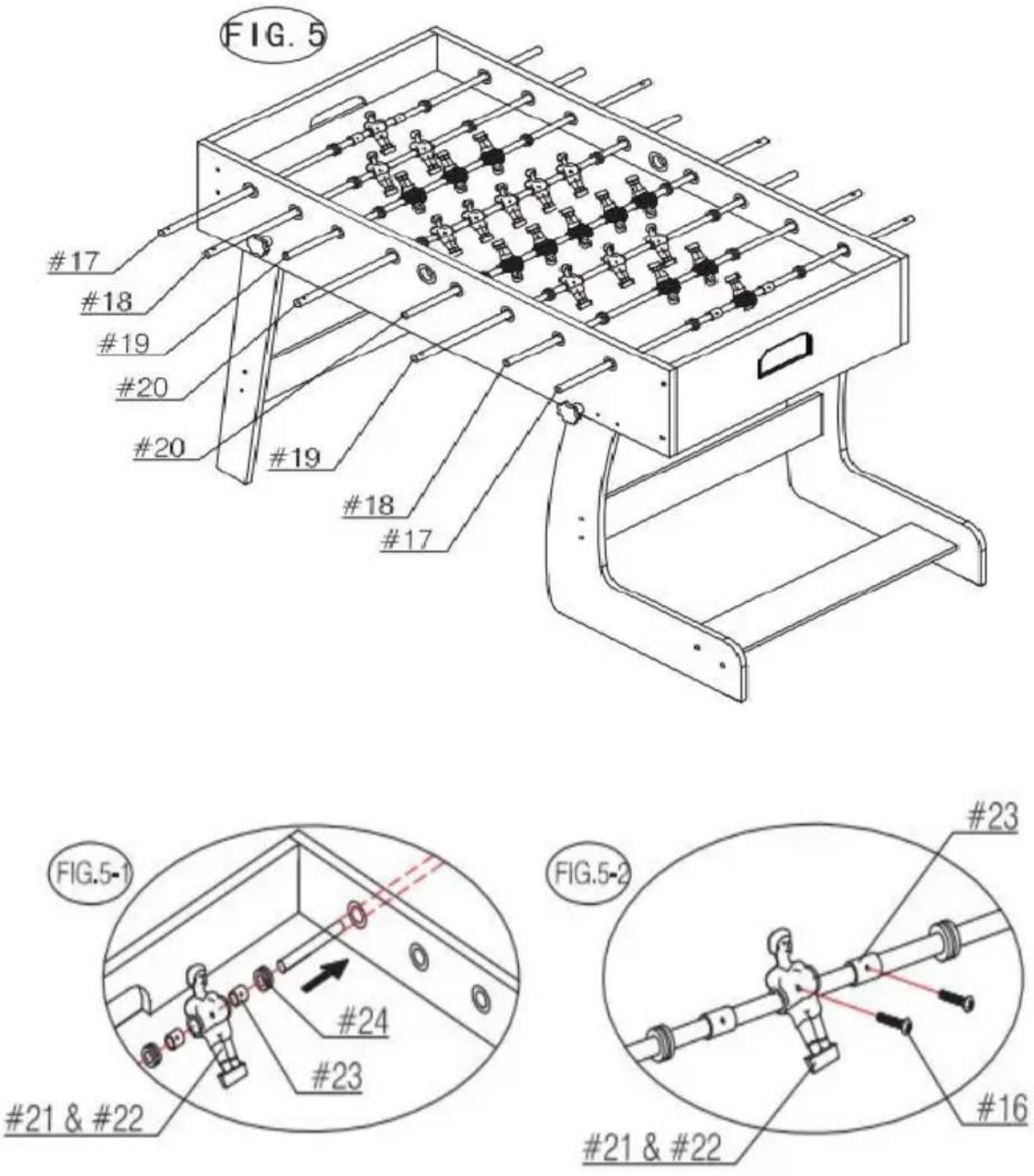

FIG.5.

10) Attach the player rods (#17 - #20) into the side aprons as show Fig .5-1.Attach rubber bumper (#24) to the player rod,followed by the players (#21 & #22) and another rubber bumper (#24).For the two go player rods an additional stop ring (#23) will be needed to be added between the goalie.
11) Attach Stop Rings (#23) and Players (#21 & #21) to the player using Round Head11) Screws (#16) as shown in Fig.5-2.

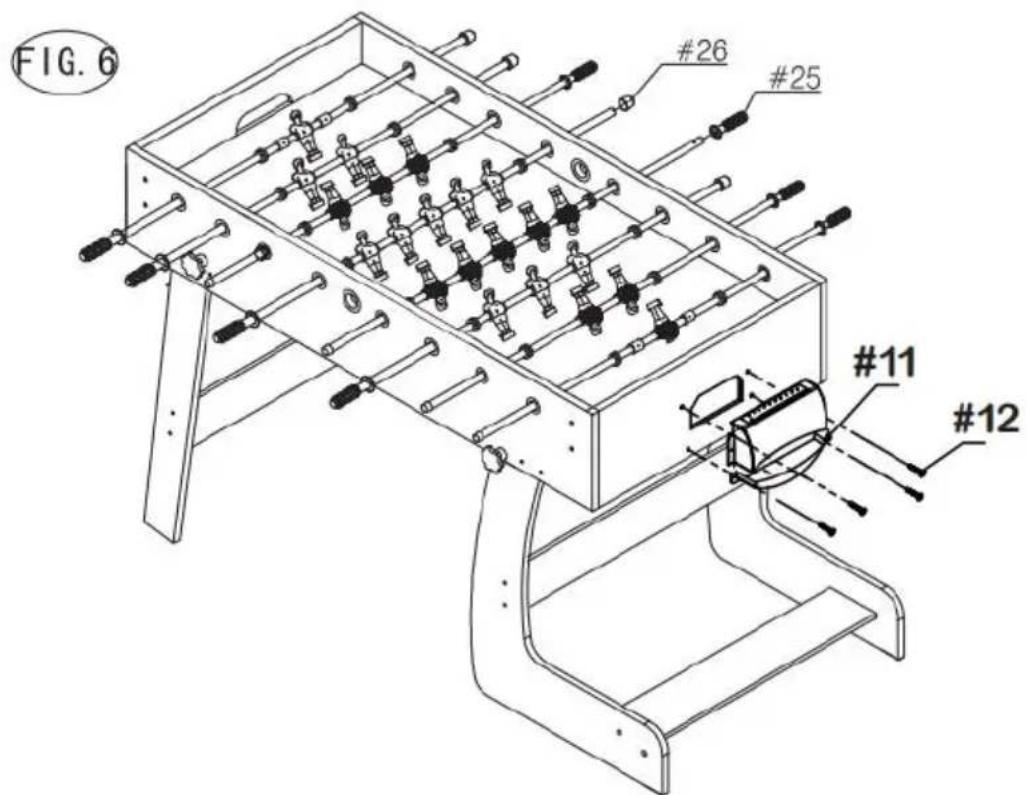

FIG.6.

12) Attach Goal Boxes (#11) to End Aprons using four of Washer H, Screws (#12) per Goal Boxes. See FIG.6.
13) Put the Hand Grips (#25) and the End Caps (#26) on the player in order. NOTE: To make the Handles easier to attach, spray a little win cleaner on the rod ends prior to installation and tap on gently with a hammer. See FIG.6.

FIG. 6 #26 #25 #11 #12

Technical line drawing of a two-fog iron grater with multiple levers and base mount (no text or symbols)

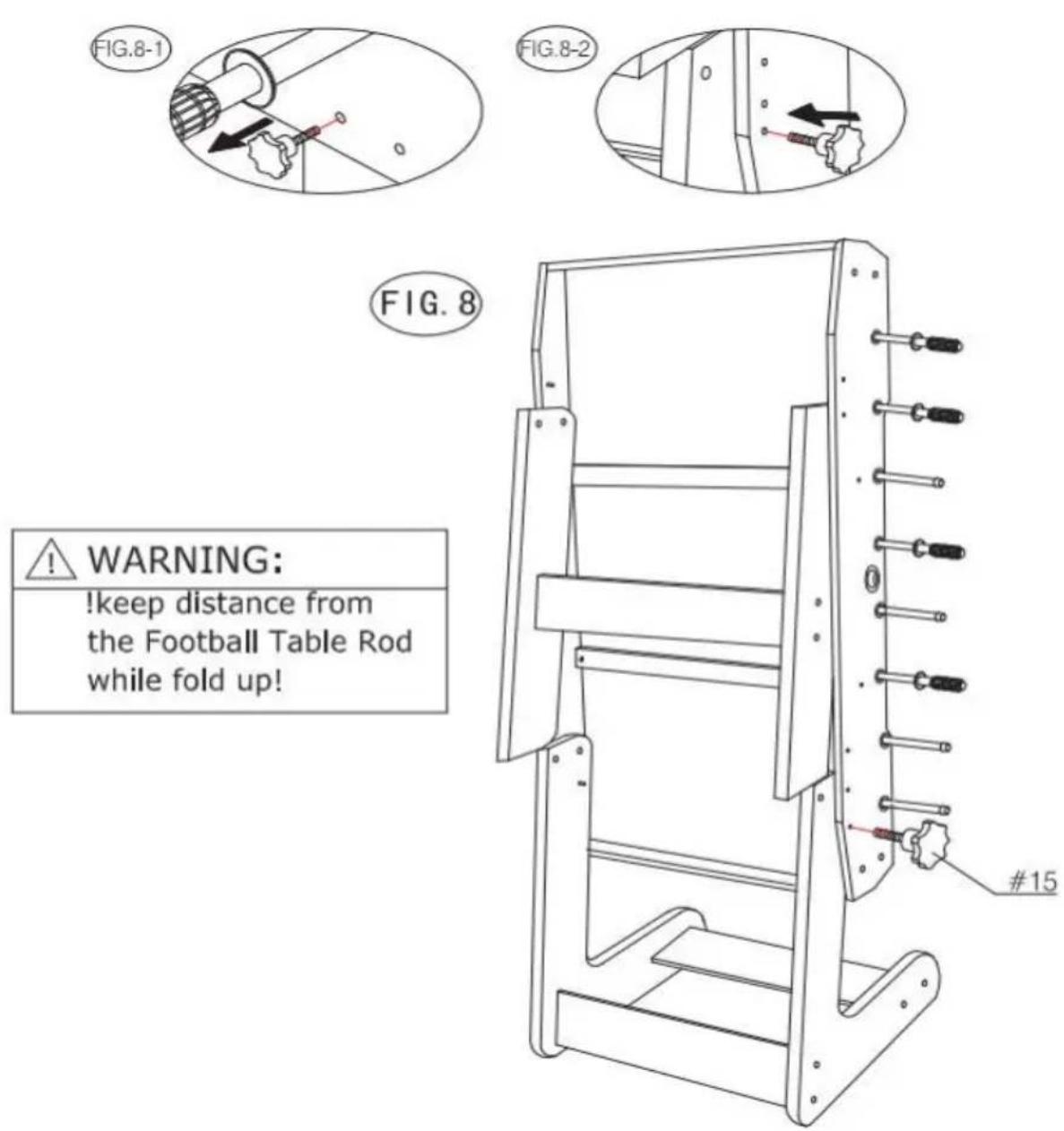

FIG.8.

14) Loosen the Wing Bolts (#15) on both sides, fold the table. See FIG.8-1. Then insert the 14) Locking Pins into the holes per Side. as shown in FIG.8-2.

FIG.8-1 FIG.8-2 FIG.8 WARNING: !keep distance from the Football Table Rod while fold up! #15
