USER MANUAL QD003 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Inverted machine

MODEL:QD001,QD002,QD003

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL:QD001,QD002,QD003

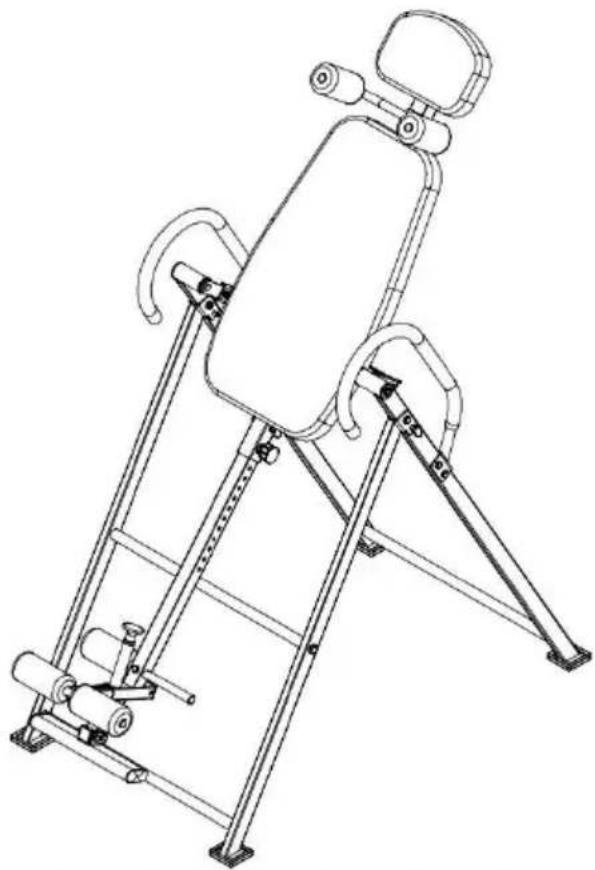

Line drawing of an outdoor fitness equipment setup with a vertical ladder and adjustable arms (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Preface

First, let us express our heartfelt thanks to our customers who purchase our equipment. This manual is for customer service to make better Wri with this equipment. Hope the company's products and services to bring you the canal courtesy.

Pay attention

This product must be used in strict accordance with the use method manual, misuse of any other methods caused by misuse The Company does not give any guarantee of any kind, including (but not limited to) marketability offered to the Company for a particular purpose Implied warranties with fitness.

The company accepts no liability. The Company shall not be liable fo errors contained in this material, or for any accidental or consequential damages

resulting from the provision, actual performance or use of this manual.

This manual contains proprietary information protected by patent law. A rights

reserved. Without the written consent of the Company, this manual is allowed to be photocopied, copied, or translated any part into another language.

The content contained in the manual may be changed without the use notice.

Manufacturer's liability

The Company shall be held responsible for the safety and reliability of performance of the equipment only if the assembly operation, returning improvement and maintenance are carried out by personnel approved by the

Company, the electrical equipment concerned conforms to national standards, and the equipment is used in accordance with the operating instructions.

Guarantee

Manufacturing process and raw materials: The Company guarantees that the Equipment(except parts) is in regular use and repair condition, free manufacturing process and raw materials faults for one year from the shipment. None of our inspections is perfect

1. Precautions

1.1 Precautions for use

Warning:

1. If the equipment feels loose, falls or is damaged, please get in touch with the company in time;
2. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
3. Keep children and bystanders away while operating, distractions will cause you to lose control.
4. Stay alert, watch what you are doing and use common sense when operating the equipment. Do not use the equipment while you are tired under the influence of drugs, alcohol or medication.. A moment of inattention while operating equipment may result in serious personal inj
5. Dress properly. Do not wear loose clothing or jewelry. Keep your clothing and gloves away from moving parts. Loose clothes jewelry or hair can be caught in moving parts.
6. Store idle equipment out of reach of children and only allow people familiar with the equipment to use it. This tool is dangerous in the h untrained users.
7. Please do not use this device after drinking alcohol or taking medication.

SAVE THESE INSTRUCTIONS

Product pipe fitting parameters

product name	Inverted machine
Model	QD001
Max load	300ilb
Product size L x W x H	1200X690X1640mm
Product weight	19.6 kg
Colour	Blue Black Double Pinyin/OrangBlack Double Pinyin/Black RedDouble Pinyin

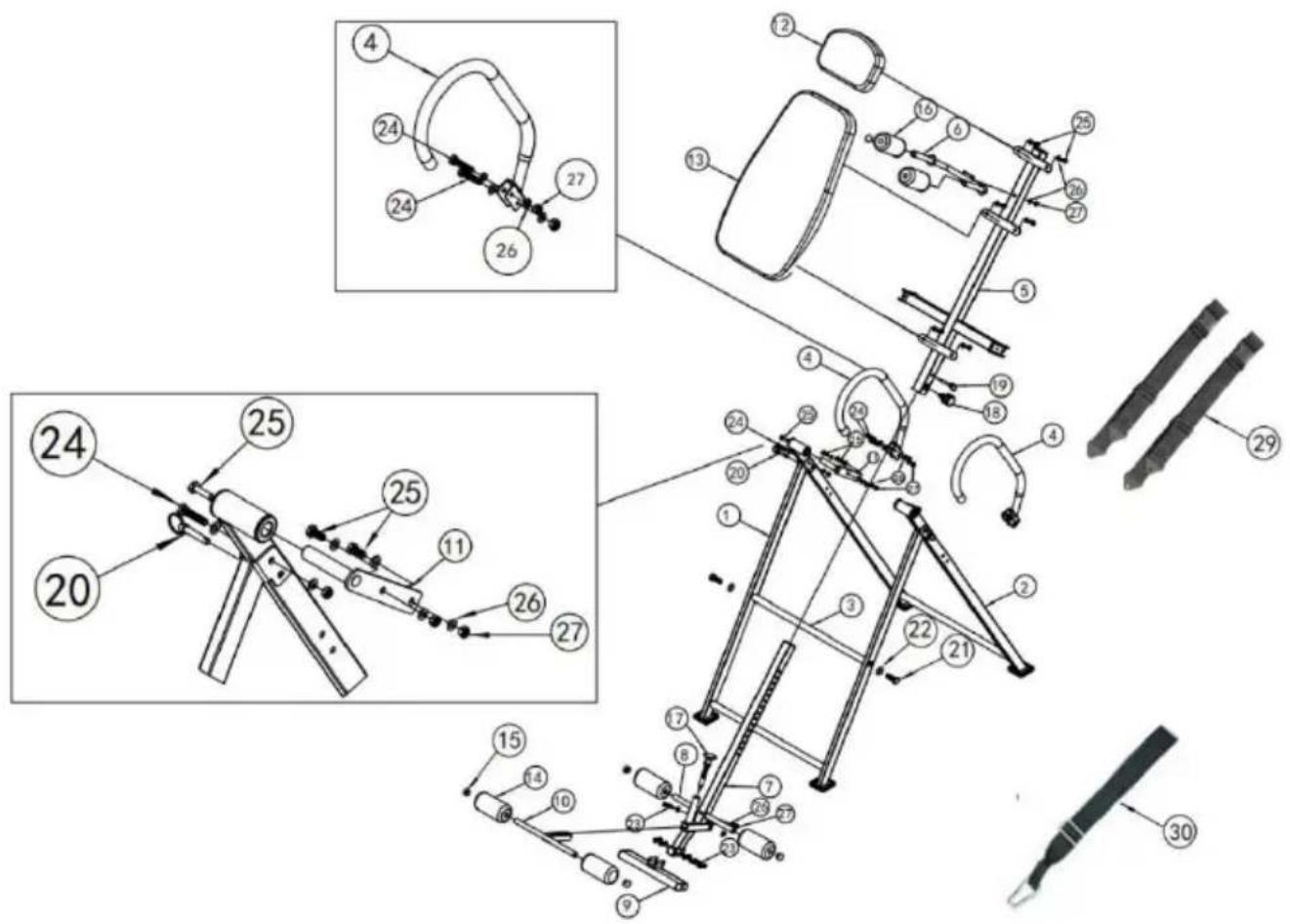

Product breakdown diagram

Technical diagram of a mechanical device with numbered components and exploded views, likely for assembly or maintenance instructions.

PARTS LIST
NUMBER	DESCRIPTION	QUANTITY
1	Support	1
2	Support	1
3	Connecting pipe	1
4	Handle	2
5	Back connection	1
6	elbow pad	1
7	Leg adjustment(long)	1
8	Leg cushion tube	1
9	Footing	1
10	Leg adjustment(short)	1
11	Connect	2
12	Neck cushion	1
13	Backing	1
14	Foam	4
15	Circular plug	4
16	Foam	2
17	Spring latch M20	2
18	Spring latch M16	1
19	Ring locking pin	1
20	Ring locking pin	2
21	BOLT M10*30	2
22	WASHERS M10	2
23	BOLT M8*50	3
24	BOLT M8*40	6
25	BOLT M8*20	12
26	WASHERS M8	31
27	NUT M8	14
28	WASHERS M8	6
29	Straps	2
30	Tension strap	1
31	14-17 open-end wrench	2

Installation steps

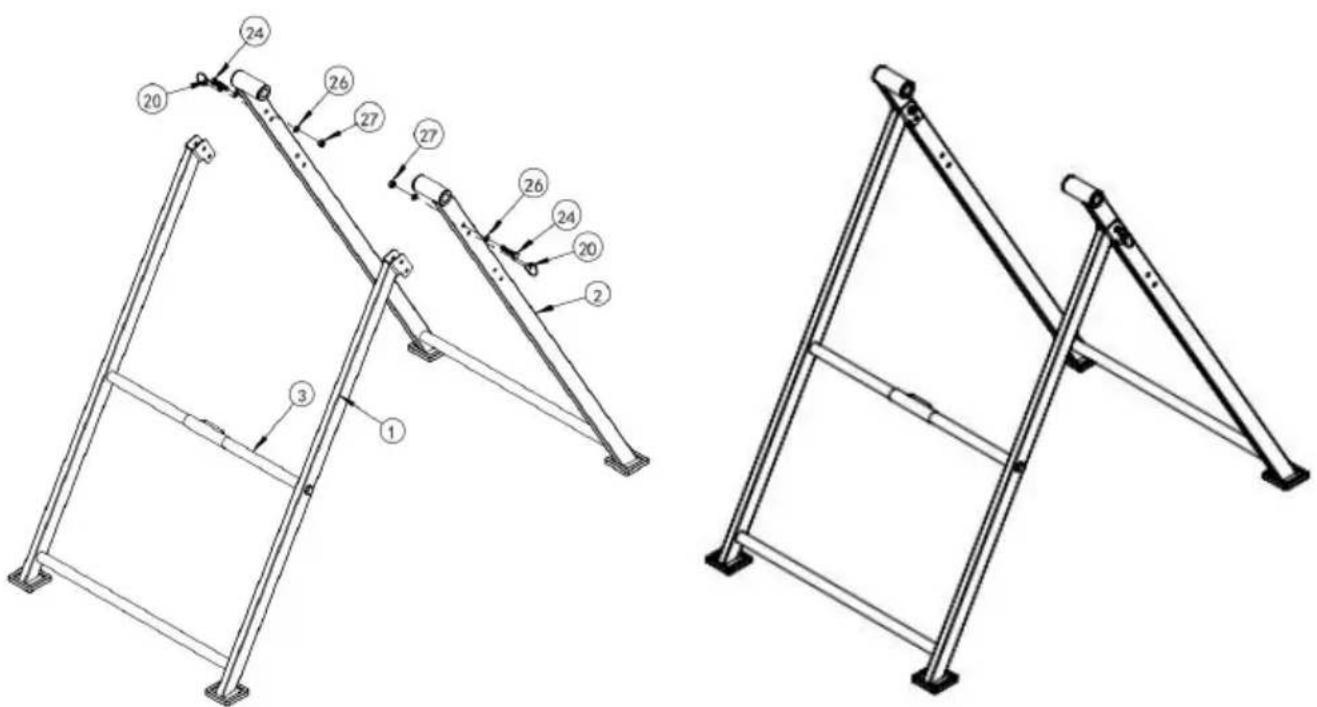

1. Assemble component 1 and component 2 using M8 screws (24), washers (26), and M8 locking nuts (27).
2. Use the circular pin (20) to assemble components 1 and 2.

Technical diagram of a metal ladder structure with numbered components and directional arrows indicating assembly or movement.

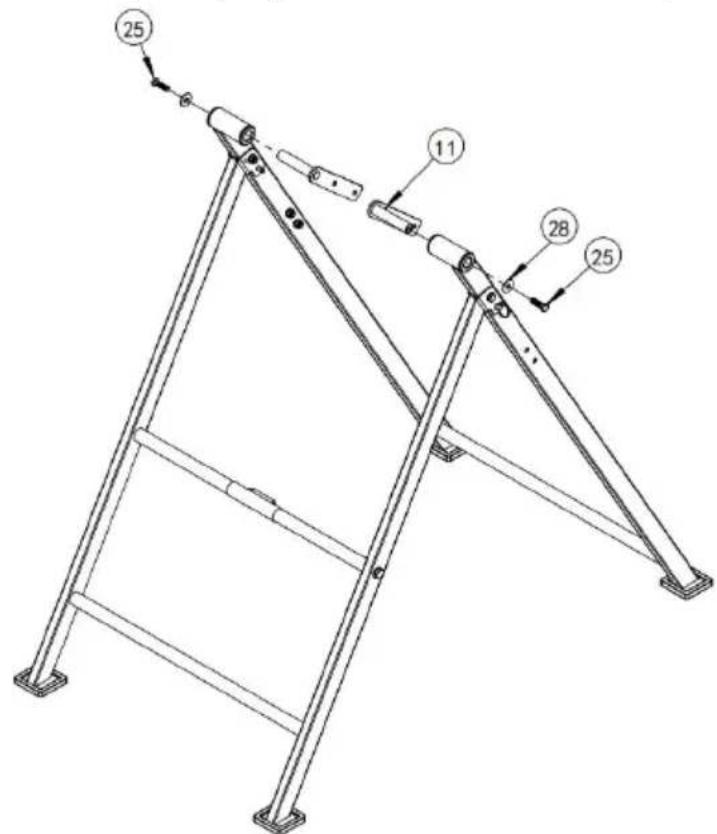

1. Use M8 * 20 screws (25) and a 8 washer (28) to connect component 11 to component 2.

Technical diagram of a mechanical device with numbered components and assembly steps, including a separate view with labeled parts.

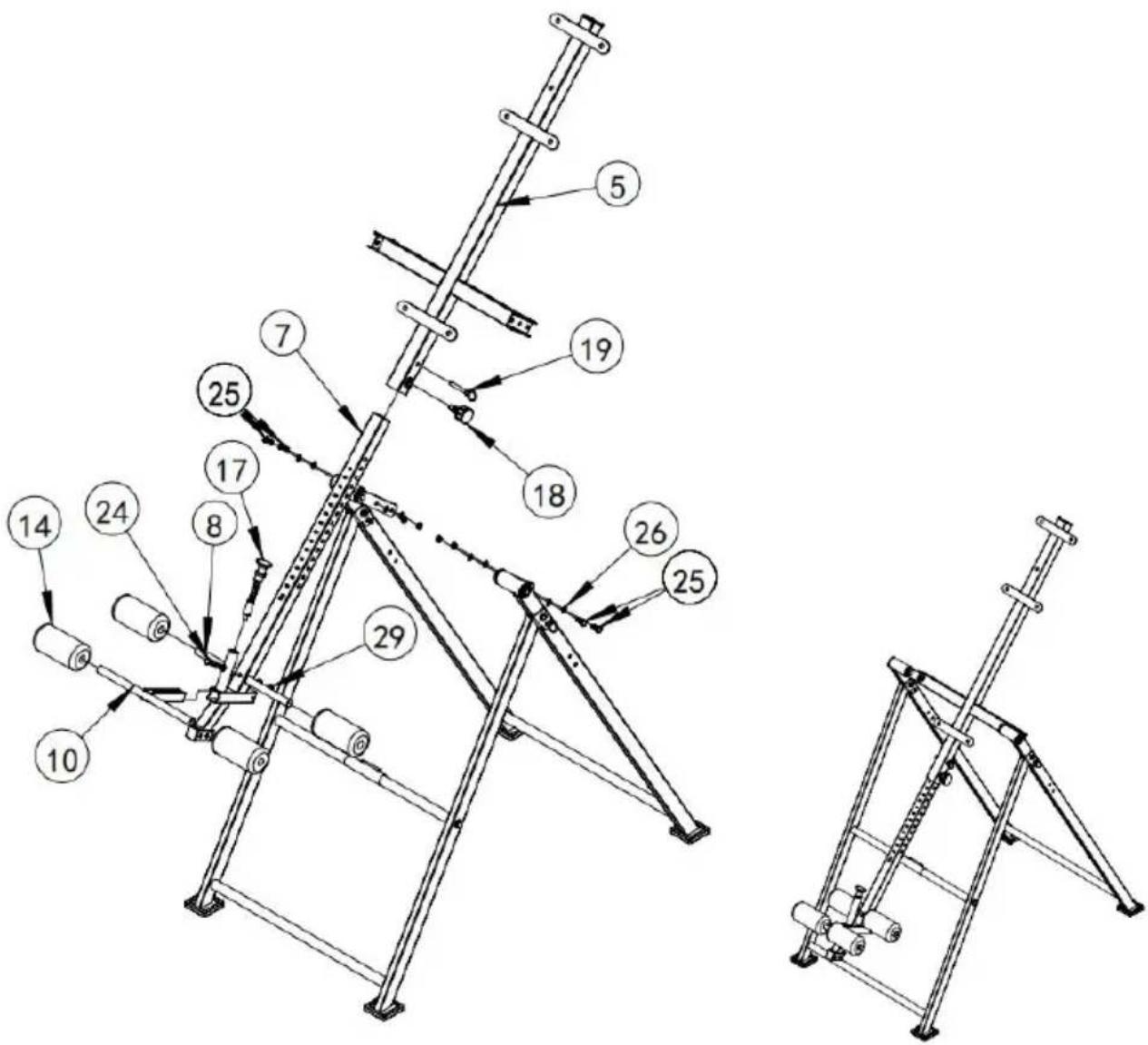

1. Fix the 5th and 11th components with M8 * 20 screws (25), 2 washers (26), and 1 M8 locking nut (27).

2. Insert component 7 into component 5, adjust the appropriate len and then fix it with a circular pin (19) and a spring pull pin (18).

3. Insert component 8 into component 7 and secure it with M8 * screws (24), 2 * 8 washers (26), and 1 M8 locking nut (27).

4. Assemble No. 14 foam with No. 8 foam.

5. Insert component 10 into component 7 and adjust its position, the fix it with the M20 pin (17).

6. Assemble the 14th foam with the 10th component.

Technical diagram of a mechanical exercise apparatus with numbered components for identification.

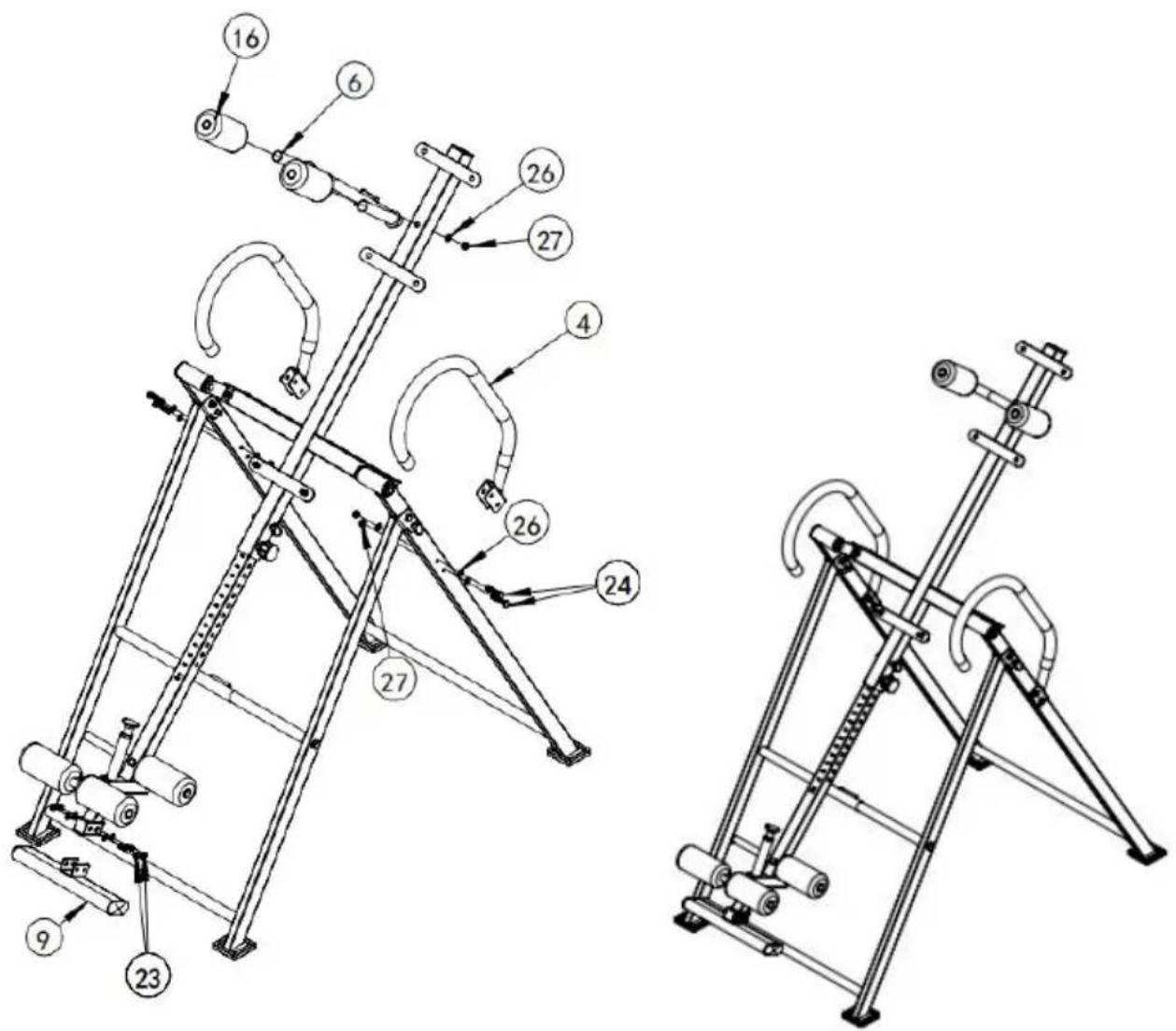

1. Assemble component 9 and component 7 using M8 * 50 screw (23), 2 M8 washers (26), and 1 M8 (27) locking nut.
2. Assemble component 4 with M8 * 40 screws (23), M8 washers and M8 locking nuts (27) onto component 2.
3. Assemble the 16th foam with the 6th component.
4. Assemble component 6 using M8 washers (26) and M8 locking (27).

Technical diagram of a mechanical device with numbered components and labeled parts

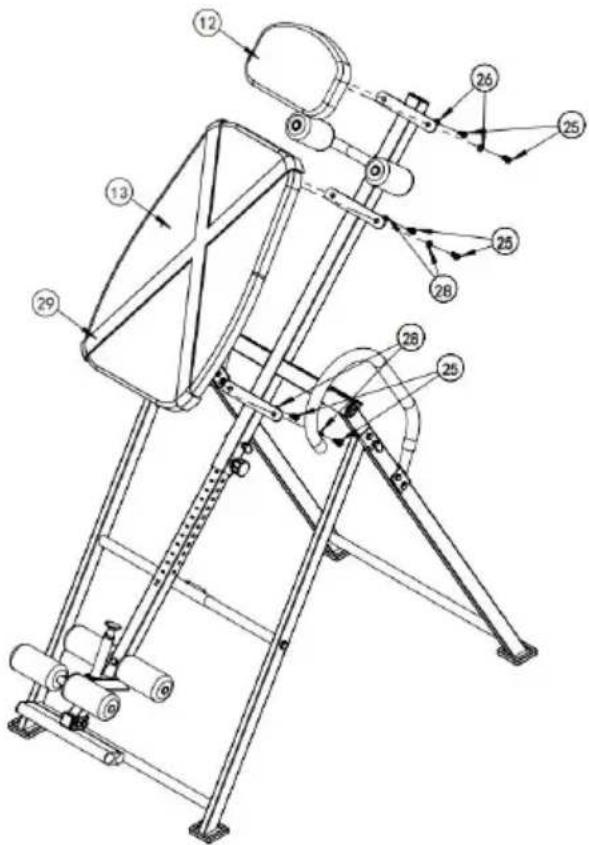

1. Assemble component 5 and component 12 using M8 * 20 screws (25) and 8 washers (26).

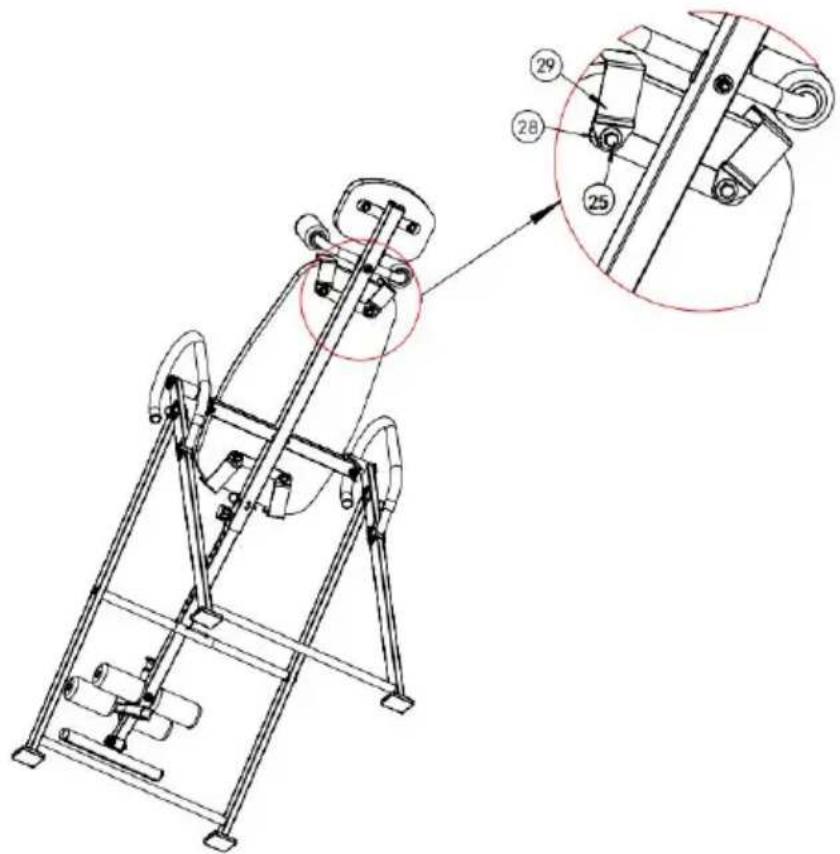

2. Assemble parts 13, 5, and 29 using M8 * 20 screws (25) and a 8 washer (28).

Technical diagram of a mechanical lifting device with numbered components and an inset detail view showing internal structure.

Technical line drawing of a mechanical device with articulated arms and labeled components (no text or symbols present)

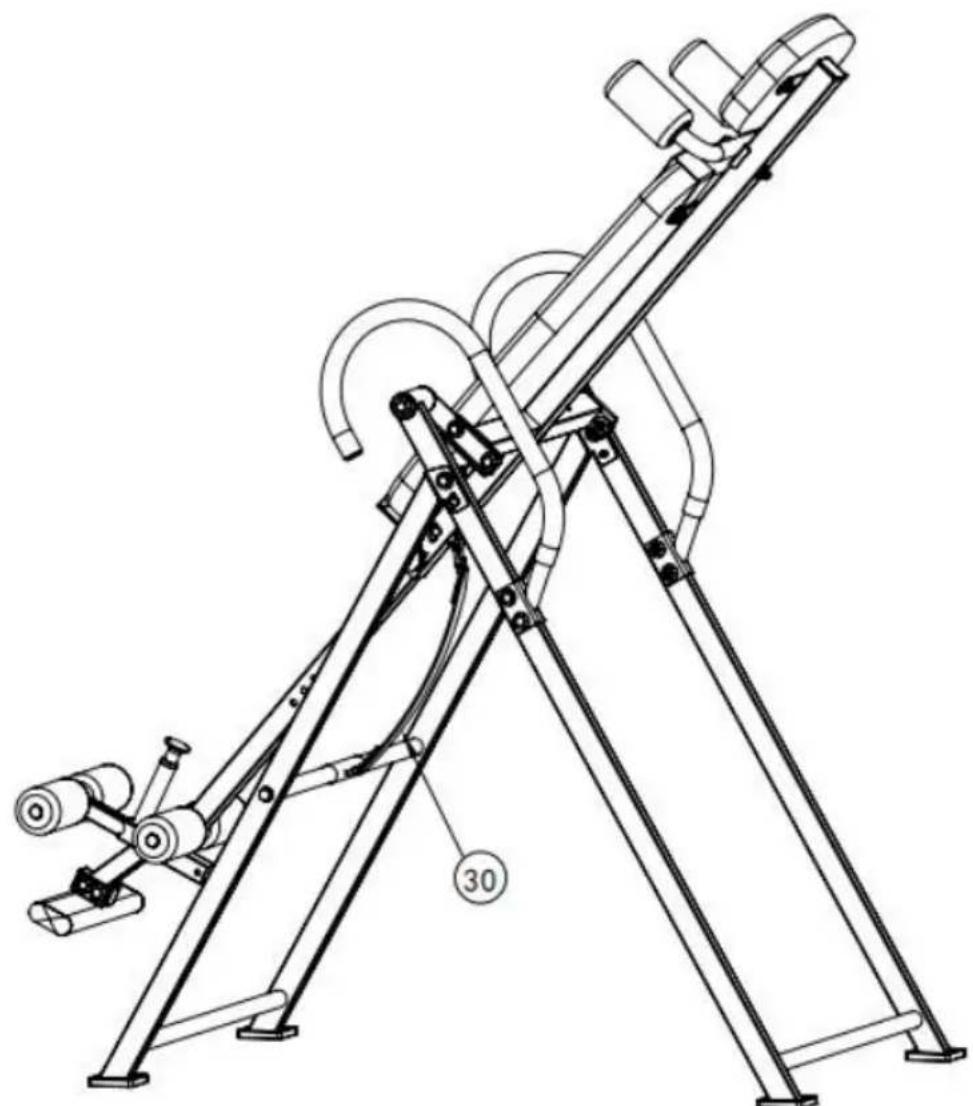

1. Assemble component 30 with components 1 and 3.
