USER MANUAL ssshkytxs-e Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Pull Up Bar Station

ssshkytxs-e

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Pull Up Bar Station

MODEL: ssshkytxs-e

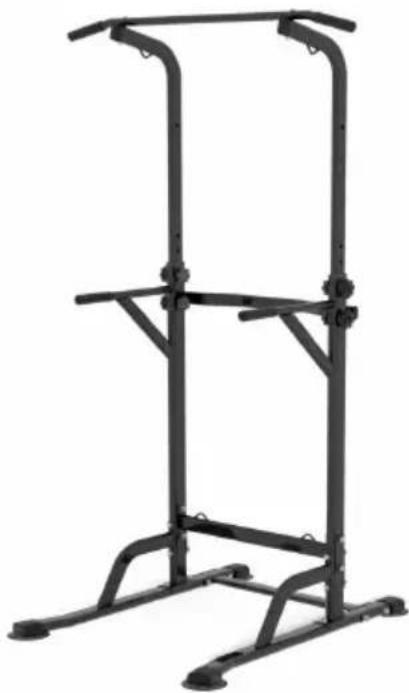

Black metal exercise stand with vertical supports and horizontal legs (no text or symbols visible)

(Refer to the picture, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Thank you very much for choosing this Pull Up Bar Station

- Please read all of the instructions before using it. The information will help you achieve the best possible results.

INTRODUCTION

SAVE THESE INSTRUCTIONS

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this prod

are fully aware of all warnings and precautions.

• Children or persons with disabilities must be closely supervised when using the boxing ring.
• This product is used only as intended.Do not exceed the rated load
• Do not drop or insert anything into any hole.
• This product for family use only. Do not use this product for any commercial, rental, school or institution.
• Do not use outside.
• Keep the product indoors, away from moisture and dust. Choose a surface with a mat underneath it to protect the floor or carpet. Make there is enough space to install, disassemble, and use this product.

Prohibition sign showing a walking person crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

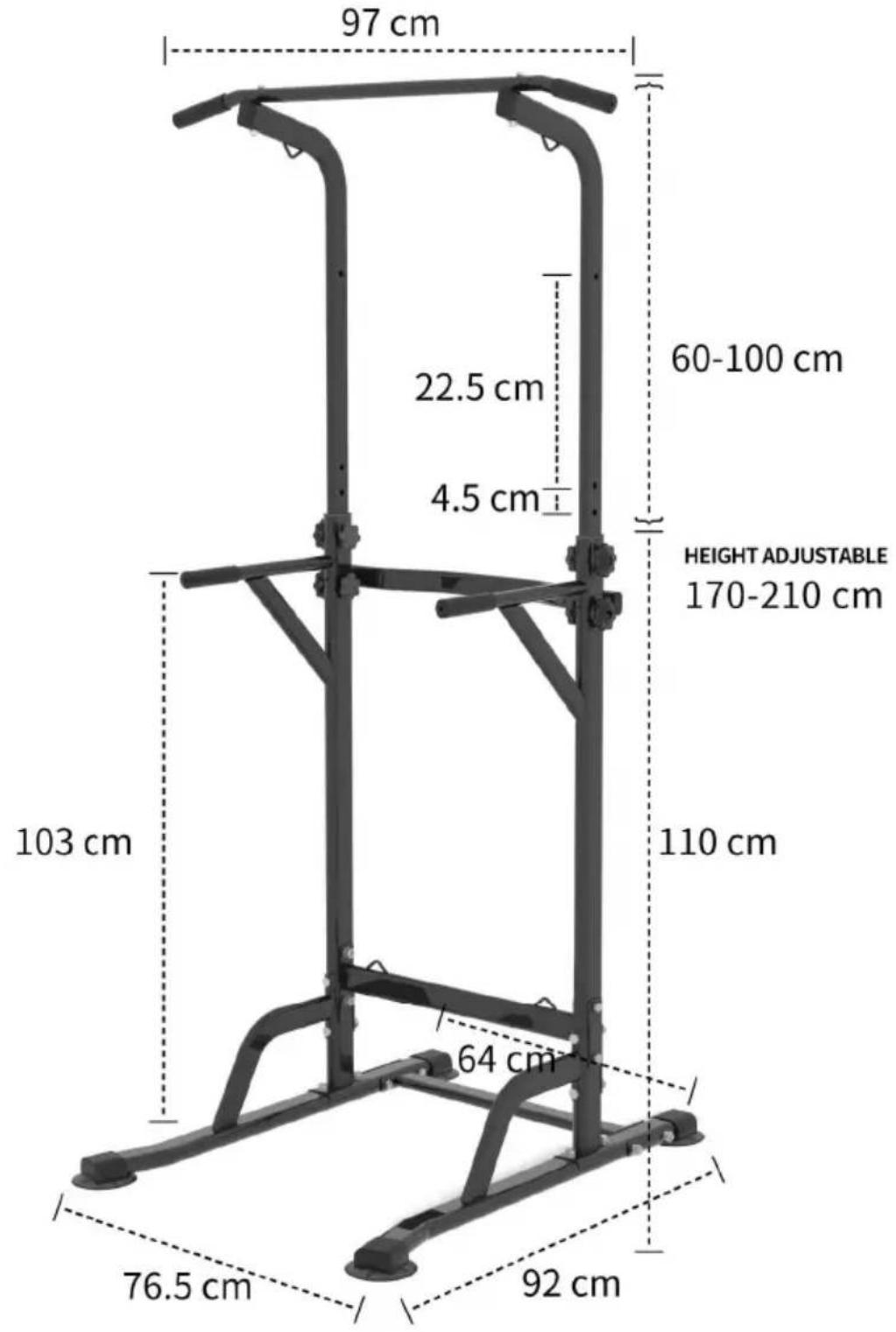

PRODUCT PARAMETER

MODEL: ssshkytxs-e

97 cm 22.5 cm 4.5 cm 60-100 cm HEIGHT ADJUSTABLE 170-210 cm 103 cm 110 cm 64 cm 76.5 cm 92 cm

PART LIST

NO.	Part Name	Q'ty
1	Bottom connecting pipe	1
2	Bottom tube 1	1
3	Bottom tube 2	1
4	Column iron pipe 1	1
5	Column iron pipe 2	1
6	Back connecting pipe	1
7	Column iron pipe 3	1
8	Column iron pipe 4	1
9	Top connecting pipe	1
10	Middle connecting pipe	1
11	Suction cup feet	4
12	Reducing sleeve	2
13	Rubber handle 25*120	4
14	Pipe plug 20*40	2
15	Pipe sleeve 10*29	2

NO.	Part Name	Q'ty
16	Thumb nut	4
17	Handle screw	4
18	Link spacer 1	4
19	Link spacer 2	2
20	Flat pad M10	10
21	Flat pad M10*25	4
22	Arc gasket M10	8
23	Screw M8*16	2
24	Screw M10*45	8
25	Screw M10*75	8
26	Locknut M10	16
27	Screw M8*85	2
28	Locknut M8	2
29	Flat pad M8	4
30	wrench	2

1	2	3	4
	6	7	8
	10	11	12
13x4	14x2	15x2	16x4
17x4	18x4	19x2	20x10
21x4	22x8	23x2	24x8
25x8	26x16	27x2	28x2
29x4	30x2

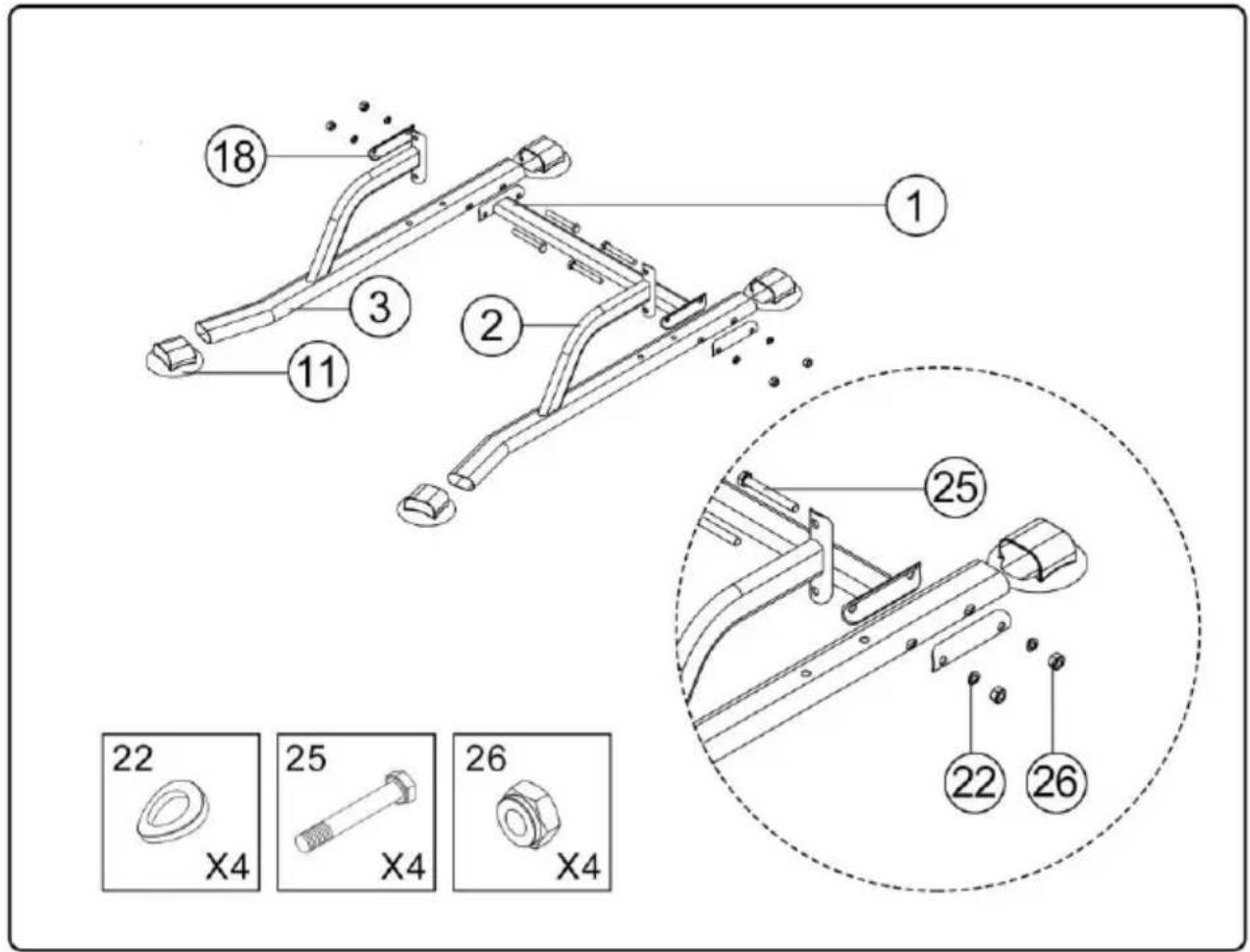

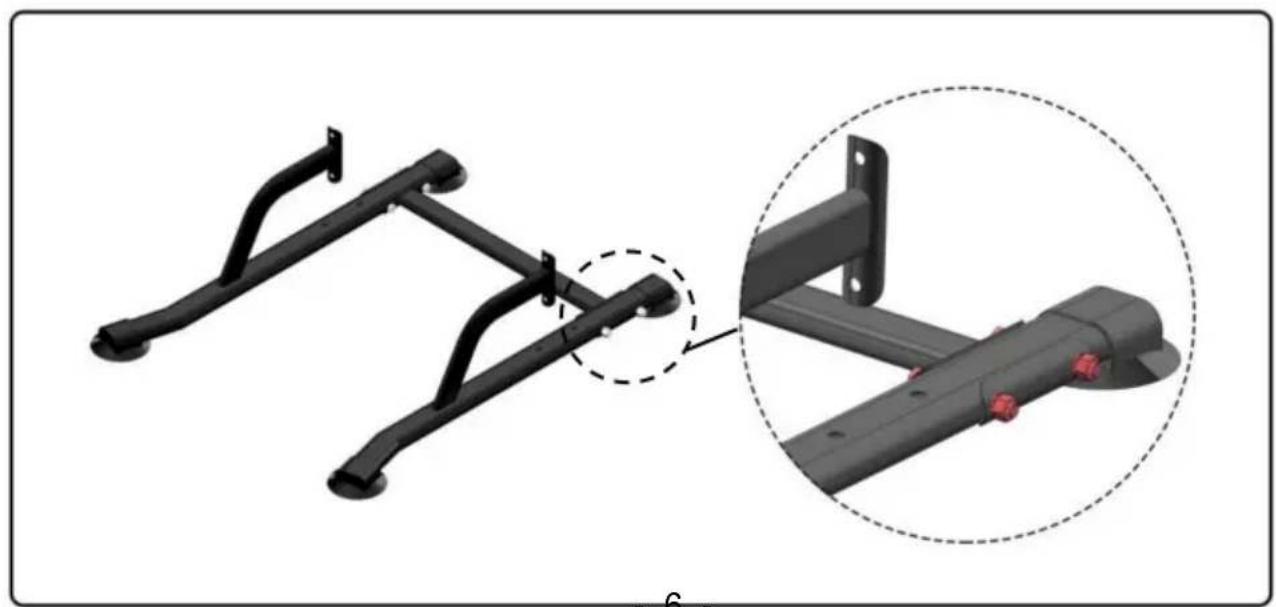

Step1 : Install the base part

(Assemble the parts and accessories as shown)

18 3 2 11 25 22 X4 25 X4 26 X4 22 26

3D mechanical assembly diagram showing a bracket with mounting holes and a close-up of a pipe fitting (no text or symbols)

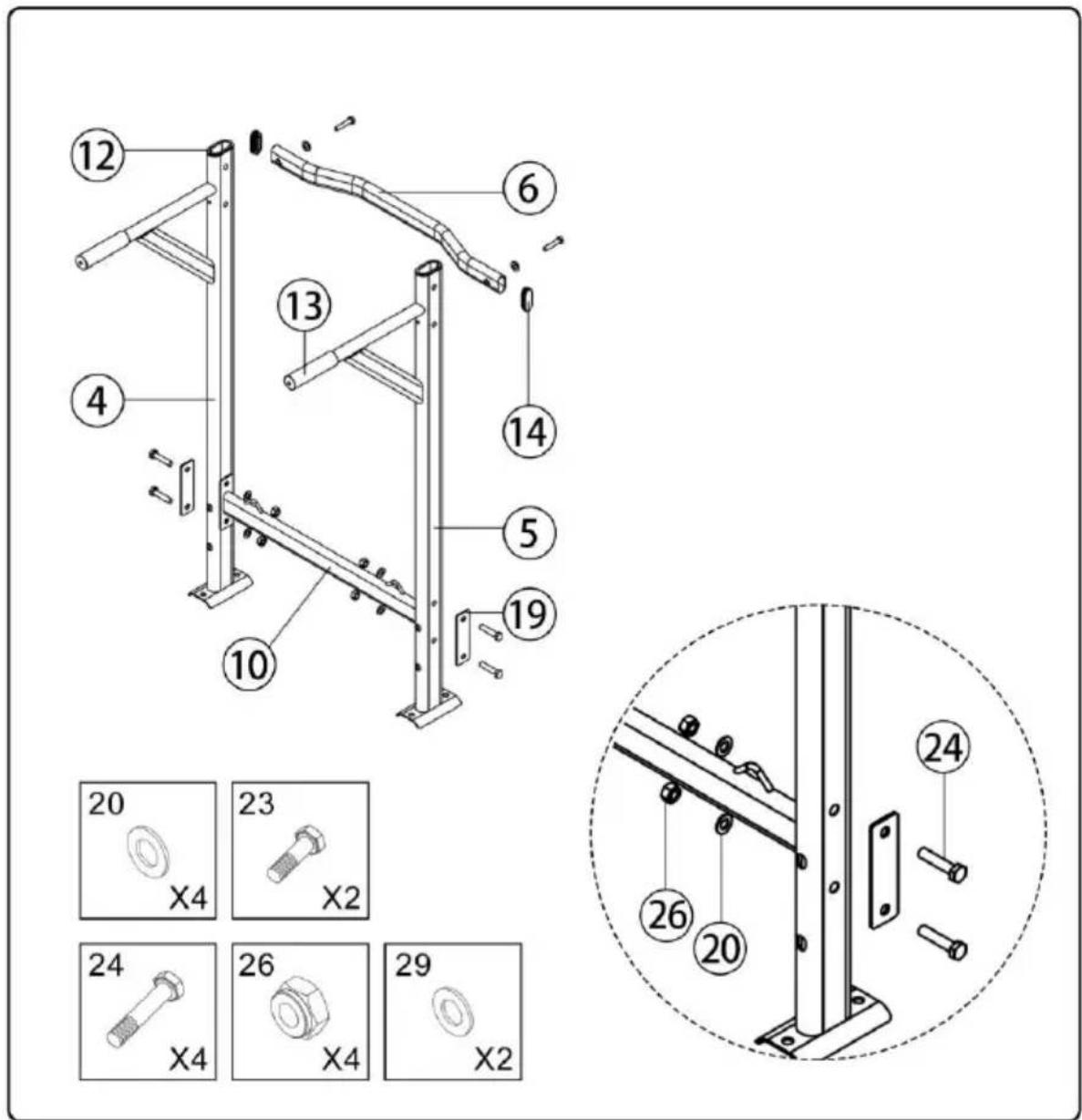

Step2 : Install the main body

(Assemble the parts and accessories as shown)

Technical diagram of a mechanical assembly with numbered components and corresponding close-up views of bolt specifications.

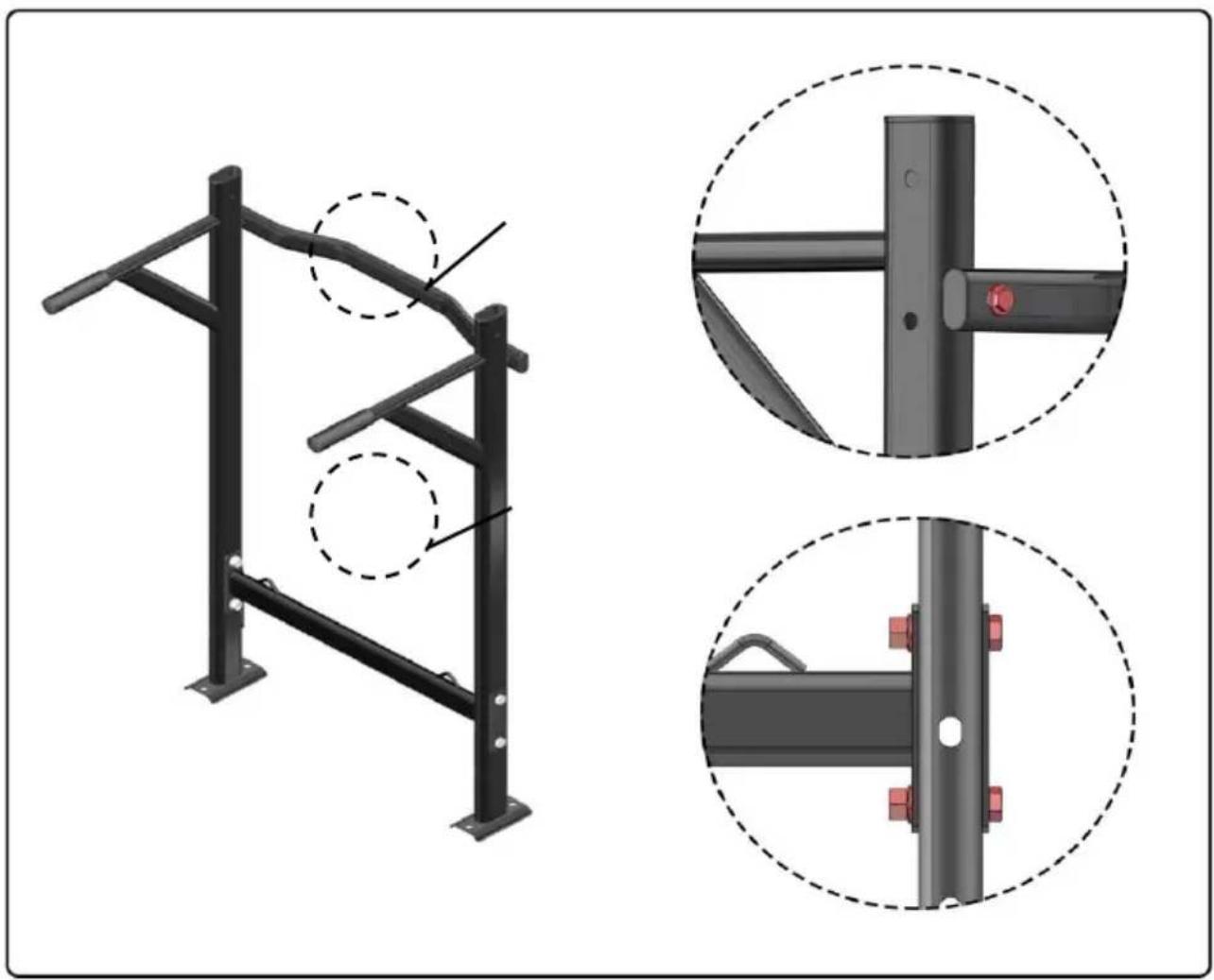

Technical illustration of a metal frame structure with two close-up views showing structural details (no text or symbols)

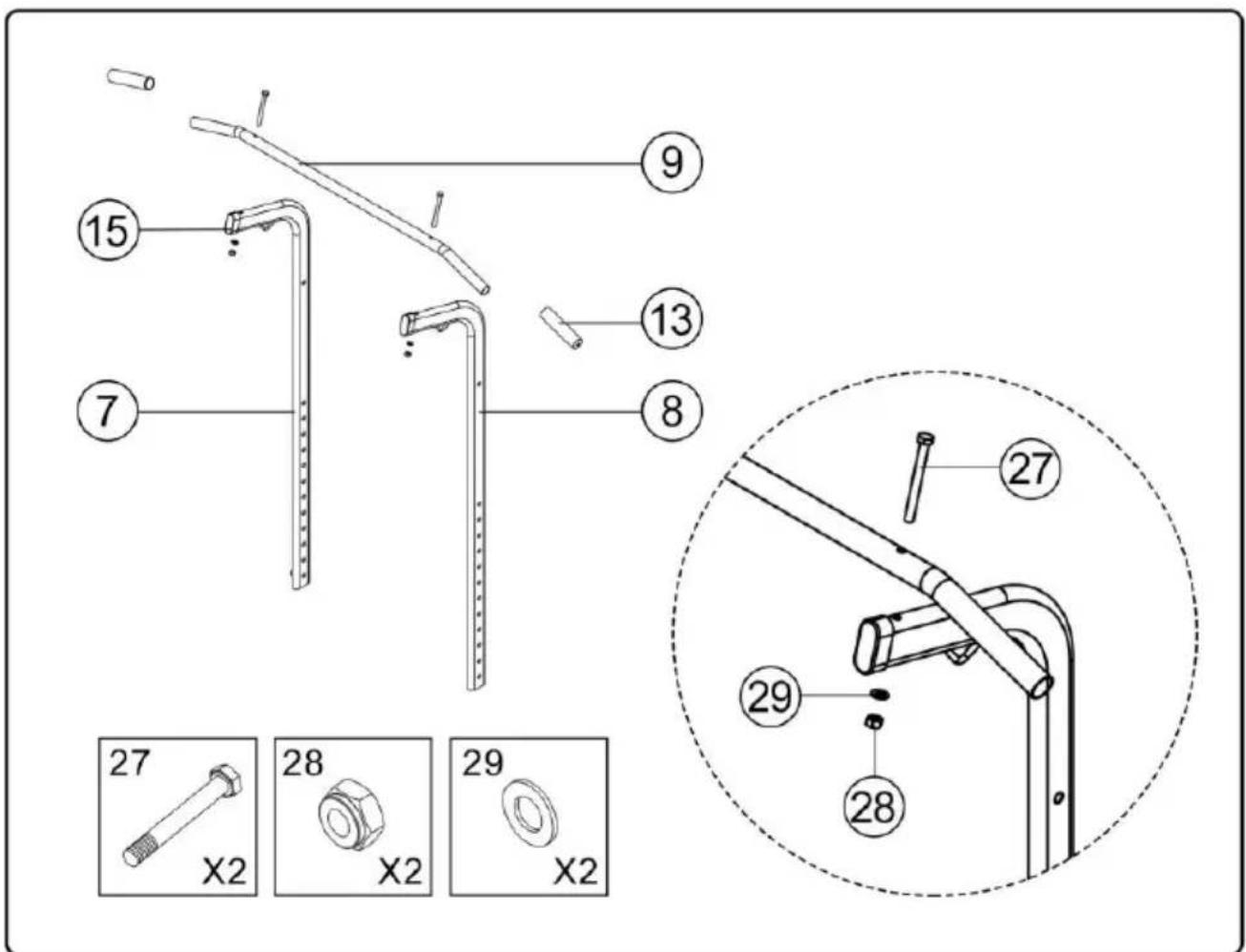

Step3 : Install top part

(Assemble the parts and accessories as shown)

Technical diagram showing exploded and assembled parts of a mechanical assembly with numbered annotations and two inset images labeled X2 and 27-29.

Technical illustration of a pipe clamp assembly with magnified detail (no text or symbols)

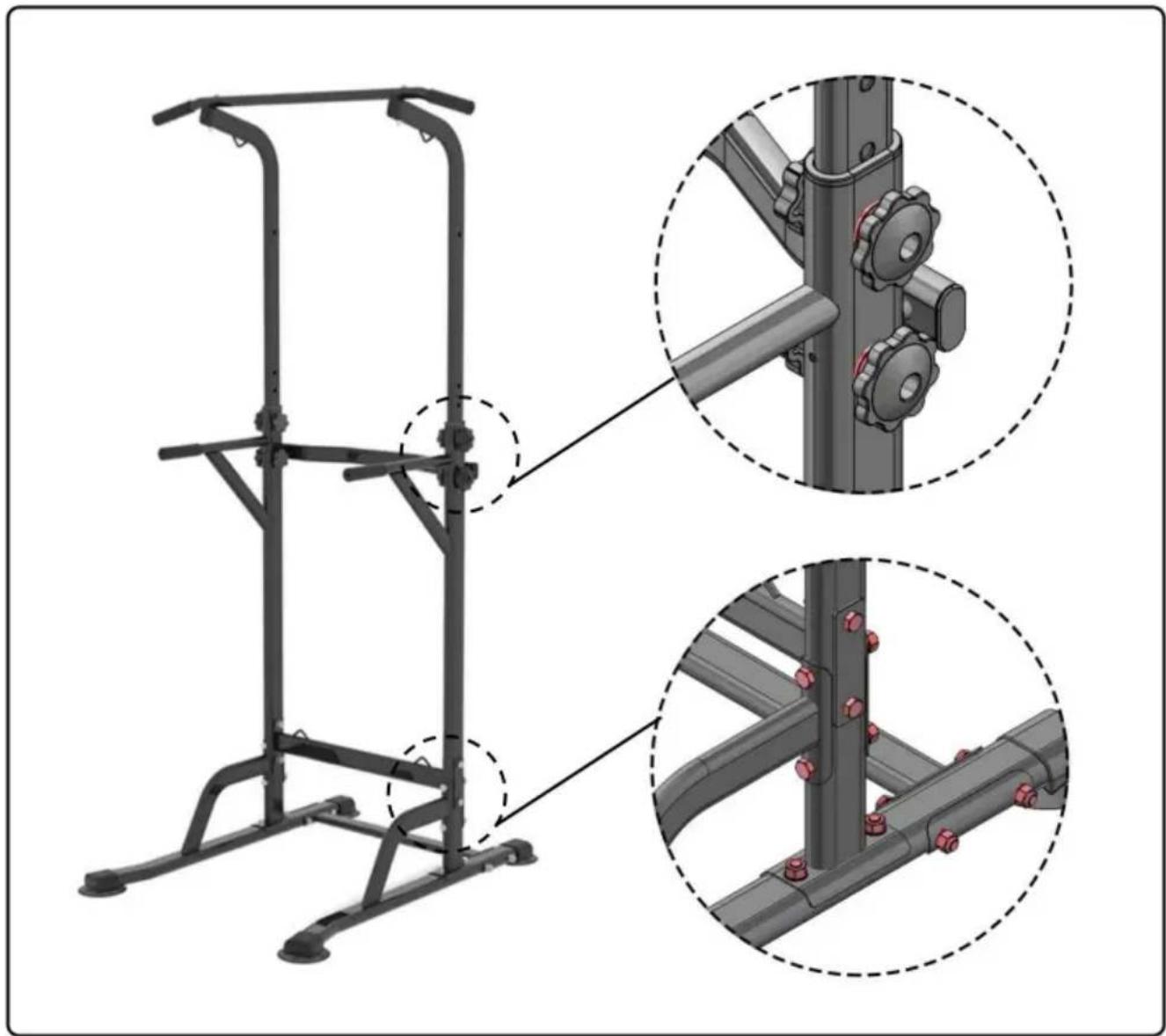

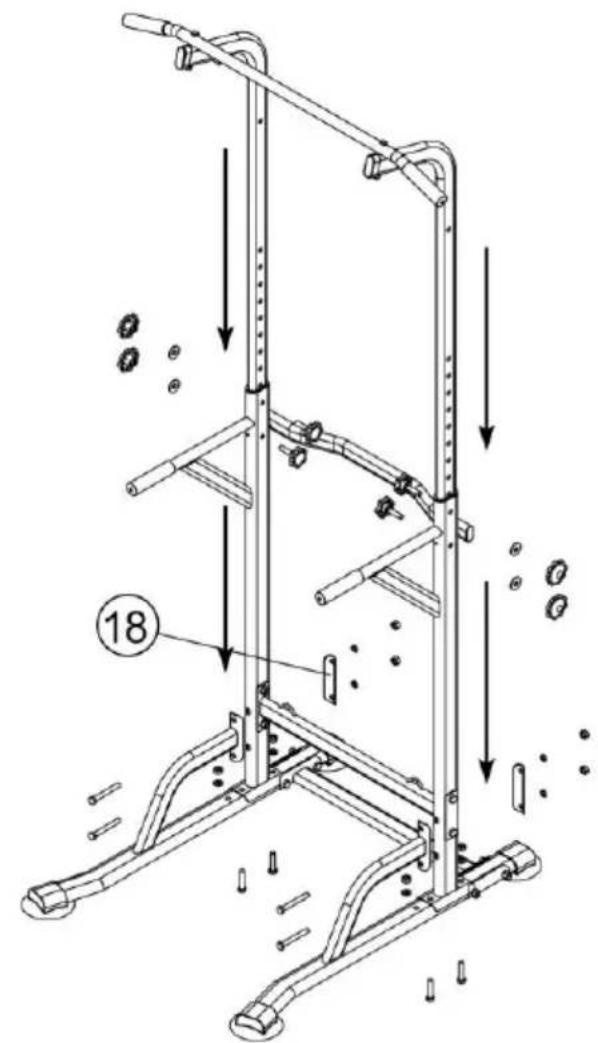

Step3 : Final assembly

( Assemble the parts and accessories as shown, Finished )

Technical diagram of a mechanical lifting device with labeled parts and directional arrows indicating motion or assembly.

Technical diagram showing mechanical assembly with numbered components and labeled parts

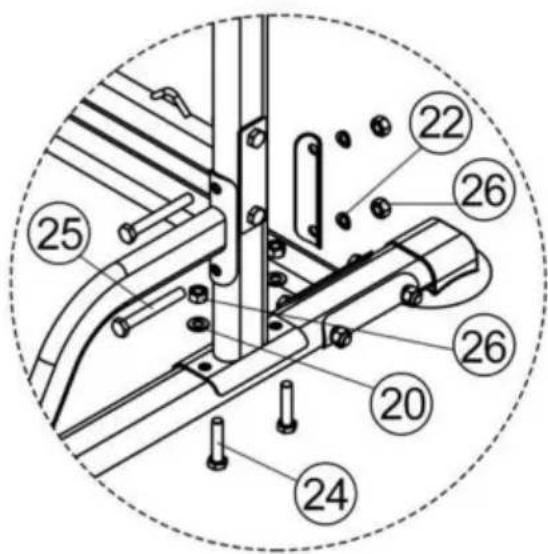

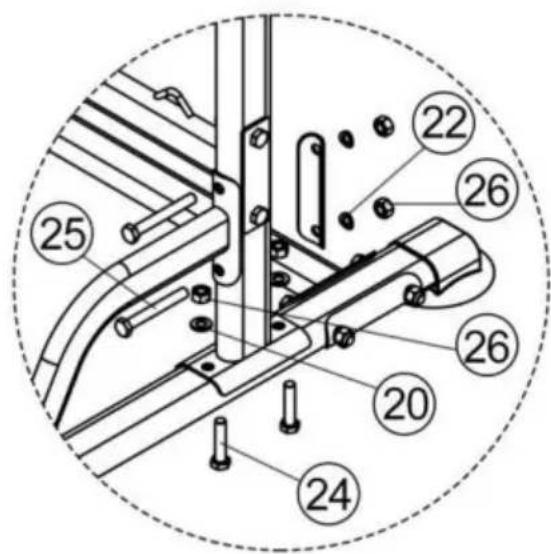

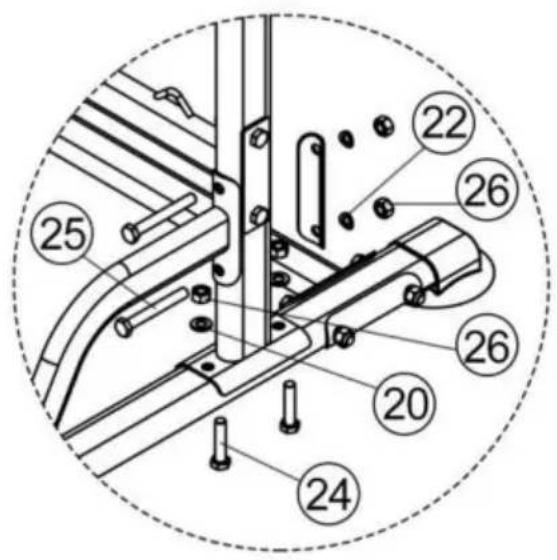

25 22 26 26 20 24

Technical illustration of a metal frame structure with two close-up views showing bolted joints and structural details (no text or symbols)

Cleaning and Maintenance

-Use a soft, clean cloth that will not scratch the surface when dustin. -This item could be cleaned with soap and water. Be sure to avoid h solvents and abrasives.

- Periodically (every 90 days) make sure the screws are fully tightened

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal horizontal support structure with vertical supports and mounting feet (no text or symbols)

Prohibition sign showing a walking person crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMÈTRE DU PRODUIT

MODÈLE : ssshkytxs-e

97 cm 22.5 cm 4.5 cm 60-100 cm 103 cm 64 cm 110 cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 170-210 cm

LISTE DES PIÈCES

NO.	Part Name	Q'ty
1	Bottom connecting pipe	1
2	Bottom tube 1	1
3	Bottom tube 2	1
4	Column iron pipe 1	1
5	Column iron pipe 2	1
6	Back connecting pipe	1
7	Column iron pipe 3	1
8	Column iron pipe 4	1
9	Top connecting pipe	1
10	Middle connecting pipe	1
11	Suction cup feet	4
12	Reducing sleeve	2
13	Rubber handle 25*120	4
14	Pipe plug 20*40	2
15	Pipe sleeve 10*29	2

NO.	Part Name	Q'ty
16	Thumb nut	4
17	Handle screw	4
18	Link spacer 1	4
19	Link spacer 2	2
20	Flat pad M10	10
21	Flat pad M10*25	4
22	Arc gasket M10	8
23	Screw M8*16	2
24	Screw M10*45	8
25	Screw M10*75	8
26	Locknut M10	16
27	Screw M8*85	2
28	Locknut M8	2
29	Flat pad M8	4
30	wrench	2

1	2	3	4
a	10	11	12
13	14	15	16
17	18	19	20
21	22	23	24
25	26	27	28
29x4	30x2

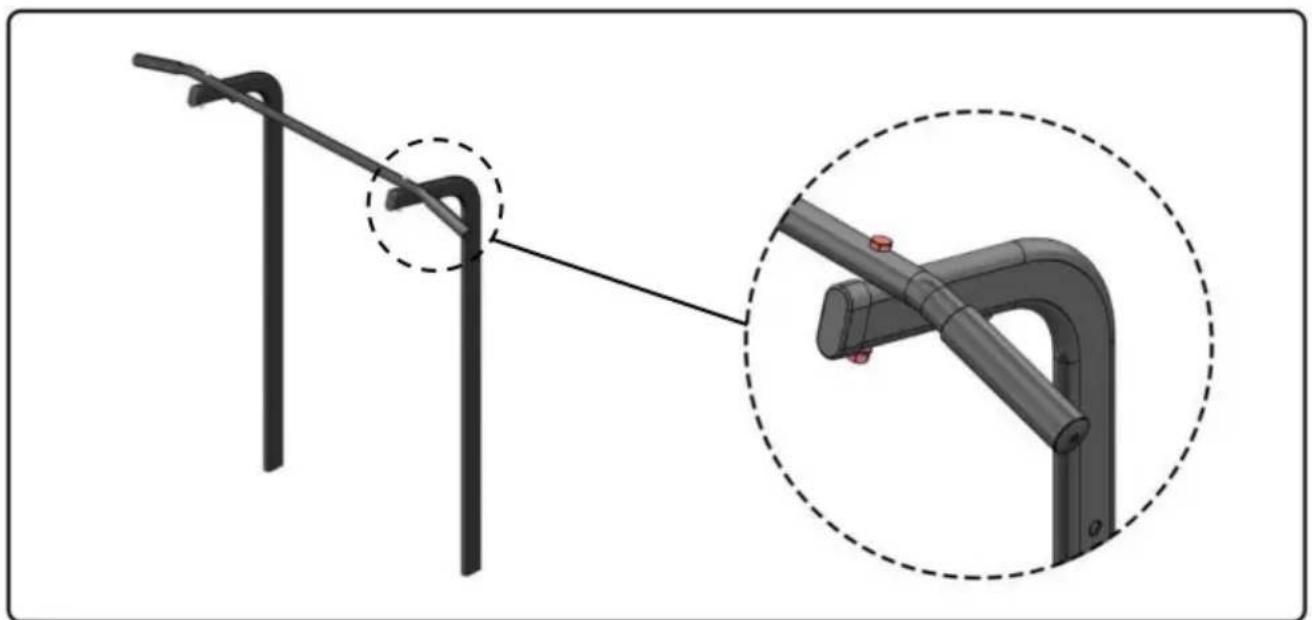

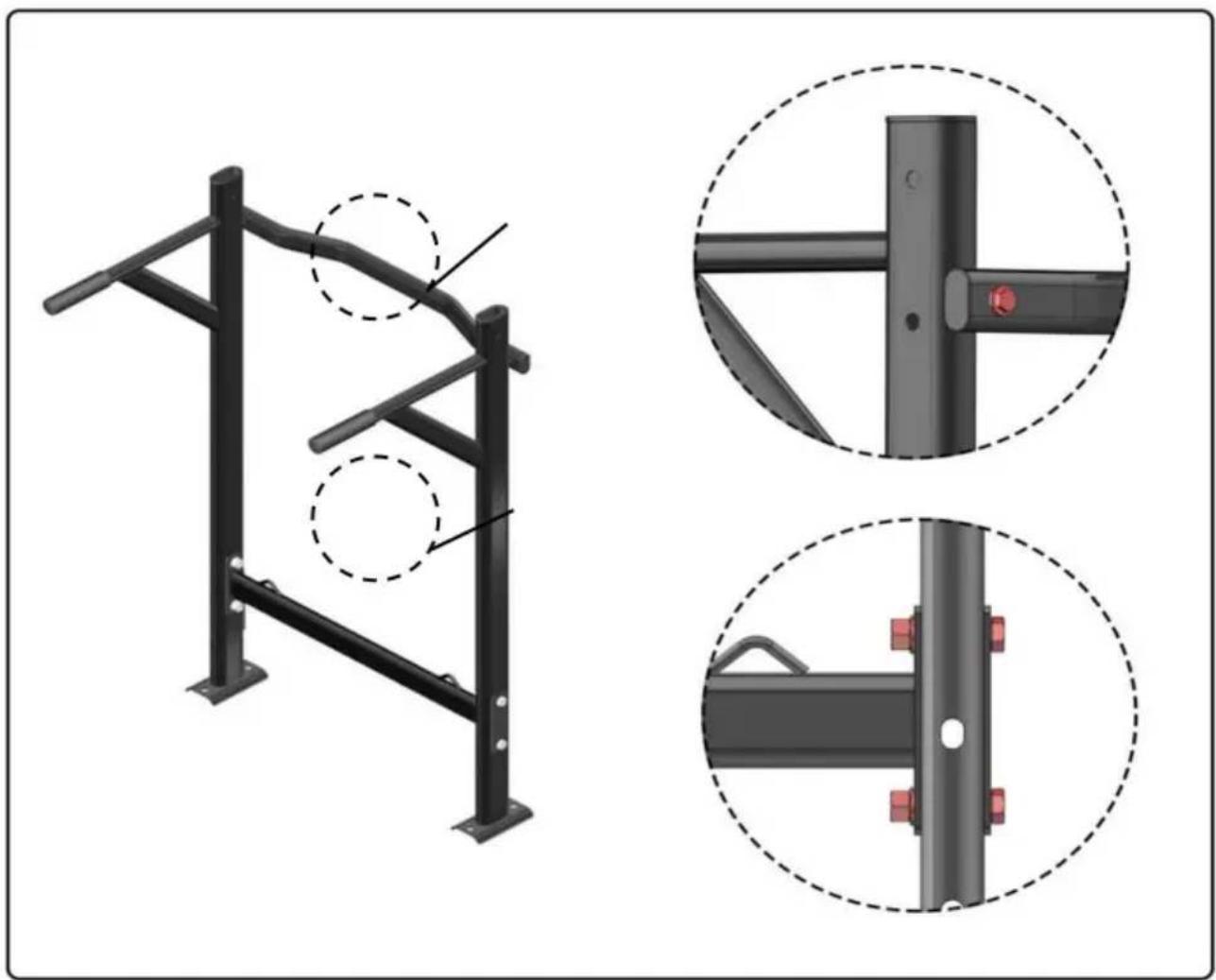

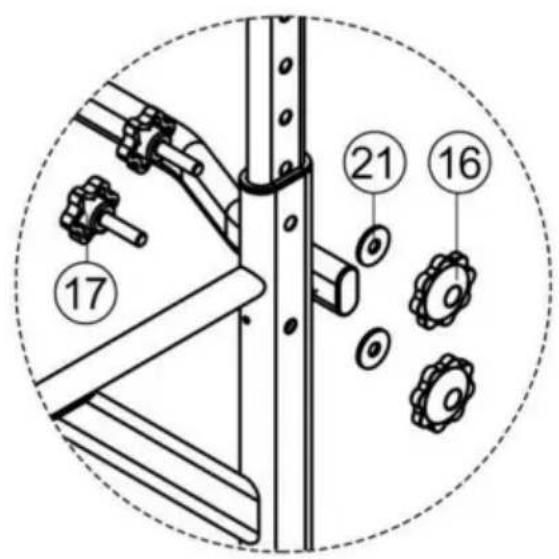

ASSEMBLÉE

Technical diagram of a mechanical assembly with numbered components and corresponding parts labeled X4, including a magnified inset showing detailed parts.

Mechanical assembly diagram showing a bracket with mounting flanges and a close-up of a pipe fitting (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and corresponding close-up views of bolt specifications.

Technical illustration of a metal frame structure with two close-up views showing details (no text or symbols)

Technical diagram showing exploded and assembled parts of a mechanical assembly with numbered annotations and two inset images labeled X2 and 27-29.

Technical illustration of a mechanical bracket with a close-up inset showing detail (no text or symbols)

Technical diagram of a mechanical lifting device with labeled parts and directional arrows indicating assembly steps.

Technical diagram showing mechanical assembly with numbered components and labeled parts

25 22 26 26 20 24

Technical illustration of a metal frame structure with two close-up views showing bolted joints and structural details (no text or symbols)

A/S YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal horizontal support structure with vertical supports and mounting feet (no text or symbols visible)

Prohibition sign showing a walking person crossed out by a diagonal line (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

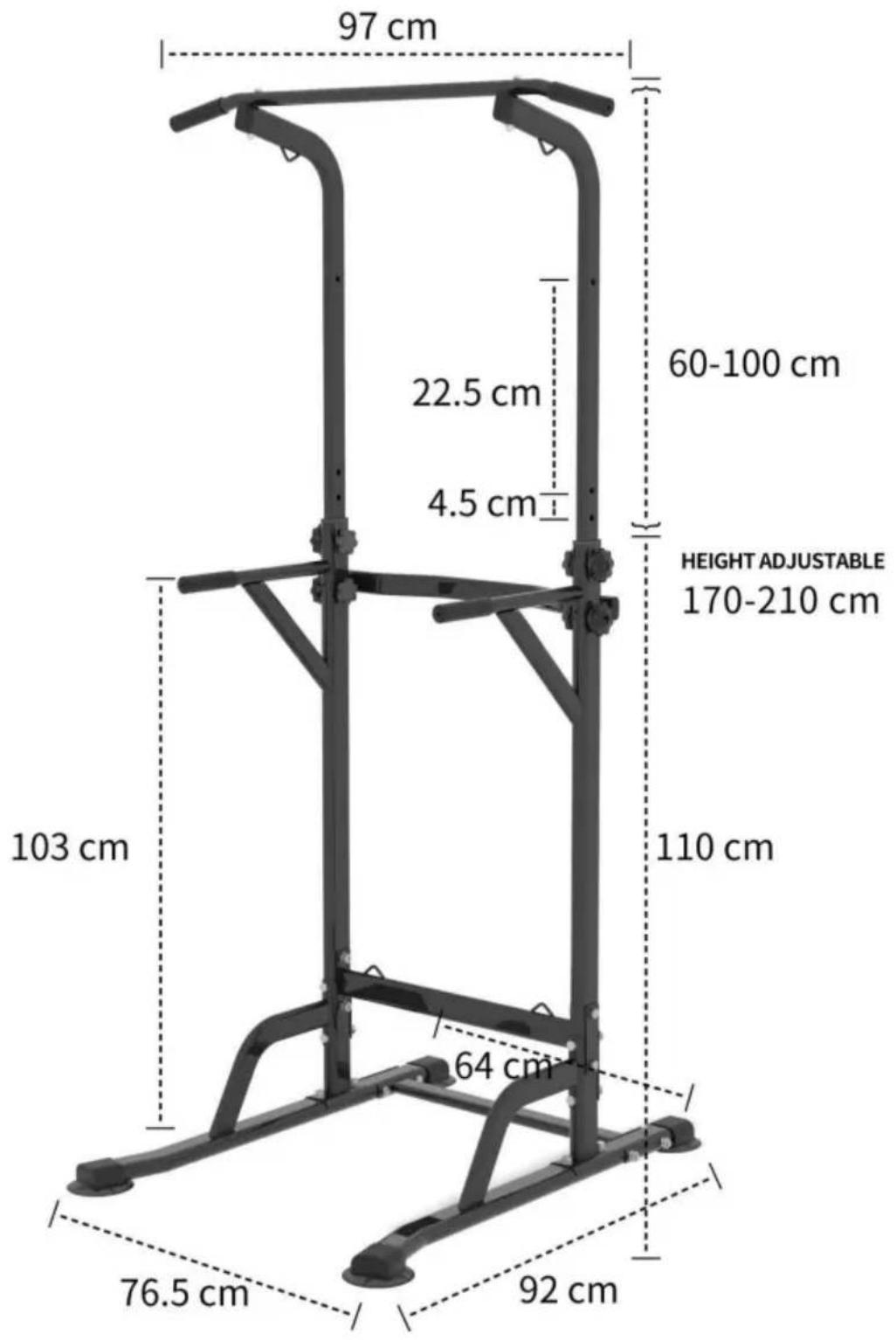

PRODUKTPARAMETER

MODELL: ssshkytxs-e

97 cm 22.5 cm 4.5 cm 60-100 cm HEIGHT ADJUSTABLE 170-210 cm 103 cm 64 cm 110 cm 76.5 cm 92 cm

TEILELISTE

NO.	Part Name	Q'ty
1	Bottom connecting pipe	1
2	Bottom tube 1	1
3	Bottom tube 2	1
4	Column iron pipe 1	1
5	Column iron pipe 2	1
6	Back connecting pipe	1
7	Column iron pipe 3	1
8	Column iron pipe 4	1
9	Top connecting pipe	1
10	Middle connecting pipe	1
11	Suction cup feet	4
12	Reducing sleeve	2
13	Rubber handle 25*120	4
14	Pipe plug 20*40	2
15	Pipe sleeve 10*29	2

NO.	Part Name	Q'ty
16	Thumb nut	4
17	Handle screw	4
18	Link spacer 1	4
19	Link spacer 2	2
20	Flat pad M10	10
21	Flat pad M10*25	4
22	Arc gasket M10	8
23	Screw M8*16	2
24	Screw M10*45	8
25	Screw M10*75	8
26	Locknut M10	16
27	Screw M8*85	2
28	Locknut M8	2
29	Flat pad M8	4
30	wrench	2

1	2	3	4
a	10	11	12
13	14	15	16
17	18	19	20
21	22	23	24
25	26	27	28
29x4	30x2

MONTAGE

Technical diagram of a mechanical assembly with numbered components and corresponding parts labeled X4, including a magnified inset showing detailed parts.

Technical illustration of a metal bracket assembly with a close-up inset showing detail (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and corresponding close-up views of bolt specifications.

Technical illustration of a metal frame structure with two close-up views showing details (no text or symbols present)

Technical diagram showing exploded and assembled parts of a mechanical assembly with numbered annotations and two inset images labeled X2 and 27-29.

Technical illustration of a pipe clamp assembly with magnified detail (no text or symbols)

Schritt 3: Endmontage

Technical diagram of a mechanical lifting device with labeled components and directional arrows indicating assembly steps.

Technical diagram showing mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a metal frame structure with two close-up views showing bolted joints and structural details (no text or symbols)

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal horizontal support structure with vertical supports and mounting feet (no text or symbols)

Prohibition sign showing a person running with a diagonal line (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMETRO PRODOTTO

MODELLO: ssshkytxs-e

97 cm 22.5 cm 4.5 cm 60-100 cm HEIGHT ADJUSTABLE 170-210 cm 103 cm 64 cm 110 cm 76.5 cm 92 cm

ELENCO DEI PEZZI

NO.	Part Name	Q'ty
1	Bottom connecting pipe	1
2	Bottom tube 1	1
3	Bottom tube 2	1
4	Column iron pipe 1	1
5	Column iron pipe 2	1
6	Back connecting pipe	1
7	Column iron pipe 3	1
8	Column iron pipe 4	1
9	Top connecting pipe	1
10	Middle connecting pipe	1
11	Suction cup feet	4
12	Reducing sleeve	2
13	Rubber handle 25*120	4
14	Pipe plug 20*40	2
15	Pipe sleeve 10*29	2

NO.	Part Name	Q'ty
16	Thumb nut	4
17	Handle screw	4
18	Link spacer 1	4
19	Link spacer 2	2
20	Flat pad M10	10
21	Flat pad M10*25	4
22	Arc gasket M10	8
23	Screw M8*16	2
24	Screw M10*45	8
25	Screw M10*75	8
26	Locknut M10	16
27	Screw M8*85	2
28	Locknut M8	2
29	Flat pad M8	4
30	wrench	2

1	2	3	4
a	10	11	12
13	14	15	16
17	18	19	20
21	22	23	24
25	26	27	28
29x4	30x2

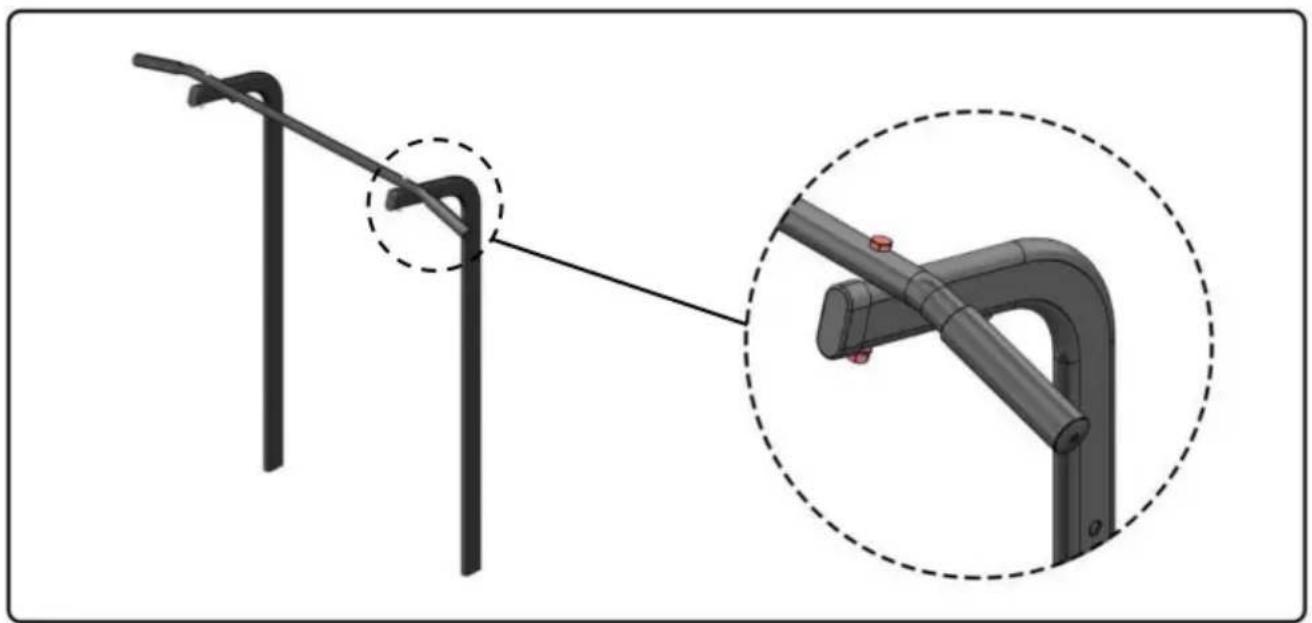

ASSEMBLAGGIO

Technical diagram of a mechanical assembly with numbered components and corresponding parts labeled X4, including a magnified inset showing detailed parts.

Technical illustration of a metal bracket assembly with a close-up inset showing detail (no text or symbols)

Technical diagram of a mechanical support structure with numbered components and corresponding X4 and X2 parts for assembly or assembly reference.

Technical illustration of a metal frame structure with two close-up views showing details (no text or symbols present)

Technical diagram showing exploded and assembled parts of a mechanical assembly with numbered annotations and two inset images labeled X2 and 27-29.

Technical illustration of a pipe clamp assembly with magnified detail (no text or symbols)

Technical diagram of a mechanical assembly with numbered parts and corresponding exploded views for each part.

Technical illustration of a metal frame structure with two close-up views showing bolted joints and structural details (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Luogo, Rancho Cucamonga, CA 91730

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal horizontal support structure with vertical supports and mounting feet (no text or symbols)

Prohibition sign showing a person running with a diagonal line (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARÁMETRO DEL PRODUCTO

MODELO: ssshkytxs-e

97 cm 22.5 cm 4.5 cm 60-100 cm HEIGHT ADJUSTABLE 170-210 cm 103 cm 64 cm 110 cm 76.5 cm 92 cm

LISTA DE PIEZAS

NO.	Part Name	Q'ty
1	Bottom connecting pipe	1
2	Bottom tube 1	1
3	Bottom tube 2	1
4	Column iron pipe 1	1
5	Column iron pipe 2	1
6	Back connecting pipe	1
7	Column iron pipe 3	1
8	Column iron pipe 4	1
9	Top connecting pipe	1
10	Middle connecting pipe	1
11	Suction cup feet	4
12	Reducing sleeve	2
13	Rubber handle 25*120	4
14	Pipe plug 20*40	2
15	Pipe sleeve 10*29	2

NO.	Part Name	Q'ty
16	Thumb nut	4
17	Handle screw	4
18	Link spacer 1	4
19	Link spacer 2	2
20	Flat pad M10	10
21	Flat pad M10*25	4
22	Arc gasket M10	8
23	Screw M8*16	2
24	Screw M10*45	8
25	Screw M10*75	8
26	Locknut M10	16
27	Screw M8*85	2
28	Locknut M8	2
29	Flat pad M8	4
30	wrench	2

1	2	3	4
a	10	11	12
13	14	15	16
17	18	19	20
21	22	23	24
25	26	27	28
29x4	30x2

ASAMBLEA

Technical diagram of a mechanical assembly with numbered components and corresponding X4 parts, including a magnified inset showing detailed parts.

Technical illustration of a metal bracket assembly with a magnified inset showing detail (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and corresponding close-up views of bolt specifications.

Technical illustration of a metal frame structure with two close-up views showing details (no text or symbols present)

Paso 3: Instale la parte superior

Technical diagram showing exploded and assembled parts of a mechanical assembly with numbered annotations and two inset images labeled X2 and 27-29.

Technical illustration of a mechanical bracket with a close-up inset showing detail (no text or symbols)

Technical diagram of a mechanical assembly with numbered parts and corresponding exploded views for assembly details.

Technical illustration of a metal frame structure with two close-up views showing bolted joints and structural details (no text or symbols)

Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal horizontal support structure with vertical supports and mounting feet (no text or symbols)

Prohibition sign showing a person running with a diagonal line (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMETR PRODUKTU

MODEL: ssshkytxs-e

97 cm 22.5 cm 4.5 cm 60-100 cm 103 cm 64 cm 110 cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 170-210 cm

LISTA CZEŚCI

NO.	Part Name	Q'ty
1	Bottom connecting pipe	1
2	Bottom tube 1	1
3	Bottom tube 2	1
4	Column iron pipe 1	1
5	Column iron pipe 2	1
6	Back connecting pipe	1
7	Column iron pipe 3	1
8	Column iron pipe 4	1
9	Top connecting pipe	1
10	Middle connecting pipe	1
11	Suction cup feet	4
12	Reducing sleeve	2
13	Rubber handle 25*120	4
14	Pipe plug 20*40	2
15	Pipe sleeve 10*29	2

NO.	Part Name	Q'ty
16	Thumb nut	4
17	Handle screw	4
18	Link spacer 1	4
19	Link spacer 2	2
20	Flat pad M10	10
21	Flat pad M10*25	4
22	Arc gasket M10	8
23	Screw M8*16	2
24	Screw M10*45	8
25	Screw M10*75	8
26	Locknut M10	16
27	Screw M8*85	2
28	Locknut M8	2
29	Flat pad M8	4
30	wrench	2

1	2	3	4
13	14	15	16
17	18	19	20
21	22	23	24
25	26	27	28
29x4	30x2

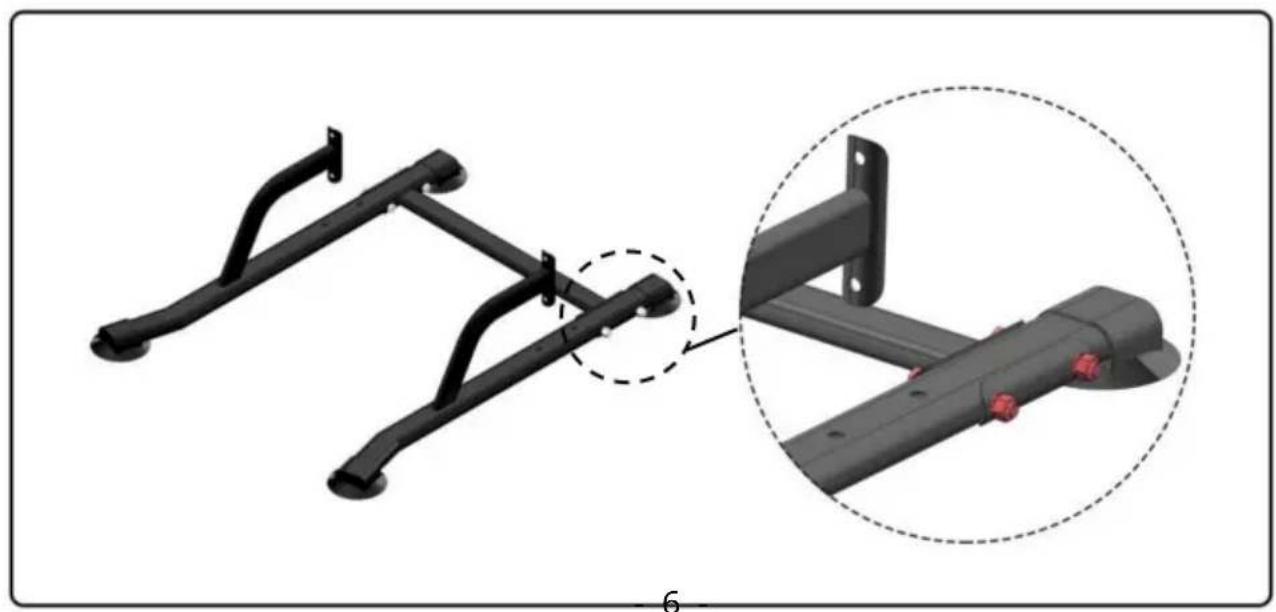

MONTAŻ

Technical diagram of a mechanical assembly with numbered components and corresponding parts labeled X4, including a magnified inset showing detailed parts.

Mechanical assembly diagram showing a bracket with mounting flanges and a close-up of a pipe fitting (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and corresponding close-up views of bolt specifications.

Technical illustration of a metal frame structure with two close-up views showing details (no text or symbols present)

Technical diagram showing exploded and assembled parts of a mechanical assembly with numbered annotations and two inset images labeled X2 and 27-29.

Technical illustration of a pipe clamp assembly with magnified detail (no text or symbols)

Technical diagram of a mechanical lifting device with labeled components and directional arrows indicating assembly steps.

Technical diagram showing mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a metal frame structure with two close-up views showing bolted joints and structural details (no text or symbols)

C/O YH Consulting Limited Biuro 147, Centurion

Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal exercise stand with vertical supports and horizontal legs (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

WAARSCHUWING: OM HET RISICO OP LETSEL TE VERMINDEREN.

BEWAAR DEZE INSTRUCTIES

WAARSCHUWING:

Prohibition sign showing a person running with a diagonal line (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PRODUCTPARAMETER

MODEL: ssshkytxs-e

97 cm 22.5 cm 4.5 cm 60-100 cm 103 cm 64 cm 110 cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 170-210 cm

ONDERDELENLIJST

NO.	Part Name	Q'ty
1	Bottom connecting pipe	1
2	Bottom tube 1	1
3	Bottom tube 2	1
4	Column iron pipe 1	1
5	Column iron pipe 2	1
6	Back connecting pipe	1
7	Column iron pipe 3	1
8	Column iron pipe 4	1
9	Top connecting pipe	1
10	Middle connecting pipe	1
11	Suction cup feet	4
12	Reducing sleeve	2
13	Rubber handle 25*120	4
14	Pipe plug 20*40	2
15	Pipe sleeve 10*29	2

NO.	Part Name	Q'ty
16	Thumb nut	4
17	Handle screw	4
18	Link spacer 1	4
19	Link spacer 2	2
20	Flat pad M10	10
21	Flat pad M10*25	4
22	Arc gasket M10	8
23	Screw M8*16	2
24	Screw M10*45	8
25	Screw M10*75	8
26	Locknut M10	16
27	Screw M8*85	2
28	Locknut M8	2
29	Flat pad M8	4
30	wrench	2

MONTAGE

Technical diagram of a mechanical assembly with numbered components and corresponding parts labeled X4, including a magnified inset showing detailed parts.

Technical illustration of a metal bracket assembly with a close-up inset showing detail (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and corresponding close-up views of bolt specifications.

Technical illustration of a metal frame structure with two close-up views showing details (no text or symbols)

Technical diagram showing exploded and assembled parts of a mechanical assembly with numbered annotations and two inset images labeled X2 and 27-29.

Technical illustration of a pipe clamp assembly with magnified detail (no text or symbols)

Stap 3: Eindmontage

Technical diagram of a mechanical assembly with numbered parts and corresponding exploded views for each part.

Technical illustration of a metal frame structure with two close-up views showing bolted joints and structural details (no text or symbols present)

C/O YH Consulting Limited Kantoor 147, Centurion

Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal exercise stand with vertical supports and horizontal legs (no text or symbols visible)

WARNING: FÖR ATT MINSKA RISKEN FÖR SKADA PÅ PERSONER.

SPARA DESSA INSTRUKTIONER

WARNING:

Prohibition sign showing a walking person crossed out by a diagonal line (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PRODUKTPARAMETER

MODELL: ssshkytxs-e

97 cm 22.5 cm 4.5 cm 60-100 cm 103 cm 64 cm 110 cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 170-210 cm

DELLISTA

NO.	Part Name	Q'ty
1	Bottom connecting pipe	1
2	Bottom tube 1	1
3	Bottom tube 2	1
4	Column iron pipe 1	1
5	Column iron pipe 2	1
6	Back connecting pipe	1
7	Column iron pipe 3	1
8	Column iron pipe 4	1
9	Top connecting pipe	1
10	Middle connecting pipe	1
11	Suction cup feet	4
12	Reducing sleeve	2
13	Rubber handle 25*120	4
14	Pipe plug 20*40	2
15	Pipe sleeve 10*29	2

NO.	Part Name	Q'ty
16	Thumb nut	4
17	Handle screw	4
18	Link spacer 1	4
19	Link spacer 2	2
20	Flat pad M10	10
21	Flat pad M10*25	4
22	Arc gasket M10	8
23	Screw M8*16	2
24	Screw M10*45	8
25	Screw M10*75	8
26	Locknut M10	16
27	Screw M8*85	2
28	Locknut M8	2
29	Flat pad M8	4
30	wrench	2

1	2	3	4
13	14	15	16
17	18	19	20
21	22	23	24
25	26	27	28
29x4	30x2

MONTERING

Steg 1: Installera basdelen

Technical diagram of a mechanical assembly with numbered parts and corresponding X4 component images below.

Technical illustration of a metal bracket assembly with a magnified inset showing detail (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and corresponding close-up views of bolt specifications.

Technical illustration of a metal frame structure with two close-up views showing details (no text or symbols present)

Technical diagram showing exploded and assembled parts of a mechanical assembly with numbered annotations and two inset images labeled X2 and 27-29.

Technical illustration of a pipe clamp assembly with magnified detail (no text or symbols)

Steg 3: Slutmontering

Technical diagram of a mechanical assembly with numbered parts and corresponding exploded views for each part.

Technical illustration of a metal frame structure with two close-up views showing bolted joints and structural details (no text or symbols)

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
