USER MANUAL ssshkytxs-d Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Pull Up Bar Station

ssshkytxs-d

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

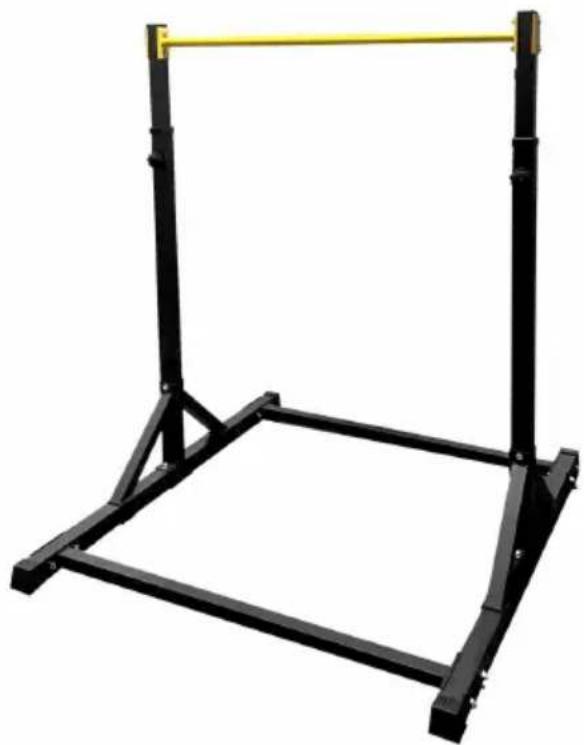

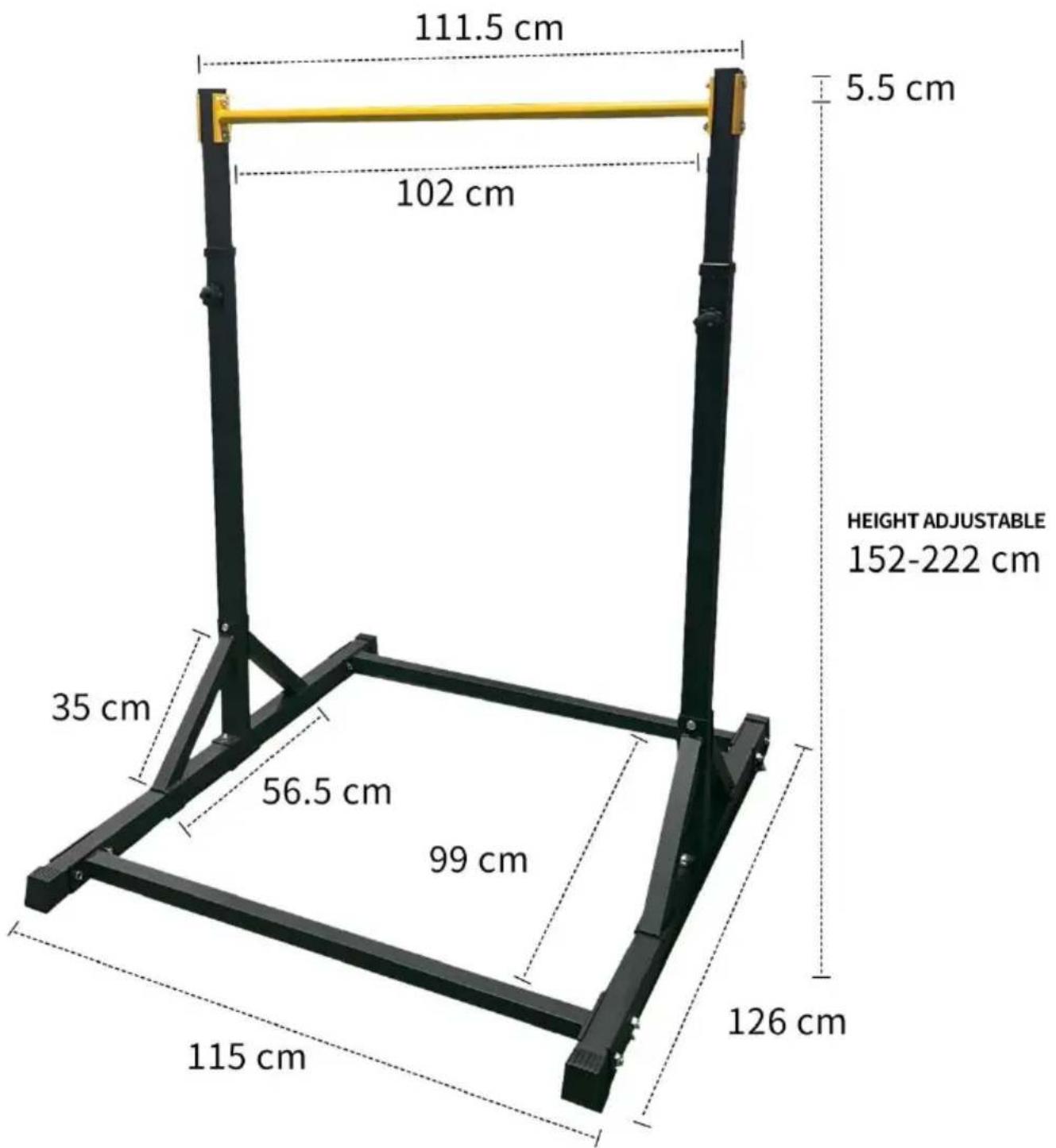

Pull Up Bar Station

MODEL: ssshkytxs-d

Black metal frame with a yellow horizontal bar extending upward (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Thank you very much for choosing this Pull Up Bar Station

- Please read all of the instructions before using it. The information will help you achieve the best possible results.

INTRODUCTION

SAVE THESE INSTRUCTIONS

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this prod

are fully aware of all warnings and precautions.

• Children or persons with disabilities must be closely supervised when using the boxing ring.
• This product is used only as intended.Do not exceed the rated load
• Do not drop or insert anything into any hole.
• This product for family use only. Do not use this product for any commercial, rental, school or institution.
• Do not use outside.
• Keep the product indoors, away from moisture and dust. Choose a surface with a mat underneath it to protect the floor or carpet. Make there is enough space to install, disassemble, and use this product.

Prohibition sign showing a walking person crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

Model: ssshkytxs-d

PART LIST

NO.	Part Name	Q'ty
1	Foot iron pipe	2
2	Cross leg iron pipe	2
3	Column iron pipe 1	2
4	Column iron pipe 2	2
5	Crossbar iron pipe	1
6	Support iron pipe	4
7	Support card 1	6
8	Support card 2	2
9	Support card 3	4
10	Bolt M10*70	18

NO.	Part Name	Q'ty
11	Bolt M10*65	4
12	Mut M10	18
13	Flat Washer M10*25	2
14	Flat Washer M10	18
15	Glue head nut	2
16	Rubber head bolts	2
17	Wrench	2
18	footmuffs	4
19
20

Simple line drawing of a cylindrical object with evenly spaced holes, labeled 'x2' (no text or symbols on the object itself)

Simple line drawing of a mechanical support or beam with two flanged ends, labeled 'x2' and marked with number '2' (no text or symbols on the diagram itself)

Simple line drawing of a ruler with measurement markings (no text or symbols on the ruler itself)

Simple line drawing of a long rectangular object with a flanged end, labeled '4' and 'x2' (no text or symbols on the object itself)

Simple line drawing of a two-bar electrical rod with labeled dimension (x1), no text or symbols present.

Simple line drawing of a rectangular object with a protruding rod, labeled 'x4' and number '6' (no text or symbols on the object itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '7' and 'x6' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal bracket with mounting holes, labeled '8' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a door with a hole, labeled '9' and 'x4' (no text or symbols on the door itself)

Technical drawing of a bolt with threaded shaft and hexagonal end (no text or symbols)

Line drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal nut with side label (12) and x18 multiplier (18), no other text or symbols present.

Simple line drawing of a ring with label '13' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a ring with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical component with flanged ends and a cylindrical top (no text or symbols)

17 x2

Simple 3D block diagram with no text or symbols, showing a grid-like structure and the label '18' and 'x4' (no readable text or symbols beyond labels)

ASSEMBLY

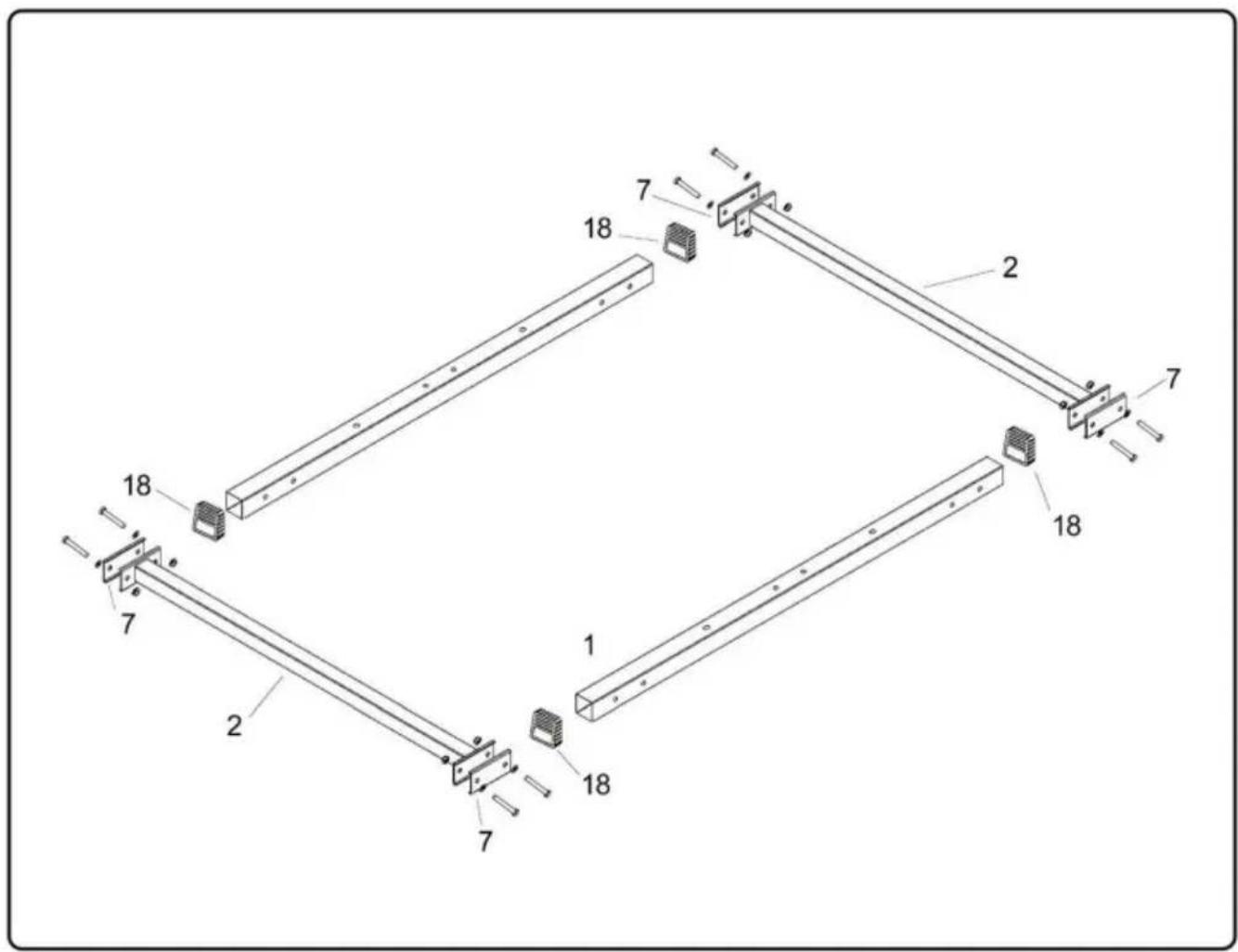

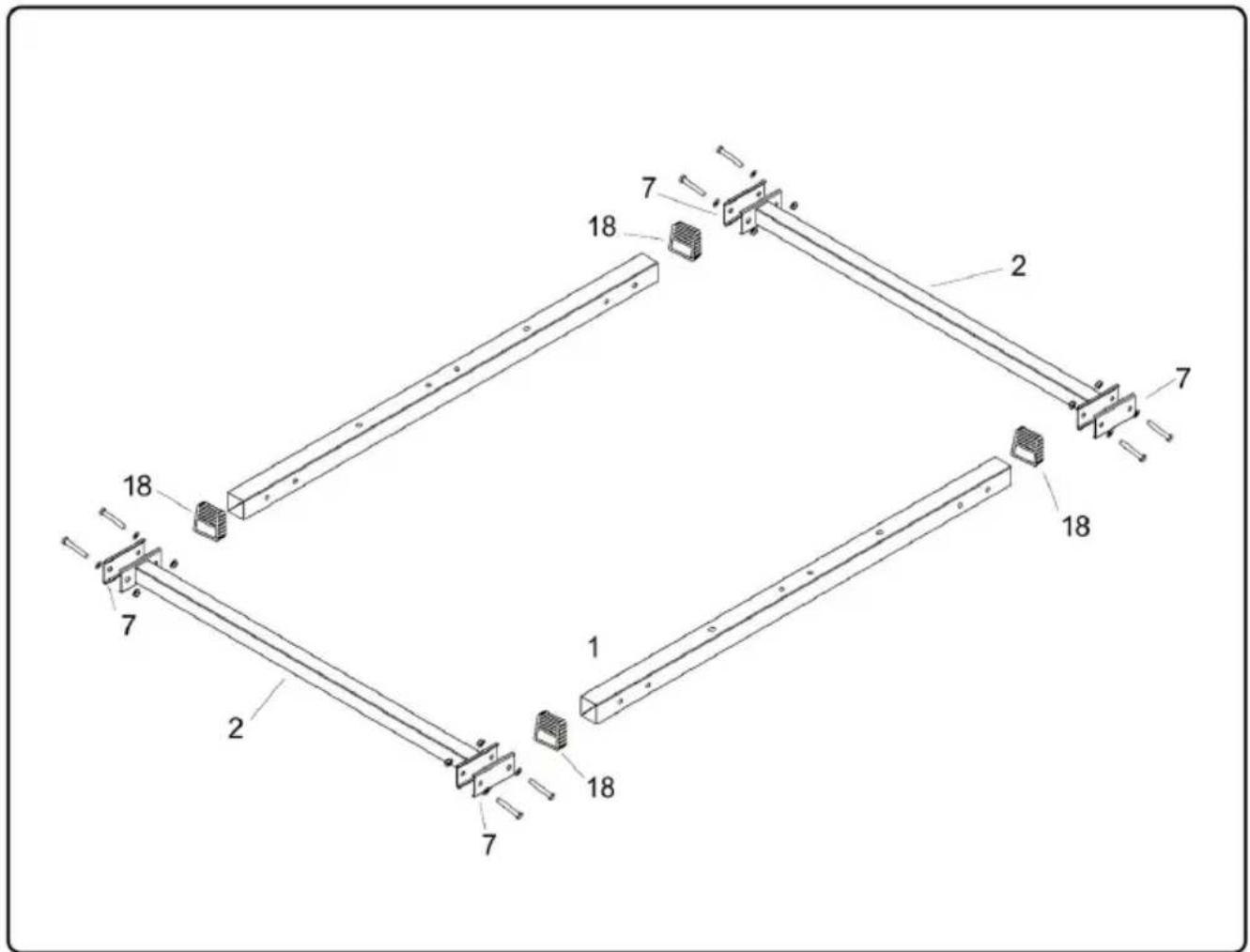

Step 1: First install the base according to the drawing

Technical diagram of a mechanical assembly with labeled components, showing two main frame structures connected by rods and clamps.

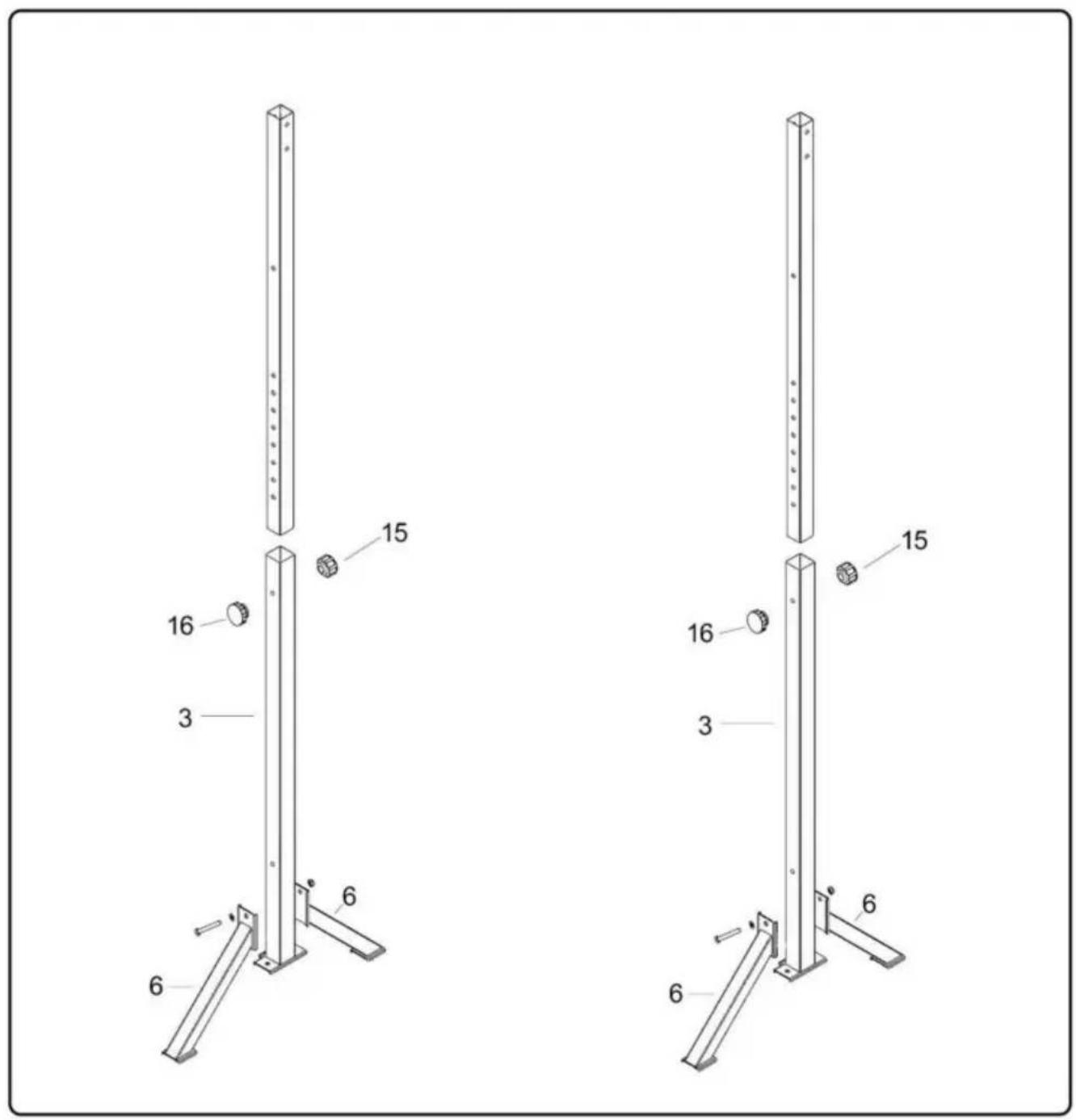

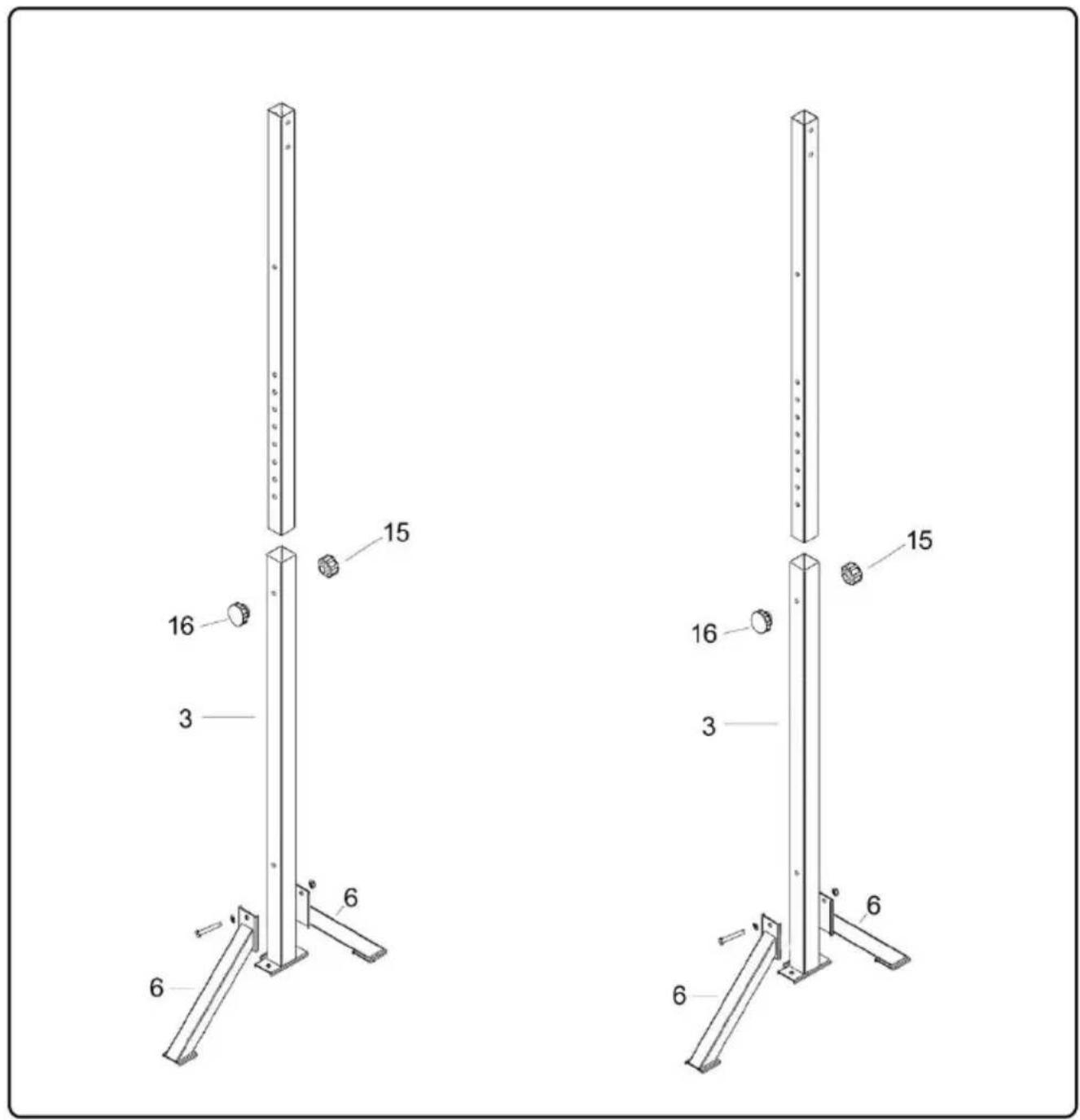

Step 2: Install the columns according to the drawings

Technical diagram showing two identical mechanical assembly setups with labeled components and dimensions.

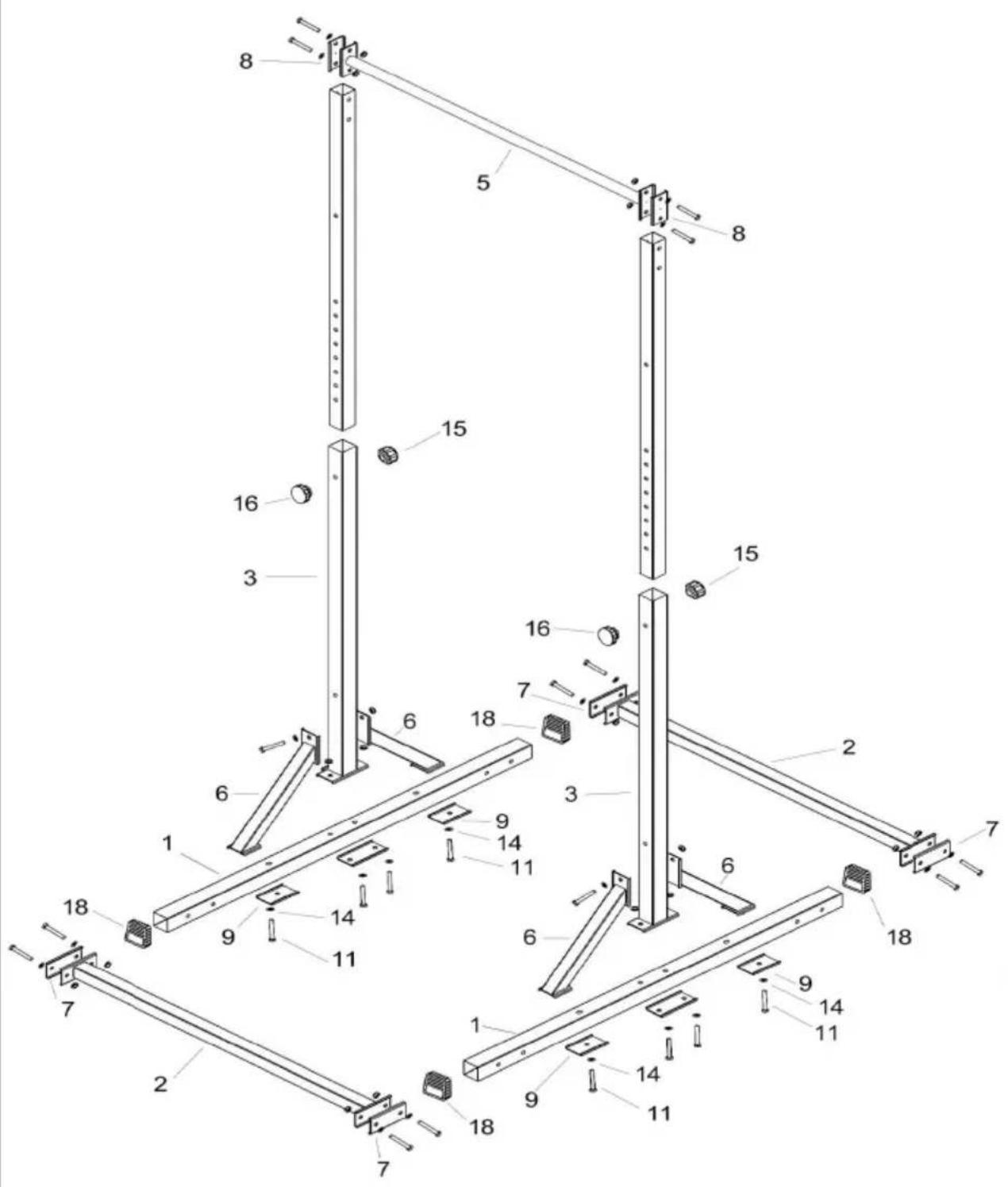

Step 3: Assemble all assembled parts according to the drawings

Note:Accessories not marked on the drawing 10/12/14

Technical diagram of a mechanical assembly with numbered components for identification

Cleaning and Maintenance

-Use a soft, clean cloth that will not scratch the surface when dustin
-This item could be cleaned with soap and water. Be sure to avoid har solvents and abrasives.
- Periodically (every 90 days) makesure the screws are fully tightened

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal frame with a yellow horizontal bar extending upward (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Prohibition sign showing a walking person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMÈTRE DU PRODUIT

LISTE DES PIÈCES

NO.	Part Name	Q'ty
1	Foot iron pipe	2
2	Cross leg iron pipe	2
3	Column iron pipe 1	2
4	Column iron pipe 2	2
5	Crossbar iron pipe	1
6	Support iron pipe	4
7	Support card 1	6
8	Support card 2	2
9	Support card 3	4
10	Bolt M10*70	18

NO.	Part Name	Q'ty
11	Bolt M10*65	4
12	Mut M10	18
13	Flat Washer M10*25	2
14	Flat Washer M10	18
15	Glue head nut	2
16	Rubber head bolts	2
17	Wrench	2
18	footmuffs	4
19
20

Simple line drawing of a cylindrical object with evenly spaced holes, labeled 'x2' (no text or symbols on the object itself)

Simple line drawing of a diagonal beam with two supports, labeled 'x2' and '2' (no text or symbols on the diagram itself)

Simple line drawing of a ruler with measurement markings (no text or symbols on the object itself)

Simple line drawing of a long rectangular beam with flanged ends, labeled 'x2' and marked with number 4 (no text or symbols on the beam itself)

Simple line drawing of a diagonal beam with two ends, labeled '5' and 'x1' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal rod with a flanged end, labeled 'x4' (no text or symbols on the object itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '7' and 'x6' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '8' and 'x2' (no text or symbols on the diagram itself)

Simple 3D diagram of a rectangular door with a circular hole, labeled '9' and 'x4' (no text or symbols on the door itself)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal nut with side label (12) and cross-sectional view (x18), no readable text or symbols beyond labels

Simple line drawing of a ring with label '13' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a ring with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

Mechanical component diagram with no visible text or symbols

Simple line drawing of a double-ended wrench (no text or symbols)

Isometric view of a 3D block with horizontal striped pattern and label '18' and 'x4' (no text or symbols on the block itself)

ASSEMBLÉE

Step 1: First install the base according to the drawing

Technical diagram of a mechanical assembly with labeled components, showing two main parts (1 and 2) flanked by 7 and 18 components.

Step 2: Install the columns according to the drawings

15 16 3 6 6 15 16 3 6 6

Step 3: Assemble all assembled parts according to the drawings

Technical diagram of a mechanical assembly with numbered components for identification

A/S YH Consulting Limited Bureau 147, Centurion Maison, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal frame with a yellow horizontal bar extending upward (no text or symbols visible)

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PRODUKTPARAMETER

Modell: ssshkytxs-d

TEILELISTE

NO.	Part Name	Q'ty
1	Foot iron pipe	2
2	Cross leg iron pipe	2
3	Column iron pipe 1	2
4	Column iron pipe 2	2
5	Crossbar iron pipe	1
6	Support iron pipe	4
7	Support card 1	6
8	Support card 2	2
9	Support card 3	4
10	Bolt M10*70	18

NO.	Part Name	Q'ty
11	Bolt M10*65	4
12	Mut M10	18
13	Flat Washer M10*25	2
14	Flat Washer M10	18
15	Glue head nut	2
16	Rubber head bolts	2
17	Wrench	2
18	footmuffs	4
19
20

Simple line drawing of a cylindrical object with evenly spaced holes, labeled 'x2' (no text or symbols on the object itself)

Simple line drawing of a diagonal beam with two supports, labeled 'x2' and '2' (no text or symbols on the diagram itself)

Simple line drawing of a ruler with measurement markings (no text or symbols on the object itself)

Simple line drawing of a long rectangular beam with flanged ends, labeled 'x2' and marked with number 4 (no text or symbols on the beam itself)

Simple line drawing of a diagonal beam with two ends, labeled '5' and 'x1' (no text or symbols on the diagram itself)

Simple line drawing of a metal bracket with no text or symbols

Simple line drawing of a rectangular metal bracket with holes, labeled '7' and 'x6' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '8' and 'x2' (no text or symbols on the diagram itself)

Simple 3D diagram of a rectangular door with a circular hole, labeled '9' and 'x4' (no text or symbols on the door itself)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal nut with side label (12) and cross-sectional view (x18), no readable text or symbols beyond labels

Simple line drawing of a ring with label '13' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a ring with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

Mechanical component diagram with no visible text or symbols

Simple line drawing of a double-ended wrench (no text or symbols)

Isometric view of a 3D block with horizontal striped pattern and label '18' and 'x4' (no text or symbols on the block itself)

MONTAGE

Step 1: First install the base according to the drawing

Technical diagram of a mechanical assembly with labeled components, showing two main parts (1 and 2) flanked by 7 and 18 components.

Step 2: Install the columns according to the drawings

15 16 3 6 6 15 16 3 6 6

Step 3: Assemble all assembled parts according to the drawings

Technical diagram of a mechanical assembly with numbered components for identification

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal frame with a yellow horizontal bar extending upward (no text or symbols visible)

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMETRO PRODOTTO

Modello: ssshkytxs-d

ELENCO DEI PEZZI

NO.	Part Name	Q'ty
1	Foot iron pipe	2
2	Cross leg iron pipe	2
3	Column iron pipe 1	2
4	Column iron pipe 2	2
5	Crossbar iron pipe	1
6	Support iron pipe	4
7	Support card 1	6
8	Support card 2	2
9	Support card 3	4
10	Bolt M10*70	18

NO.	Part Name	Q'ty
11	Bolt M10*65	4
12	Mut M10	18
13	Flat Washer M10*25	2
14	Flat Washer M10	18
15	Glue head nut	2
16	Rubber head bolts	2
17	Wrench	2
18	footmuffs	4
19
20

Simple line drawing of a cylindrical object with evenly spaced holes, labeled 'x2' (no text or symbols on the object itself)

Simple line drawing of a diagonal beam with two supports, labeled 'x2' and '2' (no text or symbols on the diagram itself)

Simple line drawing of a ruler with measurement markings (no text or symbols on the ruler itself)

Simple line drawing of a long rectangular beam with flanged ends, labeled 'x2' and marked with number 4 (no text or symbols on the beam itself)

Simple line drawing of a diagonal beam with two ends, labeled '5' and 'x1' (no text or symbols on the diagram itself)

Simple line drawing of a metal bracket with no text or symbols

Simple line drawing of a rectangular metal bracket with holes, labeled '7' and 'x6' (no text or symbols on the object itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '8' and 'x2' (no text or symbols on the diagram itself)

Simple 3D diagram of a rectangular door with a circular hole, labeled '9' and 'x4' (no text or symbols on the door itself)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal nut with side label (12) and cross-sectional view (x18), no readable text or symbols beyond labels

Simple line drawing of a ring with label '13' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a ring with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

Mechanical component diagram with no visible text or symbols

Simple line drawing of a two-wen wrench (no text or symbols)

Isometric view of a 3D block with horizontal striped pattern and label '18' and 'x4' (no text or symbols on the block itself)

ASSEMBLAGGIO

Step 1: First install the base according to the drawing

Technical diagram of a mechanical assembly with labeled components, showing two main parts (1 and 2) flanked by 7 and 18 components.

Step 2: Install the columns according to the drawings

15 16 3 6 6 15 16 3 6 6

Step 3: Assemble all assembled parts according to the drawings

Technical diagram of a mechanical assembly with numbered components for identification

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames, Surrey, TW184AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal frame with a yellow horizontal bar extending upward (no text or symbols visible)

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

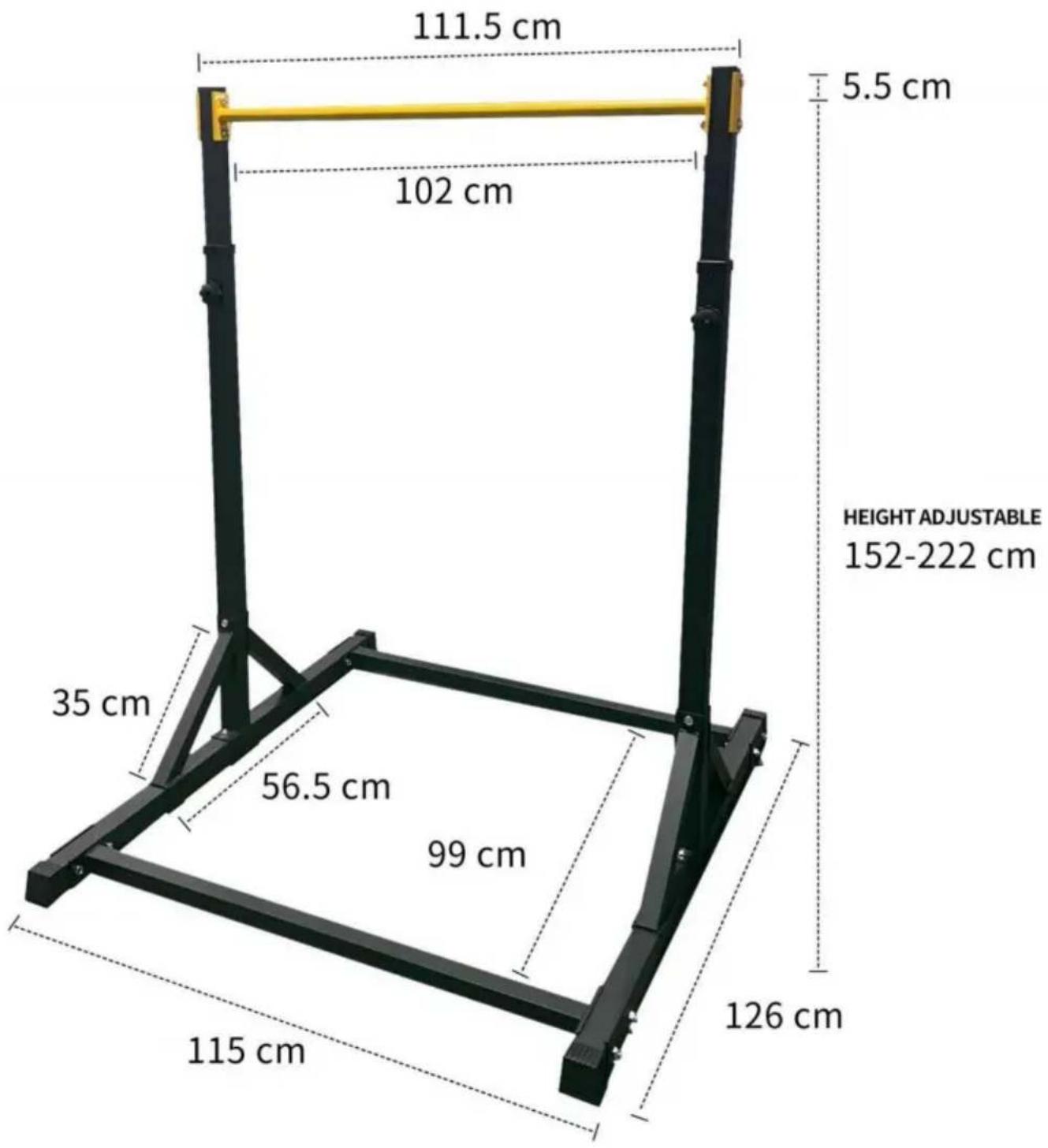

PARÁMETRO DEL PRODUCTO

Modelo: ssshkytxs-d

LISTA DE PIEZAS

NO.	Part Name	Q'ty
1	Foot iron pipe	2
2	Cross leg iron pipe	2
3	Column iron pipe 1	2
4	Column iron pipe 2	2
5	Crossbar iron pipe	1
6	Support iron pipe	4
7	Support card 1	6
8	Support card 2	2
9	Support card 3	4
10	Bolt M10*70	18

NO.	Part Name	Q'ty
11	Bolt M10*65	4
12	Mut M10	18
13	Flat Washer M10*25	2
14	Flat Washer M10	18
15	Glue head nut	2
16	Rubber head bolts	2
17	Wrench	2
18	footmuffs	4
19
20

Simple line drawing of a cylindrical object with evenly spaced holes, labeled 'x2' (no text or symbols on the object itself)

Simple line drawing of a diagonal beam with two supports, labeled 'x2' and '2' (no text or symbols on the diagram itself)

Simple line drawing of a ruler with measurement markings (no text or symbols on the object itself)

Simple line drawing of a long rectangular beam with flanged ends, labeled 'x2' and marked with number 4 (no text or symbols on the beam itself)

Simple line drawing of a diagonal beam with two ends, labeled '5' and 'x1' (no text or symbols on the diagram itself)

Simple line drawing of a metal bracket with no text or symbols

Simple line drawing of a rectangular metal bracket with holes, labeled '7' and 'x6' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '8' and 'x2' (no text or symbols on the diagram itself)

Simple 3D diagram of a rectangular door with a circular hole, labeled '9' and 'x4' (no text or symbols on the door itself)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal nut with side label (12) and cross-sectional view (x18), no readable text or symbols beyond labels

Simple line drawing of a ring with label '13' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a ring with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

Mechanical component diagram with no visible text or symbols

Simple line drawing of a double-ended wrench with no text or symbols

Isometric view of a 3D block with horizontal striped pattern and label '18' and 'x4' (no text or symbols on the block itself)

ASAMBLEA

Step 1: First install the base according to the drawing

Technical diagram of a mechanical assembly with labeled components, showing two main parts (1 and 2) flanked by 7 and 18 components.

Step 2: Install the columns according to the drawings

15 16 3 6 6 15 16 3 6 6

Step 3: Assemble all assembled parts according to the drawings

Technical diagram of a mechanical assembly with numbered components for identification

C/O YH Consulting Limited Oficina 147, Centurion Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal frame with a yellow horizontal bar extending upward (no text or symbols visible)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Prohibition sign showing a walking person crossed out by a diagonal line (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMETR PRODUKTU

Model: ssshkytxs-d

LISTA CZEŚCI

NO.	Part Name	Q'ty
1	Foot iron pipe	2
2	Cross leg iron pipe	2
3	Column iron pipe 1	2
4	Column iron pipe 2	2
5	Crossbar iron pipe	1
6	Support iron pipe	4
7	Support card 1	6
8	Support card 2	2
9	Support card 3	4
10	Bolt M10*70	18

NO.	Part Name	Q'ty
11	Bolt M10*65	4
12	Mut M10	18
13	Flat Washer M10*25	2
14	Flat Washer M10	18
15	Glue head nut	2
16	Rubber head bolts	2
17	Wrench	2
18	footmuffs	4
19
20

Simple line drawing of a cylindrical object with evenly spaced holes, labeled 'x2' (no text or symbols on the object itself)

Simple line drawing of a diagonal beam with two supports, labeled 'x2' and '2' (no text or symbols on the diagram itself)

Simple line drawing of a ruler with measurement markings (no text or symbols on the ruler itself)

Simple line drawing of a long rectangular beam with flanged ends, labeled 'x2' and marked with number 4 (no text or symbols on the beam itself)

Simple line drawing of a diagonal beam with two ends, labeled '5' and 'x1' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal rod with a flanged end, labeled 'x4' (no text or symbols on the object itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '7' and 'x6' (no text or symbols on the object itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '8' and 'x2' (no text or symbols on the diagram itself)

Simple 3D diagram of a rectangular door with a circular hole, labeled '9' and 'x4' (no text or symbols on the door itself)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal nut with side label (12) and cross-sectional view (x18), no readable text or symbols beyond labels

Simple line drawing of a ring with label '13' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a ring with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

Mechanical component diagram with no visible text or symbols

Simple line drawing of a double-ended wrench (no text or symbols)

Isometric view of a 3D block with horizontal striped pattern and label '18' and 'x4' (no text or symbols on the block itself)

MONTAŻ

Step 1: First install the base according to the drawing

Technical diagram of a mechanical assembly with labeled components, showing two main parts (1 and 2) flanked by 7 and 18 components.

Step 2: Install the columns according to the drawings

15 16 3 6 6 15 16 3 6 6

Step 3: Assemble all assembled parts according to the drawings

Technical diagram of a mechanical assembly with numbered components for identification

C/O YH Consulting Limited Biuro 147, Centurion Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal frame with a yellow horizontal bar extending upward, no text or symbols visible

HULP NODIG? NEEM CONTACT MET ONS OP!

WAARSCHUWING: OM HET RISICO OP LETSEL TE VERMINDEREN.

BEWAAR DEZE INSTRUCTIES

WAARSCHUWING:

Prohibition sign showing a walking person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PRODUCTPARAMETER

Model: ssshkytxs-d

ONDERDELENLIJST

NO.	Part Name	Q'ty
1	Foot iron pipe	2
2	Cross leg iron pipe	2
3	Column iron pipe 1	2
4	Column iron pipe 2	2
5	Crossbar iron pipe	1
6	Support iron pipe	4
7	Support card 1	6
8	Support card 2	2
9	Support card 3	4
10	Bolt M10*70	18

NO.	Part Name	Q'ty
11	Bolt M10*65	4
12	Mut M10	18
13	Flat Washer M10*25	2
14	Flat Washer M10	18
15	Glue head nut	2
16	Rubber head bolts	2
17	Wrench	2
18	footmuffs	4
19
20

Simple line drawing of a cylindrical object with evenly spaced holes, labeled 'x2' (no text or symbols on the object itself)

Simple line drawing of a diagonal beam with two supports, labeled 'x2' and '2' (no text or symbols on the diagram itself)

Simple line drawing of a ruler with measurement markings (no text or symbols on the object itself)

Simple line drawing of a long rectangular beam with flanged ends, labeled 'x2' and marked with number 4 (no text or symbols on the beam itself)

Simple line drawing of a diagonal beam with two ends, labeled '5' and 'x1' (no text or symbols on the diagram itself)

Simple line drawing of a metal bracket with no text or symbols

Simple line drawing of a rectangular metal bracket with holes, labeled '7' and 'x6' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '8' and 'x2' (no text or symbols on the diagram itself)

Simple 3D diagram of a rectangular door with a circular hole, labeled '9' and 'x4' (no text or symbols on the door itself)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal nut with side label (12) and cross-sectional view (x18), no readable text or symbols beyond labels

Simple line drawing of a ring with label '13' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a ring with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

Mechanical component diagram with no visible text or symbols

Simple line drawing of a double-ended wrench (no text or symbols)

Isometric view of a 3D block with horizontal striped pattern and label '18' and 'x4' (no text or symbols on the block itself)

MONTAGE

Step 1: First install the base according to the drawing

Technical diagram of a mechanical assembly with labeled components, showing two main parts (1 and 2) flanked by 7 and 18 components.

Step 2: Install the columns according to the drawings

15 16 3 6 6 15 16 3 6 6

Step 3: Assemble all assembled parts according to the drawings

Technical diagram of a mechanical assembly with numbered components for identification

C/O YH Consulting Limited Kantoor 147, Centurion Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal frame with a yellow horizontal bar extending upward (no text or symbols visible)

BEHÖVER HJÄLP? KONTAKTA OSS!

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PRODUKTPARAMETER

Modell: ssshkytxs-d

DELLISTA

NO.	Part Name	Q'ty
1	Foot iron pipe	2
2	Cross leg iron pipe	2
3	Column iron pipe 1	2
4	Column iron pipe 2	2
5	Crossbar iron pipe	1
6	Support iron pipe	4
7	Support card 1	6
8	Support card 2	2
9	Support card 3	4
10	Bolt M10*70	18

NO.	Part Name	Q'ty
11	Bolt M10*65	4
12	Mut M10	18
13	Flat Washer M10*25	2
14	Flat Washer M10	18
15	Glue head nut	2
16	Rubber head bolts	2
17	Wrench	2
18	footmuffs	4
19
20

Simple line drawing of a cylindrical object with evenly spaced holes, labeled 'x2' (no text or symbols on the object itself)

Simple line drawing of a diagonal beam with two supports, labeled 'x2' and '2' (no text or symbols on the diagram itself)

Simple line drawing of a ruler with measurement markings (no text or symbols on the object itself)

Simple line drawing of a long rectangular beam with flanged ends, labeled 'x2' and marked with number 4 (no text or symbols on the beam itself)

Simple line drawing of a diagonal beam with two ends, labeled '5' and 'x1' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal rod with a flanged end, labeled 'x4' (no text or symbols on the object itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '7' and 'x6' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular metal bracket with holes, labeled '8' and 'x2' (no text or symbols on the diagram itself)

Simple 3D diagram of a rectangular door with a circular hole, labeled '9' and 'x4' (no text or symbols on the door itself)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Technical drawing of a hexagonal nut with side label (12) and cross-sectional view (x18), no readable text or symbols beyond labels

Simple line drawing of a ring with label '13' and 'x2' (no text or symbols on the diagram itself)

Simple line drawing of a ring with no text or symbols

Simple line drawing of a mechanical component with no text or symbols

Mechanical component diagram with no visible text or symbols

Simple line drawing of a double-ended wrench (no text or symbols)

Isometric view of a 3D block with horizontal striped pattern and label '18' and 'x4' (no text or symbols on the block itself)

MONTERING

Step 1: First install the base according to the drawing

Technical diagram of a mechanical assembly with labeled components, showing two main parts (1 and 2) flanked by 7 and 18 components.

Step 2: Install the columns according to the drawings

15 16 3 6 6 15 16 3 6 6

Step 3: Assemble all assembled parts according to the drawings

Technical diagram of a mechanical assembly with numbered components for identification

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
