USER MANUAL LL2472 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GARAGE WALL SHELVING

MODEL: LL2472

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:LL2472

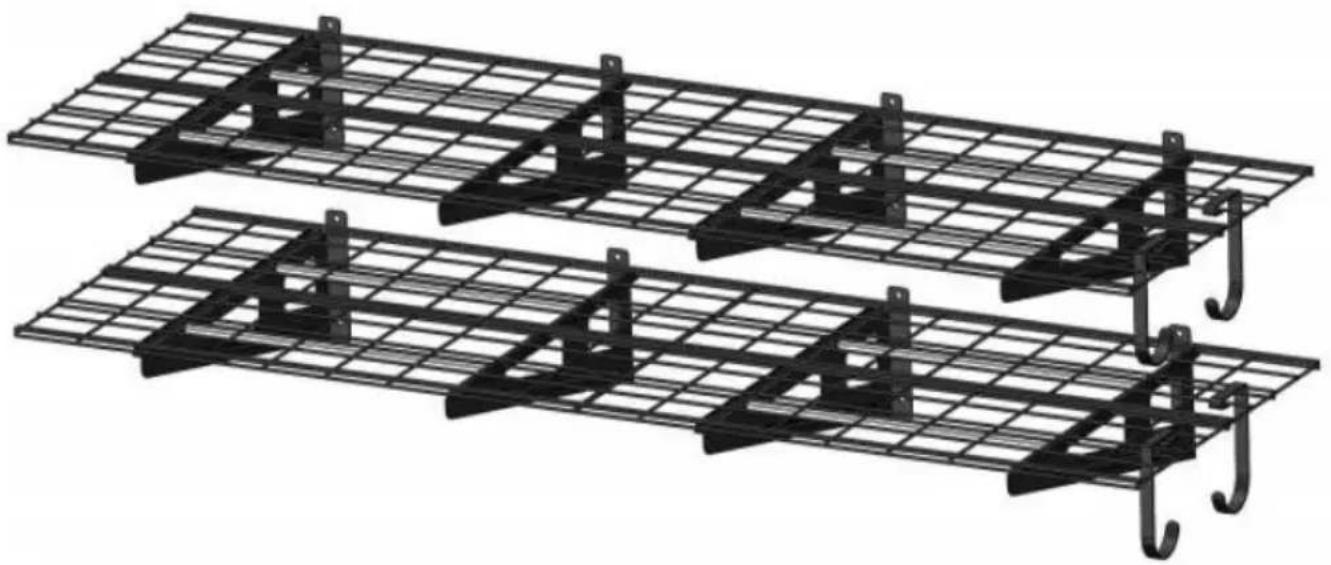

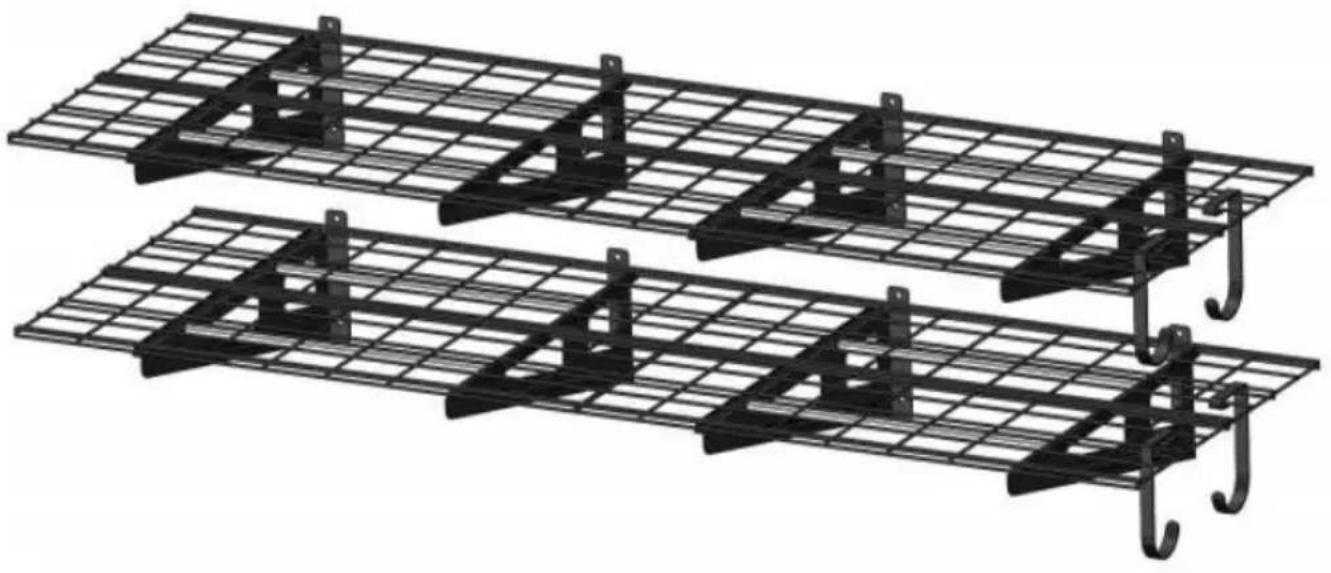

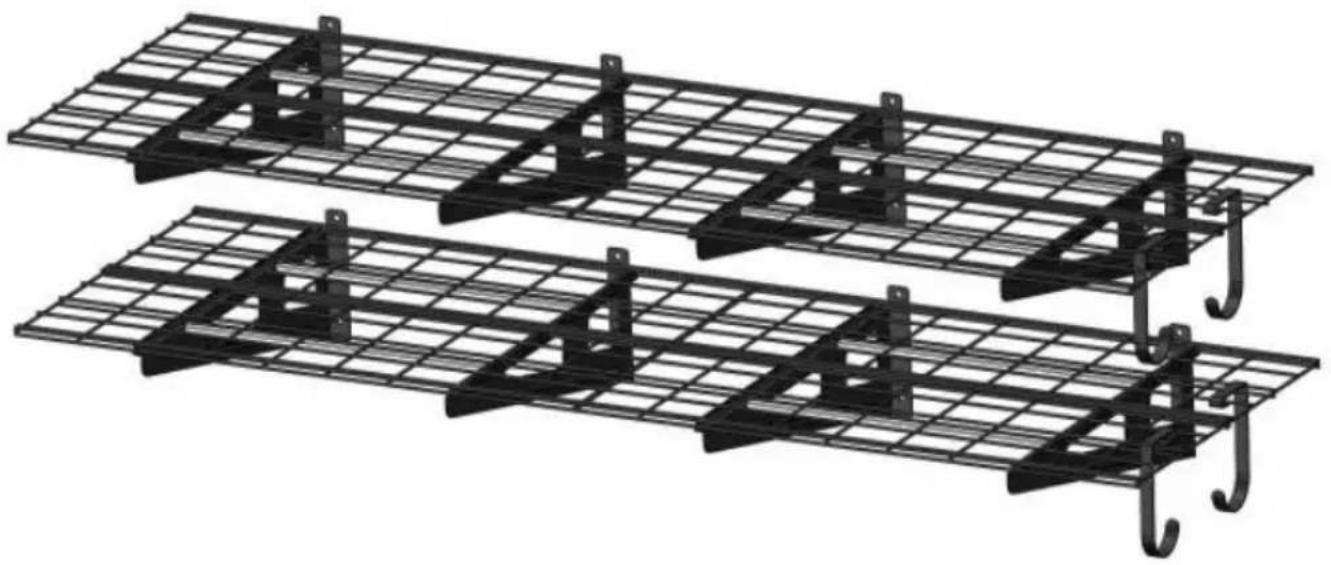

Two black metal shelving units with vertical connectors and hooks, arranged in a grid pattern (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING: This product contains small parts. If swallowed, it will pose choking hazard. Keep these small parts away from children!

1. Before installation, take protective measures to avoid personal injury!

EYE PROTECTION FOOT PROTECTION DUST MASK PROTECTION WEAR

1. The product must be installed on a wooden or concrete wall. Before installation, ensure that the bearing capacity of the wall does not exceed maximum bearing capacity! Please strengthen the structure of the wall in time to consolidate the bearing capacity of the wall! Otherwise, the prod may be damaged or personal injury may occur!
2. This product is for indoor use only. Outdoor use may cause product damage or personal injury.
3. Please check and confirm whether the screws are loose every two mo
4. At least two people to complete the installation.
5. Ensure that you have read the instructions and fully understand how to install. If you do not understand any of the installation steps, contact professional installation personnel.
6. Do not overload Maximum capacity: 500 lbs /per layer (evenly distributed) Installation Preparation:

MODEL AND PARAMETERS

Model	LL2472
Number of Layers	2
Shelving Surface Size	72x24 inch
Maximum Bearing Capacity	500 lbs /per layer (1000lbs in t)
Material	Steel
Color	Black

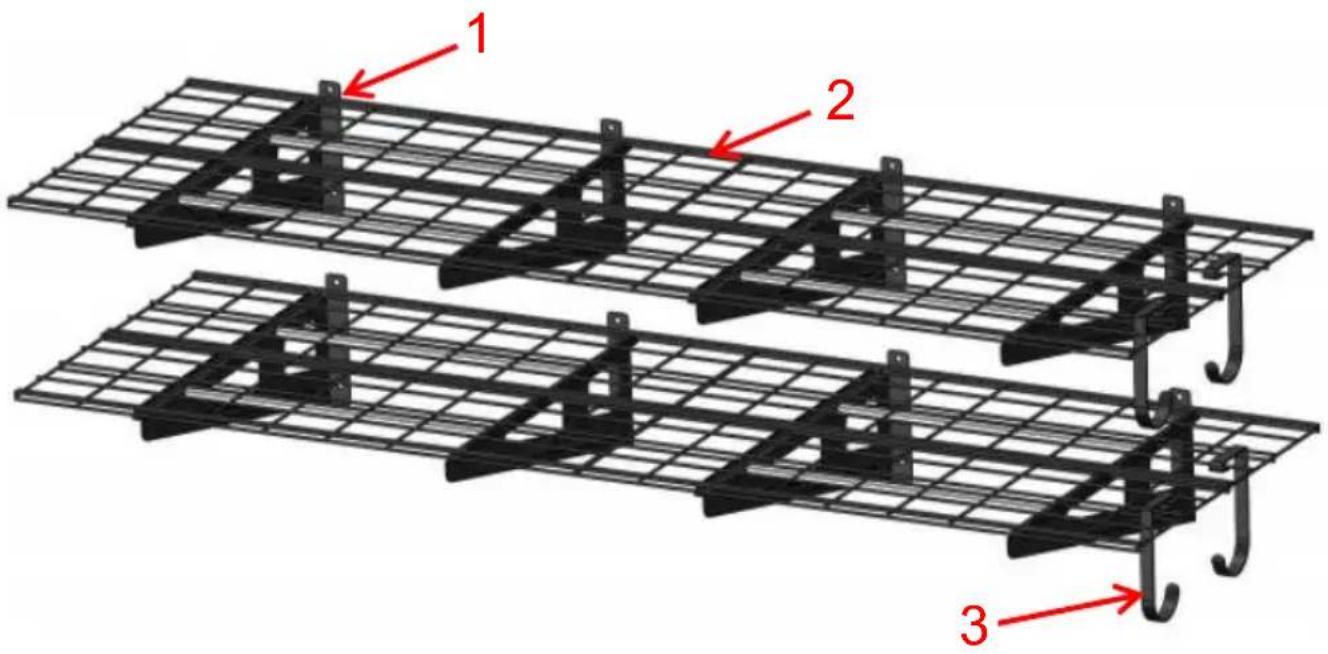

STRUCTURE DIAGRAM

1 2 3

1.Brackets 2.Shelf 3.Hooks

COMPONENTS

No.	Picture	Name	Qty
1		Left Bracket	4
2		Right Bracket	4
3		Shelf	8
4		Beam	8
5		Hook	4
6		L-shaped Wrench	1
7		Positioning Paper	1
8		Micro Level Vial	1
9		Expansion Plug-12*58	24
10		Washer-8.5	24
11		Hexagon Self-tapping Screw-8*60	24
12		Cable Ties-12*250	16
13		Bolt-M4*8	16
14		User Manual	1

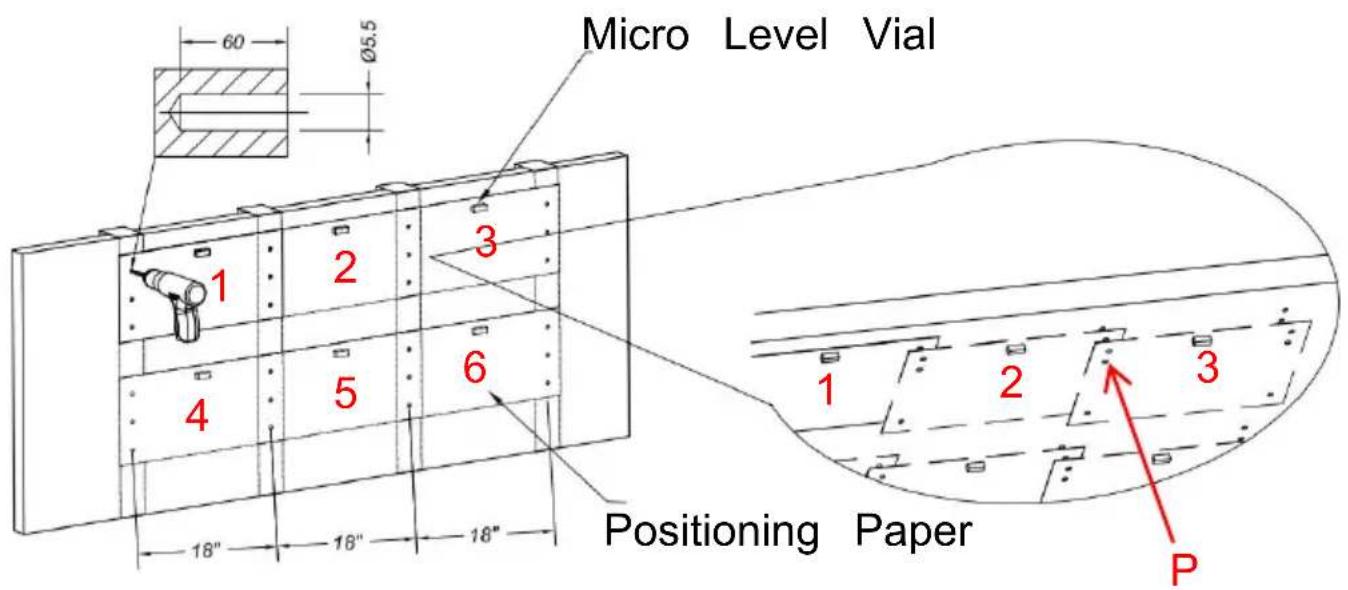

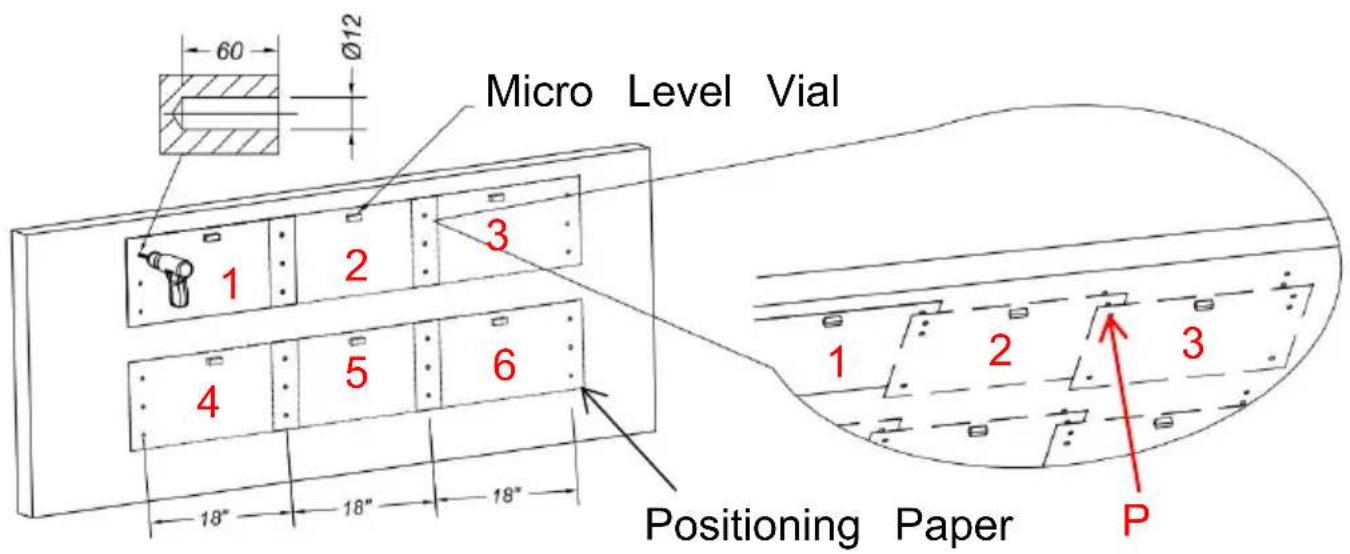

STEP 1-A : Installation on Solid Concrete Walls

Micro Level Vial 1 2 3 4 5 6 18" 18" 18" Positioning Paper P 1 2 3

1. (The positioning paper should be reused 6 times.)Paste the positioning paper to the appropriate height, glue the Micro level to adjust the level, and then use the jackhammer to lightly drill the anchor points.(See mark 1 above.)
2. Remove the positioning paper and repaste.(Note: Coincide with the hole outlined in Step 1.(See mark P above.)
3. Follow step 1,2 to gently drill out all anchor points.(See mark 1,2,3,4,5,6 above.)
   Note: Make sure the four rows of holes are in the same horizon line.
4. Remove the positioning paper and drill holes( 12x60mm) into the wall.

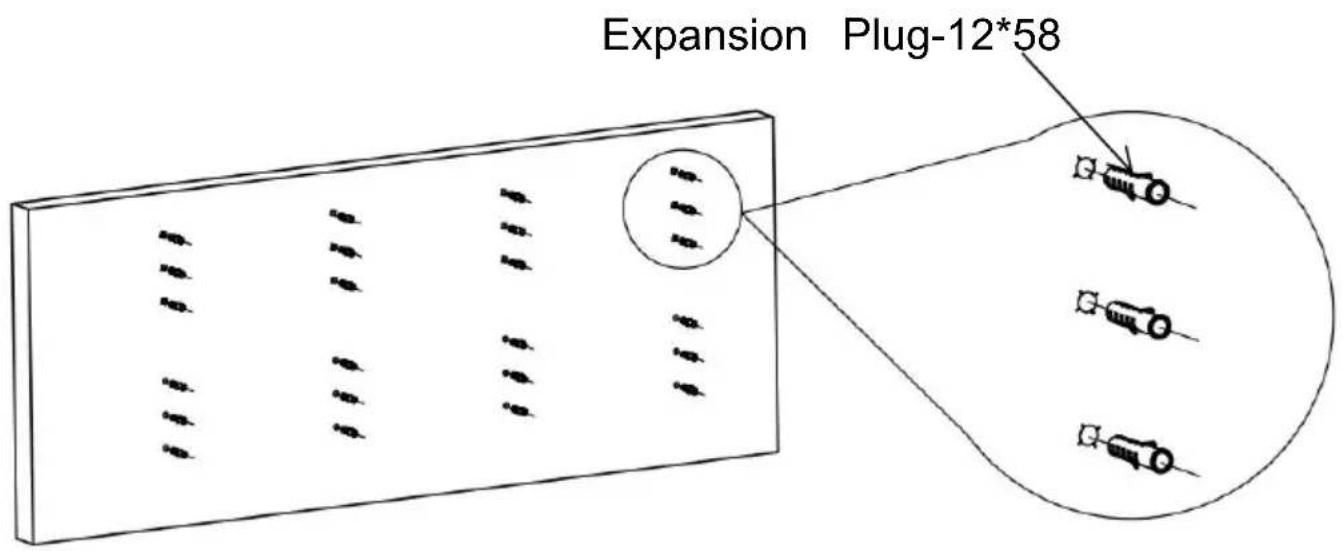

Expansion Plug-12*58

1. After clearing the residual soil in the hole, tap the expansion into the hole completely.

Washer-8.5

Hexagon Self-tapping Screw-8*6(

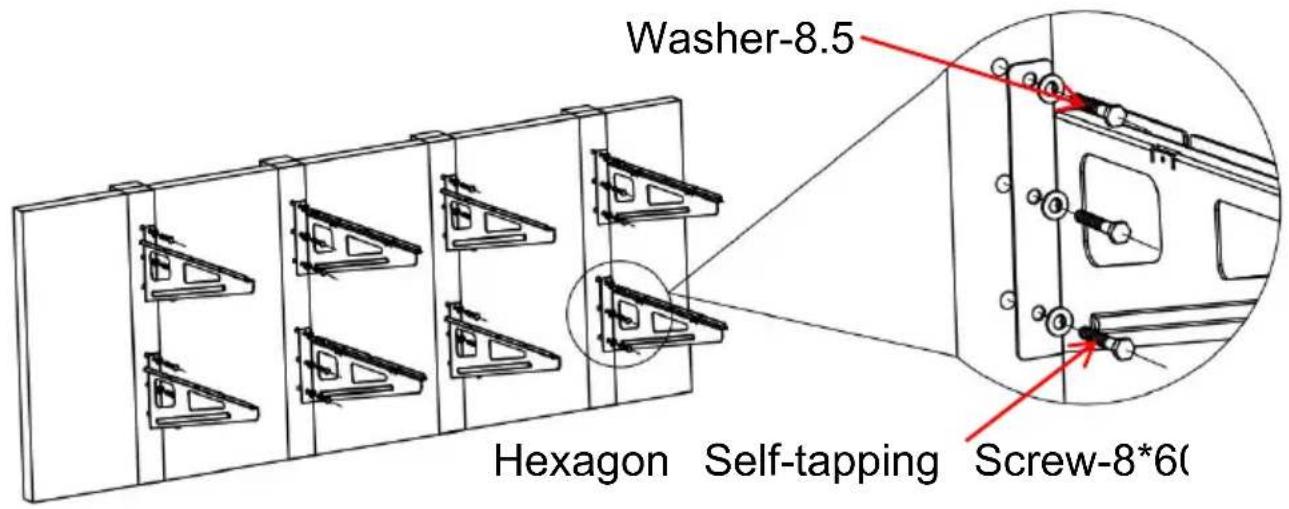

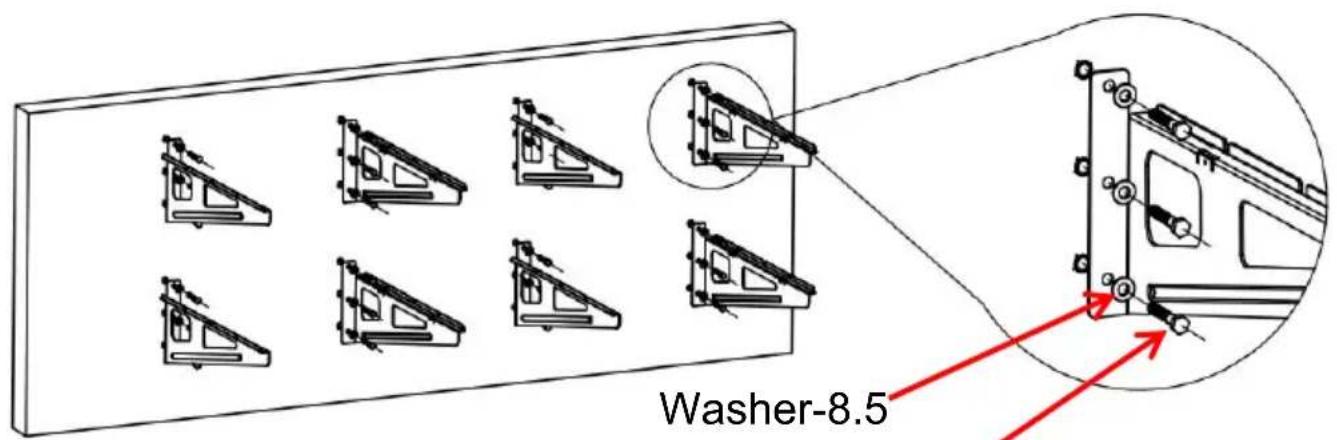

1. Install and fix the left and right bracket. The screw must be screwed in completely and press tightly!

STEP 1-B : Installation on Wooden Wall Post

Micro Level Vial 1 2 3 4 5 6 18" 18" 18" Positioning Paper 1 2 3 P

1. (The positioning paper should be reused 6 times.)Paste the positioning paper to the appropriate height, glue the Micro level to adjust the level, and then use the jackhamm Positioning paper the anchor points.(See mark 1 above.)
2. Remove the positioning paper and repaste.(Note: Coincide with the hole outlined in Step 1.(See mark P above.)
3. Follow step 1,2 to gently drill out all anchor points.(See marl 1,2,3,4,5,6 above.)

Note: Make sure the four rows of holes are in the same horizon line.

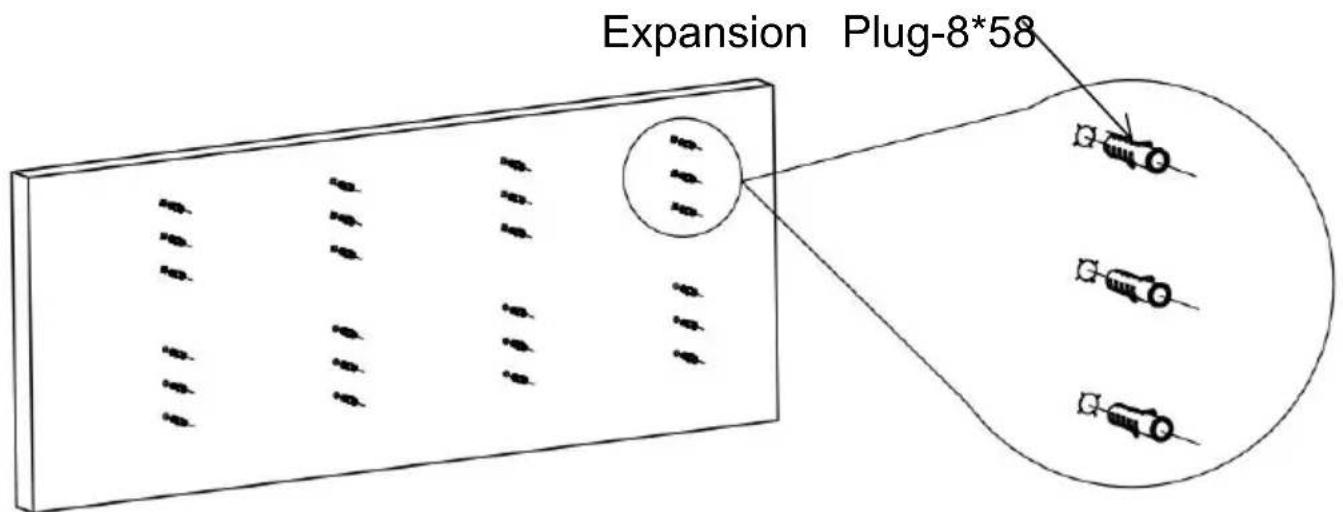

Expansion Plug-8*58

1. Remove the positioning paper and drill holes( 5.5x60mm) into the wall.

Washer-8.5 Hexagon Self-tapping Screw-8*6(

1. Install and fix the left and right bracket. The screw must be screwed in completely!

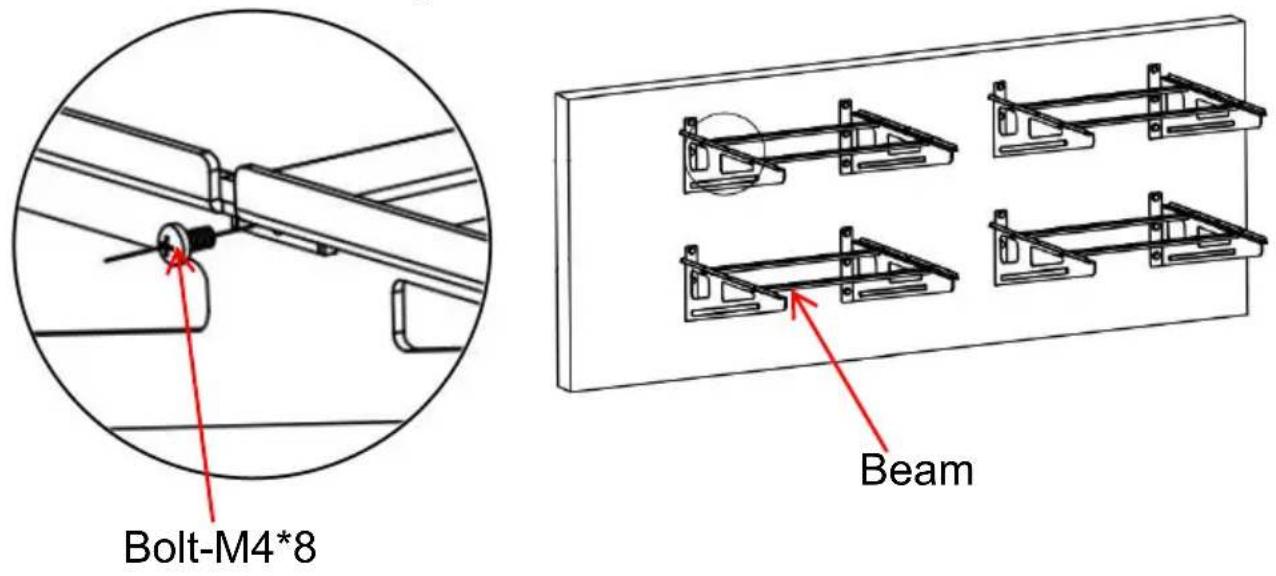

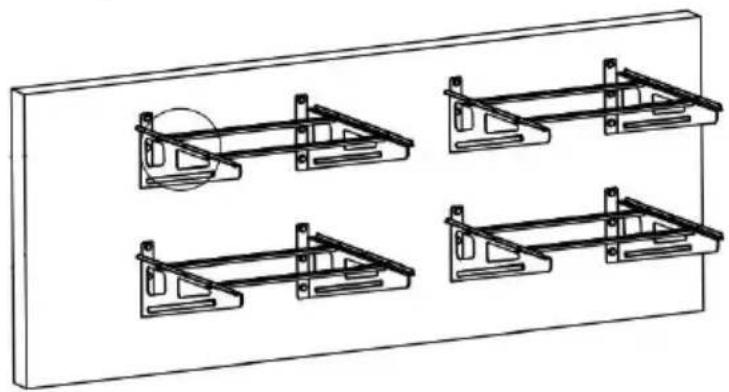

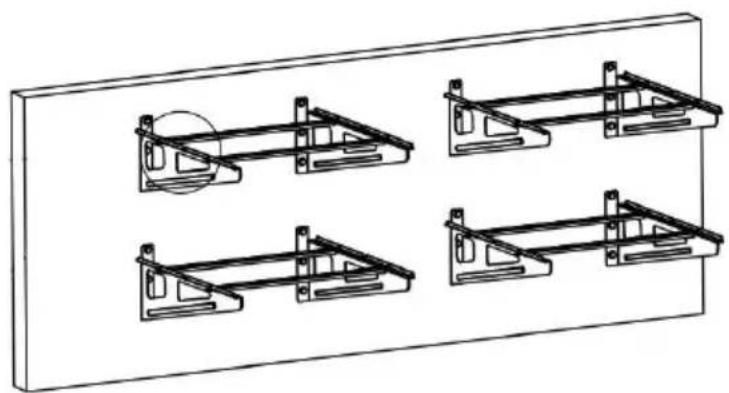

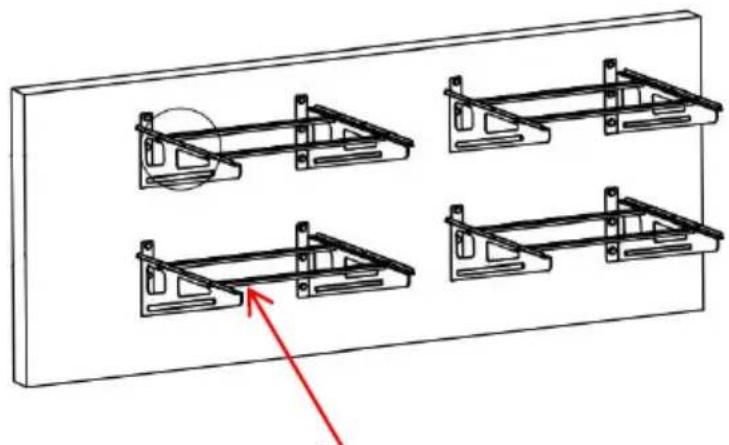

STEP 2 : Mounting The Beam

Bolt-M4*8 Beam

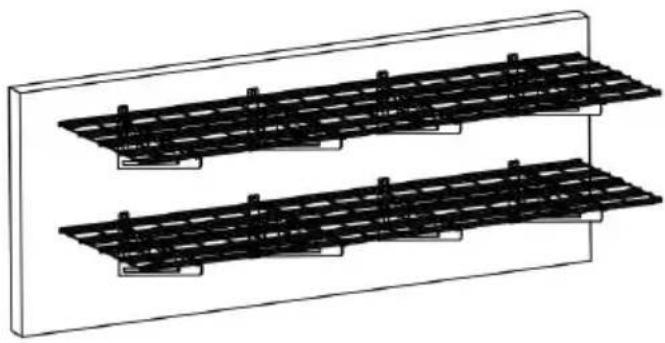

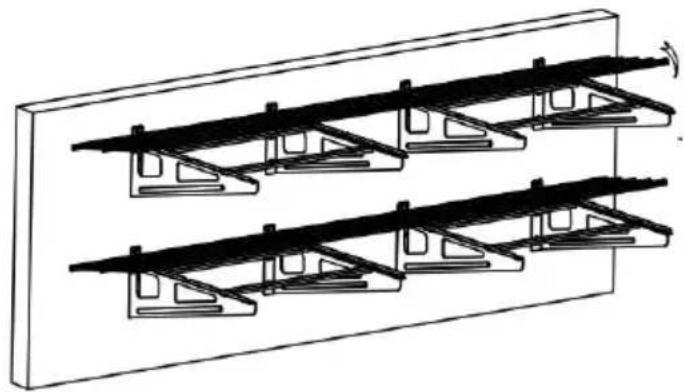

STEP 3 : Installation of The Shelf

Technical line drawing of a structural frame assembly with multiple supports and mounting brackets (no text or symbols)

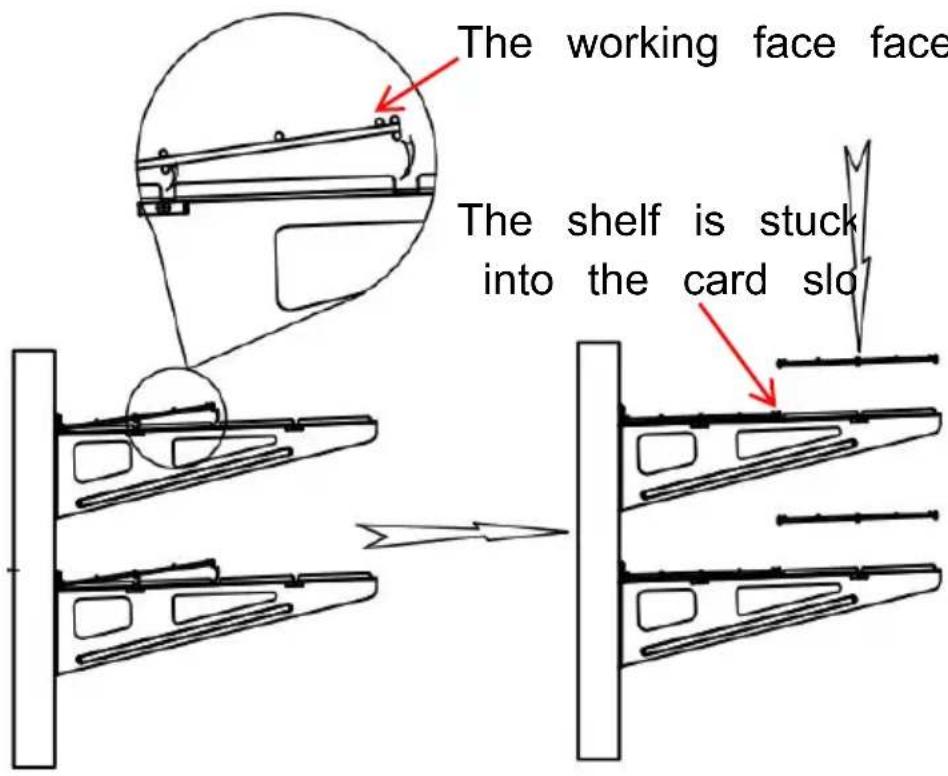

The working face faces i

The working face face The shelf is stuck into the card slo

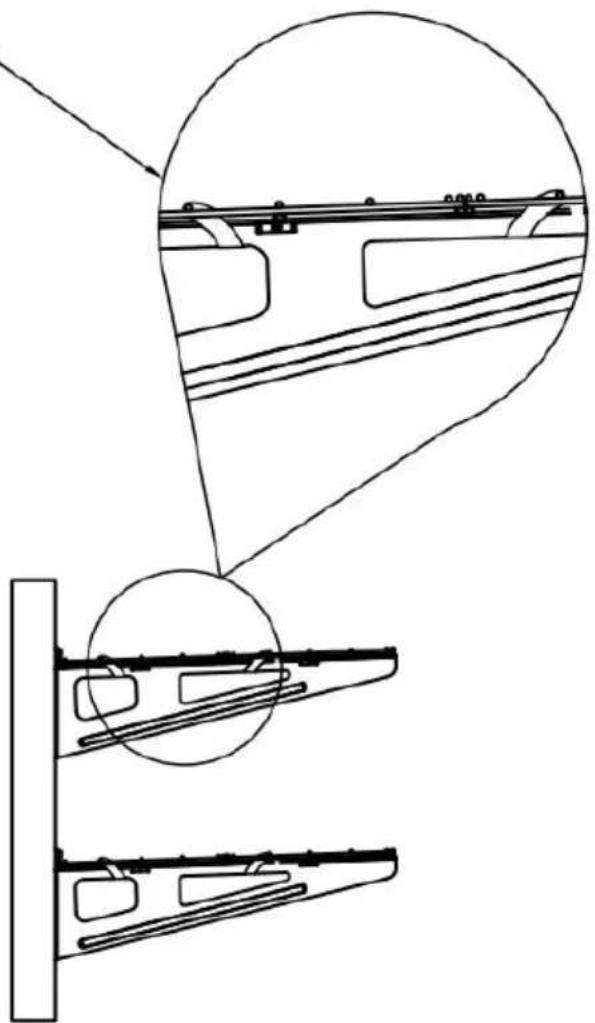

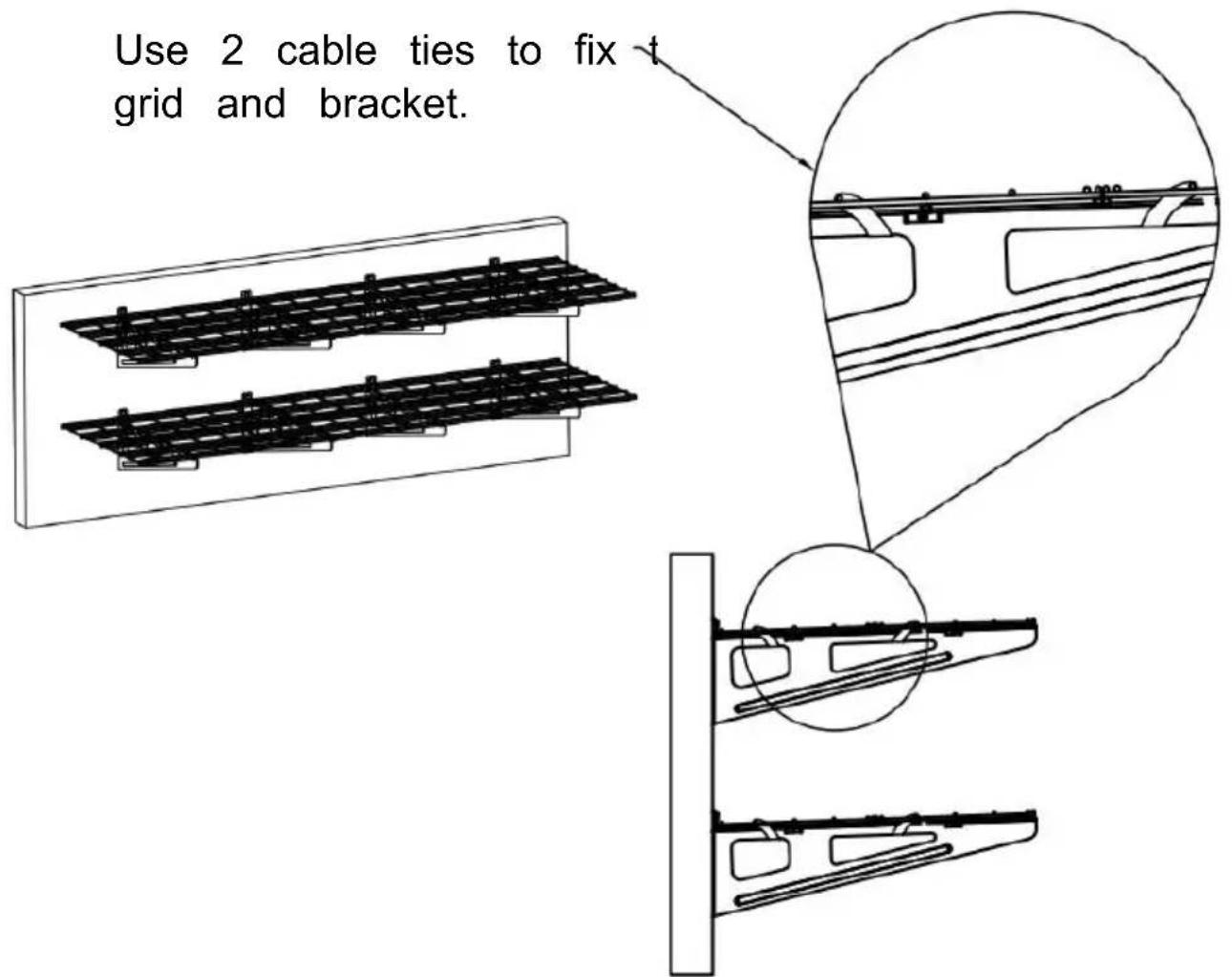

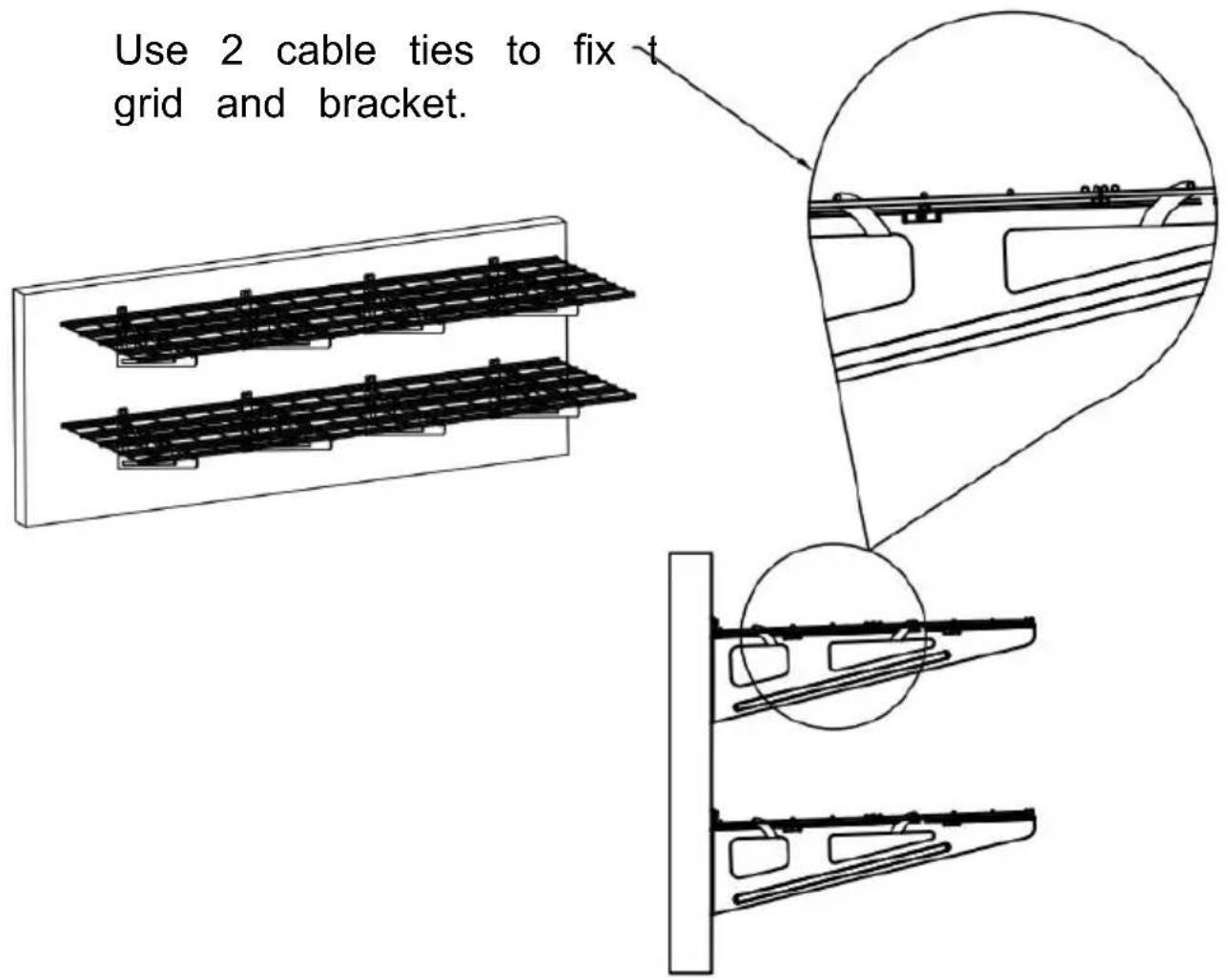

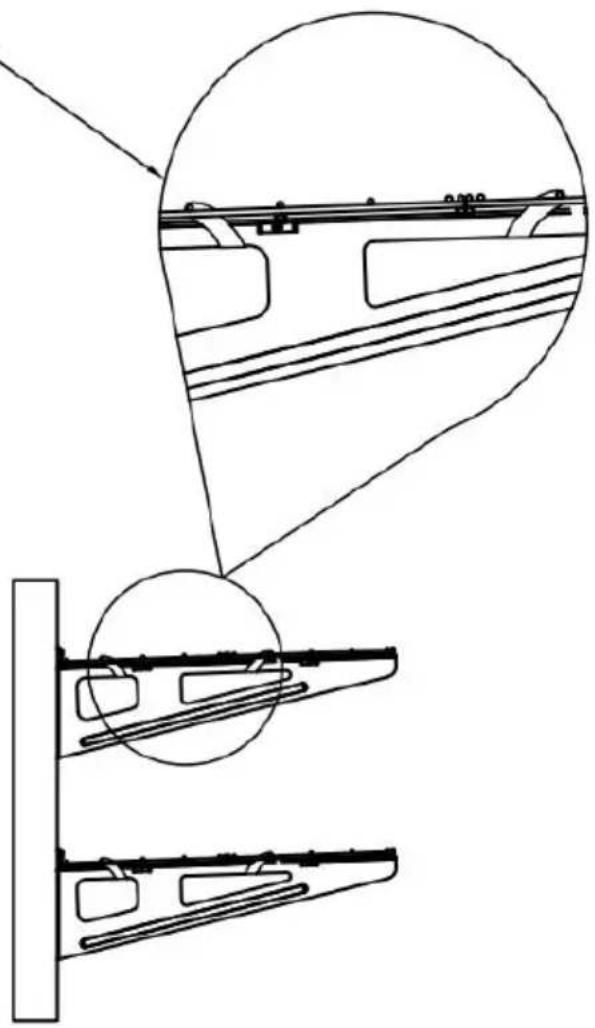

Use 2 cable ties to fix grid and bracket.

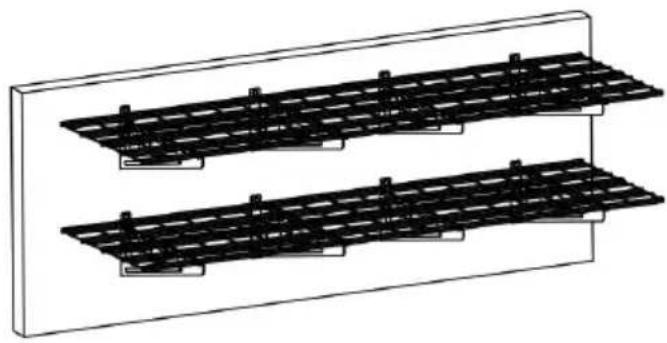

Technical line drawing of two parallel metal grating structures mounted on a rectangular base (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

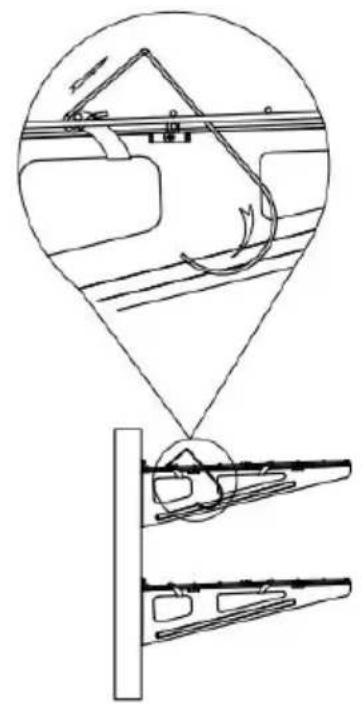

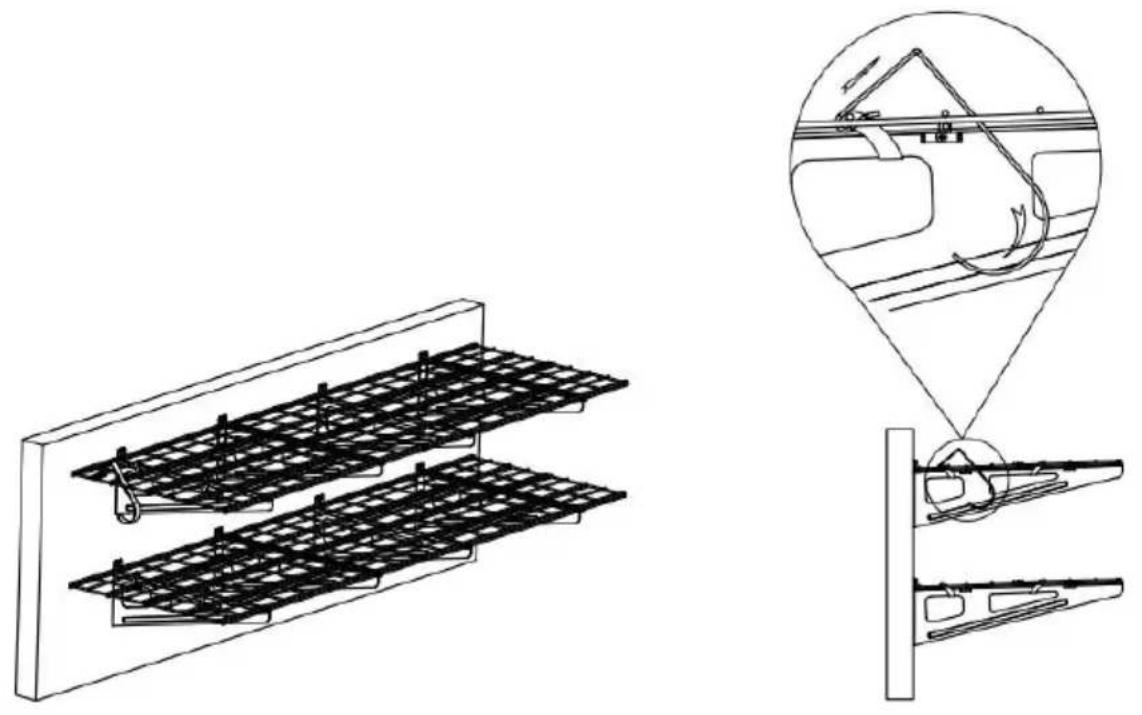

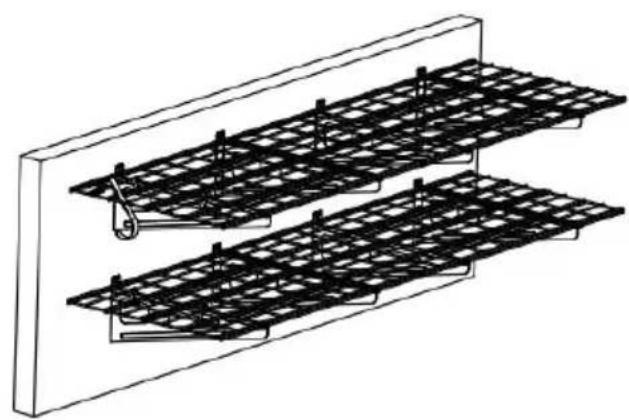

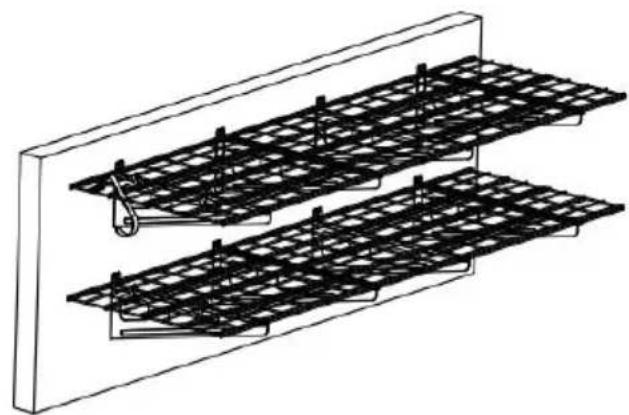

STEP 4 : Mounting Hook

Technical line drawing of two parallel metal grid structures mounted on a rectangular base (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a crane lifting a component (no text or symbols)

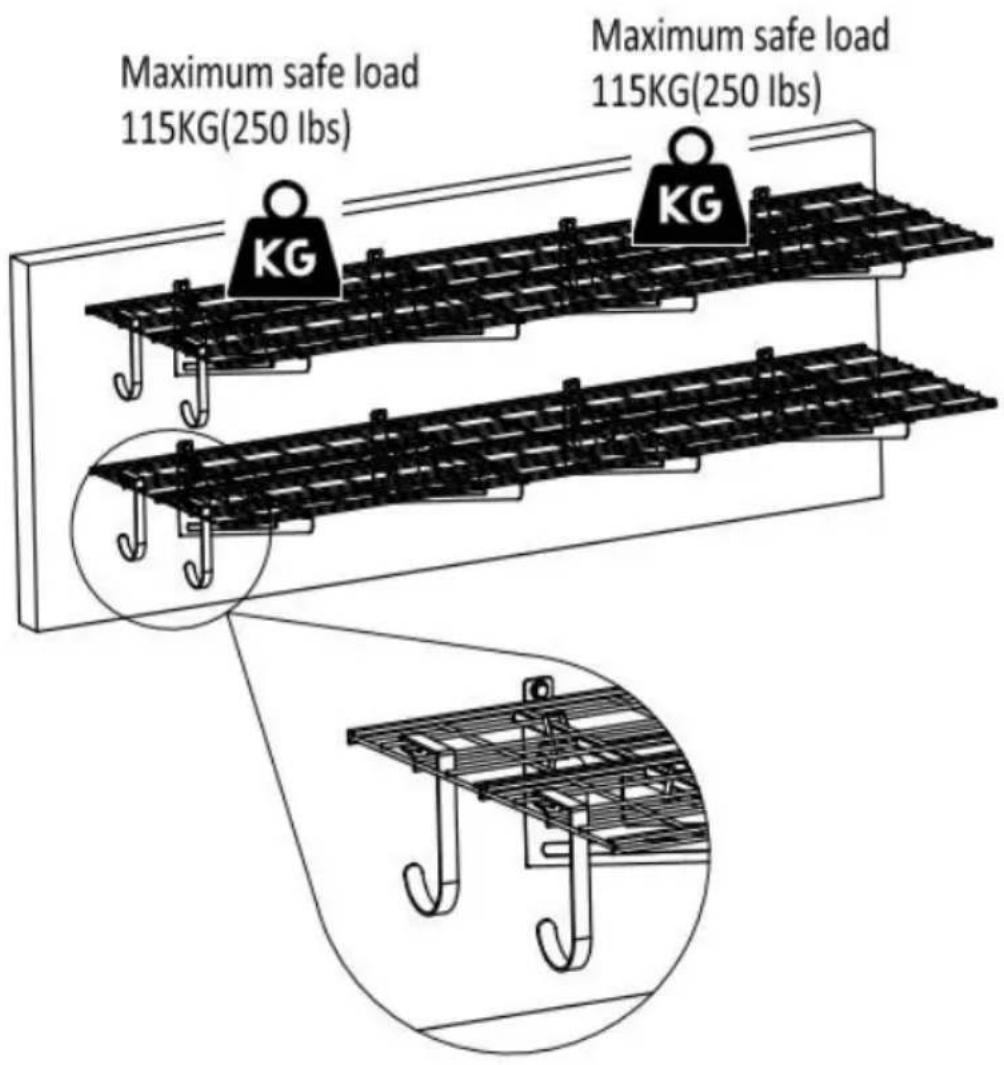

Maximum safe load 115KG(250 lbs) Maximum safe load 115KG(250 lbs)

MAINTENANCE

1. Do not overload.
2. Please try to avoid putting wet items on shelves. Keep the warehouse too wet.
3. Please check and confirm whether the screws are loose every two mo
4. Dust off regularly with a clean rag, and arrange items neatly on shel

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE : LL2472

Two black metal shelving units with vertical supports and hooks, arranged in a grid pattern (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Diagram of three metal rack structures with numbered components and red arrows indicating assembly or installation steps.

1. Supports 2. Étagère 3. Crochets

COMPONENTS

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Diagram showing a device with multiple rows of pins and a circular element, connected to three labeled sensors (no text or symbols present)

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Technical diagram of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Technical line drawing of four identical metal frame assemblies arranged in a 2x2 grid (no text or symbols)

Bolt-M4*8

Technical line drawing of a mechanical assembly with two parallel plates mounted on a wall, no text or symbols present.

The working face faces

The working face face The shelf is stuck into the card slo

Use 2 cable ties to fix t grid and bracket.

Technical line drawing of a structural framework with supporting beams and a magnified inset showing internal components (no text or symbols)

Maximum safe load 115KG(250 lbs) Maximum safe load 115KG(250 lbs)

MAINTENANCE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: LL2472

Two black metal shelving units with vertical supports and hooks, arranged in a grid pattern (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Illustration of a handheld electric drill bit (no text or symbols)

MODEL AND PARAMETERS

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Diagram showing a device with multiple rows of dots and a circular element, connected to three labeled sensors (no text or symbols present)

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Diagram of a mechanical assembly with a red arrow pointing to a component (no text or symbols present)

Technical line drawing of four identical metal frame assemblies arranged in a 2x2 grid (no text or symbols)

Bolt-M4*8

The working face faces i The shelf is stuck into the card slo

Use 2 cable ties to fix grid and bracket.

Technical line drawing of two parallel metal grating structures mounted on a rectangular base (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

SCHRITT 4: Montagehaken

Technical line drawing of two parallel metal grid structures with support posts (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a crane and rail system (no text or symbols)

Maximum safe load 115KG(250 lbs) Maximum safe load 115KG(250 lbs)

MAINTENANCE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: LL2472

Two black metal shelving units with vertical supports and hooks, arranged in a grid pattern (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Illustration of a handheld electric drill bit (no text or symbols)

MODEL AND PARAMETERS

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Diagram showing a device with multiple rows of pins and a circular element, connected to three labeled sensors (no text or symbols present)

Washer-8.5 Hexagon Self-tapping Screw-8*6(0

Diagram of a mechanical assembly with a red arrow pointing to a component (no text or symbols present)

Technical line drawing of four identical metal frame assemblies arranged in a 2x2 grid (no text or symbols)

Bolt-M4*8

The working face faces i The shelf is stuck into the card slo

Use 2 cable ties to fix t grid and bracket.

Technical line drawing of a structural framework with supporting beams and a magnified inset showing internal components (no text or symbols)

Maximum safe load 115KG(250 lbs) Maximum safe load 115KG(250 lbs)

MAINTENANCE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: LL2472

Two black metal shelving units with vertical supports and hooks, arranged in a grid pattern (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Illustration of a handheld electric drill bit (no text or symbols)

MODEL AND PARAMETERS

Washer-8.5 Hexagon Self-tapping Screw-8*6(0

Expansion Plug-8*58

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Technical diagram of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Bolt-M4*8

Technical line drawing of four identical metal frame structures with a red arrow pointing to one (no text or symbols)

Beam

The working face faces l The shelf is stuck into the card slo

Use 2 cable ties to fix grid and bracket.

Technical line drawing of two parallel metal grating structures mounted on a rectangular base (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical line drawing of two parallel metal grid structures with support posts (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a crane and conveyor system (no text or symbols)

Maximum safe load 115KG(250 lbs) Maximum safe load 115KG(250 lbs)

MAINTENANCE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: LL2472

Two black metal shelving units with vertical supports and hooks, arranged in a grid pattern (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Illustration of a handheld electric drill bit (no text or symbols)

MODEL AND PARAMETERS

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Diagram showing a device with multiple rows of pins and a circular element, connected to three labeled sensors (no text or symbols present)

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Technical diagram of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Technical line drawing of four identical metal frame assemblies mounted on a rectangular base (no text or symbols)

Bolt-M4*8

The working face faces i The shelf is stuck into the card slo

Use 2 cable ties to fix grid and bracket.

Technical line drawing of two parallel metal grating structures mounted on a rectangular base (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical line drawing of two parallel metal grid structures with support posts (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a crane and conveyor system (no text or symbols)

Maximum safe load 115KG(250 lbs) Maximum safe load 115KG(250 lbs)

MAINTENANCE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: LL2472

Two black metal shelving units with vertical supports and hooks, arranged in a grid pattern (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Illustration of a handheld electric drill bit (no text or symbols)

MODEL AND PARAMETERS

Washer-8.5 Hexagon Self-tapping Screw-8*6(0

Diagram showing a device with multiple rows of pins and a circular element, connected to three labeled sensors (no text or symbols present)

Washer-8.5 Hexagon Self-tapping Screw-8*6(0

Technical diagram of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Technical line drawing of four identical metal frame assemblies mounted on a rectangular base (no text or symbols)

Bolt-M4*8

The working face faces U The shelf is stuck into the card slo

Use 2 cable ties to fix grid and bracket.

Technical line drawing of two parallel metal grating structures with mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

STAP 4: Montagehaak

Technical line drawing of two parallel metal grid structures with support posts (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a crane and conveyor system (no text or symbols)

Maximum safe load 115KG(250 lbs) Maximum safe load 115KG(250 lbs)

MAINTENANCE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: LL2472

Two black metal shelving units with vertical supports and hooks, arranged in a grid pattern (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Hexagon Self-tapping Screw-8*6(

Expansion Plug-8*58

Washer-8.5 Hexagon Self-tapping Screw-8*6(

Technical diagram of a mechanical assembly with a red arrow indicating direction (no text or symbols present)

Bolt-M4*8

Technical line drawing of four metal frame structures with a red arrow pointing to one (no text or symbols present)

Beam

Technical line drawing of a structural support frame assembly (no text or symbols)

The working face faces i

The working face face The shelf is stuck into the card slo

Use 2 cable ties to fix t grid and bracket.

STEG 4: Monteringskrok

Technical line drawing of a structural framework with supporting beams and a magnified inset showing internal components (no text or symbols)

Maximum safe load 115KG(250 lbs) Maximum safe load 115KG(250 lbs)

MAINTENANCE

www.vevor.com/support
