USER MANUAL JC35M3-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Bathtub Lift

MODEL: JC35M3-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

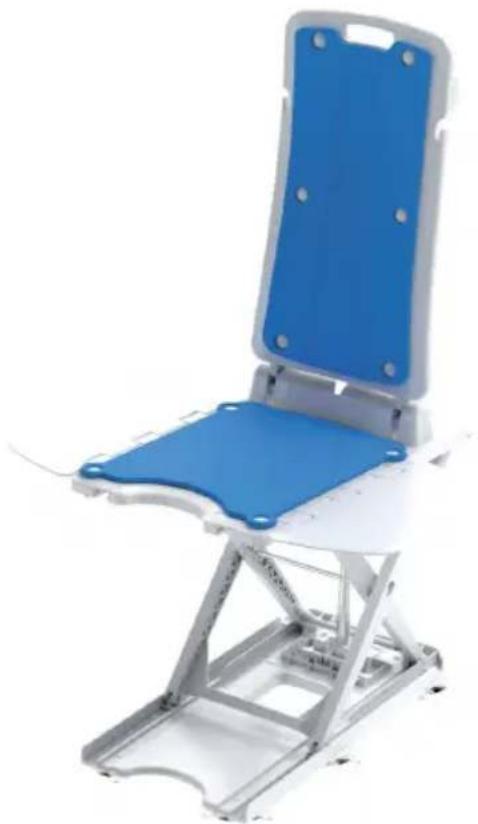

BATHTUB LIFT

MODEL: JC35M3-1

Blue and white plastic chair with metal frame, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning-To reduce the risk of injury, the user must read instructions manual carefully.
~	Alternating current
	This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire electrocution, please always follow the recommendations shown below.
	Battery DisposalTo minimize hazards to health and the environment at the this product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Direct require you to dispose of this product at a suitable collect facility where it will be sent in order to remove the batter appropriate recycling.Please contact your local authorities for more details on recycling and safe disposal of these in yo
	Correct DisposalThis product is subject to the provision of European Direct 2012/19/EC. The symbol showing a wheelie bin crossed the indicates that the product requires separate refuse collection the European Union. This applies to the product and all accessories marked with this symbol. Products marked as may not be discarded with normal domestic waste, but must taken to a collection point for recycling electrical and elect devices.
(ZHGA)	Indoor Use Only
	NO STEPPING ON SURFACE

DON'T USE ON SLOPE ( >5^ )

CAUTION! BEWARE OF PINCH

Please do not give the bath lifter to unsuitable people. When a disabled person uses the device, there must be an escort or an device nearby!

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party. Responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are desprovide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

WARNING

• If the cables and accessories that are not designated for the bath chair are used in the system may lead to an increase in system emissions or a redu immunity.
• Bath chair should not be applied close to or stacked with other equipment, if it must be used close or stacked, it should be observed to verify that it operate properly under the configuration it uses.

PROHIBITION

• Do not overload;
• Do not stand or kneel on the bath lifter;
• During use, do not sit on the opposite side;
• Do not use on heavily sloped (over 5^ ) or surfaces with step;
• Do not use if parts are missing;
• Do not use for other purposes except bathing;
• Do not leave children alone for using;
• During maintenance and use, do not put hands, feet and other body organ and objects into moving parts;

Close-up of a blue and white mechanical component with mounting holes and a highlighted section (no text or symbols visible)

Blue medical device back panel with circular ports and orange highlighted areas (no text or symbols)

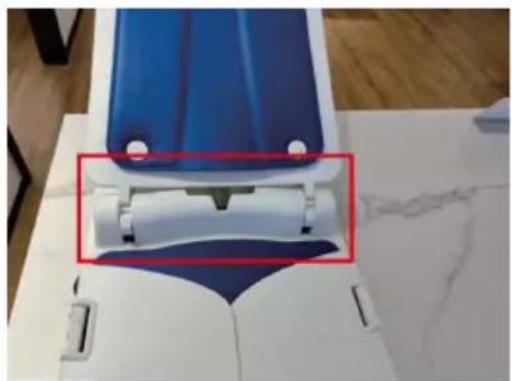

①Hinge between back plate and base plate ②Back plate——hook of controller

Close-up of a white plastic sheet with attached clamps, placed on a surface (no text or symbols visible)

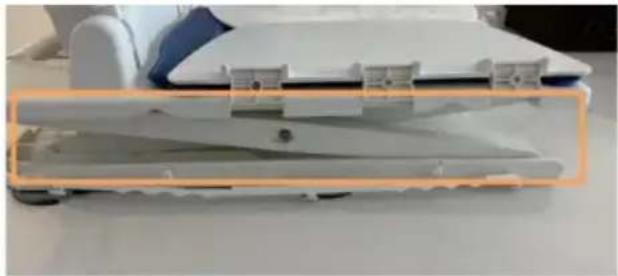

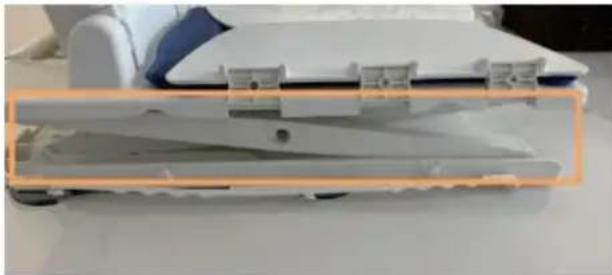

③Base plate—at the base plate lift bracket

• Do not place sundries (such as toothbrushes, razors, etc.) near cross struct
• Do not place the hand control near heat sources;
• Do not modify this device.

PRODUCT DESCRIPTION

• The JC35M3-1 bath lifter is designed to assist users with limited mobility to enter and leave the bathing space more easily and conveniently at home, make the bathing easier and more enjoyable.
• JC35M3-1 bath lifter is compact in structure an foldable, which takes up lit space, and can be easily stored and transported.
• JC35M3-1 bath lifter fully considers the specifications of the common bathtub so that it can be easily positioned in any standard bathtub (some non-standa specially customized bathtubs may not be suitable).

JC35M3-1 bath lifter is equipped with 6 suction cups at the bottom, which m its positioning more stable and has a good anti-slip effect.

- JC35M3-1 bath lifter is completely powered by batteries, and does not need external electrical transmission lines, so it is convenient and reliable to use; the bath lifter, except the charger, is of water-proof. You can also lift and lower chair during bathing.

- The JC35M3-1 bath lifter uses modular design, the back and the seat can folded and disassembled, and automatically locked on the seat base when the bath lifter is raised, which can prevent the back of the chair from tilting acc intelligent protection control can ensure that the hand control can lower the b lifer when the power is insufficient.

- In this user manual, you will get all the information about the JC35M3-1 blifter, including usage, storage, etc.

MATTERS NEEDING ATTENTION

• Please use the matching charger to charge;
• The optimal capacity of the battery may be reached after a few charging (
• When charging, keep away from water, heat, etc.;
• The hand control comes standard with three-color indicator lights. In normal use, the green light indicates that the power is sufficient, the blue light indicates that the power is insufficient, and reminds to charge. When the red light is indicates that the power is seriously insufficient and needs to be charged immediately to prevent Sudden power failure during the process;

- Under normal charging conditions, the indicator light of the charger is red, when the battery is fully charged, the indicator light of the charger is green, charging time is about 2.5 hours;

- The charger is designed for charging the hand control and cannot be used other purposes;

- The battery is built into the hand control, please do not disassemble the h control without permission; when the bath chair is being transported, please confirm that the wires are in disconnected mode and are not in charging sta Prevent damage to the bath lifter and personnel caused by falling, collision, e

- In the process of cleaning the hand control or the charger, please make s that the plugs are disconnected; the charger can only be cleaned with a dry - Although the hand control and charger are reliable designs, they still cannot withstand the risk of falling; if you find some signs of damage on the surfac hand control and charger, please contact your professional dealer immediately; will provide corresponding service;

- Please sit in the middle of the seat of the bath lifter, lean back on the t the chair, stretch your legs forward, put one hand on the side panels, or or lap, and operate the hand control with another hand;

- Our bath chair has passed the EMC test. When you use other electrical appliances in the bathroom or use a mobile phone, please try not to lift the lifter at the same time to prevent electromagnetic interference and make the equipment abnormal. When the bath chair is abnormal, please contact your d for assistance.

- Please carefully read the following important information about the hand con

(rechargeable lithium-ion battery)

It must be charged before the first use.

Since lithium-ion batteries must not exceed 30% of their nominal capacity during transport, they must be charged for at least 12 hours before first use.

It is recommended to keep the battery power at 40\~60% when storing.

When not in use for a long time, the hand control needs to be disconnected, other parts and stored in an environment with low temperature, low humidity, dust and no corrosive gas to maintain the best performance when the battery used subsequently.

Storage time	Storage environment
1 year	10~25°C (1*), 40 ~ 70% RH (non-condensing)
3 months	0~35°C (1*), 30 ~ 75% RH (non-condensing)
1 month	-10~50°C (1*), 20 ~ 80% RH (non-condensing)

It must be charged and discharged once within 6 months of receipt; during the hand control (battery) must be charged and discharged once every 6 mo Rechargeable batteries are one of the consumables that have a limited life s and continue to degrade in performance. Normal battery wear and tear is not included in returns and claims.

Charging process

1. Disconnect the hand control from the bath lift.
2. Ensure that the connection parts and the charger are sufficiently dry.
3. Plugging the female plug of the hand control into the male plug of the c
4. Plug the charger into a suitable outlet. Charging voltage range: 100-240VA
5. When charging is finished, please disconnect the charge in time to avoid affecting the battery life.

SPECIFICATION PARAMETERS

Voltage	DC16.8V, 1.0A(Via 100-240V~50/60Hz 1.0A adapter)
Battery pack	14.8V 2.2Ah
Specified load	136Kg (300 lbs)
Cushion Lowest point height	77mm±5mm
Cushion Highest point height	507mm±5mm

• Before your first use, please read the instructions carefully, which will make more familiar with the bath lifter, and its operation will also become simpler more controllable;
• Please keep this instruction for anyone who may touch or use the bath lift
• First, evaluate the user to ensure that it is suitable. The evaluation items include but are not less than the user's weight, volume, cognitive ability, joint mobility, etc. Please do not give the bath lifter to unsuitable people. When a disabled person uses the device, there must be an escort or an alarm device nearby;
• Use it in a standard bathtub that meets the regulations, and ask an assist professional to determine whether the use environment meets the requirements
• Before each use, please check whether the suction cup and seat surface a clean, remove stains and adsorbents, check and conduct a trial operation that parts of the equipment are complete and whether they are damaged, and at same time, verify whether the emergency stop button works;
• If you use bath oil, bath salts and other toiletries, you need to confirm to high concentrations of toiletries from damaging the structure and sliding function the bath lifter;
• When using, the user should sit down slowly and calmly to avoid excessive stimulation and damage to the bath lifter or personnel;
• Please use the matching hand control to operate;
• Please install the bath lifter according to the installation instructions.

INSTALLATION AND USE ENVIRONMENT CONFIRMATION

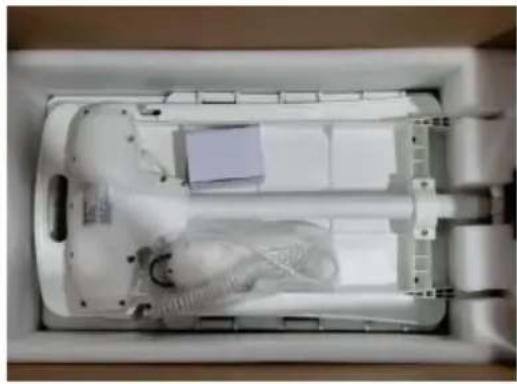

Please check the parts for damage and defects before use. Only use it if y sure that there are no damaged or missing parts.

As shown below:

Interior view of a white appliance casing with internal components and a small inset showing a blue rectangle (no visible text or symbols)

Parts included

① hand control
② charger
③ backrest

(including linear actuator and back pad)

④ Base (cushion and 6 suction cups)
⑤ Instruction manual

• When receiving the bath lift and then opening the package, please first re the instruction manual.
• Please take out the back part of the chair and the seat part, and install back to the seat. You can See the following figure for details.

Close-up of a white plastic container with a red rectangular highlight highlighting a small white object, no visible text or symbols.

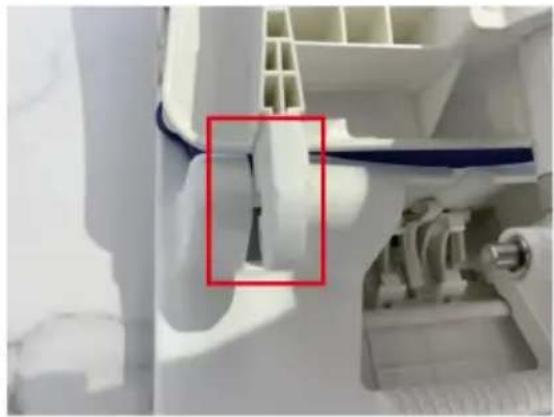

① Align the backrest hook v the base guide bar.

Person in lab coat handling a white ergonomic device with a red annotation box (no visible text or symbols)

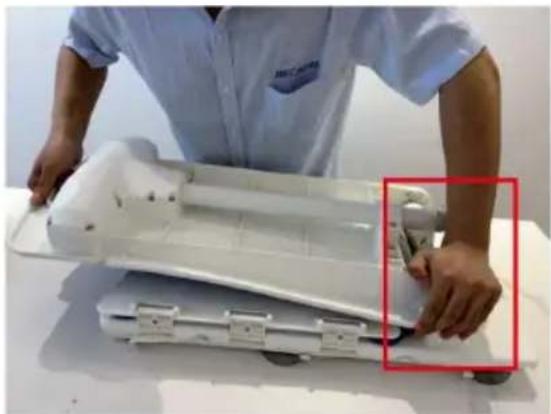

② Press the hooks on each side of the backrest to connect them to the base.

Close-up of a blue and white baby table with a red rectangular annotation highlighting a mechanical component (no text or symbols visible)

③ Complete the installation of the backrest and the ba

Close-up of a white mechanical device with a red annotation highlighting a component (no visible text or symbols)

CORRECT √

Close-up of a mechanical device with a highlighted component (no visible text or symbols)

WRONG ×

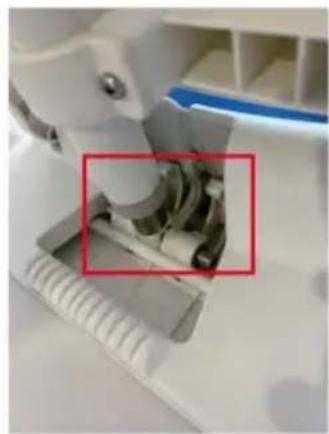

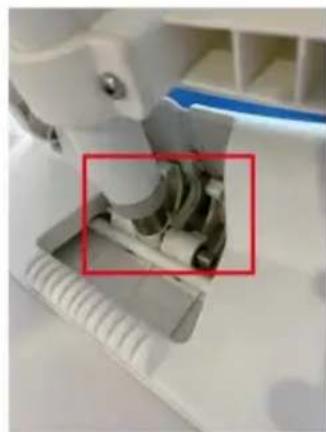

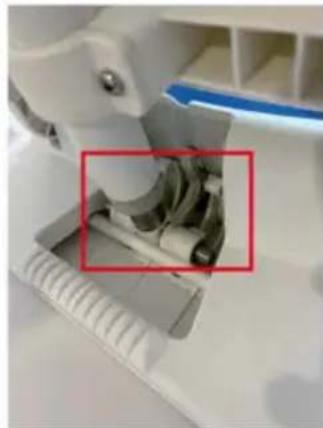

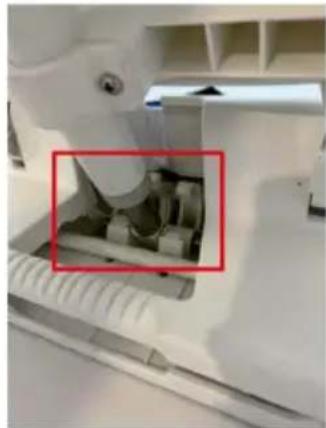

④ Make sure the top clev the actuator is connected correctly with the base hool

- Please check whether the 6 suction cups at the bottom of the seat have loosened during transportation or movement. If there is looseness, tighten the suction cups.

- Confirm that there are no obstacles or sundries in the bathtub that may catch tip over or affect the normal lift of the bath lift, including shower heads, fault fittings, etc.

- You need to put the bath lift in the bathtub and ask for help if you have - Please ensure that the floor is dry and free of obstructions to prevent slip, other accidents during the handling or placement of the bath lift.

- In the process of putting the bath lift into the bathtub, please make sure there is enough space in the direction of the back. Prevent the bath lift from the bathtub or other objects in the bathroom. Also, confirm that there are no relevant obstacles (including but not limited to faucets, shower heads, etc.) with the range of the bath lift.

- Make sure that the 6 suction cups are in fully contact with the bottom suit the bathtub.

- Please make sure that the male plug of the bath lift and the female plug hand control are entirely dry before connecting them to each other.

- Placing the hand control wire on the outside of the bath lift to prevent the control line from being pressed or pulled apart, causing damage to the line of poor connection.

- Make sure that the bath lift can be lifted properly and safely before each - Press the hand control up button to rise, press the down button to fall, the button has an emergency stop effect. When in the process of descending, this is aware of the danger, you can press the stop button, the bath lift will not to descend. You need to press the up button before you press the down button.

again.

• Textured button to assist those with visual impairments
• The hand control is in jog control mode, i.e. the button is valid when pres and invalid when released.
• When the bathing chair is stored at a lower temperature (e.g. in winter), if needs to be used again, allow it to warm up naturally to room temperature use.;
• After each bath, it is recommended to wash the bath chair with water and dry naturally.

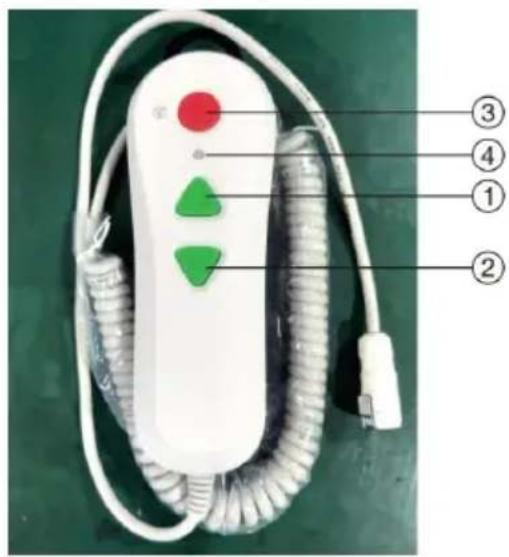

Hand control

Labeled diagram of a medical or electrical device with numbered components and control buttons

① Upper triangle button: Up button - controls the rise of the bath chair
② Lower triangular button: Down button - contro the descent of the bath chair
③ Round button: Emergency stop button - control the bath chair emergency stop, and no longer descend, if you need to descend need to first press the up button and then press the down piece to descend
④ Indicator light: shows the working status of the shower chair

START USE

START USE

1. First, please open the bath of the bath lift, and plug the hand control with the female plug on the back.
2. Let the bath lift rise unt sides of the side plate lear smoothly against both sides the bathtub;

Close-up of a hand holding a white pen, with a red box highlighting the tip area (no visible text or symbols)

Close-up of a white electrical outlet with a red box highlighting a component (no visible text or symbols)

1. With your back to the bathtub, sit on the outside side plate;

2. Maintain the above position and move the hips to the middle of the seat bath lift;

3. Put both feet into the bathtub;

4. Once you are in the bathtub comfortably, use the hand control down but drop to your desired position. Keep hands and feet safe during the process;

5. If the down button is kept pressed, the bath lift will stop at the lowest p

6. If conditions permit, have the user operate the hand control rather than the assistant. This will make the user feel more comfortable and will reduce the danger;

Storage

1. The user leaves the bath and waits for the water to drain from the bath before the bath chair to its lowest point and folding up the back of the chair;

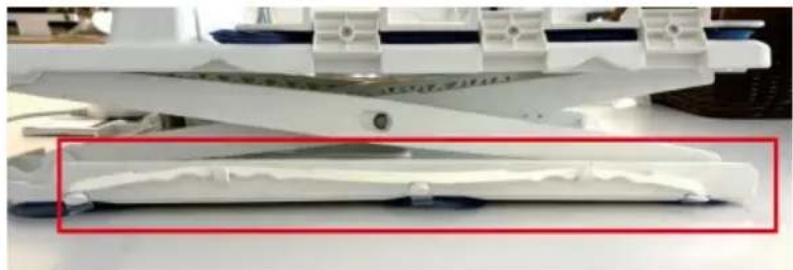

2. Before picking up the bath make the suction cups inflate by lifting the armrests. Balance the pressure difference between suction cups and atmospheric

White industrial machine blade with a red highlighted section, placed on a workbench (no visible text or symbols)

pressure to lift the bath lift easily;

1. Wash the bathing chair equipment with water to remove foam, stains, etc. (keep t control linked to the bathing chair's plug).

2. Disconnect the hand control from bathing chair and wipe it clean wi dry cloth.

3. Storing the bath chair and hand controls.

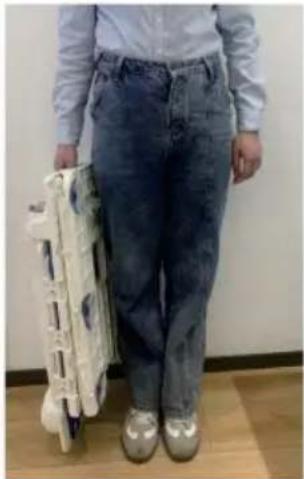

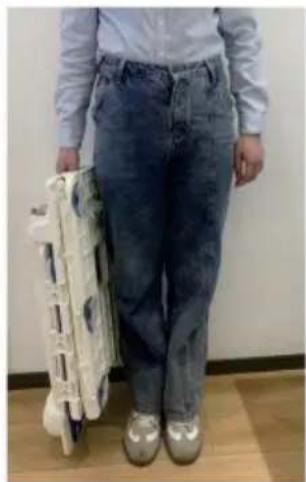

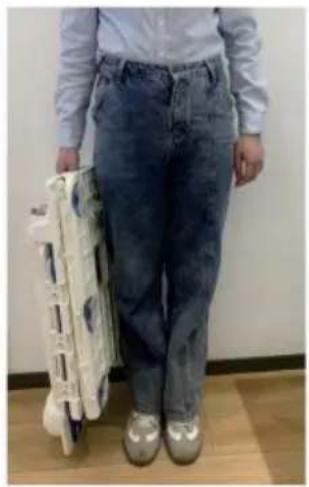

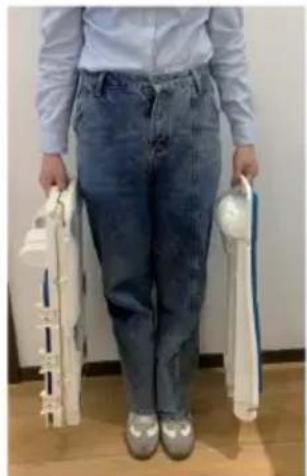

Carrying

Lift the back and base sections separately Lifting of the whole mac

Person wearing denim jeans holding white and blue plastic bags (no visible text or symbols)

Person wearing denim jeans and silver shoes, holding a white roller coaster (no visible text or symbols)

Emergency Stop

1. Press the stop button for emergency stop when the bath lift does not stop normal.
2. If the emergency stop button is pressed during the descent, the down button function be locked, and the down button will resume its effect only after the rise must be performed.

first;

Environmental impact on equipment

1. Avoid direct sunlight to avoid material aging
2. Keep away from fire source (high temperature) to avoid lithium battery expansion and material aging and deformation.

Keep the charger away from places with too high humidity to avoid short cir of the adapter

MAINTENANCE

● After the bath is finished, please rinse the bath lift with warm water. If the bath lift is dirty, you can clean it with a cloth, brush, etc. and then dry it with a cloth
- Do not clean the hand control (part 1) and actuator (part 2) with detergent or disinfectant.

If necessary, scrub with a cloth dampened with a small amount of water. Do not im the hand control and actuator in water;

• Do not use high-concentration disinfectant to clean the bath lift;
• When cleaning the lower part of the seat, pay attention to lifting the scissors to prevent hand clamping;
• When different users use it, please clean it thoroughly;
  ● Make sure the bath lift is fully dry before storing;
• If possible, ask someone to clean and maintain it;
  ● The charger must be unplugged from the power plug before cleaning;
• Please do not rinse the charger with water, please clean it with a dry cloth;
• Each bath lift is used by a single person. After each use, it is necessary to wipe off the water droplets with a dry cloth, then dry in a ventilated place, and finally store it in packaging box. Every three months, use 75% medical alcohol to treat it. Wipe the suit the bath lift, disinfect the bath lift, dry it in a ventilated place for 1 hour after disinfect finally store it in the packaging box;
  ● Bath lift must be inspected or repaired by professionals every 12 months.

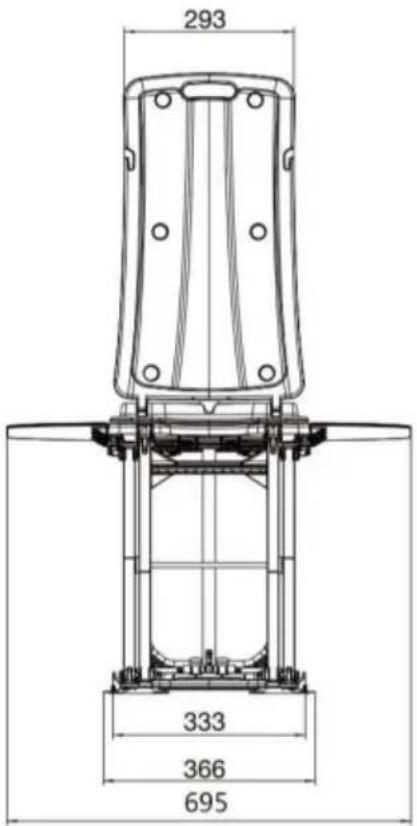

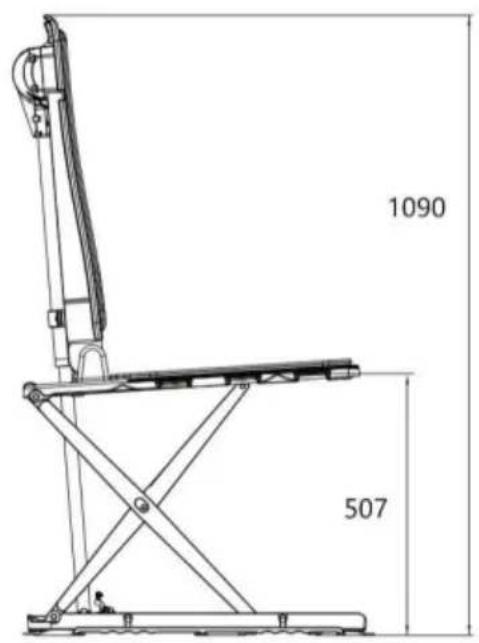

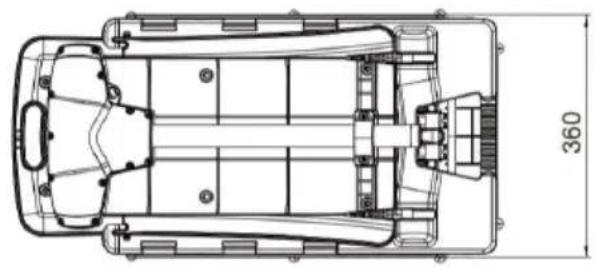

DIMENSIONS

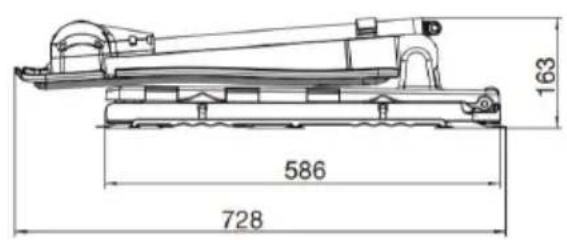

163 586 728

Top-down technical drawing of a vehicle chassis with dimension标注 (360 mm), showing internal compartments and structural elements (no text or symbols beyond measurement)

Folded state

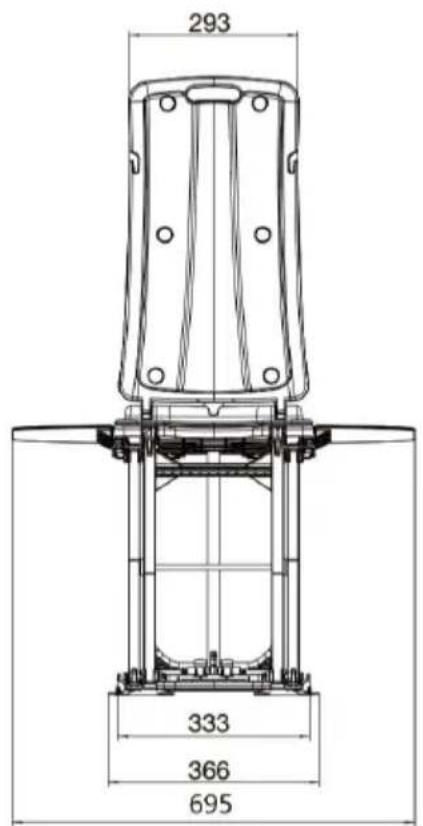

293 333 366 695

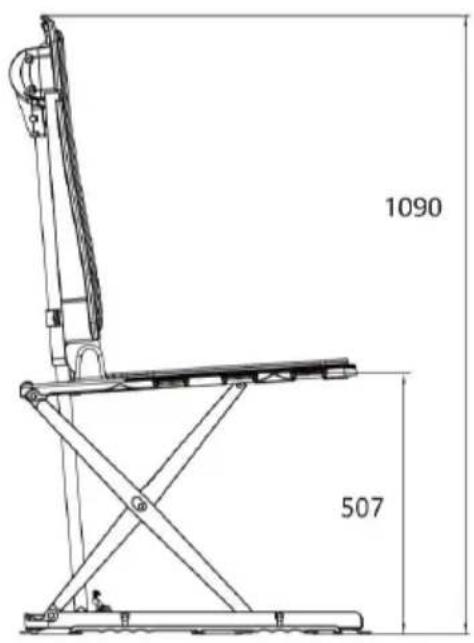

1090 507

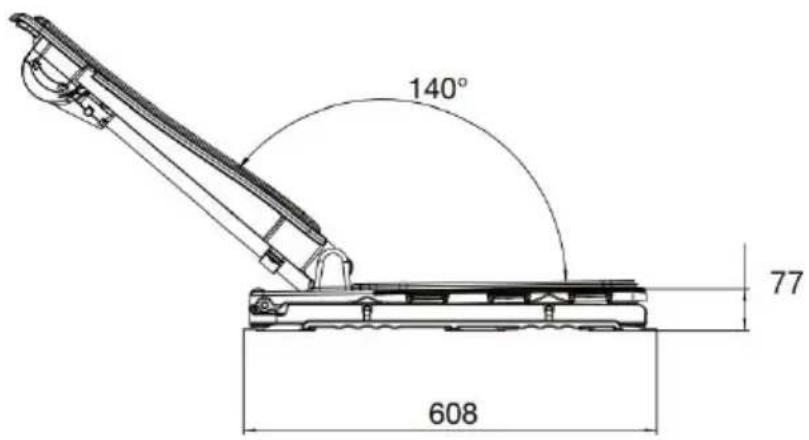

Maximum expend state

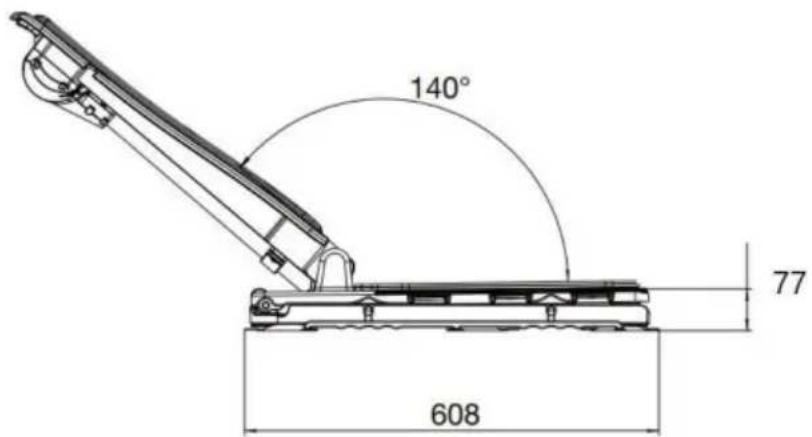

140° 77 608

Minimum expanded state

Suitable with bath lift handset

TROUBLESHOOTING

1. The whole bath lift will not lift without load. It may be the actuator worm pulling teeth. Listen to the sound. If the motor rotates but cannot rise or fall indicate that the actuator worm wheel pulls teeth; if there is no sound, the i transmission structure may be blocked or There is water inside, if the above situation occurs, please contact your dealer.
2. If the bath lift is unstable in the bathtub, check whether the suction cup made sufficient contact with the bathtub.
3. If the person is not sitting on the bath lift, it can operate normally. If the sitting on the lift, the chair will not rise. Whether the user exceeds the load requirement of the manual, the operator enters the overcurrent protection.
4. The entire bath lift will not go up and down when it is empty. Whether operator has a buzzer alarm sound, if there is an alarm sound, it means the operator has insufficient charge and needs to be charged in time. If there is response, please contact your dealer.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Blue and silver modular chair with metal frame structure (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of a blue and white mechanical component with mounting holes (no visible text or symbols)

Blue medical device back panel with circular ports and orange bounding boxes (no text or symbols visible)

Close-up of a white electronic device with metallic components and a blue cable, no visible text or symbols

(batterie lithium-ion rechargeable)

Top-down view of a white appliance with internal components and a small blue object inside (no visible text or symbols)

Pièces incluses

① commande manuelle

chargeur

dossier (y

Close-up of a white mechanical component with a red box highlighting a small white part, no visible text or symbols.

Person assembling a white electronic device with a red annotation box highlighting the component (no visible text or symbols)

Close-up of a blue and white baby table with a red rectangular highlight on the seat (no text or symbols visible)

Close-up of a mechanical device with a red box highlighting a component (no visible text or symbols)

CORRECT √

Close-up of a mechanical component with a red box highlighting a specific area (no visible text or symbols)

WRONG ×

Medical device with labeled buttons and connectors, numbered 1 to 4 pointing to function keys

Close-up of a white appliance with a red box highlighting a component, no visible text or symbols

White aircraft wing with a red rectangular overlay highlighting the blade (no visible text or symbols)

Person wearing blue jeans and white trousers holding up a white object, standing indoors (no visible text or symbols)

Person wearing blue jeans and silver shoes standing with a white roller coaster (no visible text or symbols)

Arrêt d'urgence 1.

Top-down technical line drawing of a vehicle chassis with dimension标注 (no text or symbols)

Folded state

293 333 366 695

Maximum expend state

1090 507

140° 77 608

Minimum expanded state

Blue and silver modular chair with metal frame structure (no text or symbols visible)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Close-up of a blue and white mechanical component with mounting holes (no visible text or symbols)

Blue medical device back panel with circular ports and orange bounding boxes (no visible text or symbols)

ÿRückplatte – Haken

Close-up of a white electronic device with metallic components and a blue cable, no visible text or symbols

Top-down view of a white appliance with internal components and a small blue object inside (no visible text or symbols)

Teile enthalten

① Handsteuerung

ÿ Ladegerät

ÿ Rückenlehne

Close-up of a white mechanical component with a red box highlighting a small white part, no visible text or symbols.

Person assembling a white electronic device with a red annotation box highlighting the component (no visible text or symbols)

Close-up of a medical examination table with blue and white equipment, no visible text or symbols

Close-up of a white mechanical device with a red annotation highlighting a component (no visible text or symbols)

CORRECT √

Close-up of a mechanical component with a red box highlighting a specific area (no visible text or symbols)

WRONG ×

Medical device with labeled buttons and connectors, showing numbered parts from 1 to 4

Close-up of a hand holding a white tool near a white cylindrical object, with no visible text or symbols.

Close-up of a white appliance with a red rectangular annotation highlighting a component (no visible text or symbols)

Close-up of a white electronic device with a red rectangular highlight on its side, placed on a workbench (no visible text or symbols)

Person wearing denim jeans holding white and gray clothing (no visible text or symbols)

Person wearing blue jeans and silver shoes standing with a white roller coaster (no visible text or symbols)

Notstopp 1.

Top-down technical line drawing of a vehicle chassis with dimension标注 (no text or symbols)

Folded state

293 333 366 695

Maximum expend state

1090 507

140° 77 608

Minimum expanded state

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Blue and silver plastic chair with metal frame, no visible text or symbols

HO BISOGNO DI AIUTO? CONTATTACI!

Close-up of a blue and white mechanical component with mounting holes (no visible text or symbols)

Blue medical device back panel with circular ports and orange bounding boxes (no text or symbols visible)

ÿPiastra posteriore: gancio

Close-up of a white electronic device with metallic components and a blue cable, no visible text or symbols

Top-down view of a white appliance with internal components and a small blue object inside (no visible text or symbols)

Parti incluse

① comando manuale

ÿ caricatore

ÿ schienale

Close-up of a white mechanical component with a red box highlighting a small white object, no visible text or symbols.

Person assembling a white electronic device with a red annotation box highlighting the component (no visible text or symbols)

Close-up of a blue and white baby table with a red rectangular highlight on the seat (no text or symbols visible)

Close-up of a white mechanical device with a red annotation highlighting a component (no visible text or symbols)

CORRECT √

Close-up of a mechanical component with a red box highlighting a specific area (no visible text or symbols)

WRONG ×

Medical device with labeled buttons and connectors, numbered 1 to 4 pointing to function keys

Close-up of a hand holding a white tool near a small green object, with no visible text or symbols.

Close-up of a white appliance with a red rectangular annotation highlighting a component (no visible text or symbols)

White aircraft fuselage with a red rectangular overlay highlighting the bottom portion of the fuselage (no visible text or symbols)

Person wearing blue jeans and white shoes holding white bags, standing indoors (no visible text or symbols)

Person wearing denim jeans and silver shoes, holding a white rollerboard (no visible text or symbols)

Top-down technical line drawing of a vehicle chassis with dimension标注 (no text or symbols)

Folded state

293 333 366 695

Maximum expend state

1090 507

140° 77 608

Minimum expanded state

SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli Stati Uniti: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

REP. DEL

REGNO UNITO

Gruppo Pooledas Ltd

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Blue and silver modular chair with metal frame structure (no text or symbols visible)

Close-up of a blue and white mechanical component with mounting holes (no visible text or symbols)

Blue medical device back panel with circular ports and orange bounding boxes (no text or symbols visible)

Placa trasera—gancho

Close-up of a white electronic device with metallic components and a blue cable, no visible text or symbols

Top-down view of a white appliance with internal components and a small blue object inside (no visible text or symbols)

Piezas incluidas

① control manual

cargador

respaldo

Close-up of a white mechanical component with a red box highlighting a specific part (no visible text or symbols)

Person assembling a white electronic device with a red annotation box highlighting the component (no visible text or symbols)

Close-up of a blue and white baby table with a red rectangular highlight on the seat (no text or symbols visible)

Close-up of a white mechanical device with a red annotation highlighting a component (no visible text or symbols)

CORRECT √

Close-up of a mechanical component with a red box highlighting a specific area (no visible text or symbols)

WRONG ×

Medical device with labeled buttons and connectors, numbered 1 to 4 pointing to function keys

Close-up of a hand holding a white tool near a small cylindrical object, with no visible text or symbols.

Close-up of a white appliance with a red rectangular annotation highlighting a component (no visible text or symbols)

White plastic mechanical component with a red rectangular highlight on the side, placed on a workbench (no visible text or symbols)

Person wearing blue jeans and white shoes holding white plastic bags (no visible text or symbols)

Person wearing denim jeans and silver shoes, holding a white rollerboard (no visible text or symbols)

Top-down technical line drawing of a vehicle chassis with dimension标注 (no text or symbols)

Folded state

293 333 366 695

Maximum expend state

1090 507

140° 77 608

Minimum expanded state

SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730

REPRESENTANTE DEL REINO UNIDO

Grupo Pooledas Ltd

Blue and silver modular chair with metal frame structure (no text or symbols visible)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Close-up of a blue and white mechanical component with mounting holes (no visible text or symbols)

Blue medical device back panel with circular ports and orange bounding boxes (no text or symbols visible)

Płyta tylna ——hak

Close-up of a white electronic device with metallic components and a blue cable, no visible text or symbols

Top-down view of a white electronic device casing with internal components and wiring (no visible text or symbols)

Czę ści w zestawie

Sterowanie 1 rę ką

ładowarka

oparcie (w

Close-up of a white mechanical component with a red rectangular highlight highlighting a specific part (no visible text or symbols)

Person in lab coat handling a white medical device with a red annotation box (no visible text or symbols)

Close-up of a blue and white baby table with a red highlighted section, no visible text or symbols

Close-up of a white mechanical device with a red annotation highlighting a component (no visible text or symbols)

CORRECT √

Close-up of a mechanical component with a red box highlighting a specific area (no visible text or symbols)

WRONG ×

Medical device with labeled buttons and connectors, showing numbered parts from 1 to 4

Close-up of a hand holding a white tool near a small white object, with no visible text or symbols.

Close-up of a white appliance with a red box highlighting a component, no visible text or symbols

Close-up of a white plastic device with a red rectangular highlight on its side, placed on a workbench (no visible text or symbols)

Person wearing blue jeans and silver shoes holding white plastic bags (no visible text or symbols)

Person wearing denim jeans and silver shoes, holding a white rollerblading bag (no visible text or symbols)

Top-down technical line drawing of a vehicle chassis with dimension标注 (no text or symbols)

Folded state

293 333 366 695

Maximum expend state

1090 507

140° 77 608

Minimum expanded state

ROZWIAZYWANIE PROBLEMÓ W

ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Badlift

Model: JC35M3-1

Blue and silver plastic chair with metal frame, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Close-up of a blue and white mechanical component with mounting holes (no visible text or symbols)

Blue medical device back panel with circular ports and orange bounding boxes (no text or symbols visible)

ÿAchterplaat - haak

Close-up of a white electronic device with metallic components and a blue cable, no visible text or symbols

PRODUCT BESCHRIJVING

Top-down view of a white appliance with internal components and a small blue object inside (no visible text or symbols)

Close-up of a white industrial machine component with a red box highlighting a small cylindrical part (no visible text or symbols)

Person assembling a white electronic device with a red annotation box highlighting the component (no visible text or symbols)

Close-up of a blue and white medical or rehabilitation device with a red rectangular annotation highlighting a specific area (no visible text or symbols)

Close-up of a white mechanical device with a red annotation highlighting a component (no visible text or symbols)

CORRECT √

Close-up of a mechanical component with a red box highlighting a specific area (no visible text or symbols)

WRONG ×

Medical device with labeled buttons and connectors, numbered 1 to 4 pointing to function keys

Close-up of a hand holding a white tool near a small white object, with no visible text or symbols.

Close-up of a white appliance with a red box highlighting a component, no visible text or symbols

Close-up of a white plastic cutting tool with a red annotation box highlighting its surface (no visible text or symbols)

Person wearing blue jeans and white shoes holding white plastic bags (no visible text or symbols)

Person wearing denim jeans and silver shoes, holding a white rollerboard (no visible text or symbols)

Noodstop 1. Druk op

Top-down technical line drawing of a vehicle chassis with dimension标注 (no text or symbols)

Folded state

293 333 366 695

Maximum expend state

1090 507

140° 77 608

Minimum expanded state

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Blue and silver modular chair with metal frame structure (no text or symbols visible)

BEHÖVS HJÄLP? KONTAKTA OSS!

WARNING! AKTA DIG FÖR NYP

Close-up of a blue and white mechanical component with mounting holes (no visible text or symbols)

Blue medical device back panel with circular ports and orange bounding boxes (no visible text or symbols)

ÿBakplatta——krok

Close-up of a white electronic device with metallic components and a blue cable, no visible text or symbols

ÿBokplatta——vid basplattans lyftfäste

Top-down view of a white electronic device casing with internal components and wiring (no visible text or symbols)

Delar ingår

① handkontroll

ÿ laddare ÿ

ryggstöd

Close-up of a white mechanical component with a red rectangular highlight highlighting a specific part (no visible text or symbols)

Person in lab coat handling a white medical device with a red annotation box (no visible text or symbols)

Close-up of a blue and white baby table with a red rectangular highlight on the side (no text or symbols visible)

Close-up of a mechanical device with a highlighted internal component (no visible text or symbols)

CORRECT √

Close-up of a mechanical device with a highlighted section (no visible text or symbols)

WRONG ×

Medical device with labeled buttons and connectors, showing numbered parts from 1 to 4

Close-up of a hand holding a white tool near a white cylindrical object, with no visible text or symbols.

Close-up of a white appliance with a red rectangular annotation highlighting a component (no visible text or symbols)

Close-up of a white plastic object with a red rectangular highlight on the side, placed on a workbench (no visible text or symbols)

Person wearing blue jeans holding white medical equipment (no visible text or symbols)

Person wearing denim jeans and silver shoes standing beside a white roller coaster (no visible text or symbols)

Nödstopp 1. Tryck

Top-down technical line drawing of a vehicle chassis with dimension标注 (no text or symbols)

Folded state

293 333 366 695

Maximum expend state

1090 507

140° 77 608

Minimum expanded state

Enhet 5 Albert Edward House, The Pavilions

www.vevor.com/support
