JH-65 - Drill Vevor - Free user manual and instructions

Product Type	Fence Post Driver (Gas Drill)
Brand	Vevor
Model	JH-65
Power Source	Gasoline (mixed with 4-stroke oil)
Engine Type	4-Stroke Engine
Displacement	37.7 cm³
Rated Power	1 kW
Rated Speed	6500 rpm
Rated Impact Frequency	1500-2000 BPM
Impact Energy	35 J
Tank Capacity	0.65 L
Starting System	Manual Start (recoil starter)
Compatible Post Diameter	Up to 88 mm (with sockets 45, 55, 88 mm)
Weight (approx.)	15 kg (approx.)
Dimensions (L x W x H, approx.)	80 x 30 x 30 cm (approx.)
Application	Installation of fence posts, barriers, orchards
Safety	Wear goggles, helmet, earplugs; avoid hot surfaces; do not use pure gasoline
Regular Maintenance	Clean air filter, fuel filter, spark plug, cooling fins
Warranty	Electronic warranty certificate available at www.vevor.com/support
Included Accessories	Sockets (45, 55, 88 mm), funnel, strainer, wrenches, screwdriver, spark plug, measuring cup, tool box

Frequently Asked Questions - JH-65 Vevor

What fuel to use for the Vevor JH-65 drill?

Use a mixture of unleaded gasoline (92 or higher) and 4-stroke engine oil (APL SE/SF/SG classification, SAE 10W-30/40 viscosity). Do not use 2-stroke oil or pure gasoline. Exact proportions are indicated in the manual.

How to start the drill for the first time?

Press the primer bulb several times until the carburetor is filled. Close the choke if the engine is cold. Hold the machine vertically, pull the starter handle quickly over 50 cm. Do not let the handle snap back. Once started, open the choke and let it warm up for 5 minutes at idle.

What to do if the engine does not start?

Check the fuel (presence and correct mixture), the spark plug (dirty or incorrect gap, adjust to 0.5-0.7 mm), the air filter (clean), and the fuel filter (clogged). Make sure the machine is primed.

How to maintain the air filter?

Clean the air filter regularly with warm water and detergent, then dry it thoroughly before reinstalling. In dusty environments, clean more often. Replace it if damaged.

What is the frequency of engine oil change?

Check the oil level before each use. Replace the oil after 20 hours of operation for the first time, then every 50 hours. Use a quality 4-stroke engine oil.

Can the drill be used for posts larger than 88 mm?

No, the maximum recommended diameter is 88 mm. Sockets of 45, 55 and 88 mm are provided. For larger posts, another model is needed.

How to store the machine for a long period?

Empty the fuel tank and run the engine until it stops to avoid carburetor clogging. Clean the machine and store it in a dry, dust-free place.

What safety precautions are essential?

Wear goggles, helmet, and earplugs. Stand in front of the air filter during use. Do not smoke or eat. Keep the handle dry. Do not use with one hand. Keep unauthorized persons away.

Why does the machine lose power or have reduced impact?

This may be due to a clogged air filter, dirty fuel filter, dirty spark plug, or incorrect throttle adjustment. Perform the recommended maintenance and check settings.

Where to find spare parts and technical support?

Visit www.vevor.com/support for technical support and electronic warranty certificate. Contact your local dealer or authorized service center for spare parts.

USER MANUAL JH-65 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

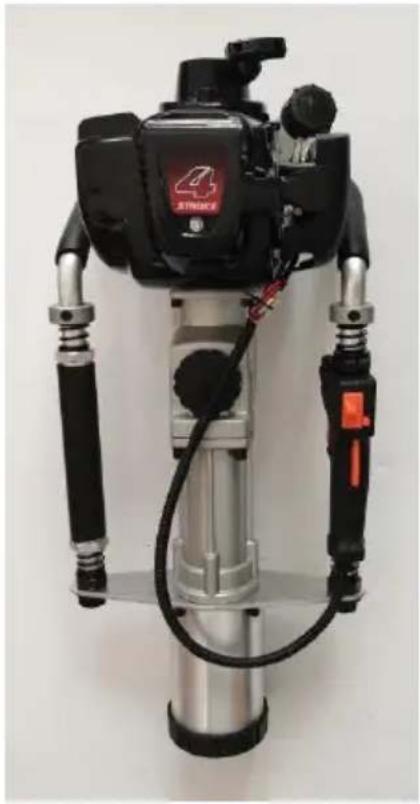

Fence Post Driver

MODEL: JH-65

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: JH-65

Close-up of a black and silver mechanical device with attached hoses and a red warning tag (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

For your safety, please read the manual carefully before using the m otherwise physical in jury or mechanical damage may be caused.

Part List
NO.	Name	Picture	Qty.
①	Φ45 Socket sleeve		1
②	Φ55 Socket Sleeve (Have been assembled)		1
③	Φ88 Socket Sleeve		1
④	Priming funnel		1
⑤	Strainer		1
⑥	4 hex wrench		1
7	5 hex wrench		1
8	6 hex wrench		1
9	“-” and “+” conversion screwdriv		1
10	Spark plug socket		1
11	8-10 non-adjustable wrench		1
12	Measuring cup		1
13	Spark plug		1
14	Tool Box		1
15	product		1

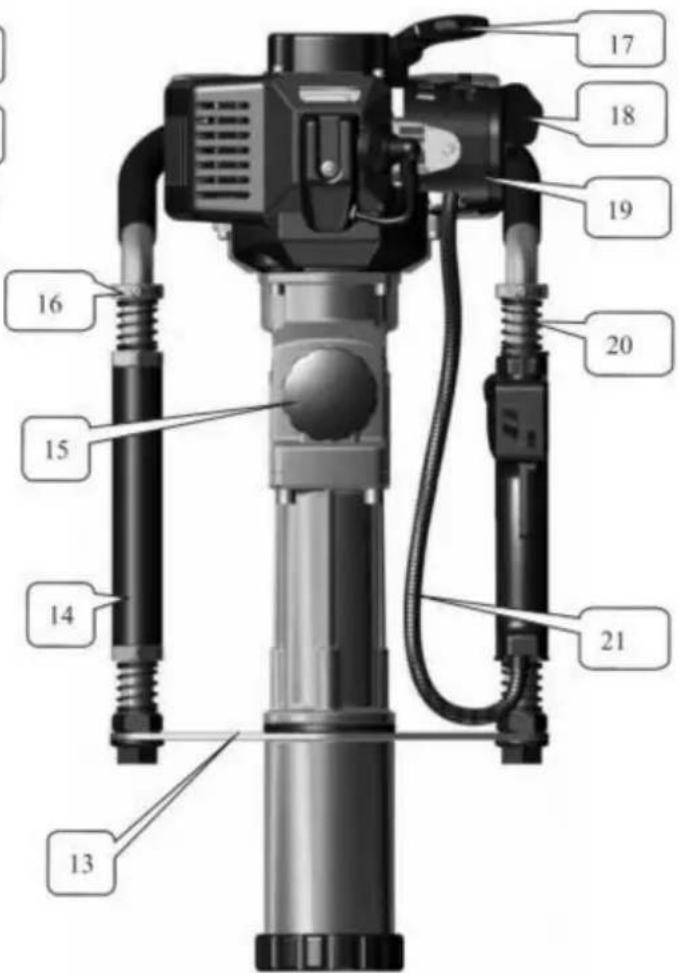

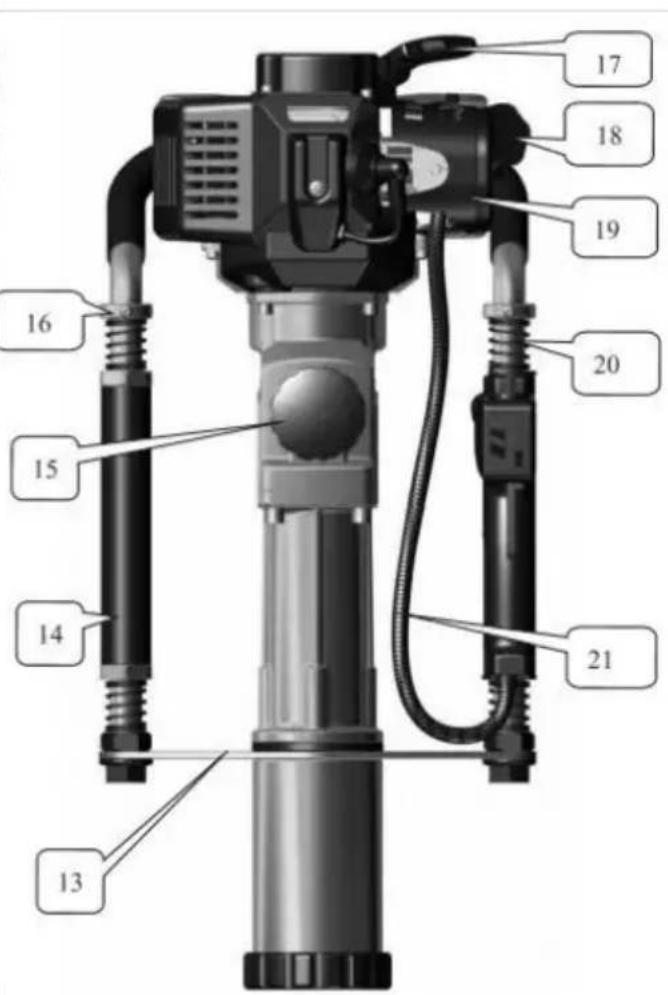

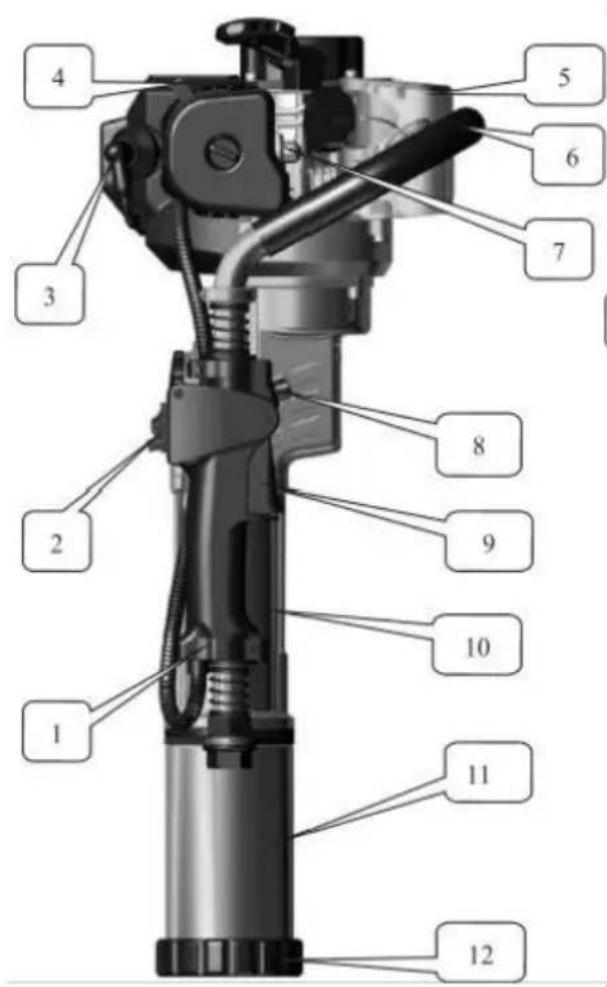

1.Name of Main Parts

No.	Name of Part	No.	Name of Part	No.	Name of Part
1	Combination Switch	2	Stop Button	3	Spark Plug Cap
4	Ventilation Switch	5	Oil Can	6	Handle Rack
7	Fuel Bubble	8	Throttle Knob	9	Throttle Button
10	cylinder case	11	Piling Socket	12	Piling Socket Retainer
13	Support Plate	14	Handle Sleeve	15	Grease Cap
16	Positioning Sleeve	17	Starter	18	Oil Can Cap
19	Air Filter	20	Damping Spring	21	Throttle cable

Fig 1 Fig 2

2.Description of Safe Operation

1. The operator must wear slip-resistant safety shoes and suitable clo For long-time operation, he or she must wear a goggle, a helmet, and earplugs.

2. While operating the machine, please keep balance of the body, and stand in front of Air Filter to operate themachine. The operator shall smoke, eat or chat while operating the machine.

3. After starting the machine, do not operate it with one hand.

4. When lifting the machine do not pulled the throttle button, which v cause the machine to run at idle.

5. Non-staff shall be away from the operation area to avoid injuries.

6. Operate the pile driver at the medium speed.

7. Keep the handle dry and clean without greasy oil or fuel mixture.

8. If operation is stopped midway, be sure to turn off the engine.

9. Be sure to check whether fastening screws of the connector is tig before use. If it's loose, it's necessary to tighten the screws before use

10. Prohibit the use of pure gasoline fuel (no two-stroke oil), shall re Chapter 4.2 for recommended ratios of fuel.

11. Gasoline is highly flammable. Therefore, replenish fuel in a well-ventilated environment. During fuel filling gasoline engine must be turned off.

12. Do not add too much oil. The oil shall not exceed the neck of fuel tank. If fuel spills, start the machineafter fuel on the machine vo completely.

13. After refueling, tighten the oil lid. During work, check whether oil damaged and spills frequently. If damage is found, close down the ma immediately for replacement.

14. Reserve oil in storage areas. Remove hidden troubles of fire or flame.

15. While the pile driver is used in closed areas such as tunnels, tr and deep groove, it's necessary to guarantee normal air circulation to a waste gas poisoning and suffocation.

16. Forbid quick acceleration or braking so as not to damage the ma

17. Before transport, empty fuel inside the fuel tank to avoid leakage

18. Non-professional maintenance staff are prohibited from dismounting the pile driver to avoid structural damage of parts, shortened service life the pile driver or accidents.

3. Main Use and Function

3.1 Use: It can be used for outside piling operation of farms, orchard or barriers.
3.2 Function
3.2.1 It is the engine-type handheld gasoline pile driver which boasts weight and low discharge capacity.
3.2.2 The product conforms to the design of man-machine engineering reduces working strength of the operator to the greatest extent, and be simple and comfortable operation. The operator can achieve 360^ all-around operation.
3.2.3 It can regulate impact energy and impact frequency and apply the variety of piles less than 88mm in diameter.
3.2.4 Advantage: Save the trouble of using heavy machines such as generator, air compressor and trucking-lorry.
3.2.5 The operating handle of the machine is rubber and plastic spor handle which can greatly reduce the recoil force of the machine. It's installed with two-way damping spring which makes the user more comfortable.

4.Preparation before Use

4.1 Piling Socket

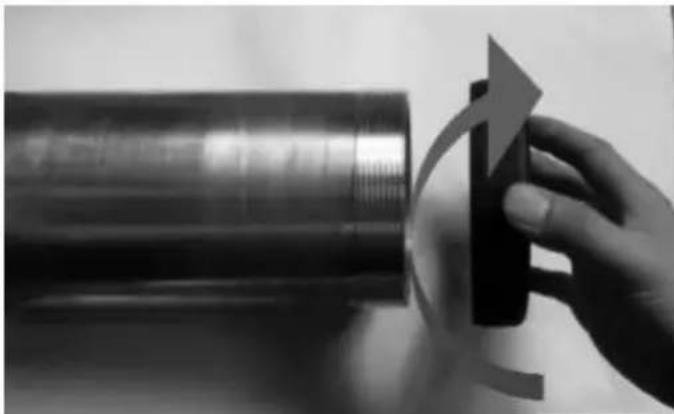

4.1.1 Install or change piling socket retainer, Select a corresponding retainer according to the sizes of the piling of 45mm、55mm、88mm, as it's shown in Fig.3.

Hand holding a small black object with an arrow, next to a cylindrical metallic component (no visible text or symbols)

Fig 3

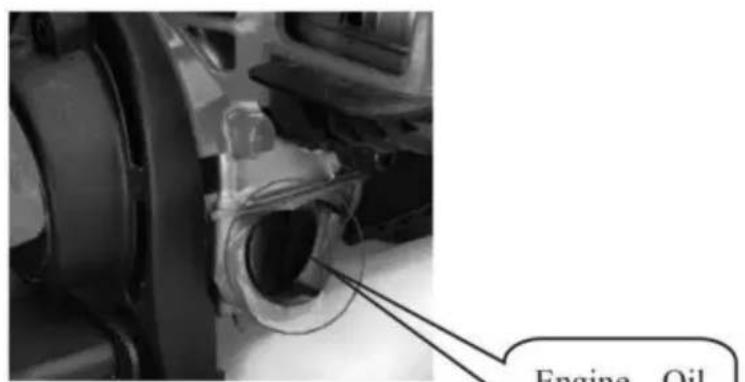

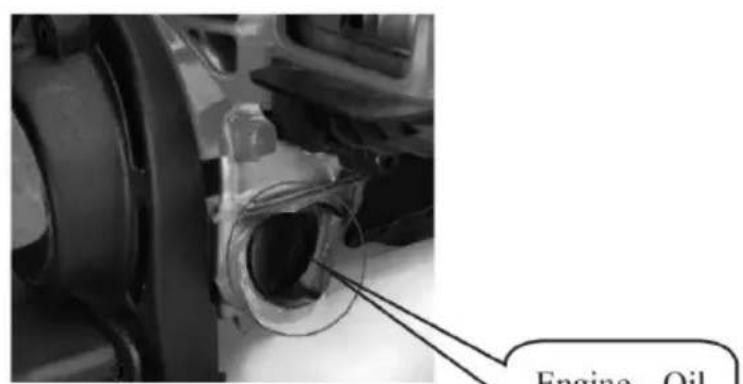

4.2 Engine Oil

Quality standard for general 92 gasoline and four stroke engine oil The recommended ambient temperature for this machine is -15°C-40 °C.APL classification is recommended SE.SF.SG Grade equivalent SAE 10W-30/40 oil

4.2.1 it is forbidden to use two-stroke engine oil or non four stroke oil to damage the engine.
4.2.2 add fuel in a well ventilated place away from open fire
4.2.3 when adding fuel, please do not exceed the neck of the fuel tail filler. If there is fuel or oil
spillage, wipe it clean and wait until it volatilizes completely before star the oil.

4.2.4 tighten the fuel tank cap after refueling

Inspection and supplement of engine oil:

A. No oil or insufficient oil can cause serious machine damage.

B. Be sure to check the oil level when the machine is stopped.

C. If the engine oil is too dirty, it needs to be replaced with new engine maintenance. Generally, the engine oil should be replaced 20 hours after the first use and 50 hours later.

a. Stand the machine on the ground, screw off the oil level gauge and the oil level: the oil level should reach the upper limit mark on the oil gauge. (see Figure 11)

Figure 11

5.Starting

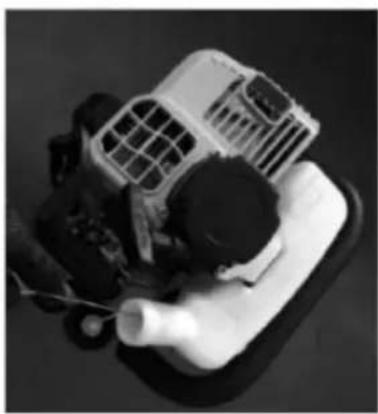

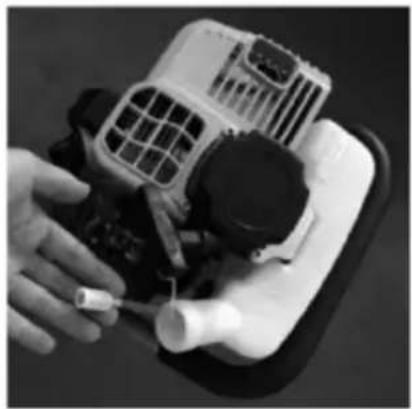

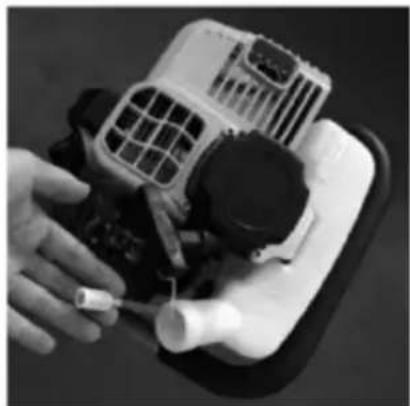

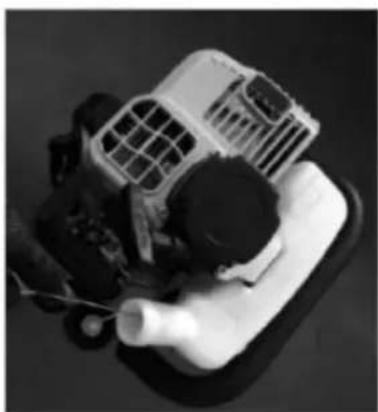

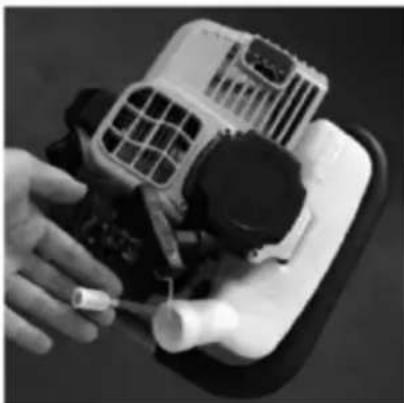

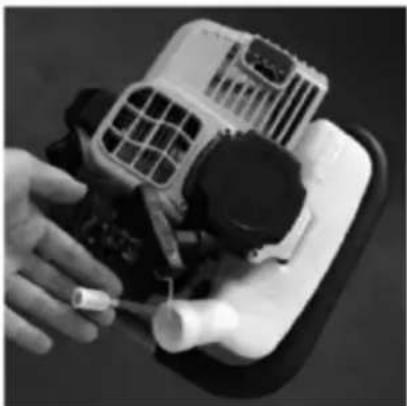

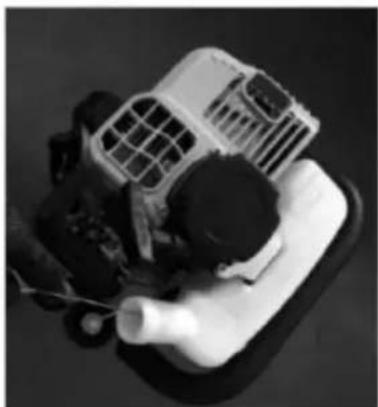

5.1 Before starting the new machine, press the transparent and semi-circuit fuel bubble repeatedly (Fig.4) until carburetor is filled with fuel. (If the engine is cool, close the air door. Open air door after starting.)

Fig 4

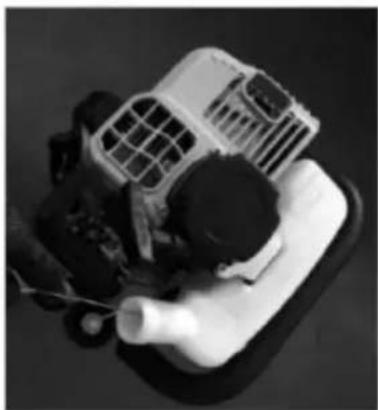

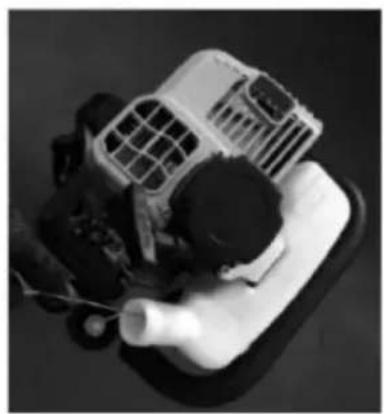

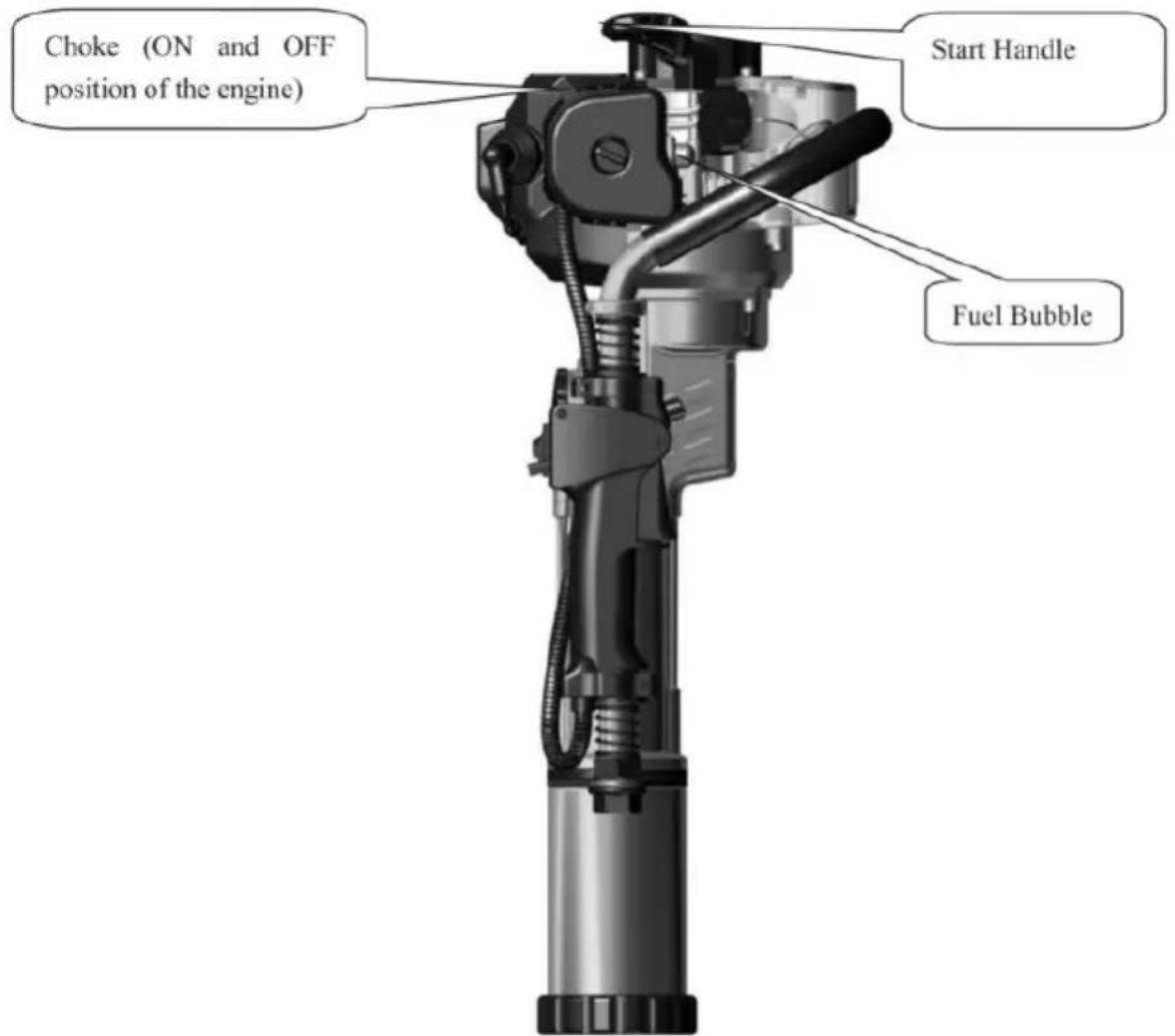

5.2 Set the machine upright according to Fig.4.Hold the upper part of handle tightly with one hand while the other pulls the pulling handle starter for over 50cm quickly.Do not let the pulling handle go back from repeated pulling but hold it tightly to avoid injury resulting from quick resilience.

5.3 Start the gasoline engine and then open air door completely. After operation for 5 minutes, start normal work.

6.Operation

6.1 After gasoline engine is started, first carry out idle operation for 5 minutes to warm up the machine.
6.2 When the gasoline engine is warmed up, press throttle button to t appropriate regulatory position according to the

required impact energy

Note: The new gasoline pile driver use shall mainly boast low or medium-speed for work in the first 20 hours of the

operation and the maximum throttle shall no be used in order to exte service life.

6.3. Operating speed of gasoline engine shall be low or medium speed

6.4. High-speed operation of the pile driver during non-piling is prohibited

7.Turning off the Machine

7.1 Release throttle button and carry out idle running of the machine minutes.

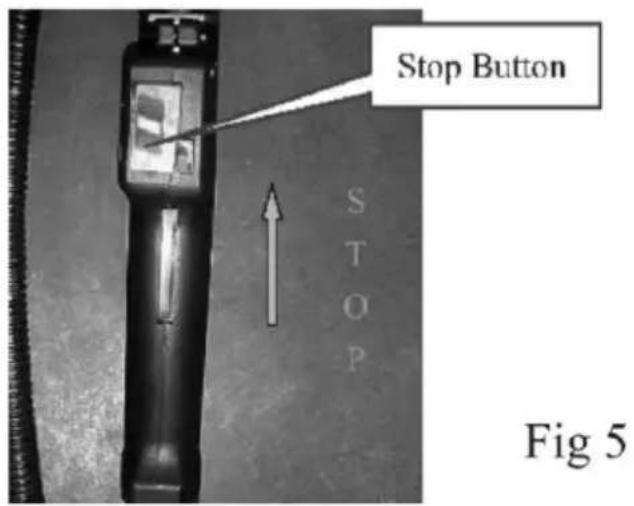

7.2 Pull Stop Button to the position of flameout. See the position of S Button in Fig.5.

8. Technical Maintenance

8.1 Air Filter

Check air filter regularly.Soot deposit blocking the filter element of the filter will reduce the power of gasoline engine and service life.If the filter will reduce the power of gasoline engine and service life. If the filter will reduce the power of gasoline engine and service life, it has too much soot deposit,clean it with warm water and detergent,and install the air filter after wiping it with dry cloth.Filter should be replaced, damaged.Maintenance cycle shall be shortened properly if it's particularly used in the dusty environment.

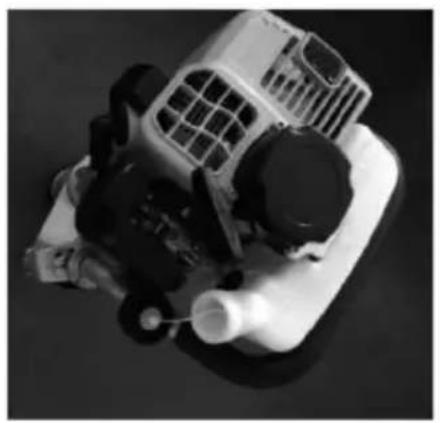

8.2 Fuel filter

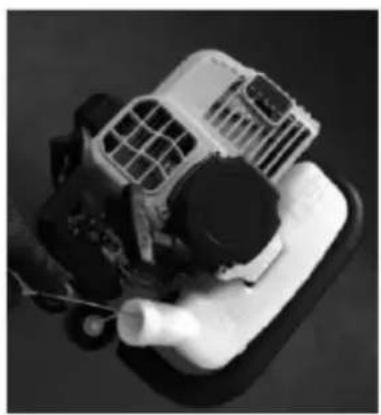

If the fuel filter is blocked, the pile driver will have reduced speed and weaker impact energy. Methods: ① Open the oil can lid. Get out the fuel filter from the oil can with metal hook and clean it. ② When cleaning filter, clean the oil can at the same time as it's shown in Fig.6,7 and

Close-up of a mechanical device with visible internal components and no text or symbols

Fig 6

Top-down view of a mechanical device with cooling fans and a plastic housing (no visible text or symbols)

Fig 7

Hand holding a small white object with a plastic bottle, next to a mechanical device with a grid and fan (no visible text or symbols)

Fig 8

8.3 Carburetor

Oil can and carburetor generally have residual oil. After some time, the residual oil will become greasy oil which will block up the oil line, can incapability of starting the engine. Therefore, when the machine is not used for more than one week, be sure to completely take the fuel out Method: Pull out the oil inlet pipe, press the fuel bubble of the carburet repeatedly for oil discharge, and press the oil inlet pipe back to its po when fuel in the fuel bubble and oil return pipe is emptied.

8.4 Spark Plug

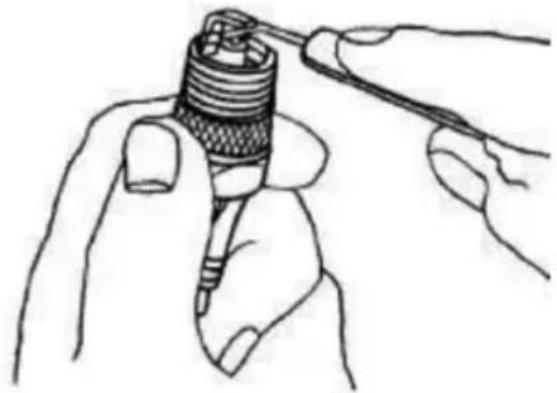

To ensure normal operation of the engine, the spark plug gap must be proper. Remove sediment with a wire brush. Proper gap of the spark 0.5-0.7 mm. See Fig.9

Line drawing of hands holding a screwdriver with a threaded component (no text or symbols)

Fig 9

8.5 Silencer

Regularly remove dirt on inlet and outlet of the muffler, or clean dirt i detergent.

8.6 The cylinder cooling fin Regularly remove dust to ensure timely cooling. The gasoline pile driver is air-cooler type. If dust accumulates on the cylinder heat sink, the cooling effect will be influenced directly which cause bugs of the gasoline pile driver.

8.7 lubrication

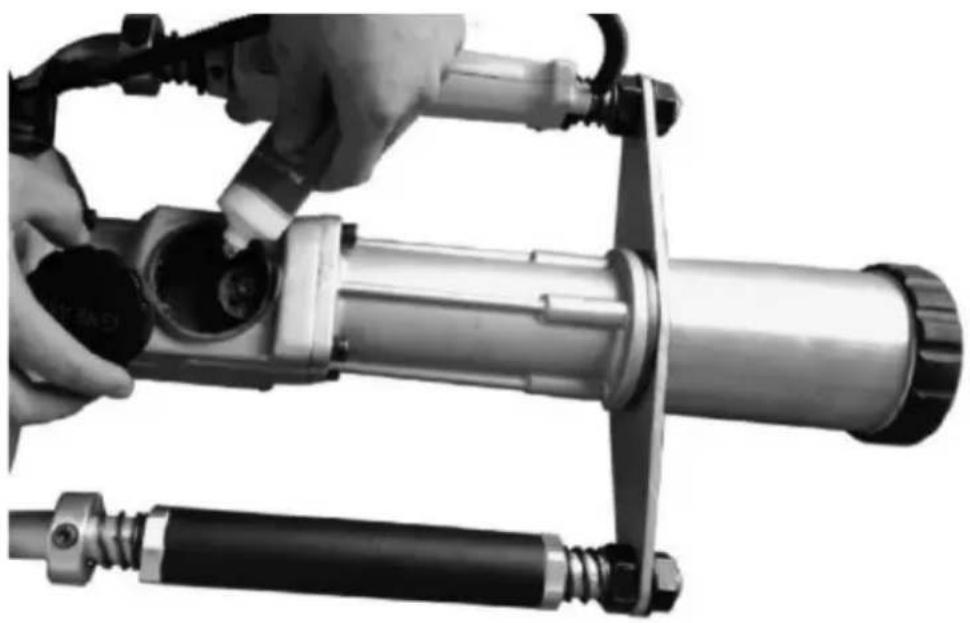

The factory put the grease on the gear box when leaving the factory do not need to add more,or else,the pile driver will not work,After the accumulated working hour reaches 30 hours,it is necessary to add 20-30g grease.See Fig.10.

Close-up of hands operating a mechanical device with attached hoses and fittings (no visible text or symbols)

Fig 10

9.Failure Analysis and Its Eliminating Methods

Problem analysis and solving

Example 1: Difficulties in starting engine in cooling state.


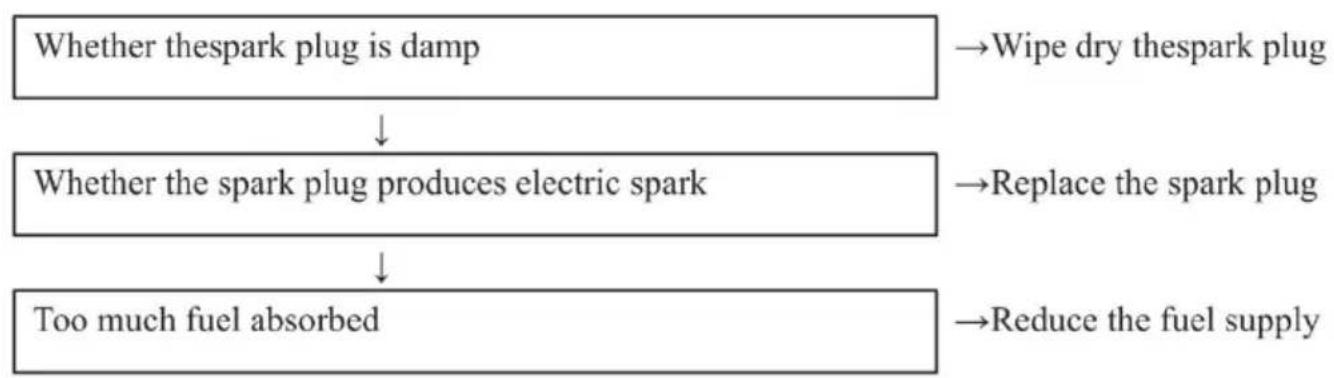

    A["Whether the spark plug is damp"] --> B["Whether the spark plug produces electric spark"]
    B --> C["Too much fuel absorbed"]
    D["Wipe dry the spark plug"] --> A
    E["Replace the spark plug"] --> B
    F["Reduce the fuel supply"] --> C

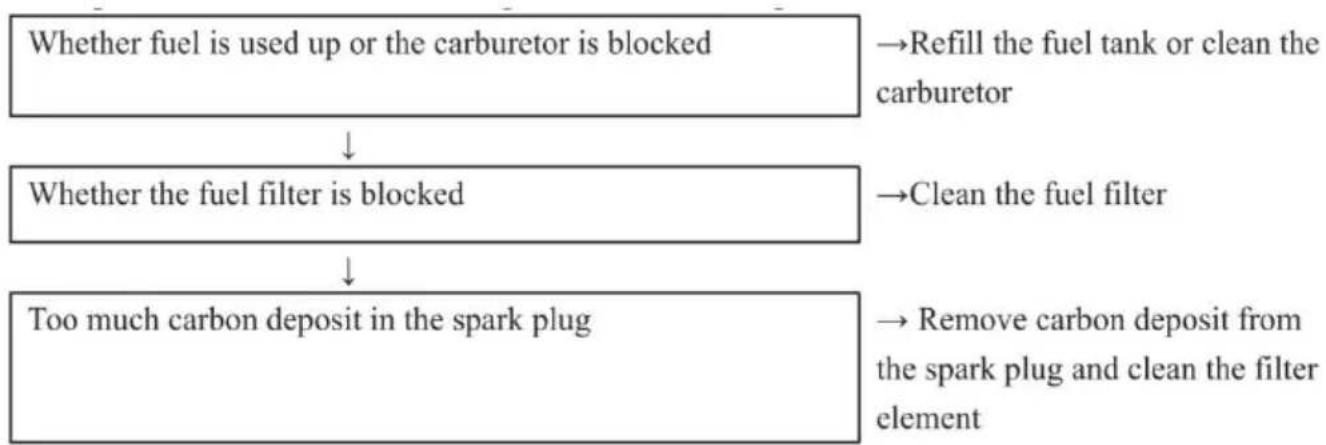

Example 2: Difficulties in restarting after sudden stop.

Example 3: Slow speed and weak power.


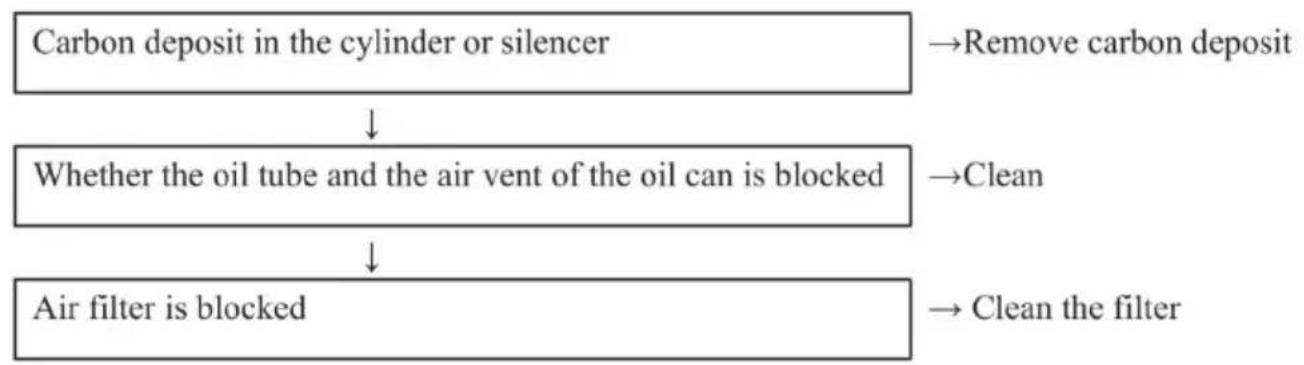

    A["Carbon deposit in the cylinder or silencer"] --> B{Whether the oil tube and the air vent of the oil can is blocked}
    B --> C["Air filter is blocked"]
    A --> D["Remove carbon deposit"]
    B --> E["Clean"]
    C --> F["Clean the filter"]

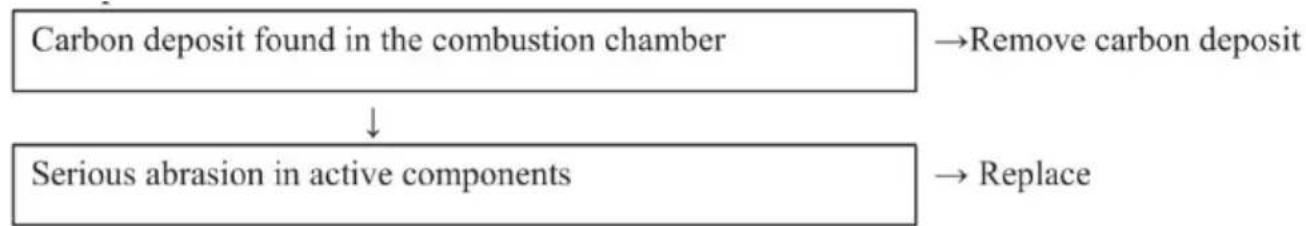

Example 4: Abnormal sound.


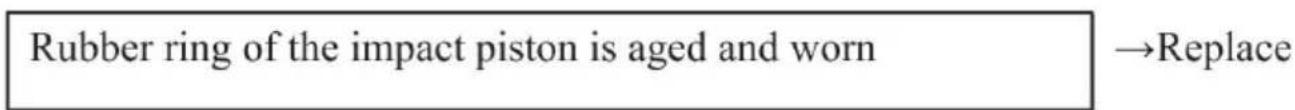

Example 5: The machine is working normally but the work efficiency very low.

Please contact with local sales agent or contractual maintenance site maintenance.

10.Key Data of Product

Model	JH-65
Fuel	Gasoline/4 stroke engine oil
Oil can capacity	0.65L
Displacement	37.7CC
Rated power	1kW
Rated speed	6500r/min
mpact frequency	1500-2000BPM
Impact energy	35J
Starter system	Hand pull start

1. Maintenance Cycle

The following Data are given from the common use of the product.Under working conditions such as dusty environment or long work hours of the driver,the maintenance cycle should be shortened correspondingly.		Before work	After work or every day	Aher Filing oil	Every Week	Every Month	Temporary Failure	If necessary
The whole machin	Outlook check (state,tightness of screws)	√		√
	Clean		√
Control handle/stop button	Function check	√		√
Air Filter	Clean				√			√
	Replace						√
Fuel Filter	Check					√
	Replace						√
Oil can/Oil can cover	Clean		√	√
	Check	√		√
	Tighten							√
Reduction Gear Box/Impact Cylinder	Clean					√
	Add oil							√
Silencer	Check					√
	Remove carbon depos							√
Cylinder Cooling Fin	Check					√
	Clean							√
Spark Plug	Check/Adjust the distance between electrodes					√
	Replace							√
Screw and Nut	Check	√		√
	Tighten							√

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of a black and silver mechanical device with attached tubing and control knobs (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Fig. 1

Figure 2

Hand holding a black paper clip next to a cylindrical metal object, with an arrow indicating upward motion (no text or symbols visible)

Figure 3

4.2 Huile moteur

5. Démarrage

Fig 4

Fig 5

8. Entretien technique

8.1 Filtre à air

Close-up of a mechanical device with visible gears and components (no text or symbols)

Fig 6

Top-down view of a mechanical device with internal components and a bottle (no visible text or symbols)

Fig 7

Hand holding a small white object next to a mechanical device with a grid and plastic casing (no visible text or symbols)

Fig 8

Line drawing of hands holding a mechanical component with a tool (no text or symbols)

Fig 9

8.5 Silencieux

Close-up of a hand using a mechanical tool to adjust a cylindrical component (no visible text or symbols)

Fig 10

Exemple 4: Son anormal.

Machine Translated by Google

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

Zaunpfostentreiber

MODELL: JH-65

Close-up of a mechanical device with black and silver components, no visible text or symbols

Abb. 1

Abb. 2

Hand holding a paper clip next to a cylindrical metal object, with an arrow indicating direction (no text or symbols visible)

Abb. 3

4.2 Motoröl

5. Starten 5.1

Fig 4

Fig 5

Close-up of a mechanical device with visible internal components and no text or symbols

Fig 6

Top-down view of a mechanical device with internal components and a bottle (no visible text or symbols)

Fig 7

Hand holding a small white object with a black plastic container, next to a device with a white handle (no visible text or symbols)

Fig 8

Line drawing of hands holding a mechanical component with a tool (no text or symbols)

Fig 9

8.5 Schalldämpfer

Close-up of hands operating a mechanical device with attached hoses and fittings (no visible text or symbols)

Fig 10

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Close-up of a black and silver mechanical device with attached tubing and control knobs (no visible text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Fig. 1

Figura 2

Hand holding a paper clip next to a cylindrical metal object, with an arrow indicating direction (no text or symbols visible)

Figura 3

4.2 Olio motore

5.Avviamento

Fig 4

Fig 5

Close-up of a mechanical device with visible internal components and no text or symbols

Fig 6

Top-down view of a mechanical device with a cylindrical component and a bottle on a tray (no visible text or symbols)

Fig 7

Close-up of a hand holding a small white object next to a device with a grid and plastic casing (no visible text or symbols)

Fig 8

8.3 Carburatore II

Line drawing of hands holding a mechanical component with a tool (no text or symbols)

Fig 9

8.5 Silenziatore

Close-up of a hand using a mechanical tool to adjust a cylindrical component (no visible text or symbols)

Fig 10

Machine Translated by Google

Importato in Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of a black and silver mechanical device with attached tubing and control knobs (no visible text or symbols)

Figura 1

Figura 2

Hand holding a black paper clip next to a cylindrical metal object, with an arrow indicating upward motion (no text or symbols visible)

Fig. 3

4.2 Aceite de motor

Figure 11

5.Arranque

Fig 4

Close-up of a mechanical air conditioner unit with cooling fan and spray bottle (no visible text or symbols)

Fig 6

Top-down view of a mechanical device with a cylindrical component and a bottle (no visible text or symbols)

Fig 7

Hand holding a small white object next to a mechanical device with a grid and spray bottle (no visible text or symbols)

Fig 8

Line drawing of hands holding a mechanical component with a tool (no text or symbols)

Fig 9

8.5 Silenciador

Close-up of hands operating a mechanical device with attached hoses and fittings (no visible text or symbols)

Fig 10

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

Close-up of a black and silver mechanical device with attached tubing and control knobs (no visible text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Ryc. 1

Ryc. 2

Hand holding a paper clip next to a cylindrical metal object, with an arrow indicating direction (no text or symbols visible)

Ryc. 3

4.2 Olej silnikowy

5.Rozruch 5.1

Fig 4

Fig 5

Close-up of a mechanical air conditioner unit with cooling fan and spray bottle (no visible text or symbols)

Fig 6

Top-down view of a mechanical device with a cylindrical component and a bottle (no visible text or symbols)

Fig 7

Hand holding a small electronic component with a battery, next to a device with a grid and plug (no visible text or symbols)

Fig 8

8.3 Gaźnik Puszka

Line drawing of hands holding a mechanical component with a tool (no text or symbols)

Fig 9

8,5 Tłumik

Close-up of hands operating a mechanical device with attached hoses and fittings (no visible text or symbols)

Fig 10

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Hekpaalchauffeur

MODEL: JH-65

Close-up of a mechanical device with black and silver components, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Figuur 1

Fig. 2

Hand holding a paper clip with an arrow, next to a cylindrical metal object (no text or symbols visible)

Afb. 3

4.2 Motorolie

5.Starten

Fig 4

Fig 5

Close-up of a mechanical air conditioner unit with cooling fan and spray bottle (no visible text or symbols)

Fig 6

Top-down view of a mechanical device with a cylindrical component and a container (no visible text or symbols)

Fig 7

Hand holding a small electronic device with a battery, next to a mechanical device (no visible text or symbols)

Fig 8

8.3 Carburateur

Line drawing of hands using a tool to adjust a mechanical component (no text or symbols present)

Fig 9

8.5 Geluiddemper

Close-up of hands operating a mechanical device with attached hoses and fittings (no visible text or symbols)

Fig 10

9. Foutanalyse en de eliminatiemethoden ervan

Probleemanalyse en oplossing

Machine Translated by Google

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Close-up of a black and silver industrial machine with attached pipes and control knobs (no visible text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Figur 1

Fig 2

Hand holding a paper clip next to a cylindrical metal object, with an arrow indicating direction (no text or symbols visible)

Fig 3

4.2 Motorolja

5.Start 5.1

Fig 4

Close-up of a mechanical device with visible components and no text or symbols

Fig 6

Top-down view of a mechanical device with a cylindrical component and a container (no visible text or symbols)

Fig 7

Hand holding a small white object with a black container, next to a white plastic container (no visible text or symbols)

Fig 8

8.3 Förgasare

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Fig 9

8.5 Ljuddämpare

Close-up of hands operating a mechanical device with attached hoses and fittings (no visible text or symbols)

Fig 10

Exempel 4: Onormalt ljud.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
