USER MANUAL GW-0.5 Vevor

Affordable. Reliable. Home Improvement.

TRANSMISSION JACK

MODEL: GW-0.5D, GW-0.5

MODEL: GW-0.5D GW-0.5

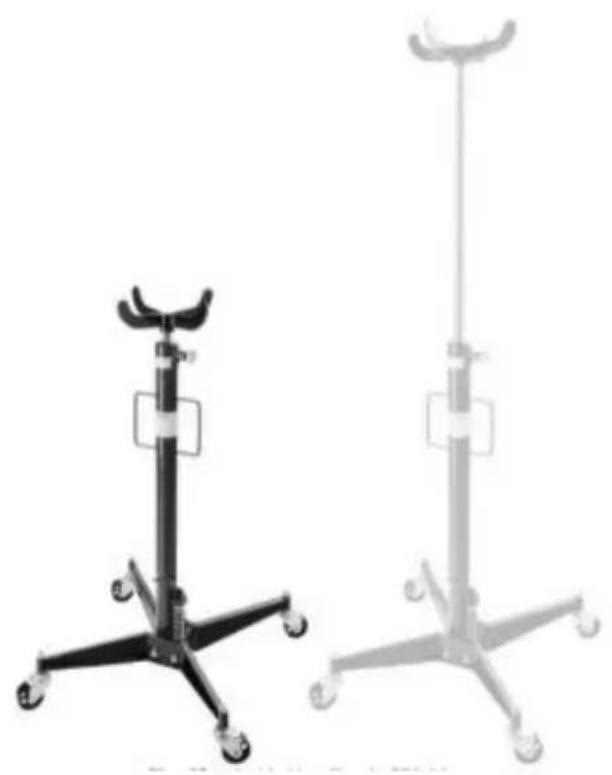

Two identical industrial standing equipment stands with curved legs and wheels, shown from different angles (no text or symbols visible)

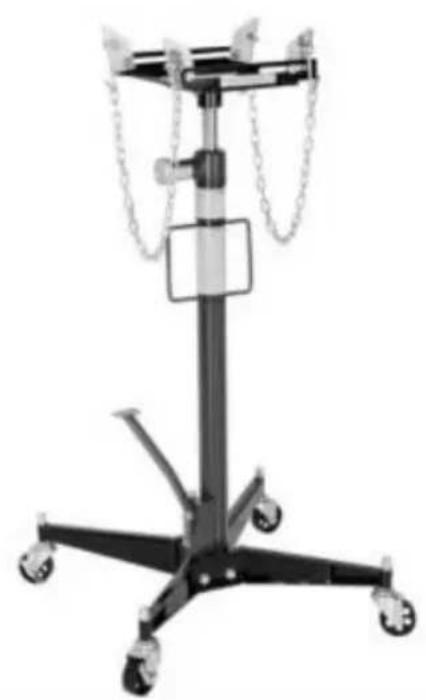

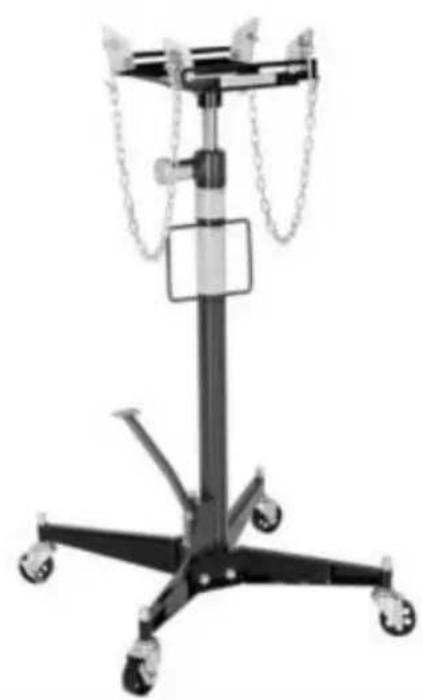

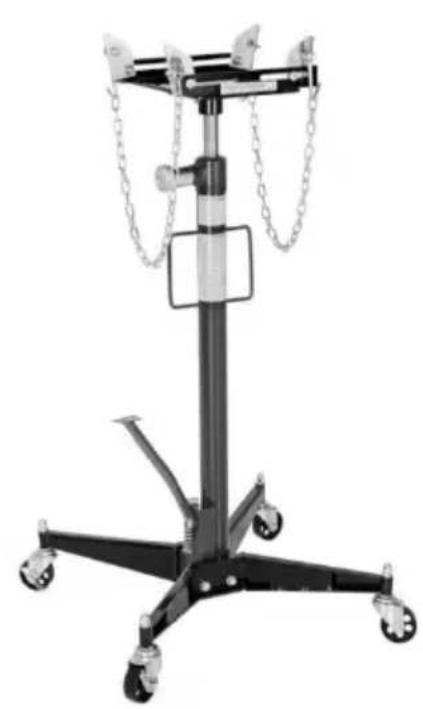

Industrial machine stand with chain and mounting frame (no visible text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury.

CAUTION: Do not allow persons to operate or assemble this jack un have read this manual and have developed a thorough understanding how the jack works.

WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense caution are factors that cannot be built into this product, but must be supplied by the operator.

GENERAL SAFETY RULES

IMPORTANT SAFETY CONSIDERATIONS

JACK USE AND CARE

• Do not modify the Jack in any way. unauthorized modification may the function and /or safety and could affect the life of the equipment are specific applications for which the Jack was designed.
• Always check for damaged or worn out parts before using the Jack Broken parts will affect Jack's operation. Replace or repair damaged or worn parts immediately.
• Store idle Jack. when Jack is not in use, store it in a secure plan the reach of children. Inspect it for good working condition prior to s and before re-use.
• Not for use by children or people with reduced mental capacity.
• Do not use under the influence of drugs or alcohol.
• Ensure children and other bystanders are kept at a safe distance v using product.

INSPECTION

• Inspect the jack carefully before each use. Ensure the jack is not damaged, excessively worn, or missing parts.
• Do not use the jack unless it is properly lubricated.
• Using a jack that is not in good clean working condition or proper lubricated may cause serious injury.
• Inspect the work area before each use. Make sure it is free and any potential hazards.

DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL.

TO maintain the Transmission Jack and user safety, the owner is responsible for reading and following

these instructions.

• Inspect the service jack for proper operation and function.
• Keep instructions readily available for equipment operators. Make certain all equipment operators are properly trained; understand how to safely and correctly operate the unit.
• Allow unit operation only with all parts in place and operating prop
• Use only genuine replacement parts. Service and maintain the unit with authorized or approved replacement parts negligence will make it jack unsafe for use and void the warranty.
• Carefully inspect the unit on a regular basis and perform all maintenance as required.
• Store these instructions in the handle of your jack. Keep all decals unit clean and visible.
• Safety: always follow safety precautions when installing and operating this jack.
• Before proceeding ensure that you fully understand and comprehend full contents of this manual.
• Failure to operate this equipment as directed may cause injury or
• The distributor is not responsible for any damages or injury caused

improper use or neglect.

SAFETY

Always follow safety precautions when installing and operating this jack. Keep all decals on the unit clean and visible. Before proceeding ensure that you fully understand and comprehend the full contents of this main failure to operate this equipment as directed may cause injury or death. The distributor is not responsible for any damages or injury caused by improper use or neglect.

WARNING!

Always use Jack Stands!

DO NOT USE wood blocks or any other non-approved load sustaining devices. The manufacturer only warrants loads to be sustained by jac stands that meet current ASME standards.

DO NOT USE wood blocks or any other non-approved lifting devices means of lifting with the jack and or load being raised. Failure to have these warnings may cause injury or death.

SAFETY MARKINGS

WARNING!

1. Study, understand, and follow all instructions before operating this device.
2. Do not exceed rated capacity.
3. Use only on hard, level surfaces, with less than 3 degrees of slo
4. Adequately support the vehicle before starting repairs.
5. Use of this product is limited to the removal, installation, and transportation in the lowered position, of transmissions, transfer cases, trans axles.
6. No alterations shall be made to this product.
7. Only attachments and/or adapters supplied by the manufacturer sha used.
8. Do not get under or allow anyone under the vehicle until it has supported by jack stands.

9. Center load on saddle prior to lifting.

10. Never use it on a lawn mower or lawn tractor.

11. Do not use this jack for any use other than the manufacturer's usage.
12. Failure to heed these markings may result in personal injury and property damage.

GENERAL SAFETY INSTRUCTIONS

Position the Jack

position the jack to only lift on the areas of the vehicle as specified vehicle manufacturer.

Always Use Jack Stands

After lifting the vehicle always support the load with appropriately rate vehicle Jacks stands before working

on the vehicle.

Do Not Overload Jack

Do not overload this jack beyond its rated capacity. Overloading this beyond its rated capacity can cause damage to or failure of the jack

Always Use on Hard Level Surfaces

This jack is designed only for use on hard level surfaces capable of sustaining the load. Use on unstable or other possible loss of load.

Chock and Block (Stabilize)

Apply parking brake in vehicle before operating jack.

A chock is a wedge for steadying an object and holding it motionles preventing the movement of a wheel Chock the wheel opposite the e being lifted.

When you block a load, you secure and support a load that is being. The block(s) or stabilizer(s) should have a weight capacity that is greater than the weight of the load that is being lifted.

Center Load on Jack Saddle

Center load on jack saddle before lifting vehicle.

Off-center loads and loads lifted when the jack is not level can cause of load or damage to the jack. Do not raise or lower the vehicle under materials and people are clear.

When the lift is being lowered, make sure everyone is standing at left feet away. Be sure there are no tools or equipment left under or ar jack before lowering.

Always lower the jack slowly.

DO NOT USE THE JACK TO SUPPORT OR STABILIZE A LOAD.

Using the jack to support or stabilize a load may result in unexpected movement and result in serious injury, being crushed and death. Always securely chock and block (stabilize) the load to be lifted. Never place part of the body under a raised load without properly chocking and supporting the load.

Never use the jack on curved or tubular vehicle

Bumpers, this will result in the vehicle slipping off the jack and fallin causing serious injury or death. Use a bumper lift to lift most vehicle curved bumpers or plastic bumpers.

Wear ANSI-approved safety glasses and heavy-duty work gloves during use.

Do not adjust the safety valve.

Do not move or dolly vehicle while jack is in use.

Stay alert. Use caution and common sense when operating jack. Do use a jack when tired, incoherent, dizzy, under the use of drugs or Training

Read this manual before use. Do not allow anyone who has not read manual, and/or does not understand the requirements, to use the jack

Spectators

Do not allow bystanders around the jack or under the load supported by the jack. -Do not allow anyone in the vehicle while the jack is in Keep all bystanders away from vehicle when in use.

Inspection

Inspect the jack carefully before each use. Ensure the jack is not done excessively worn, or missing parts. -Do not use the jack unless it is properly lubricated. -Using a jack that is not in good clean working condition or properly lubricated may cause serious injury.

Additional Notes:

Save the receipt, warranty and these instructions.

Do not modify the jack in any way. unauthorized modification may in the function and/or safety and could affect the life of the equipment. are specific applications for which the jack was designed.

Always check for damaged or worn out parts before using the jack. parts will affect the equipment's operation. Replace or repair damaged worn parts immediately.

When jack is not in use, store it in a secure place out of the reach children. Inspect it for good working condition prior to storage and be re-use.

Technical parameters

Model	GW-0.5D	GW-0.5
Supporting Fixtures	Four-arm Claw	Adapter
Max Load	1100lbs	1100lbs
Rated Load	500lbs	500lbs
Lifting Range	44"-73.6"	50"-79.5"

GW-0.5D Part List:

NAME	Picture	Qty
Hydraulic Cylinder		1 PCS
Support Leg		2 PCS
Foot Pedal		1 PCS
Screw		4PCS
Washer		4PCS
Foot Pedal		1 PCS
Spring		1 PCS
Pin		3 PCS
Split Pin		3 PCS
Pressure Cover		1 PCS
Wheel		4 PCS
Four-arm Claw		1 PCS

GW-0.5 Part List:

NAME	Picture	Qty
Hydraulic Cylinder		1 PCS
Support Legs		2 PCS
Foot Pedal		1 PCS
Screw		4PCS
Washer		4PCS
Connecting Rod		1 PCS
Spring		1 PCS
Pin		3 PCS
Split Pin		3 PCS
Pressure Cover		1 PCS
Wheel		4 PCS
Adapter Component		1 PCS

OPERATION

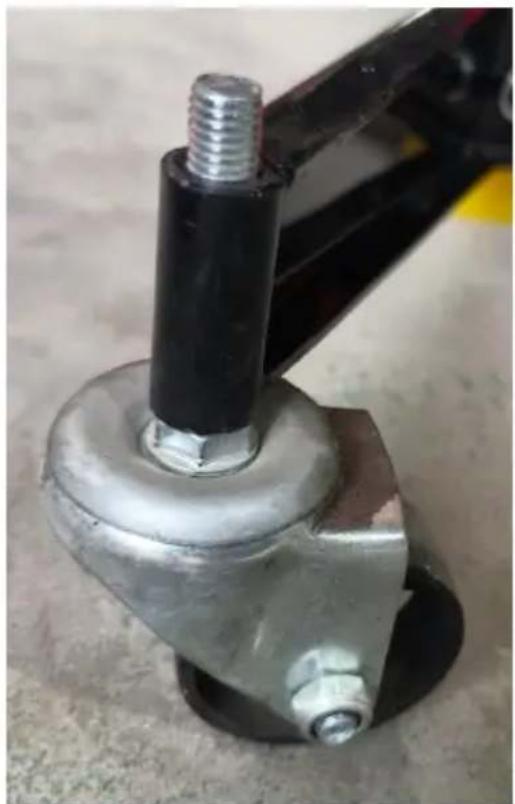

Close-up of a mechanical lever with a metallic base and threaded shaft (no text or symbols visible)

Close-up of a mechanical lever assembly with a metallic cylindrical head and bolted joint (no visible text or symbols)

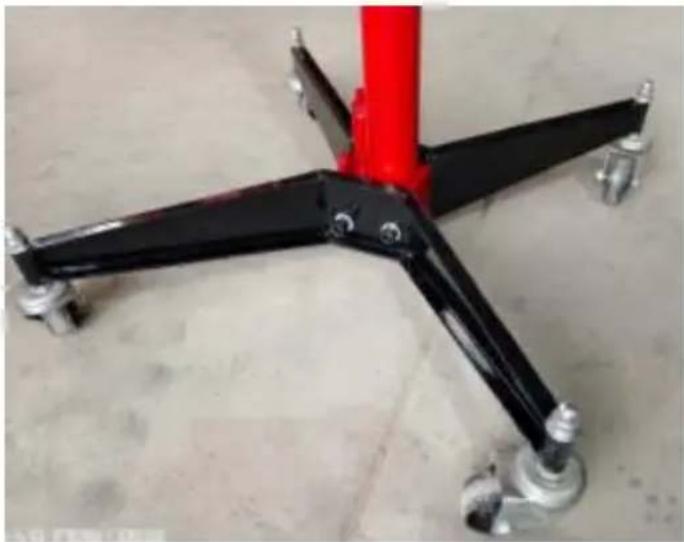

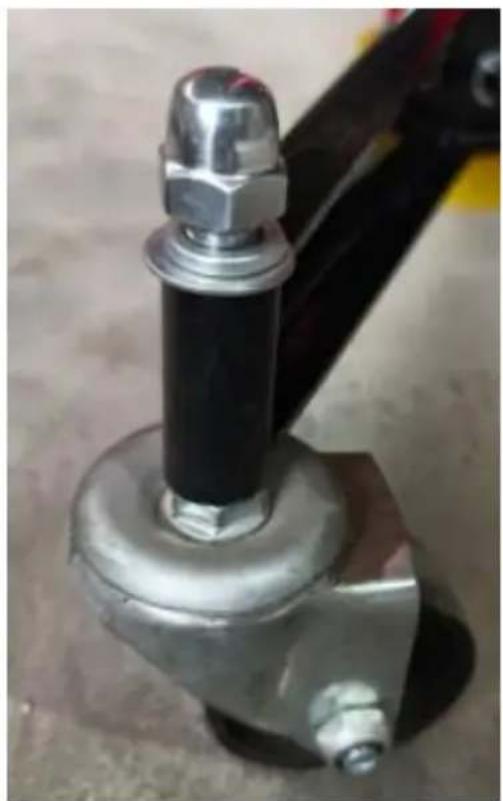

1. Install the Wheels.

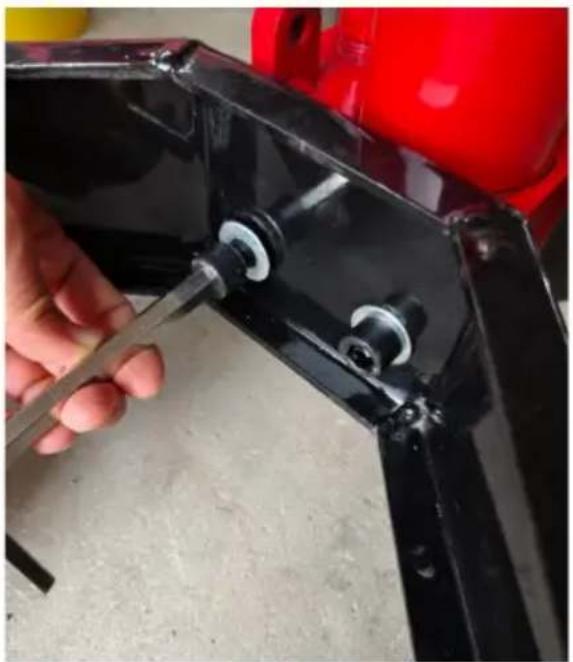

Close-up of a hand using a tool to adjust or repair a black metal bracket component, with red equipment in the background (no visible text or symbols)

Close-up of a red cylindrical mechanical stand with four black arms and metal wheels, placed on a concrete floor (no text or symbols visible)

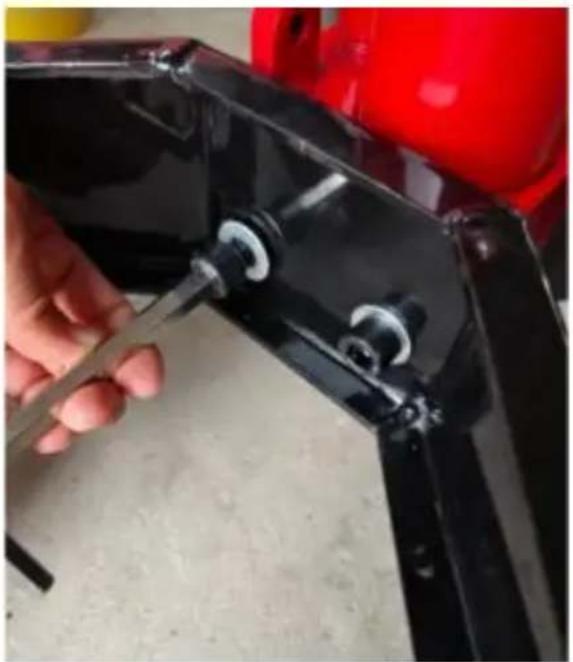

1. Install the Support Legs

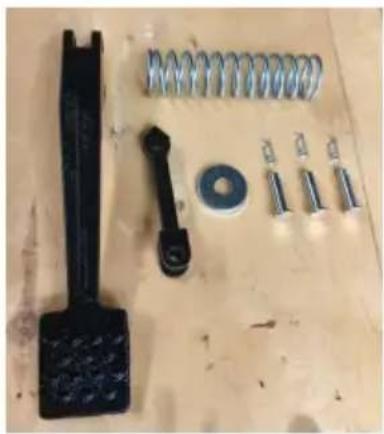

Collection of mechanical components including a black tool, spring, screw, and four metallic pins on a light surface (no text or symbols visible)

Close-up of a black mechanical lever handle and lever arm on a wooden surface (no text or symbols visible)

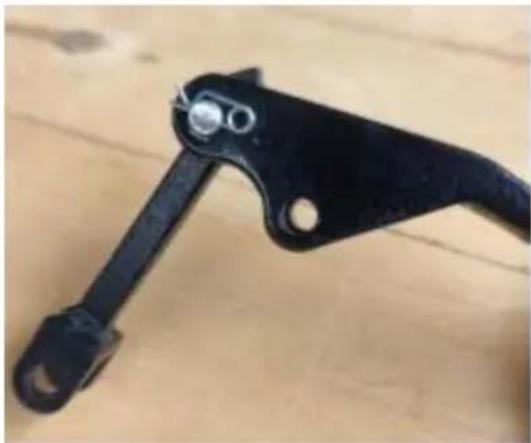

1. Install the Foot Pedal and Connecting Rod.

Close-up of a red mechanical spring assembly with black frame (no text or symbols visible)

Close-up of hands adjusting a red mechanical component with a spring and black clamp (no visible text or symbols)

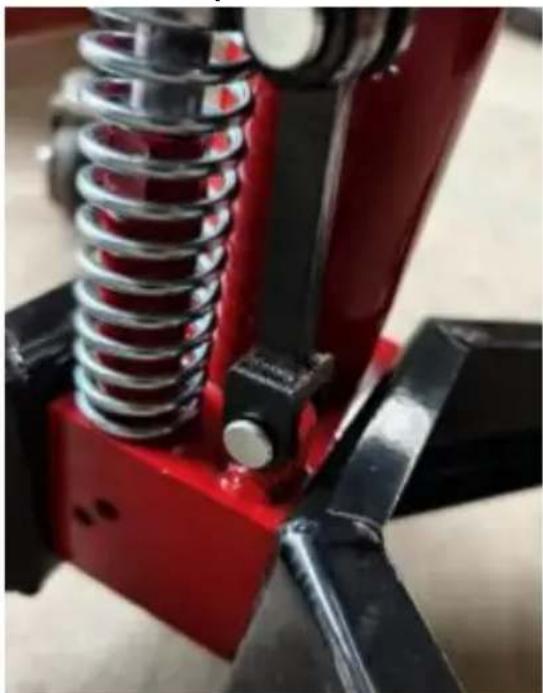

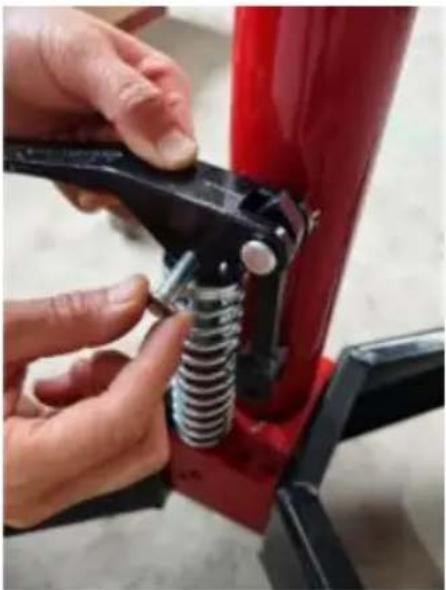

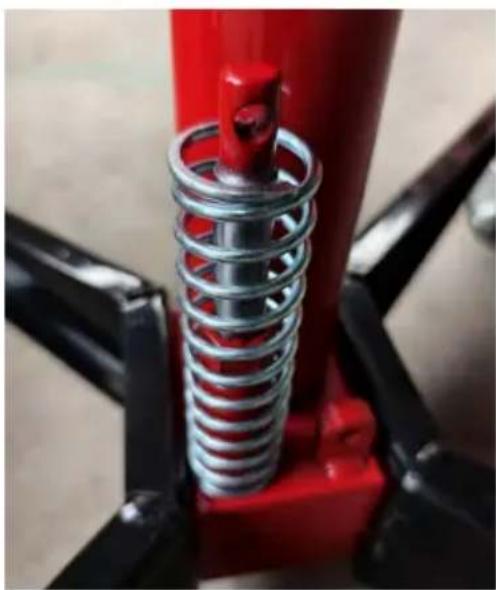

1. Install the Spring and Foot Pedal.


Close-up of a red and black mechanical device with a spring attached, showing no visible text or symbols.

Close-up of a red and black mechanical spring assembly with no visible text or symbols

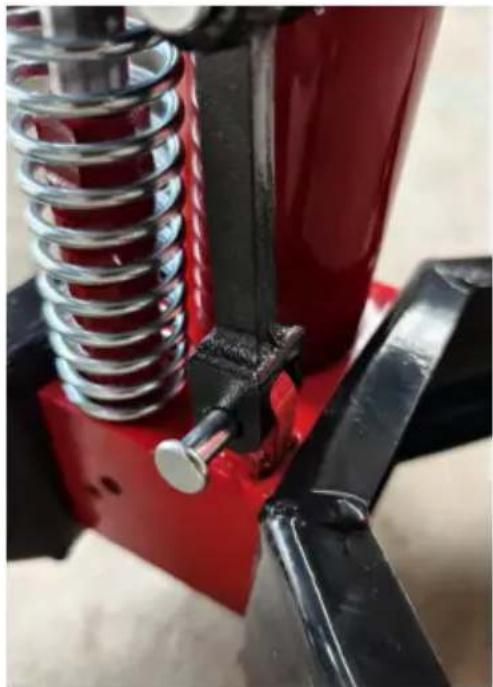

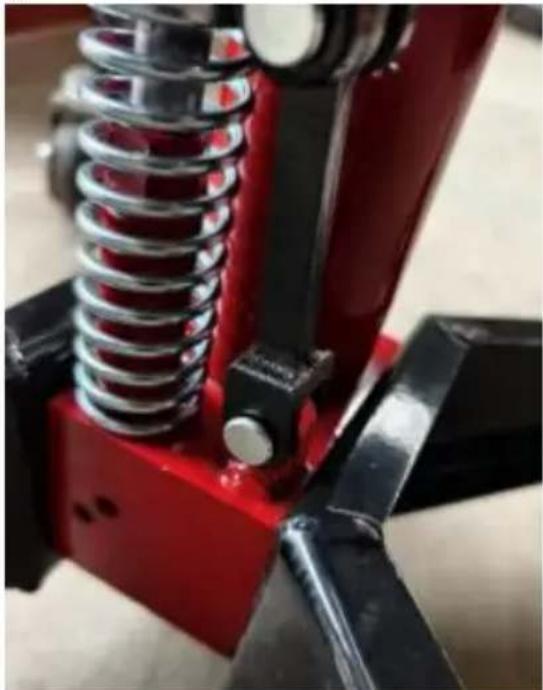

1. Install the Connecting Rod.

Hand holding a black wind turbine blade mounted on a red stand, with no visible text or symbols.

Close-up of a red industrial machine with four black blades mounted on a cylindrical base (no visible text or symbols)

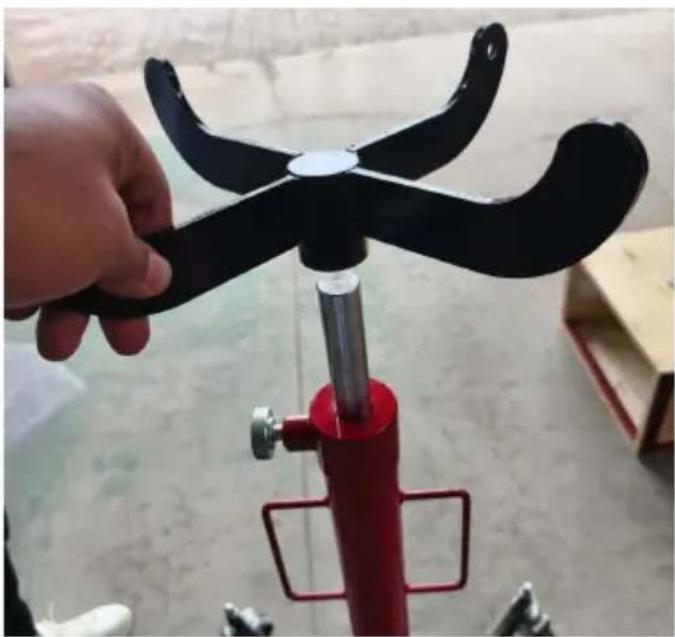

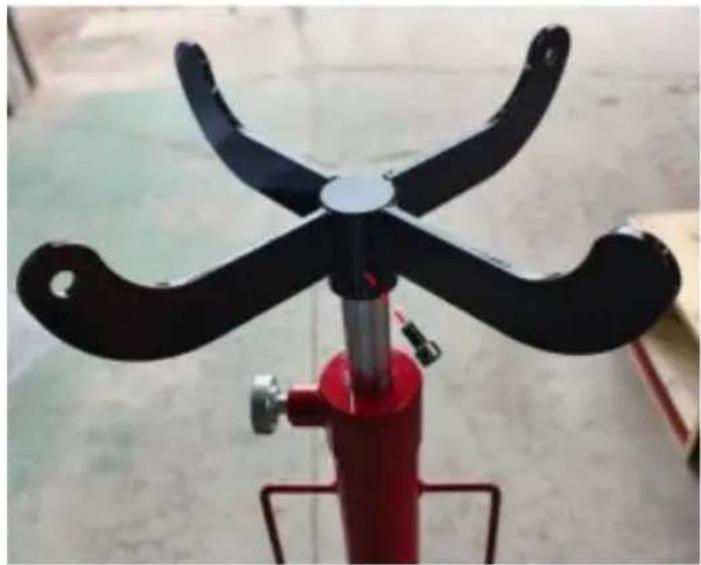

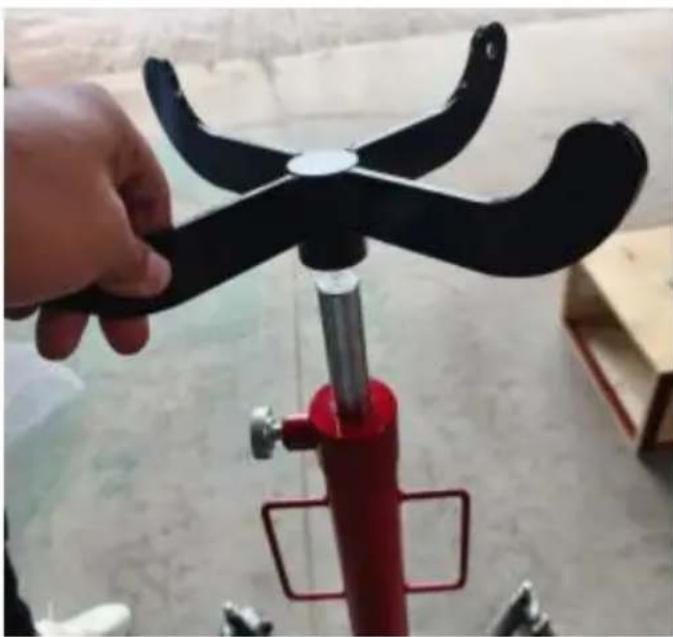

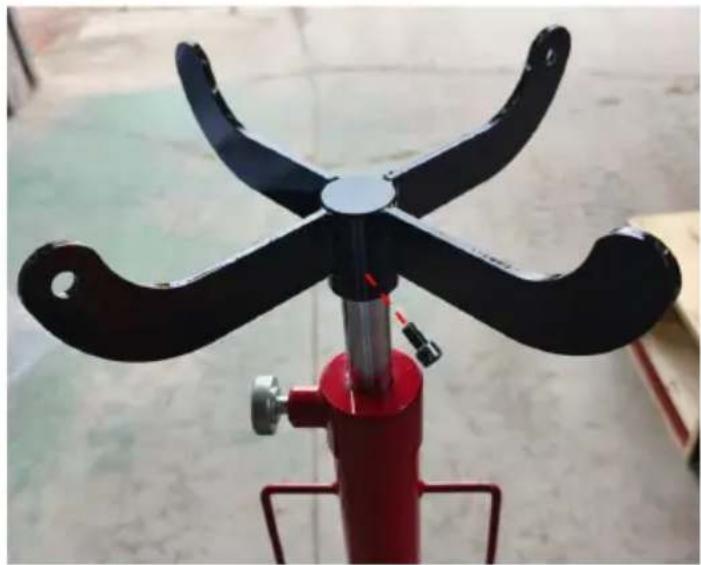

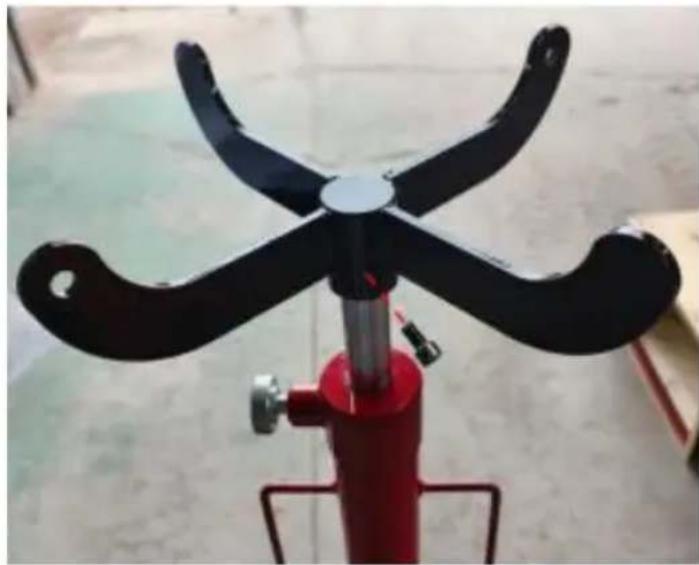

1. Install the Four-arm Claw, tighten the screws.

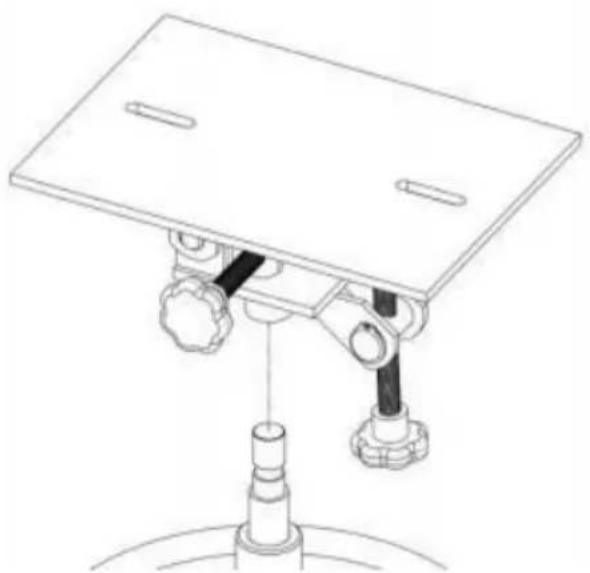

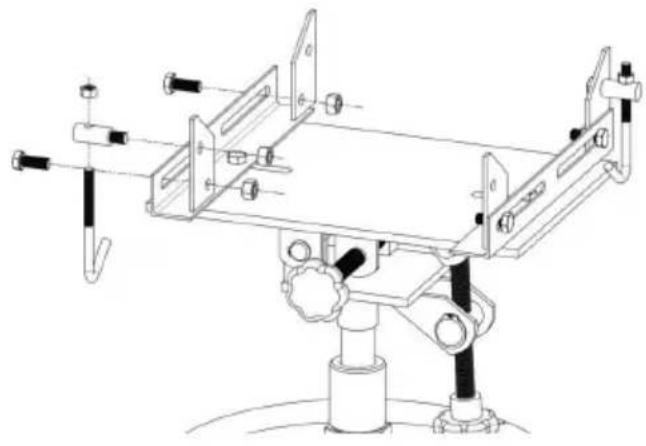

Install the Adapter Component ( just for GW-0.5 ).

Technical line drawing of a mechanical support device with mounting base and lever mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with bolts and components (no text or symbols)

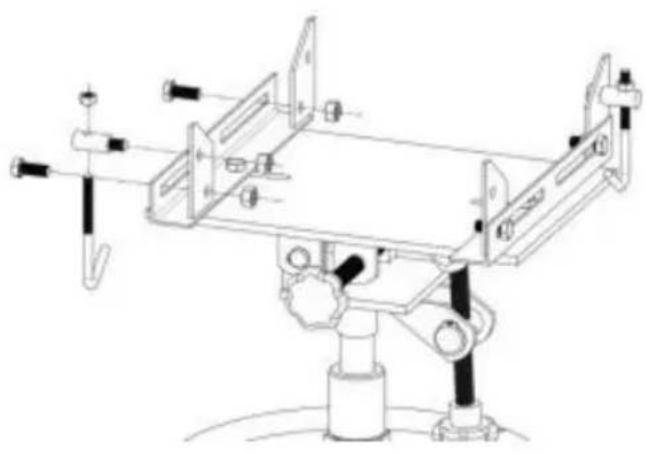

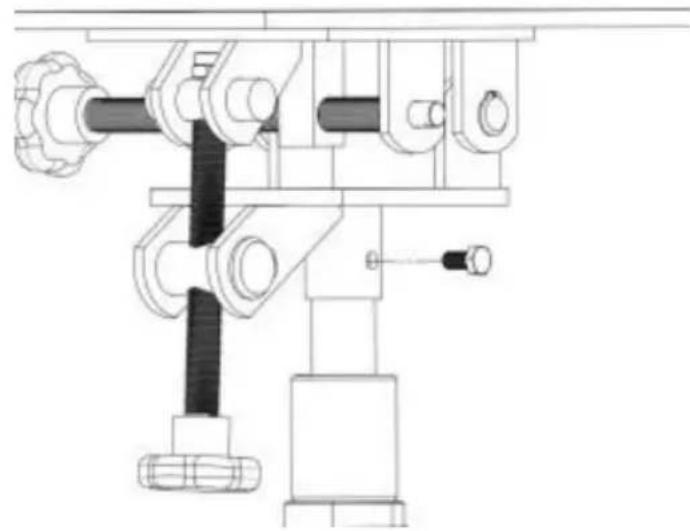

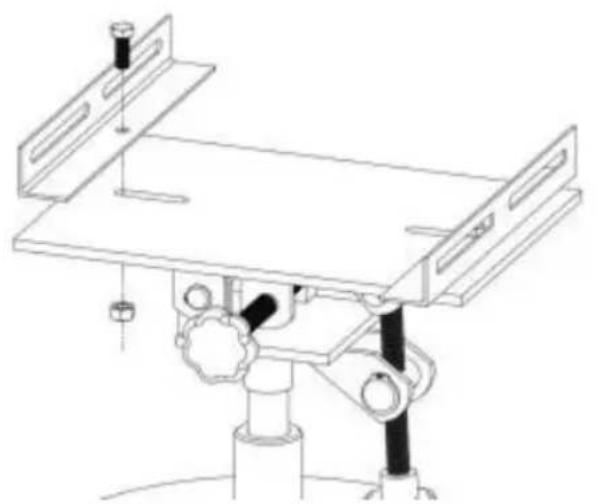

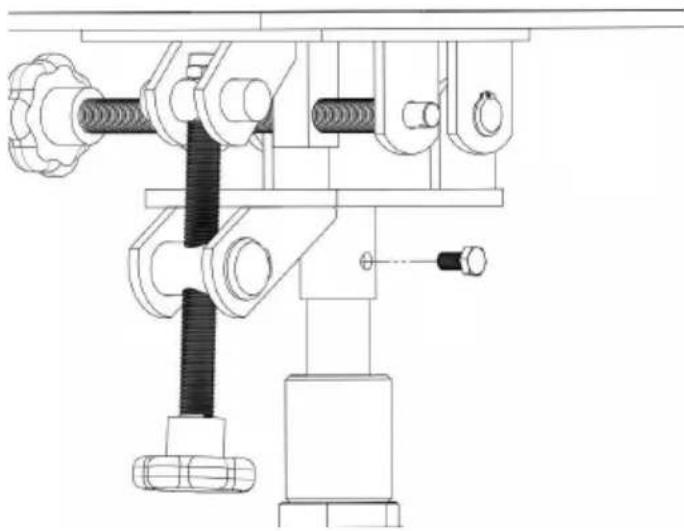

Step 1: Install the tray (saddle) Step 2: Install the tray fixing screw oil cylinder.

Technical line drawing of a mechanical assembly with mounting brackets and a central support (no text or symbols)

Technical line drawing of a mechanical clamp or support structure with no visible text or symbols

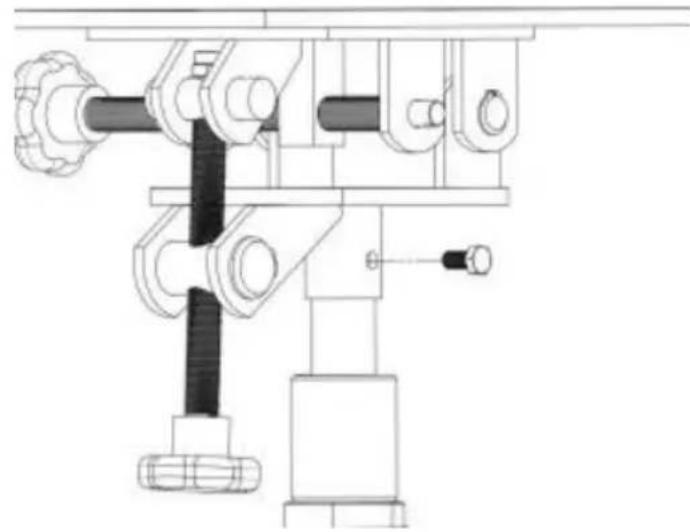

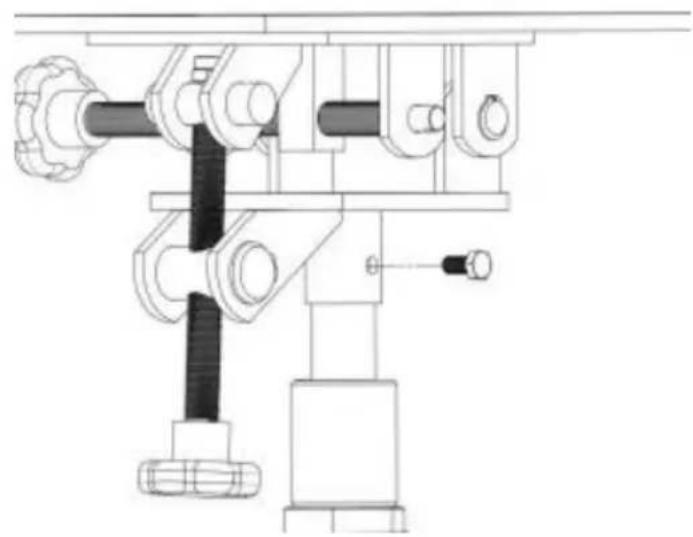

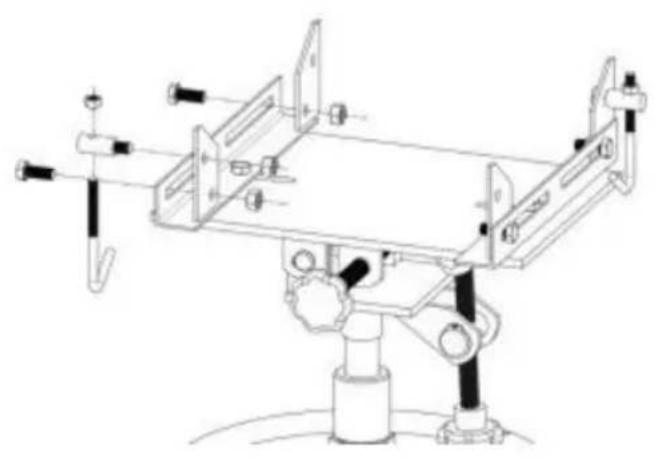

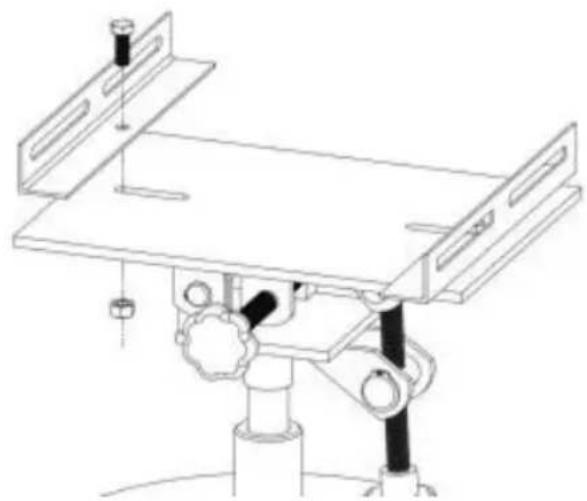

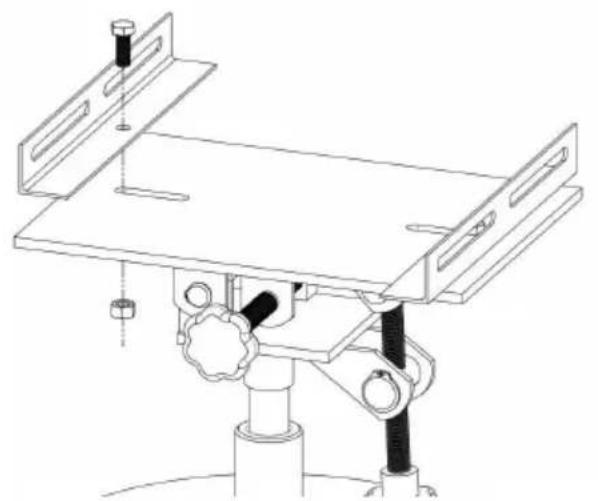

Step 3: Install the corner iron or Step 4: Install the trapezoidal iron tray (saddle). sheet on the corner iron.

Technical line drawing of a mechanical clamp or bracket assembly with chains and bolts (no text or symbols)

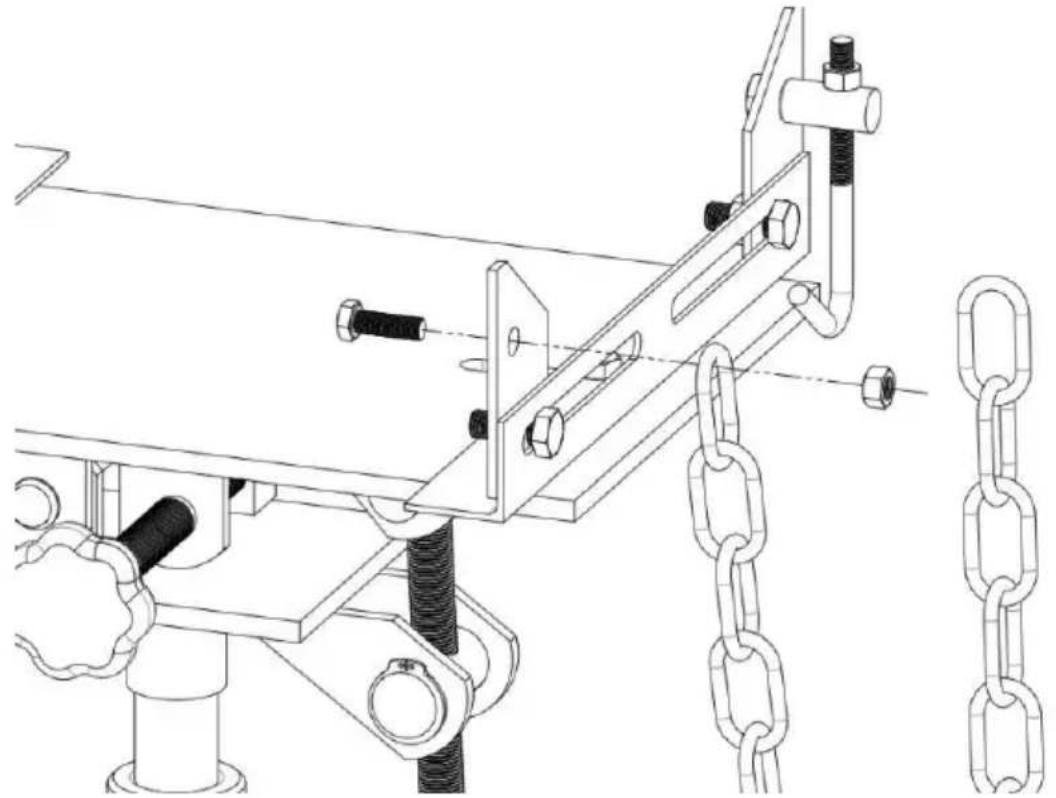

Step 5: The installation chain is installed on the trapezoidal iron pl M8 * 16 bolts, 4 M8 nuts, 2 hook bolts, 2 M10 studs, 2 M10 ni requiring a 7mm open wrench and a 14mm open wrench)

For more detailed installation steps, please refer to the video on website.

1) RAISING THE JACK

1. Before use, ensure the transmission weight and size do not exceed the capacity of the jack.
2. Ensure the vehicle from which the gearbox is removed is correctly positioned.
3. Check handbrake is applied and raised to allow the transmission j be positioned correctly.
4. Ensure there are no other persons around or under the vehicle.
5. Ensure saddle is in its lowest position and use handle to transport centrally position jack beneath vehicle transmission.
6. Assemble the handle, ensure it aligns with slots.
7. Close the release valve by turning it clockwise until it is firmly close
8. Pump handle to lift until saddle contacts load. Continue to pump 1 jack handle to lift the vehicle to the desired height.
9. After lifting, support the load appropriately before removing transmission.

2) LOWERING THE JACK

1. Support the load with appropriate means before removing transmiss Check to make sure the transmission is stable on the jack saddle a load is fixed in place before attempting to lift, lower, or transport.
2. Grasp the handle firmly with both hands. Securely hold on to the jack handle so your hands do not slip and ensure the release valve not rapidly lower.
3. Carefully open the Release Valve by slowly turning the handle counterclockwise. (Do not allow bystanders around the jack or under 1

load when lowering the jack.)

1. Lower saddle to the lowest height before attempting to transport lo

3) TRANSPORTING THE LOAD

1. Ensure the jack saddle is fully lowered and load is secure before attempting to lift, lower, or transport transmission.
2. Transport the load over level and solid ground, preferably concrete ensure the floor is swept clean before transporting load.
3. Be diligent in continually monitoring the load in transit. Keep all other persons at a safe distance.
4. DO NOT use on asphalt, or any soft surface as jack may sink causing damage to transmission or personal or injury/harm may result.
5. WARNING: If jack tips or leans STOP WHAT YOU ARE DOING. M QUICKLY TOA SAFE DISTANCE. DO NOT TRY TO HOLD OR STEA JACK to prevent personal injury and/or property damage.

4) RE-INSTALLING A GEARBOX

1. Ensure the jack saddle is fully lowered and load is secure before attempting to lift or transport transmission.
2. Transport the load over level and solid ground, preferably concrete, ensure the floor is swept clean before transporting load.
3. Be diligent in continually monitoring the load in transit. Keep all other persons at a safe distance.
4. DO NOT use on asphalt, or any soft surface as jack may sink causing damage to transmission or personal injury/harm may result.

MAINTENANCE INSTRUCTIONS

1) Inspection

You should inspect the product for damage, wear, broken or missing (e.g.:pins) and that all components function before each use.

2) Binding

If the product does not descend when under load, please use heavy objects to safely lower it. After lowering, clean and lubricate the equip and check if it's functioning properly.

Parts that are rusted or show significant wear can result in the product inability to descend.

After cleaning and lubricating the equipment, test it without any load. fails to descend again, please contact customer service.

3) Lubrication

This equipment will not operate safely without proper lubrication. Using the equipment without proper lubrication will result in poor performance and damage to the equipment. Some parts in this equipment are not self-lubricating; inspect the equipment before use and lubricate when necessary. After cleaning, lubricate the equipment using light penetratin oil, or a lubricating spray.

• Use a good lubricant on all moving parts.
• For light duty use lubrication once a month.
• For heavy and constant use, lubrication is recommended every week
• NEVER USE SANDPAPER ORABRASIVE MATERIAL ON THESE SURFACES!

4) Rust Prevention:

- Check ram's and pump plungers on the power unit assemblies daily any signs of rust or corrosion. Without a load lift the equipment as as it goes and look under and behind the lifting points. If signs of visible clean as needed.

5) Storing the Jack

1. Lower the LiftingArm.
2. Place the handle in the upright position.
3. Store in a dry location, recommended indoors.

Note: If the jack is stored outdoors, be sure to lubricate all parts be and after use to ensure the jack stays in good working condition.

Scope of application

Use for the transportation of all kinds of automobile gearbox, transmis shaft, front and rear axles, etc

Common fault analysis

FaultPhenomenon	Failure Cause	Solution
The LadderDeformation	The Actual Load WeightExceeds The MaximumProduct Load	In Use, The Actual LoaWeight Does Not ExceedThe Maximum ProductLoad

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong 11 hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

CRIC DE TRANSMISSION

MODÈLE : GW-0.5D , GW-0.5

MODÈLE : GW-0.5D GW-0.5

Two identical industrial equipment stands with curved arms and legs, shown from different angles (no text or symbols visible)

Black industrial machine stand with wheels and hanging weights (no visible text or symbols)

Close-up of a mechanical lever with a metallic base and threaded shaft (no text or symbols visible)

Close-up of a mechanical lever assembly with a metallic cylindrical head and bolt, mounted on a metal frame (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black metal bracket with white bolts, against a red background (no text or symbols visible)

Close-up of a red and black mechanical support structure with four wheels, placed on a concrete floor (no text or symbols visible)

Collection of mechanical components including a black pushpin, spring, screw, and bolts on a wooden surface (no text or symbols visible)

Close-up of a black mechanical lever handle and lever arm on a wooden surface (no text or symbols visible)

Close-up of a red mechanical spring assembly with black frame supports (no text or symbols visible)

Close-up of hands adjusting a red mechanical component with a spring and black handle (no visible text or symbols)

Close-up of a red and black mechanical device with a spring attached, no visible text or symbols

Close-up of a red and black mechanical device with coiled spring and mounting bracket (no visible text or symbols)

Hand holding a black four-blade propeller on a red stand, with no visible text or symbols.

Close-up of a black four-blade industrial fan or propeller mounted on a red cylindrical stand, with no visible text or symbols.

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with chains and bolts (no text or symbols)

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

GETRIEBEHEBER

MODELL: GW-0.5D, GW-0.5

MODELL: GW-0.5D GW-0.5

Two identical industrial equipment stands with curved arms and legs, shown from different angles (no text or symbols visible)

Black industrial machine stand with wheels and hanging weights (no visible text or symbols)

Close-up of a mechanical lever with a metallic base and threaded shaft (no text or symbols visible)

Close-up of a mechanical lever assembly with a metallic cylindrical head and bolt, mounted on a metal frame (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black metal bracket with white bolts, against a red background (no text or symbols visible)

Close-up of a red and black mechanical support structure with four wheels, placed on a concrete floor (no text or symbols visible)

Collection of mechanical components including a black lever, spring, screw, and bolts on a wooden surface (no text or symbols visible)

Close-up of a black mechanical lever handle and lever arm on a wooden surface (no text or symbols visible)

Close-up of a red mechanical spring assembly with black frame supports (no text or symbols visible)

Close-up of hands adjusting a red mechanical component with a spring and black handle (no visible text or symbols)

Close-up of a red and black mechanical device with a spring attached, no visible text or symbols

Close-up of a red and black mechanical spring assembly with no visible text or symbols

Hand holding a black four-blade propeller on a red stand, with no visible text or symbols.

Close-up of a black four-blade industrial fan or propeller mounted on a red cylindrical stand, with no visible text or symbols.

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with chains and components (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

CRIC DI TRASMISSIONE

MODELLO: GW-0.5D, GW-0.5

MODELLO: GW-0.5D GW-0.5

Two identical industrial standing equipment stands with curved arms and wheels, shown from different angles (no text or symbols visible)

Black industrial machine stand with wheels and hanging weights (no visible text or symbols)

Close-up of a mechanical lever with a metallic base and threaded shaft (no text or symbols visible)

Close-up of a mechanical lever assembly with a metallic cylindrical head and bolted joint (no visible text or symbols)

1. Installare le ruote .

Close-up of a hand using a tool to adjust or install a black metal bracket with white bolts, against a red background (no text or symbols visible)

Close-up of a red and black mechanical support structure with four wheels, placed on a concrete floor (no text or symbols visible)

Collection of mechanical components including a black lever, spring, screw, and bolts on a wooden surface (no text or symbols visible)

Close-up of a black mechanical lever handle and lever arm on a wooden surface (no text or symbols visible)

Close-up of a red mechanical spring assembly with black frame supports (no text or symbols visible)

Close-up of hands adjusting a red mechanical component with a spring and black handle (no visible text or symbols)

Close-up of a red and black mechanical device with a spring and bolt, no visible text or symbols

Close-up of a red and black mechanical spring assembly with no visible text or symbols

Hand holding a black four-blade propeller on a red stand, with no visible text or symbols.

Close-up of a red industrial fan or turbine with four blades mounted on a cylindrical base (no visible text or symbols)

Technical line drawing of a mechanical support device with mounting base and vertical supports (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with chains and components (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

GATO DE TRANSMISIÓN

MODELO: GW-0.5D, GW-0.5

MODELO: GW-0.5D GW-0.5

Two identical industrial equipment stands with curved arms and legs, shown from different angles (no text or symbols visible)

Black industrial machine stand with wheels and hanging weights (no visible text or symbols)

Close-up of a mechanical lever with a metallic base and threaded shaft (no text or symbols visible)

Close-up of a mechanical lever assembly with a metallic cylindrical head and bolt, mounted on a metal frame (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a black metal bracket with white bolts, against a red background (no text or symbols visible)

Close-up of a red and black mechanical support structure with four wheels, placed on a concrete floor (no text or symbols visible)

Collection of mechanical components including a black lever, spring, screw, and bolts on a wooden surface (no text or symbols visible)

Close-up of a black mechanical lever handle and lever arm on a wooden surface (no text or symbols visible)

Close-up of a red mechanical spring assembly with black frame supports (no text or symbols visible)

Close-up of hands adjusting a red mechanical component with a spring and black handle (no visible text or symbols)

Close-up of a red and black mechanical device with a spring and bolt, no visible text or symbols

Close-up of a red and black mechanical spring assembly with no visible text or symbols

1. Instalar el Biela.

Hand holding a black four-blade propeller on a red stand, with no visible text or symbols.

Close-up of a red industrial machine with four black blades mounted on a cylindrical base (no visible text or symbols)

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Paso 1 : Instale la bandeja (sill el cilindro de aceite .
Paso 2 : Instale los tornillos de de la bandeja

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with chains and components (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Two identical industrial equipment stands with curved arms and legs, shown from different angles (no text or symbols visible)

Black industrial machine with four wheels and a vertical stand, no visible text or symbols

Close-up of a mechanical lever with a metallic base and threaded shaft (no text or symbols visible)

Close-up of a mechanical lever assembly with a metallic cylindrical head and bolt, mounted on a metal frame (no visible text or symbols)

1. Zamontuj koła .


Close-up of a hand using a tool to adjust or install a black metal bracket with white bolts, against a red background (no text or symbols visible)

Close-up of a red and black mechanical support structure with four wheels, placed on a concrete floor (no text or symbols visible)

1. Zainstaluj Nogi podporowe

Collection of mechanical components including a black lever, spring, screw, and bolts on a wooden surface (no text or symbols visible)

Close-up of a black mechanical lever handle and lever arm on a wooden surface (no text or symbols visible)

Close-up of a red mechanical spring assembly with black frame supports (no text or symbols visible)

Close-up of hands adjusting a red mechanical component with a spring and black handle (no visible text or symbols)

Close-up of a red and black mechanical device with a spring attached, no visible text or symbols

Close-up of a red and black mechanical spring assembly with no visible text or symbols

Hand holding a black four-blade propeller on a red stand, with no visible text or symbols.

Close-up of a red industrial fan or turbine with four blades, mounted on a cylindrical stand (no visible text or symbols)

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with chains and components (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

TRANSMISSIE KRIK

MODEL: GW-0.5D, GW-0.5

MODEL: GW-0.5D GW-0.5

Two identical industrial equipment stands with curved arms and legs, shown from different angles (no text or symbols visible)

Black industrial machine stand with wheels and hanging weights (no visible text or symbols)

Close-up of a mechanical lever with a metallic base and threaded shaft (no text or symbols visible)

Close-up of a mechanical lever assembly with a metallic cylindrical head and bolt, mounted on a metal frame (no visible text or symbols)

1. Monteer de wielen .

Close-up of a hand using a tool to adjust or install a black metal bracket with white bolts, against a red background (no text or symbols visible)

Close-up of a red and black mechanical support structure with four wheels, placed on a concrete floor (no text or symbols visible)

Collection of mechanical components including a black lever, spring, screw, and bolts on a wooden surface (no text or symbols visible)

Close-up of a black mechanical lever handle and lever arm on a wooden surface (no text or symbols visible)

Close-up of a red mechanical spring assembly with black frame supports (no text or symbols visible)

Close-up of hands adjusting a red mechanical component with a spring and black handle (no visible text or symbols)

Close-up of a red and black mechanical device with a spring and bolt, no visible text or symbols

Close-up of a red and black mechanical spring assembly with no visible text or symbols

Hand holding a black propeller with four blades mounted on a red stand, no visible text or symbols

Close-up of a red industrial machine with four blades mounted on a cylindrical base (no visible text or symbols)

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with chains and components (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

VÄXELLÅDANS DOMKRAFT

MODELL: GW-0.5D, GW-0.5

MODELL: GW-0.5D GW-0.5

Two identical industrial standing equipment stands with curved arms and wheels, shown from different angles (no text or symbols visible)

Black industrial machine with four wheels and a vertical stand, no visible text or symbols

Close-up of a mechanical lever with a metallic base and threaded shaft (no text or symbols visible)

Close-up of a mechanical lever assembly with a metallic cylindrical head and bolt, mounted on a metal frame (no visible text or symbols)

1. Montera hjulen .


Close-up of a hand using a tool to adjust or install a black metal bracket with white bolts, against a red background (no text or symbols visible)

Close-up of a red and black mechanical support structure with four wheels, placed on a concrete floor (no text or symbols visible)

1. Installera Stödben

Collection of mechanical components including a black lever, spring, screw, and bolts on a wooden surface (no text or symbols visible)

Close-up of a black mechanical lever handle and lever arm on a wooden surface (no text or symbols visible)

Close-up of a red mechanical spring assembly with black frame supports (no text or symbols visible)

Close-up of hands adjusting a red mechanical component with a spring and black handle (no visible text or symbols)

Close-up of a red and black mechanical device with a spring and bolt, no visible text or symbols

Close-up of a red and black mechanical spring assembly with no visible text or symbols

Hand holding a black four-blade propeller on a red stand, with no visible text or symbols.

Close-up of a red industrial machine with four black blades mounted on a cylindrical base (no visible text or symbols)

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Steg 1 : Montera brickan (sadelr Steg 2 : Montera fackets fästskruv oljecylindern .

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with articulated arms and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with chains and components (no text or symbols)

Steg 5 : Installationskedjan installeras på den trapetsformade järnplattan (2 M8 * 16 bultar, 4 M8-muttrar, 2 hakbultar, 2 M10-pinnar, 2 M10-muttrar, 2 kedjor,

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
